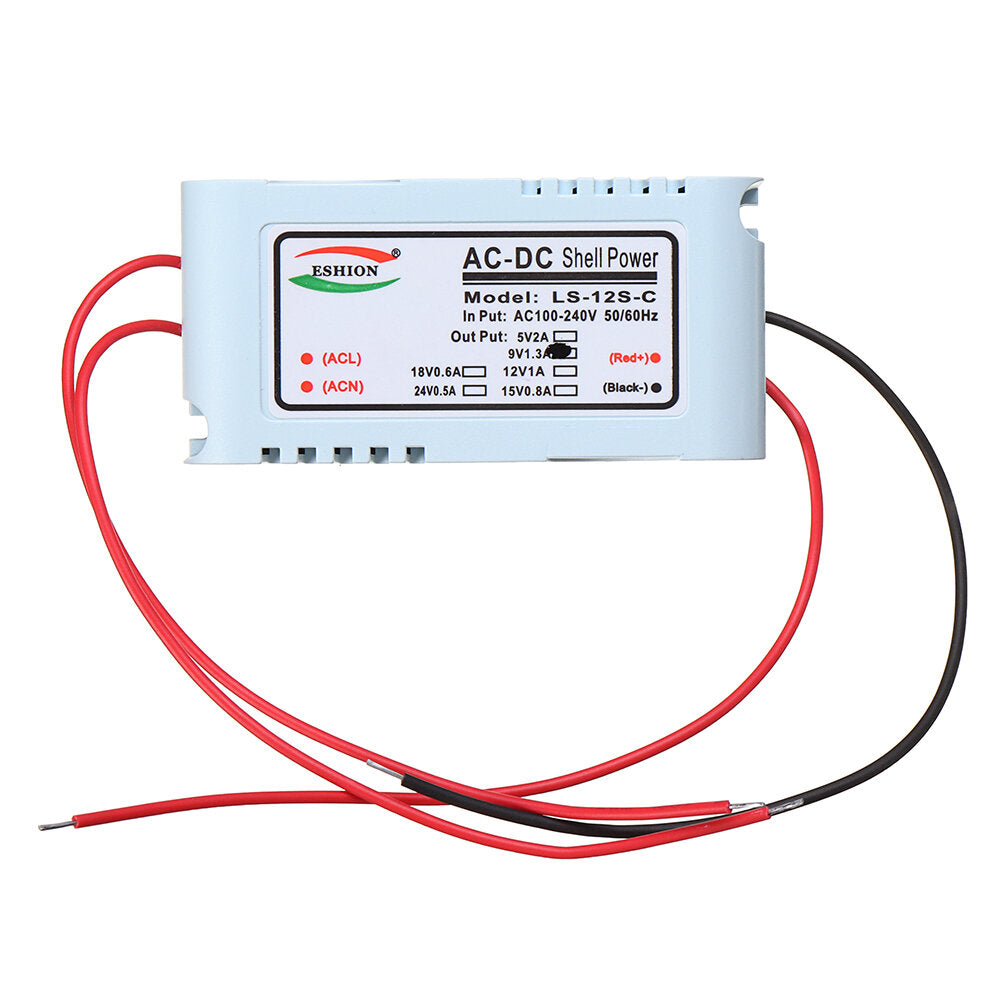

Yushun LS-12S Switching Power Supply Module 220V to 5V 9V 12V 24V 12W Monitoring LED Power Supply White Shell


Isaiah 55:8-9 John 3:16 Philippians 4:19
Voltage: Voltage 9V
Price:
Sale priceR 326.76 Regular priceR 500.00
Stock:
Sold out



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Features:

1. Wide input voltage range
2. With overload, short circuit, and undervoltage protection functions
3. Small size, high efficiency
5. High output voltage accuracy, low output ripple

Specification:

Brand: Eshion
Model: LS-12S
Voltage: 5V2A LS-12S5,9V1200mA LS-12S9,12V1A LS-12S1224V500mA LS-12S24
Input voltage: 86-264V
Input voltage range: 100~264V AC
Output /Rated power: 10W,10.8,12W,12W
Output voltage: 5V,9V,12V, 24V
Work efficiency: 77%,79%,81%,83.5%
Output ripple noise: <100MVP
Output voltage accuracy: ±1%
Voltage adjustment rate: ±1%
Load regulation rate: ±1%
Rated  current: 2A, 1.2A, 1A, 0.5A
Working frequency: 47~63HZ
Working temperature: -15℃~+50℃
Dimensions: 67mm*31mm*19mm
Weight: 29.5g
Shell color: White

Package included:

1 x Power Supply Module
