Description
Specification:
Brand: XXD

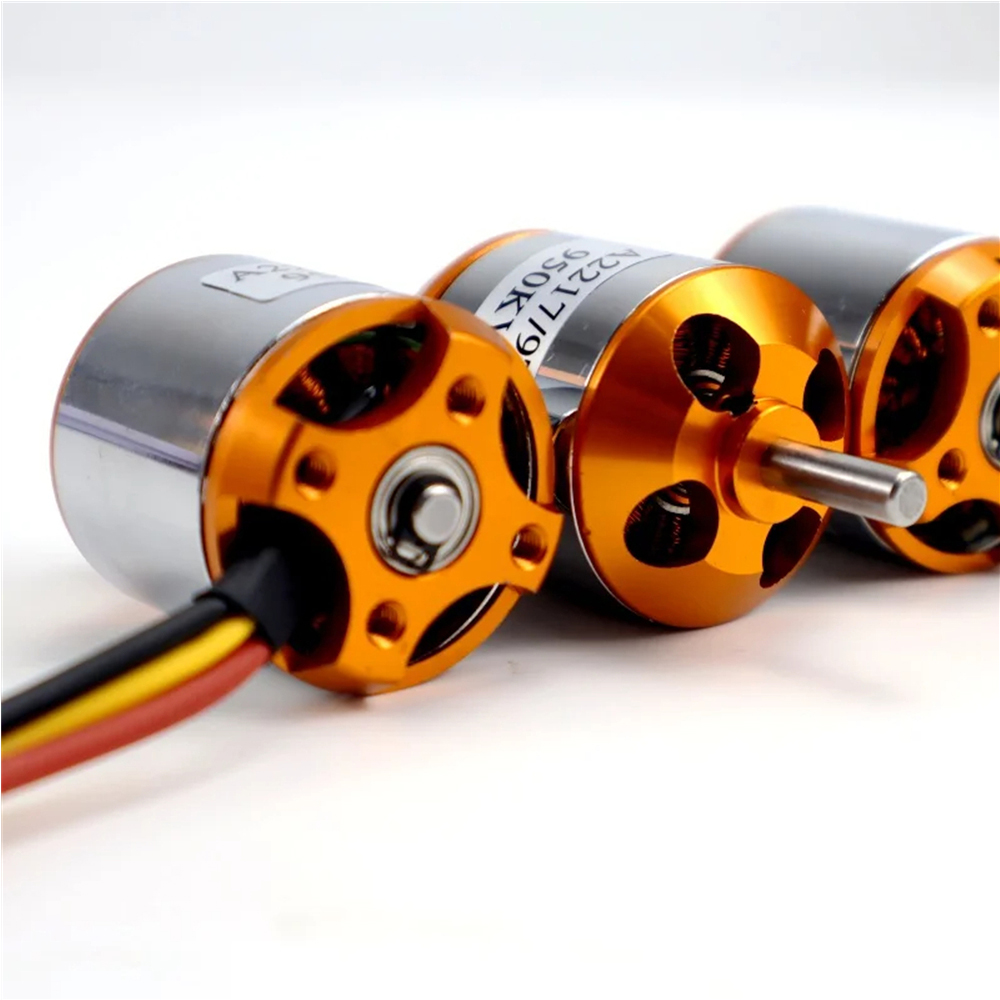

Model: A2217 2217

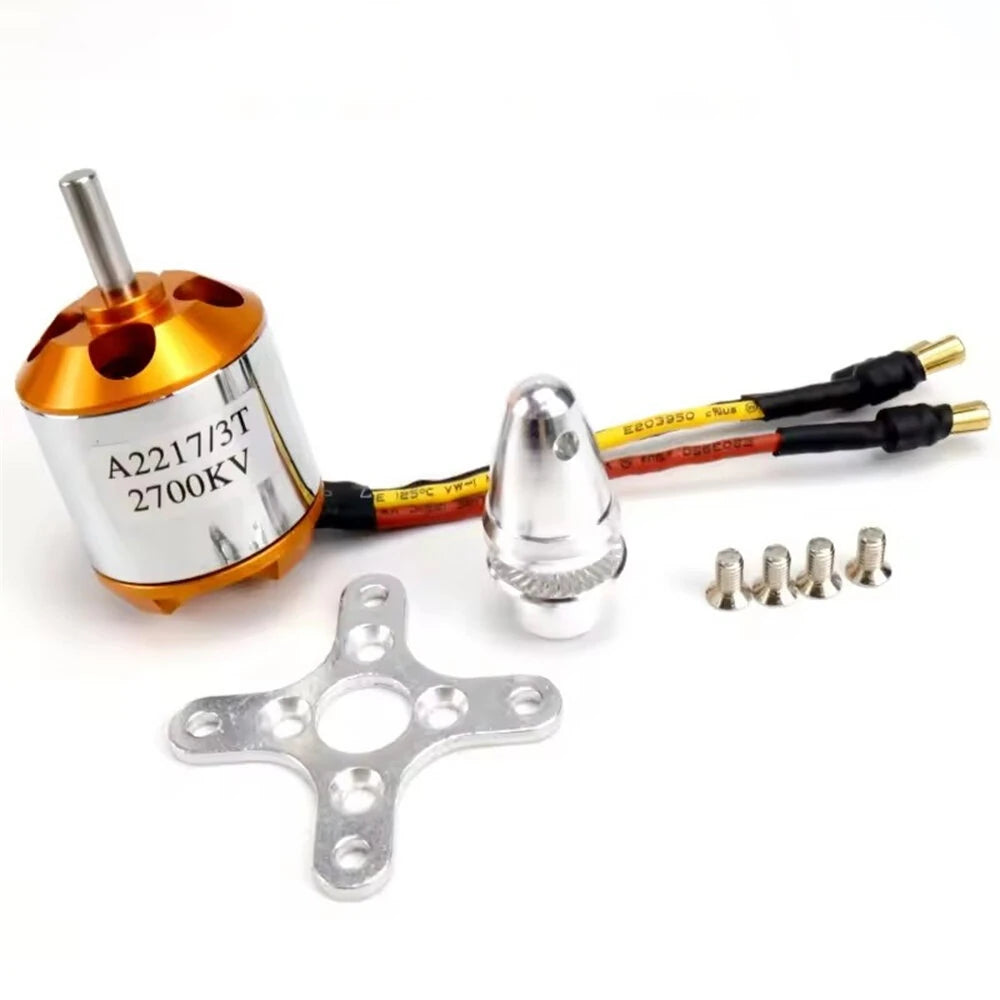

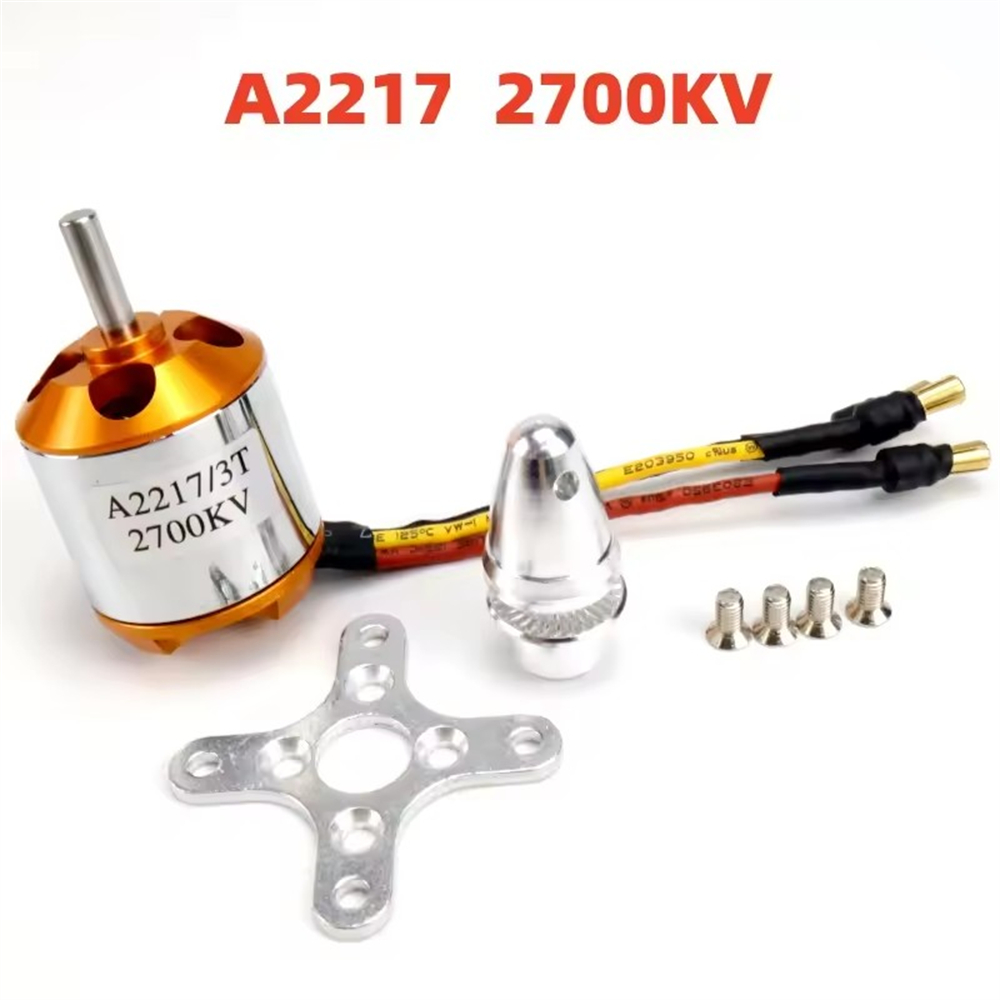

KV: 950KV, 1100KV, 1250KV, 1500KV, 2300KV, 2700KV (optional)
KV |
Parameters |
950KV |

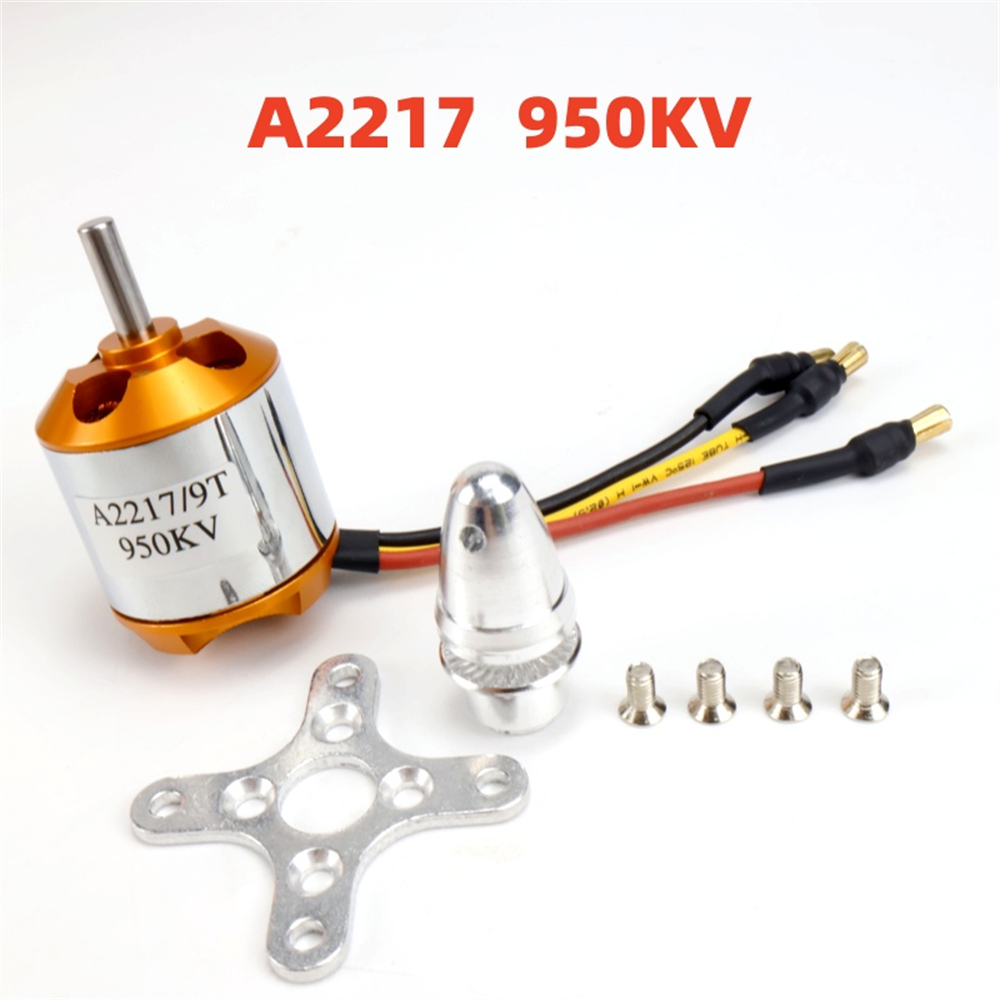

Product Name: A2217KV950 Brushless Motor Product Weight: 68g Dimensions: 27.8*32mm Output Shaft Diameter: 4.0mm KV Value: 950KV Test Data: 11V 16.9A 7130 RPM, Thrust 955g 10.5V 15.8A 6980 RPM, Thrust 897g 10V 14.9A 6760 RPM, Thrust 853g 9.5V 13.9A 6580 RPM, Thrust 792g |
1100KV |

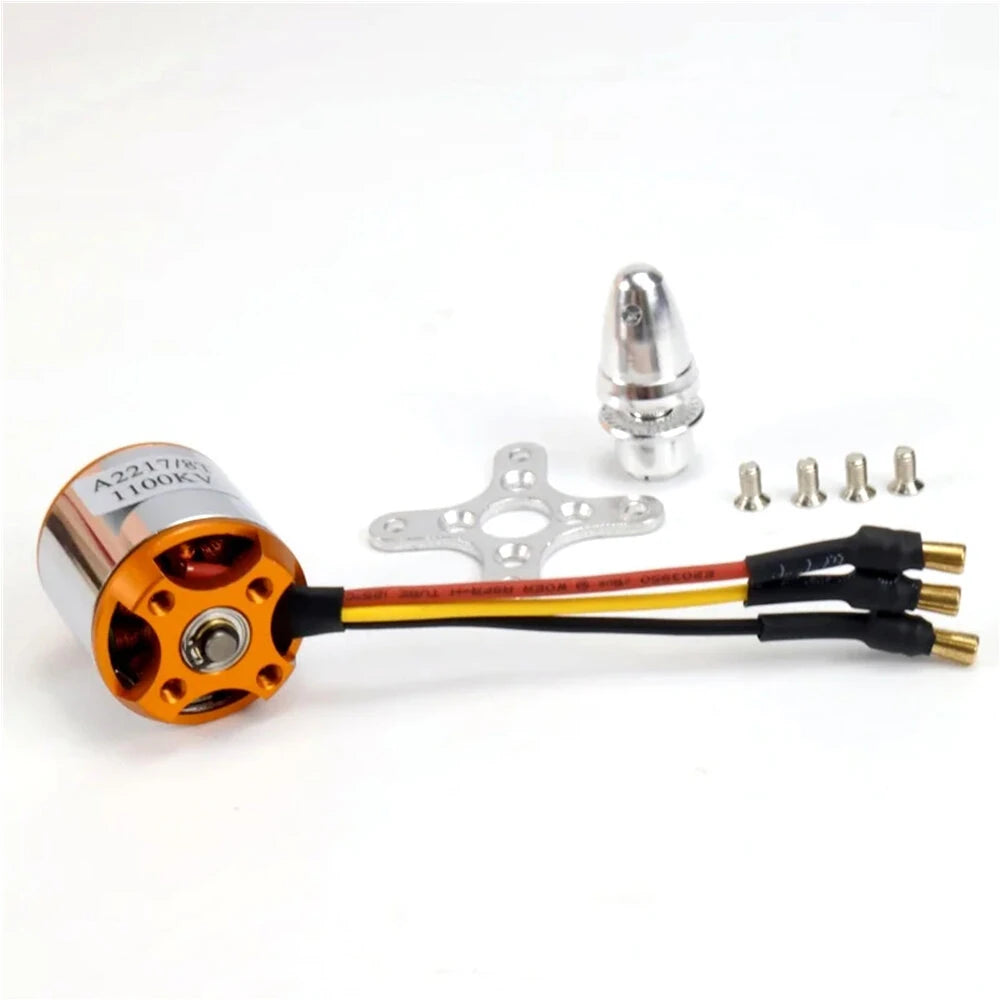

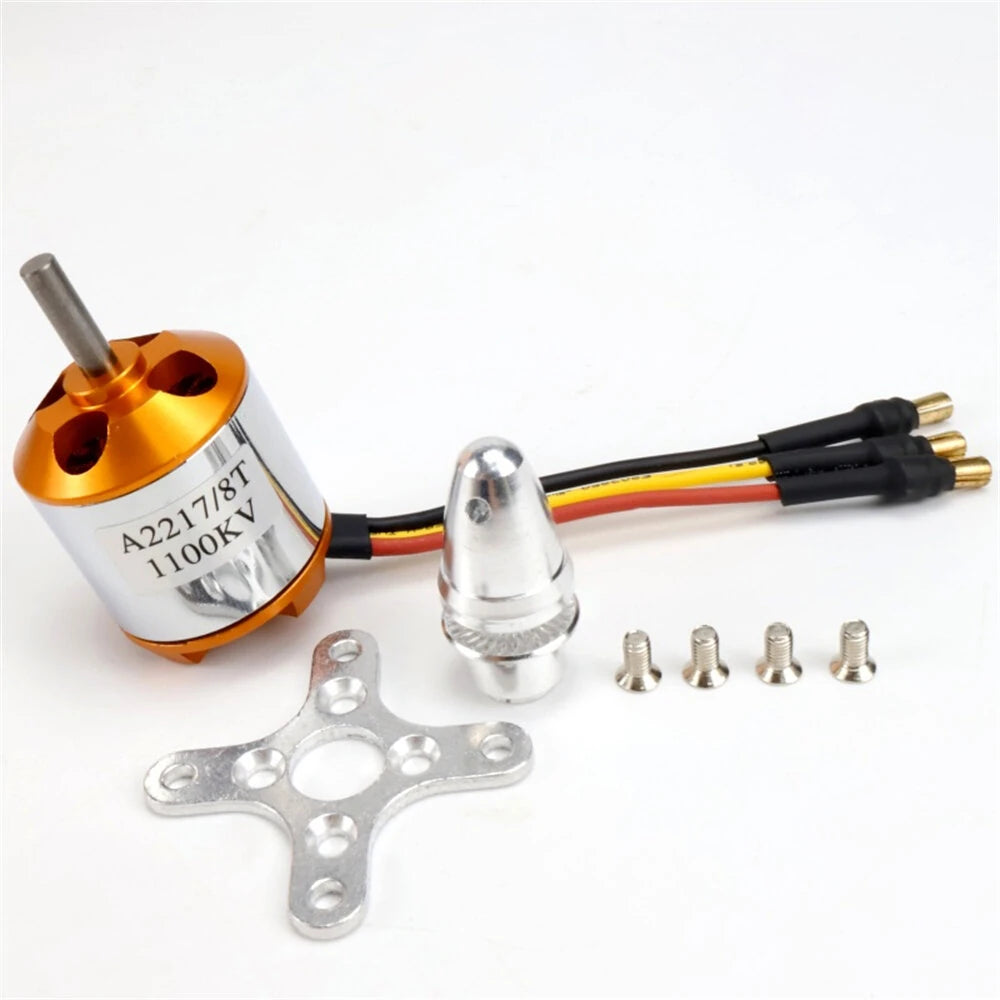

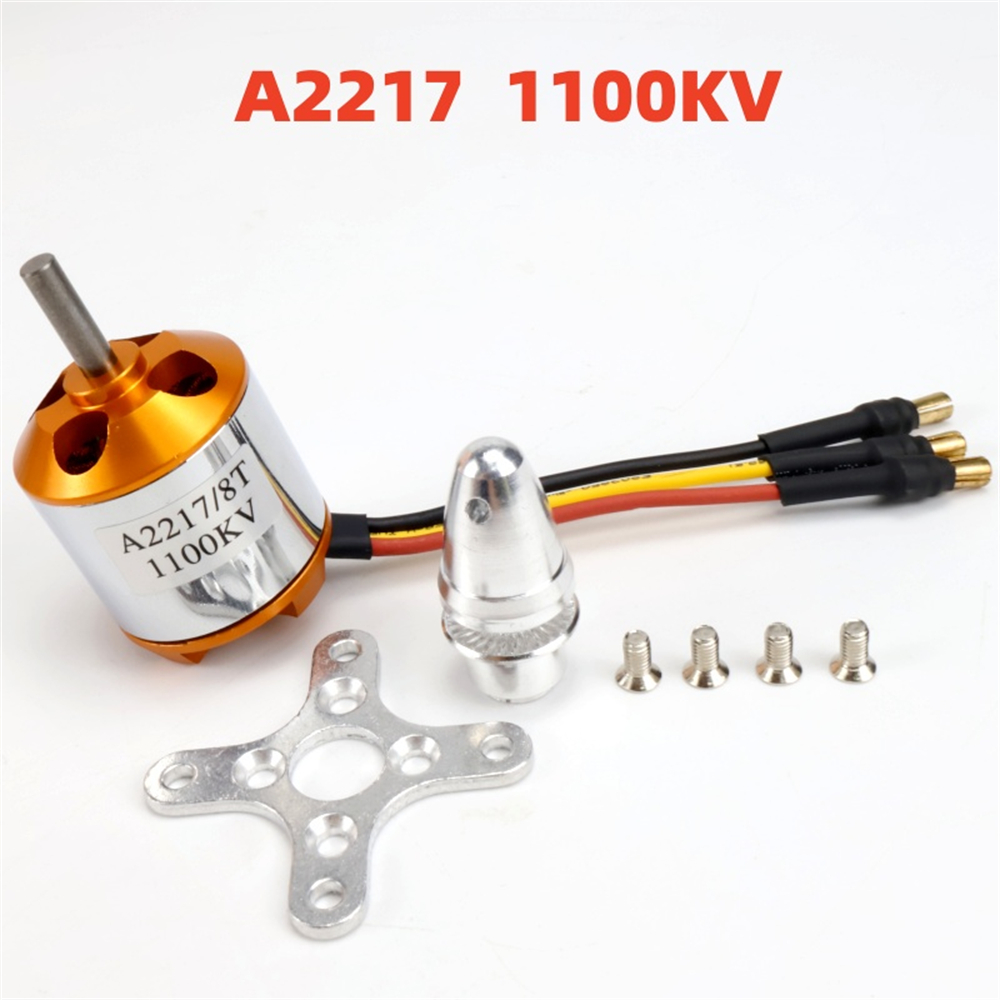

Product Name: A2217KV1100 Brushless Motor Product Weight: 68g Dimensions: 27.8*32mm Output Shaft Diameter: 4.0mm KV Value: 1100KV Test Data: 11V 19.5A 8450 RPM, Thrust 1012g 10.5V 17.4A 8220 RPM, Thrust 953g 10V 17.2A 8030 RPM, Thrust 903g 9.5V 15.9A 7730 RPM, Thrust 830g |
1250KV |

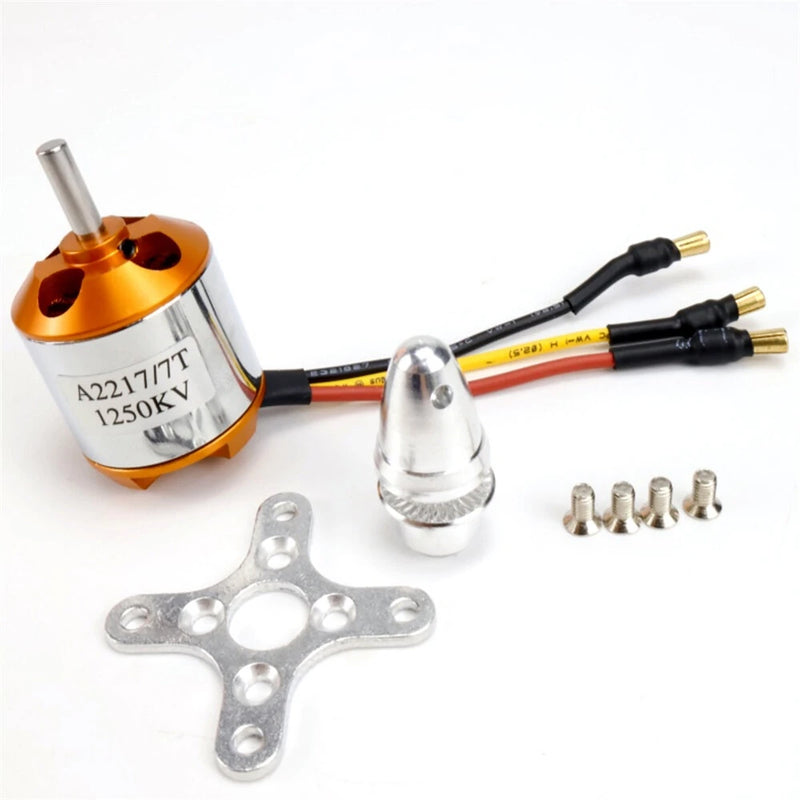

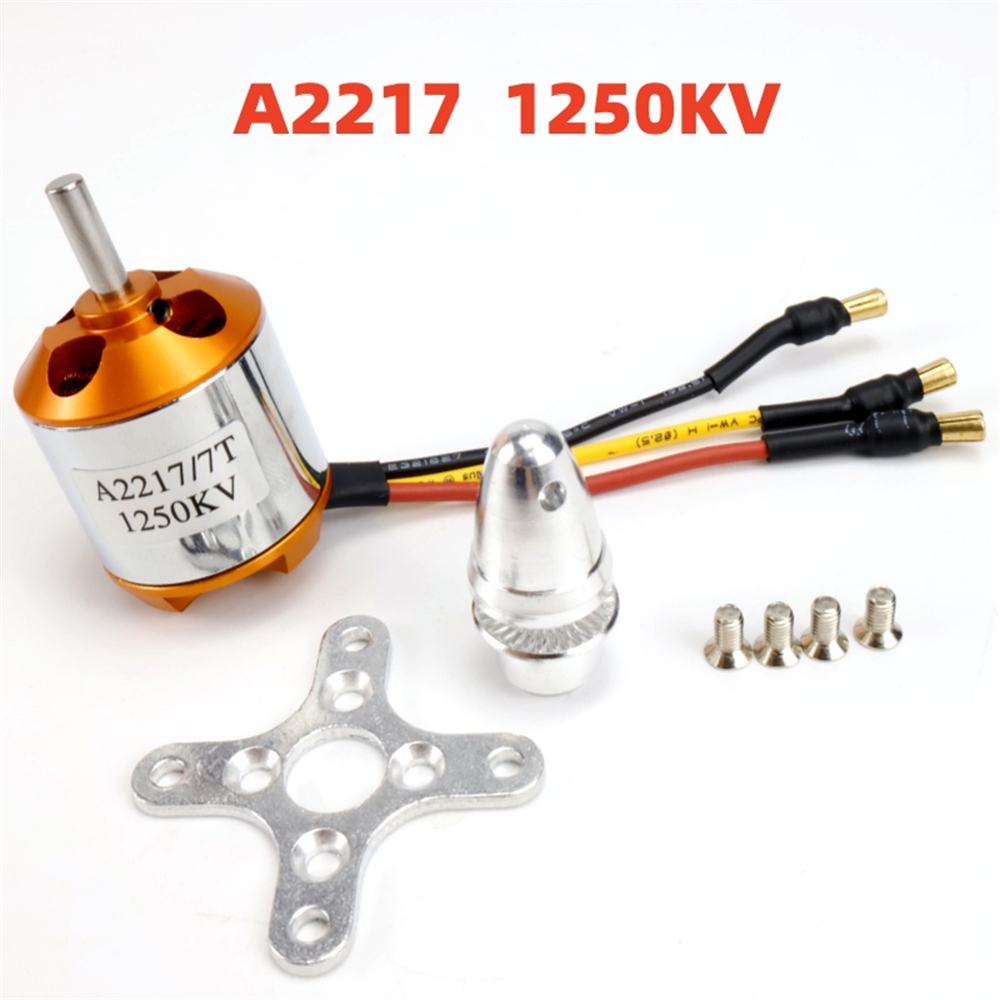

Product Name: A2217KV1250 Brushless Motor Product Weight: 68g Dimensions: 27.8*32mm Output Shaft Diameter: 4.0mm KV Value: 1250KV Test Data: 11V 20.4A 10280 RPM, Thrust 1075g 10.5V 18.9A 9990 RPM, Thrust 995g 10V 17.8A 9620 RPM, Thrust 933g 9.5V 16.1A 9320 RPM, Thrust 855g |
1500KV |

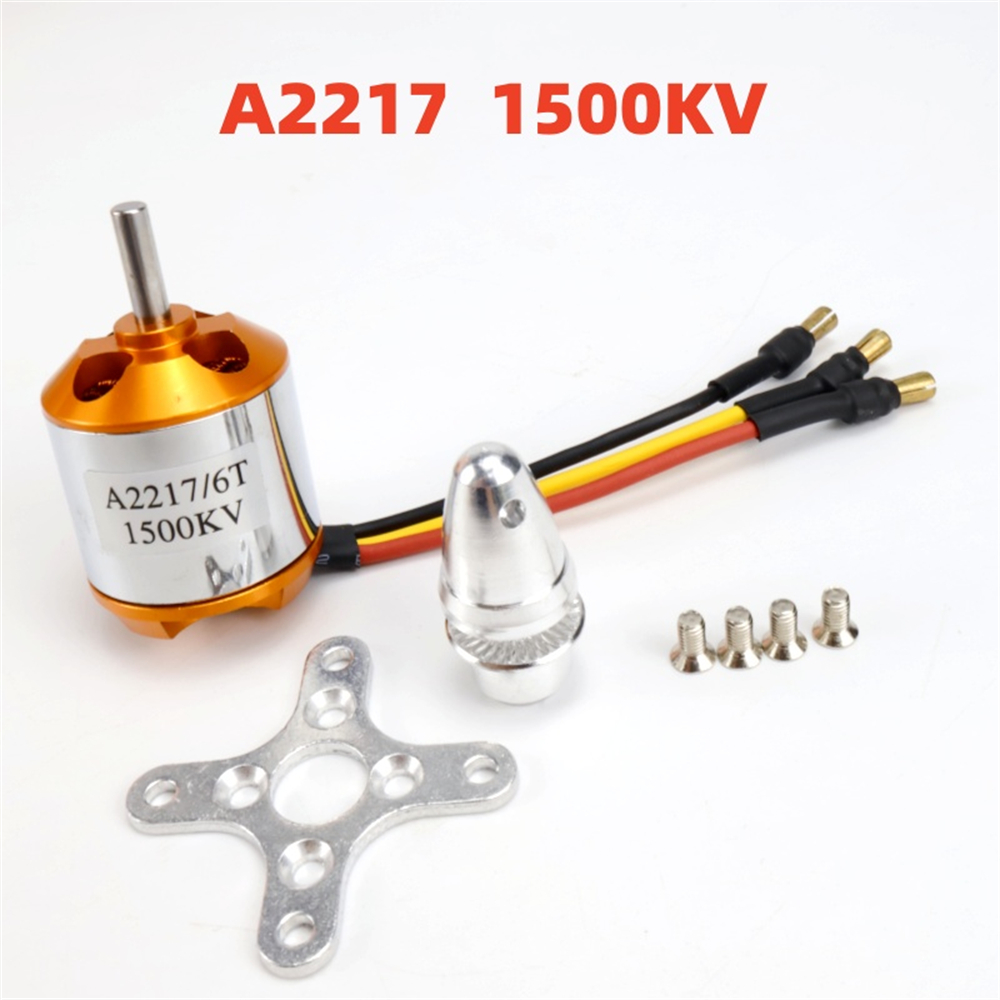

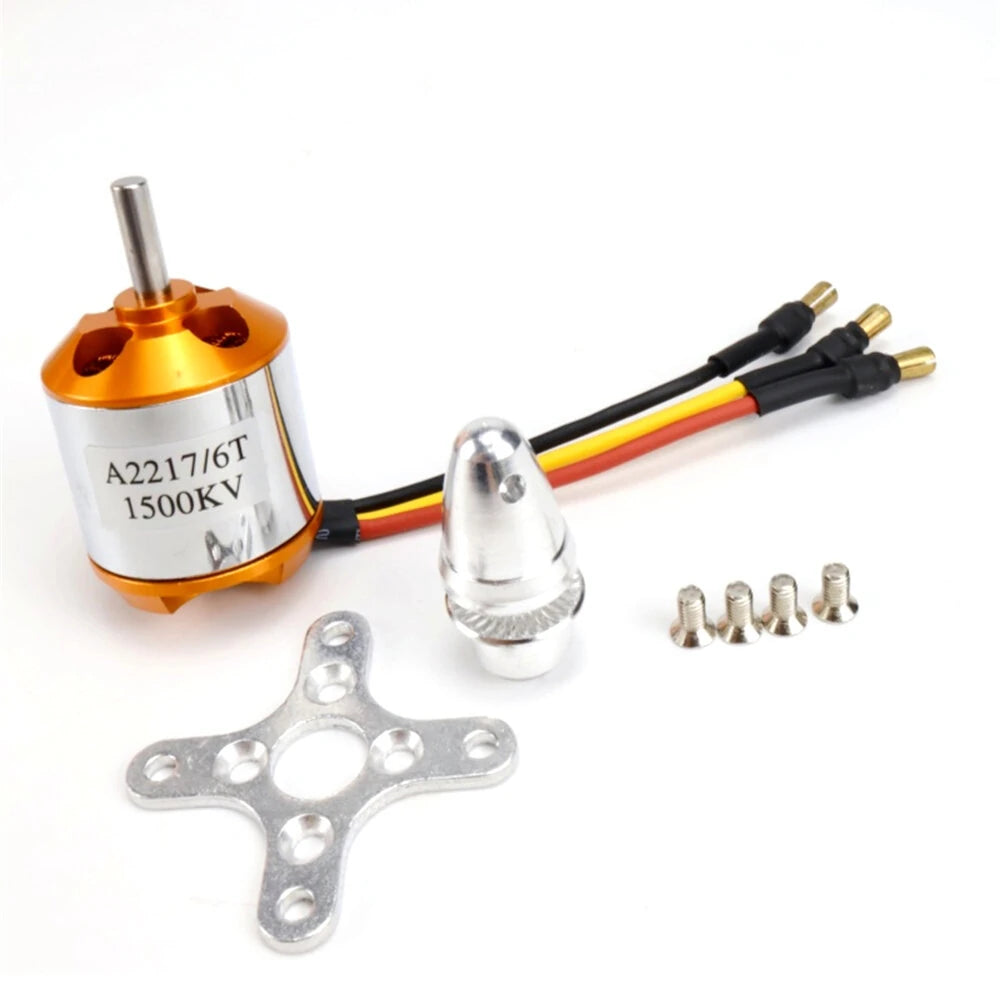

Product Name: A2217KV1500 Brushless Motor Product Weight: 68g Dimensions: 27.8*32mm Output Shaft Diameter: 4.0mm KV Value: 1500KV Test Data: GWS8040HD: 11V 19.5A 13210 RPM, Thrust 963g 10.5V 17.9A 12730 RPM, Thrust 894g 10V 16.6A 12280 RPM, Thrust 816g 9.5V 15.2A 11820 RPM, Thrust 748g GWS9050HD: 8V 18.6A 9030 RPM, Thrust 816g 7.5V 16.9A 8560 RPM, Thrust 739g 7V 15.1A 8080 RPM, Thrust 653g 6.5V 13.6A 7680 RPM, Thrust 578g |
2300KV |

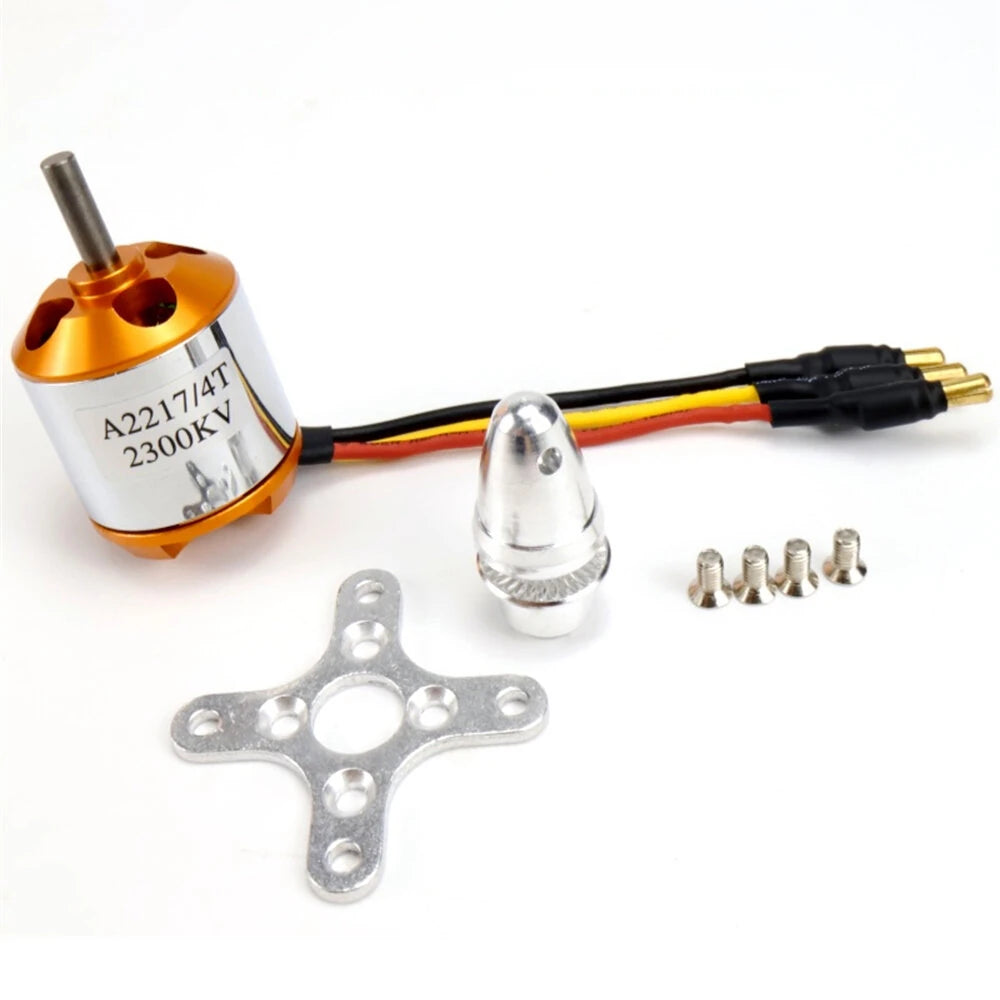

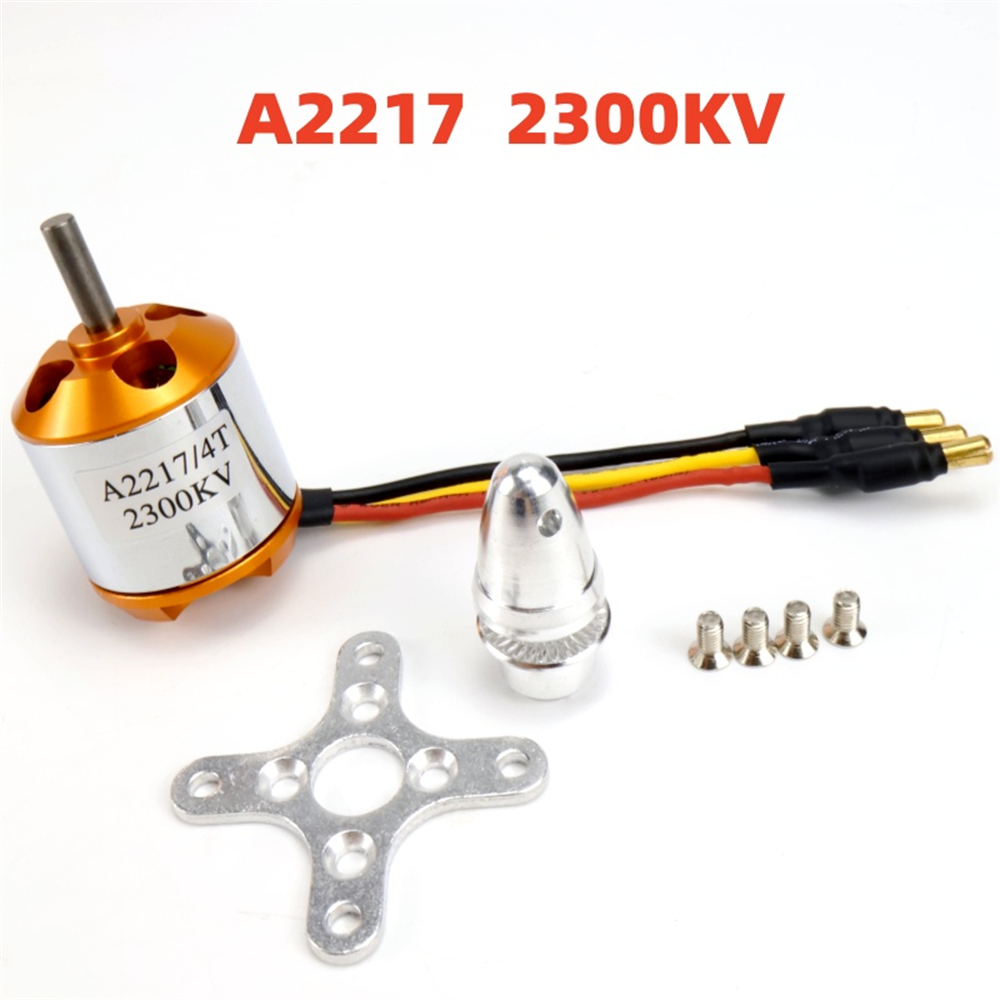

Product Name: A2217KV2300 Brushless Motor Product Weight: 68g Dimensions: 27.8*32mm Output Shaft Diameter: 4.0mm KV Value: 2300KV Maximum Efficiency: 78% No-Load Current: 10V: 1.7A Peak Current: 30A/60S Optimal Efficiency Current: 8-28A (>70%)font-size:11.0000pt;mso-font-kerning:1.0000pt;'> |
Package Included:
1 x A2217 Brushless Motor

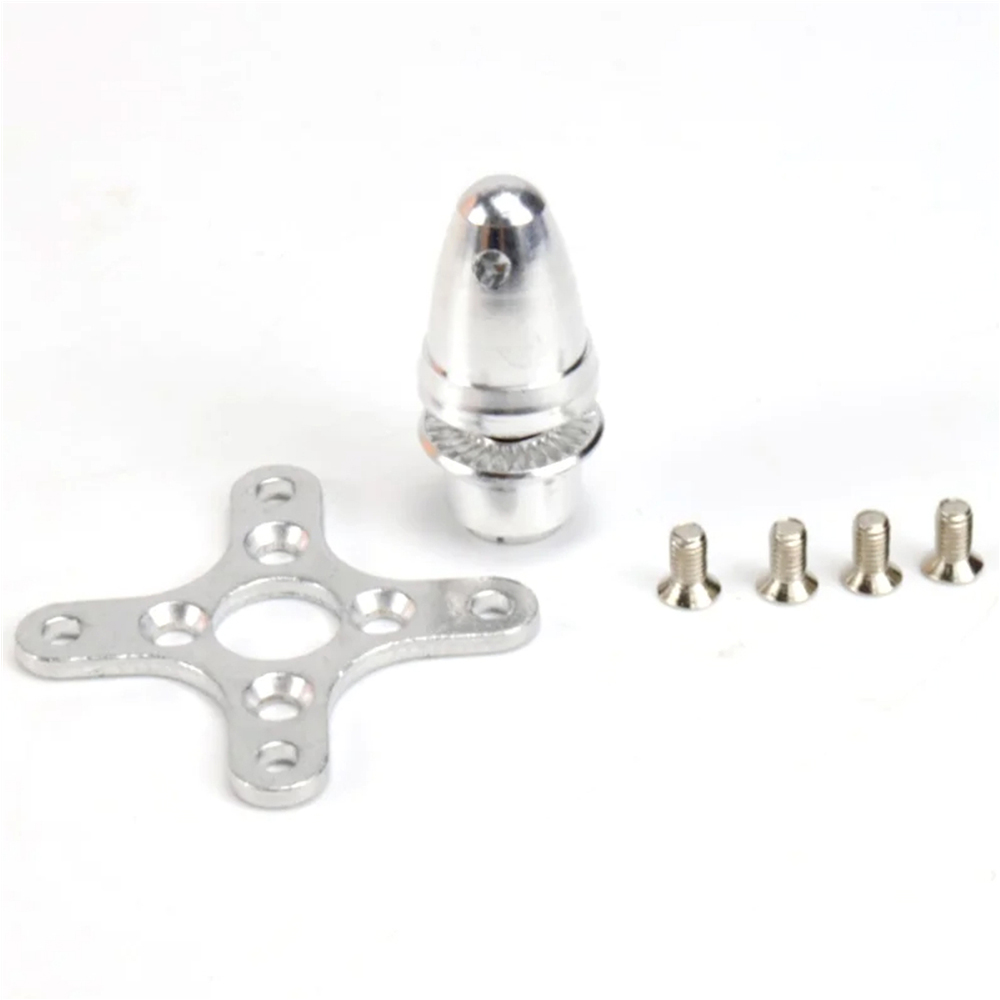

1 x 4mm Collet
1 x 22 Series Metal Mount
4 x Screws
