Description
Description:
Item Name: XXD 2212 KV2200 Brushless Motor + 30A ESC + 6035 Propeller
Application: Suitable for back pusher fighters with a wingspan of about 0.8m and 500g.

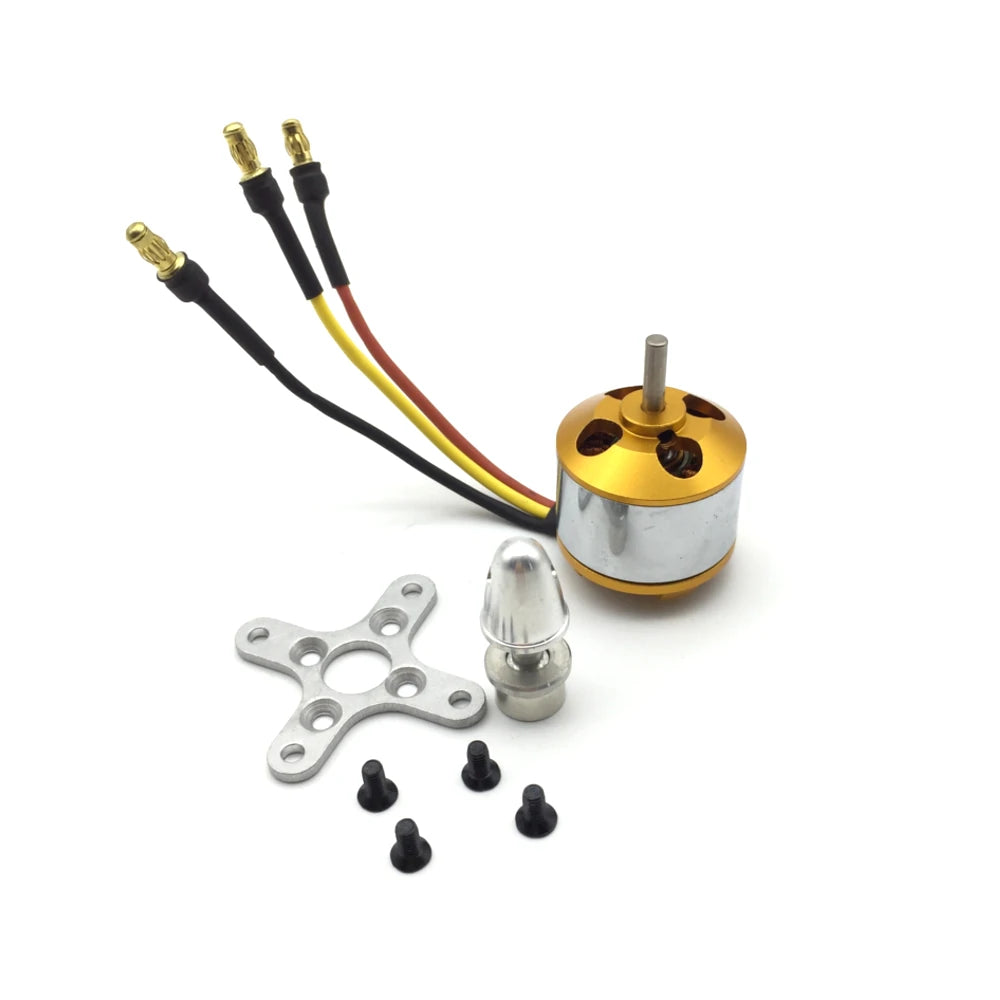

Motor Specifications:
Brand Name: XXD
Item Name: 2212 KV2200
Outer Diameter of Motor Housing: 28mm
Motor Stator: Outer diameter 22mm, Height 12mm
Motor Shaft Diameter: 3.17mm
Mounting Hole Spacing At The Bottom of Motor: 16 * 19mm
Welded Banana Head: 3.5mm male
Motor Screws: Four M3 * 6 cross screws

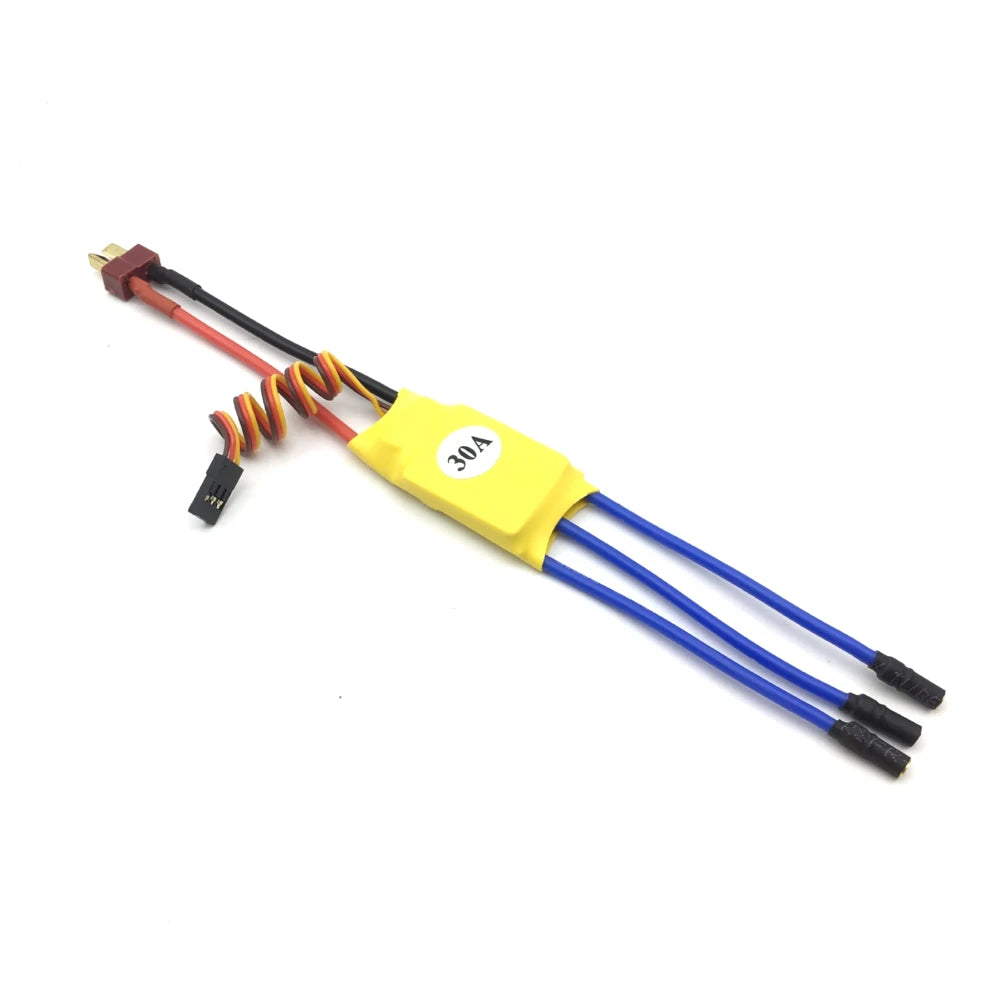

ESC Specifications:
Brand Name: XXD
Operating Voltage: 2-3S Lipo, 4-12 NIMH
Continuous Working Current: 30A
Instantaneous Current: 40A
BEC Type: Linear
BEC Output: 5V 3A
Dimension (mm): L50 * W23 * H8
Weight: 25g
Welding Plug: 3.5mm banana head female + T plug male
Propeller Specifications:
Item Name: 6035 Propeller
Length: 15.2cm
Aperture: 6mm
Root Thickness: 10mm
Diameter of the Gasket(mm): ø 3/ø 3.2/ø 3.5/ø 4/ø 4.8/ø 5/ø 6/ø 6.3
Package Included:
1x XXD 2212 KV2200 Brushless Motor
1x 30A ESC
2x 6035 Propeller
