Description
Features
- - Wide Compatibility: Compatible with various digital FPV systems, including DJI O4 Pro, DJI O4, and 19mm wide analog cameras or similar devices.
- - Durablee Material: Made of high-performance polymer, ensuring a lightweight and compact design.
- - Advanced Stabilization: Equipped with a 2-axis mechanical stabilization structure and high-torque motors, providing exceptional stability against vibrations and high-speed air impacts.
- - Multiple Stabilization Modes: Suitable for various platforms such as RC cars, FPV fixed-wing planes, and realistic RC planes.
- - Versatile Control Options: Supports Headtracker, UART (private protocol & MAVLink), S.BUS, CRSF, and PWM control.

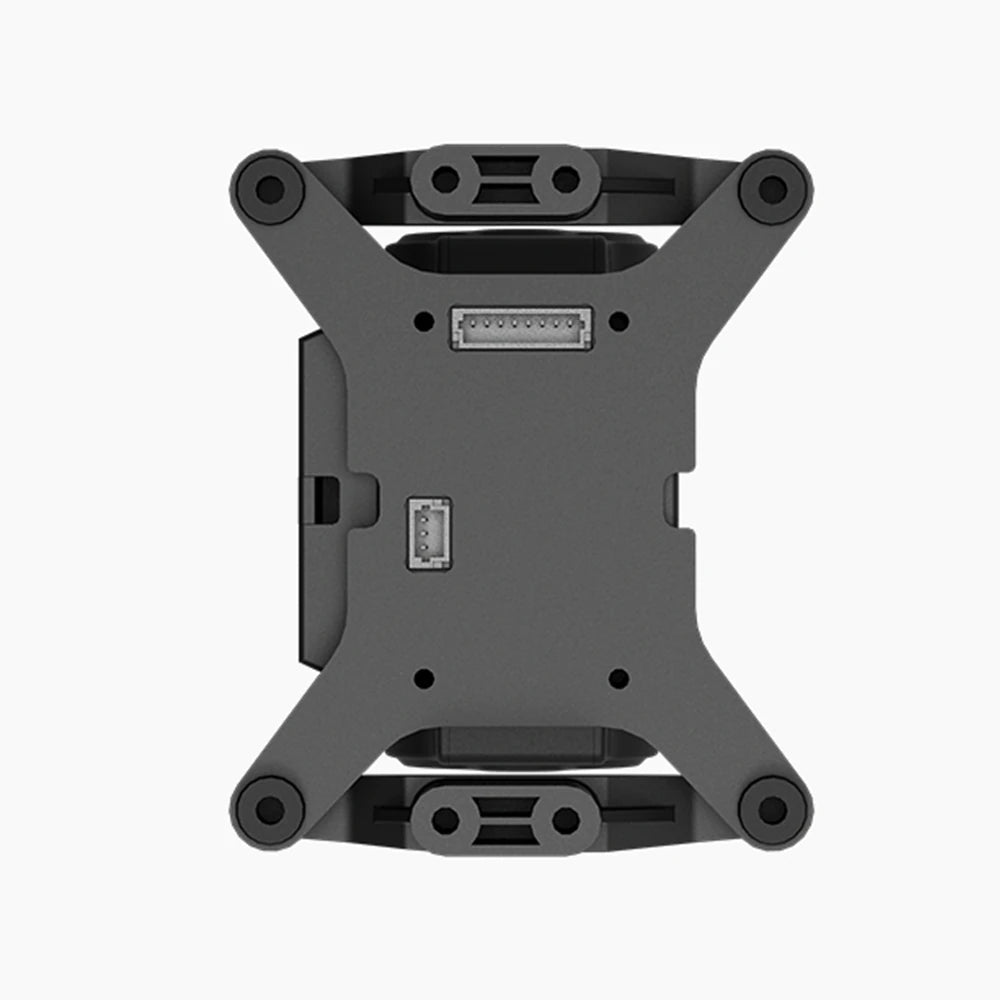

- - Flexible Mounting: Can be mounted either downward or upward to suit different application needs.
-
- - Wide Voltage Input: Compatible with 7.4~26.4 VDC input, making it versatile for various power sources.
- - The XF C-20T 3-Axis FPV Gimbal for DJI O4/O4 Pro works seamlessly with the HeadTracker Integrated Baseboard All-In-One Edition, enabling integrated operation.
| General | |||
| Product Name | C-20D O4/ O4 Pro | ||
| Dimensions (with damper) | 42 x 50.9 x 55.7mm |
||
| Weight (with damper) | 36g |
||
| Operating Voltage | 7.4 ~ 26.4 VDC | ||
| Power | 0.25W (Static) / 8W (Stall) | ||
| Mounting | Downward / Upward |
||
| Control Port | Headtracker / UART (private protocol & MAVLink) / S.BUS / CRSF / PWM | ||
| Gimbal | |||
| Gimbal Type | 2-axis Mechanical Stabilization | ||
| Angular Accuracy | ±0.005° | ||
| Controllable Range | Pitch: -30°~+175°, Yaw: ±145° | ||
| Max Rotation Speed | ±1500°/s | ||
| Camera Suitability | |||
| Maximum Weight | 20g | ||
| Maximum Width | 19mm |
||
