Description
Description:

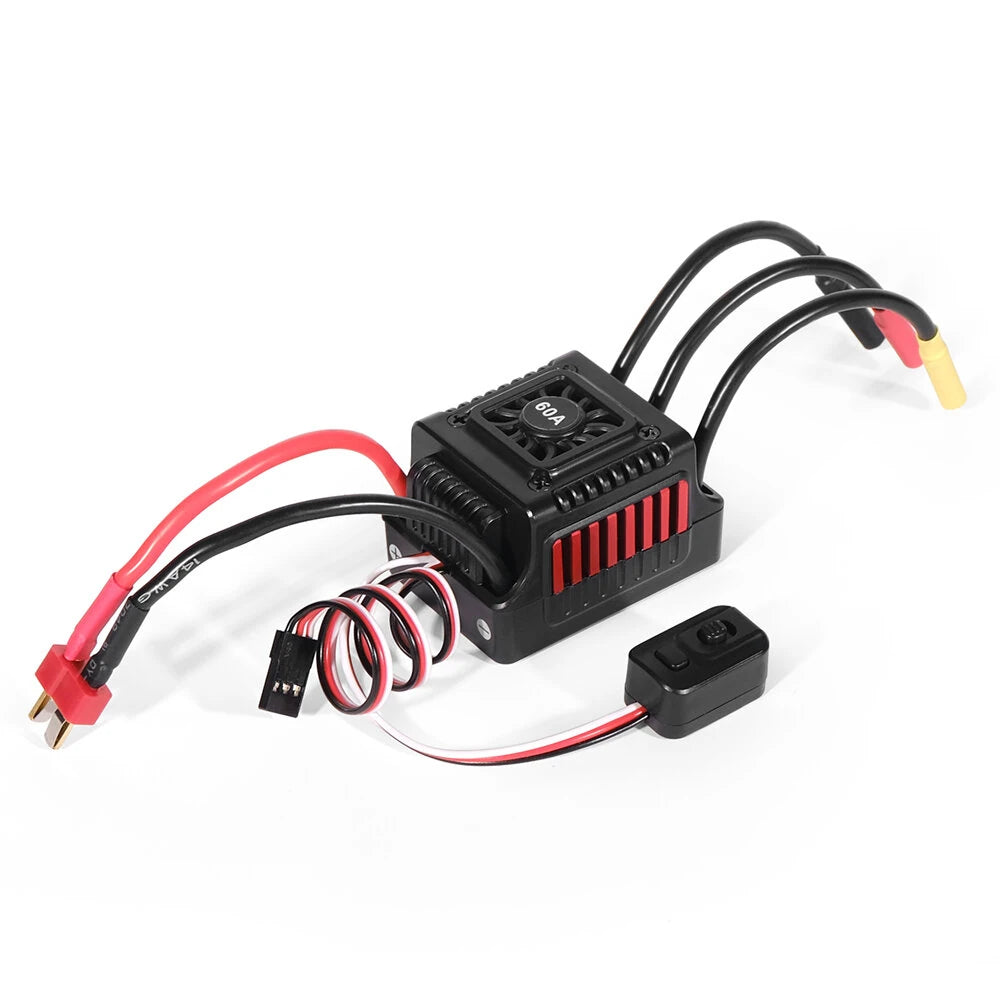

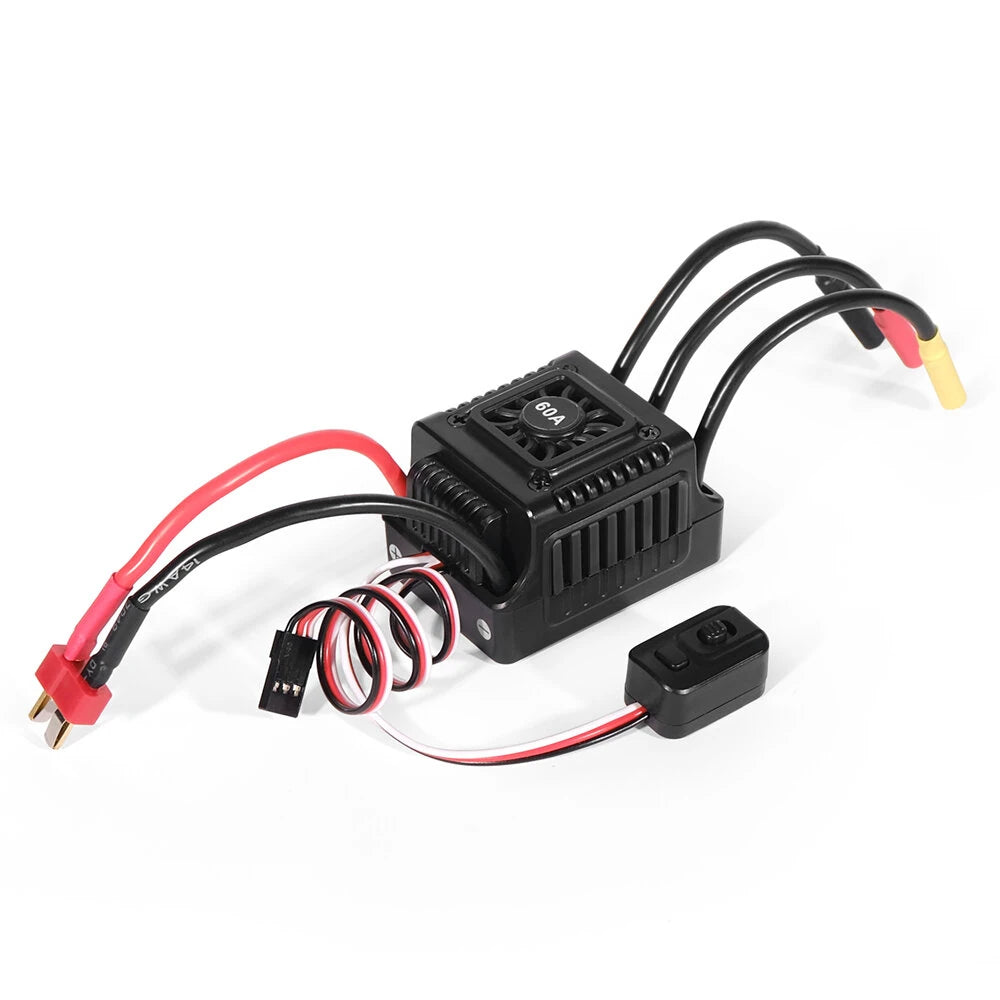

WSDT-60A RC sensorless brushless waterproof 60A ESC suitable for 1/10 RC ,compatible with various brushless servos.Simply operation that built for entry-level and intermediate players.
Specifications:
Item Name: SENSORLESS BRUSHLESS ESC FOR CAR
Model: WSDT-60A
Cont. Current: Fwd. 60A / Rev. 60A
Peak Current: Fwd. 180A / Rev. 180A
Resistance: 0.001Ω
Cars Applicable: 1:10 On-road/Off-road/Buggy/Monster
Battery: 4-9 Cells NiMH, 2-3S Lipo
Motor Limit:
For 2S Lipo or 6 cells NiMH:
On-road: 3656-size or smaller motor with
the KV<6000
Off-road/Buggy/Monster: 3656-size or
smaller motor with the KV<4000
For 3S Lipo or 9 cells NiMH:
On-road: 3656-size or smaller motor with
the KV<4000
Off-road/Buggy/Monster: 3656-size or
smaller motor with the KV<3000.
BEC Output: 5.85V/3A
Cooling Fan:
From battery directly without regulating
The stock fan can work with 2S and 3S Lipo
Dimensions: 52(L)X39(W)X35(H)mm
Weight: 73g

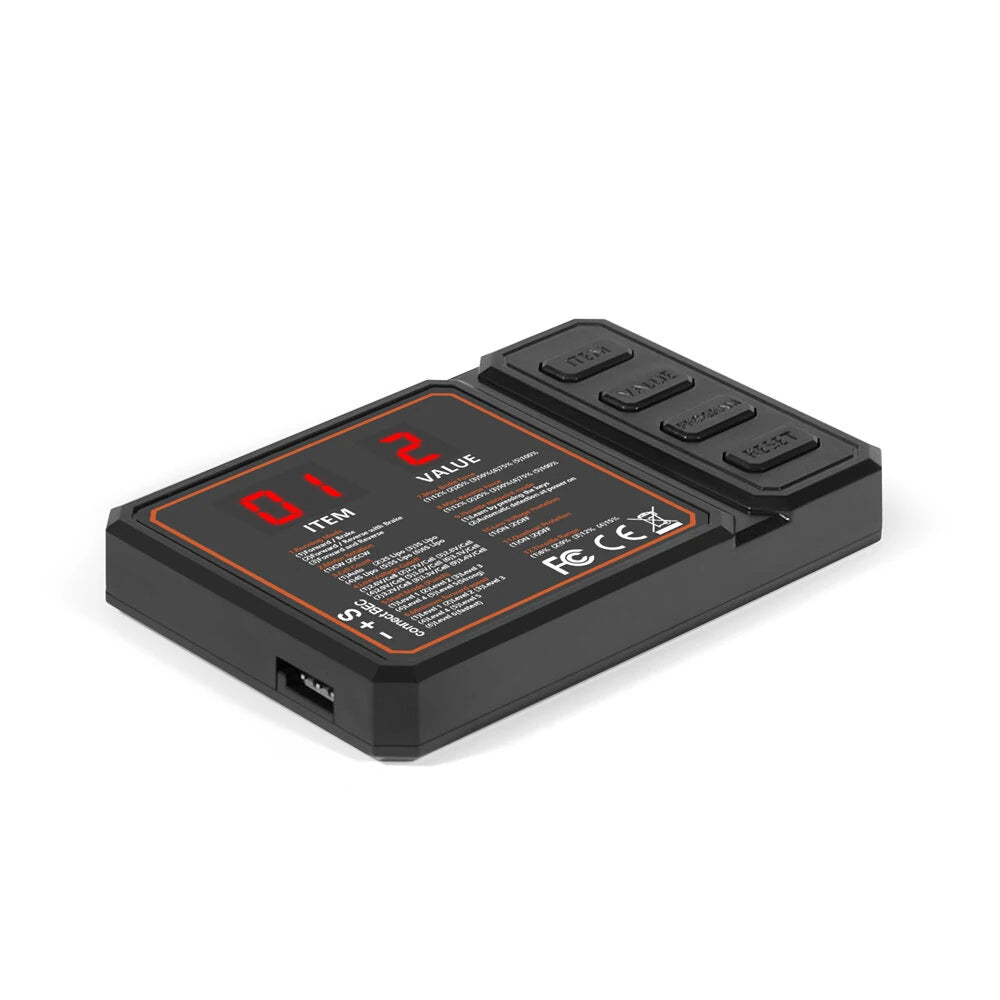

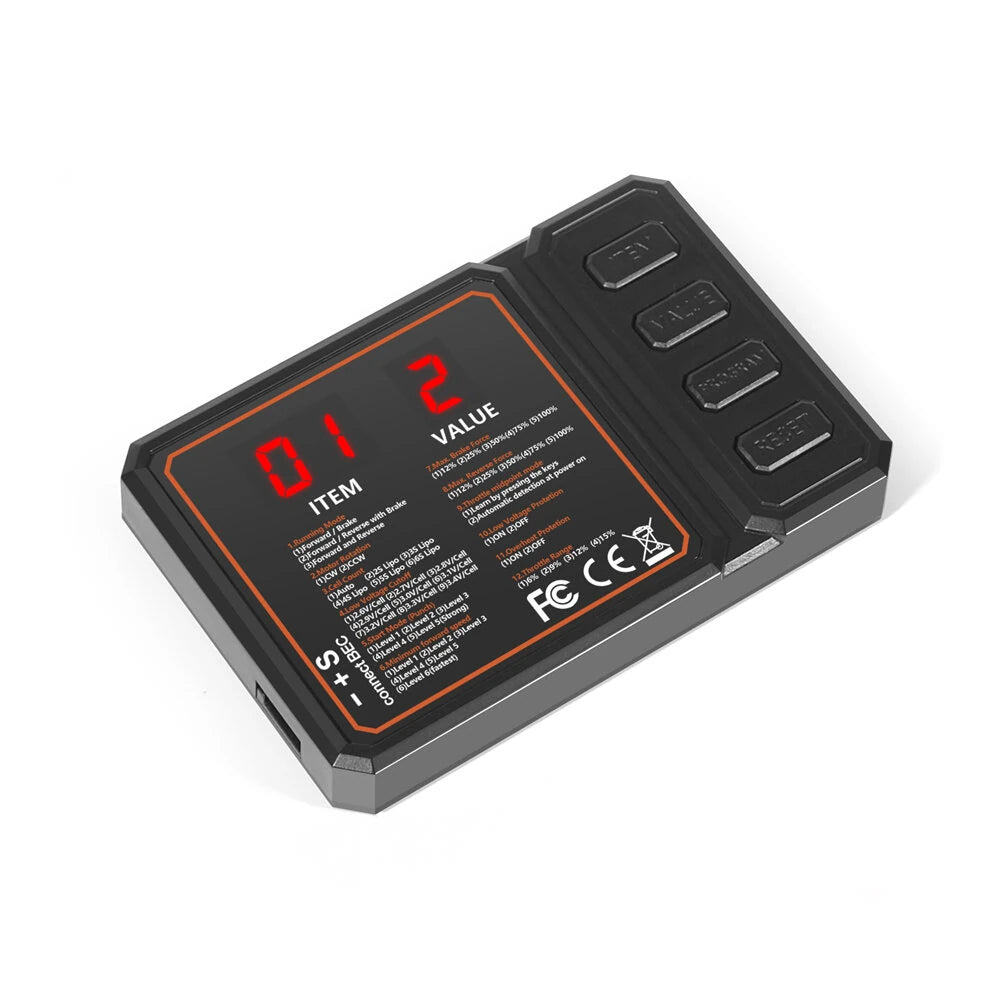

Item Name:Programming Card
Weight：35G
Size：83*55*14mm
Certification：CE FCC
Item Name: SENSORLESS BRUSHLESS ESC FOR CAR
Model: WSDT-60A
Cont. Current: Fwd. 60A / Rev. 60A
Peak Current: Fwd. 180A / Rev. 180A
Resistance: 0.001Ω
Cars Applicable: 1:10 On-road/Off-road/Buggy/Monster
Battery: 4-9 Cells NiMH, 2-3S Lipo
Motor Limit:
For 2S Lipo or 6 cells NiMH:
On-road: 3656-size or smaller motor with
the KV<6000
Off-road/Buggy/Monster: 3656-size or
smaller motor with the KV<4000
For 3S Lipo or 9 cells NiMH:
On-road: 3656-size or smaller motor with
the KV<4000
Off-road/Buggy/Monster: 3656-size or
smaller motor with the KV<3000.
BEC Output: 5.85V/3A
Cooling Fan:
From battery directly without regulating
The stock fan can work with 2S and 3S Lipo
Dimensions: 52(L)X39(W)X35(H)mm
Weight: 73g
Item Name:Programming Card
Weight：35G
Size：83*55*14mm
Certification：CE FCC
Features:
1.Water-proof and Dust-proof: The WSDT-60A brushless RC 60A ESC suitable to all-weather sport races; (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
2.External Programming Port: Easy to connect to the Program Card when setting the ESC
3.Multiple Protections: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor lock-up protection
4.Performance: Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment; 9 steps of acceleration(punch) adjustment from “soft” to “Very aggressive” to fit for different kinds of models, tires and tracks
5.Application: This WSDT-60A brushless ESC suitable for 1/10th short course trucks, buggies, trucks, and monster trucks.The built-in switch mode BEC with a maximum output of 6Amp and voltage of 6V make this RC Brushless ESC compatible with various servos

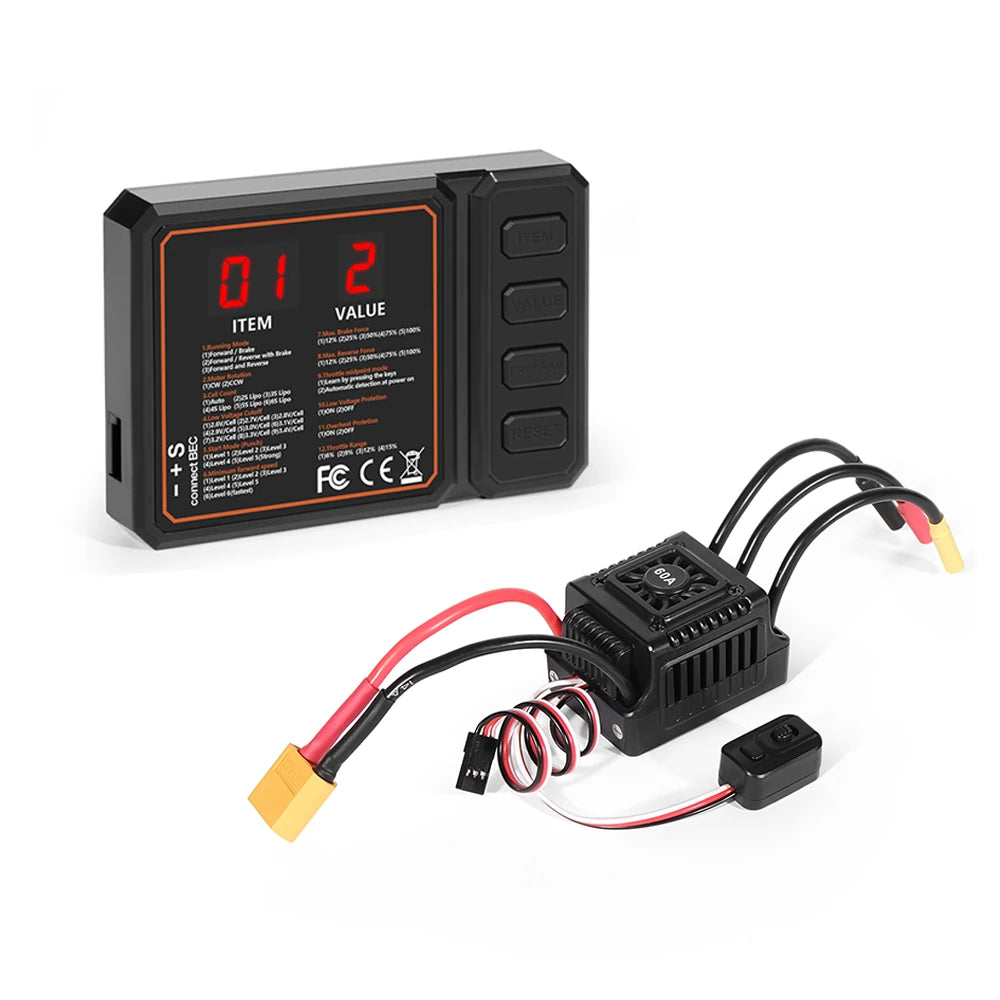

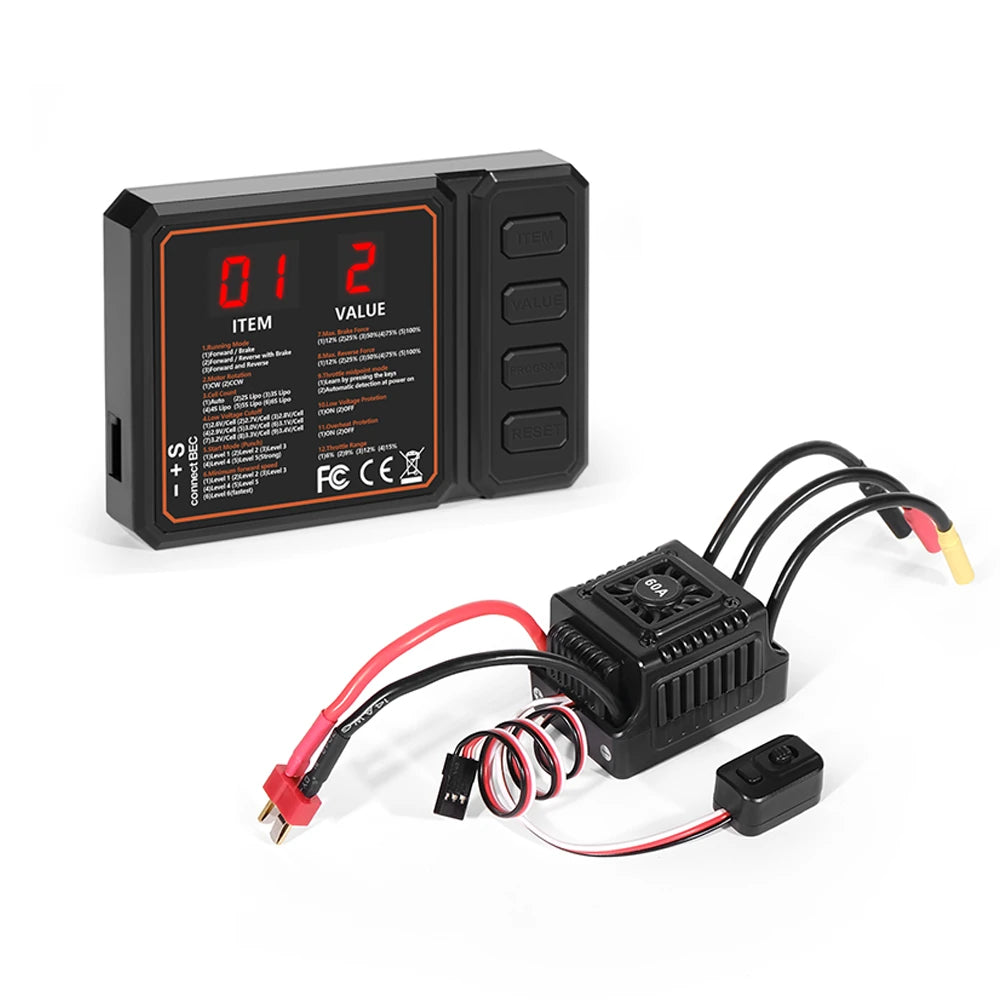

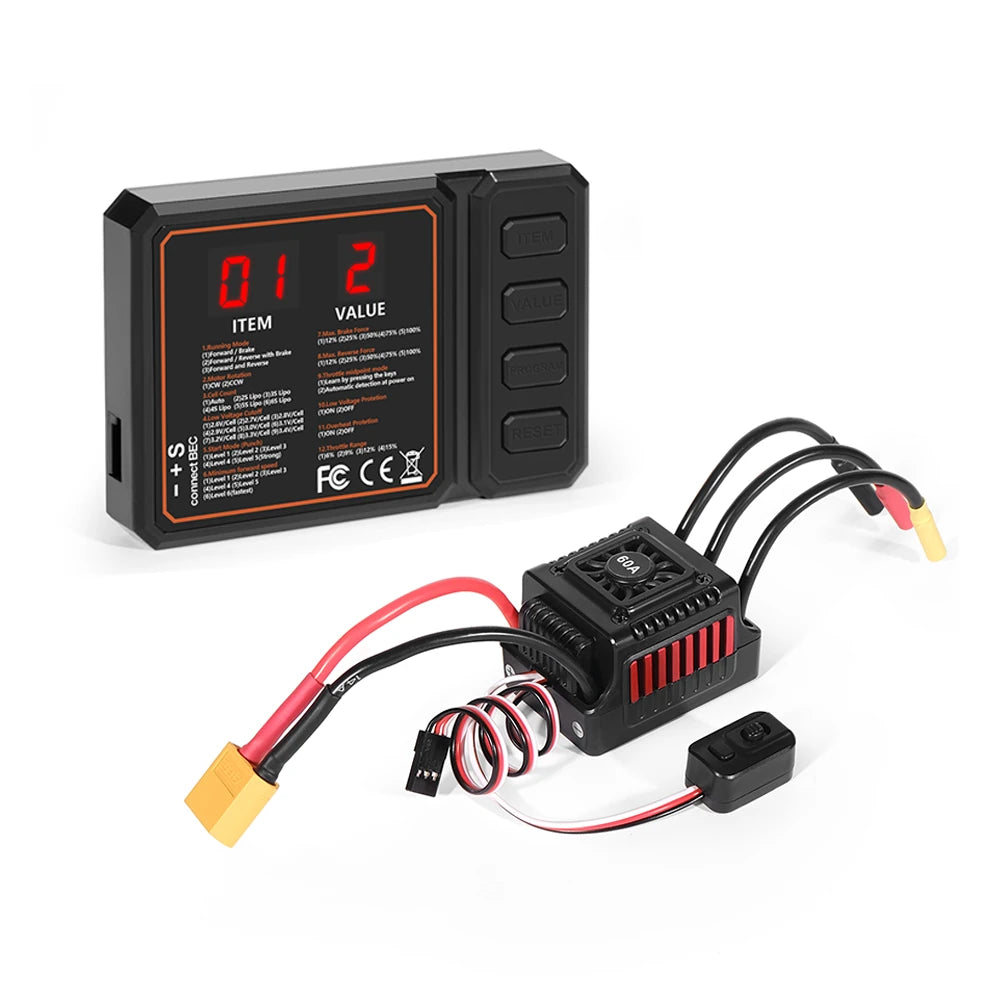

Tips: Compatible with optional device - the portable Digital LED Program Card which is especially convenient for outdoor use.If necessary, you can consult our customer service to recommend for you.
Note:The programming card needs to be sold together with the ESC. The programming card can only be used for our ESC.

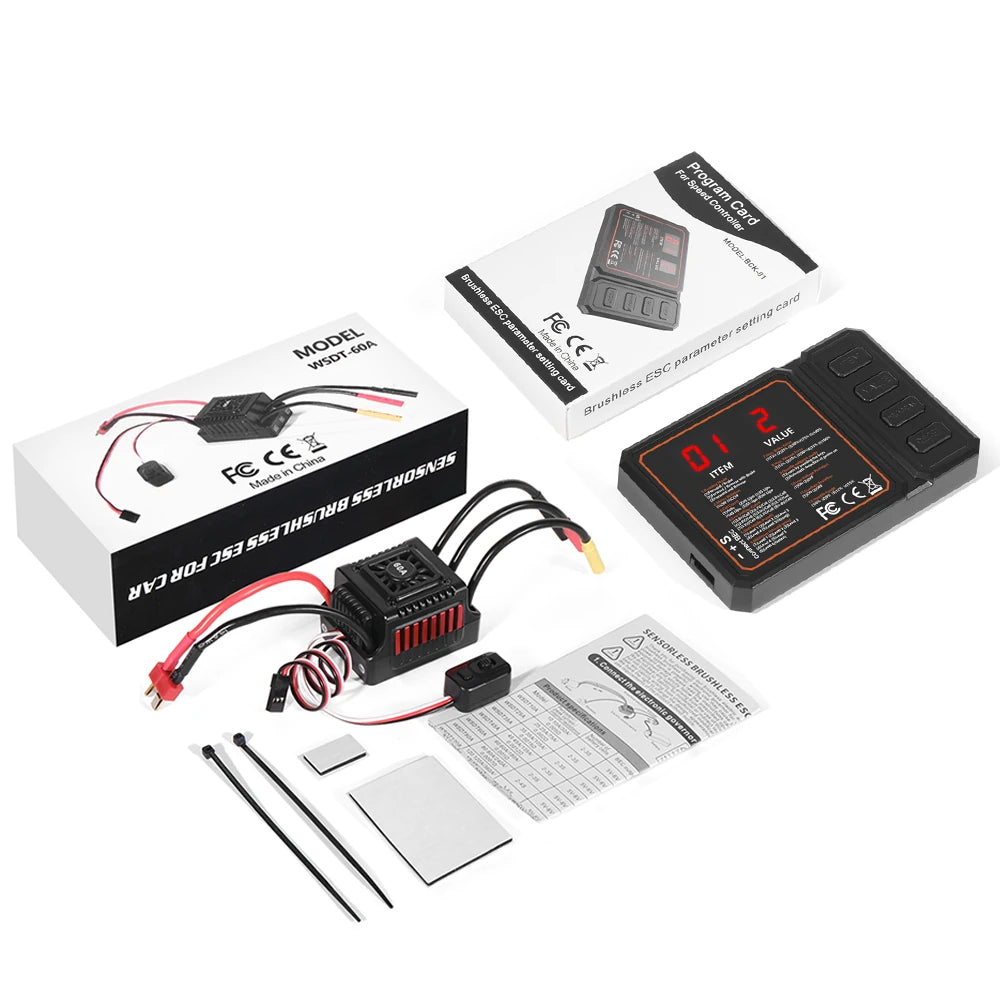

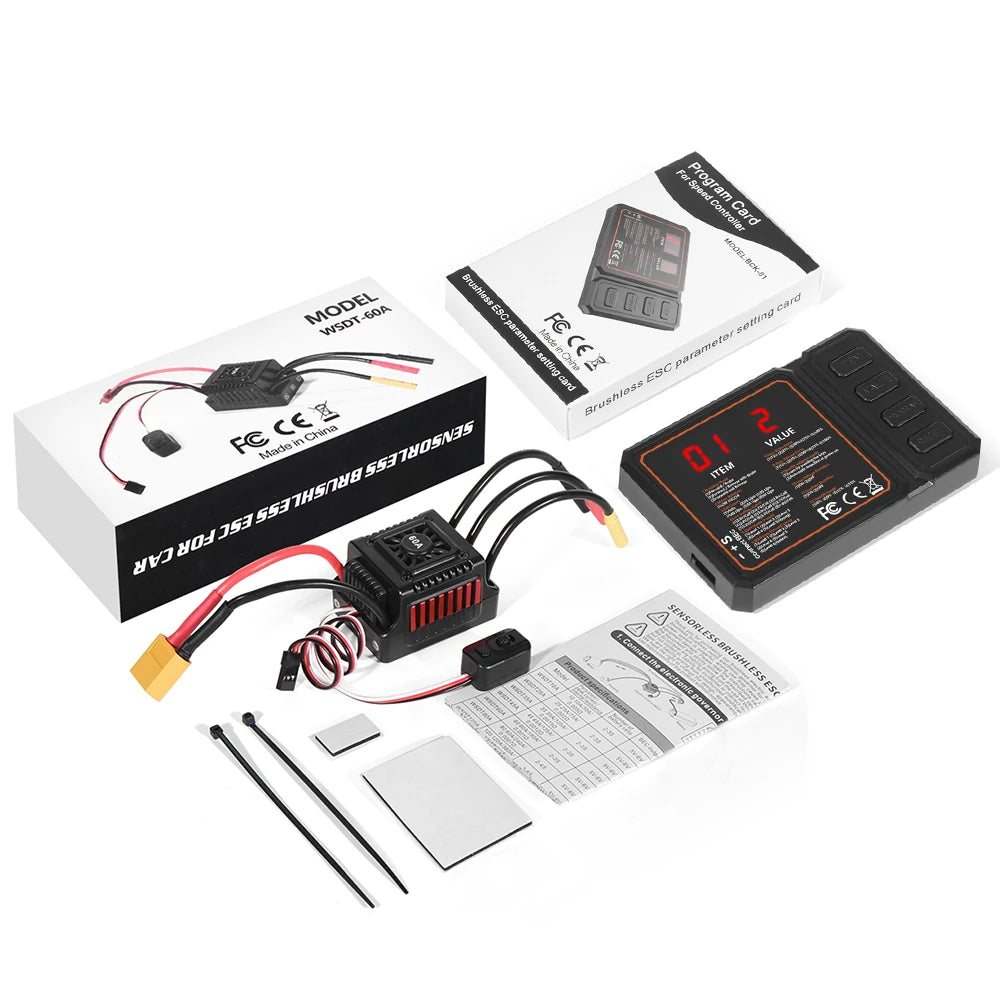

Package included:
1x Programming Card
1x ESC
2X Instruction Manual
1x Double-sided Tape
2x Rolling Tape
