Specifications:

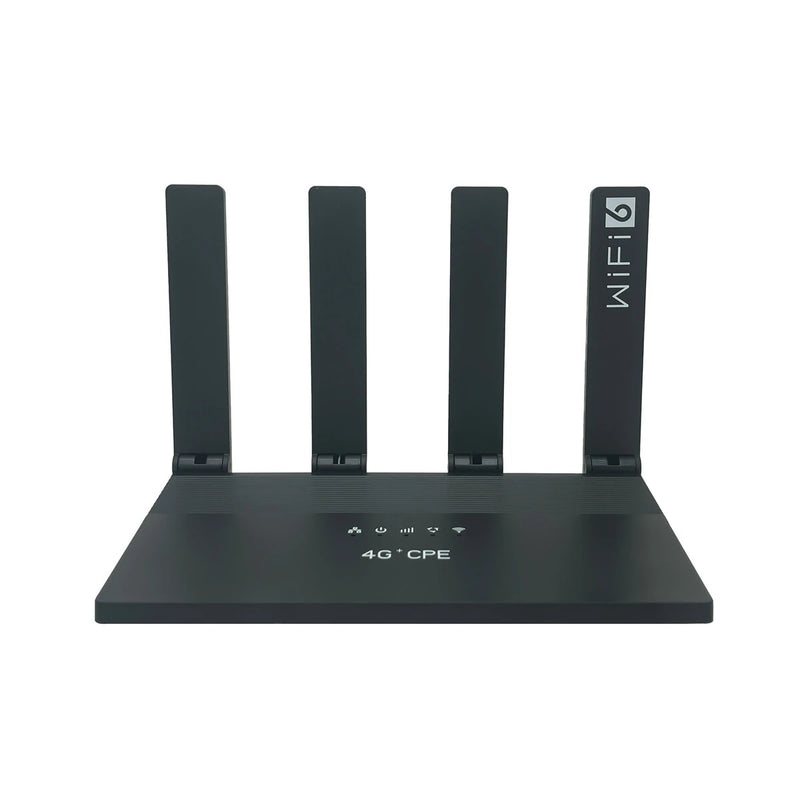

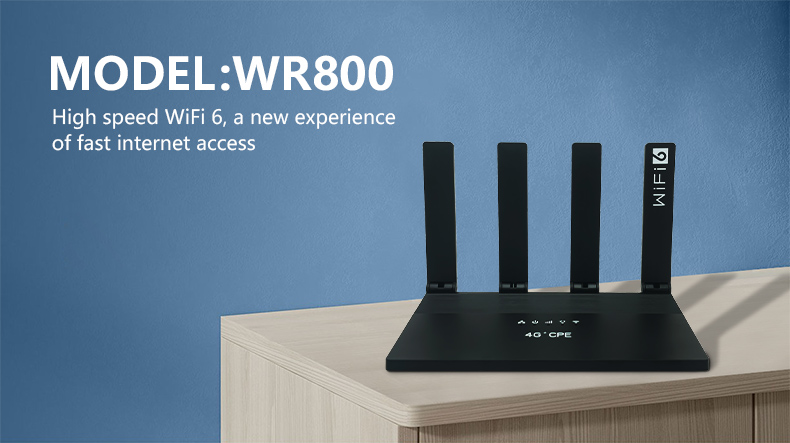

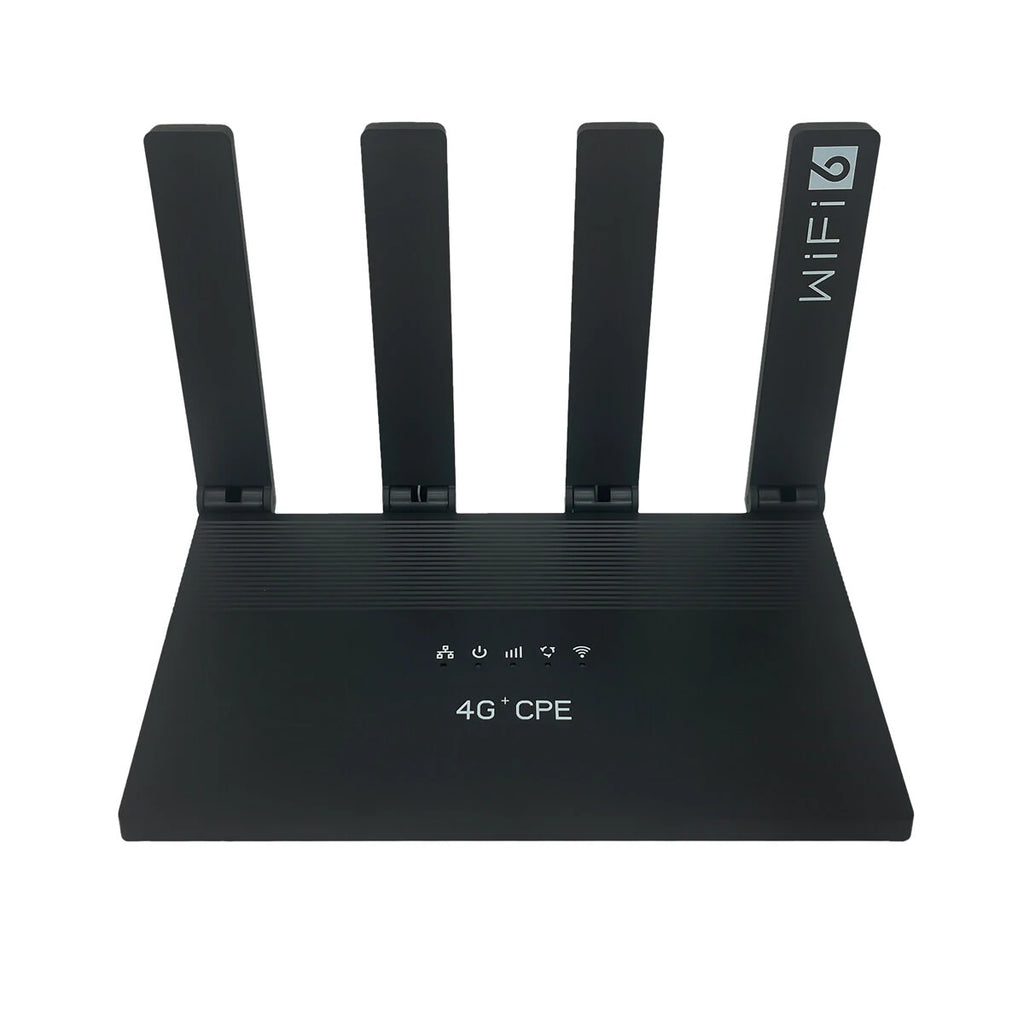

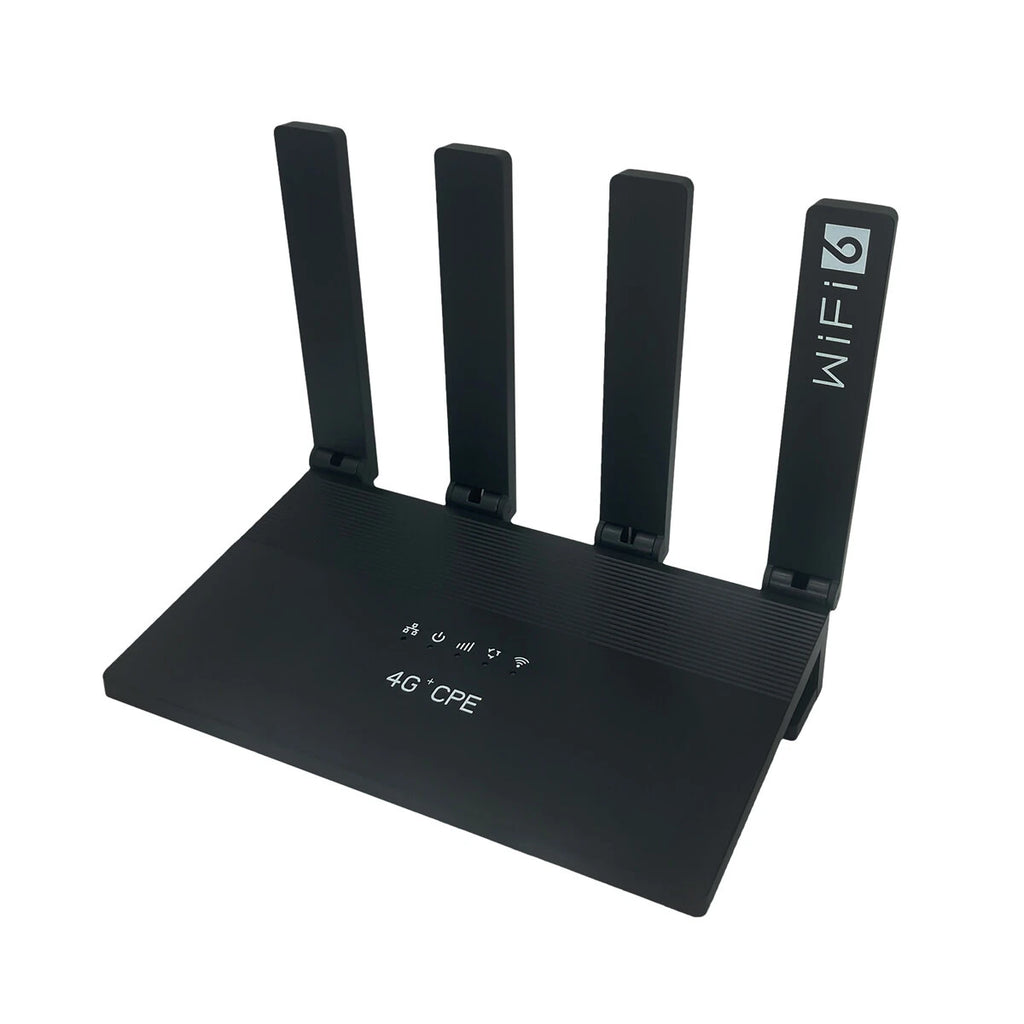

Model	WR800
Form Factor	CPE
Dimension	193*122*40mm with External Antenna
Weight	About 200g
Color	Black
Air Interface	Technical Standard: Compatible with WCDMA, FDD-LTE，TDD-LTE Default 802.11b/g/n Frequency: LTE:B1/3/5/7/8/20/38/40/41 WCDMA:B1/5/8 WIFI: 2.4G, 802.11 b/g/n
Performance	Maximum Data Throughput: LTE CAT 4 FDD-LTE(DL/UL) 150Mbps/50Mbps HSPA+ (DL/UL) 21/5.76Mbps

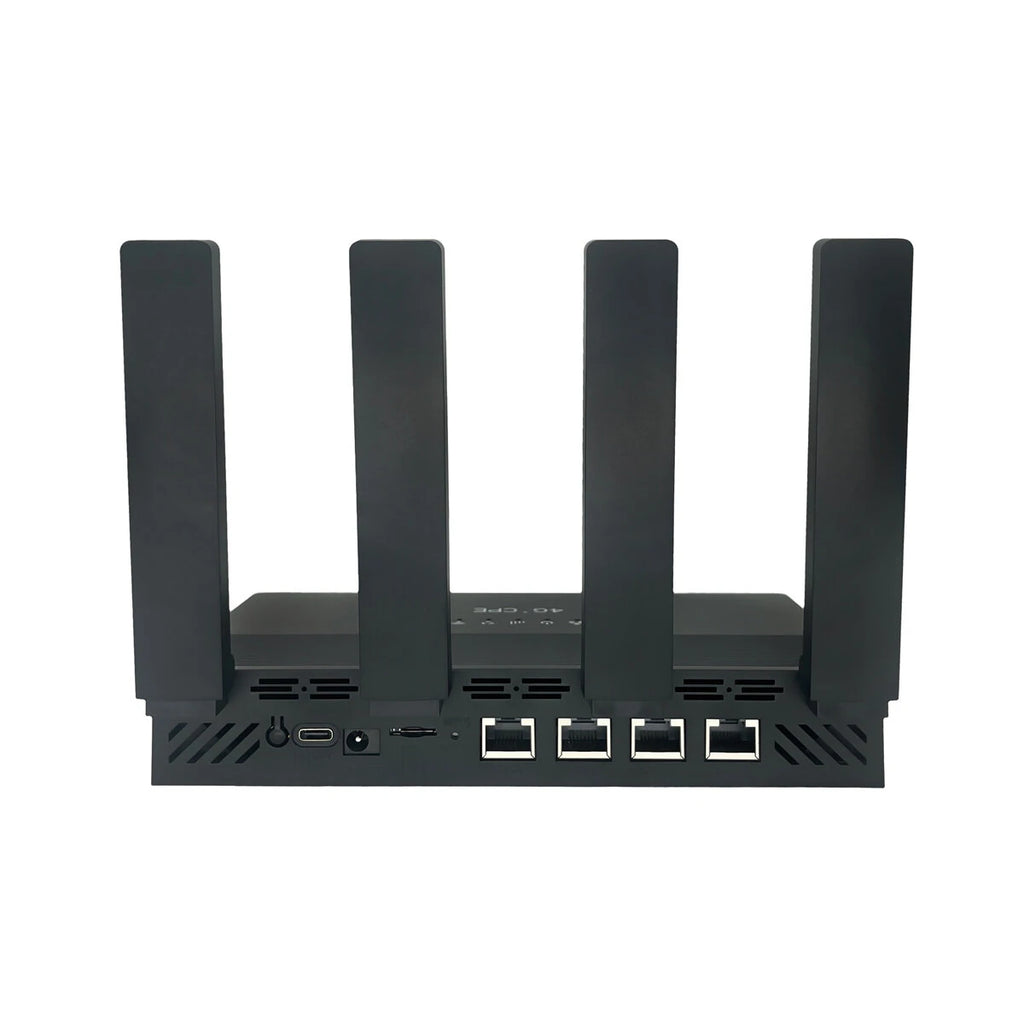

Hardware	Receive Diversity: Support Receive Diversity MIMO: Support DL 2x2 MIMO BB Chipset: ASR1803 WiFi Chipset: Wifi4 ASR5803 or Wifi6 AIC8800 WiFi Users: 8 Power consumption/Power Voltage: <10W / DC12V-800mA or TYPE-C 5V-1000mA Battrey: No USIM/SIM: 4FF Nano SIM card Support SIM/USIM/UIM,standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card;internal' LED: SYSTEM/WiFi Indication LED，LTE/Internet Status Interface Status LED, ETH/Signal Strength LED Antenna: Internal WIFI antenna;2 internal LTE antenna; 2 external antenna for optional Buttons: Reset/WPS Ethernet: 100M LAN*4, 10BaseT/100Base/ automatic adaptive port Reset: Pinhole ESD: Contact±8KV、Air±10KV
Software	SW Update: TR069 & FOTA(customized) & Local WIFI Mode: AP/STATION mode WIFI Security: OPEN & WPA-PSK& WPA2-PSK SMS: YES IPv4: Support IPv4 IPv6: Support IPv6 Data Statistics: Support SIM Lock: Support HTTP: Support DMZ: Support
Environment	Operating Temperature: Normal:-10°C to +65°C; Storage Temperature: -20° C to +85° C Humidity: 5%~ 95%

Features:

1. Wi-Fi 6 Technology: Offers fast wireless speed up to 600Mbps for seamless movie/music streaming and internet access across multiple devices.
2. Mesh Networking Capability: Strong alliance of multiple WR800 routers ensures wide coverage across the home, making it ideal for larger apartments or multi-story buildings.
3. External Antennas for Signal Optimization: Features 4 high-gain omnidirectional antennas with LDPC error correction to enhance anti-interference and extend signal coverage.
4. Stable Connection for Multi-device Use: Supports up to 32 devices simultaneously for smart networking of mobile phones, laptops, and home devices.
5. Advanced Chipset for Low Latency: Equipped with new-generation high-speed chips to manage networking and reduce CPU load effectively for smoother operation.

Package Include:

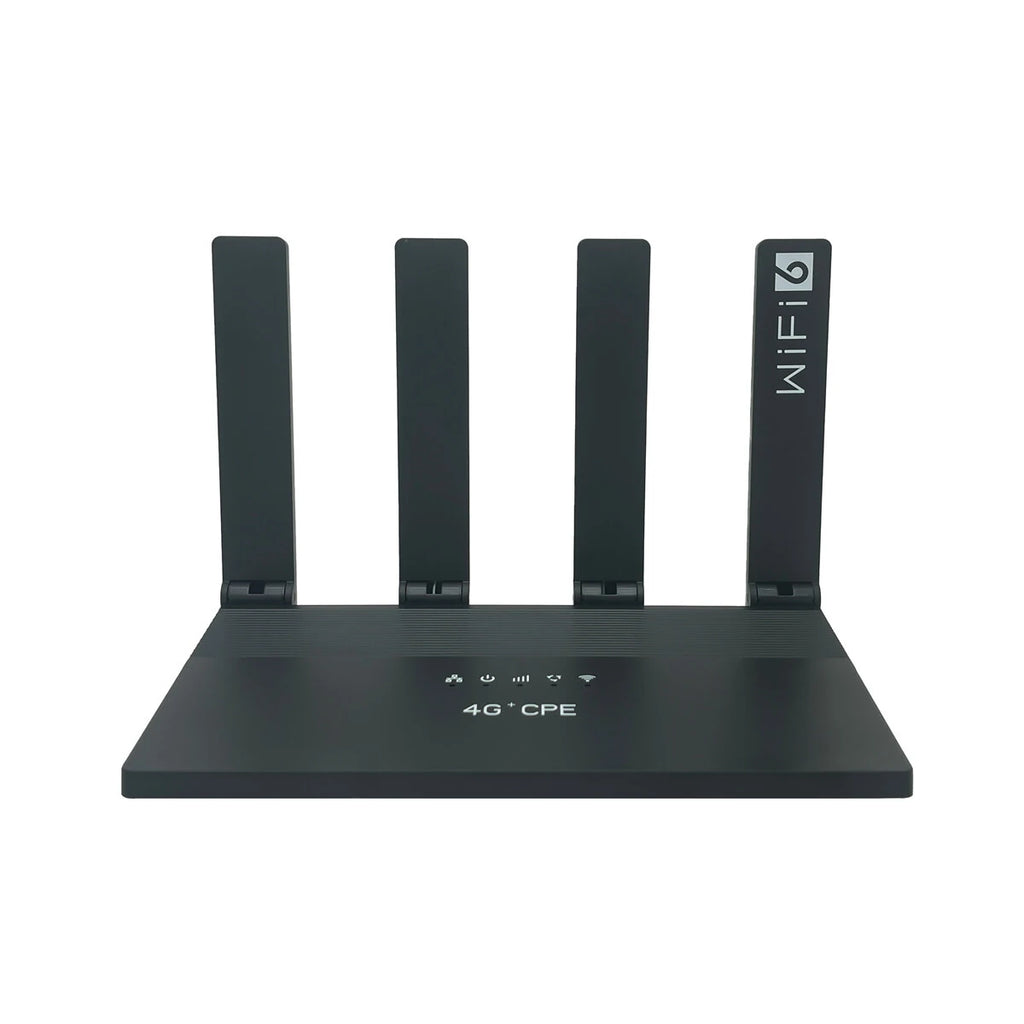

1x WR800 Router

1x Power Cable(EU)

1x Ethernet Cable

1x Manual

1x Package Box
