Description
1.

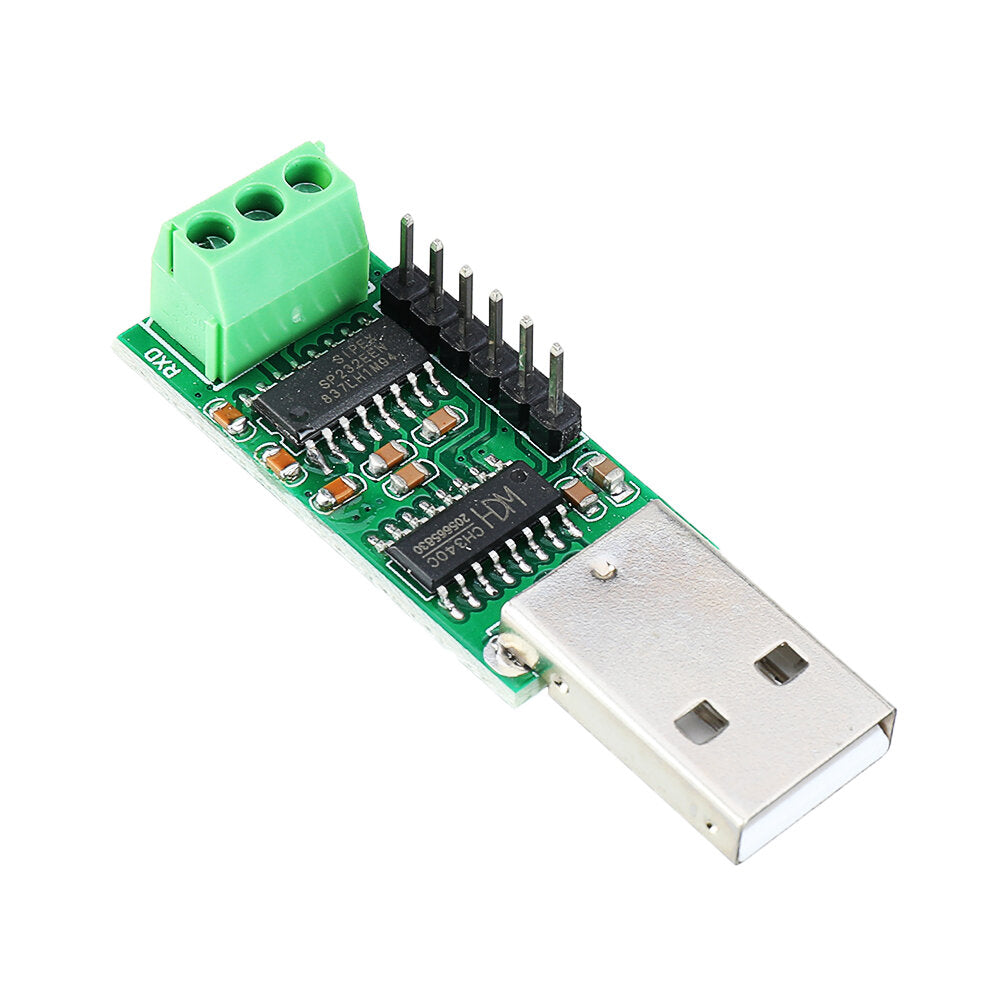

The USB to Serial Port Multi-function Converter Module is a great way to connect your RS232 bus device to a TTL232 communication device, MCU, FPGA/CPLD, ARM, AVR, PIC, or Ardunuo PRO mini downloader cable.
It is also compatible with Windows 98SE, ME, 2000 SP4, XP SP2 and above (32 & 64 bit), Server 2003 (32 & 64 bit), Server 2008 / 2008 R2 (32 & 64 bit), Vista (32 & 64 bit), 7 (32 & 64 bit), 8, 8.1, and 10.
2.
The module includes a USB driver IC (CH340) for stable performance and full compatibility with USB1.1, USB2.0, and USB3.0, as well as a baud rate up to 256 kbps.
3.
The RS232 bus IC is SP232, an industrial grade RS232 conversion IC.
4.

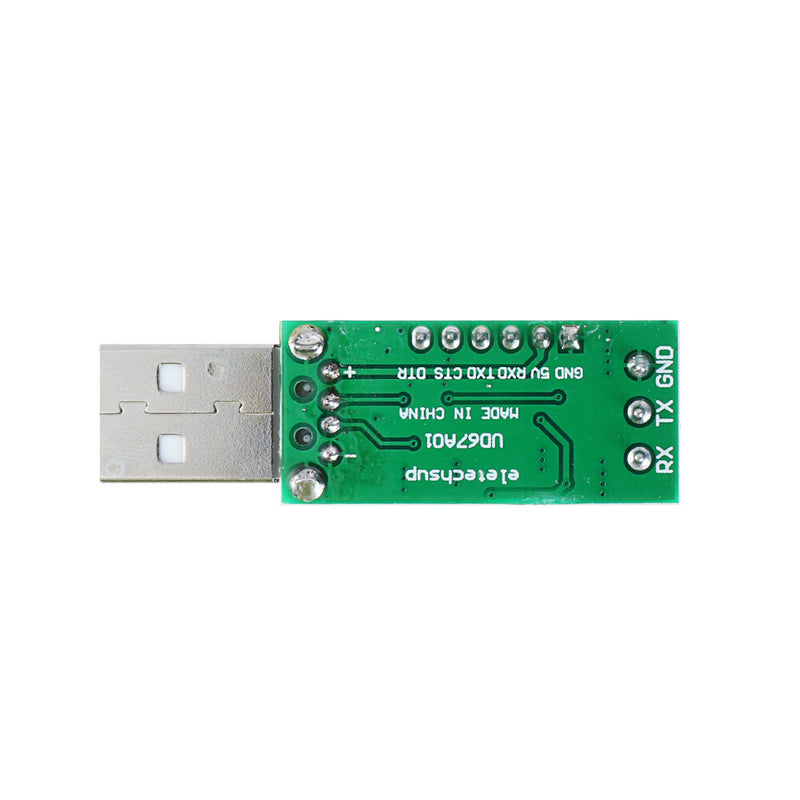

The module has a USB to RS232 serial port with 3 pin pin assignment: GND TX RX, and a USB to TTL serial port with 6 pin assignment: GND 5V RXD TXD CTS DTR.
5.
It is also compatible with PRO MINI download port.
6.
The module is 36 x 14 x 12 mm (does not include USB ports).
Package Included: 1 x USB to Serial Port Multi-function Converter Module
More Information:
The USB to Serial Port Multi-function Converter Module is a great way to connect your RS232 bus device to a TTL232 communication device, MCU, FPGA/CPLD, ARM, AVR, PIC, or Ardunuo PRO mini downloader cable.
It is also compatible with Windows 98SE, ME, 2000 SP4, XP SP2 and above (32 & 64 bit), Server 2003 (32 & 64 bit), Server 2008 / 2008 R2 (32 & 64 bit), Vista (32 & 64 bit), 7 (32 & 64 bit), 8, 8.1, and 10.
2.
The module includes a USB driver IC (CH340) for stable performance and full compatibility with USB1.1, USB2.0, and USB3.0, as well as a baud rate up to 256 kbps.
3.
The RS232 bus IC is SP232, an industrial grade RS232 conversion IC.
4.
The module has a USB to RS232 serial port with 3 pin pin assignment: GND TX RX, and a USB to TTL serial port with 6 pin assignment: GND 5V RXD TXD CTS DTR.
5.
It is also compatible with PRO MINI download port.
6.
The module is 36 x 14 x 12 mm (does not include USB ports).
Package Included: 1 x USB to Serial Port Multi-function Converter Module
Description:
1. The USB driver IC is CH340, stable performance, fully compatible with USB1.1,USB2.0,USB3.0 , baud rate up to 256 kbps;
2. The RS232 bus IC is SP232,this is Industrial grade RS232 conversion IC
3. USB to RS232 serial port, 3 pin pin assignment as below : GND TX RX
4. USB to TTL serial port, 6 pin assignment as below : GND 5V RXD TXD CTS DTR
5. Compatible with PRO MINI download port
6. Uses : CH340 replace FT232 CP2102 PL2303 for Arduiuo Pro Mini Download
7. Size : 36 x 14 x 12 mm(Does not include USB ports )
Supports the following Windows OSes:
Windows 98SE
Windows ME
Windows 2000 SP4
Windows XP SP2 and above (32 & 64 bit)
Windows Server 2003 (32 & 64 bit)
Windows Server 2008 / 2008 R2 (32 & 64 bit)
Windows Vista (32 & 64 bit)
Windows 7 (32 & 64 bit)
Windows 8
Windows 8.1
Windows 10
Application :
RS232 Bus device
TTL232 Communication MCU FPGA/CPLD ARM AVR PIC
Ardunuo PRO mini downloader cable
PLC Modubs device
Camera PTZ
MODEM
Computer communication terminal
Package Included:
1 x USB to Serial Port Multi-function Converter Module
