RX5808 4.9G 5.8G 6.1G PLUS Dual Antenna Receiver Module for SKYZONE/Fatshark /DJI V1 V2 Glasses

Product Specifications

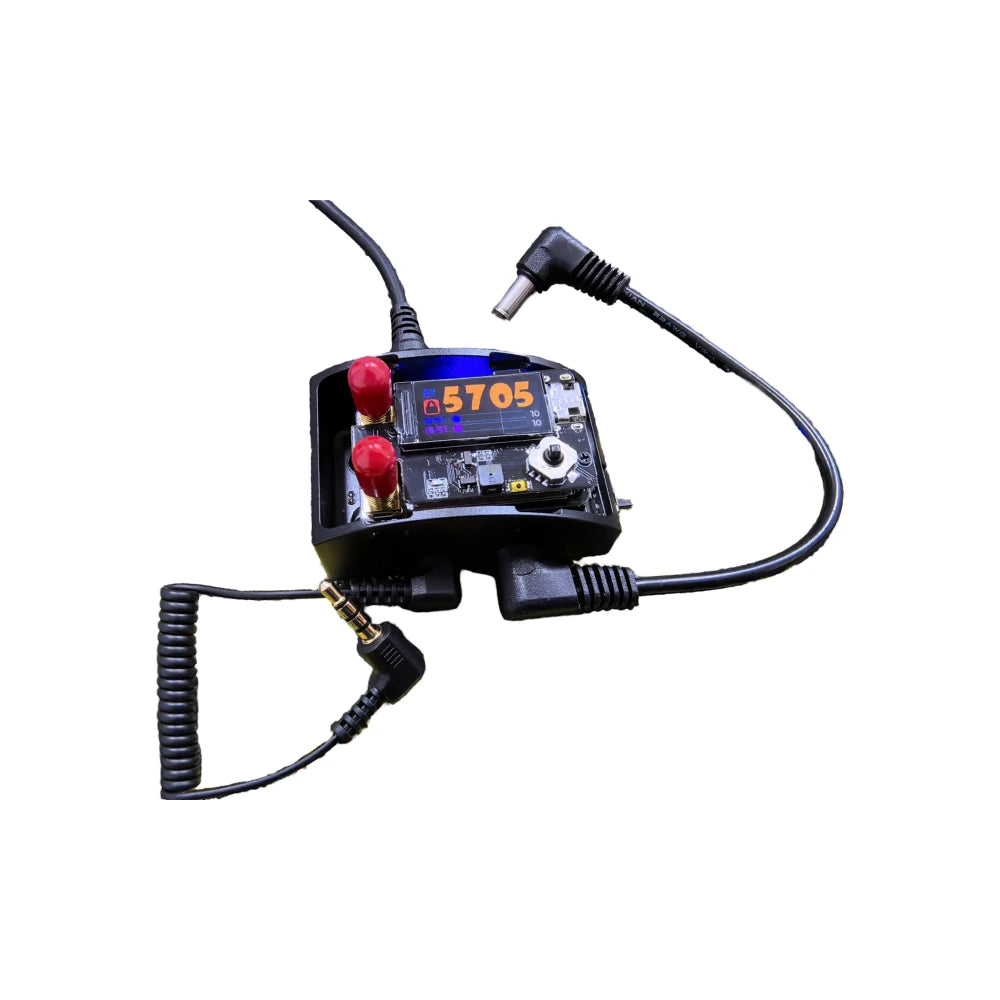

Adaptation:	Fatshark Dominator V1/ V2 /V3, HD1/ HD2/ HD3/ HDO/HDO2, Skyzone 04L/ 04X  DJI V1/ V2 FPV Glasses(Need to purchase separately (5.8G RX PORT module)

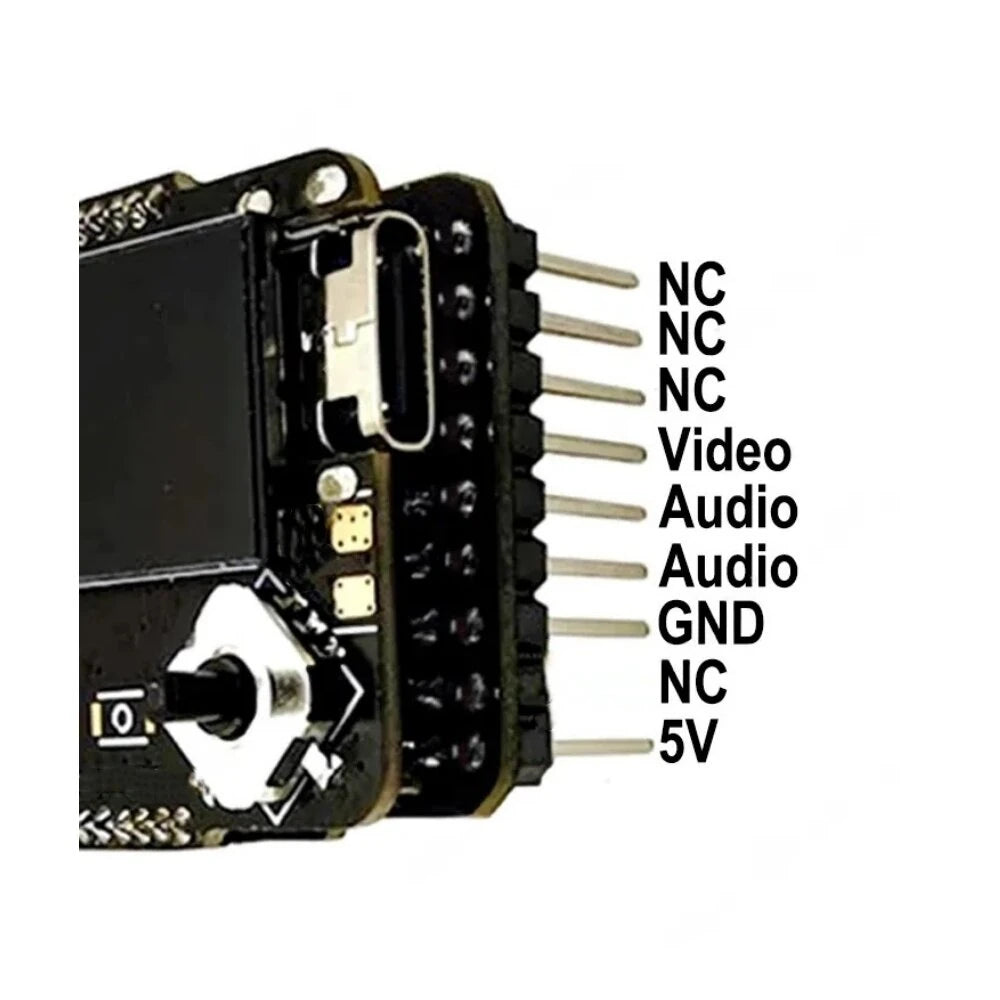

Hardware:	ESP32 microcontroller + 0.96' TFTLCD + 5-way ;Pushbutton + RF homologation-98dbm receiver module + buzzer ;
Interface:	LVGL based bilingual interface
Power supply:	5V@450mA
Weight:	22.5g
Dimensions:	L42.4mm*W25.8mm*H20.5mm

Switch between 5.3G-5.9G or 4.9G-6.1G via the boot animation slider in the Settings interface

Frequency	5.3-5.9G	48CH
Group A	CH1-8	5865	5845	5825	5805	5785	5765	5745	5725
Group B	CH1-8	5733	5752	5771	5790	5809	5828	5847	5866
Group E	CH1-8	5705	5685	5665	5645	5885	5905	5925	5945
Group F	CH1-8	5740	5760	5780	5800	5820	5840	5860	5880
Group R	CH1-8	5658	5695	5732	5769	5806	5843	5880	5917
Group L	CH1-8	5362	5399	5436	5473	5510	5547	5584	5621

Frequency: 4.9G-6.1G 24 frequencies (U,H,V,)

Frequency	4.9G-6.1G	24CH
Group V	CH1-8	4990	5020	5050	5080	5110	5140	5170	5200
Group U	CH1-8	4867	4884	4921	4958	4995	5032	5069	5099
Group H	CH1-8	5960	5980	6000	6020	6040	6060	6080	6100

Operation Guide

1. Main Interface OperationsOn the main interface, key functions are defined as follows:- Long-pressing the OK button toggles the manual channel lock/unlock status.- A short press of the OK button accesses the menu interface.- When the manual channel is unlocked, frequency adjustment is enabled via the up/down/left/right directional keys.

2. Menu Interface Structure & Navigation2.1 Menu Composition- The menu interface is structured into three core sections: Receiver, Settings, and About.

2.2 Navigation Controls- Use the up/down keys to switch between menu options.- Press the OK key to enter the submenu of the currently selected option.- Press the left key to return to the main interface from any menu or submenu.

3. Receiver Menu SubfunctionsThe 'Receiver' menu includes three dedicated subfunctions:- Spectrum ScanDisplays signal strength across the active frequency range (either 5.3G-5.9G or 4.9G-6.1G). Channel-specific signal strength is visualized via color-coded graphs for intuitive differentiation.- Channel ScanningFacilitates automatic frequency search. Upon completion of the scan, the system automatically switches to the channel with the optimal current signal strength, and this channel information is displayed in the upper-right corner of the screen.- Signal CalibrationUsed for RSSI (Received Signal Strength Indicator) calibration. Critical note: Calibration will fail if the video transmitter is not activated. Successful calibration results are automatically saved to the system.

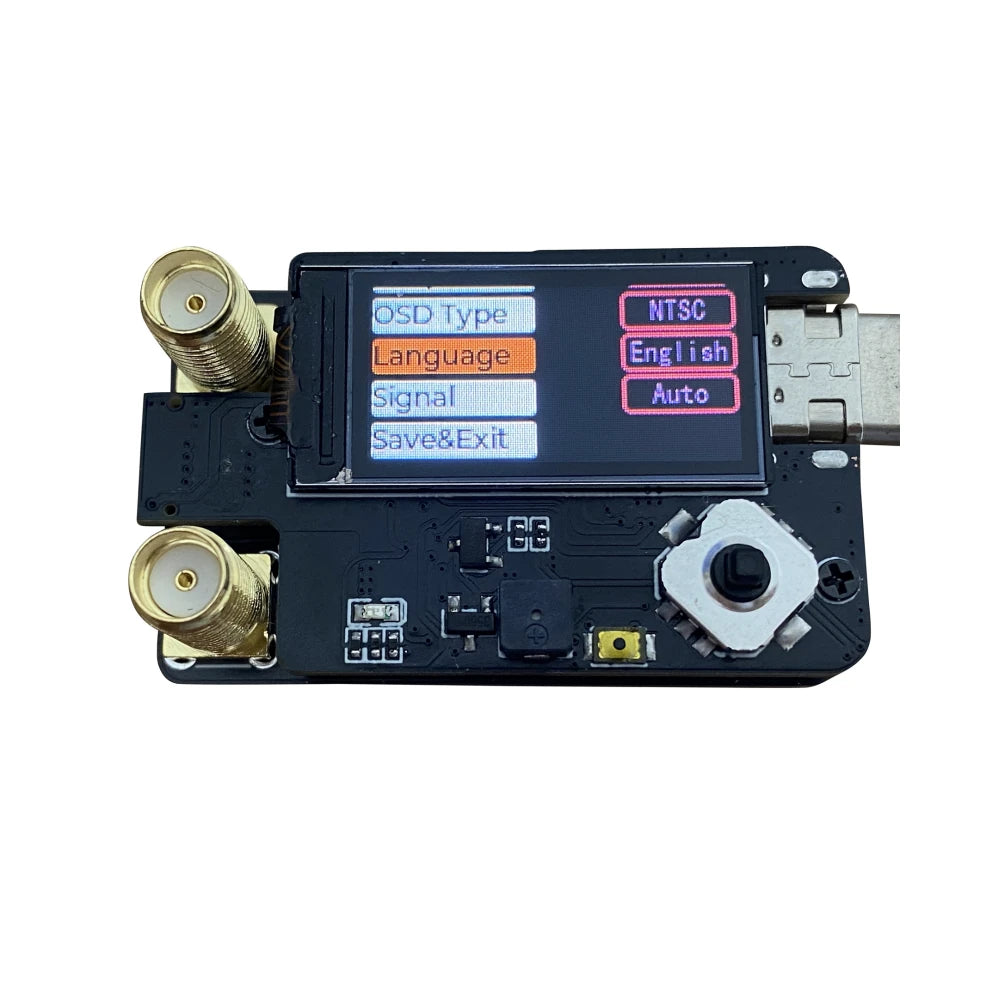

4. Configurable Items in the Settings InterfaceThe 'Settings' interface supports adjustments for the following parameters:- Display backlight intensity- Fan speed- 24ch/48ch channel mode switching- Buzzer activation status (on/off)- OSD (On-Screen Display) format- System language- Output signal source

5. Firmware UpgradeFirmware updates are supported via the TYPE-C USB interface (connect the receiver to a compatible device using a TYPE-C cable to perform upgrades).- This specification retains all operational details while adopting technical terminology and structured formatting typical of professional equipment documentation, enhancing clarity and precision for users.

Package Included:

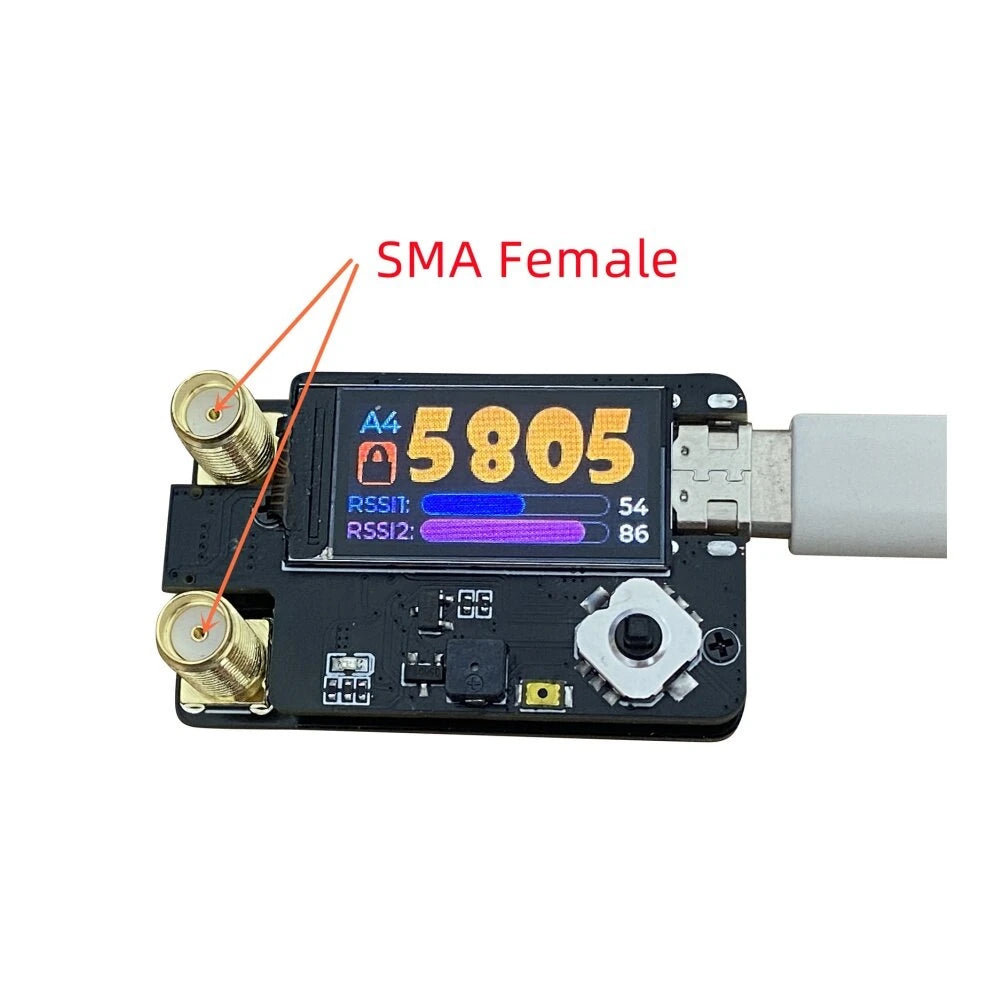

1x RX5808 5.8G PLUS Dual Antenna Receiver Module（SMA Female Connector）
