Description
Features:

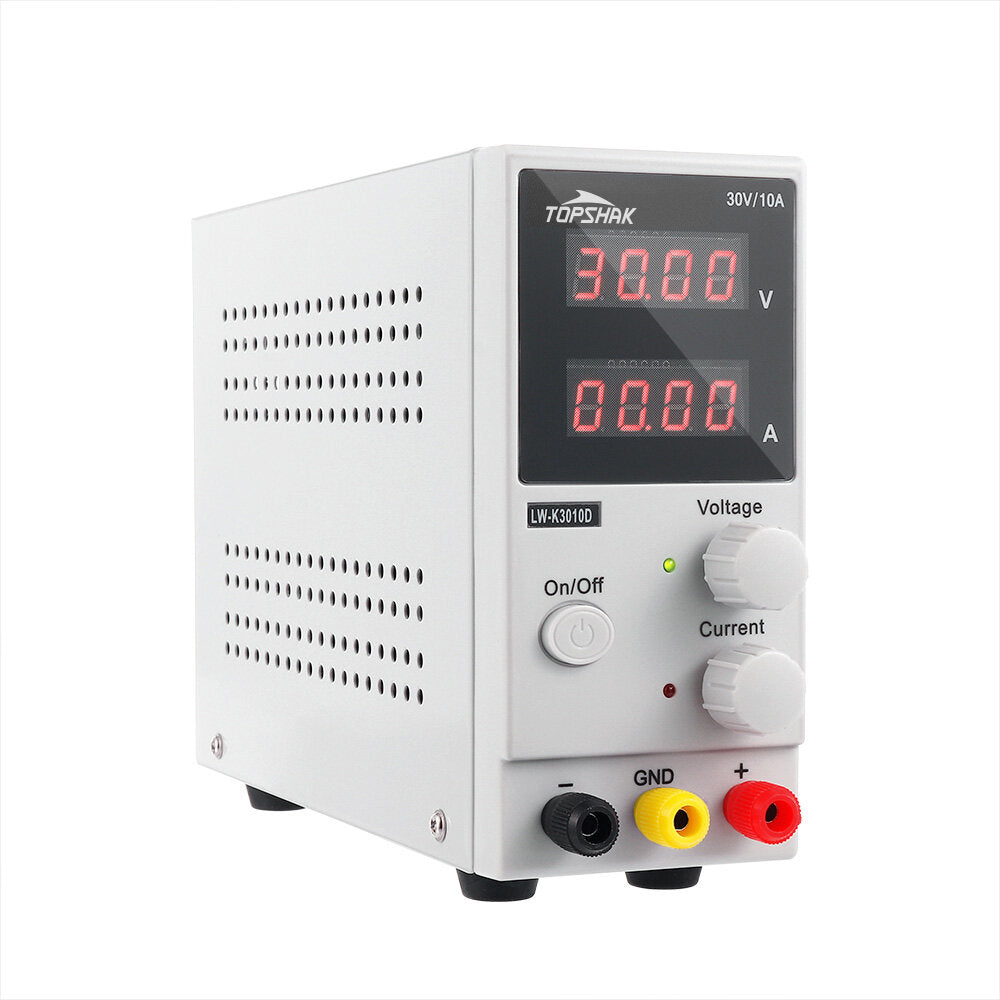

--High-precision LED 4-digits digital display, intuitive.
--High-precision LED 4-digits digital display, intuitive.
--Constant Voltage (CV ) & Constant Current (CC ) Function.
--8cm intelligent fan, excellent heat dissipation effect, effectively extend the life of the fan, reduce noise.
--Plastic panel, more beautiful, voltage, current setting coarse and fine knob, make setting more accurate.
--Using advanced technology, effectively reduce the weight of power supply, convenient power supply movement.
--This DC power supply can provide electronic devices of direct voltage from 0 to 30V and current from 0 to 10A.

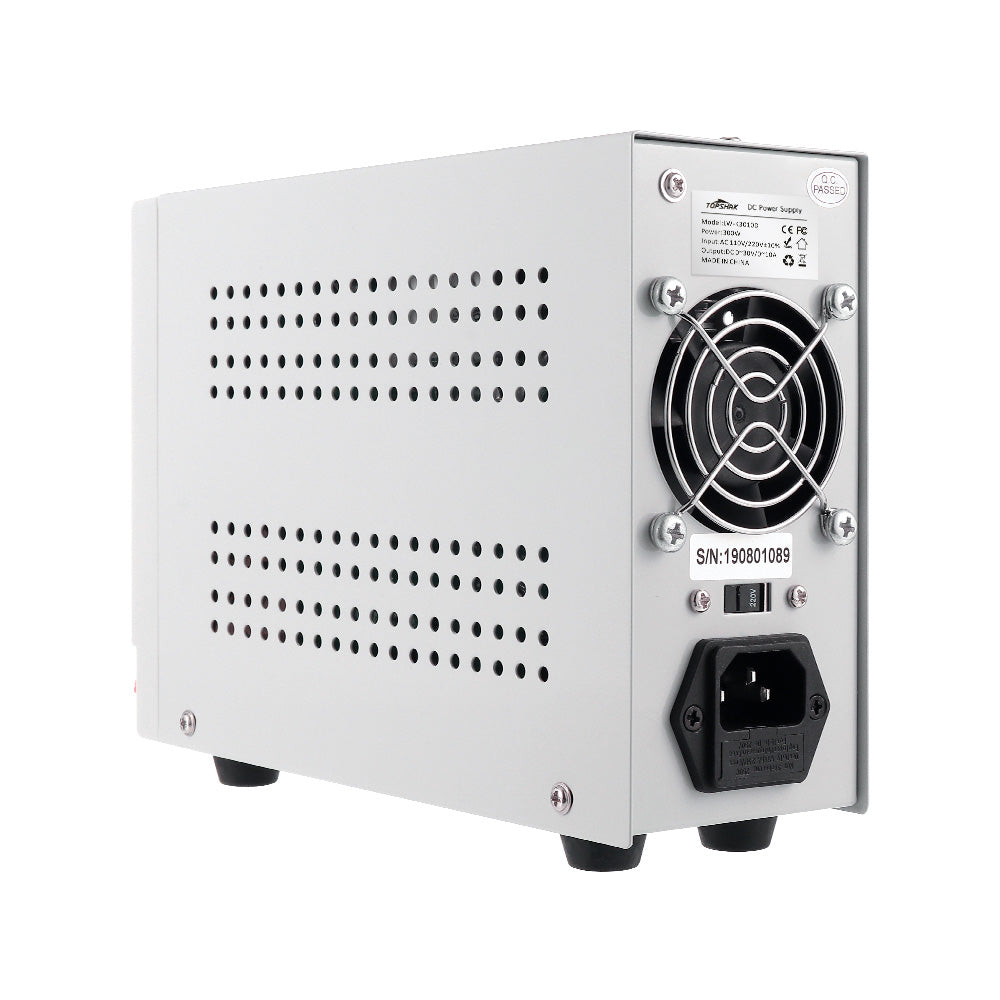

--Input voltage is switchable(AC110V/AC220V) through the switch on the back of the instrument.
--Input voltage is switchable(AC110V/AC220V) through the switch on the back of the instrument.
--Multiple protection functions, current limiting protection (OCP), over temperature protection (OTP), over power protection (OPP).
--Energy-saving and efficiency: over 80% power, 40% higher than other liner power supplies.
--Energy-saving and efficiency: over 80% power, 40% higher than other liner power supplies.
--Suitable for electron fans, research people and the professional people.
--It can be widely used in production line test, electrical maintenance, aging products, battery charging, laboratories, scientific research and teaching and many other areas.
Note: Before use, you need to adjust the switch on the back of the power supply to the correct voltage and then use it.
Note: Before use, you need to adjust the switch on the back of the power supply to the correct voltage and then use it.
Specifications:
Brand | TOPSHAK & LONG WEI |
Model | K3010D |
Input Voltage | AC 110/220V±10% 50~60Hz |
Input Current (at 220VAC, at full load) | 0.6A |
Output Voltage Range | 0~30V |
Output Current Range | 0~10A |
Load Regulation | <=0.3%+5mV |
Ripple | <=10mVrms |
Voltage Display Accuracy | ±0.5% |
Current Display Accuracy | ±0.5% |
Display accuracy | ±0.01 |
Efficiency | >85% |
Dimension | Approx.20*7*15.1cm |
Operating Ambient | -10℃ ~ 60℃ / 30%RH~ 90% RH |
Plug | AU Plug , EU Plug , US Plug , UK Plug |
Package Included:
1* DC Power Supply
1* Power Cable
1* User Manual(English)
More details:
