Isaiah 55:8-9 John 3:16 Philippians 4:19
Version: X5
Price:
R 729.70 R 885.64
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Notice:
1. It is Empty Frame Kit, not include FC,ESC, Motor, Propeller, VTX, Camera, Battery, etc.
2. It Comes unassembled. Need build by buyers.



Specifications:

Brand: TEOSAWModel: APEX X5/X6/X7
Item Name: 5 Inch/6 Inch/7 Inch Frame Kit

Model:

APEX X5

APEX X6

APEX X7

Wheelbase:

225mm

275mm

315mm

Appearance Size:

Approx.165mm x 213mm x 35mm

Approx.189mm x 253mm x 35mm

Approx.212mm x 286mm x 35mm

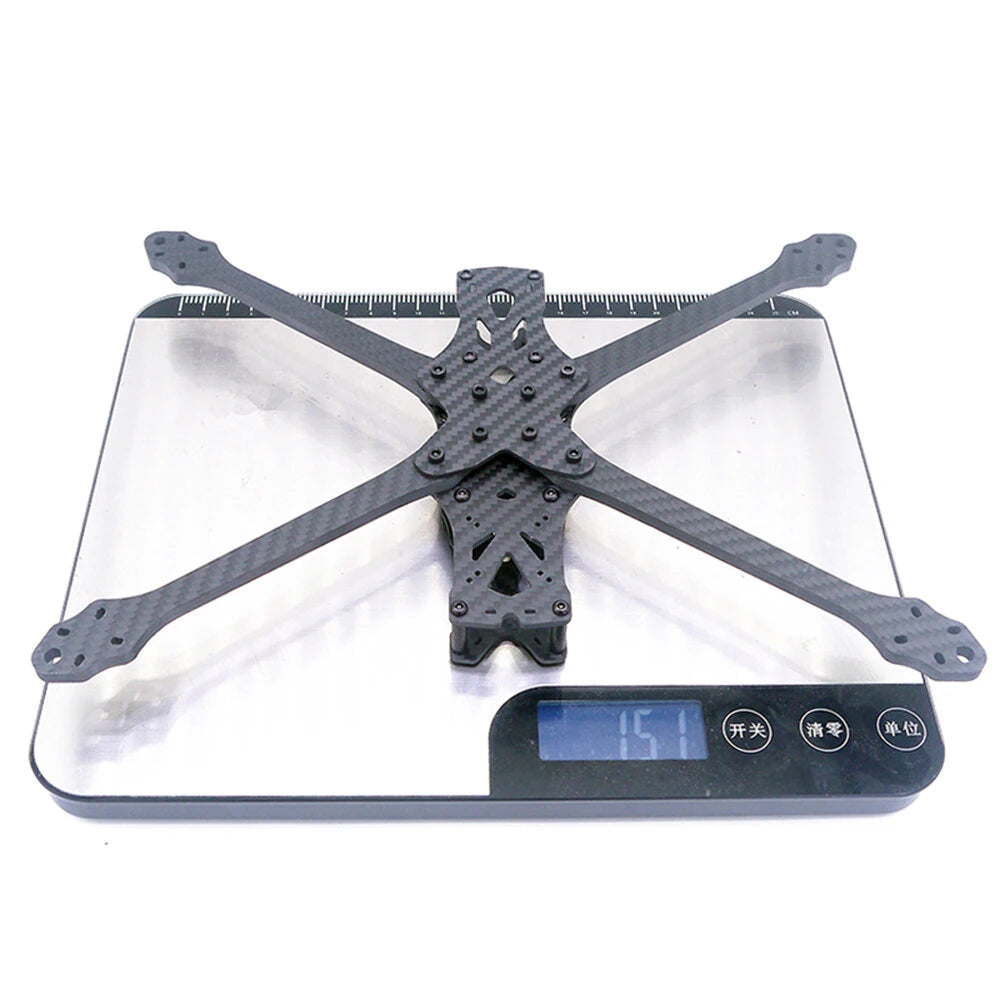

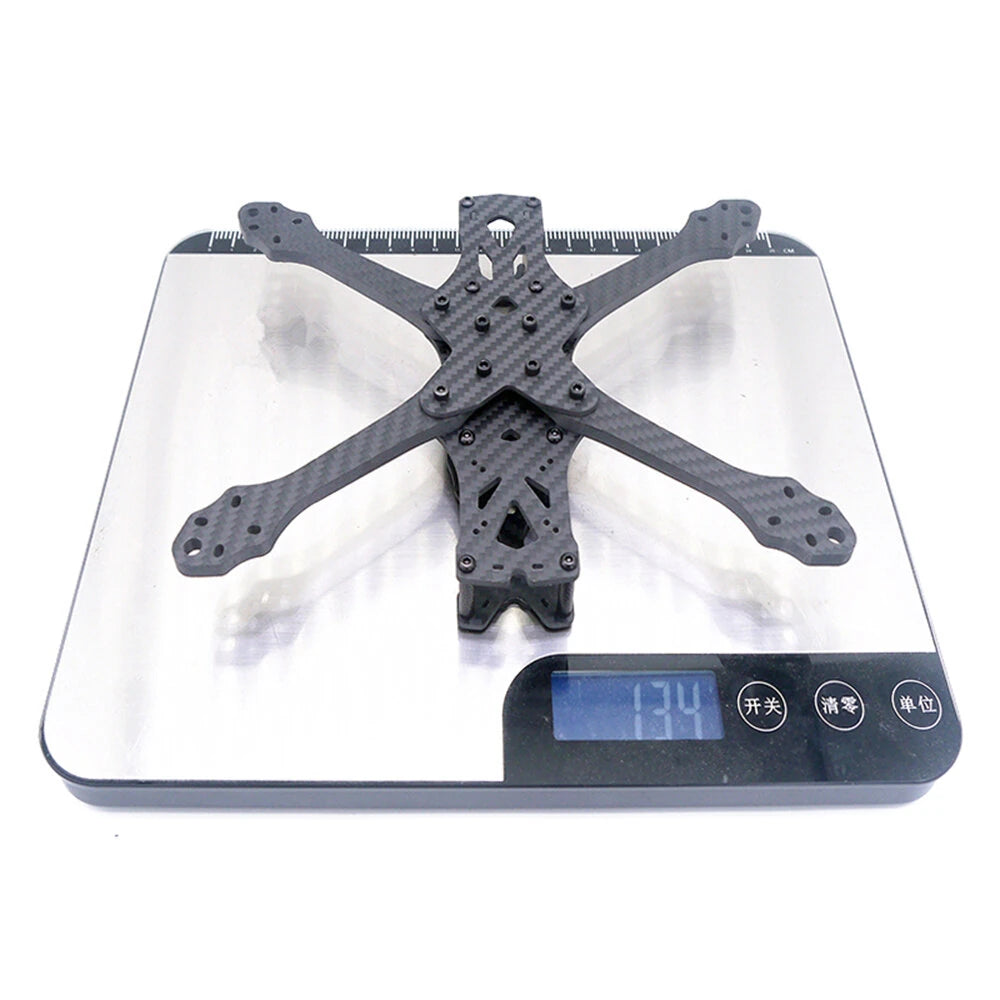

Weight:

Approx.134g

Approx.143g

Approx.151g

Structure:

X-type split

Thickness:

Arm 5.5mm, bottom plate 2.5mm, splint 2.5mm, upper plate 2.0mm, side plate 2.0mm

Applicable Propeller Size:

5-5.1 Inch

6 Inch

7 Inch

FC Mounting Hole:

20*20mm（M3），30.5*30.5mm（M3）

VTX Mounting Hole:

20*20mm（M2），25.5*25.5mm（M2）

Camera Installation Width:

20mm/19mm

Internal Height:

Approx.20-28mm

Motor Mounting Hole:
