Description
Note:
- Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
- Comes unassembled. Need build by buyers.
Specification:
Brand: TEOSAW
Model: APEX X5 / X5 Max / X6 / X6 Max / X7 / X7 Max

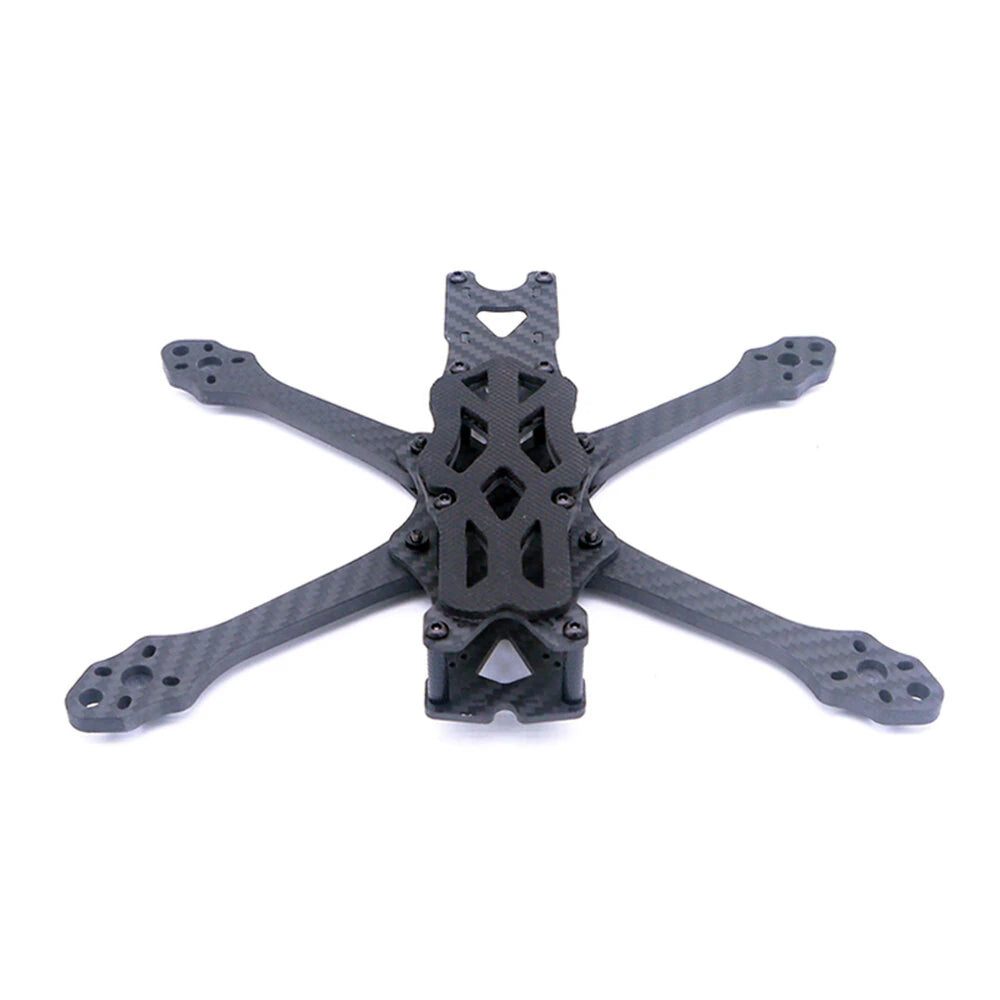

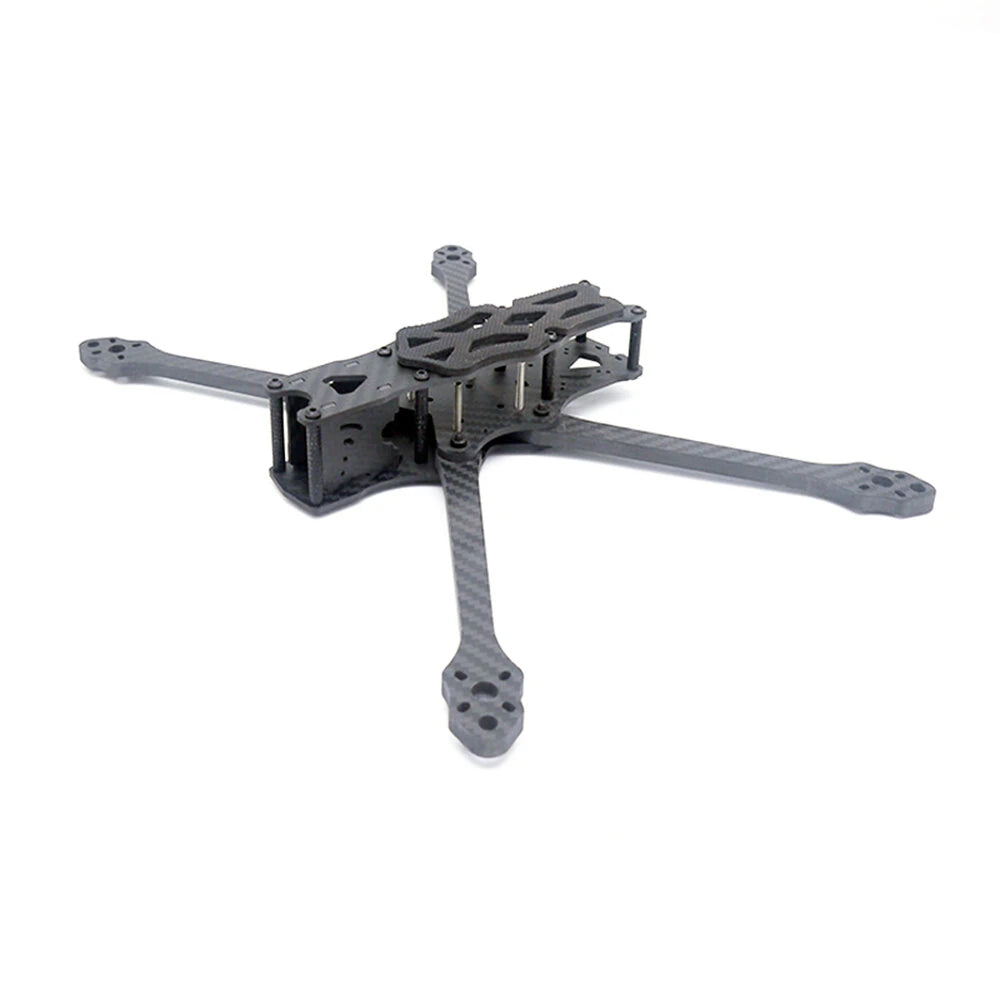

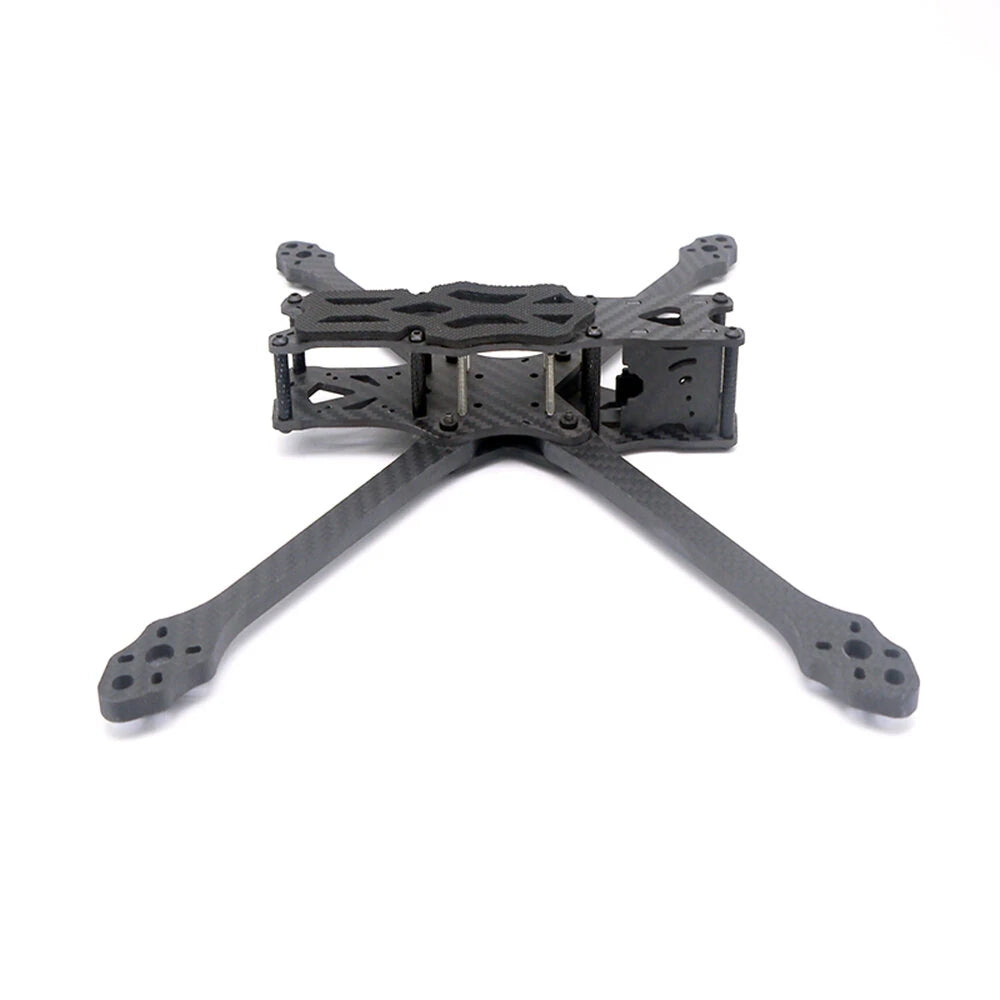

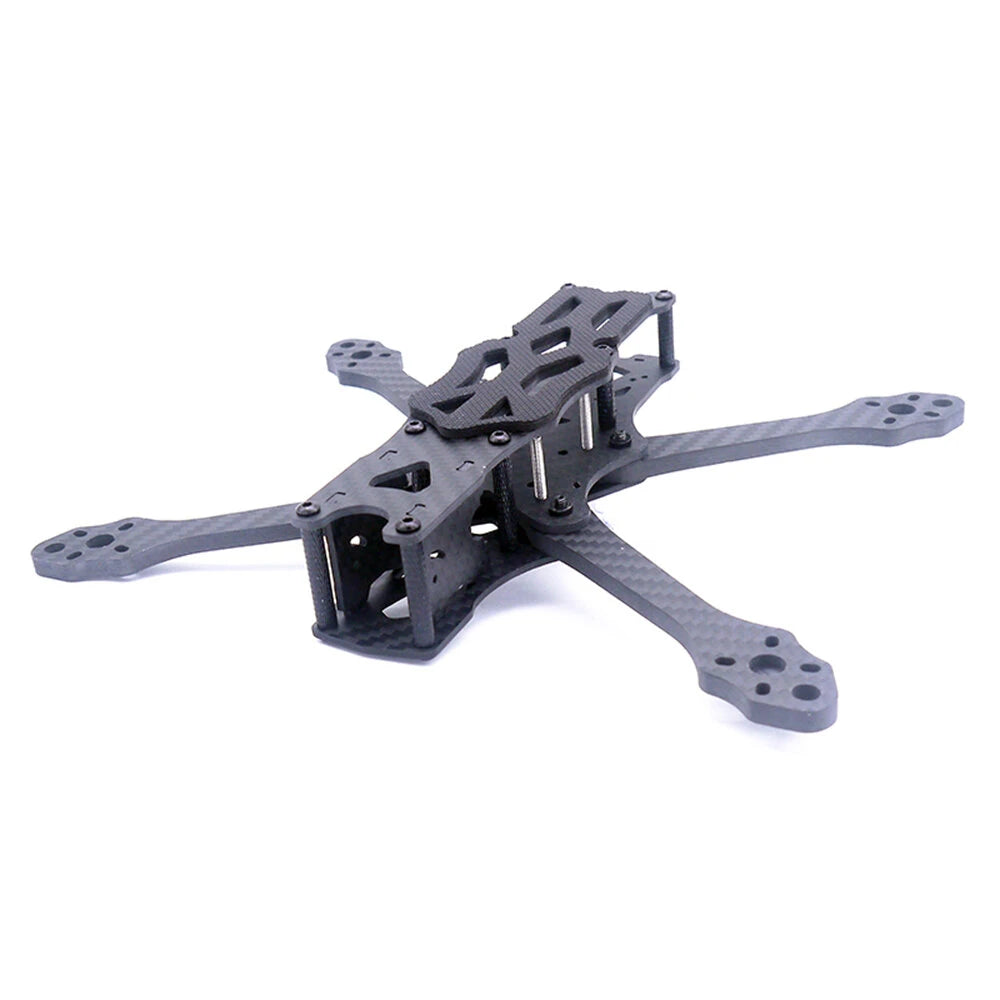

Item Name: 5 Inch / 6 Inch / 7 Inch Frame Kit
Model |
APEX X5 (Supports O4 Pro) |
APEX X5MAX (Supports O4 Pro) |
APEX X6 (Supports O4 Pro) |
APEX X6 MAX (Supports O4 Pro) |
APEX X7 (Supports O4 Pro) |
APEX X7MAX (Supports O4 Pro) |
Wheelbase: |
225mm |
275mm |
315mm |
|||
Dimensions: |
Approx.165mm(L) x 213mm(W)x 35mm(H) (excluding printed parts) |
Approx. 189mm(L)x 253mm(W)x 35mm(H)(excluding printed parts) |
Approx. 212mm(L)x 286mm(W)x 35mm(H)(excluding printed parts) |
|||
Weight: |
Approx.134g |
Approx.159g |
Approx.143g |
Approx.168g |
Approx.151g |
Approx.179g |
Structure: |
X-Type Split |
|||||
Thickness: |
Arm 5.5mm, bottom plate 2.5mm, splint 2.5mm, upper plate 2.0mm, side plate 2.0mm |
|||||
Supported Propeller Size: |
5-5.1 inch |
6 inch |
7 inch |
|||
Flight Controller Mounting Holes: |
20*20mm（M3），30.5*30.5mm（M3） |
|||||
Rear Image Transmission Mounting Holes: |
20*20mm（M2），25.5*25.5mm（M2），30.5*30.5mm（M3） |
|||||
Camera Mounting Width: |
20mm/19mm |
|||||
Internal Space Height: |
Approx.20-28mm |
|||||
Motor Mounting Holes: |
16*16mm（M3），19mm*19mm（M3） |
|||||
Supported Image Transmission: |
DJI O4 Pro Air Unit/DJI O3 Air Unit/VISTA Air Unit/Analog, etc. |
|||||
Board Material: |
3K (T700 Grade) |
|||||
GPS Mounting: |
None |
BZ181 |
None |
BZ181 |
None |
BZ181 |
3D Printing Parts List: |
None |

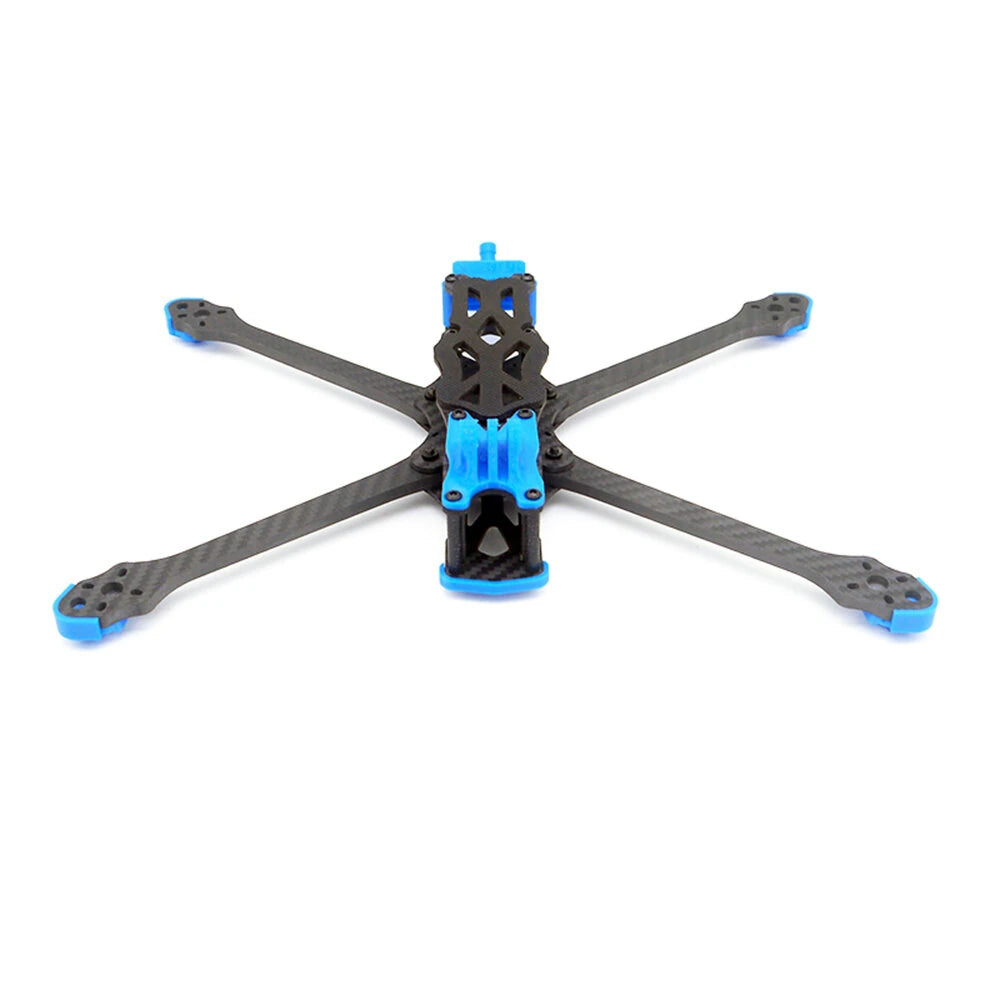

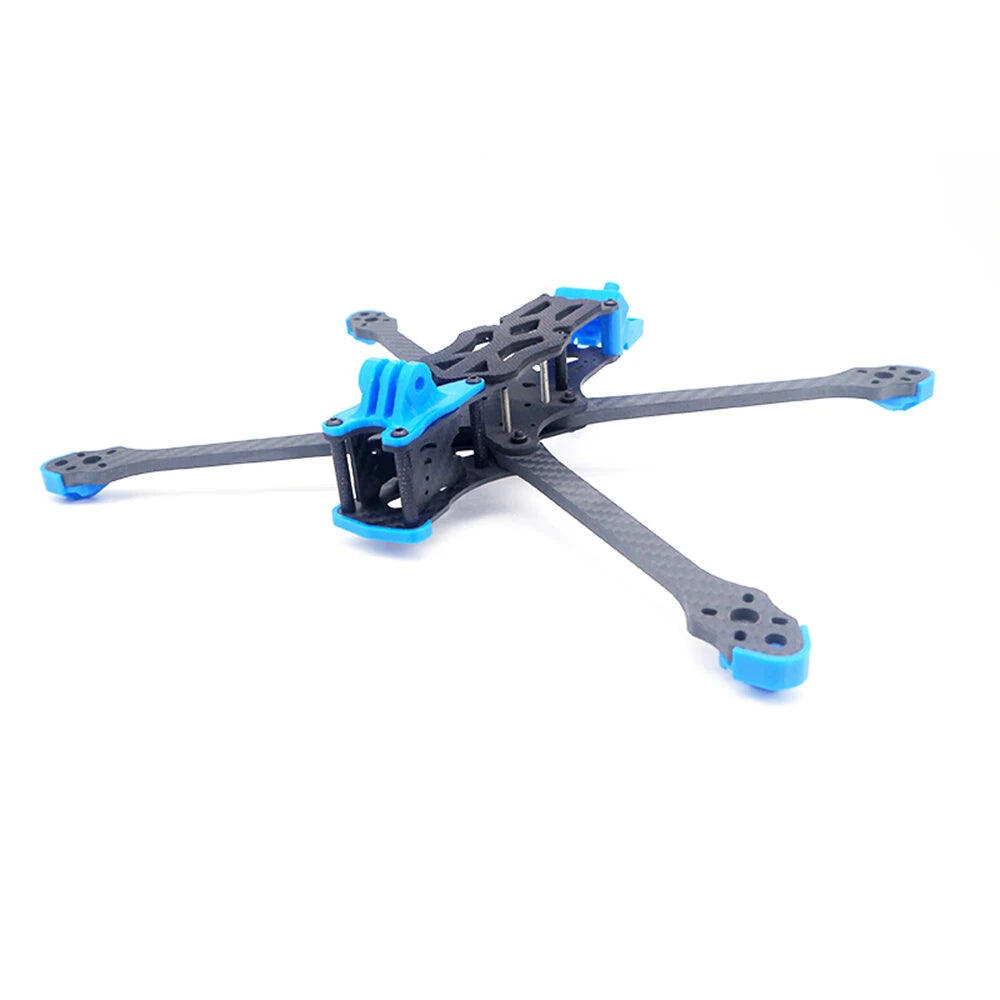

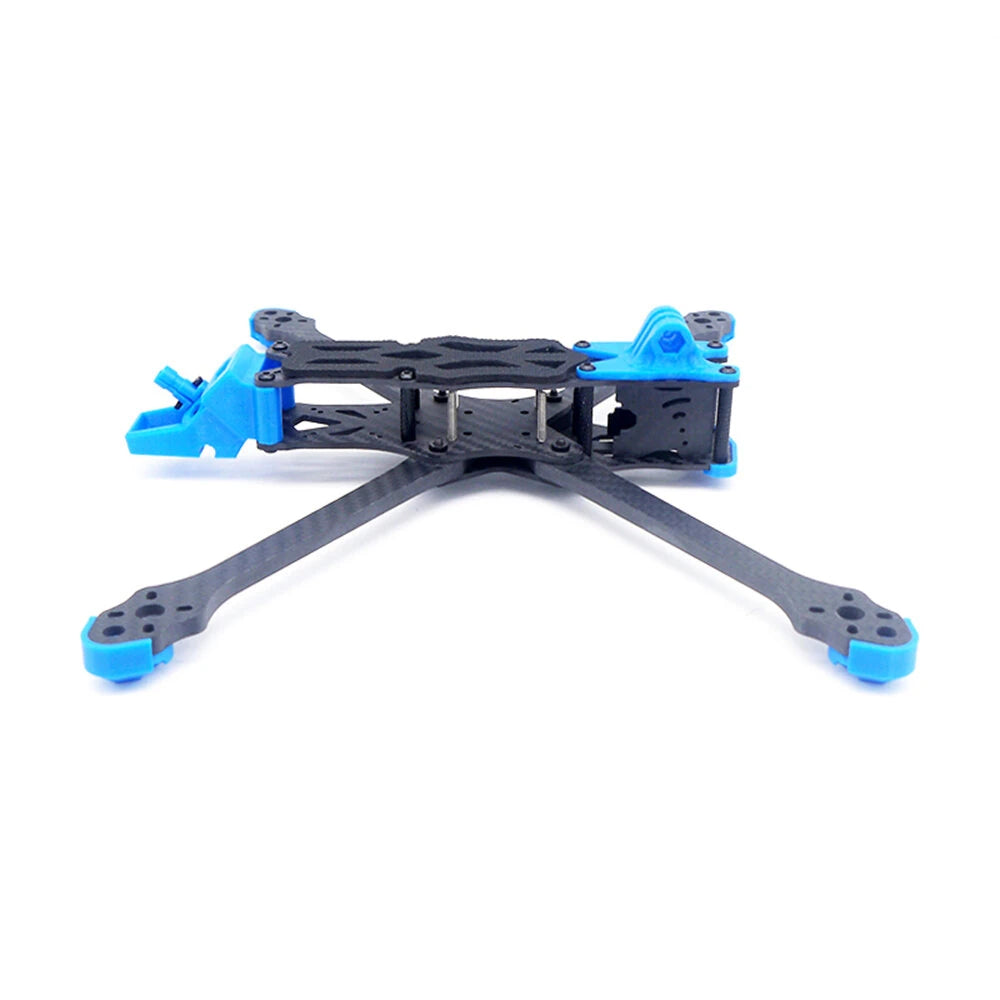

1 Universal base for sports cameras (such as Gpro), 4 Arm protection bases, 1 Front lip protection base, 1 Universal antenna base (compatible with XT60 power head, BZ181 GPS, ELRS915/2.4, SMA dual-hole, O4 dual antenna, DJI O3 antenna, VISTA antenna, SMA single-hole antenna, etc.) |
||||
