Description
Note:
- Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
- Comes unassembled. Need build by buyers.
Specification:
Brand: TEOSAW
Model: APEX EVO X5 / X5 Max / X6 / X6 Max / X7 / X7 Max

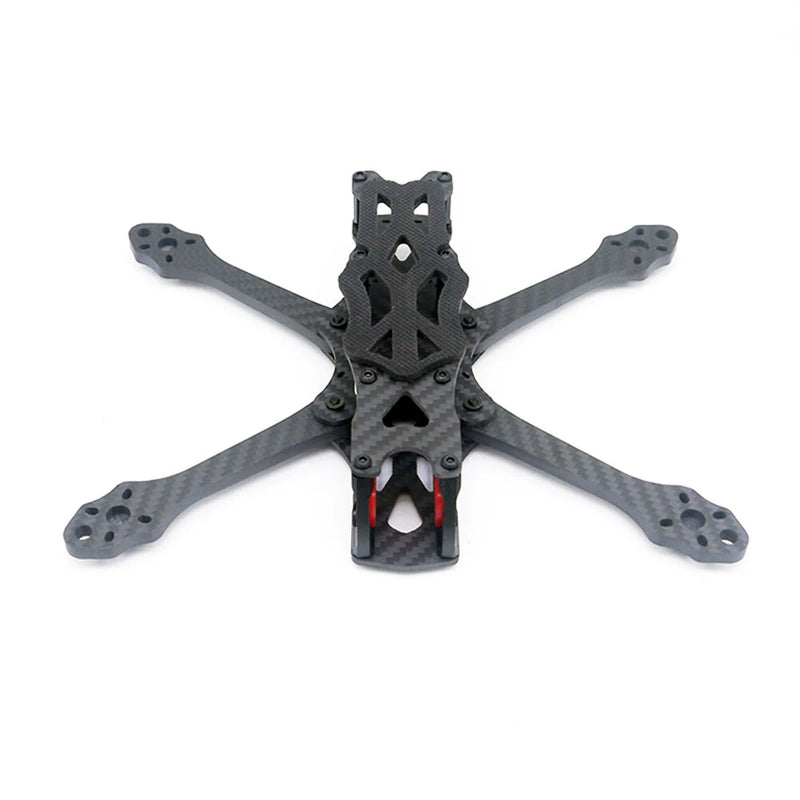

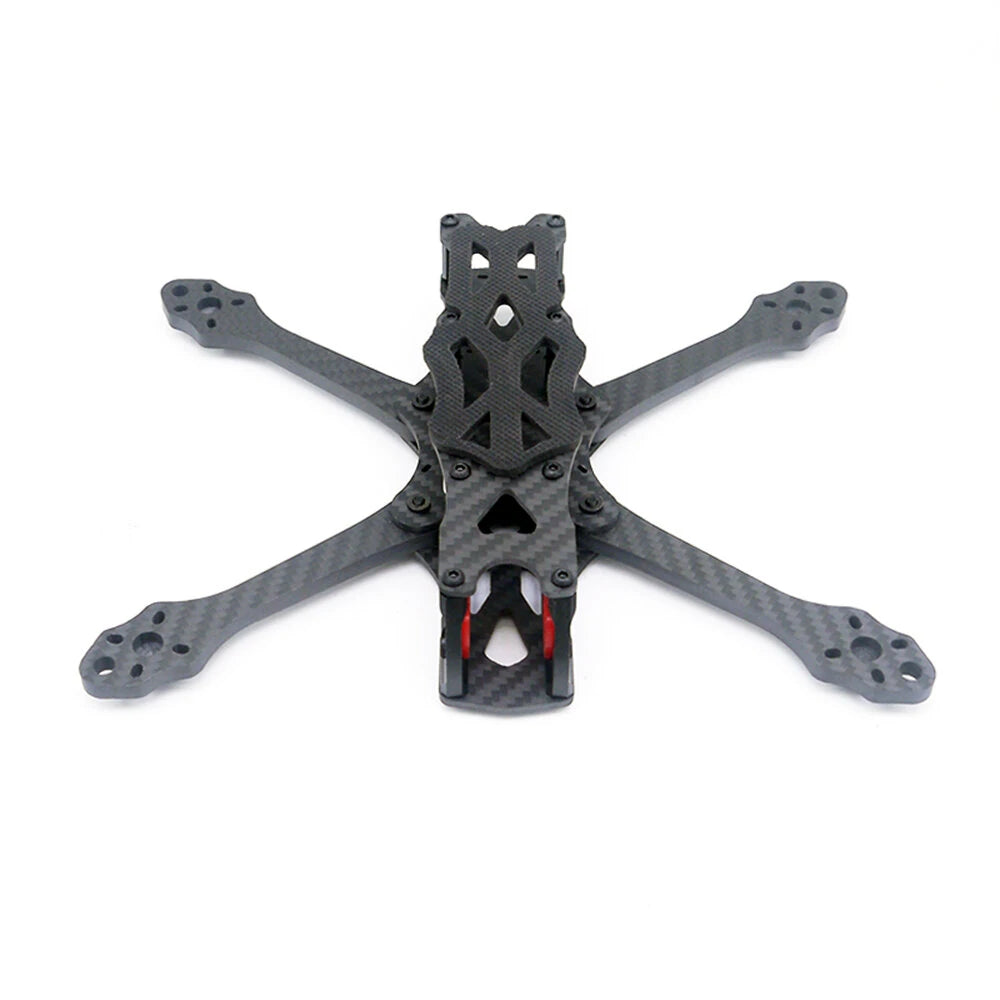

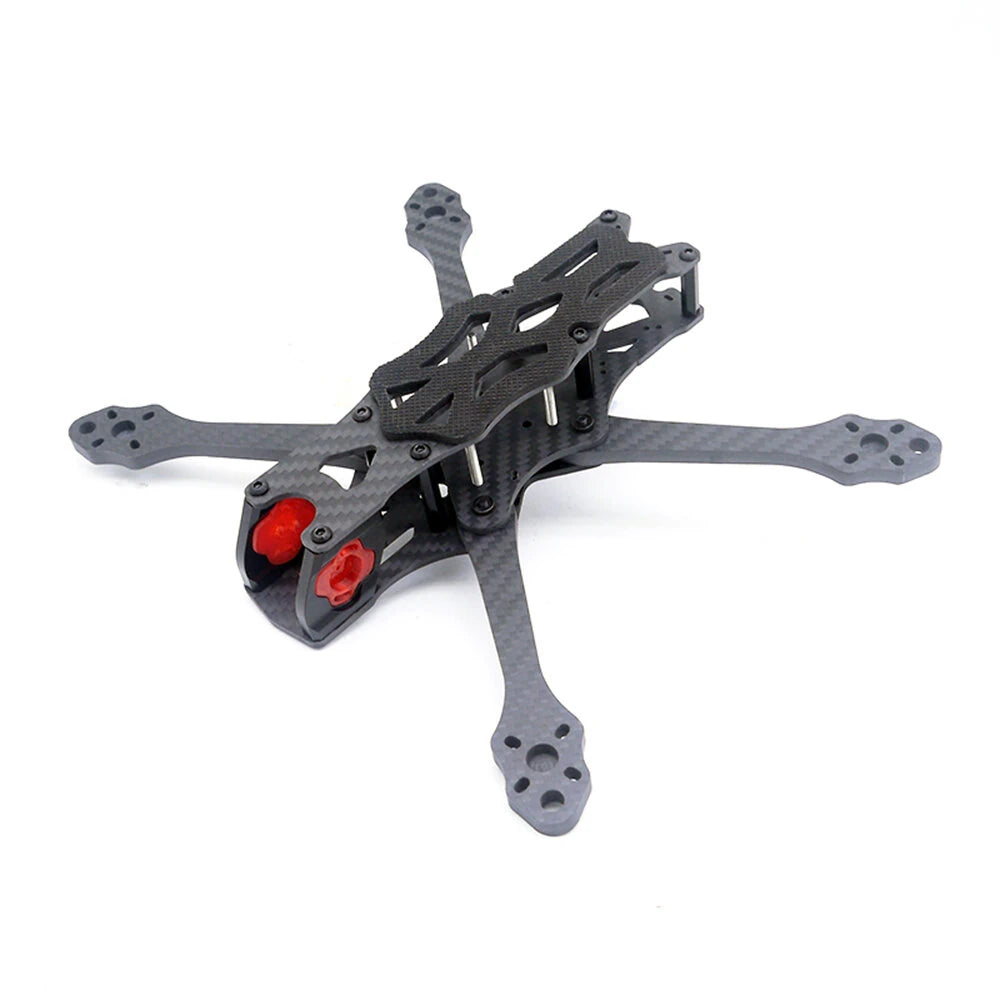

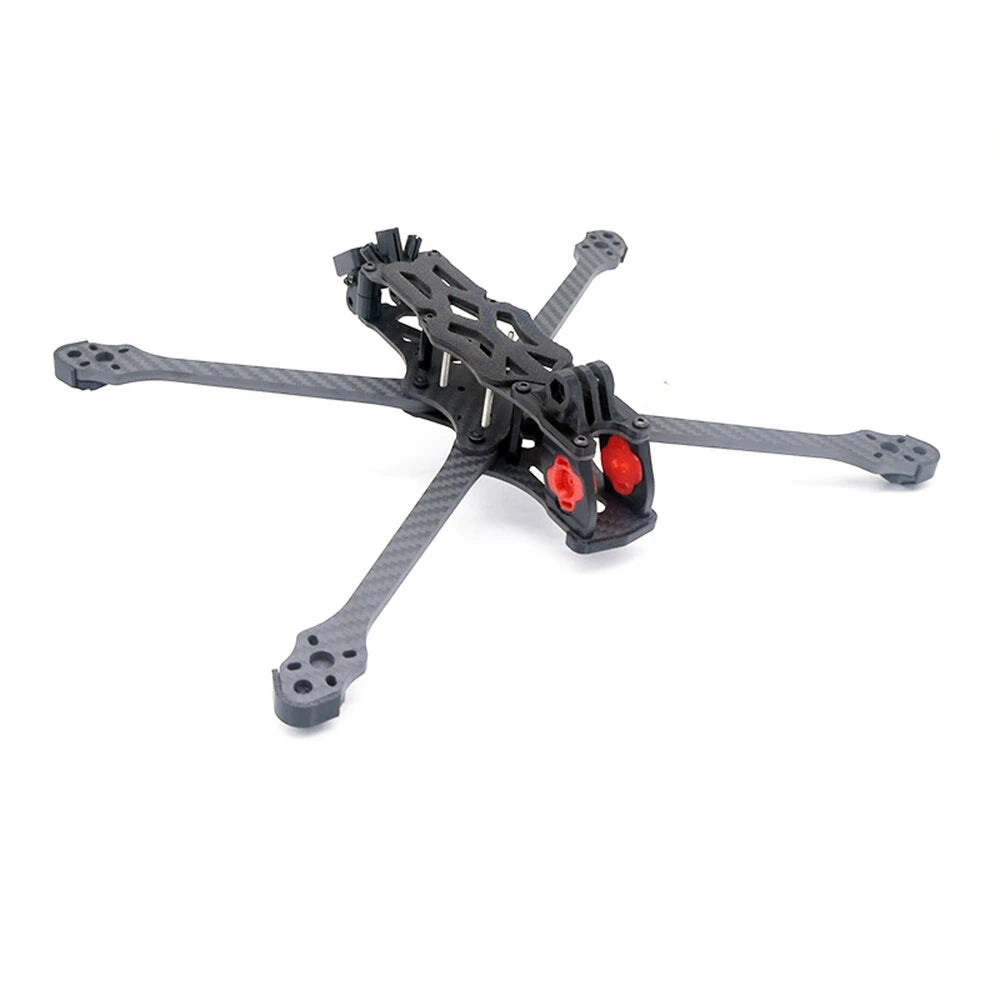

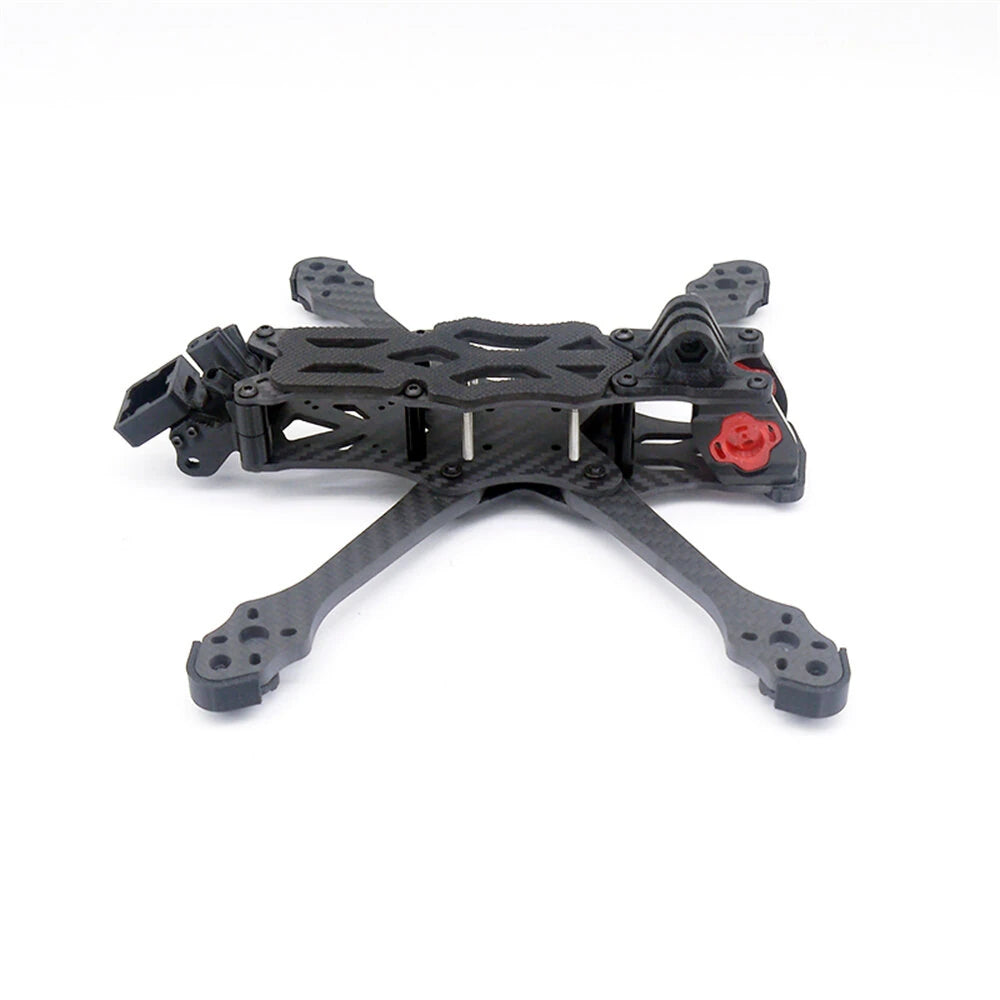

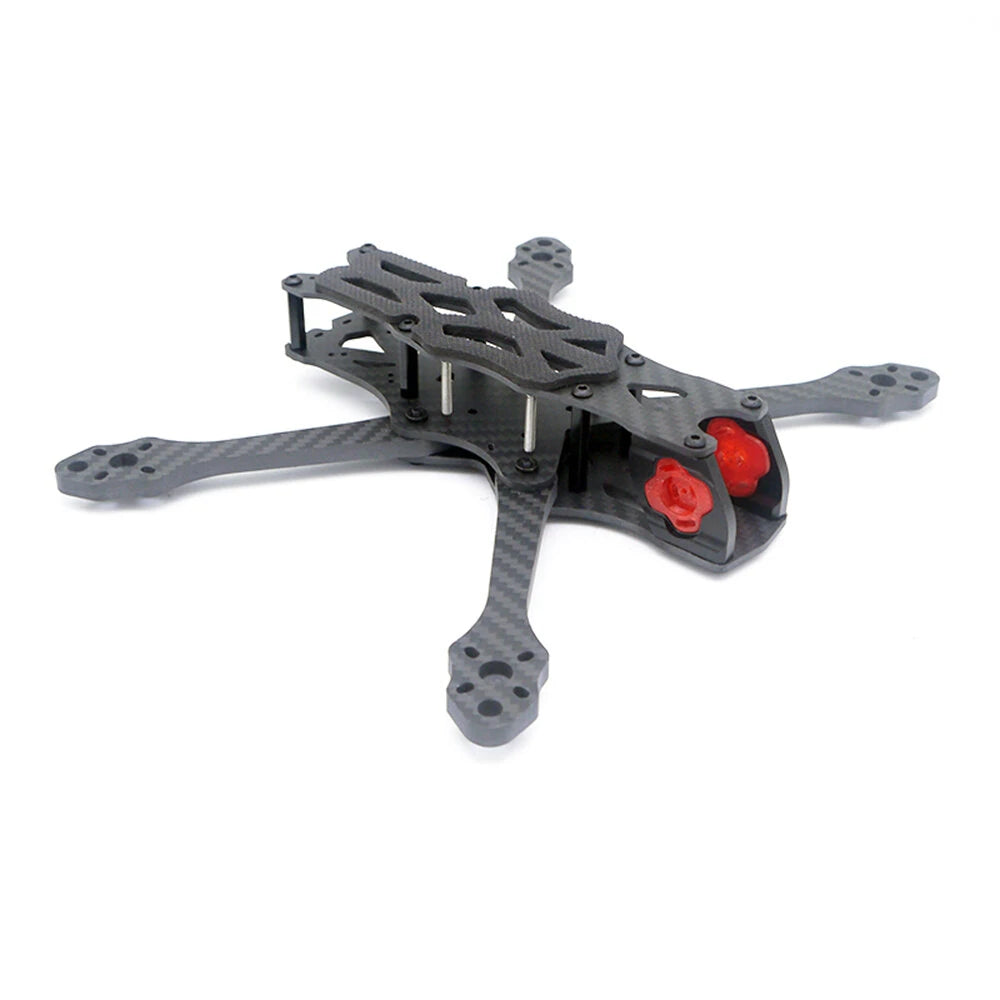

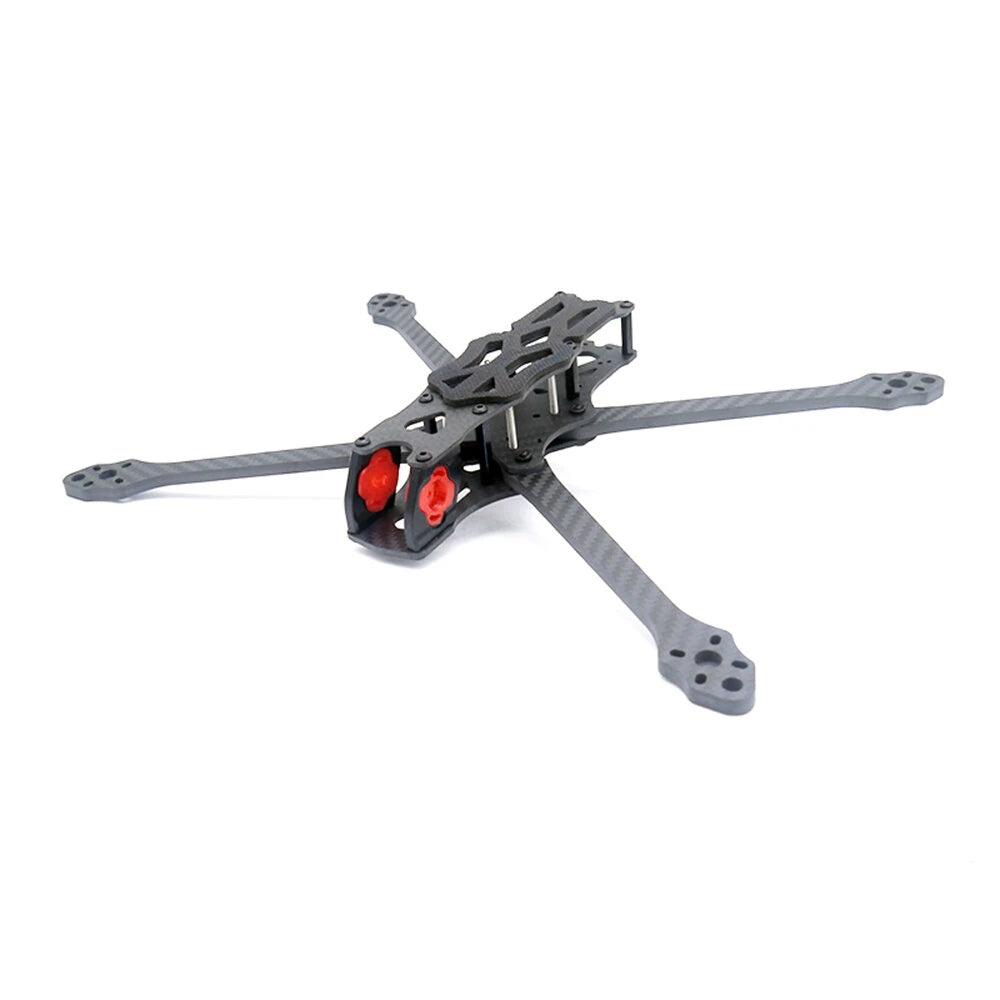

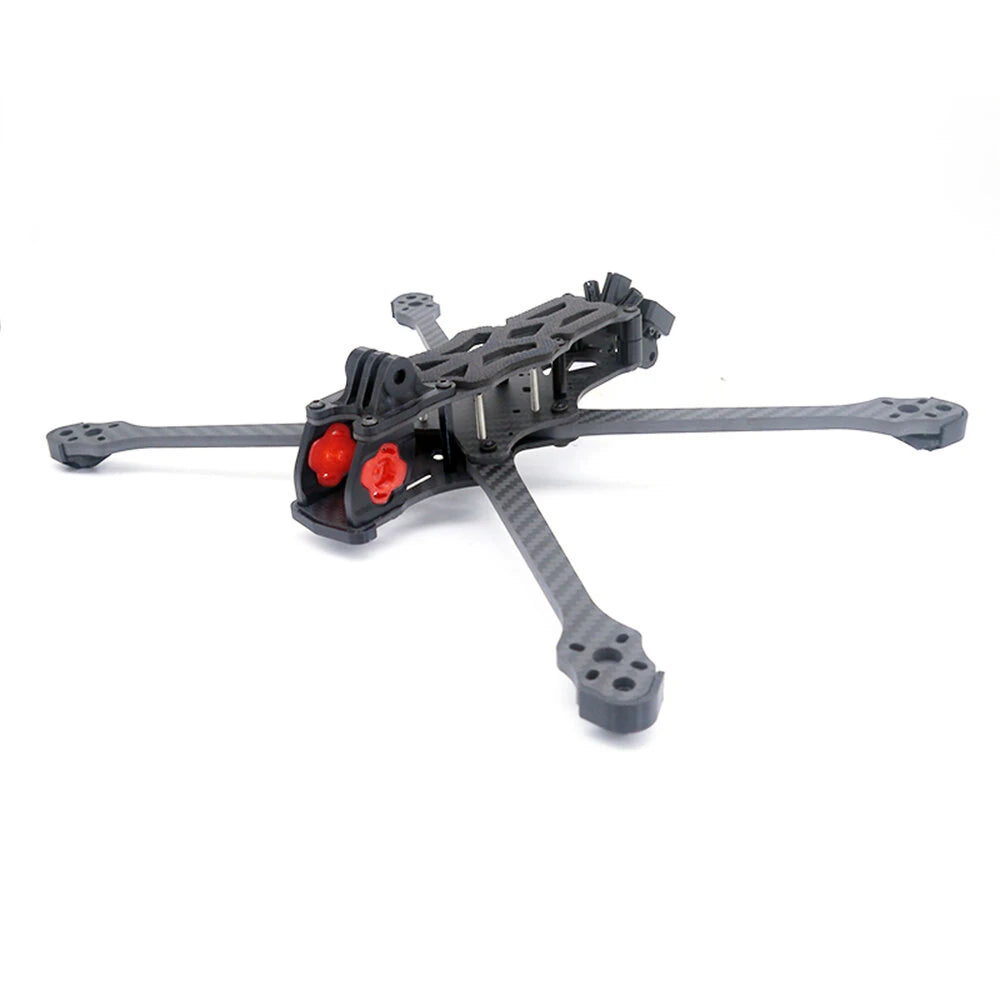

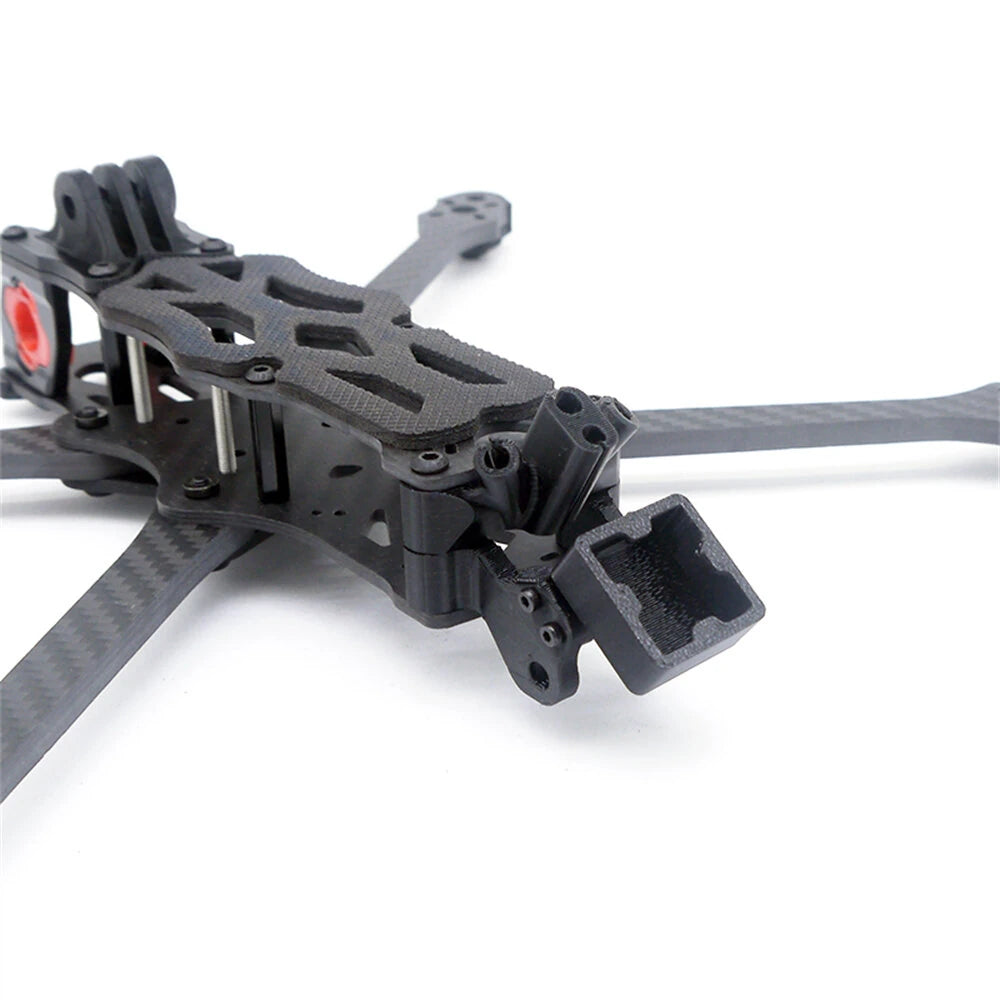

Item Name: 5 Inch / 6 Inch / 7 Inch Frame Kit
Model |
APEX X5 (Support O4 Pro） |
APEX X5 MAX (Support O4 Pro） |
APEX X6 (Support O4 Pro） |
APEX X6 MAX (Support O4 Pro） |
APEX X7 (Support O4 Pro） |
APEX X7 MAX (Support O4 Pro） |
Wheelbase: |
225mm |
275mm |
315mm |
|||
Dimensions: |
Approx. 165mm(L)x 213mm(W)x 35mm(H)(without printout) |
Approx. 189mm(L) x 253mm(W)x 35mm(H)(without printout) |
Approx. 212mm(L)x 286mm(W)x 35mm(H)(without printout) |
|||
Weight: |
Approx.152g |
Approx.175g |
Approx.159g |
Approx.182g |
Approx.166g |
Approx.189g |
Structure: |
X-type Split |
|||||
Thickness: |
Arm 5.5mm, upper plate 2.0mm, bottom plate 2.5mm, splint 2.5mm |
|||||
Material of the Nose: |
7075 Magnsium Aluminum Alloy CNC |
|||||
Camera Side Panel: |
3D Printed Parts TPU |
|||||
Material of Aluminum Column: |
7075 Hexagonal Aluminum Column |
|||||
Applicable Propeller Size: |
5-5.1 inch |
6 inch |
7 inch |
|||
Flight Control Hole Spacing: |
20*20mm (M3), 30.5*30.5mm (M3) |
|||||
Tail Image Transmission Installation Hole Spacing: |
20*20mm (M2), 25.5*25.5mm (M2) 30.5*30.5mm (M3) |
|||||
Camera Installation Width: |
20mm/19mm (compatible with DJI O4 PRO/DJI O3 Air Unit/Analog, etc.) |
|||||
Internal Height: |
Approx. 20-28mm |
|||||
Motor Installation Hole Spacing: |
16*16mm (M3), 19mm*19mm (M3) |
|||||
Applicable Image Transmission: |
DJI O4 PRO/DJI O3 Air Unit/VISTA SKY Unit/Analog, etc. |
|||||
Plate Material: |
3K (T700 level) |
|||||
Applicable GPS: |
- |
BZ181 |
- |
|||
