Description
Note: The product does not include any electronic accessories, rubber band surrounds, and accessories such as machine screws.
Specifciation:
Brand: TEOSAW
Model: 533 SE

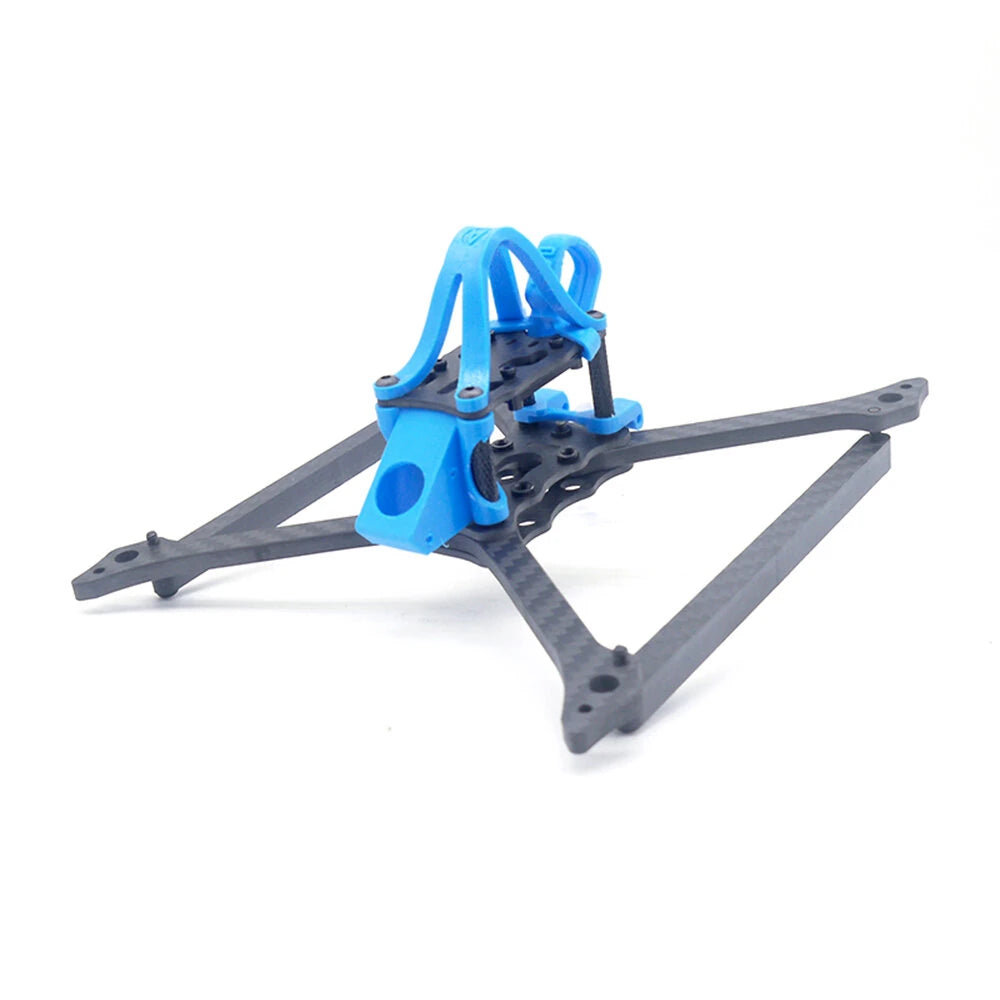

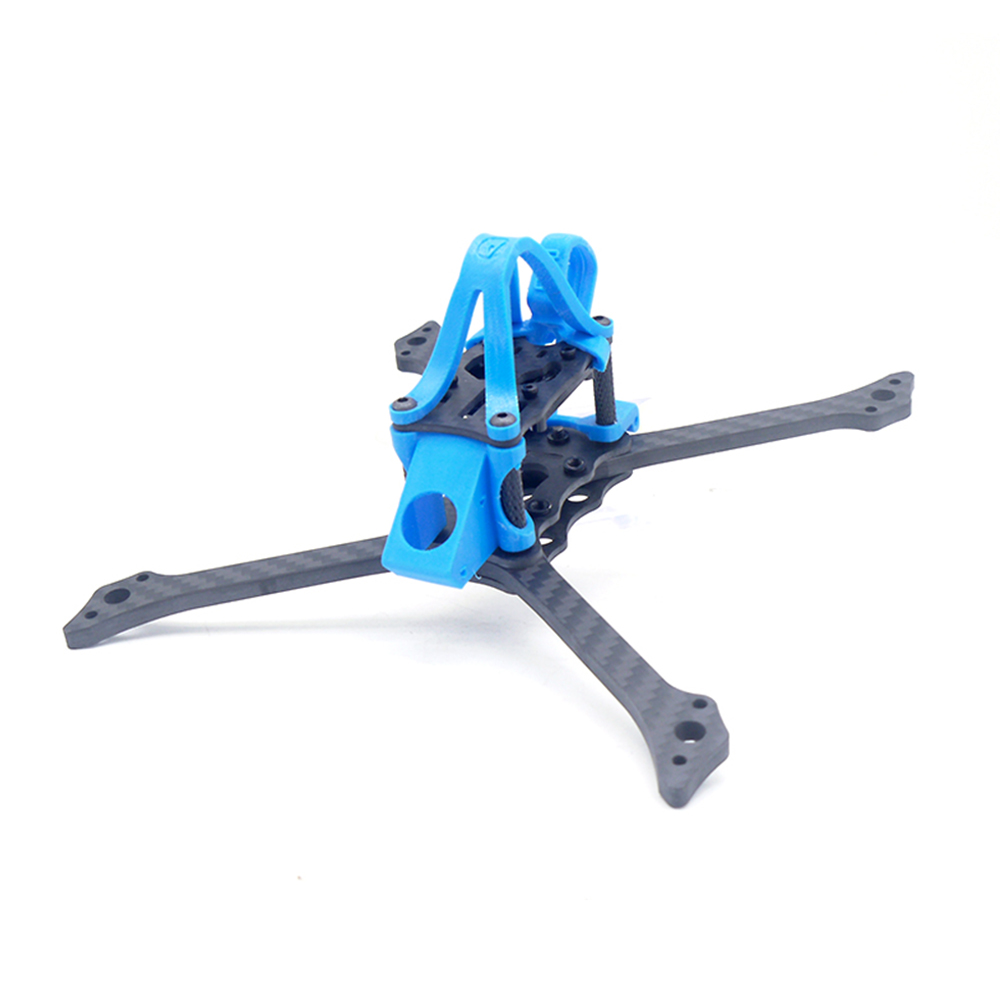

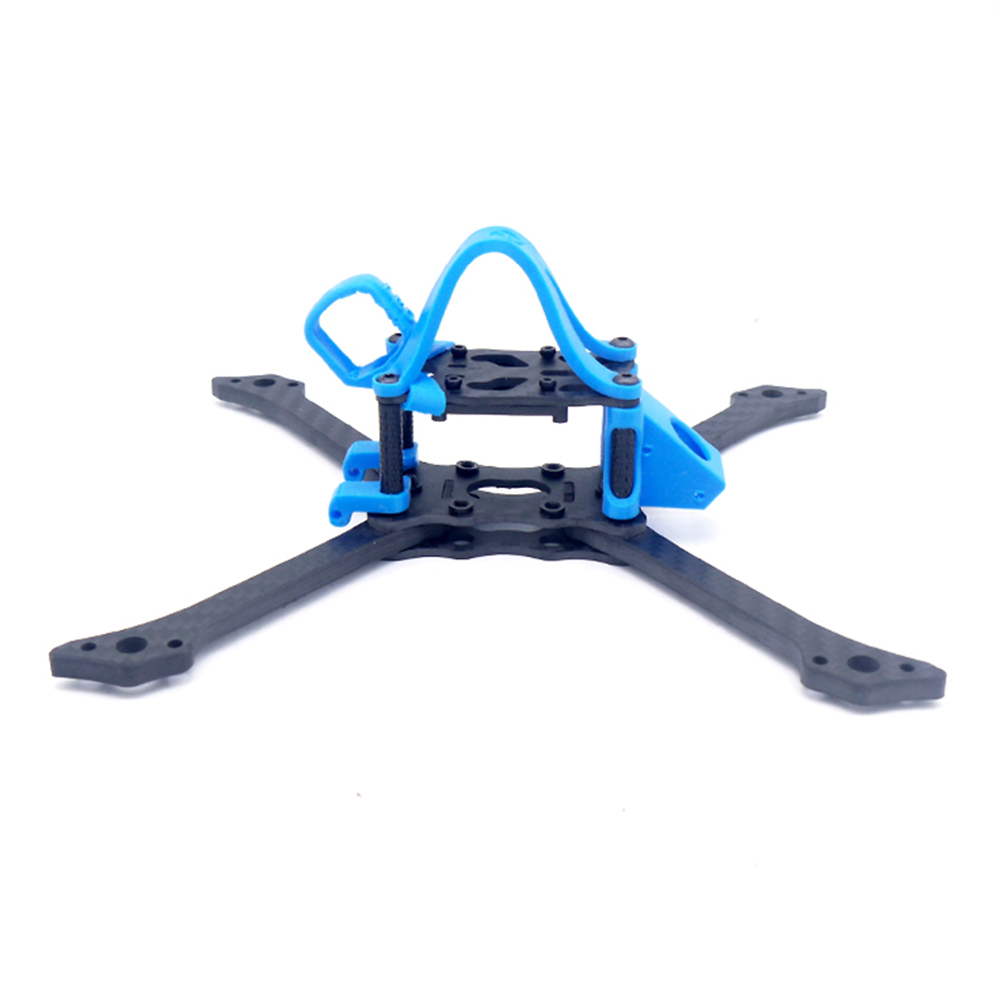

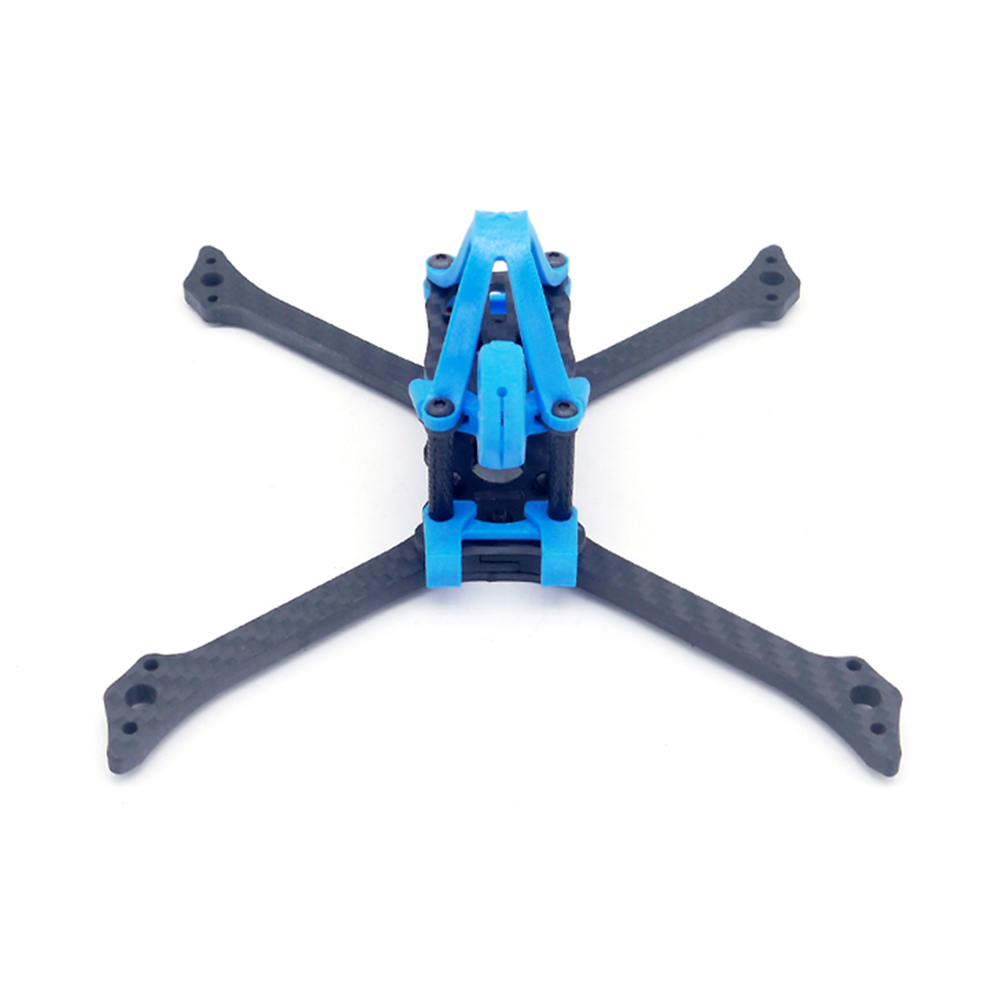

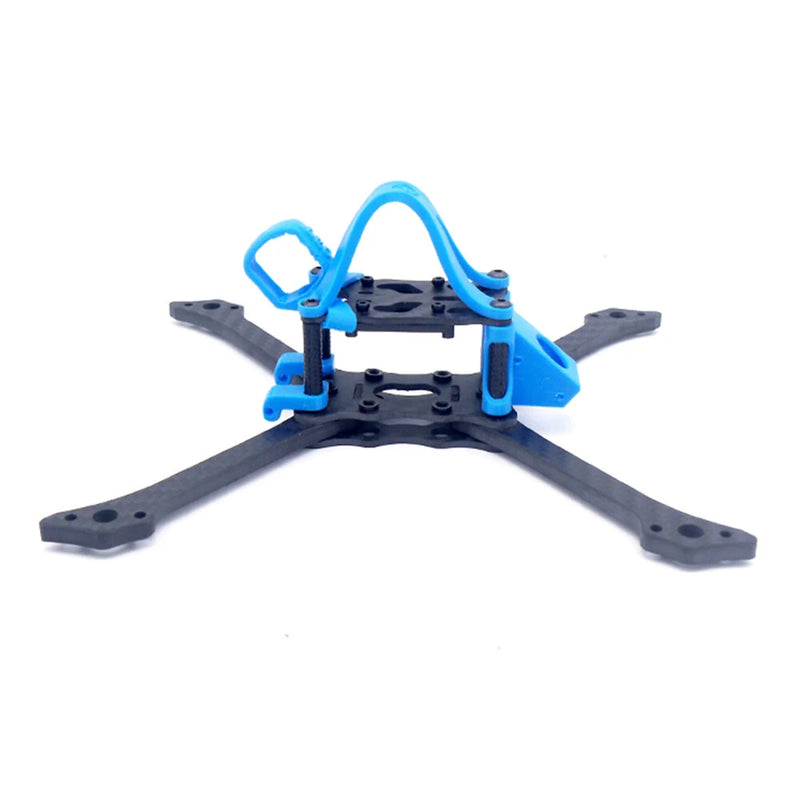

Item Name: 5 Inch Frame Kit for DJI O4

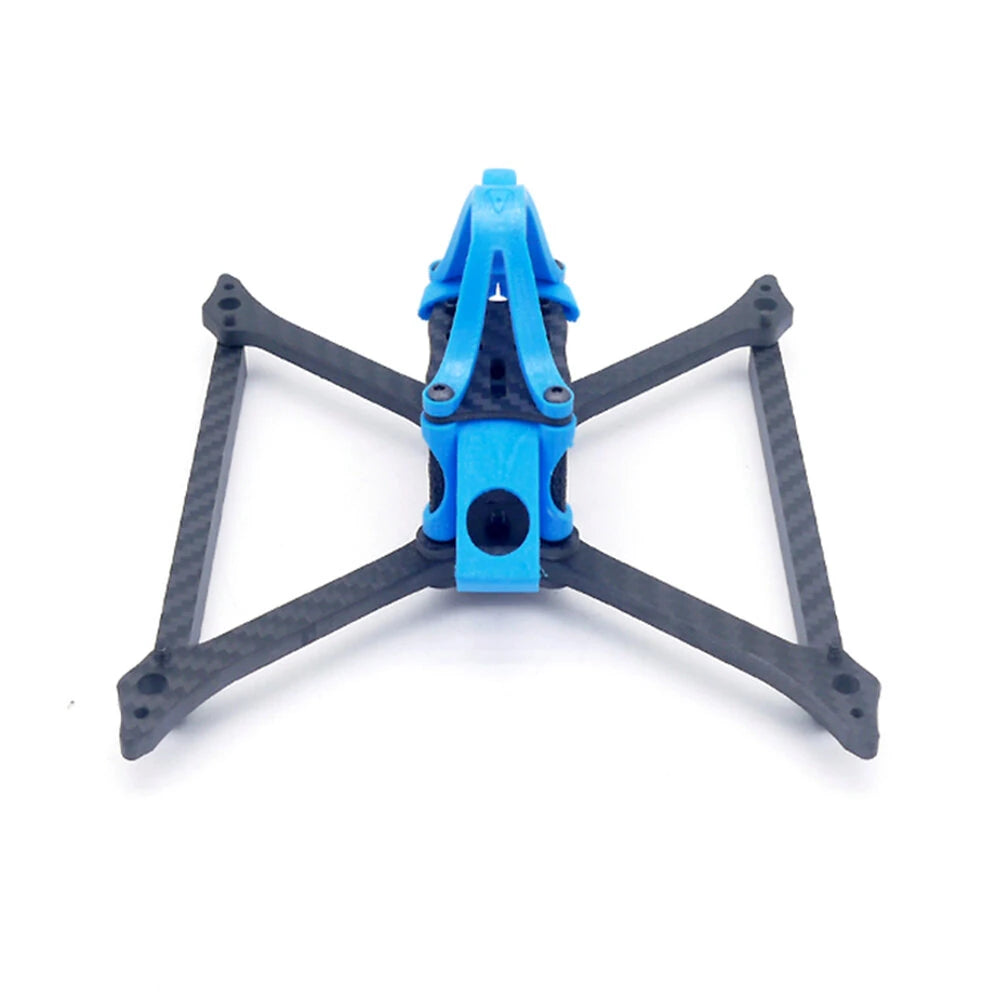

Version: with / without reinforcement bar (Optional)
Wheelbase: |
192mm |

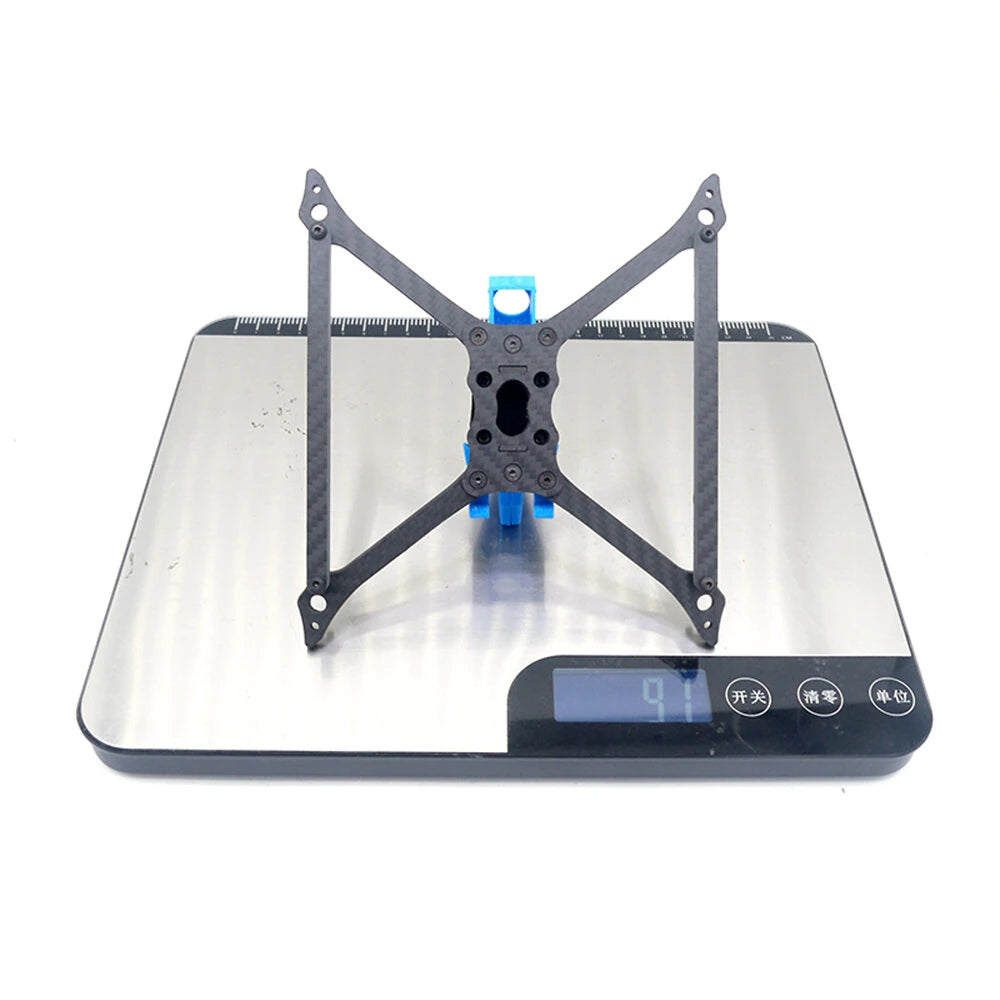

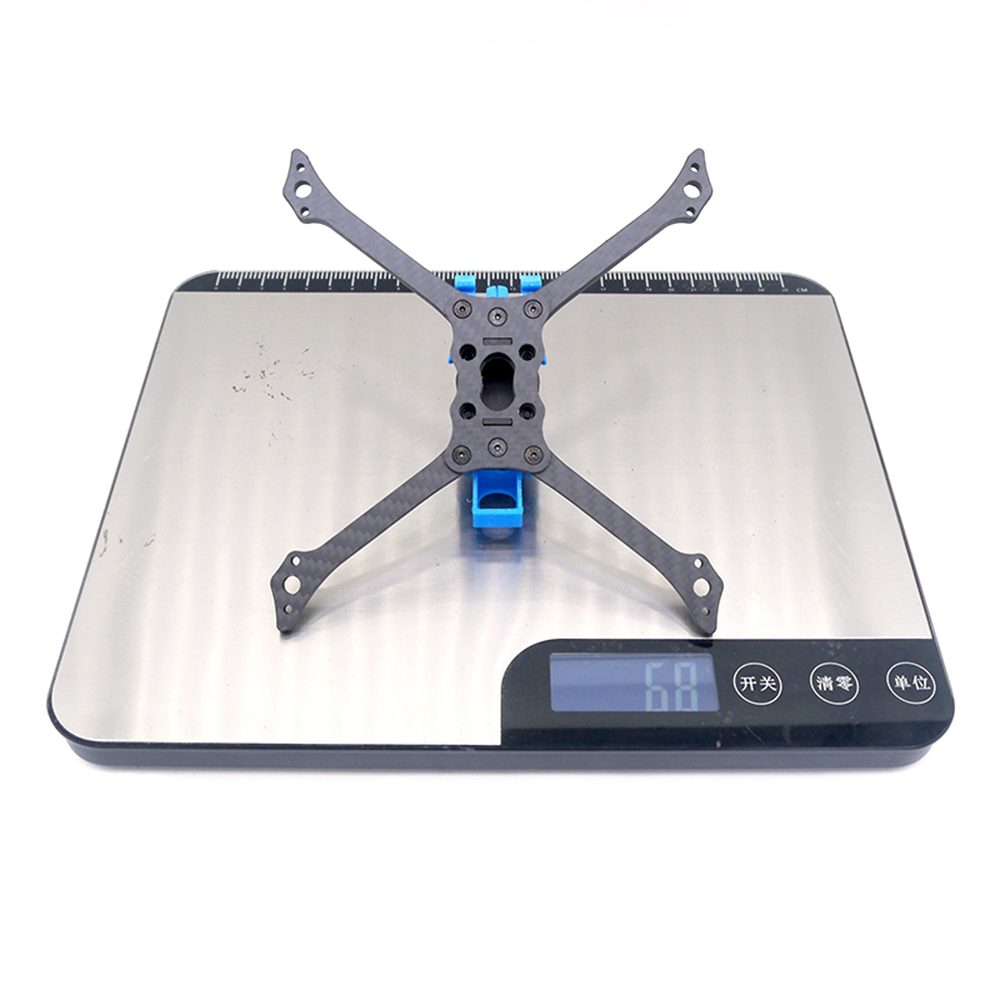

Weight (with printout): |
About 68g / 91g |
Thickness: |
5.0mm for arm, 2.0mm for bottom plate, 2.0mm for middle plate, 2.0mm for top plate, 2.0mm for stopper |
Propeller: |
5.0 Inch propeller |
Flight Controller Hole Spacing: |
20*20mm (M3) |
Image Transmission Installation Hole Spacing (on top plate): |
25.5*25.5mm (M2) Aluminum conversion heat sink needs to be installed; 20*20mm (M2) |
Camera Installation Width: |
14mm (adapt to DJI O4 Air Unit, camera angle is about 51°) |
Motor Installation Hole Position: |
16*16mm (M3) |
Structure: |
X-shaped split |
Aluminum Column Height: |
M3*25mm (If the length of the aluminum column and screw is not suitable, please replace the appropriate aluminum column and screw by yourself) |
Distance Between the Front and Rear Aluminum Columns: |
About 44mm |
Compatible VTX |
Compatible with DJI O4 Air Unit (aluminum conversion heat sink needs to be installed on the top plate)font-size:10.0000pt;mso-font-kerning:1.0000pt;'> |
Recommend Parts: ( NOT Included)
FC & ESC: 25.5*25.5mm SpeedyBee F405 AIOVTX & Camera: DJI O4 Air Unit
Brushless Motor: iFlight XING2 2306 1755KV 6S Brushless MotorPropeller: iFlight Nazgul 5030 5 Inch 5x3x3 3-Blade Propeller
Package Included:
1 x Frame Kit
