Description
Description:

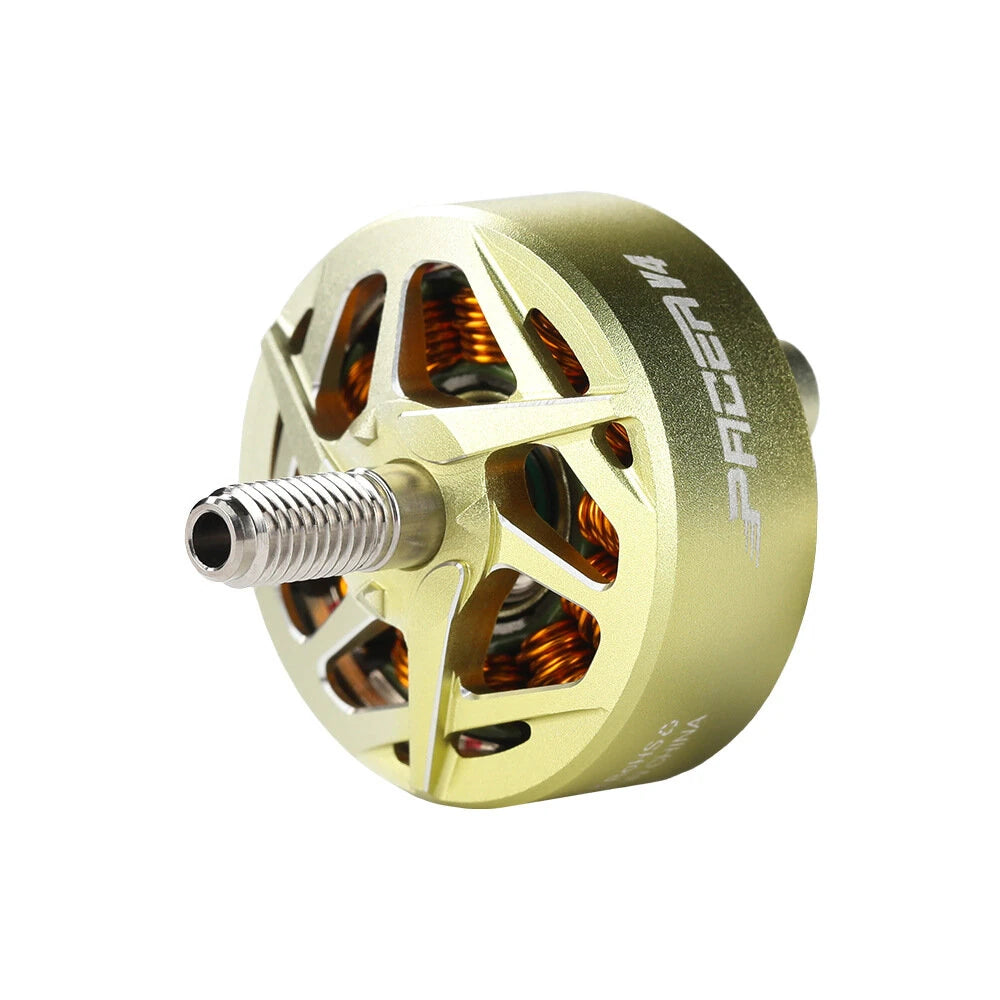

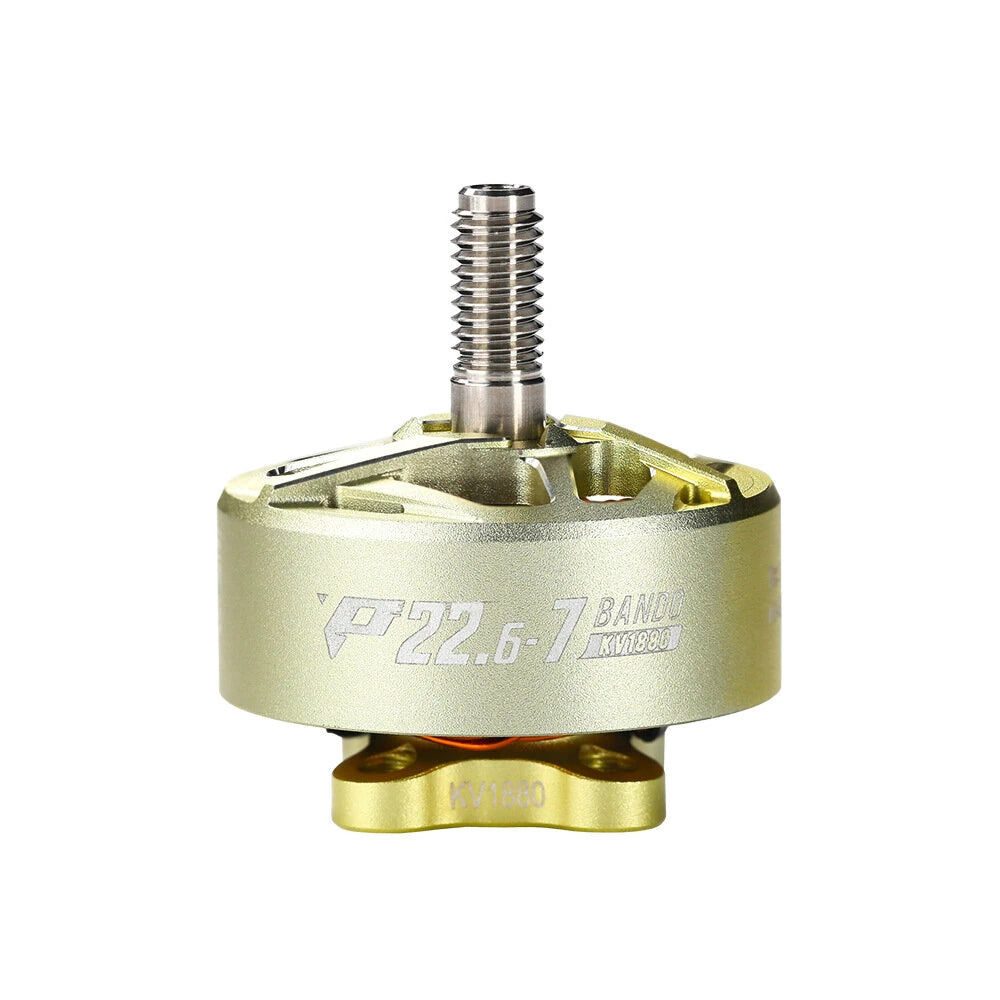

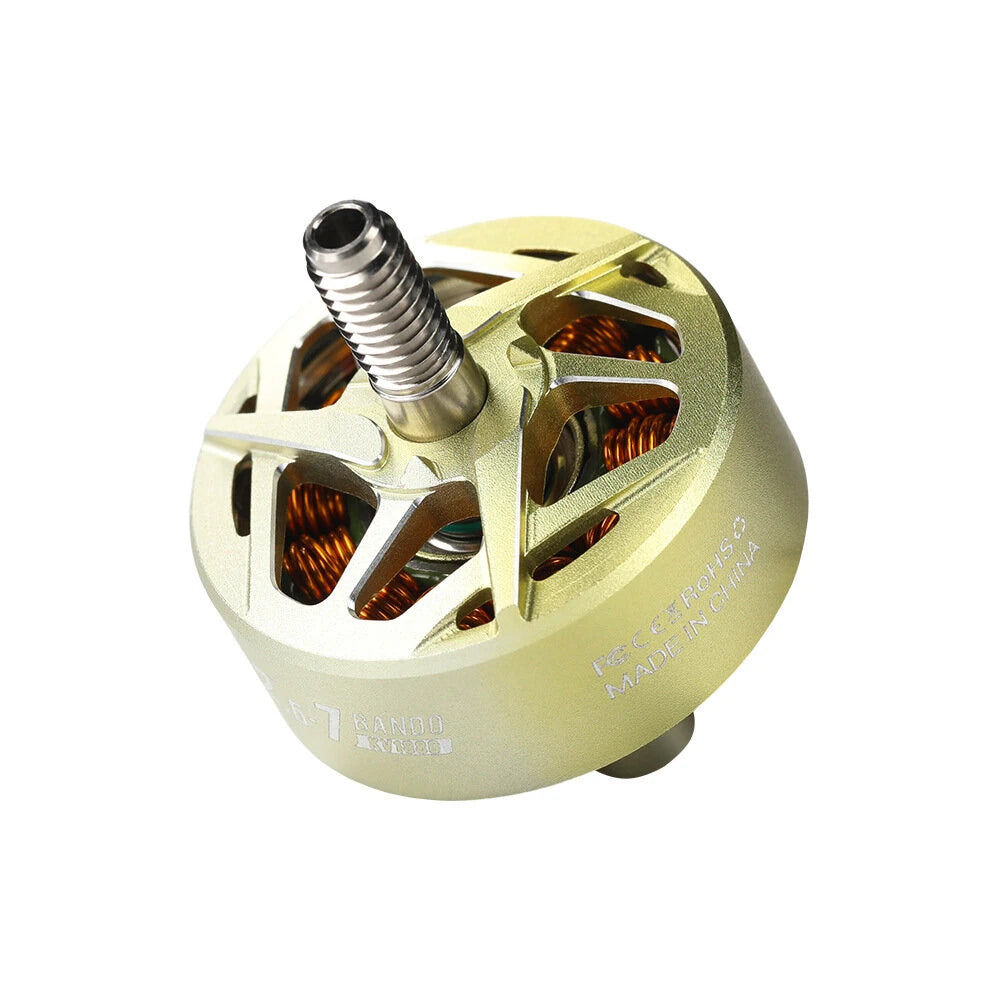

T-HOBBY P22.6-7 Bando Motor features a strong 5mm inner shaft, extreme crash resistance, and smooth throttle control. Ideal for 5-inch freestyle FPV drones including flow, bando, acr0, and mind-bending moves.
Key Features:
- 5mm upgraded inner shaft reduces bending and increases durability.
- Reinforced structure for extreme crash resistance.
- Smooth and precise throttle response.
- Reduced jamming risk with strong shaft & balance.
- Ideal for freestyle: Flow, Bando, Acr0, and tight gaps.
Specification:
Brand: T-HOBBY
Model: P22.6-7
Item Name: 1880KV / 1980KV 6S Brushless Motor
Motor Size: φ29 x 32.2mm
Magnet: Nickel Plated Arc Magnet
Configuration: 12N14P
Shaft Diameter: 5mm Inner Shaft
Prop Thread: M5
Mounting: φ16 - M3 - 4
Bearings: MR105 Imported
Wire: 20AWG PTFE 170mm
Dynamic Balance: ≤5mg
Weight: 36-36.5g
KV |
Parameter |
KV1880 |
No-Load Current (10V): 1.1A Maximum Output Power: 173W Resistance: 55mΩ Rated Voltage: 6S Maximum Current: 39A Maximum Thrust: 1646g Motor Weight (With Wires): 36g |
KV1980 |
No-Load Current (10V): 1.2A Maximum Output Power: 193W Resistance: 50mΩ Rated Voltage: 6S Maximum Current: 43A Maximum Thrust: 1739g Motor Weight (With Wires): 36.5g |
Recommended Configuration(Not Included):
Propeller: 5-inch 3-blade (hole distance 2.7–4.7)
Frame Type: 5-inch Bando X4 frame
Battery Voltage: 6S
ESC: F55A PROIII 8S 4IN1 / V50A SE 6S 4IN1 / P60A V2 6S 4IN1
Flight Controller: Velox F7 SE
Suggested Takeoff Weight Range: Within 1000g
Maximum Takeoff Weight: 2000g
Recommended ESC Settings：
Advance Timing: 22.5–30°, PWM Frequency: 24–48k (AM32)
Startup Power: 60%, Advance Timing: 30°, PWM Frequency: 24–48k (BL32)
Package included:
1 x P22.6-7 Motor
1 x Accessories Pack
