KV: 3300KV
Price:
R 969.69
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Attention:If you want to install on the title cars list,you need to change some parts,it may can not be directly installed

Description:
Item Brand:Surpass Hobby
Item Number:F540 V2(F540/9T, F540/12T)+60A
Item Name:RC car motor +esc set
Material:Metal and plasticColor:Black
The Size of the Motor:Length 50mm,diameter 36mm,shaft diameter is 3.175mm,length of extended shaft is 15mm
The Size of the ESC:51.5*38.5*38.5mm
The Weight of the Motor/ESC:About 125g/76g
Recommendating Program Card:product id:1057127
Fit For:1/12 1/14 brushless rc cars

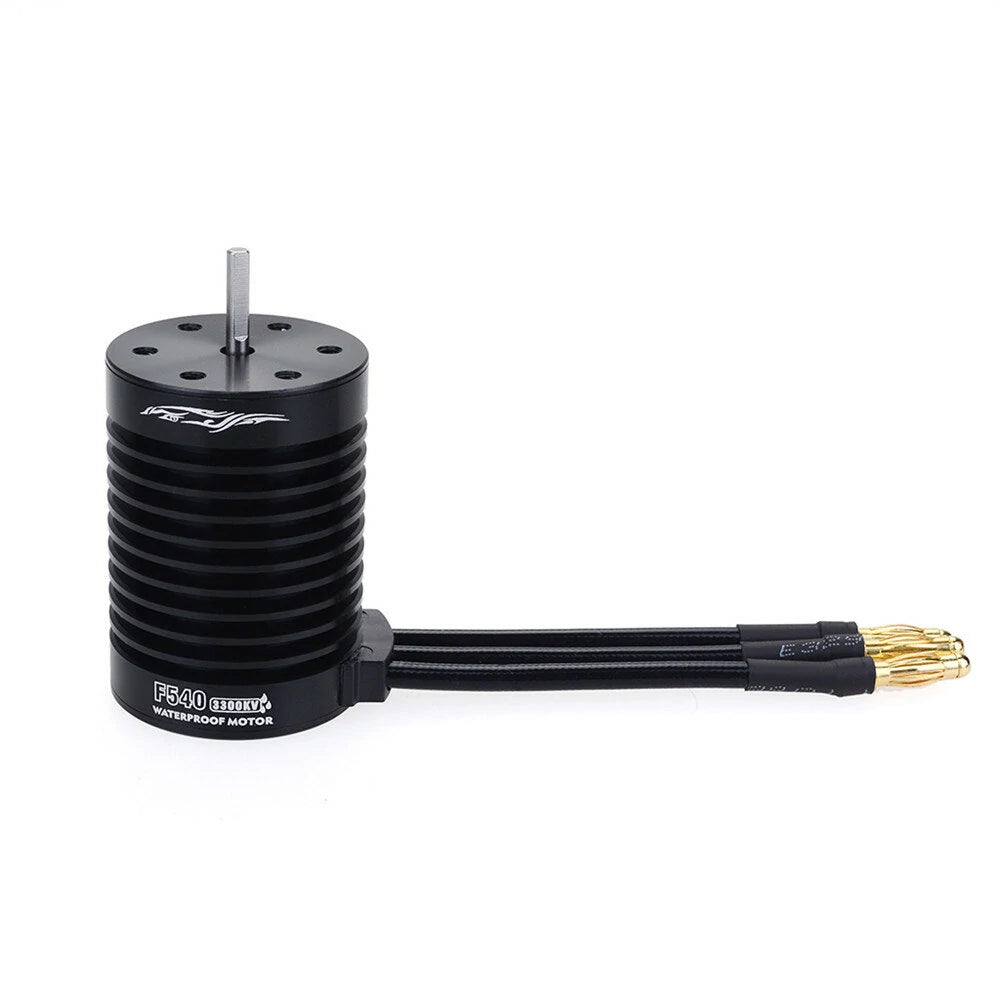

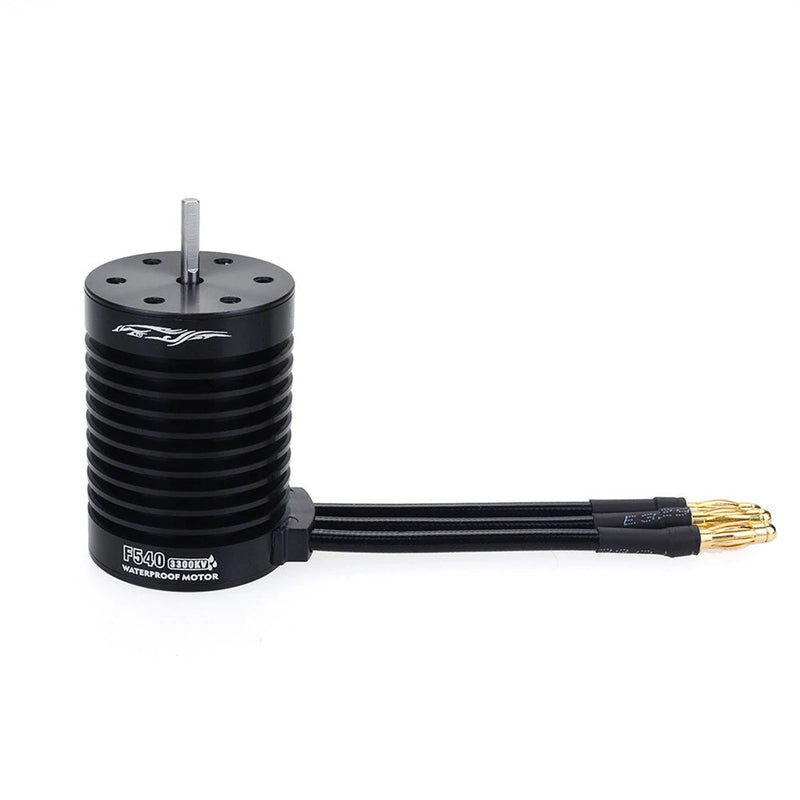

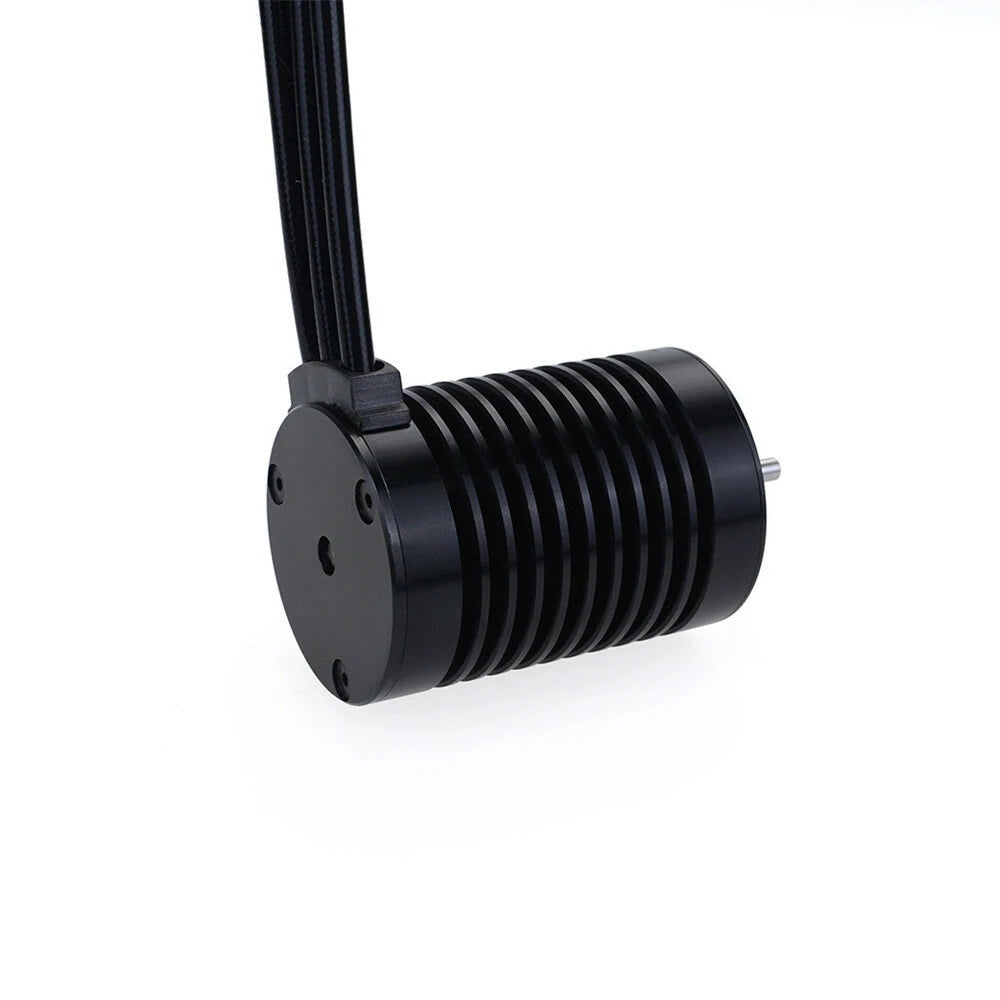

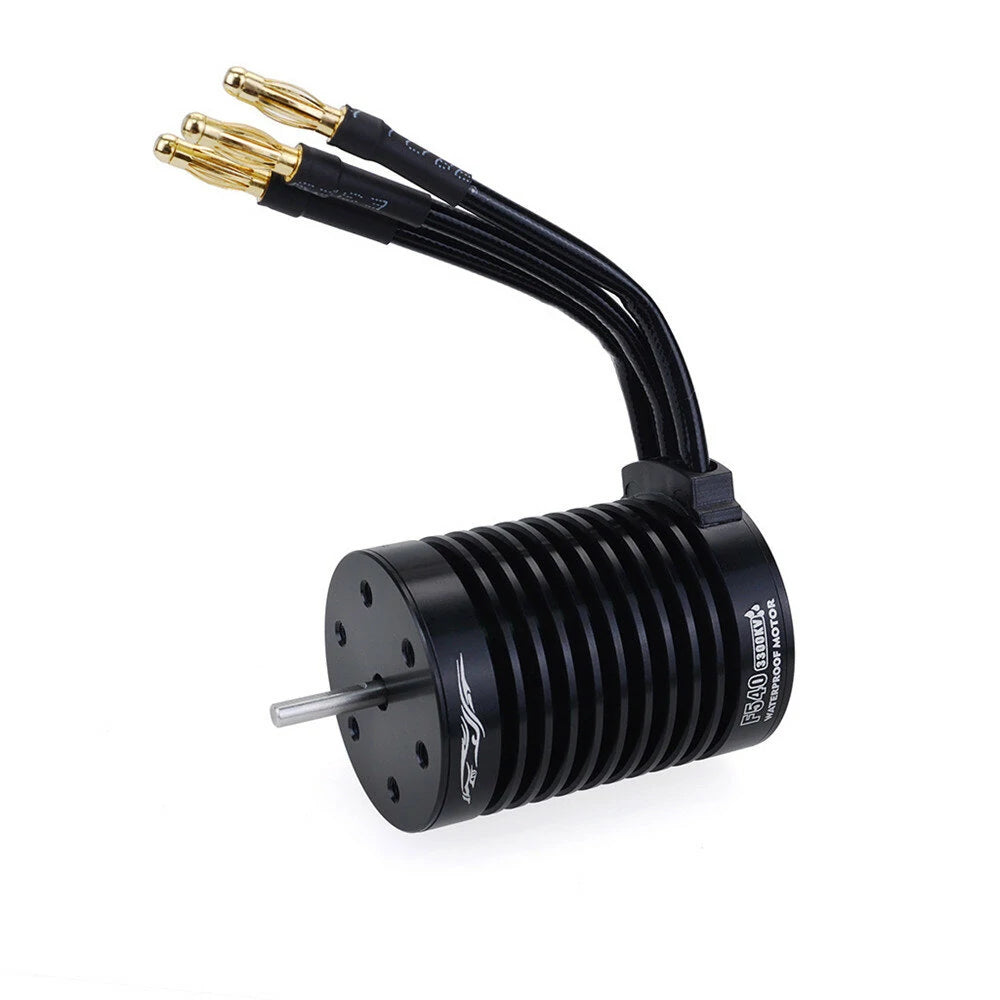

The Specification of the Motor:
KV:4370KV/3300KV
Watts:800
Max Voltage:<12V/<17VMax Amps:66A/47A
Rotor Poles:4
IO:3.2A/1.9A
Resistance:0.0185/0.0285
Max RPM:50000
Connector:4.0mm gold

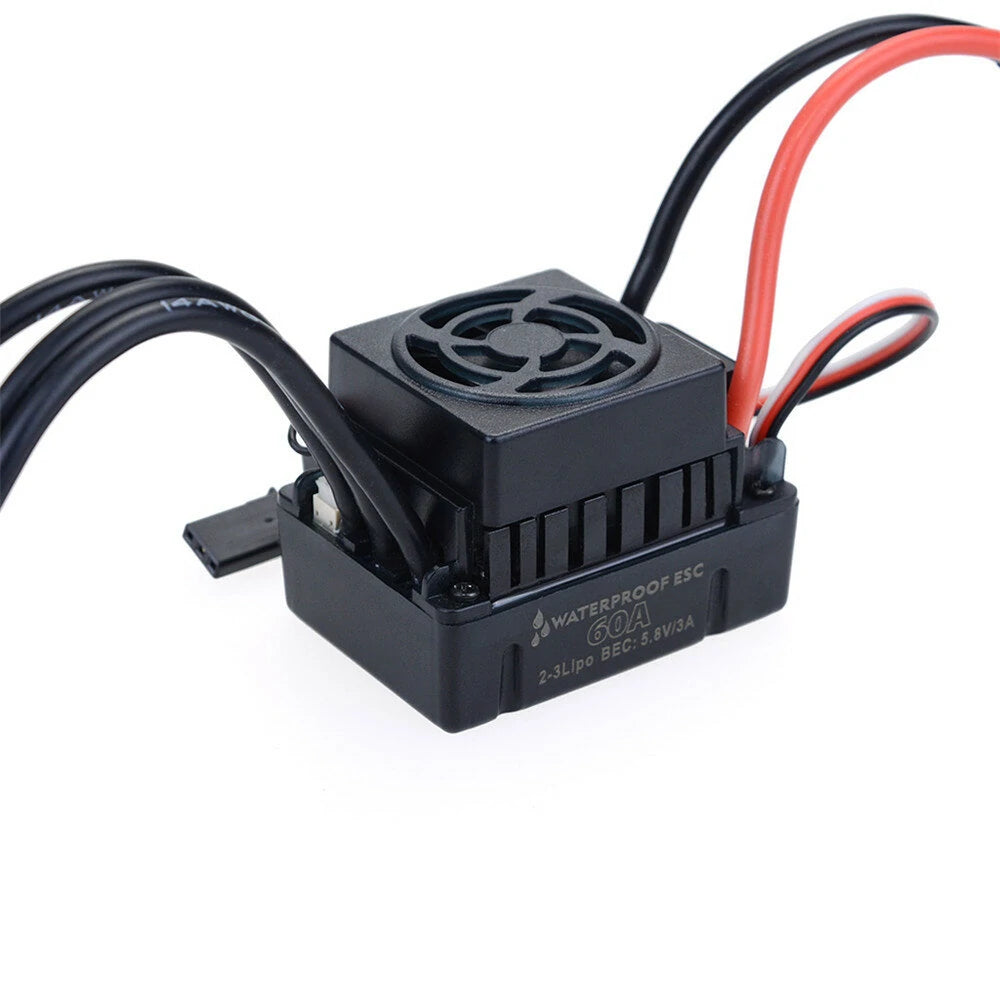

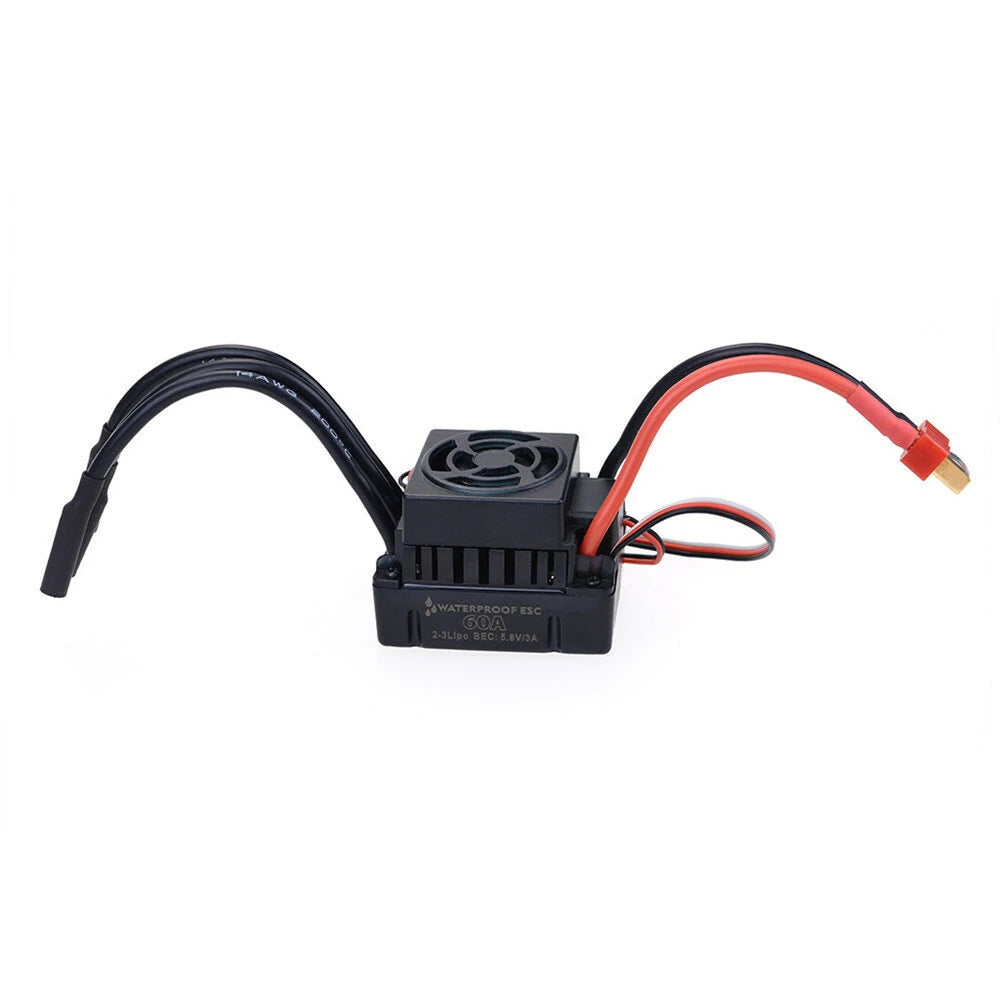

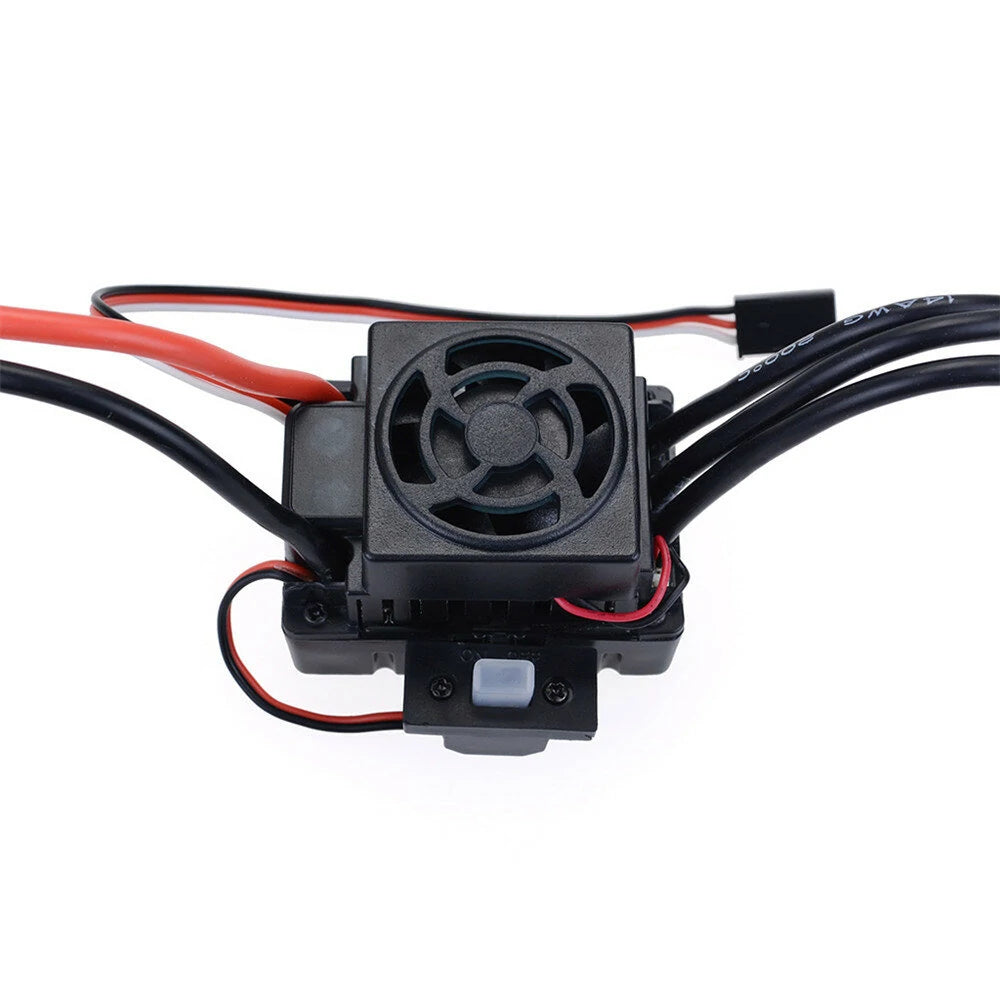

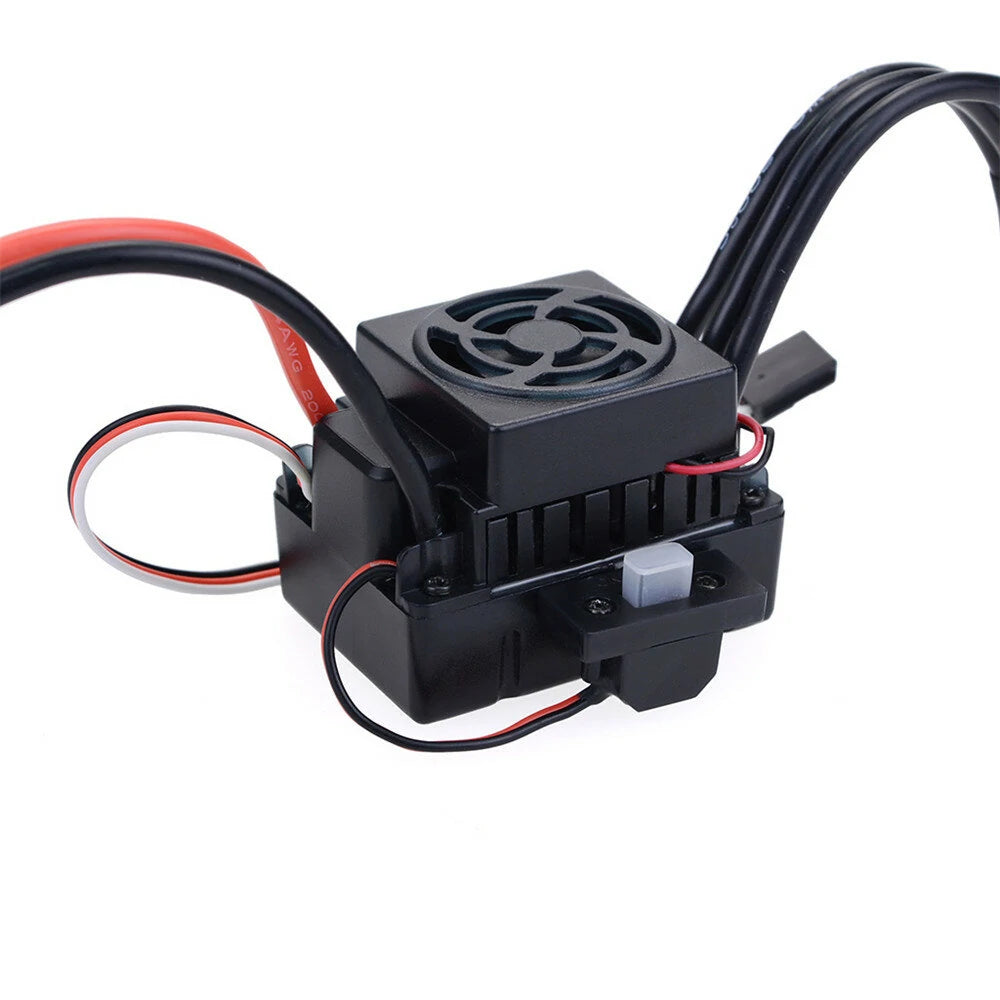

The Specification of the ESC:
Cont.Current:60A
Burst Current:360A
Motor Type:Sensorless Brushless Motor
For 6s Lipo or 6 cells NiMH
1.On-road 3660-size or smaller motor with the kv <4300
2.Off-road/buggy/monster 3660-size or smaller motor with the kv <3300
For 3s lipo or 9 cells NiMH
1.On-road 3660-size or smaller motor with the kv <3300
2.Off-road/buggy/monster 3660-size or smaller motor with the kv <2600
Suitable Car:1/10 car
Resistance:0.0007ohm
Battery:2-3 cells lipo/4-9 cells NiMH
BEC Output:5.8V3A(switch mode)
For the esc manual,please click here


Features:

4 Pole 12 Slot Hi-torque Motor Design
CNC Machined 6061 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Universal fit,fits all 1/12 1/14 brushless cars-multi-mounting system for M3 screws
Precision balanced rotor,smoothness for best reliability and maximum RPM
Stator - Super Thin (0.35mm) Laminations
Removable/Replaceable Rotor
Precision Engineered for Maximum Energy Conversion

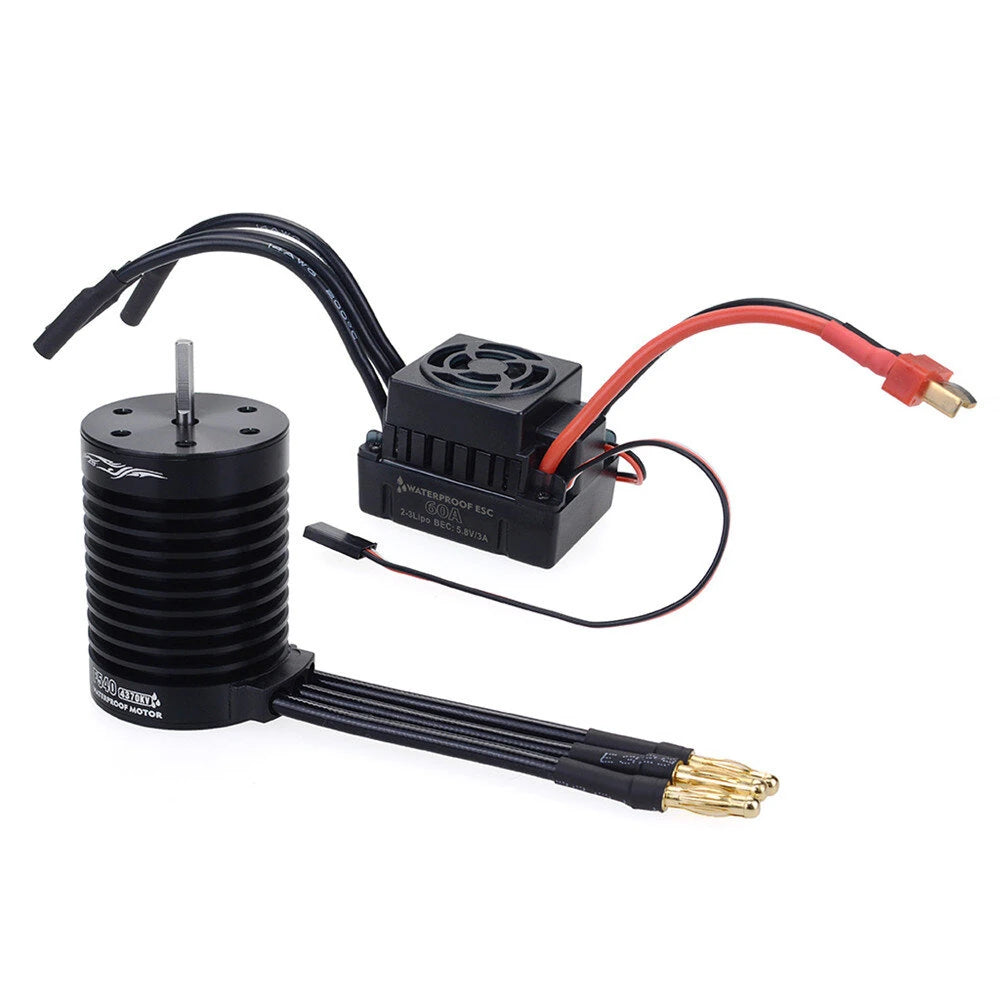

Package included:

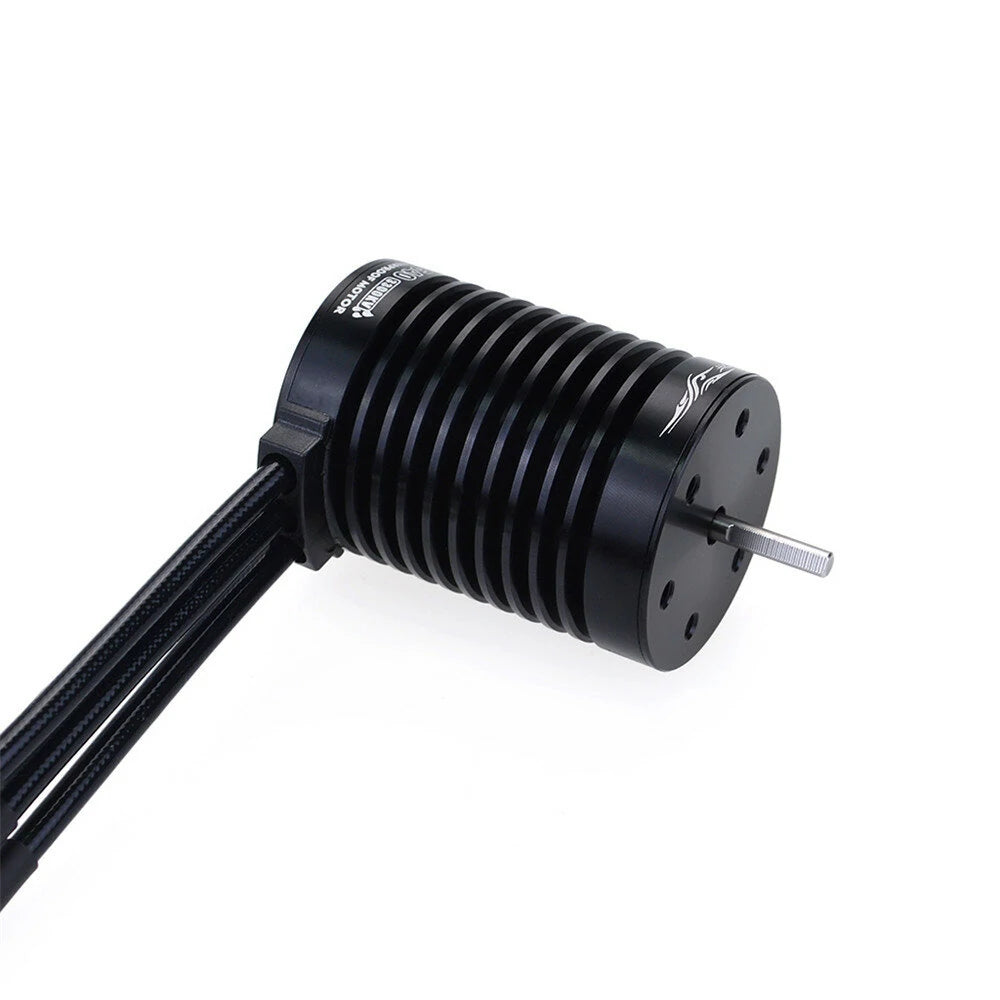

1X F540 V2 Brushless Motor
1X 60A ESC
1X Manual
