Description
Description:
Item Brand:Surpass hobby
Item Name:50A/60A/90A/110A Brushless ESC
Material:Metal and plastic
Color:Black
Product Size:50*35*34mm
Product Weight:50A and 60A is about 90g,90A and 110A is about 96g
Compatible Cars:1/10 on-road off-road monster rc cars vehicles models
Specification:
50A ESC
Continue Current: 50A
Burst Current:240A
Motor Type:Sensorless Brushless Motor
Motor Type:Sensorless Brushless Motor
For 2S Lipo or 6 cells NiMH:
1.On-road:3650-size or smaller motor with the KV<5600
2. Off-road / Monster:3650-size or smaller motor with the KV<3900
For 3S Lipo or 9 cells NiMH:
1. On-road:3650-size or smaller motor with the KV<3800
2. Off-road / Monster:3650-size or smaller motor with the KV<2700
Resistance:0.0014ohm
Battery:2-3S cells lipo battery/4-9 cells NiMH
BEC Output:7,4V/8.4V 6A(switch mode)
60A ESC
Continue Current:60A
Burst Current:360A
Motor Type:Sensorless Brushless Motor
Motor Type:Sensorless Brushless Motor
For 2S Lipo or 6 cells NiMH:
1.on-road:3660-size or smaller motor with the KV<6000
2. Off-road / Monster:3660-size or smaller motor with the KV<4000
For 3S Lipo or 9 cells NiMH:
1. On-road:3660-size or smaller motor with the KV<4000
2. Off-road / Monster:3660-size or smaller motor with the KV<3000
Resistance:0.0007ohm
Battery:2-3S cells lipo battery/4-9 cells NiMH
BEC Output:7,4V/8.4V 6A(switch mode)
90A ESC
Continue Current:90A
Burst Current:480A
Motor Type:Sensorless Brushless Motor
Motor Type:Sensorless Brushless Motor
For 2S Lipo or 6 cells NiMH:
1.on-road:3665-size or smaller motor with the KV<6000
2. Off-road / Monster:3665-size or smaller motor with the KV<4000
For 3S Lipo or 9 cells NiMH:
1. On-road:3665-size or smaller motor with the KV<4000
2. Off-road / Monster:3660-size or smaller motor with the KV<3000
Resistance:0.0005ohm
Battery:2-3S cells lipo battery/4-9 cells NiMH
BEC Output:7,4V/8.4V 6A(switch mode)
110A ESC
Continue Current:110A
Burst Current:520A
Motor Type:Sensorless Brushless Motor
Motor Type:Sensorless Brushless Motor
For 2S Lipo or 6 cells NiMH:
1.on-road:3670-size or smaller motor with the KV<6000
2. Off-road / Monster:3670-size or smaller motor with the KV<4000
For 3S Lipo or 9 cells NiMH:
1. On-road:3670-size or smaller motor with the KV<4000
2. Off-road / Monster:3670-size or smaller motor with the KV<3000
For 4S Lipo or 12 cells NiMH:
1. On-road:3670-size or smaller motor with the KV<3000
2. Off-road / Monster:3670-size or smaller motor with the KV<2000
Resistance:0.0004ohm
Battery:2-4S cells lipo battery/4-12 cells NiMH
BEC Output:7,4V/8.4V 6A(switch mode)

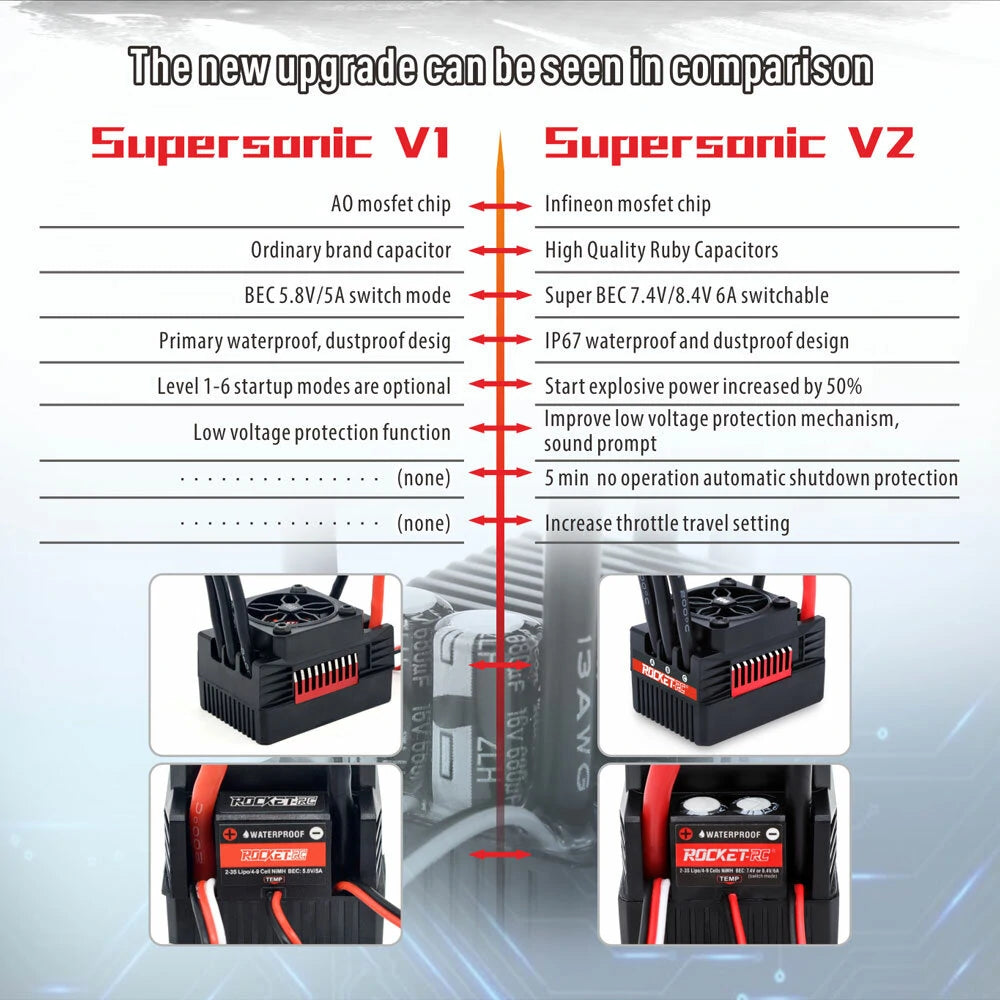

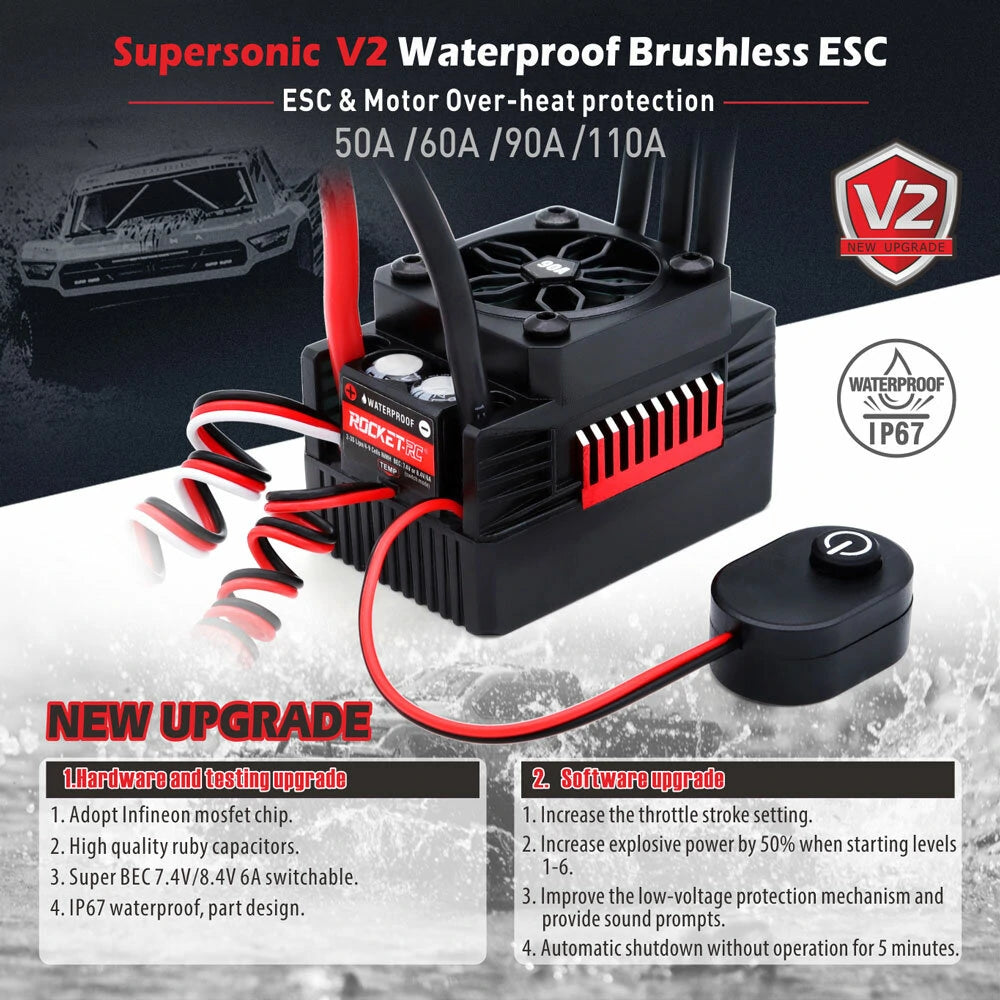

Features:
Infineon mosfet chip
High quality carbuncle capacitors
Super BESC 7.4V/8.4V 6A swithable

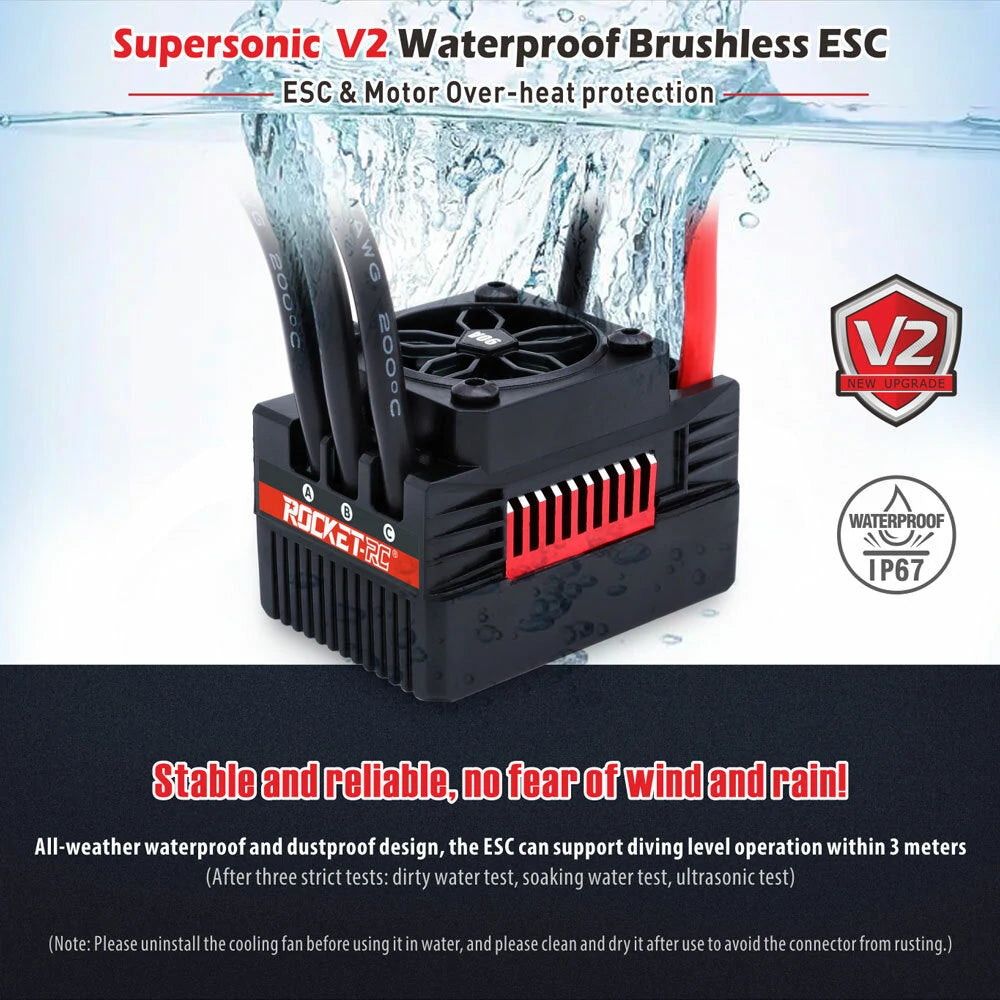

IP67 waterproof and dustproof design
Start explosive power increased by 50%
Improve low voltage protection meachanism sound prompt
5 min on operation automatic shutdown protection
Increase throttle travel setting
High quality carbuncle capacitors
Super BESC 7.4V/8.4V 6A swithable
IP67 waterproof and dustproof design
Start explosive power increased by 50%
Improve low voltage protection meachanism sound prompt
5 min on operation automatic shutdown protection
Increase throttle travel setting
Package Included:(Optional)
1X Brushless ESC 50A/60A/90A/110A(Each amps is optioal chosen by yourself)
