Description
Description:
Item Brand:Surpass hobby
Item Name:130A/160A Brushless ESC
Material:Metal and plastic
Color:Black
Product Size:57.5*45*37mm
Product Weight:130A is about 126g,160A is about 150g
Compatible Cars:130A is used for 1/8 rc cars,160A is used for 1/8 rc cars & 1/7 rc cars
Specification:
130A ESC
Continue Current: 130A
Burst Current:860A
Motor Type:Sensorless Brushless Motor
Motor Type:Sensorless Brushless Motor
For 4S Lipo or 12 cells NiMH:
1.On-road:40xx-size or smaller motor with the KV<3000
2. Off-road / Monster:40xx-size or smaller motor with the KV<2500
For 6S Lipo or 18 cells NiMH:
1. On-road:40xx-size or smaller motor with the KV<2500
2. Off-road / Monster:40xx-size or smaller motor with the KV<2000.
Resistance:0.00035ohm
Battery:3-6S cells lipo battery/9-18 cells NiMH
BEC Output:7,4V/8.4V 6A(switch mode)
160A ESC
Continue Current:160A
Burst Current:1080A
Motor Type:Sensorless Brushless Motor
Motor Type:Sensorless Brushless Motor
For 4S Lipo or 12 cells NiMH:
1.on-road:42xx-size or smaller motor with the KV<3000
2. Off-road / Monster:42xx-size or smaller motor with the KV<2500
For 6S Lipo or 18 cells NiMH:
1. On-road:42xx-size or smaller motor with the KV<2500
2. Off-road / Monster:42xx-size or smaller motor with the KV<2000.
Resistance:0.00028ohm
Battery:3-6S cells lipo battery/9-18 cells NiMH
BEC Output:7,4V/8.4V 6A(switch mode)

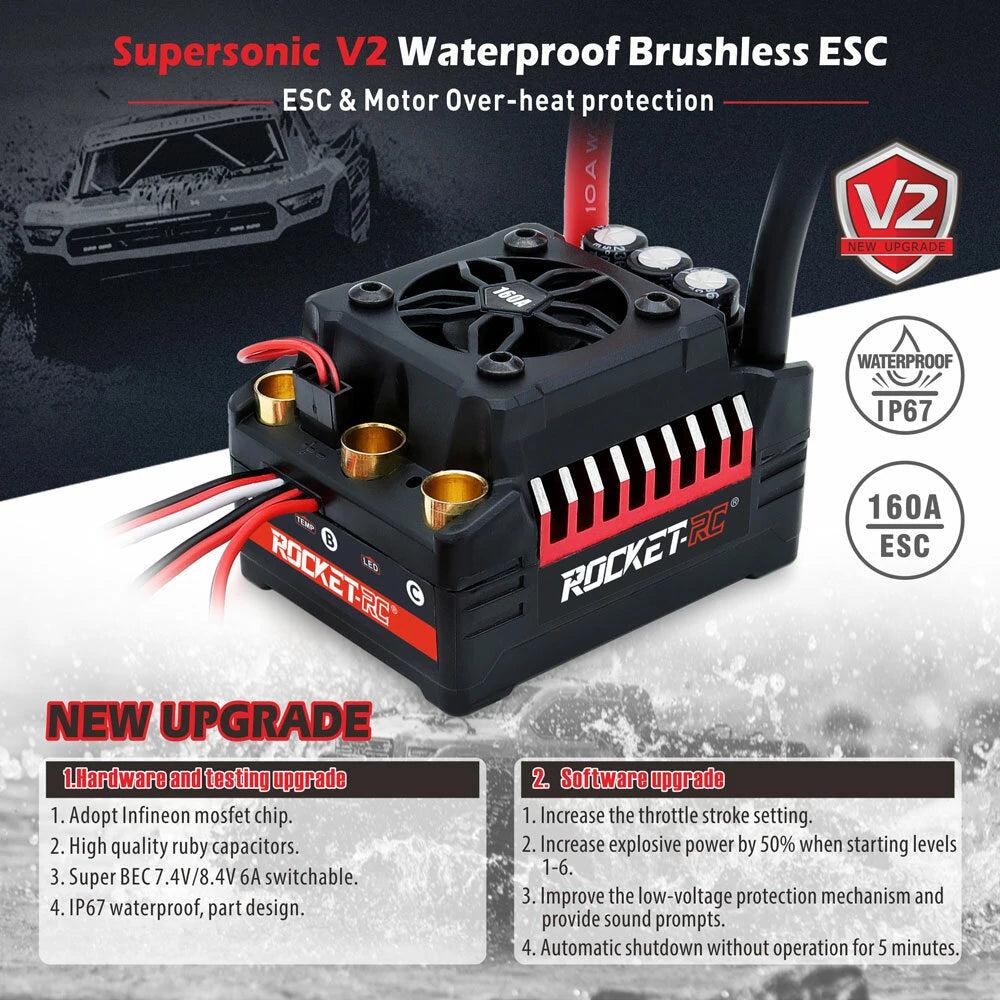

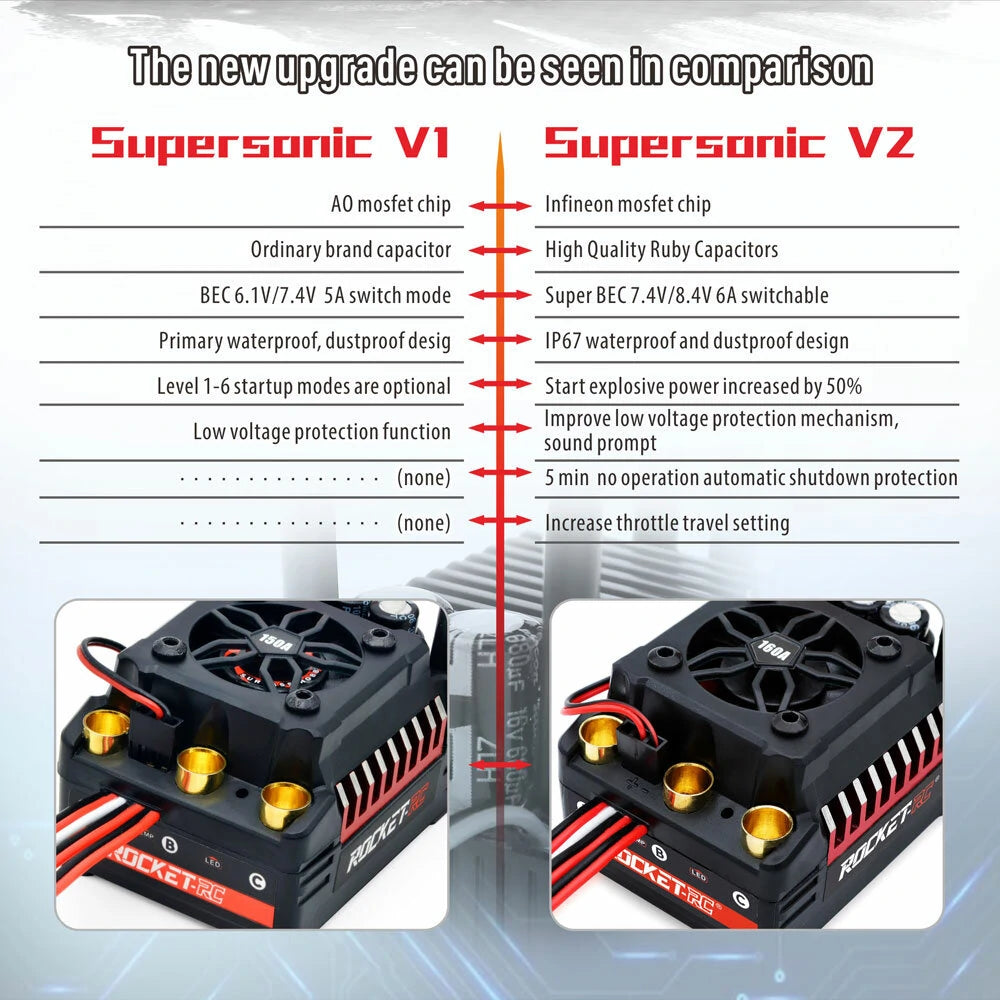

Features:
Infineon mosfet chip
High quality carbuncle capacitors
Super BESC 7.4V/8.4V 6A swithable

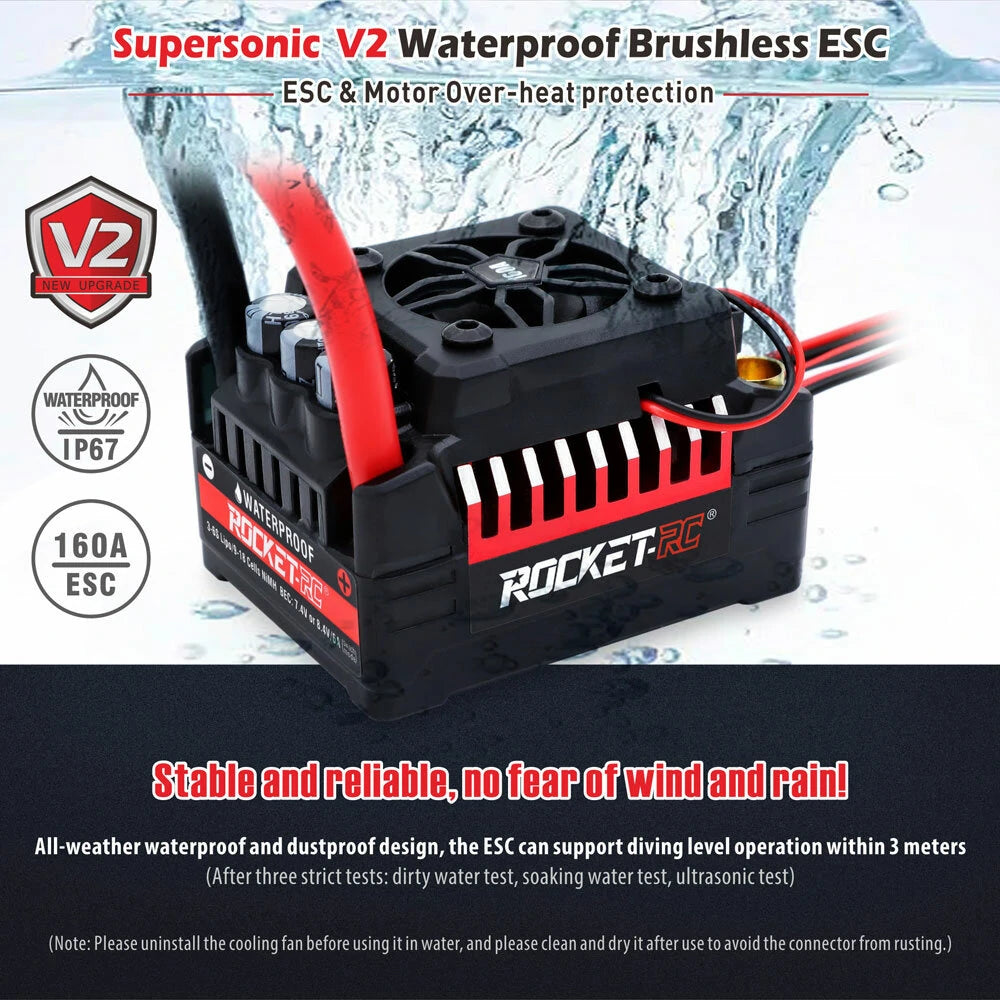

IP67 waterproof and dustproof design
Start explosive power increased by 50%
Improve low voltage protection meachanism sound prompt
5 min on operation automatic shutdown protection
Increase throttle travel setting
High quality carbuncle capacitors
Super BESC 7.4V/8.4V 6A swithable
IP67 waterproof and dustproof design
Start explosive power increased by 50%
Improve low voltage protection meachanism sound prompt
5 min on operation automatic shutdown protection
Increase throttle travel setting
Package Included:(Optional)

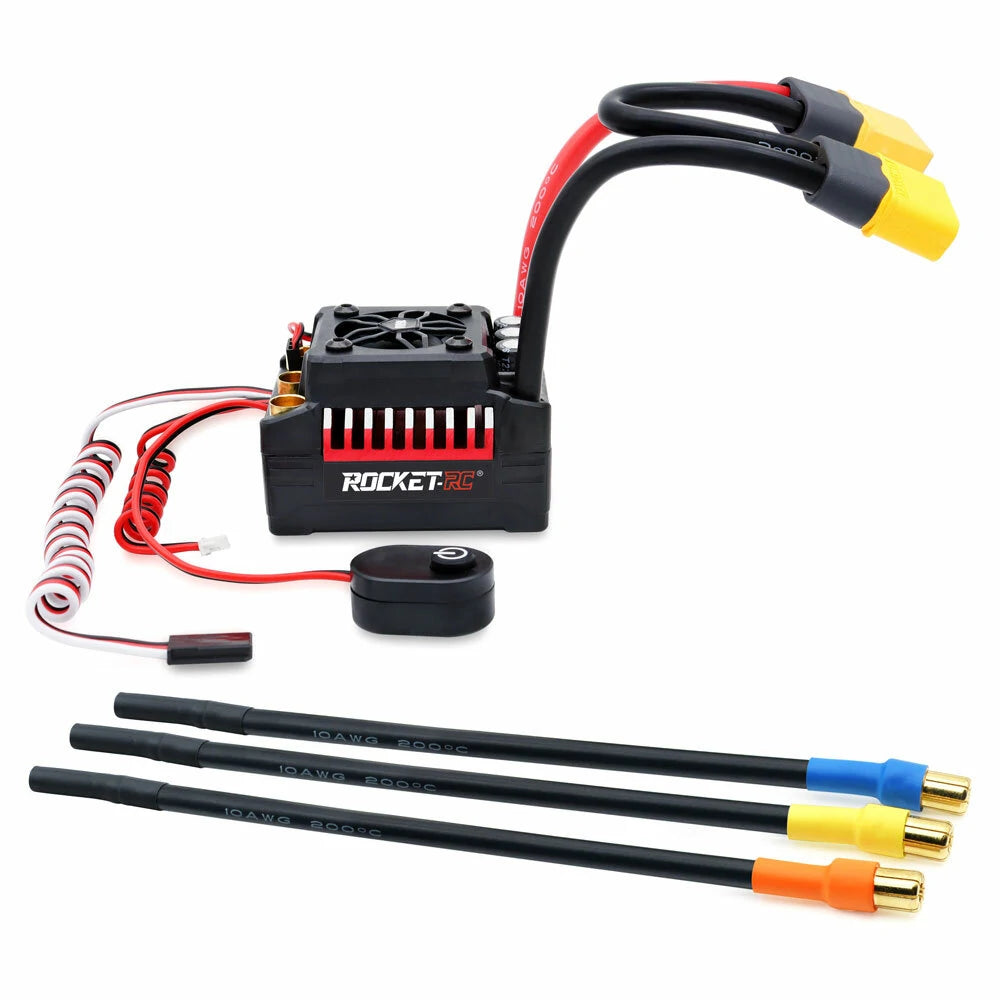

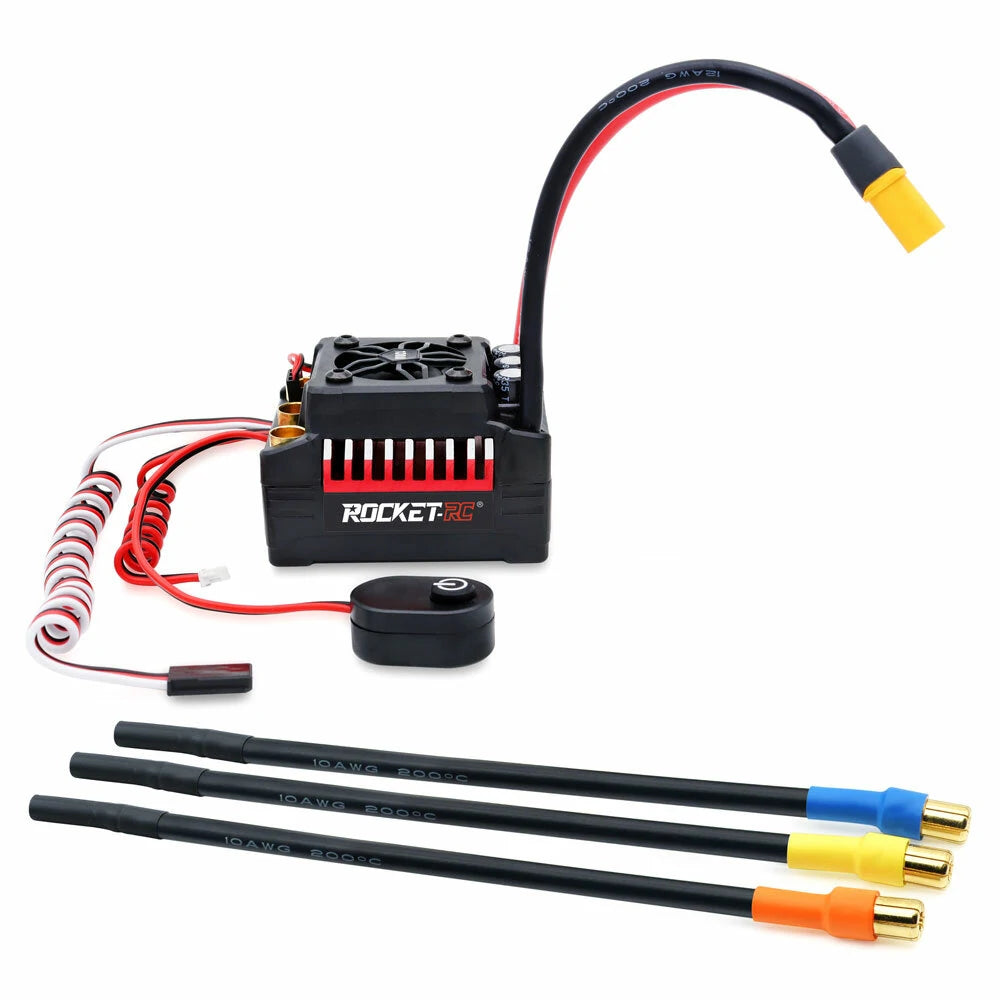

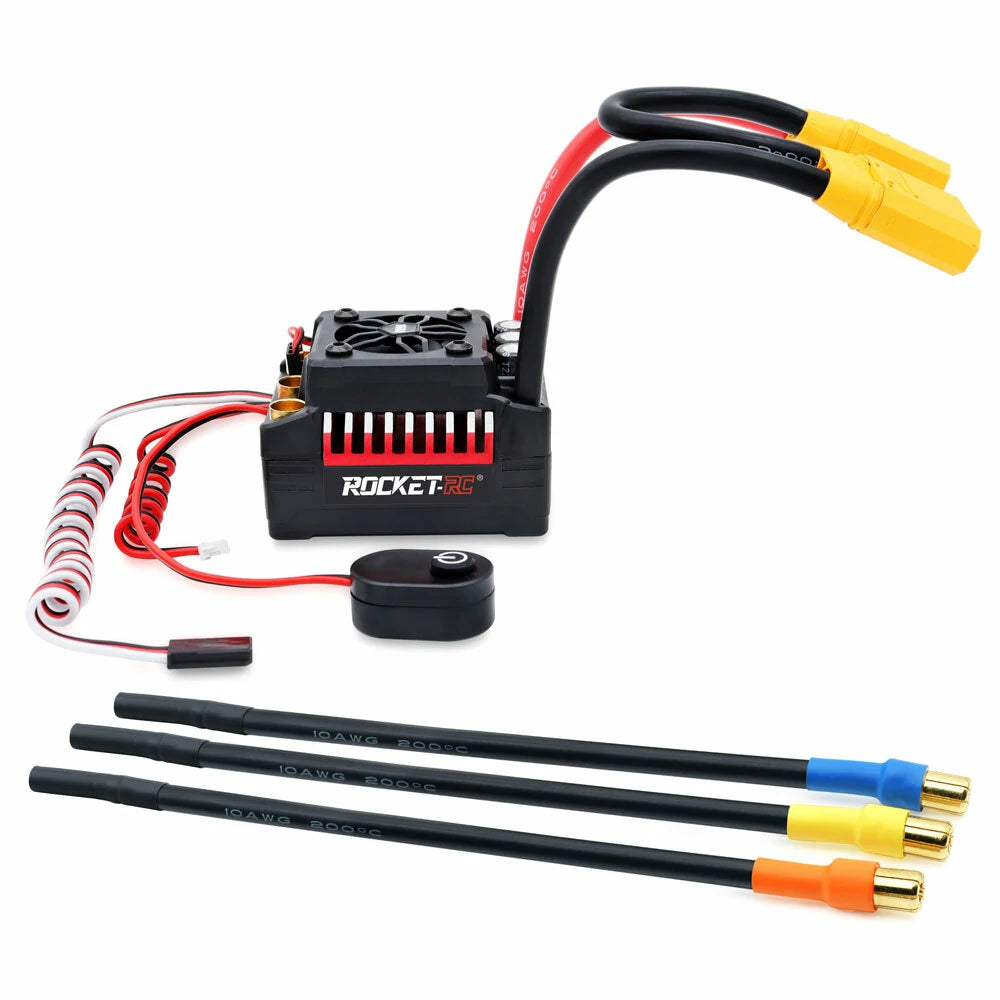

1X Brushless ESC 130A/160A(Each amps is optioal chosen by yourself)
