Description
Description:
Item Brand:Surpass Hobby
Item Number:540 V6

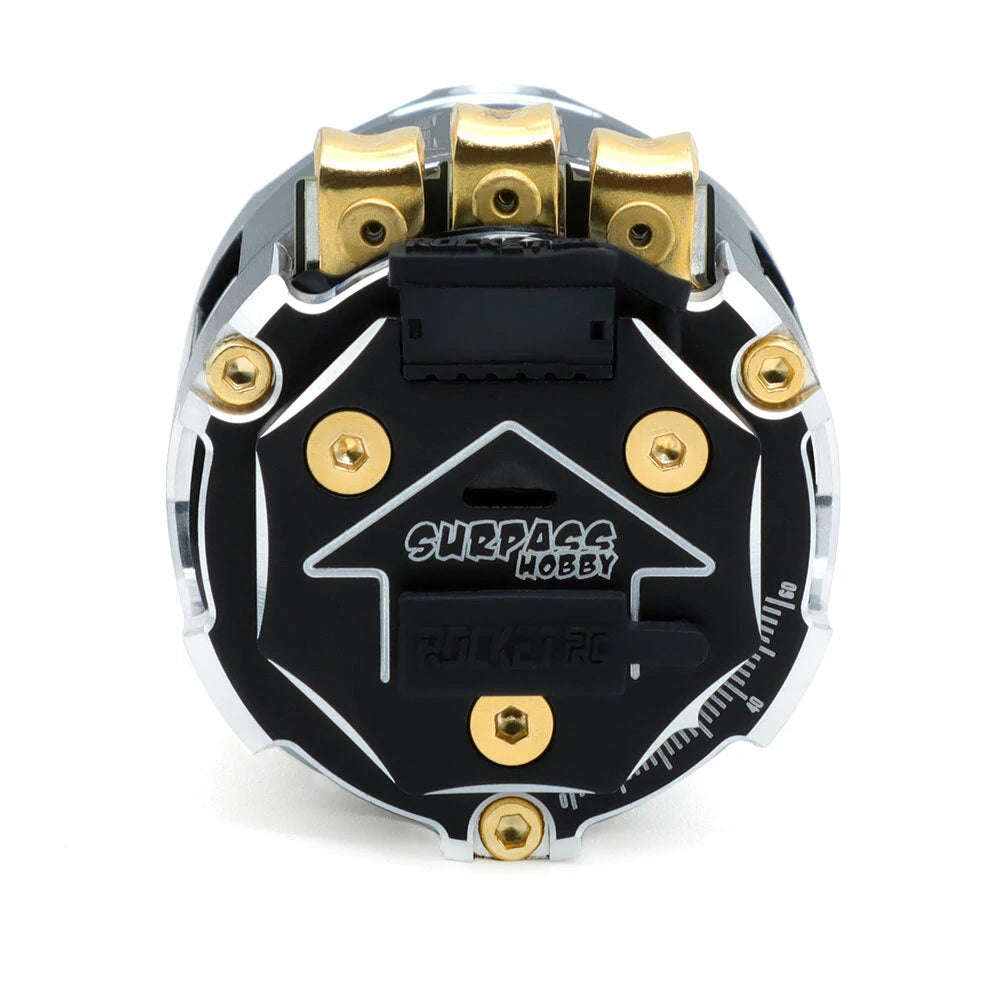

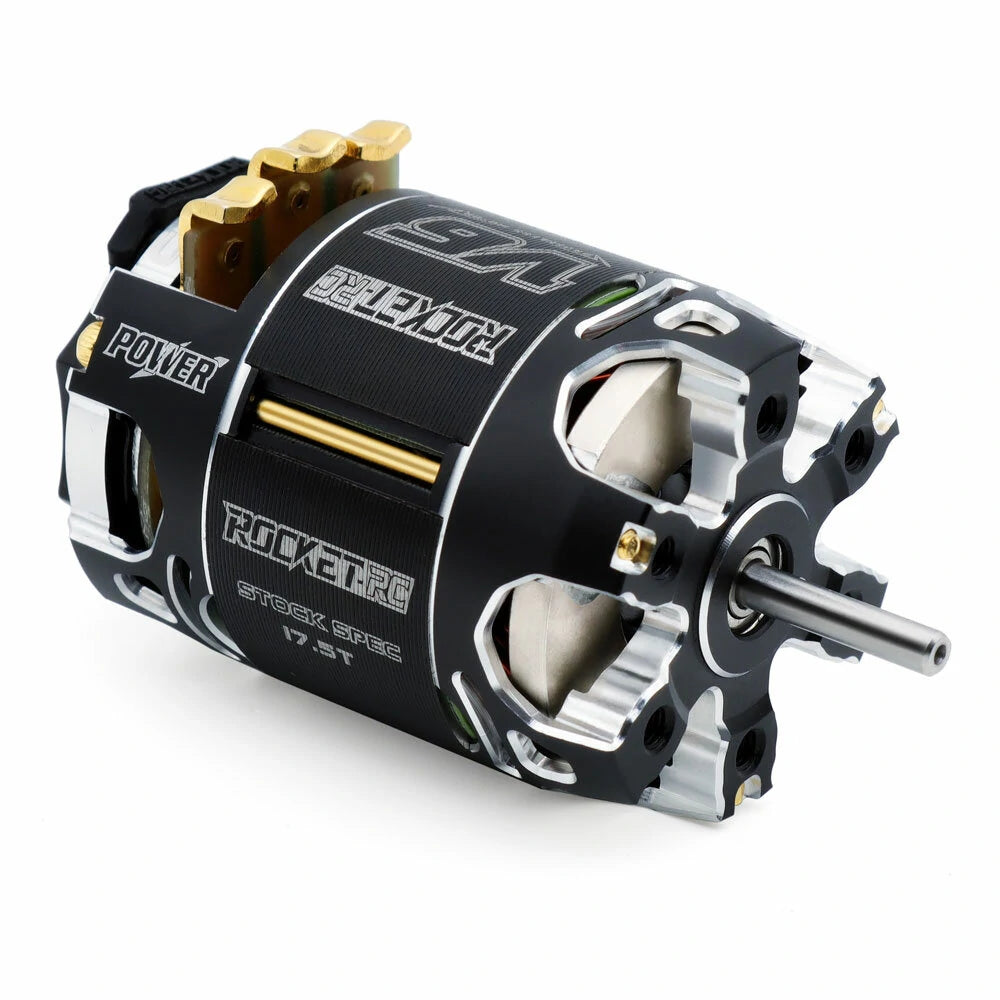

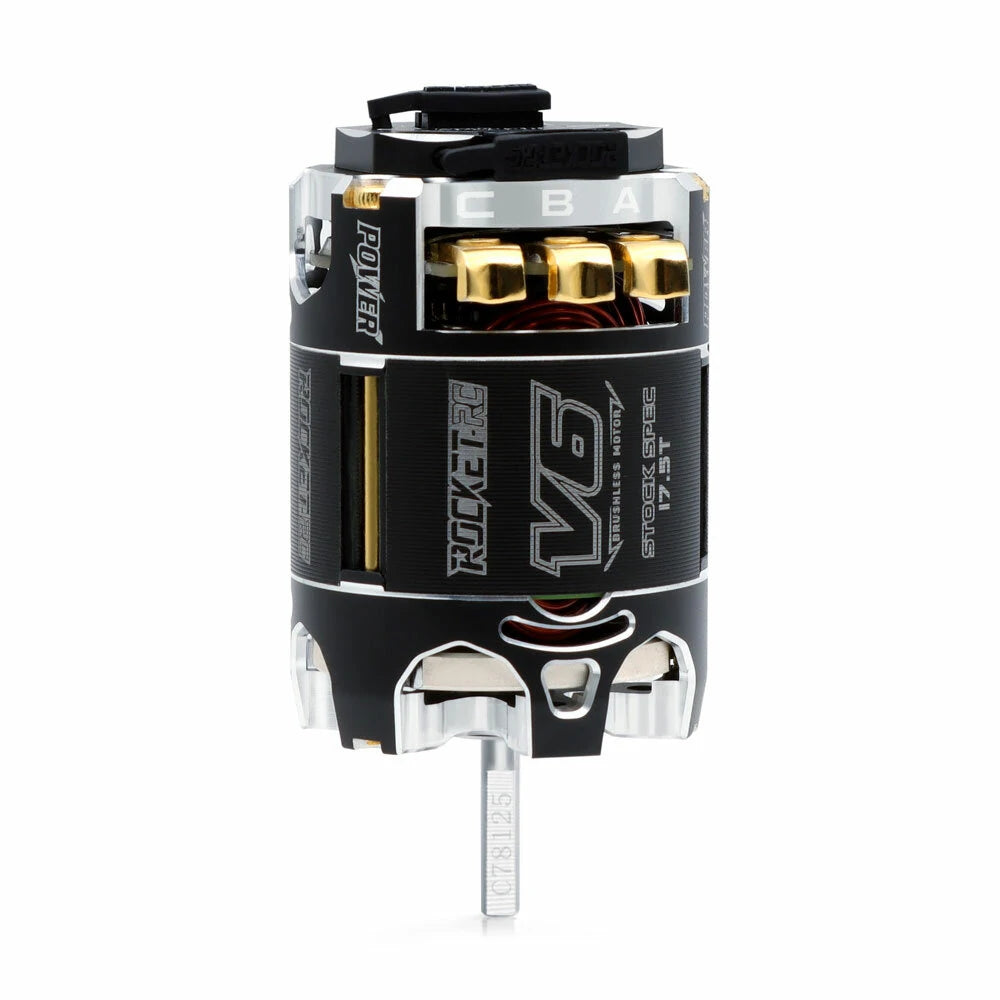

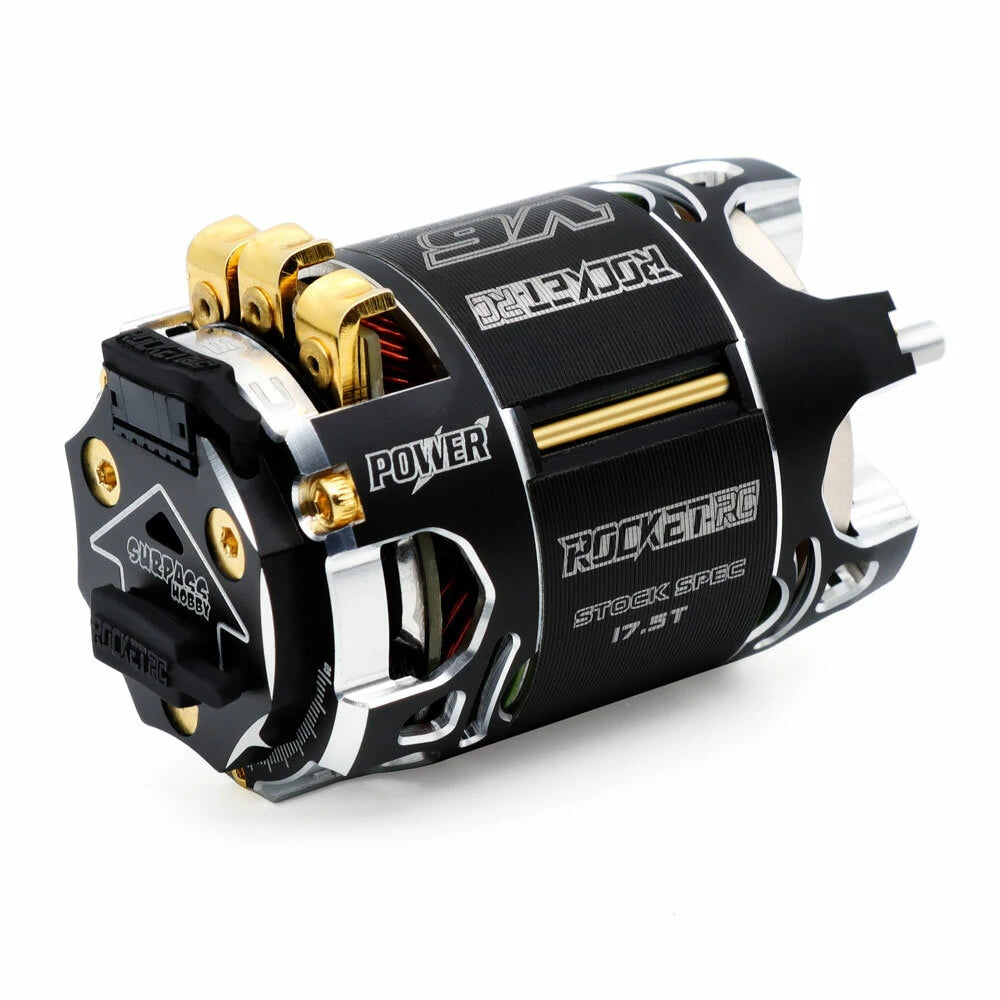

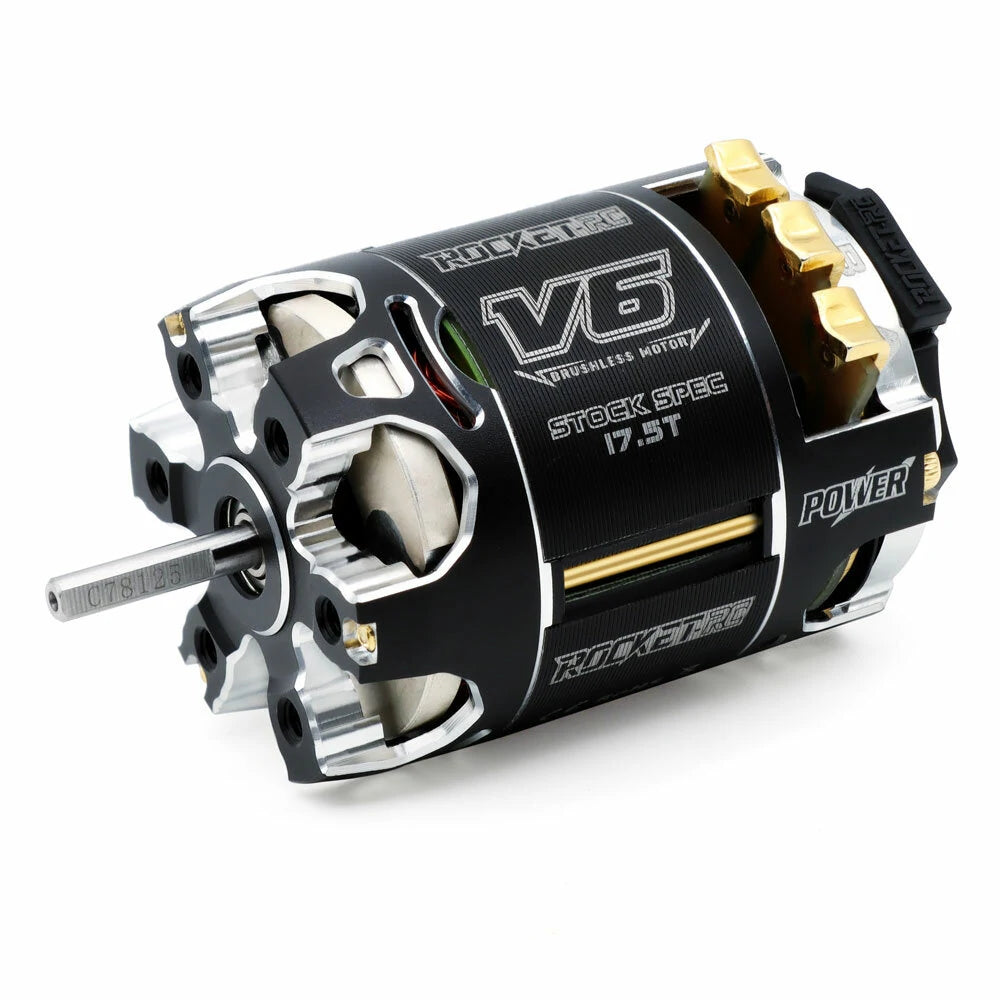

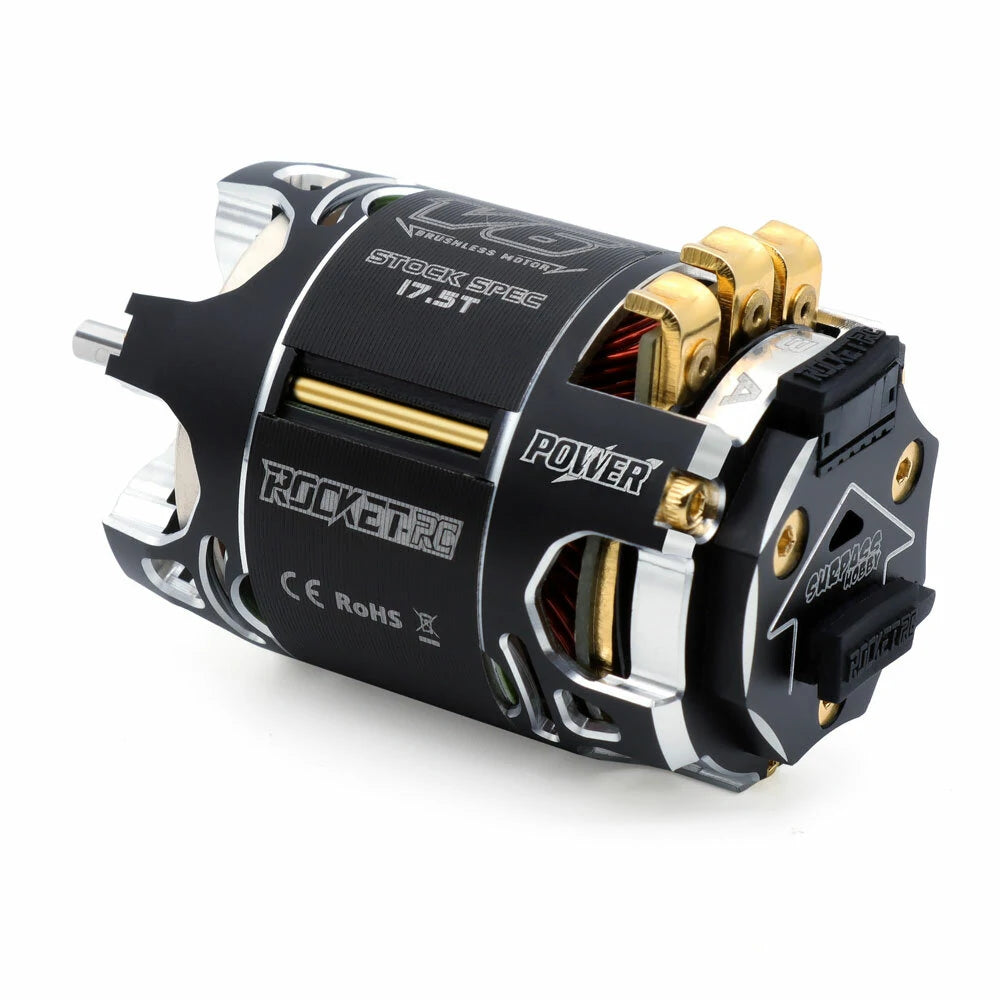

Item Name:Brushless motor
Material:Metal
Color:Black
The Size of the Motor:Length 52.5mm,diameter 38.5mm,shaft diameter is 3.175mm,length of extended shaft is 14.5mm
The Weight of the Motor:About 156g
Fit For:1/10 racing brushless rc cars vehicles models
Recommended ESC:T160A V2 esc(not included)
Specification:
KV:3600/2850/2350KV
Turns:13.5/17.5/21.5
Max Watts:190W/130W/100W
Lipo:2-3S
Max Amps:49A/34A/28A
Rotor Poles:2
IO(7.4V):2.5A/2.1A/1.3A
Resistance:0.0219/0.0368/0.0558
Rotor Size:φ12.5*φ7.2*25.5mm
TYPE:SPEC
Features:
• All-new and Unique Stator Design to Provide Strong Torque and High RPM.
• Internal Titanium-Magnet Alloy Heat Sink to Reduce Heat Loss.
• CNC Machined 7075 Aluminum Heat Sink Housing.
• NSK R2ZZ Bearing Original Imported From Japan, Ensuring Smooth Operation.
• American Standard High Purity Copper Windings for Maximum Conductivity.
• Thicker Gilding Gold Plated Copper for Maximum Non- resistant Input.
• Stator Electroplated to Prevent Ageing and Rusting.
• The explosion-proof rotor made of NdFeB, TURBO speeds up to 80,000 RPM.
• Adjustable Timing & Dual Sensor Port.
• Detachable/Replaceable High Speed Rotor.
• BRCA & EFRA approved, Meets ROAR & IFMA specifications.
• Patented design of front and rear splicing structure.
• 36mm Full Size Outside Diameter Increase Output Power by 15%.
Package Included:
1x 540 V6 Sensored Brushless Motor
