Surpass Hobby ROCKET LED Program Card for Rock Crawler Gecko Series MINI 18 30A ESC Brushless Waterproof Electronic Speed Controller RC Car Vehicles Parts


Isaiah 55:8-9 John 3:16 Philippians 4:19
Type: Separate Program Card
Price:
Sale priceR 368.70 Regular priceR 452.44
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Description:

Brand:Surpass Hobby

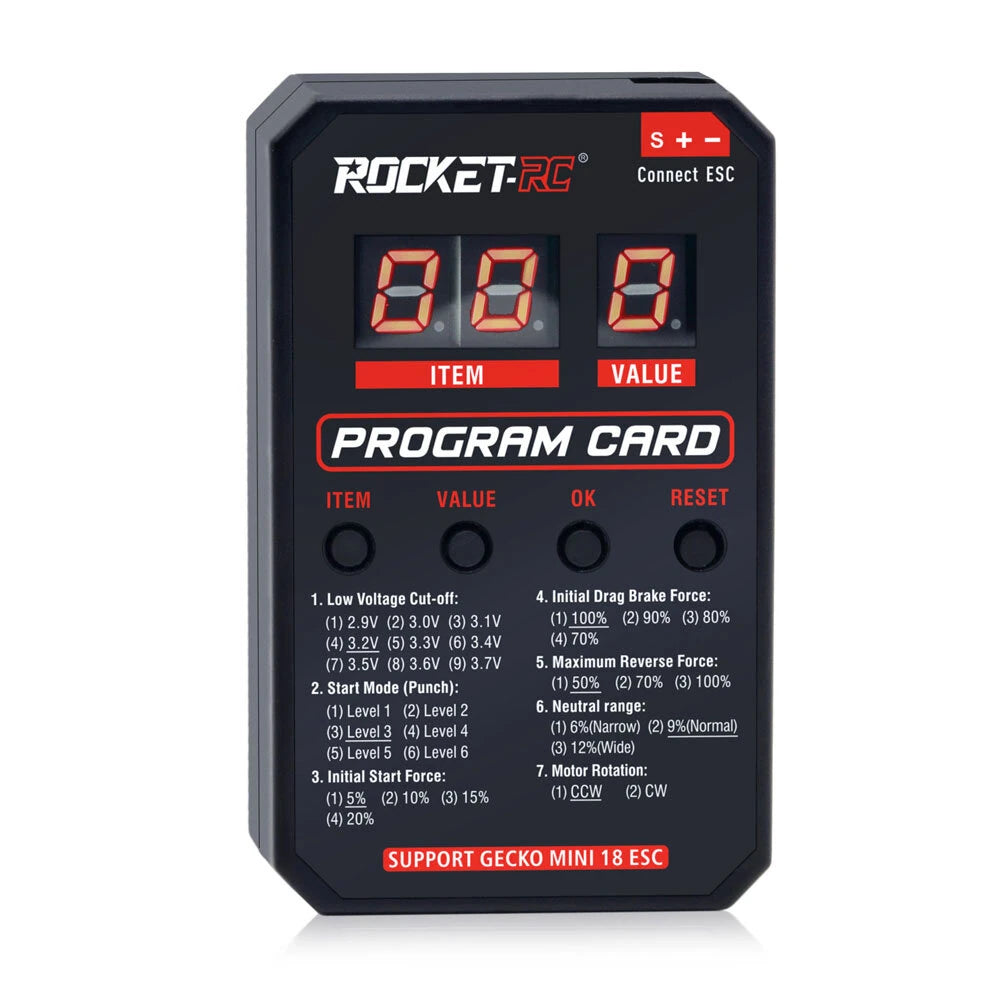

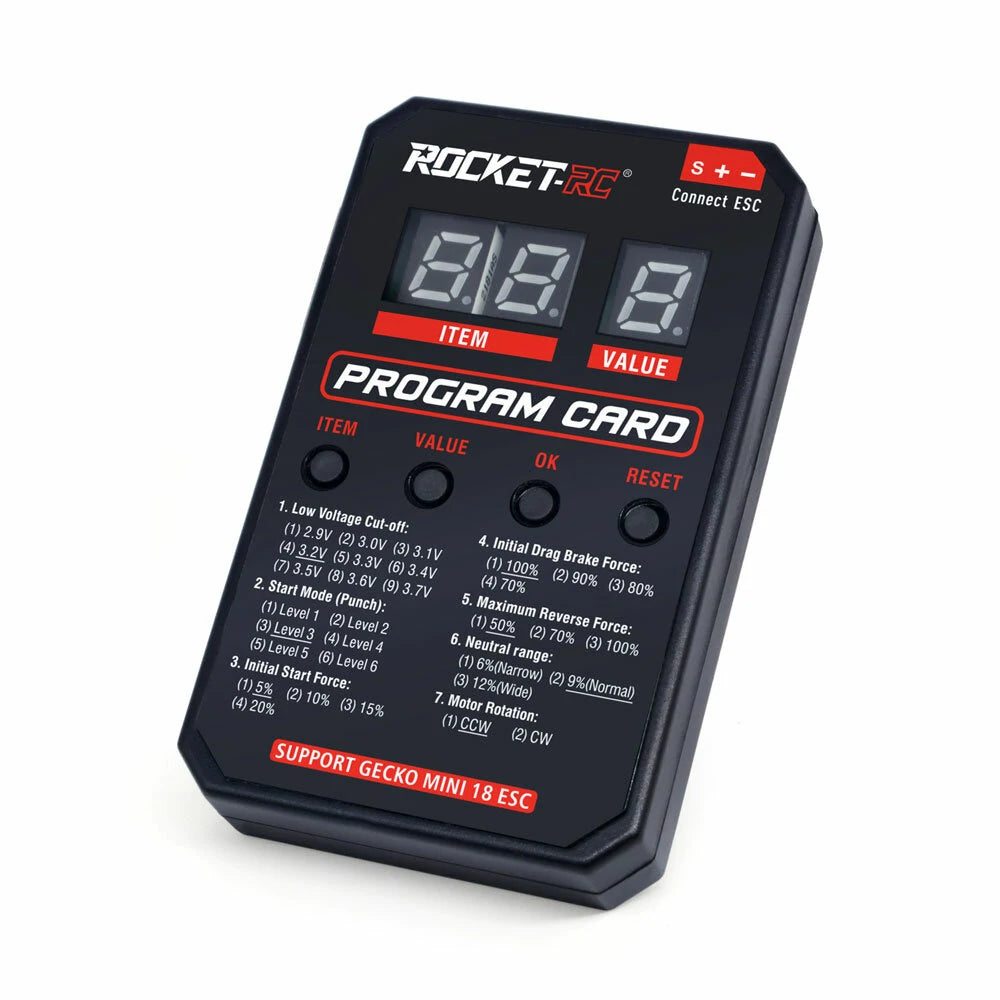

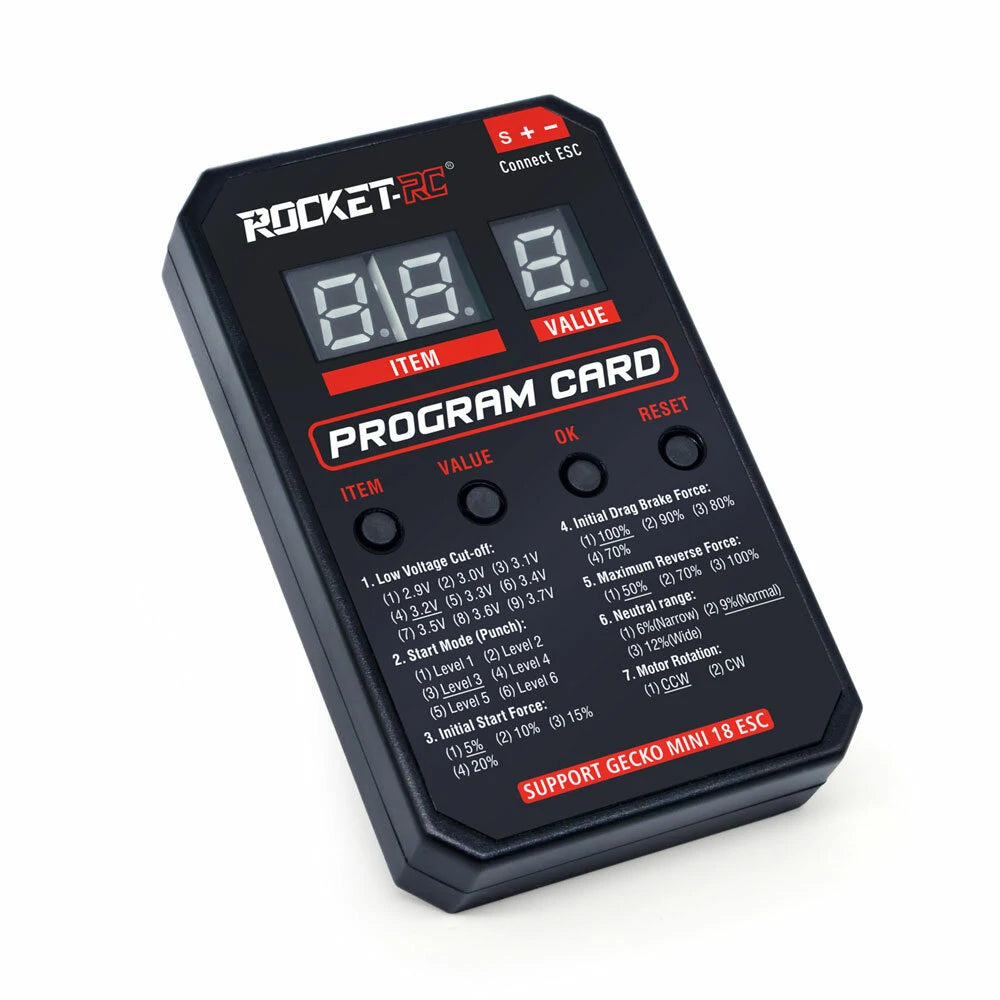

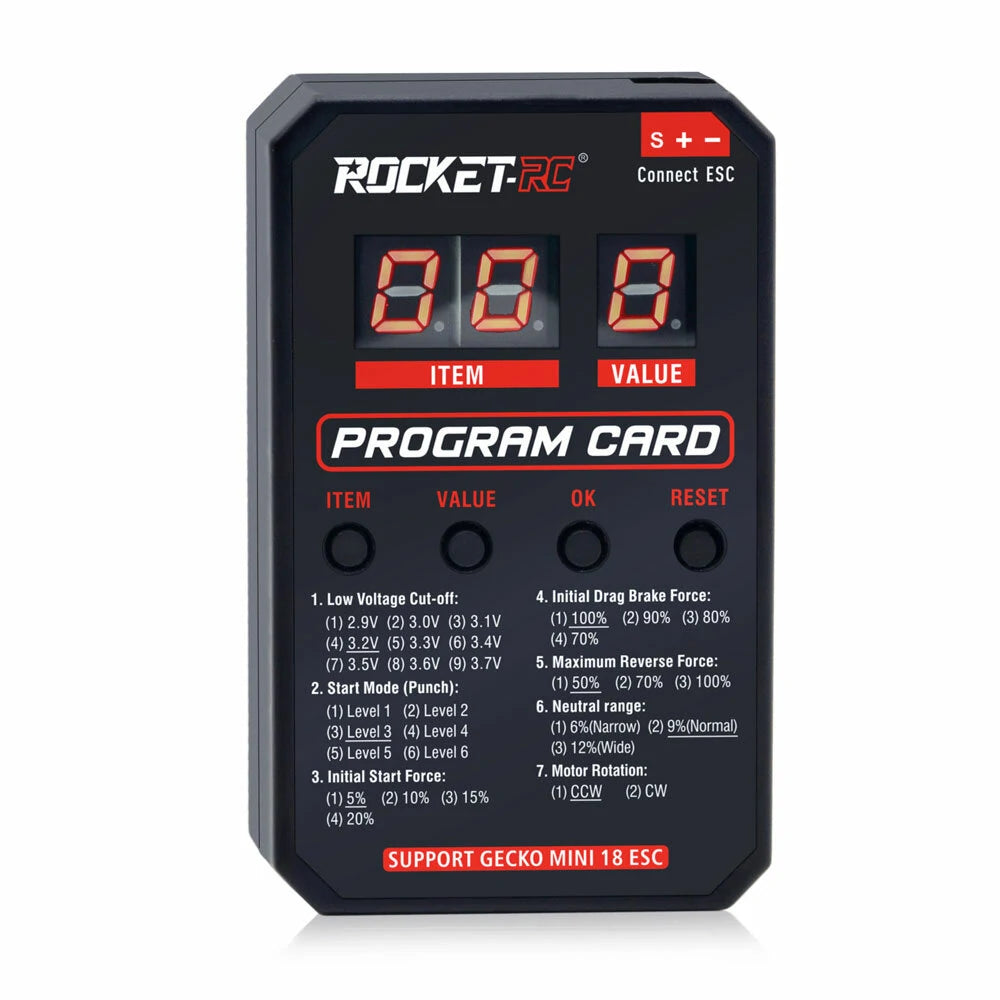

Item Name:Rocket LED Program Card Gecko Series MINI 18

Product Size:70*43*13mm

Bag Size:90*80-85mm

Net Weight:24G

Gross Weight:28G

Power Supply Mode:ESC BEC

Compatible ESC:Rock crawler gecko series MINI 18 30A ESC brushless waterproof electronic speed controller


To begin, connect the ESC battery wires to a charged battery, then connect the BEC
wire 3pin wire to the program card 'S+-'port (3pin port). Turned on the ESC, the
programming card will automatically read the ESC settings, and the setting items
of the programming card will display 1 to 15 successively, indicating that the
connection is successful. You can start programmingESC. (if it is not displayed, it
means that the connection is unsuccessful, please try to turn offESCrepeatedly,
reconnect the programming card and turn on ESC again until it is successful)
TIPS! Program card is done using the 4 buttons below on the led, The function of
each button start from right hand side areITEM,VALUE, OK and RESET.
Please refer to the menu below to program the function settings you need.
'ITEM' button-go to next item to sellect.
'VALUE' button-go to next value select.
'OK' buttongo to confirm your select.
'RESET' button-go back to factory setup.


Program Manual:Please click here


Package Included:

1x Rocket LED Program Card Gecko Series
