Description
Description:
Item Brand:Surpass Hobby
Item Number:ROCKET 70120 Sensorless Brushless Motor
Item Name:RC car motor
Material:Metal and Magnet
Color:Black
KV:680KV/620KV/480KV(Optional)
Length:Approx. 120mm / 4.72inch
Diameter:Approx. 66mm / 2.60inch (Fins Not Included)
Shaft Diameter:Approx. 8mm / 0.31inch
Length of Extension Shaft:Approx. 30mm / 1.18inch
Weight:Approx.1811.2g
Power:10000W
Maximum LiPo:8-12S(680KV)/8-14S(620KV)/8-16S(480KV)
Maximum Current:220A/200A/160A
Pole:4
IO:4.8A/4.5A/3.2A
Resistance(Ω):0.0095
Max RPM:35000
Features:
4 Pole 12 slot high-torque design.
High purity copper windings maximizes efficiency.
ABEC5 bearing is precision and stably.
Universal type, suitable for 1/5 scale brushless RC car, also suitable for electric skateboard.
Accurate balanced rotor for optimum reliability and maximum RPM.
Precision design for maximum energy conversion.

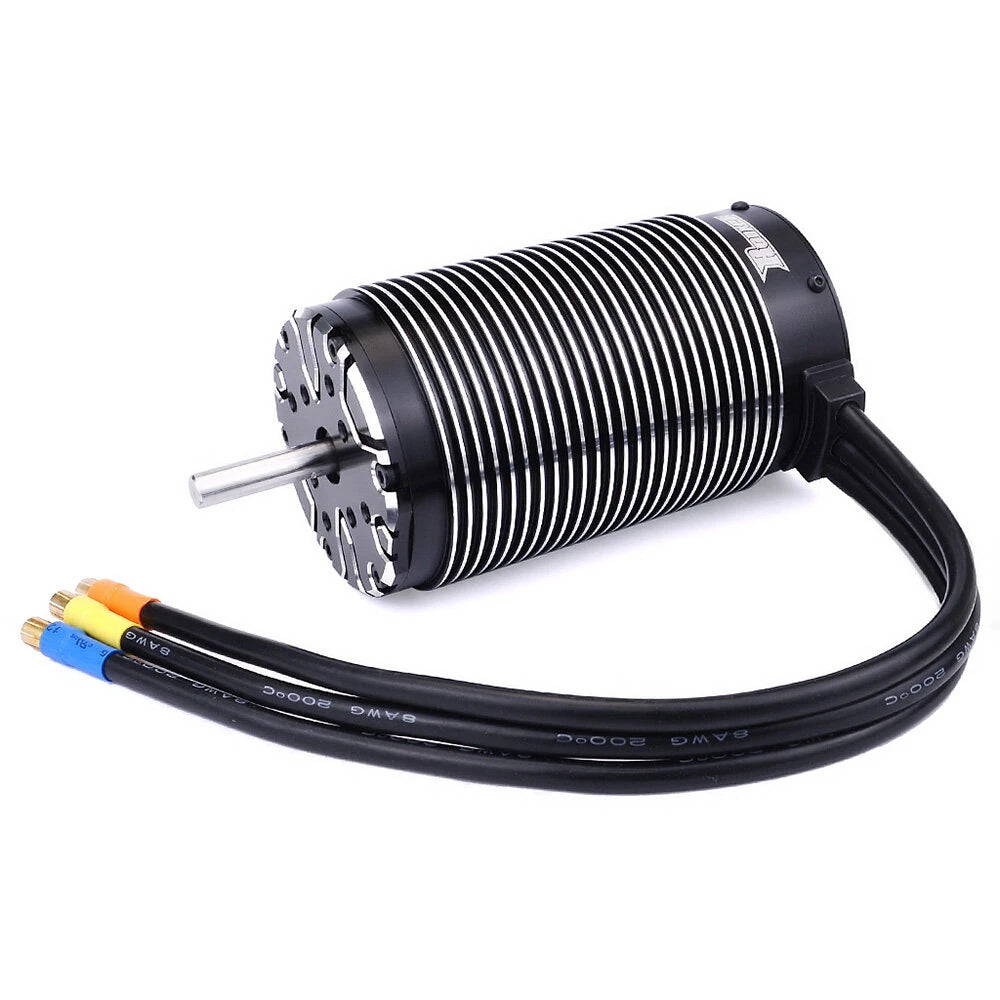

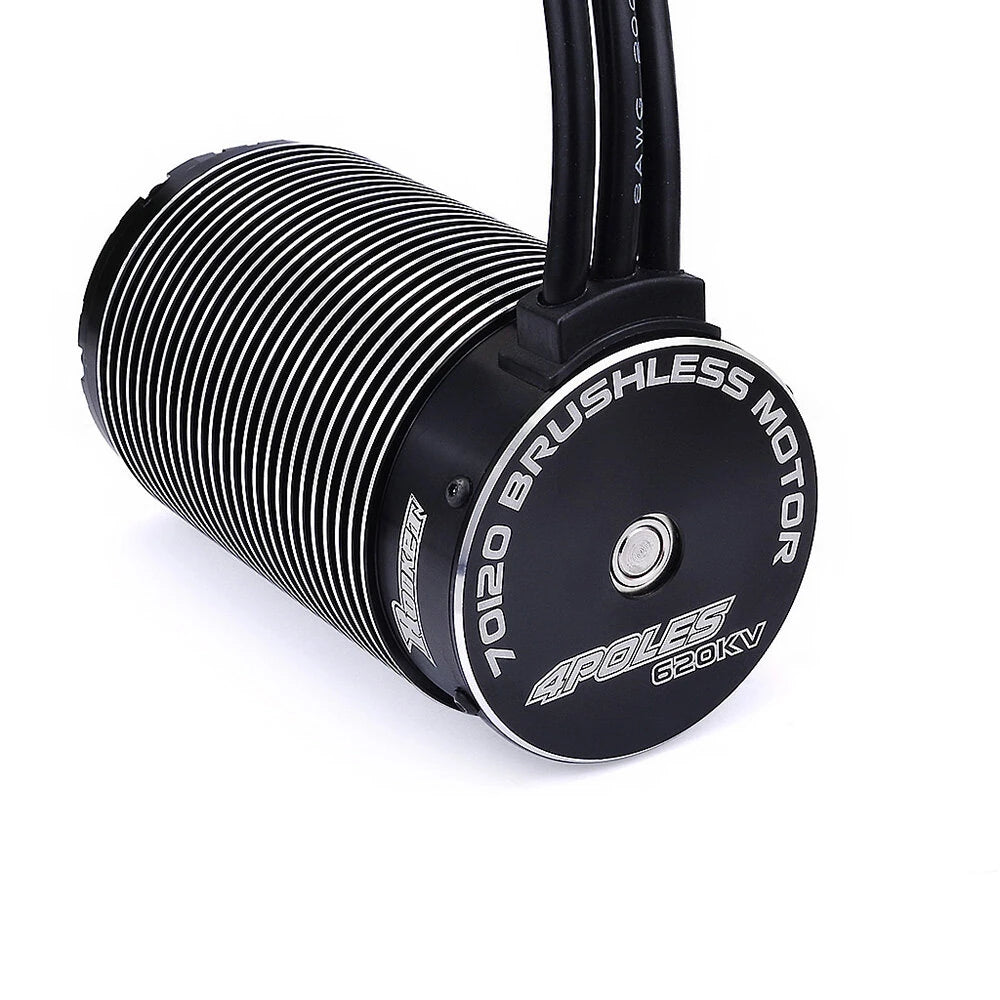

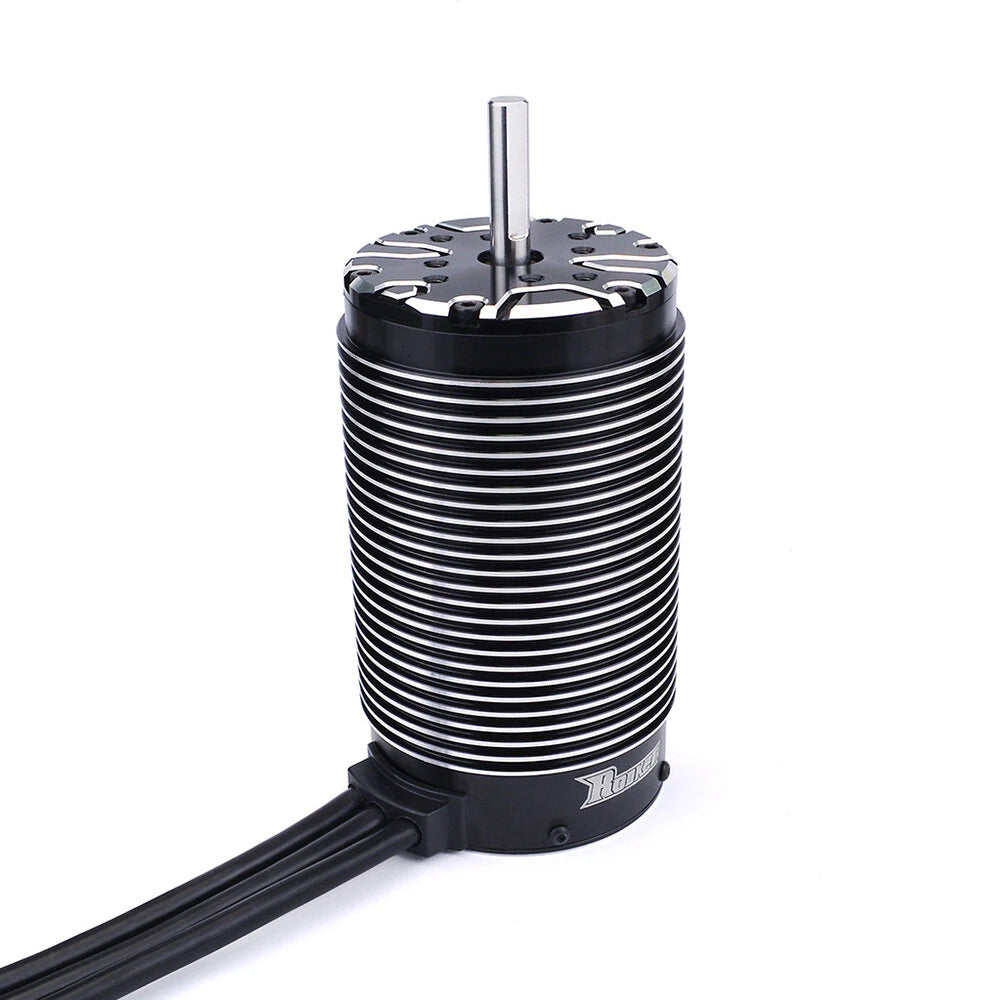

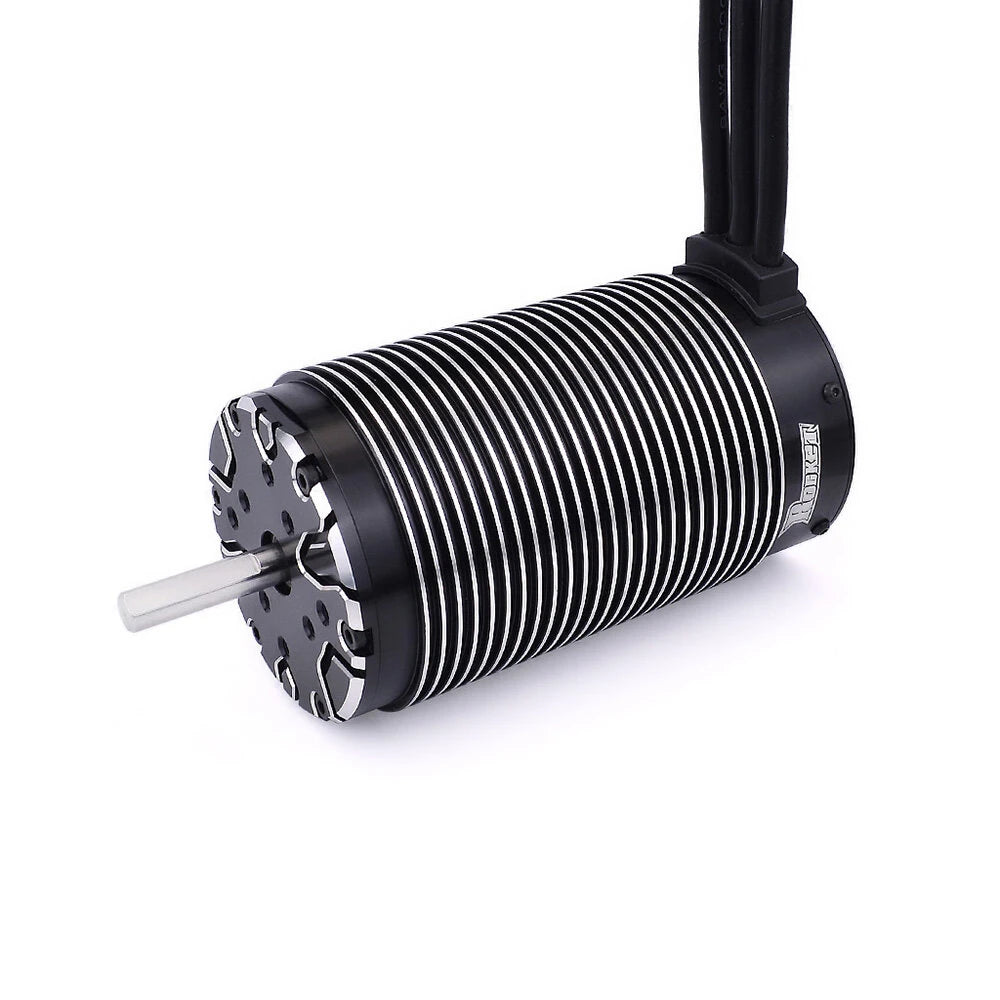

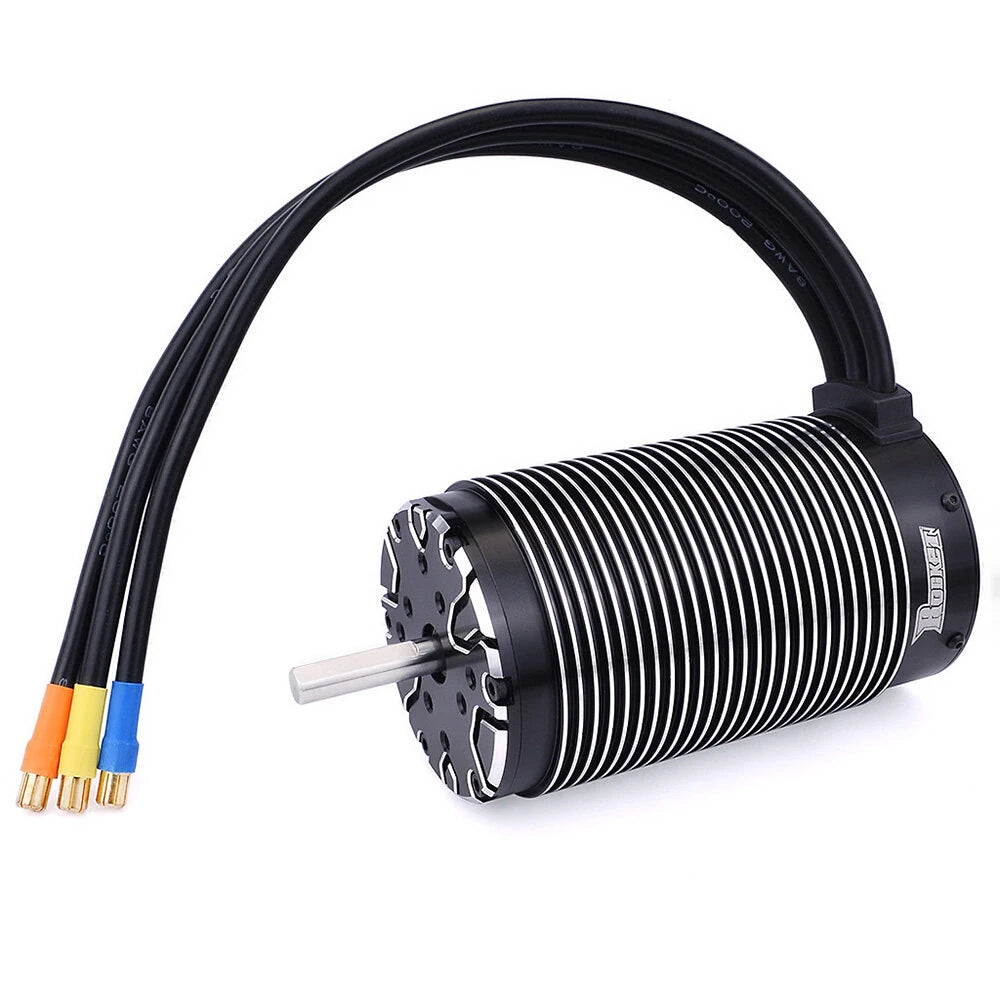

1X Surpass Hobby ROCKET 70120 Sensorless Brushless Motor
