Description
Overview:
Brand: SURPASS-HOBBY
Model: C3536-V2
Item Number: SP-235360-01
KV(RPM/Volt): 910KV, 1050KV, 1300KV, 1500KV (optional)
Specifications:
| KV | Max Watts(W) | Voltage Range(V) | Max Current(A) | Rotor Poles | No Load Current(A) | Resistance(Ω) | Motor Size(mm) | Stator Size(mm) | Weight(g) | Propeller(Inch) |
| 1500 | 750 | 7~15 | 55 | 14 | 2.5 | 0.025 | ∅35x34.5 |
∅28x14 |
109 | 8x4/9x6/10X6 |
| 1300 | 680 | 7~15 |
50 | 14 | 1.8 | 0.038 | ∅35x34.5 |
∅28x14 |
109 |
9x4.5/10x4.7/9x5 |
| 1050 | 500 | 7~15 |
38 | 14 | 1.5 | 0.055 | ∅35x34.5 |
∅28x14 |
109 |
9.5x5/10x6/11x5 |
| 910 | 400 | 7~15 |
30 | 14 | 1.2 | 0.1072 | ∅35x34.5 |
∅28x14 |
109 |
10x7/11x8.5x12x5 |
Features:
- 14 Pole Hi-torque rotor design, stable output power.
- Fits all fixed wing aircraft model.
- CNC machine 6061 T-six aluminum front and rear cover.
English Manual, Click Here
Package Includes:

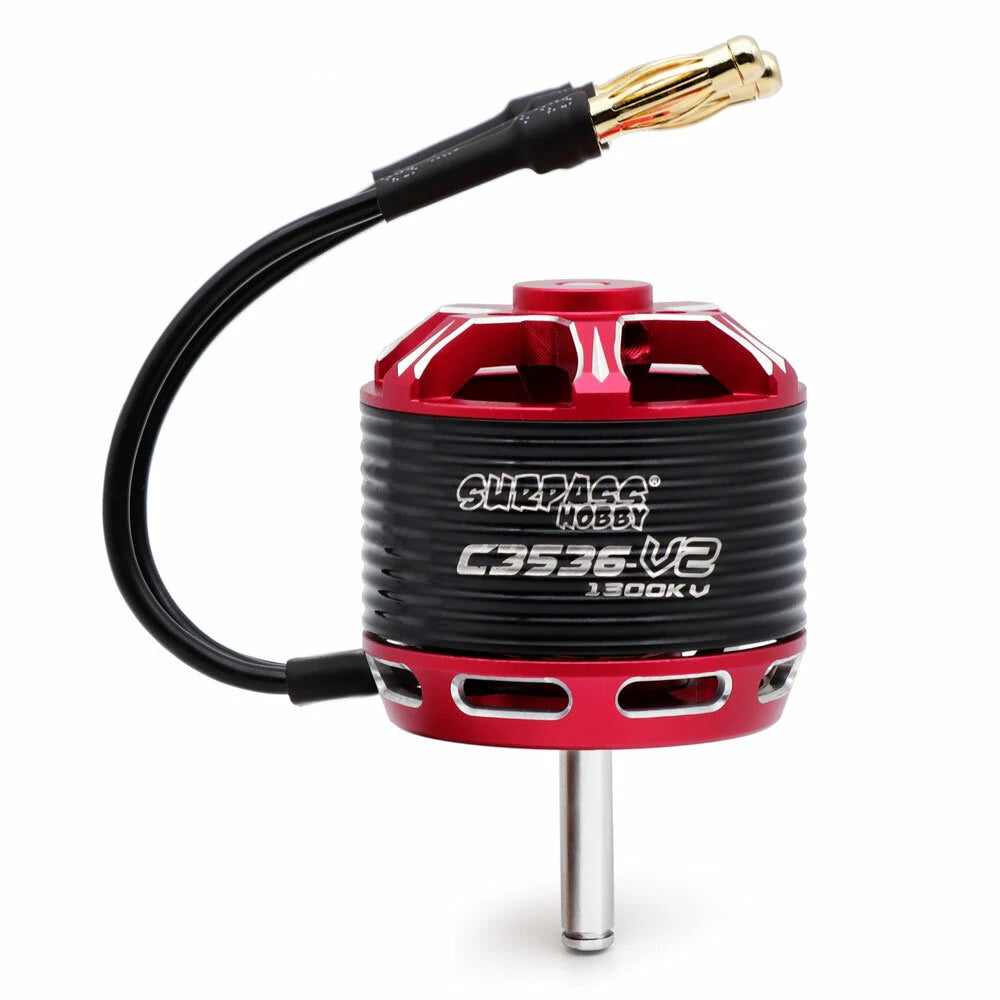

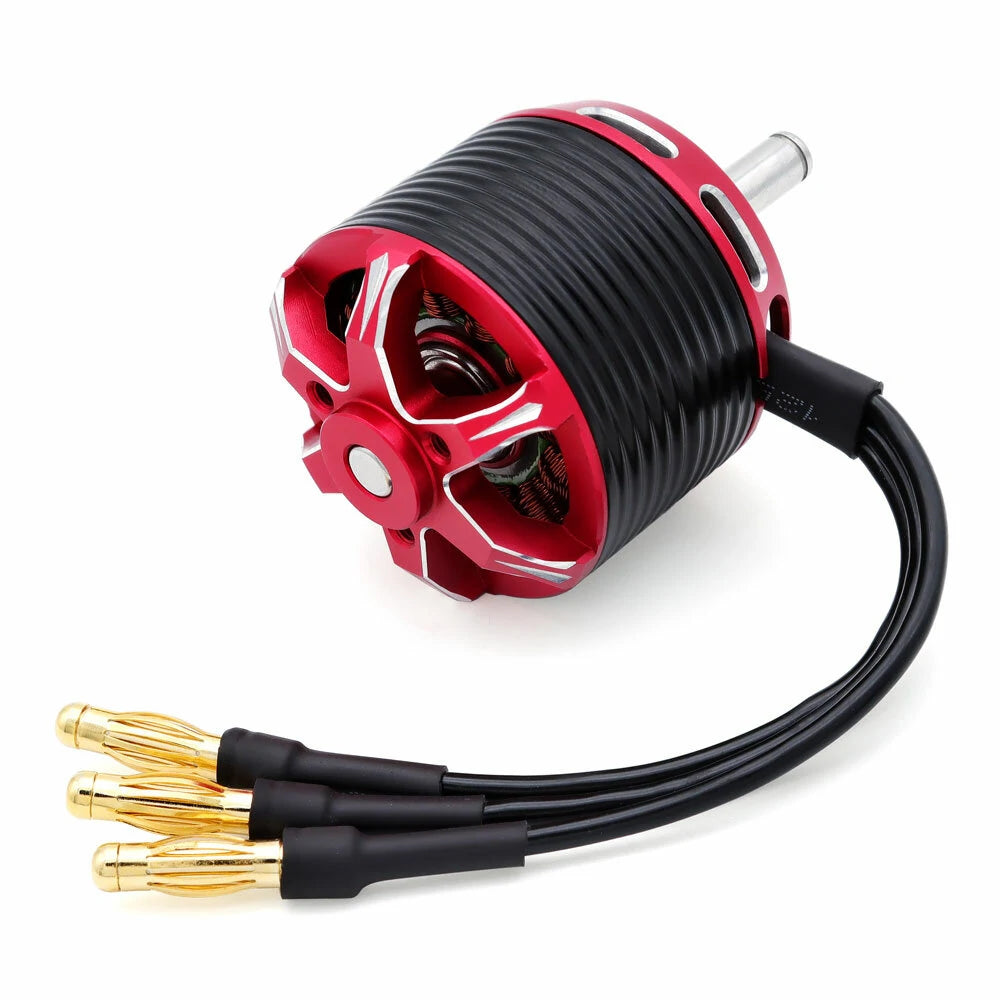

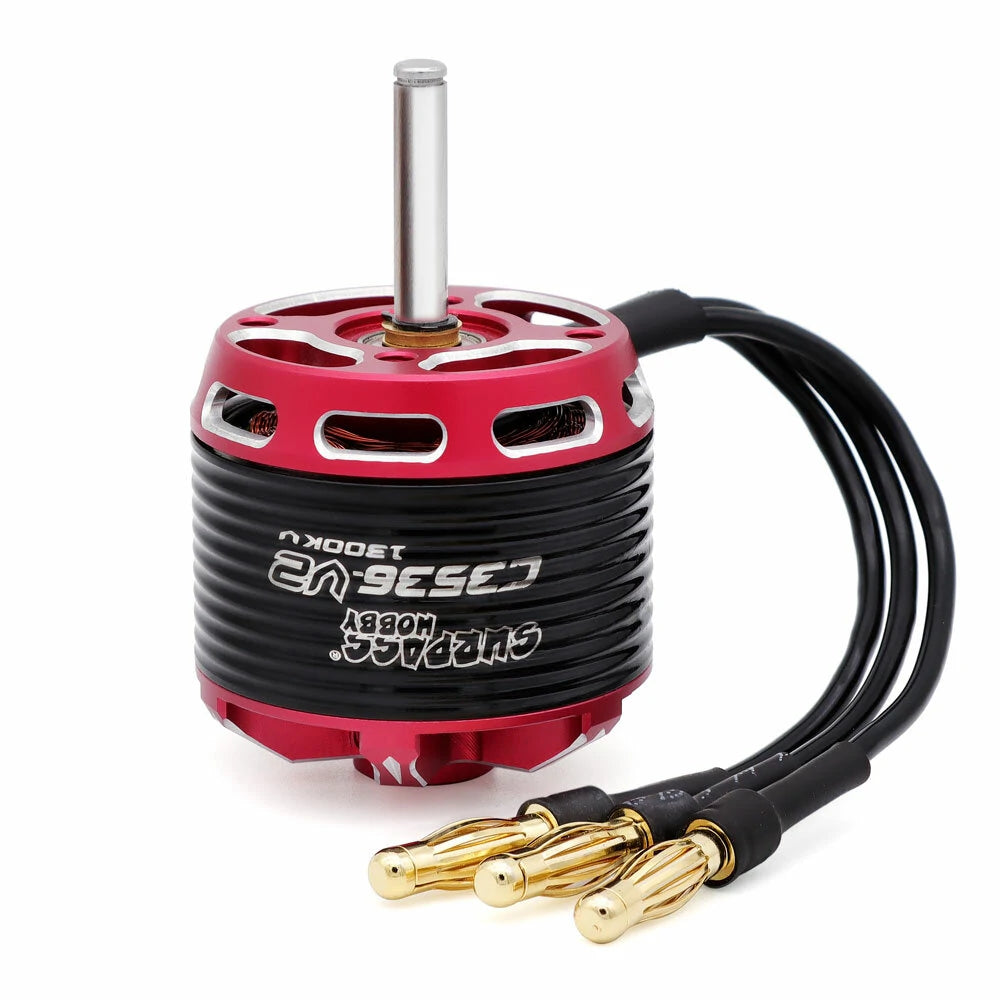

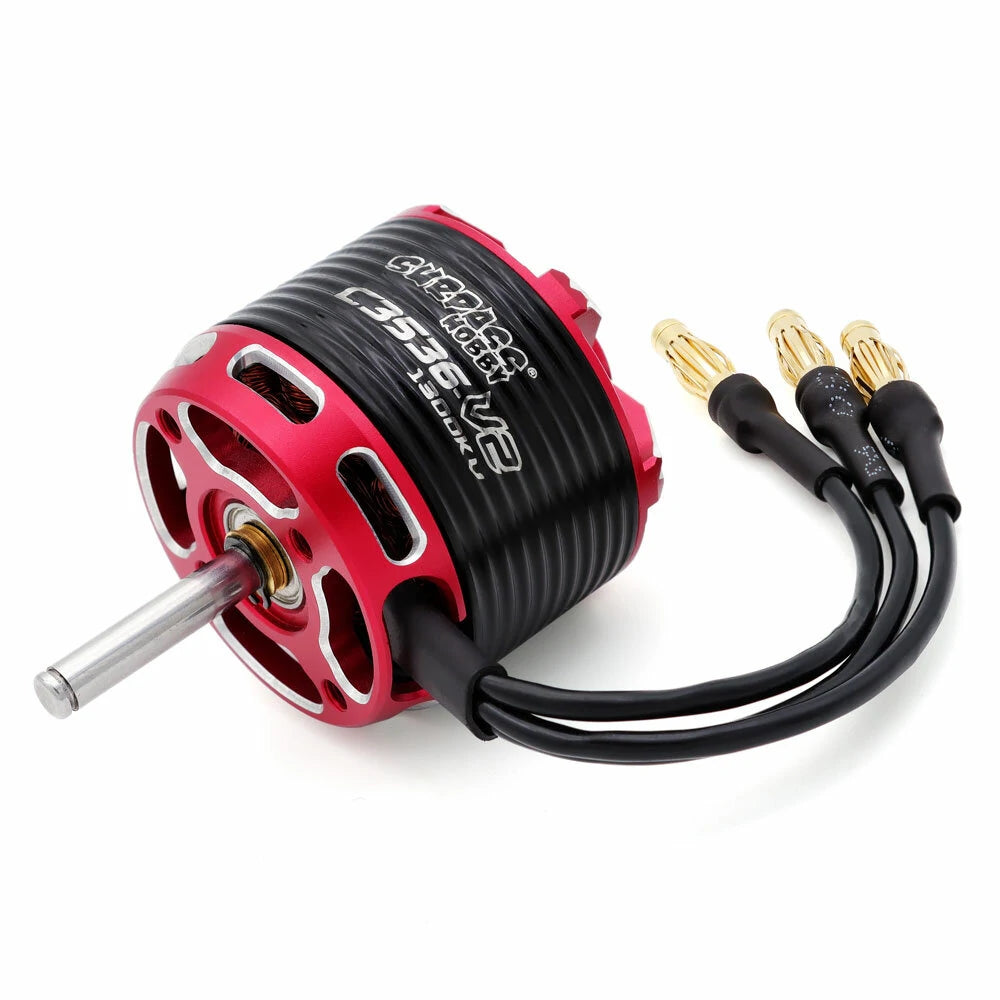

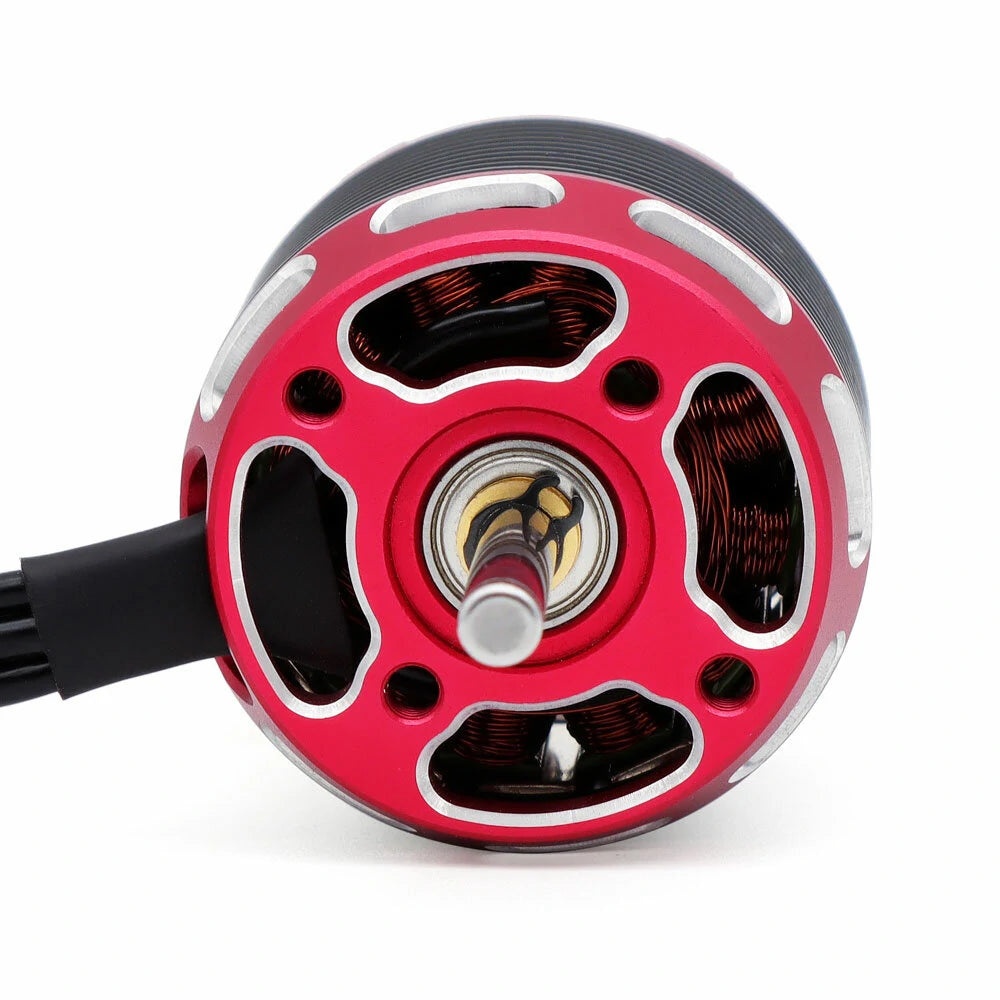

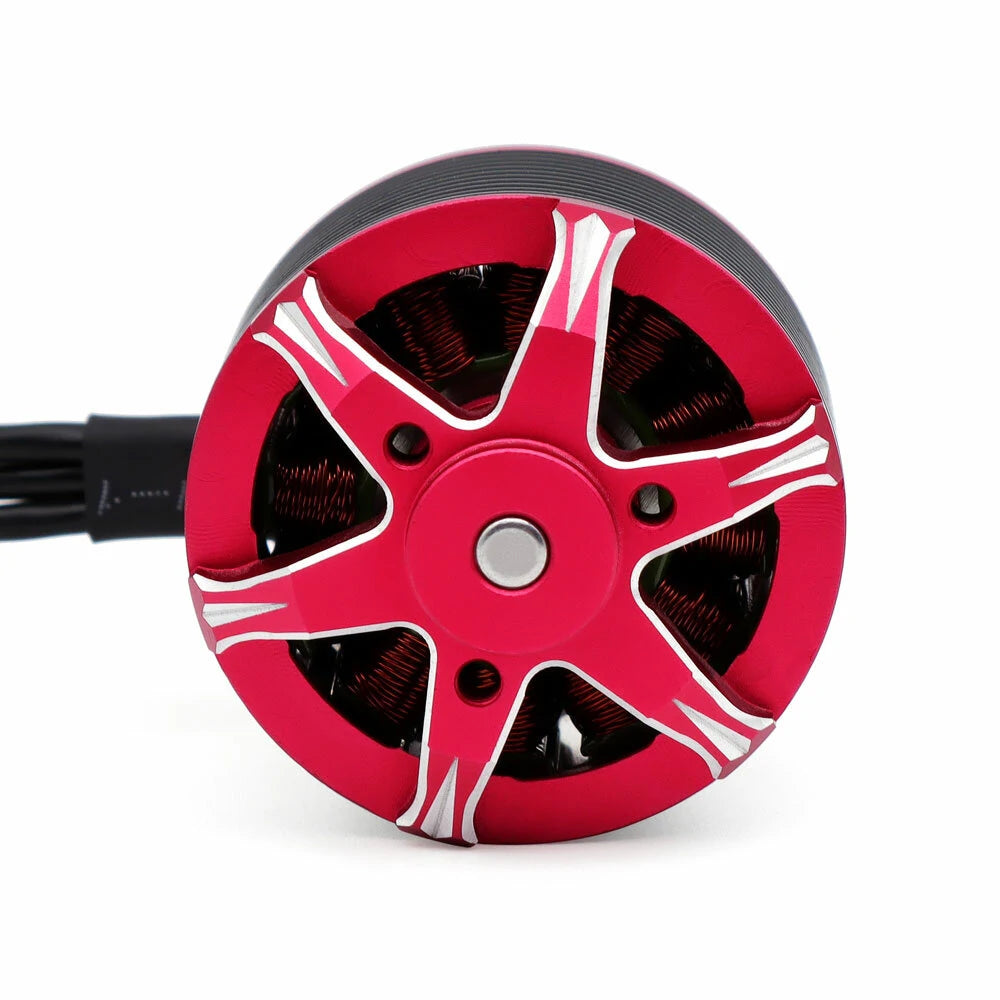

1x SURPASS-HOBBY C3536 V2 Brushless Motor
