Description
Overview:
Brand: SURPASS-HOBBY
Model: C3530-V2
Item Number:SP-235300-01
KV(RPM/Volt): 1700, 1400, 1100KV (optional)
Specifications:
| KV | Max Watts(W) | Voltage Range(V) | Max Current(A) | Rotor Poles | No Load Current(A) | Resistance(Ω) | Motor Size(mm) | Stator Size(mm) | Weight(g) | Propeller(Inch) |
| 1700 | 420 | 7~15 | 42 | 14 | 1.8 | 0.041 | ∅35x28.5 |
∅28x08 |
78 | 7x4/6x6 |
| 1400 | 350 | 7~15 |
35 | 14 | 1.2 | 0.059 | ∅35x28.5 |
∅28x08 |
78 | 9x4.5/8x4/7x7 |
| 1100 | 310 | 7~15 |
30 | 14 | 0.7 | 0.113 | ∅35x28.5 |
∅28x08 |
78 | 9x5/10x4.7 |
Features:
- 14 Pole Hi-torque rotor design, stable output power.- Fits all fixed wing aircraft model.
- CNC machine 6061 T-six aluminum front and rear cover.
English Manual, Click Here
Package Includes:

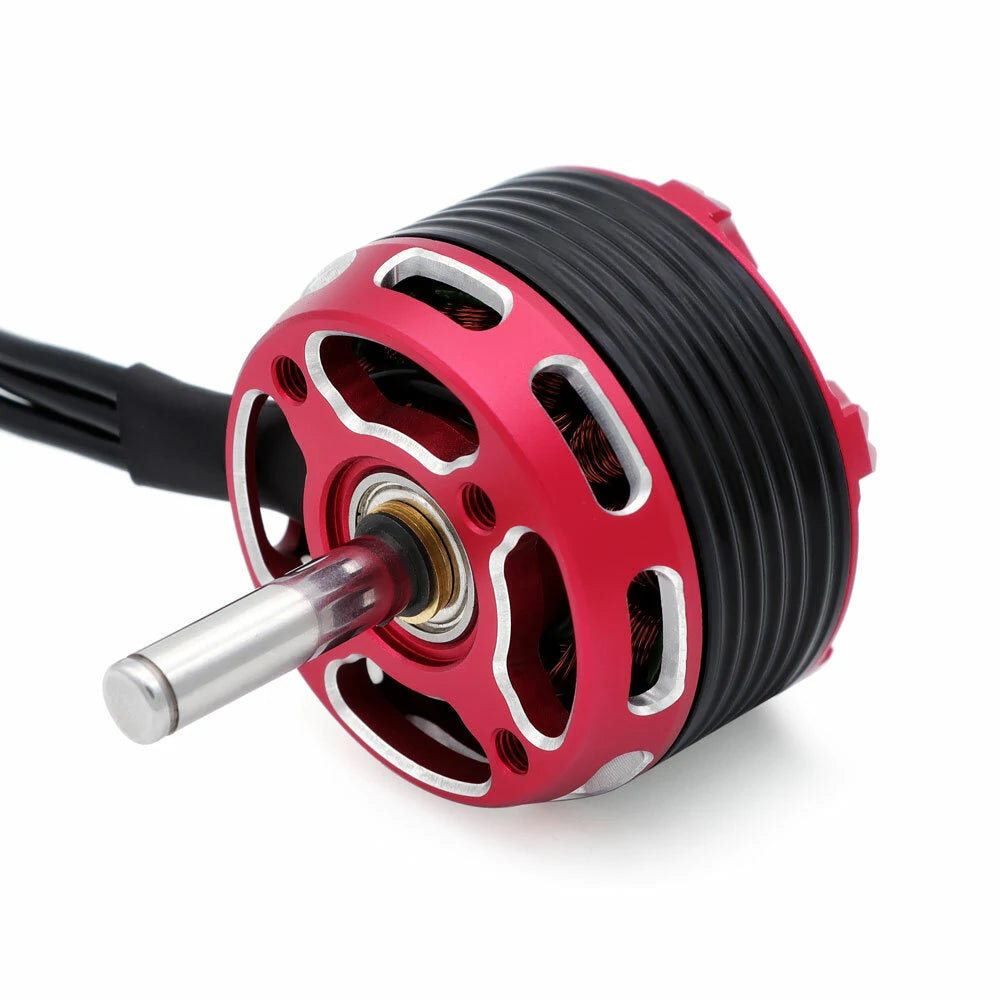

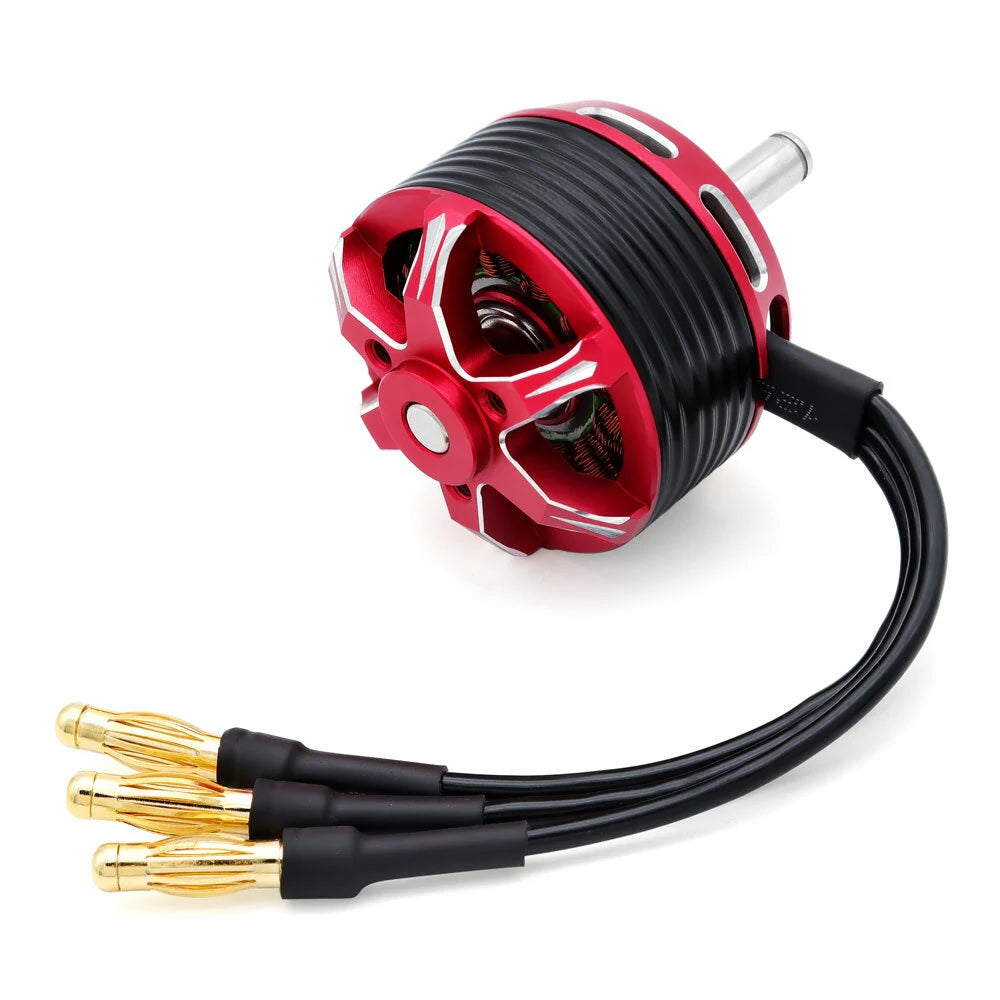

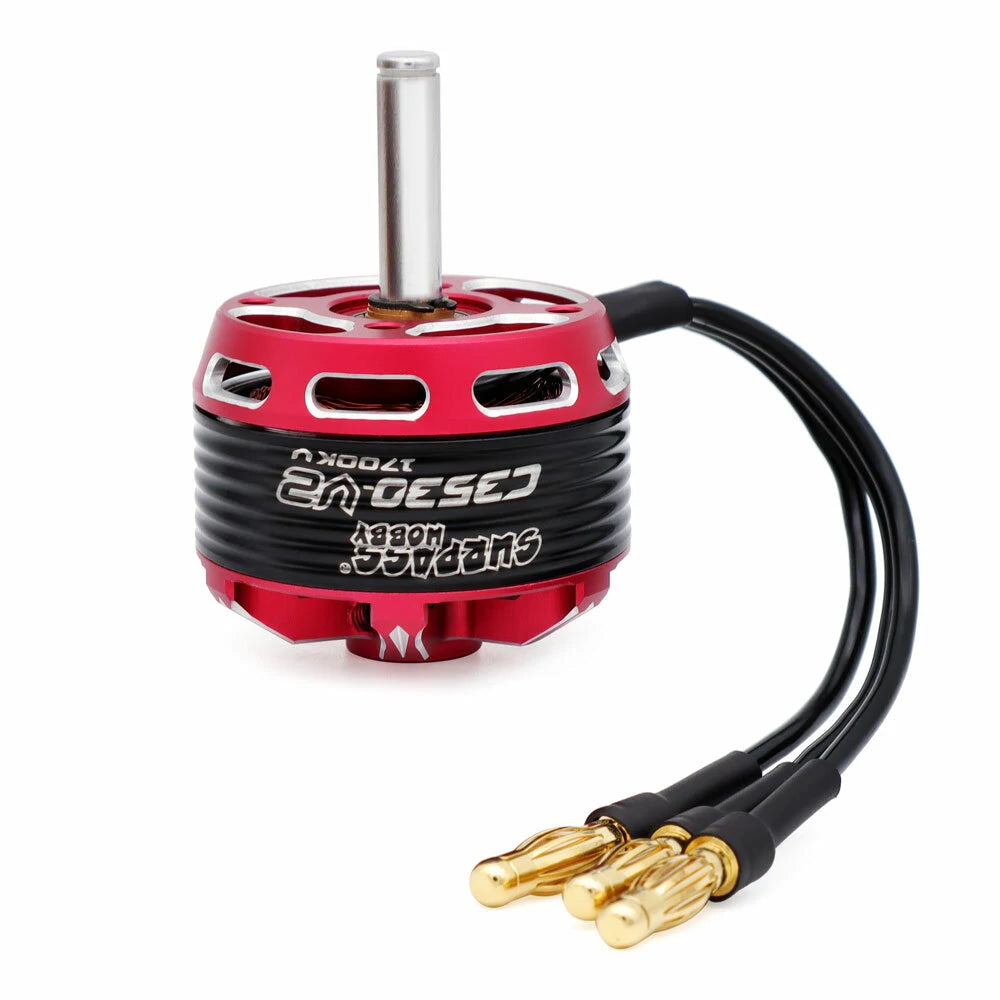

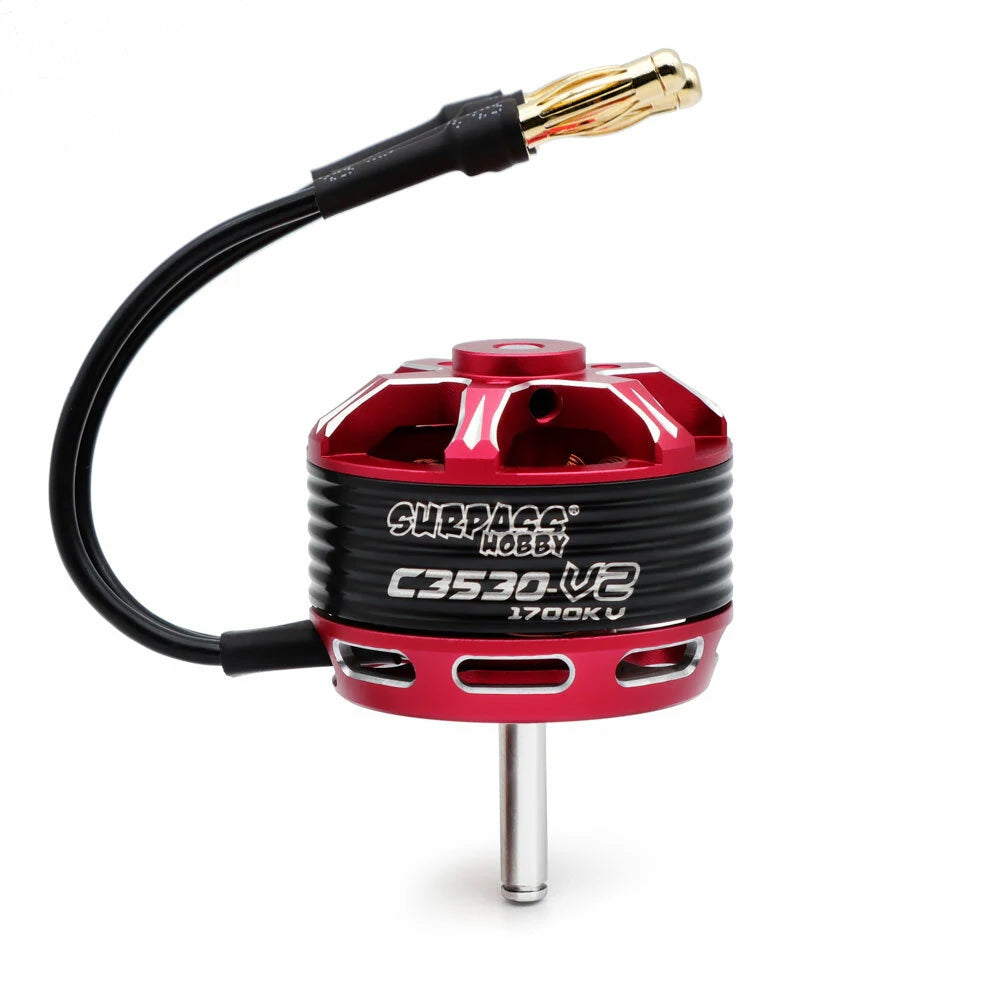

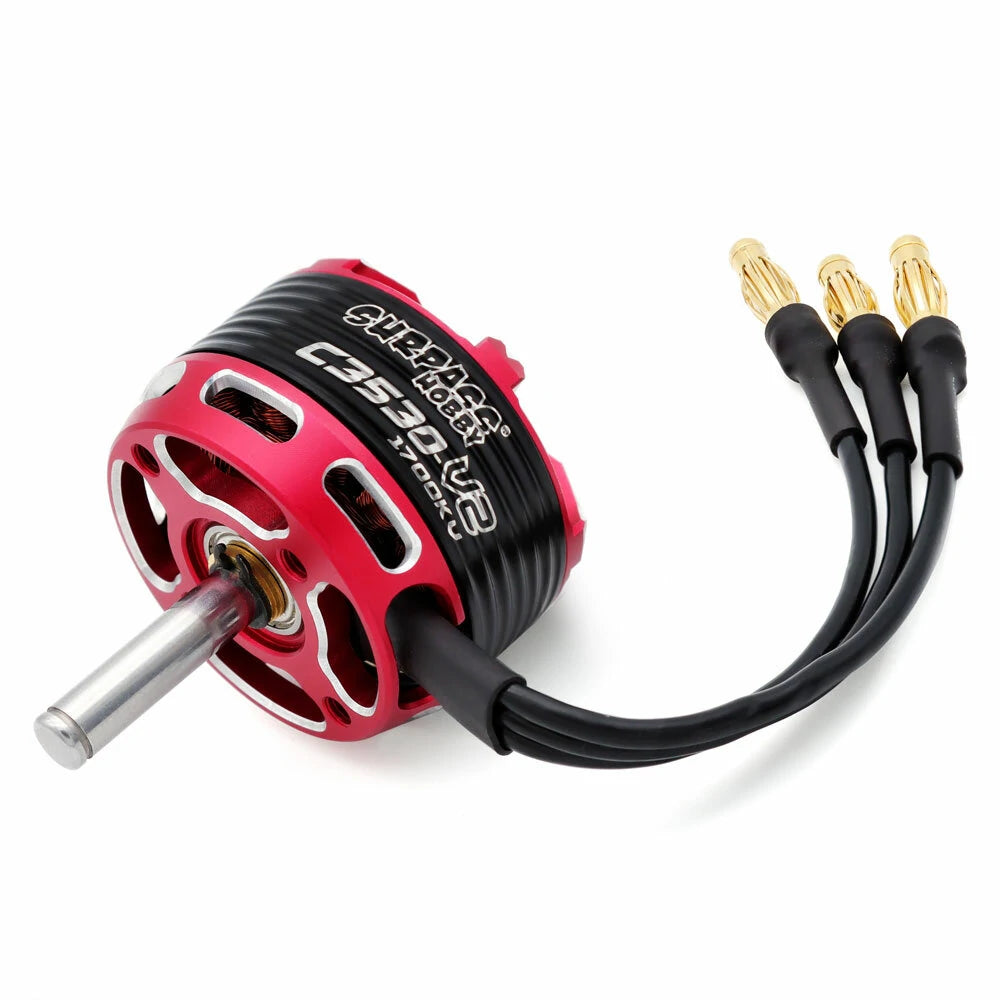

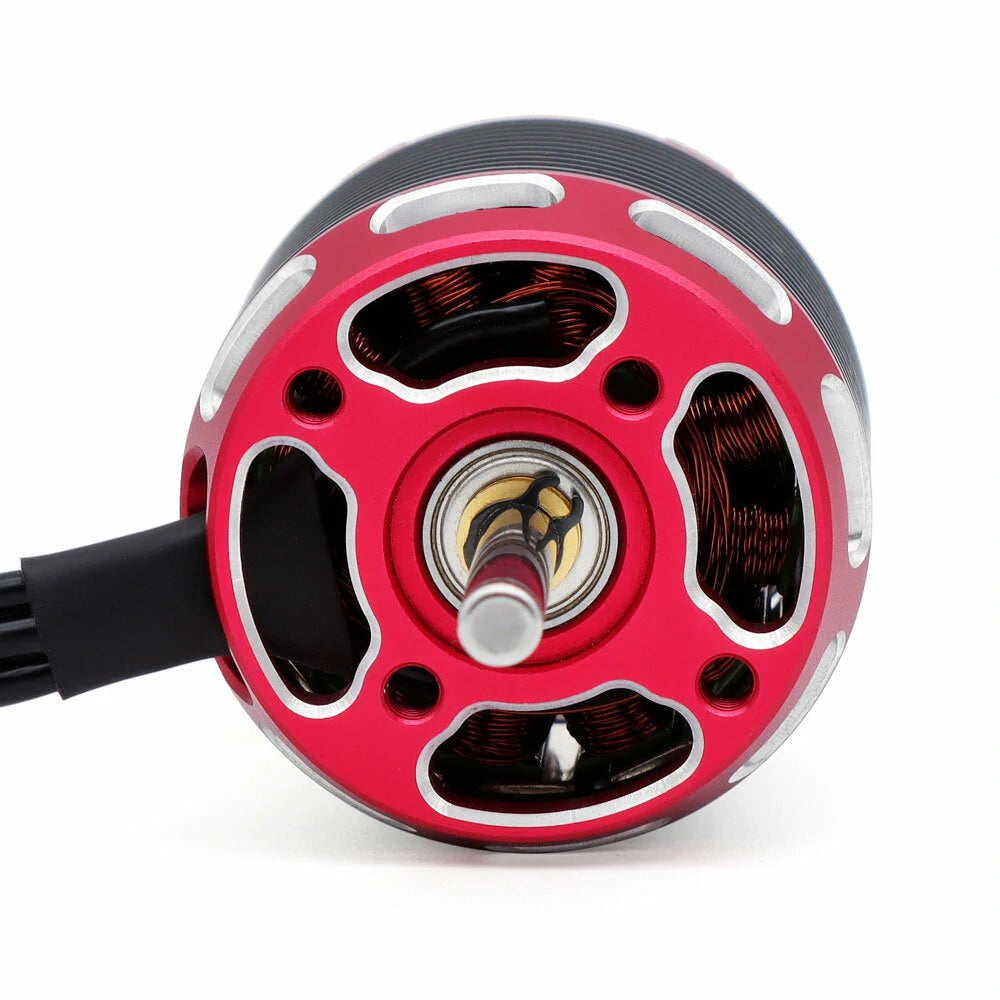

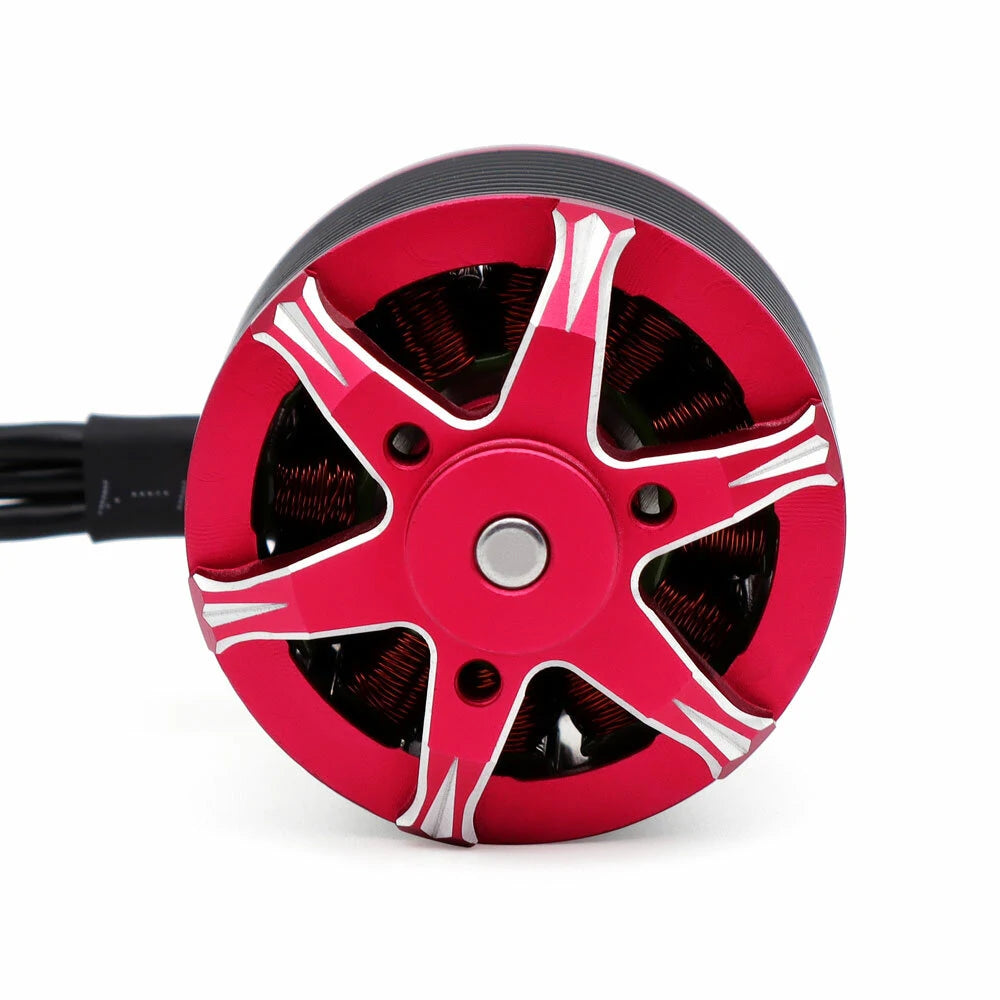

1x SURPASS-HOBBY C3530 V2 Brushless Motor
