Description
Overview:
Brand: SURPASS-HOBBY
Model: C2838-V2
Item Number: SP-228380-02
KV(RPM/Volt): 600V, 800KV, 1000KV, 1200KV (optional)
Specifications:
| KV | Max Watts(W) | Voltage Range(V) | Max Current(A) | Rotor Poles | No Load Current(A) | Resistance(Ω) | Motor Size(mm) | Stator Size(mm) | Weight(g) | Propeller(Inch) |
| 1200 | 420 | 7~16 | 28 | 14 | 0.9 | 0.045 | ∅27.8x34 |
∅22x20 |
74.5 | 9x6/10x4/10x6 |
| 1000 | 400 | 7~18 |
25 | 14 | 0.7 | 0.075 | ∅27.8x34 |
∅22x20 |
74.5 |
11x5.5/11x8.5/10x7 |
| 800 | 380 | 7~18 |
23 | 14 | 0.5 | 0.115 | ∅27.8x34 |
∅22x20 |
74.5 |
10x5/11x5/11x8.5 |
| 600 | 360 | 7~20 | 20 | 14 | 0.4 | 0.162 | ∅27.8x34 |
∅22x20 |
74.5 |
10x7/11x8.5/12x5 |
Features:
- 14 Pole Hi-torque rotor design, stable output power.
- Fits all fixed wing aircraft model.
- CNC machine 6061 T-six aluminum front and rear cover.
English Manual, Click Here
Package Includes:

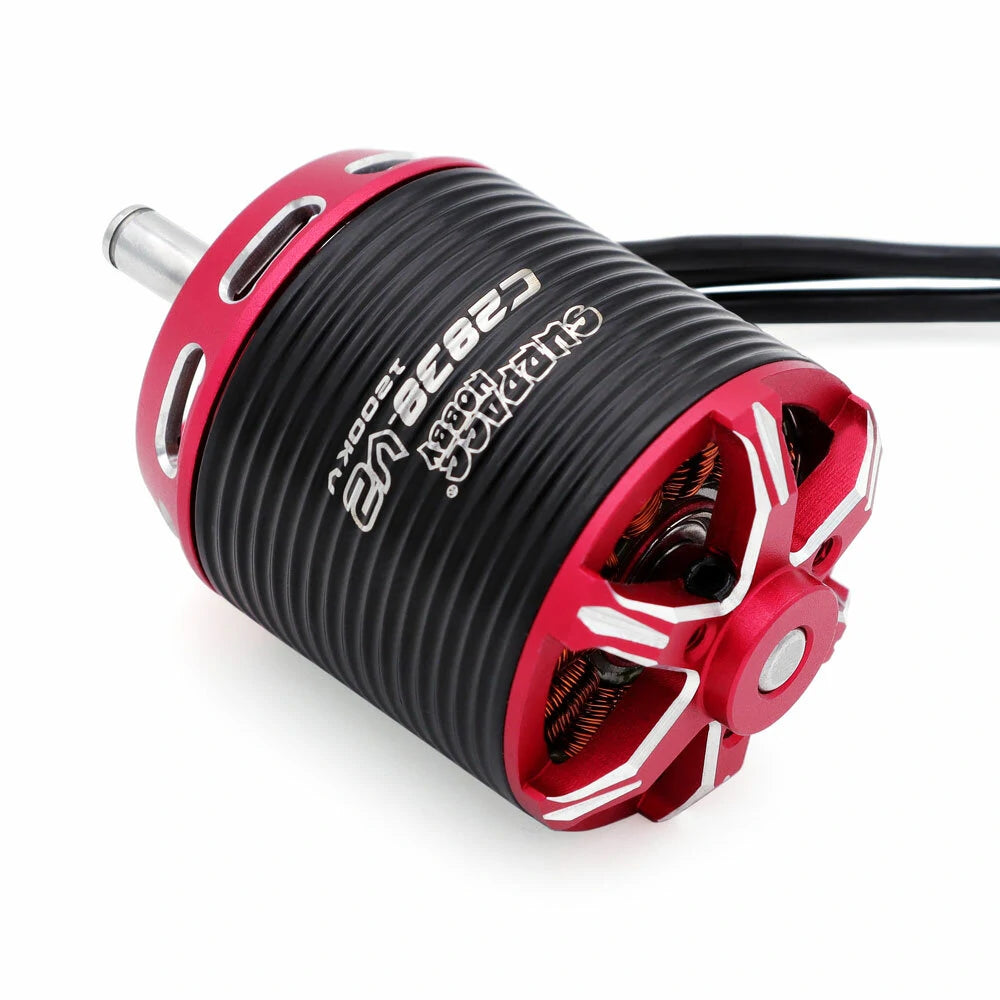

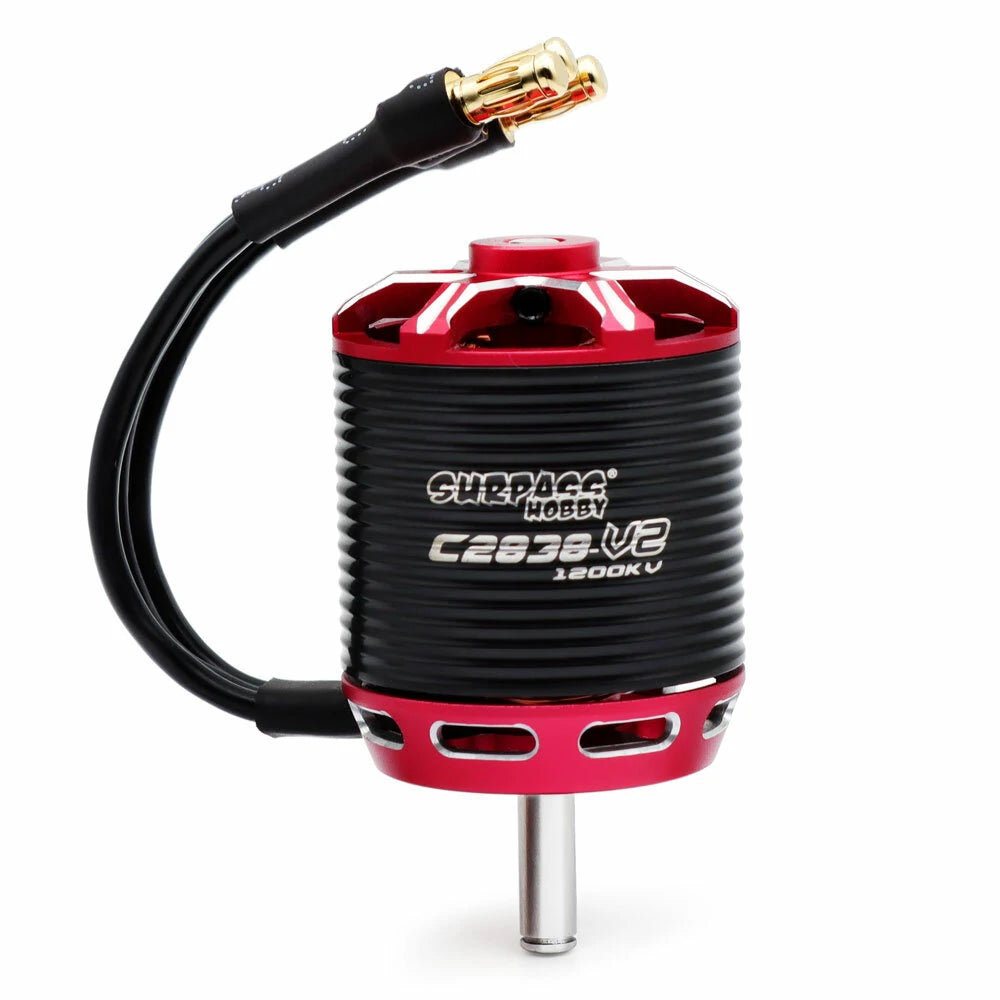

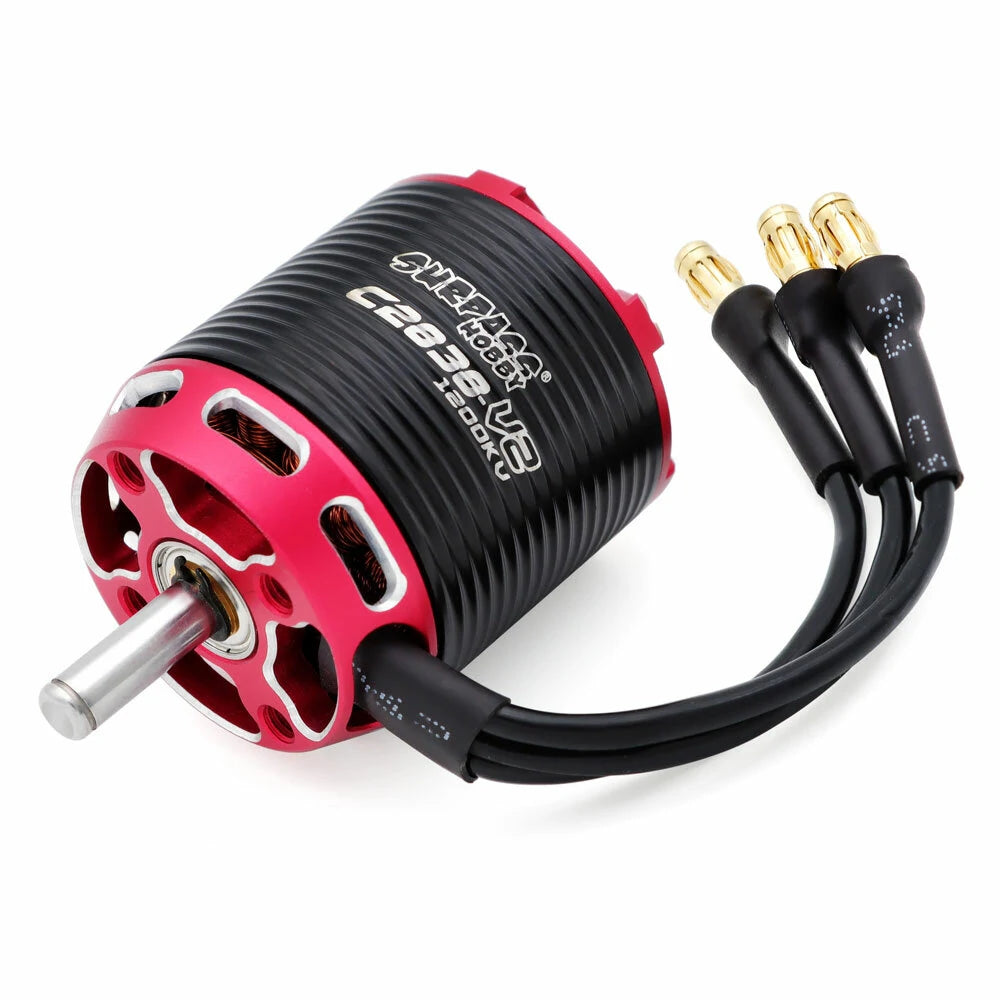

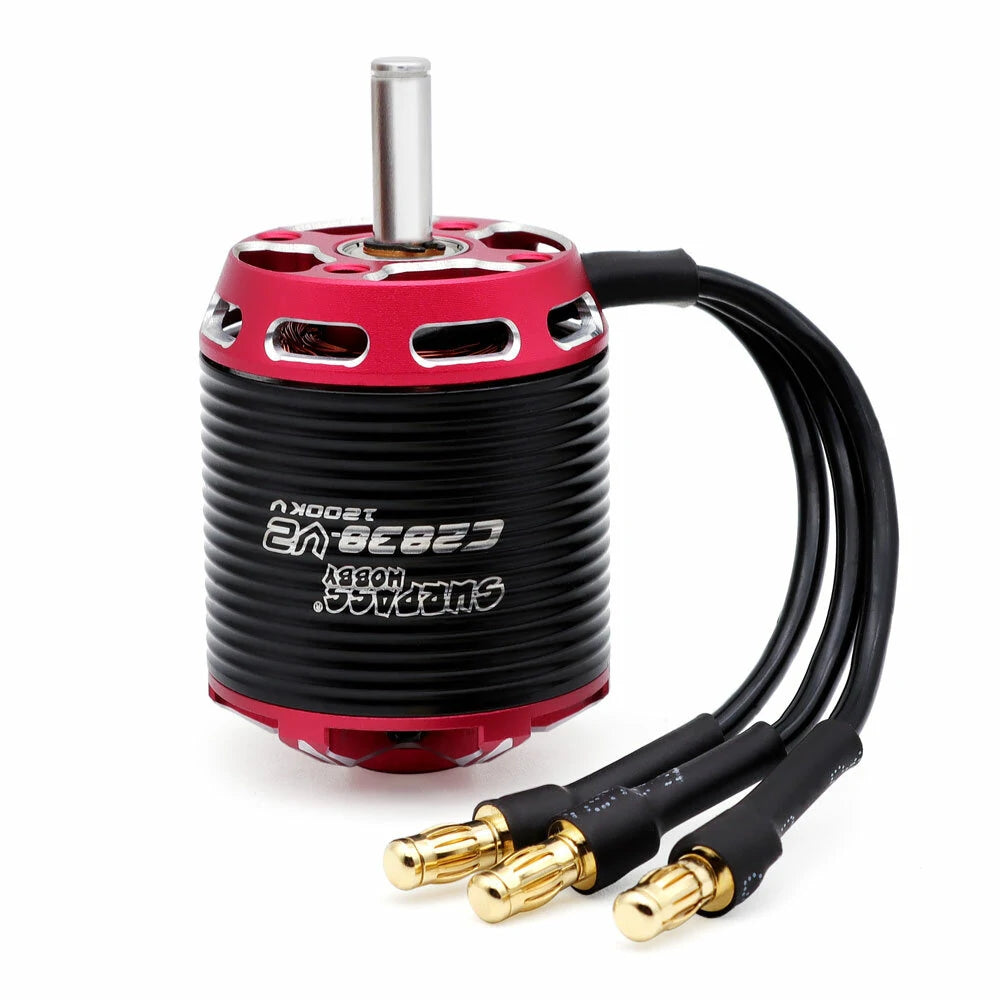

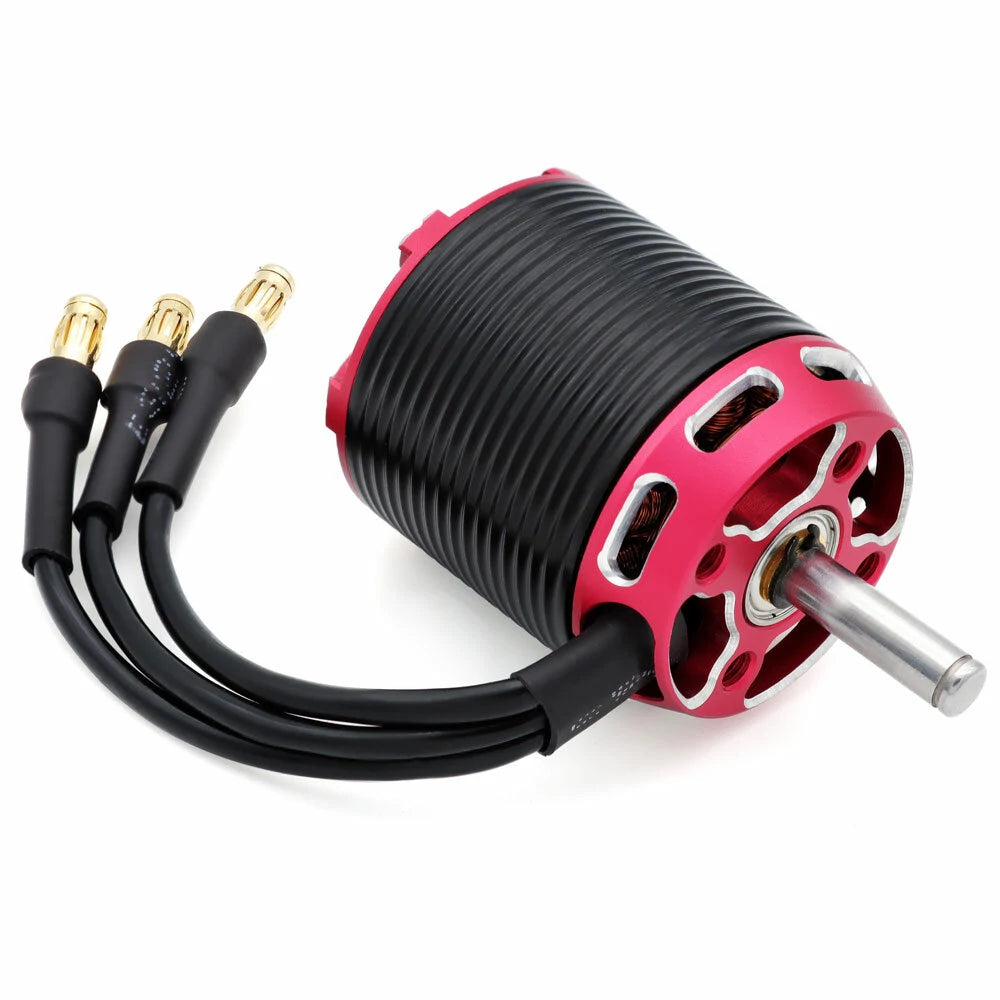

1x SURPASS-HOBBY C2838 V2 Brushless Motor
