Description
Overview:

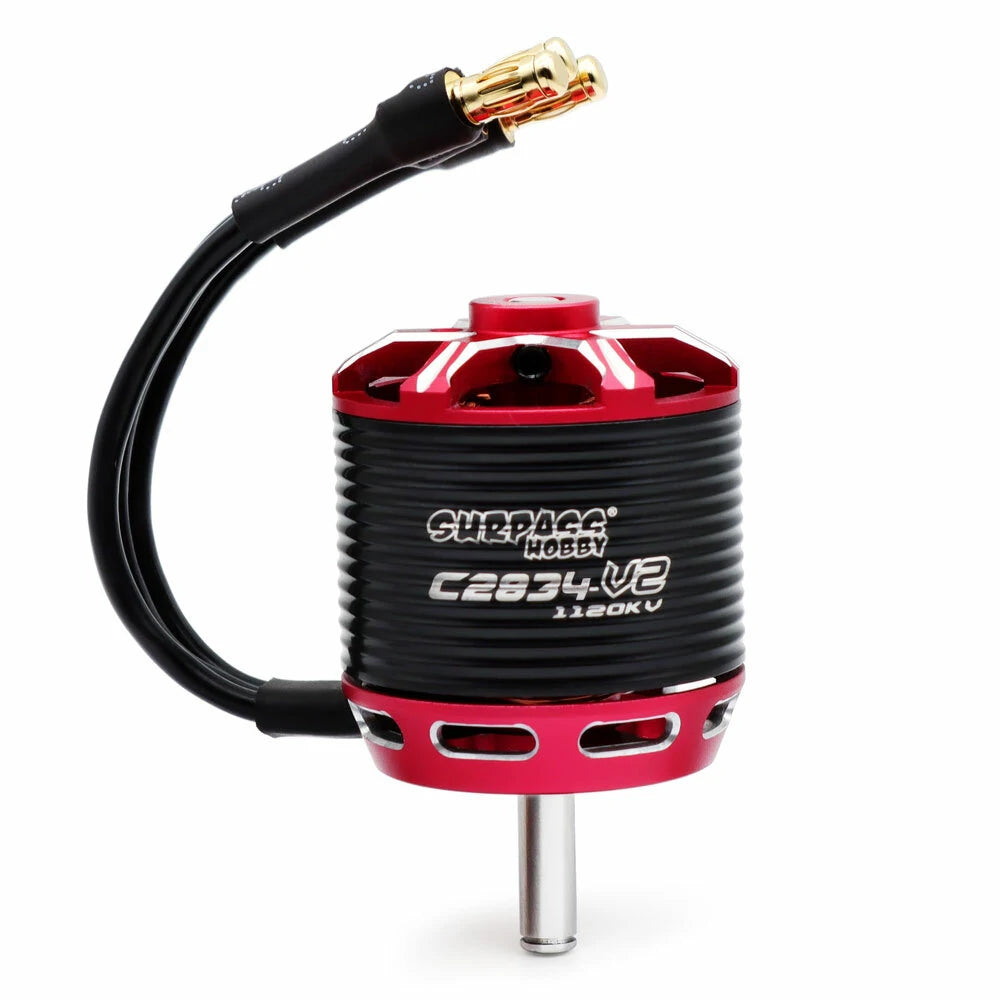

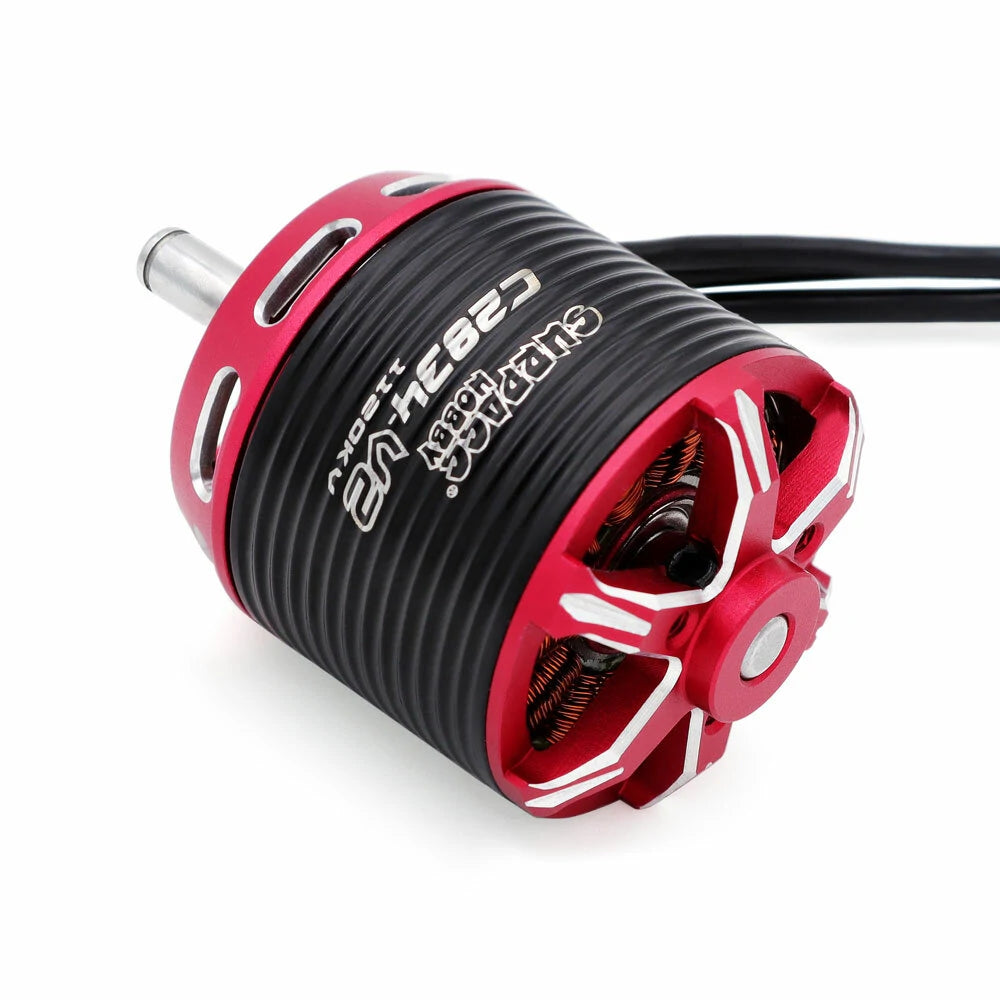

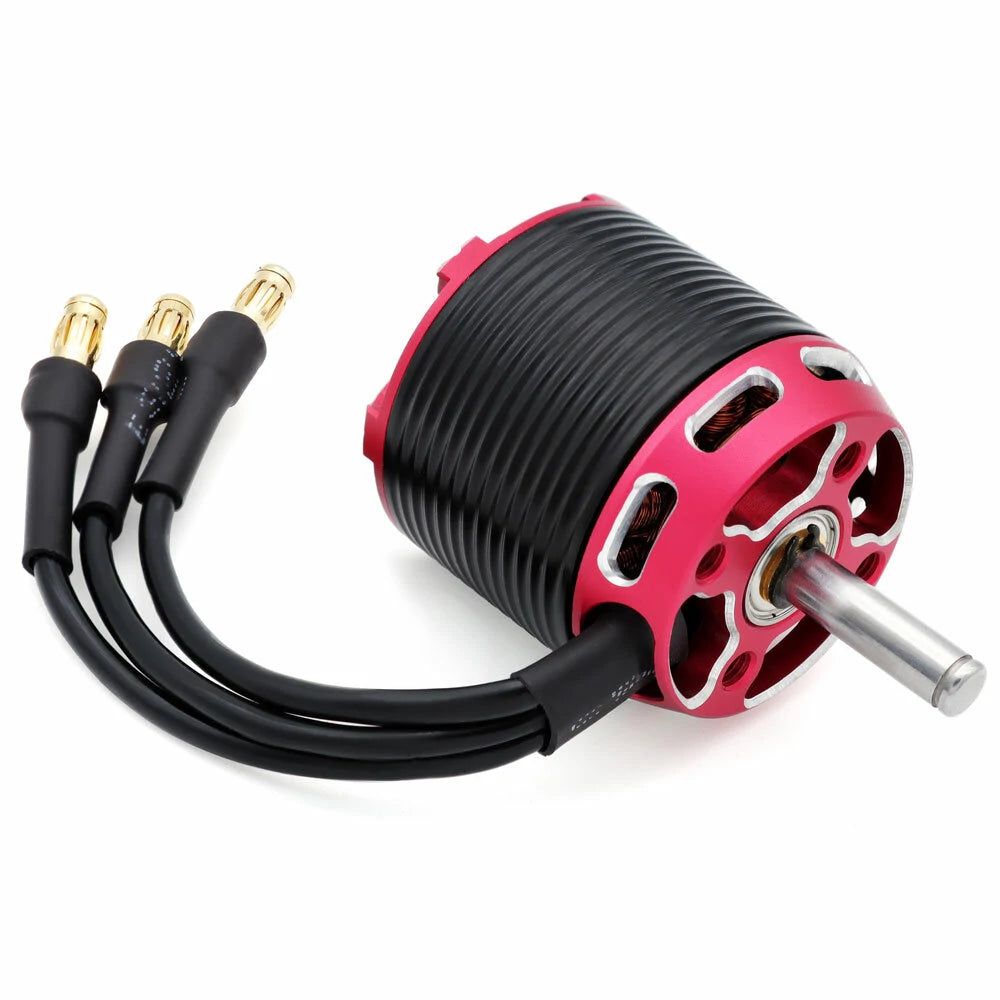

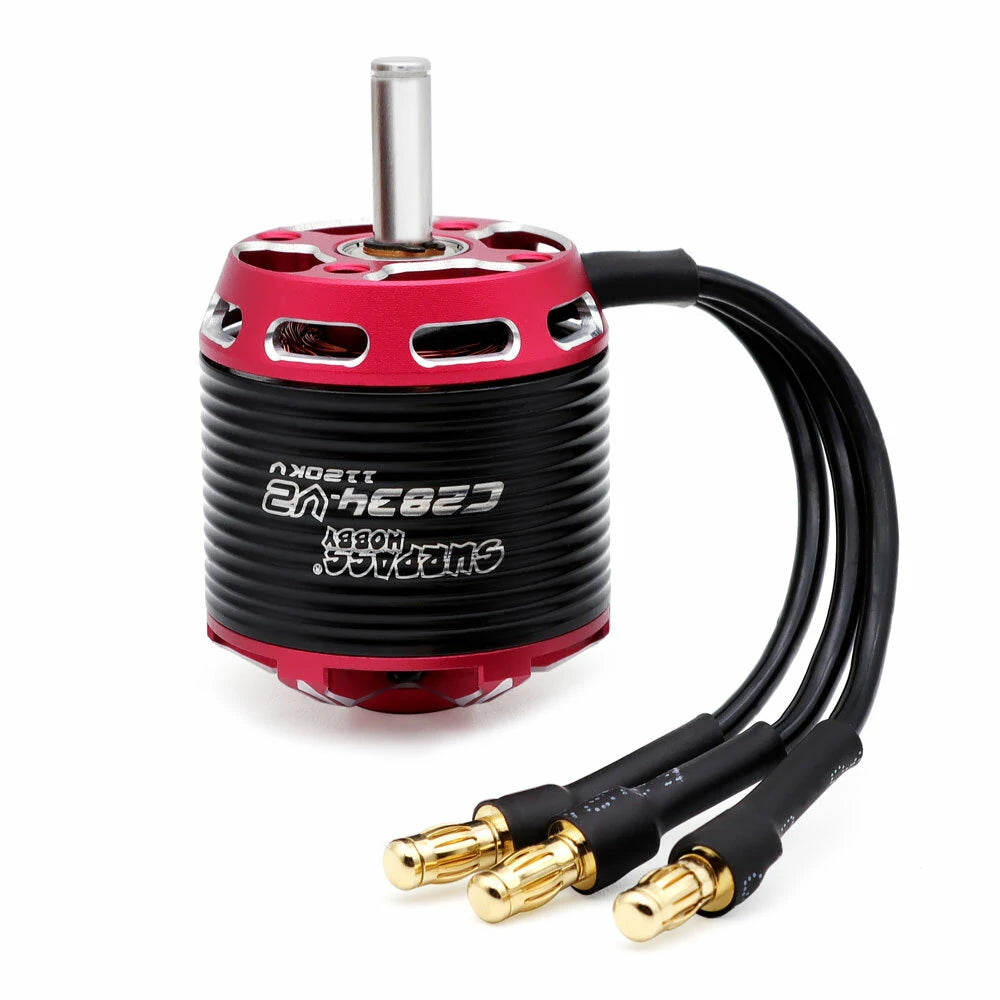

Brand: SURPASS-HOBBY
Model: C2834-V2
Item Number: SP-228340-01
KV(RPM/Volt): 750KV, 880KV, 1120KV (optional)
Specifications:
| KV | Max Watts(W) | Voltage Range(V) | Max Current(A) | Rotor Poles | No Load Current(A) | Resistance(Ω) | Motor Size(mm) | Stator Size(mm) | Weight(g) | Propeller(Inch) |
| 1120 | 380 | 7~15 |
26 | 14 | 1.2 | 0.068 | ∅28x32 |
∅22x16 |
67 |
9x6/10x4/11x5.5 |
| 880 | 340 | 7~18 |
22 | 14 | 0.8 | 0.108 | ∅28x32 |
∅22x16 |
67 |
11x8.5/10x7/12x6 |
| 750 | 300 | 7~20 | 19 | 14 | 0.6 | 0.152 | ∅28x32 |
∅22x16 |
67 |
11x8.5/11x10/12x6 |
Features:
- 14 Pole Hi-torque rotor design, stable output power.
- Fits all fixed wing aircraft model.
- CNC machine 6061 T-six aluminum front and rear cover.
English Manual, Click Here
Package Includes:
1x SURPASS-HOBBY C2834 V2 Brushless Motor
