Description
Overview:
Brand: SURPASS-HOBBY
Model: C2826-V2
Item Number: SP-228260-01
KV(RPM/Volt): 1000V, 1200KV, 1350KV, 1900KV (optional)
Specifications:
| KV | Max Watts(W) | Voltage Range(V) | Max Current(A) | Rotor Poles | No Load Current(A) | Resistance(Ω) | Motor Size(mm) | Stator Size(mm) | Weight(g) | Propeller(Inch) |
| 1900 | 250 | 7~12 | 27 | 14 | 1.2 | 0.063 | ∅28x24 |
∅22x08 |
45 | 8x3.8/8x4/7x5 |
| 1350 | 240 | 7~12 |
24 | 14 | 0.8 | 0.097 | ∅28x24 |
∅22x08 |
45 |
8x3.8/7x4 |
| 1200 | 230 | 7~12 |
22 | 14 | 0.8 | 0.135 | ∅28x24 |
∅22x08 |
45 |
7x5/8x4/8x5 |
| 1000 | 220 | 7~12 |
20 | 14 | 0.7 | 0.256 | ∅28x24 |
∅22x08 |
45 |
8x5/8x7/9x4.7 |
Features:
- 14 Pole Hi-torque rotor design, stable output power.
- Fits all fixed wing aircraft model.
- CNC machine 6061 T-six aluminum front and rear cover.
English Manual, Click Here
Package Includes:

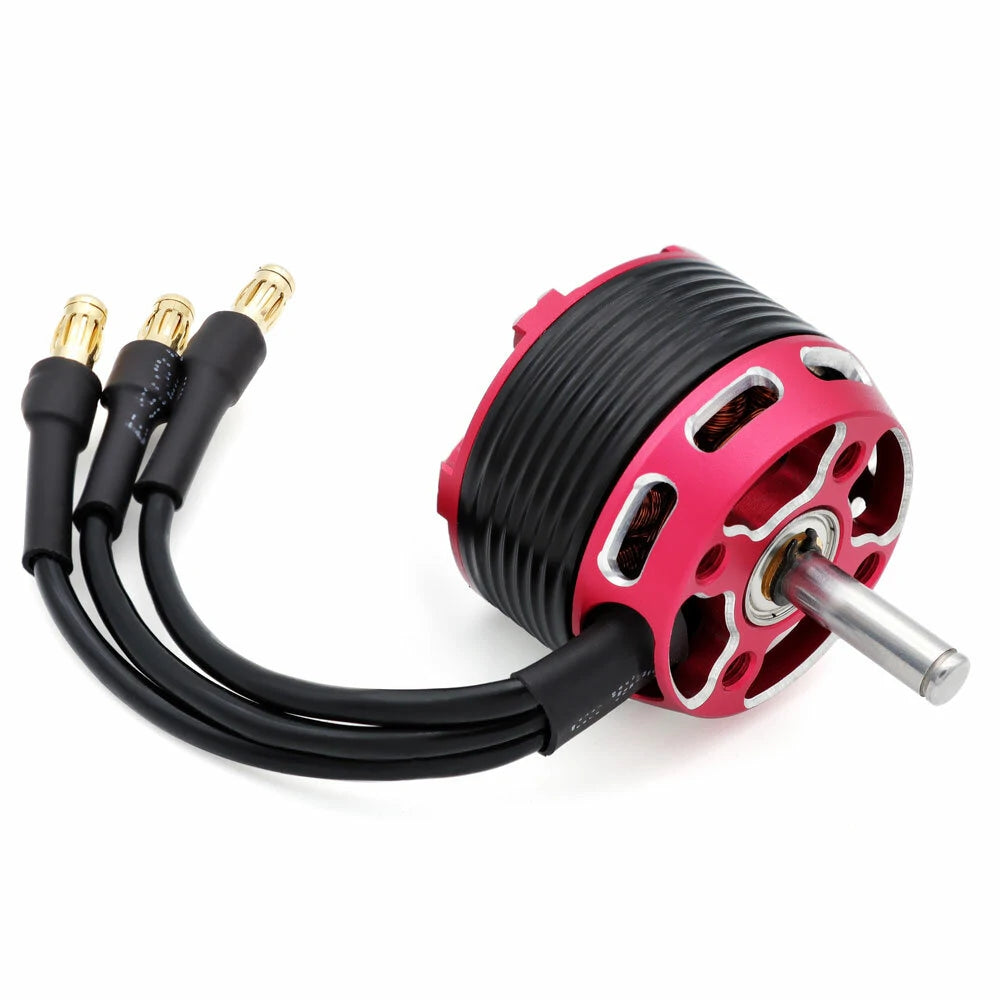

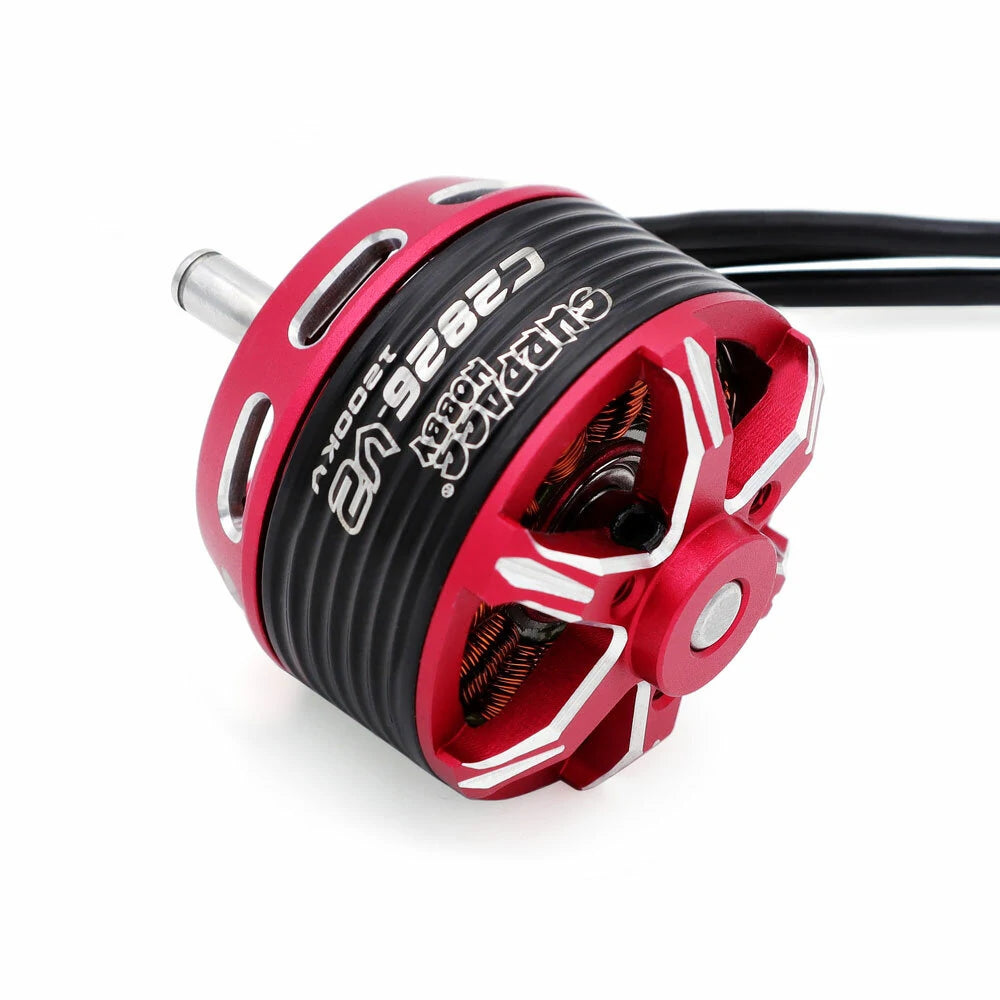

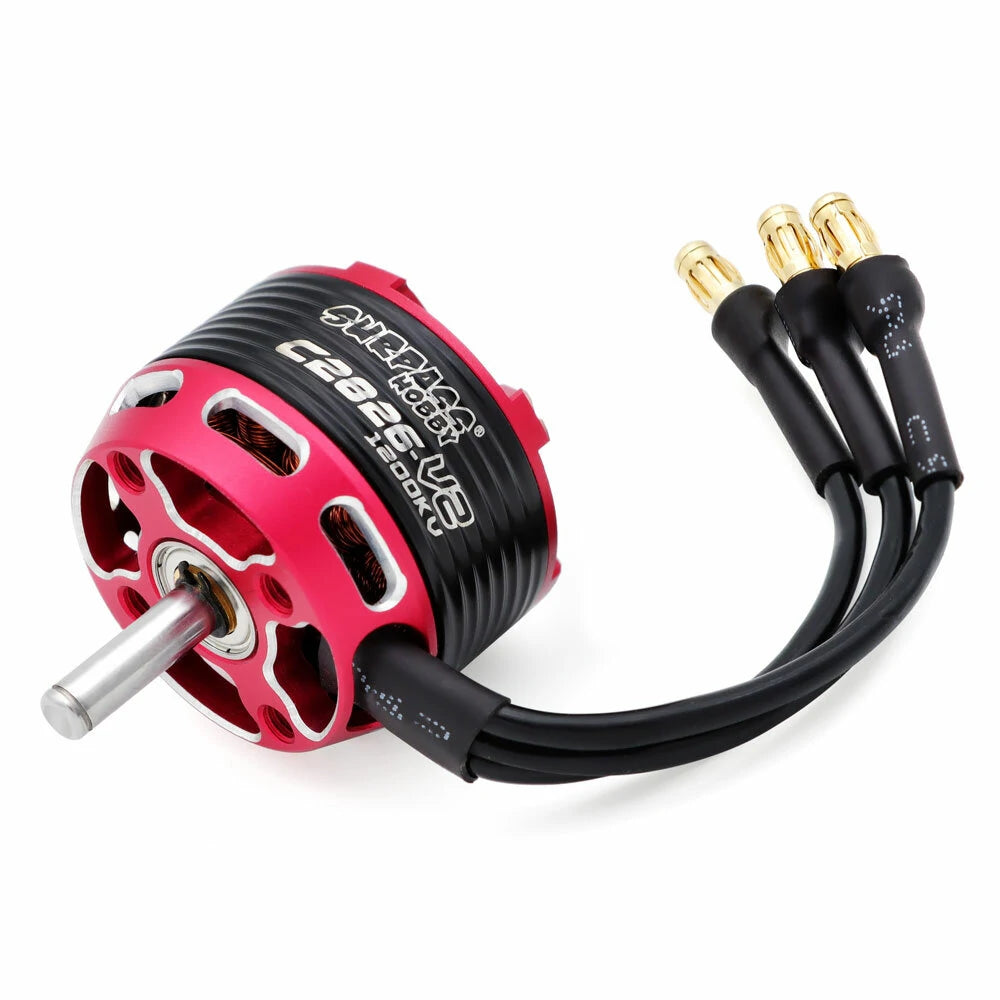

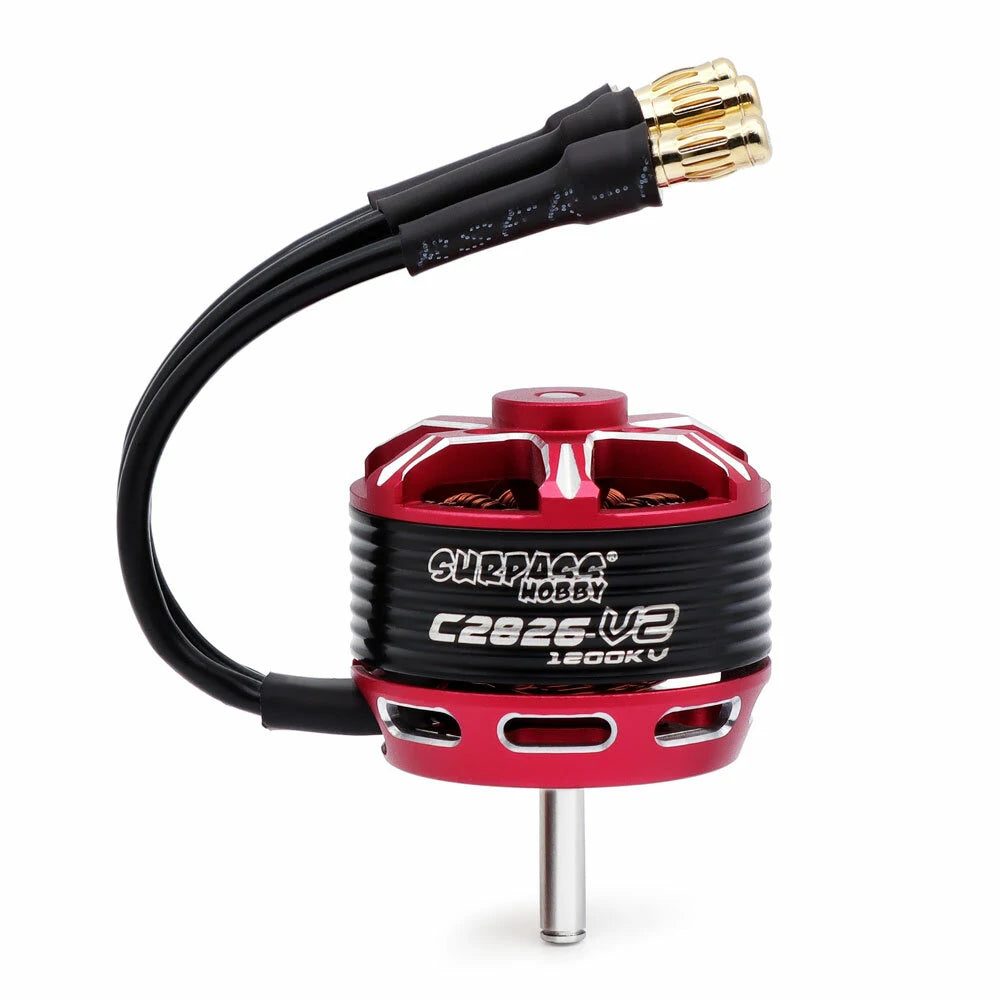

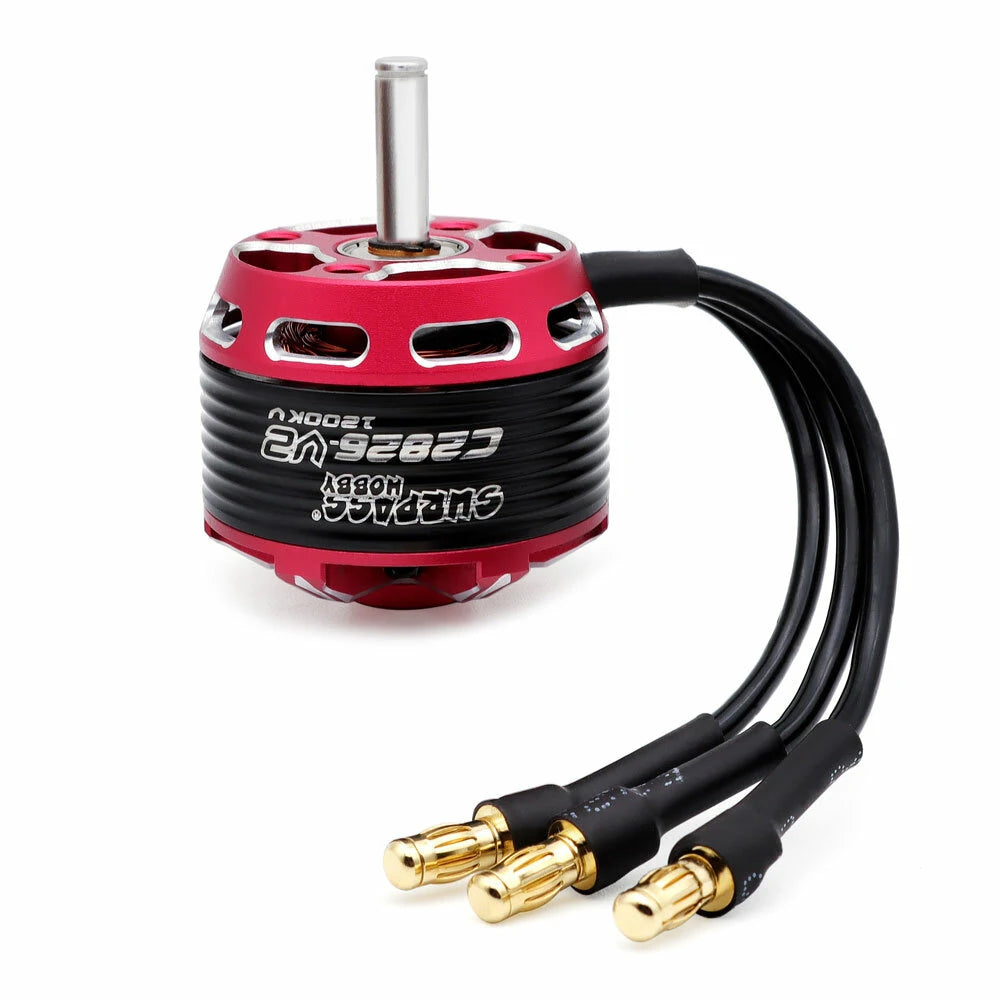

1x SURPASS-HOBBY C2826 V2 Brushless Motor
