Description
Overview:
Brand: SURPASS-HOBBY
Model: C2822-V2
Item Number: SP-228220-01
KV(RPM/Volt): 1200V, 1300KV, 1400KV, 2300KV (optional)
Specifications:
| KV | Max Watts(W) | Voltage Range(V) | Max Current(A) | Rotor Poles | No Load Current(A) | Resistance(Ω) | Motor Size(mm) | Stator Size(mm) | Weight(g) | Propeller(Inch) |
| 2300 | 160 | 7~15 | 13 | 14 | 0.4 | 0.307 | ∅28x20 |
∅22x04 |
30 | 7.5x3.5/8x4/9x5 |
| 1400 | 140 | 7~15 |
11 | 14 | 0.3 | 0.368 | ∅28x20 |
∅22x04 |
30 |
8x5/8x6/7x5 |
| 1300 | 150 | 7~15 |
12 | 14 | 0.4 | 0.335 | ∅28x20 |
∅22x04 |
30 |
7x5/8x5/8x6 |
| 1200 | 180 | 7~15 |
18 | 14 | 0.5 | 0.125 | ∅28x20 |
∅22x04 |
30 |
6x3/5x3 |
Features:
- 14 Pole Hi-torque rotor design, stable output power.
- Fits all fixed wing aircraft model.
- CNC machine 6061 T-six aluminum front and rear cover.
English Manual, Click Here
Package Includes:

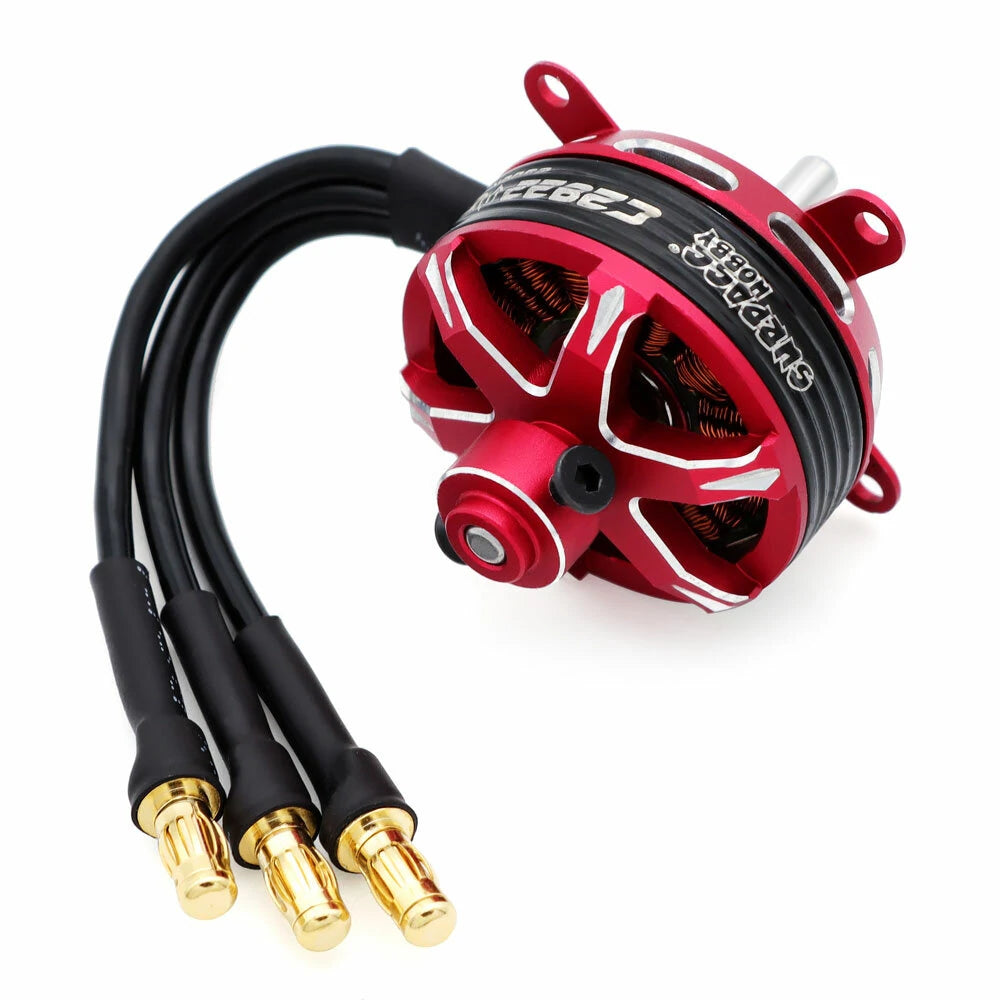

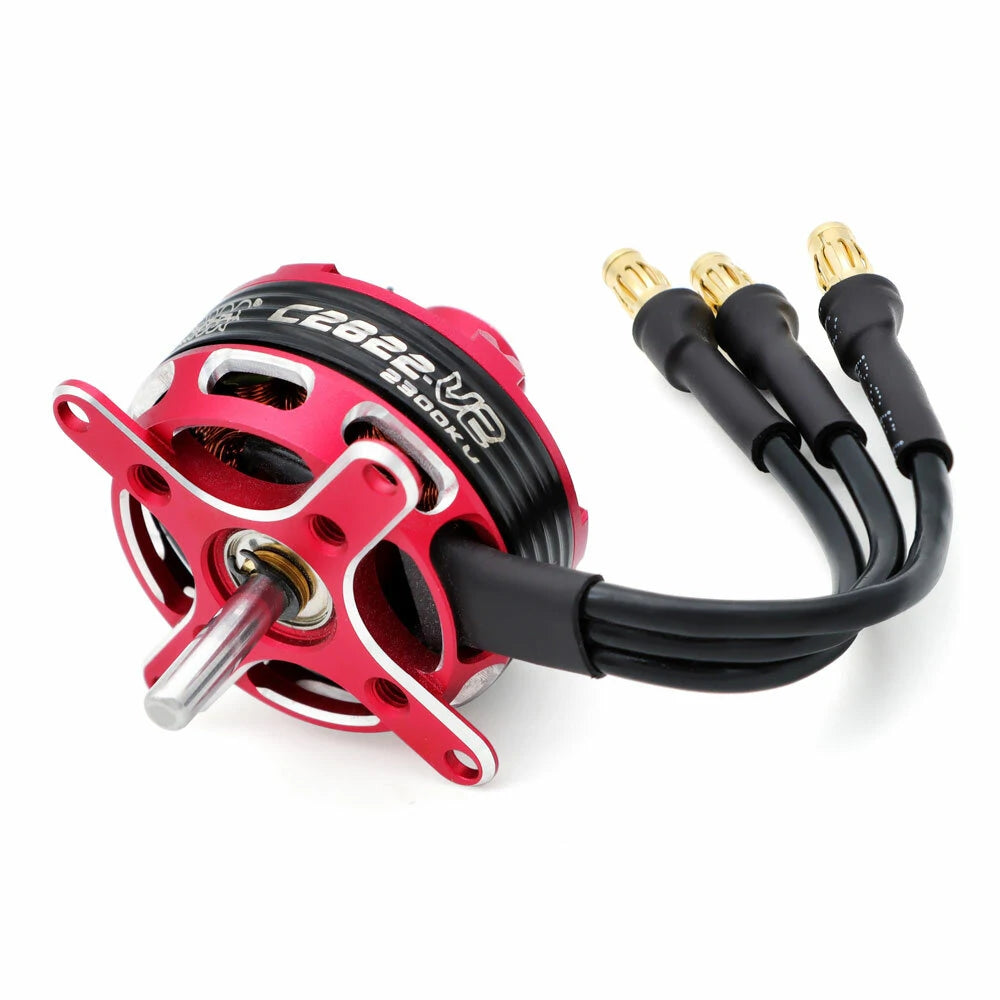

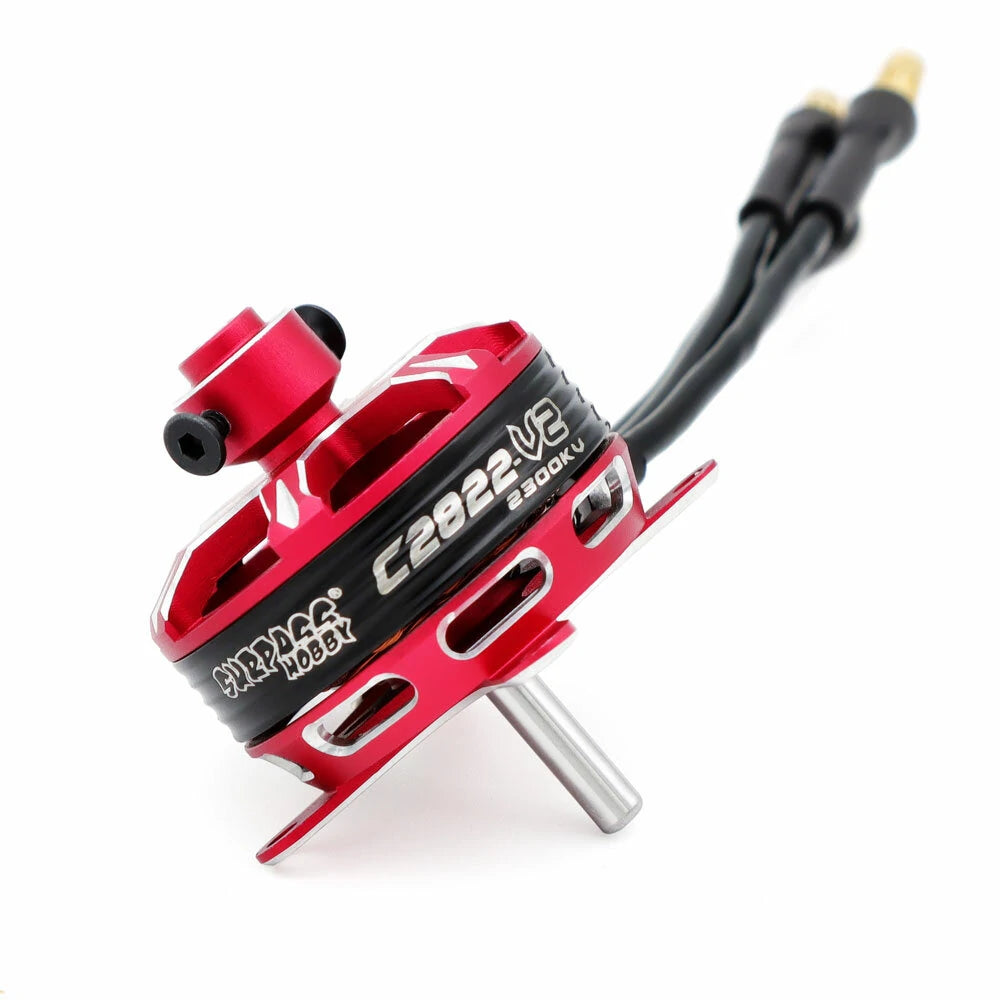

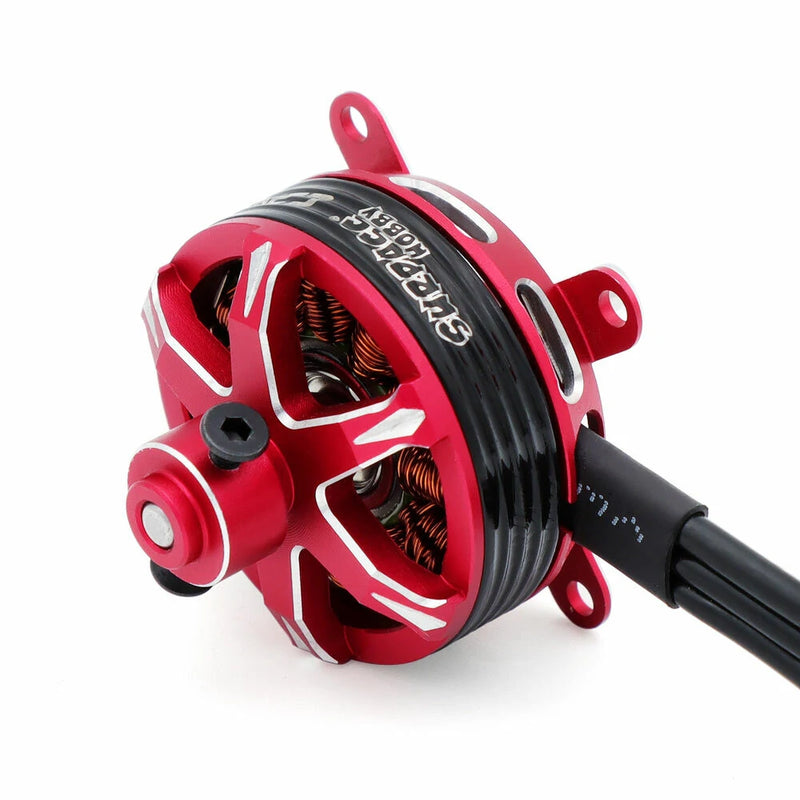

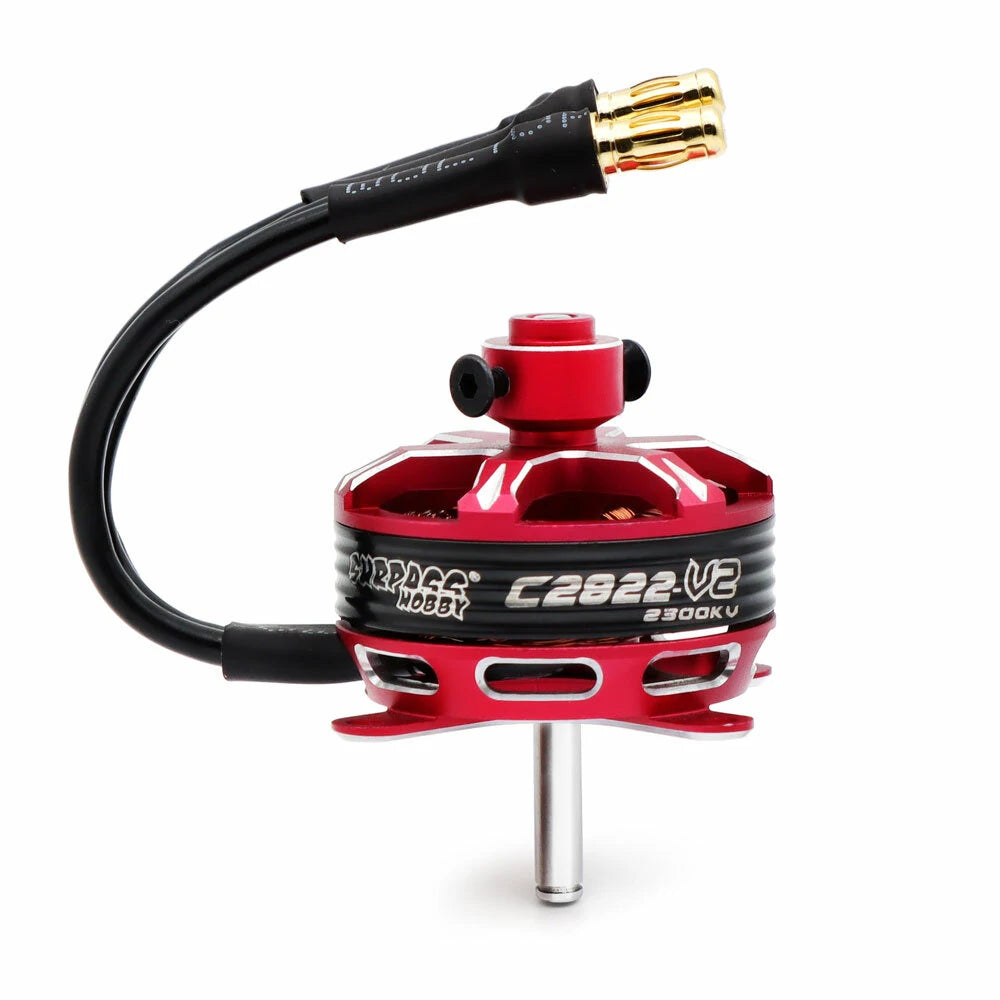

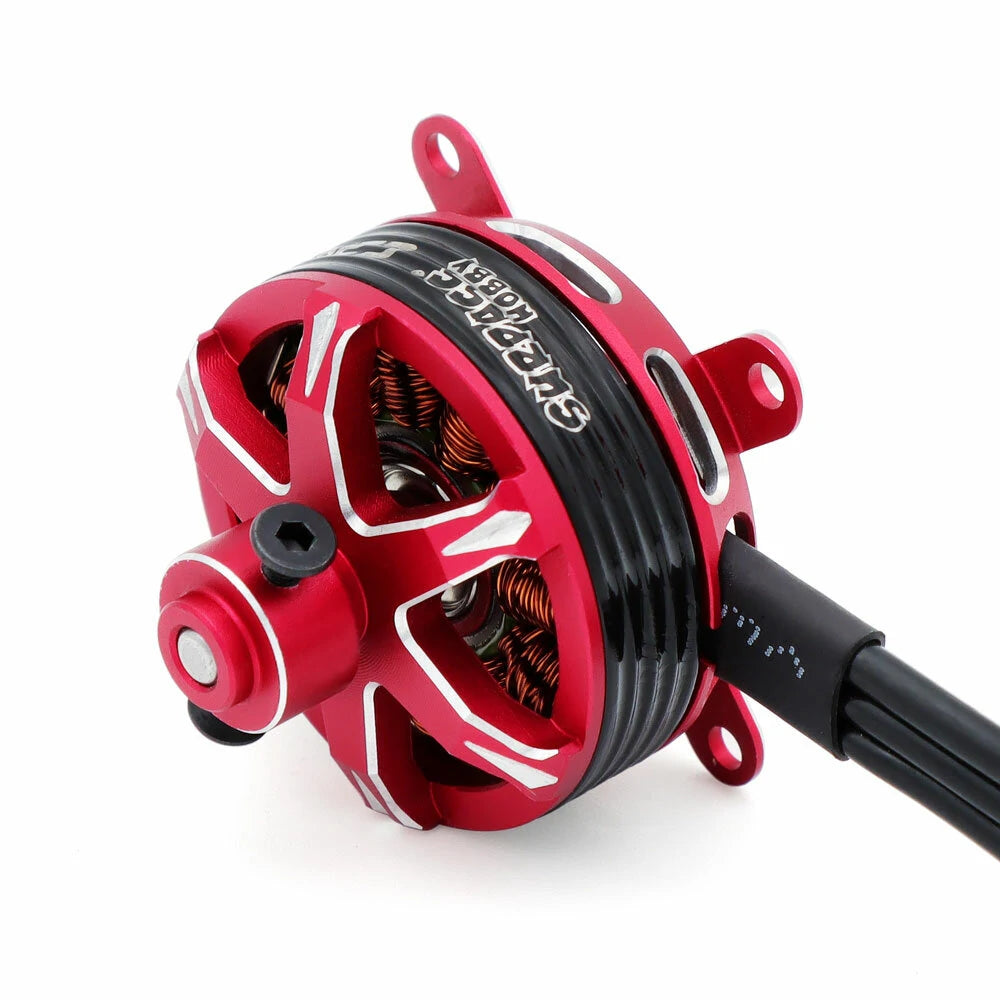

1x SURPASS-HOBBY C2822 V2 Brushless Motor
