Description
Specifications:
Brand: SUB250
Model: Sub M10

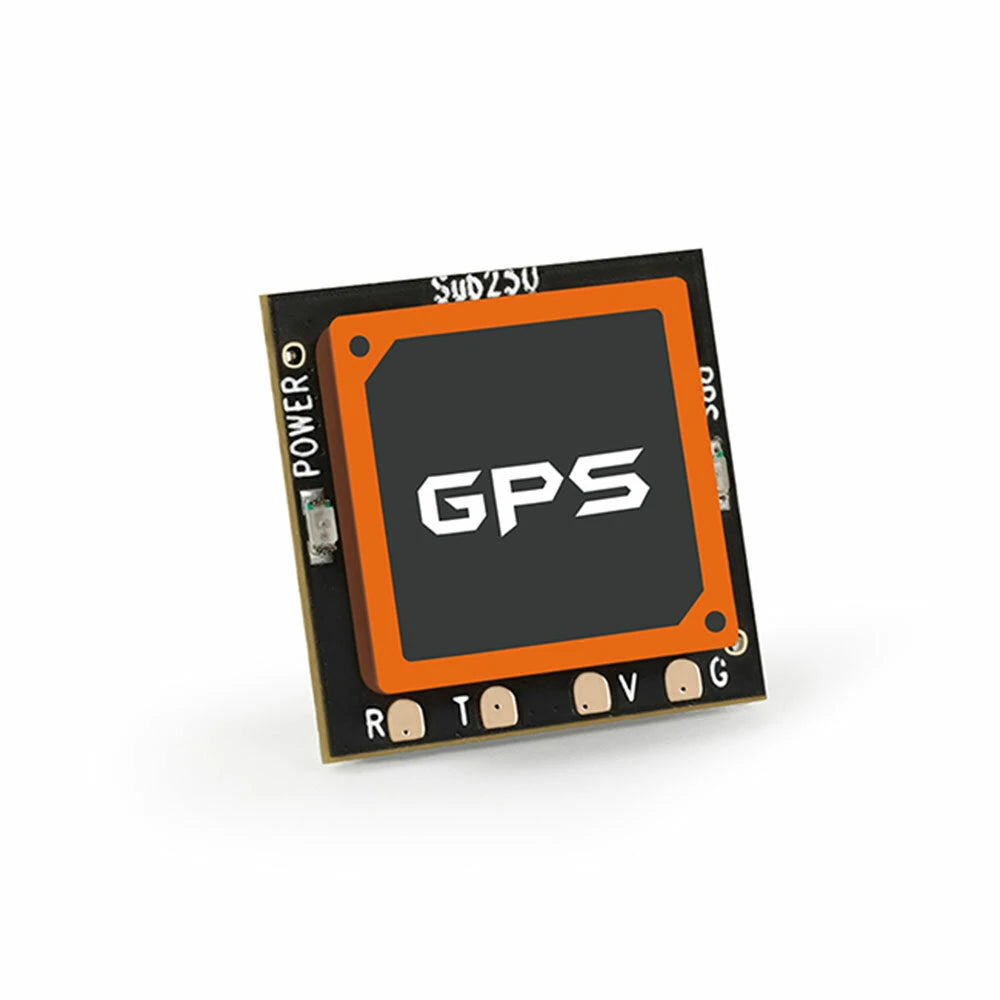

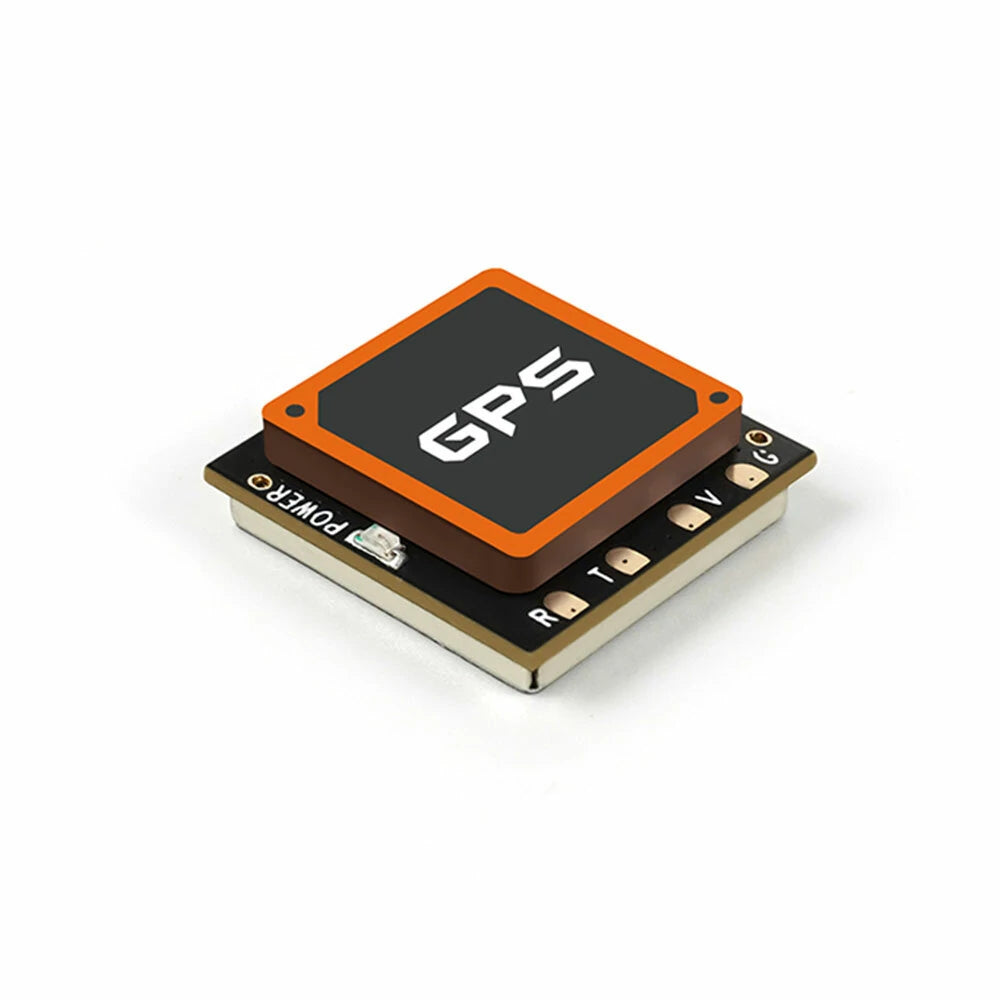

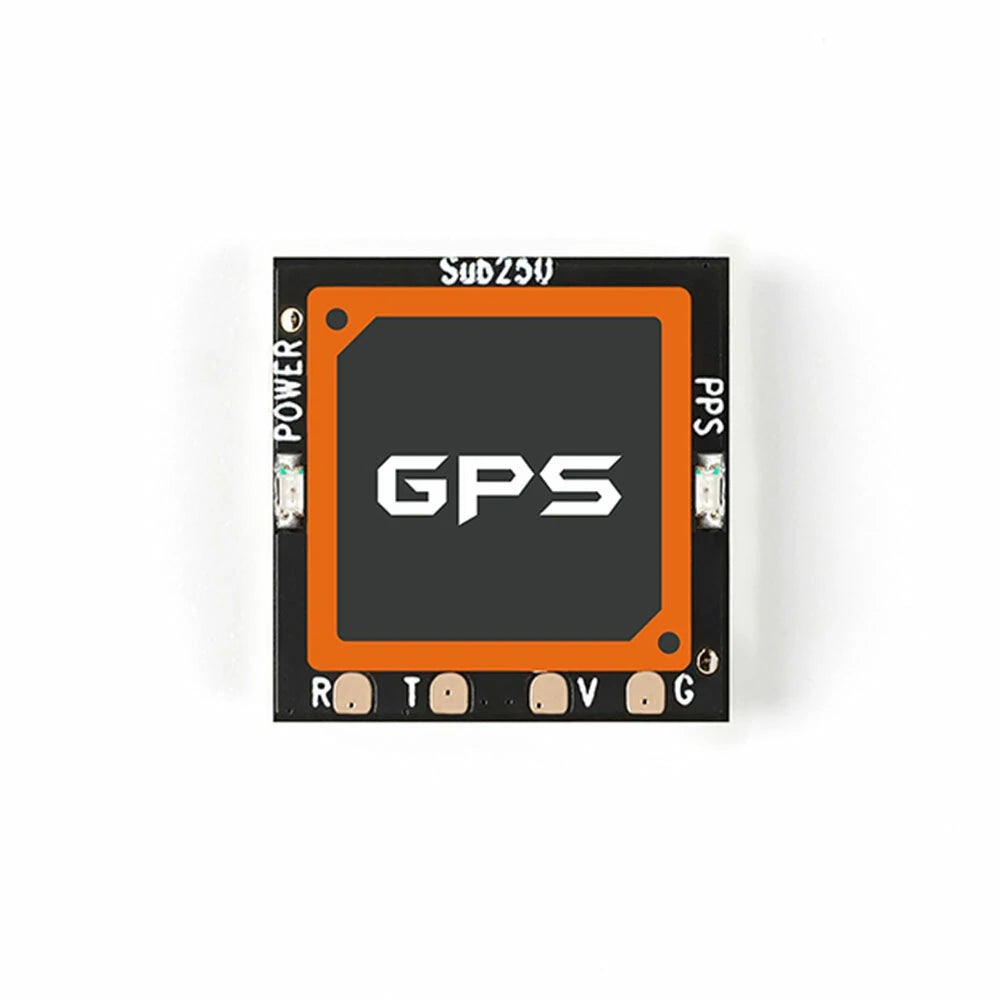

Item Name: GPS Module
GPS Chip: u-blox M10050
Input Voltage: 3.3V-5V
Receiving Frequency: GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
Operating Mode: GPS+BDS+GALILEO+QZSS+SBAS joint positioning
Channels: 72ch
Navigation Satellits: Up to 32
Output Protocol: ublox
Baud Rate: 115200bps
Speed Accuracy: 0.05 m/s
Horizontal Positioning Accuracy: 2D ACC1.5m (Weather-dependent)
Timing Accuracy: 30 ns
Receiver Sensitivity: Trace-162dBm, Capture-160dBm
Dynamic Characteristics: Max Height: 50000m, Max Speed: 500m/s
Maximum Acceleration: 4G

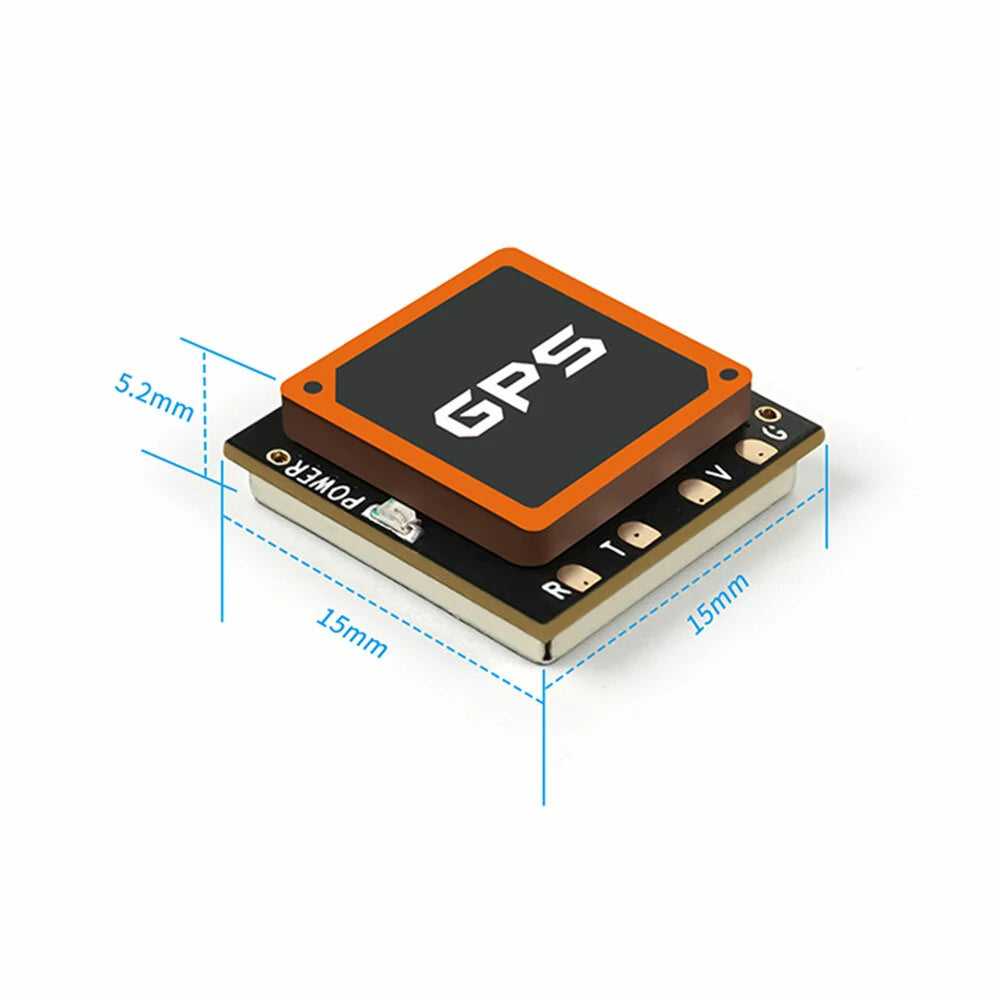

Size: 15*15*5.2mm

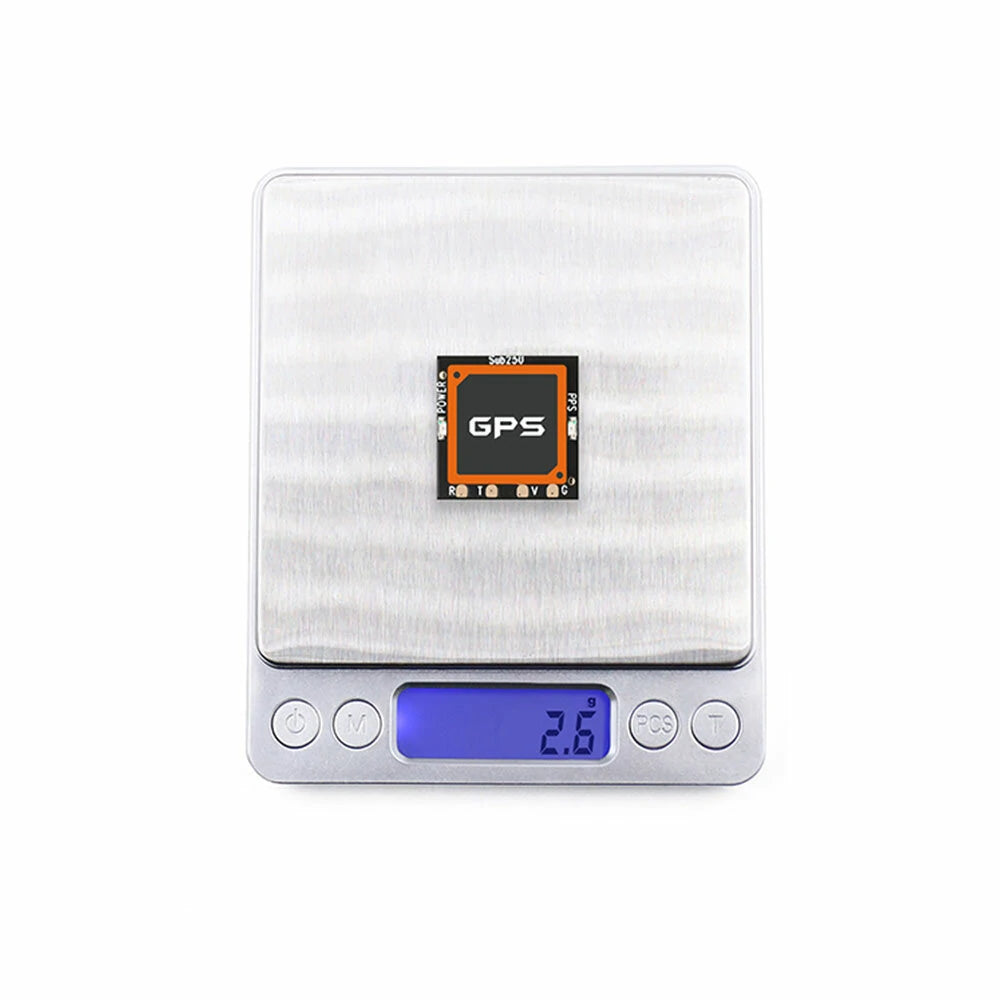

Weight: 2.6g
Features:
Optimal Chip Performance: Features the latest U-blox M10 series chip for best-in-class navigation.
Fast and Accurate: Achieves rapid positioning speeds and supports GPS+BDS+Galileo+QZSS+SBAS joint positioning.
High Satellit Count: Can connect to up to 32 satellits simultaneously for precise positioning.
Compact and User-Friendly: Its unique design is both small and lightweight, complemented by an onboard indicator light for ease of use.
Reliable Connections: Ensures stable connection quality in various conditions.
Package Included:
1 x GPS module
1 x Terminal wire
1 x Instruction manual
1 x Sticker
1 x Heat shrink tubing
