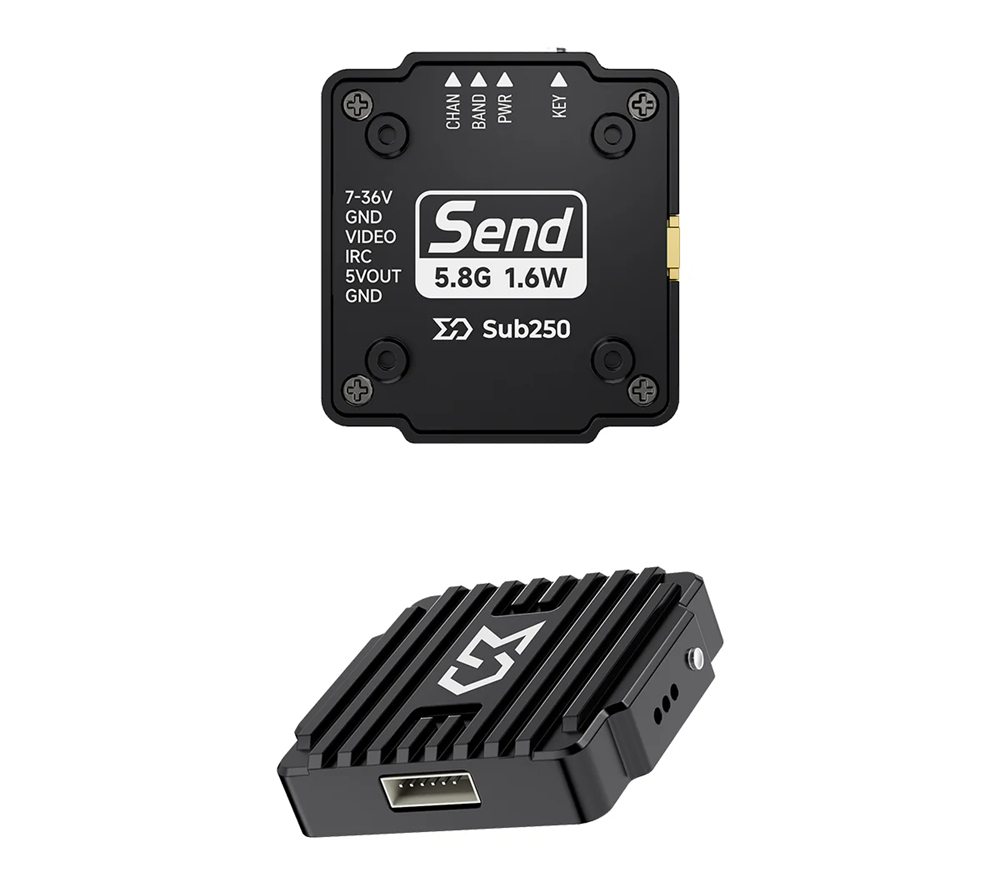

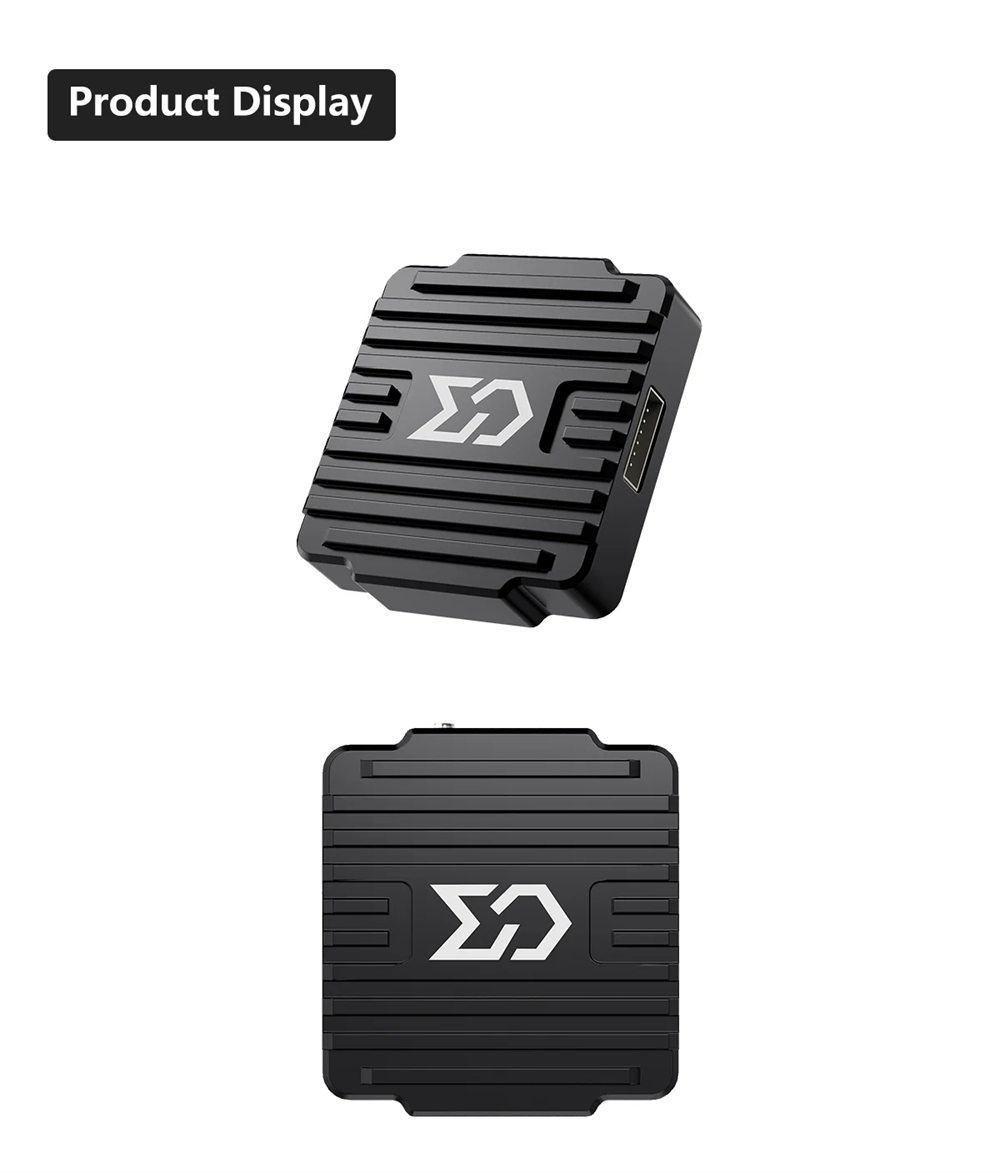

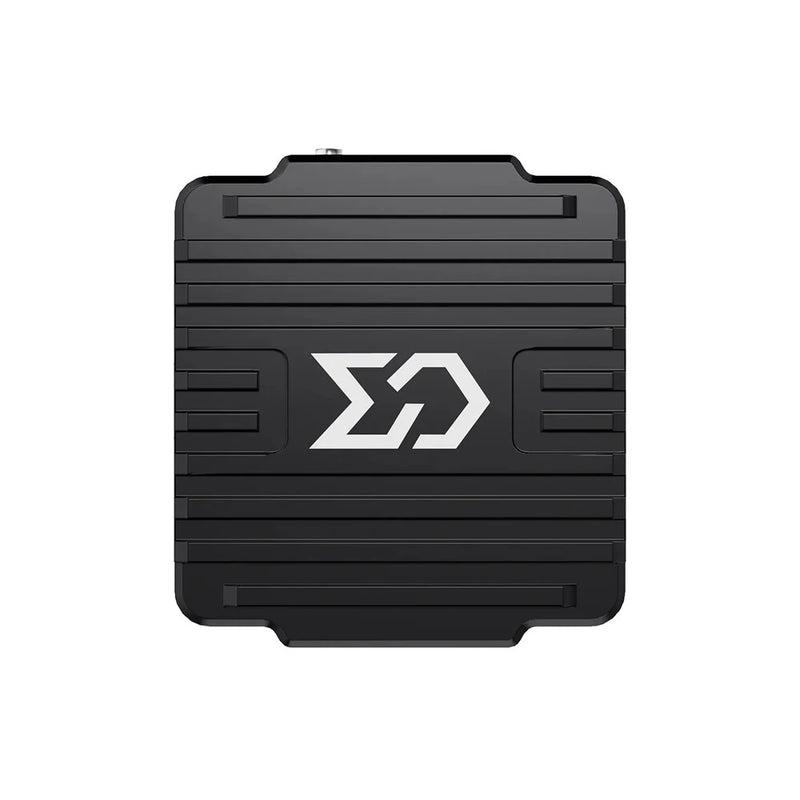

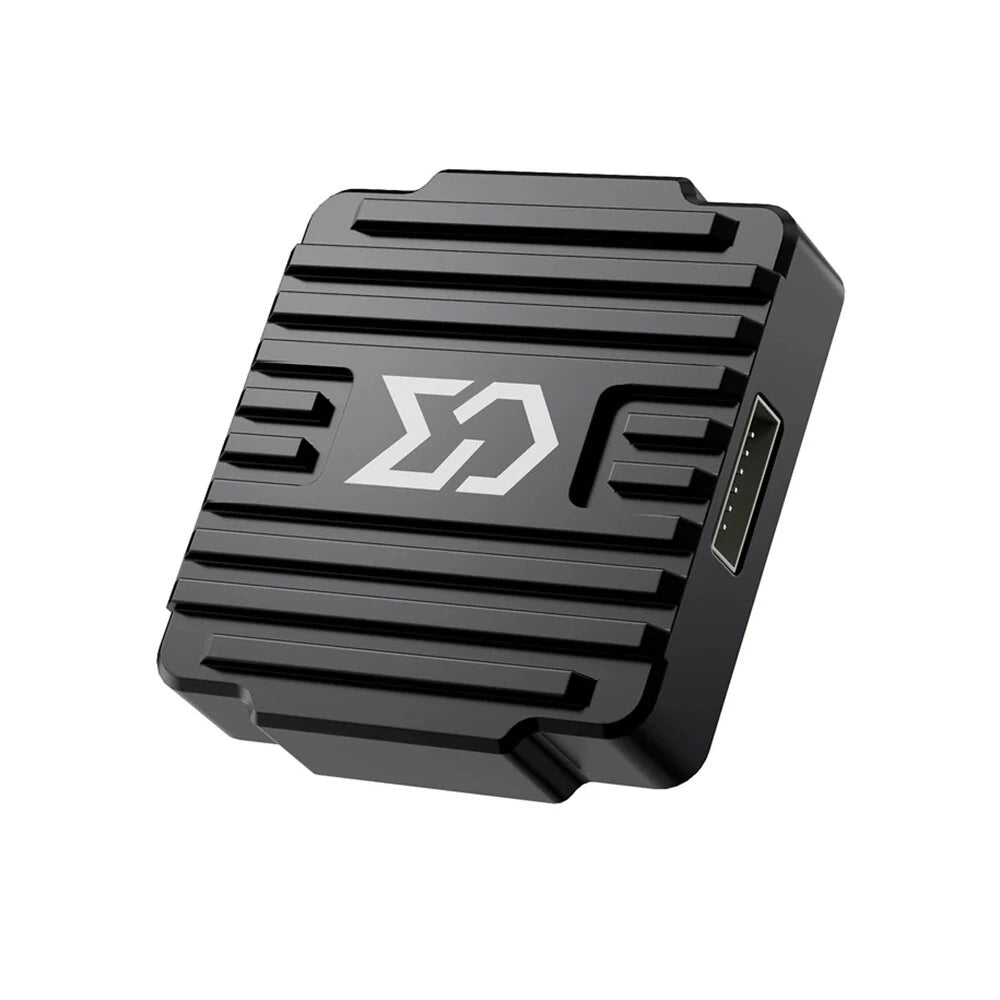

Description
Features:
1. Compact yet powerful, up to 1600mW for clear long-range video
2. Four adjustable power levels

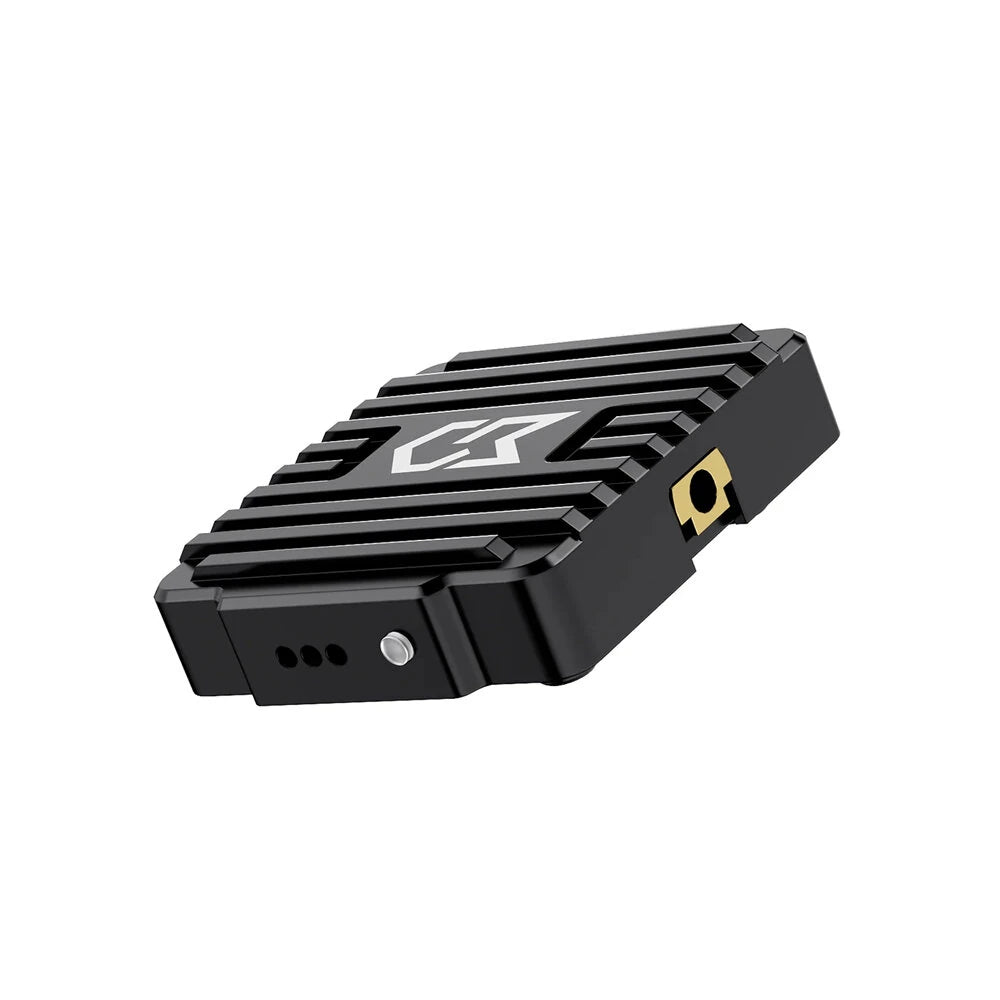

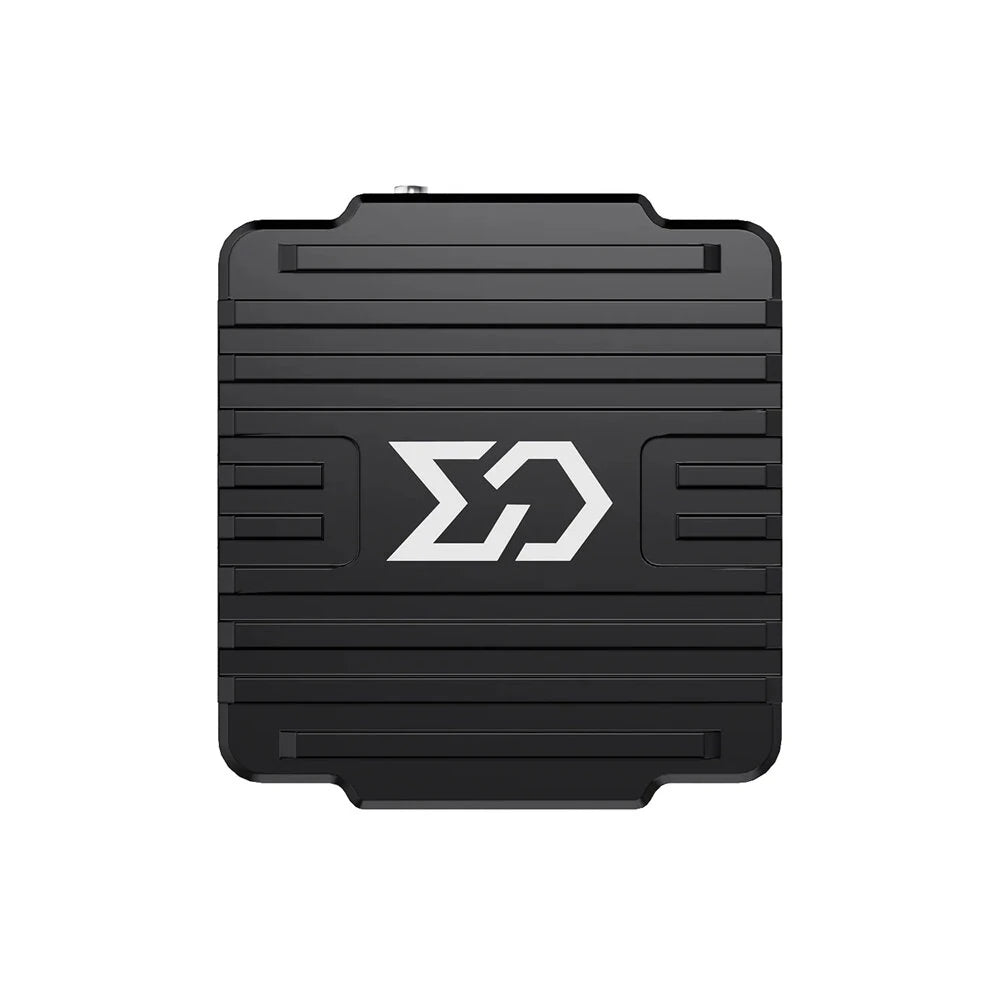

3. Rugged CNC aluminum shell for added durability and superior heat dissipation
4. Temperature control protection function prevents burns from overheating
5. Wide voltage input supports 7V-36V voltage input
6. Supports 48 transmission channels
7. VTX control protocol IRC Tramp supports OSD parameter adjustment
8. Built-in microphone for real-time audio transmission

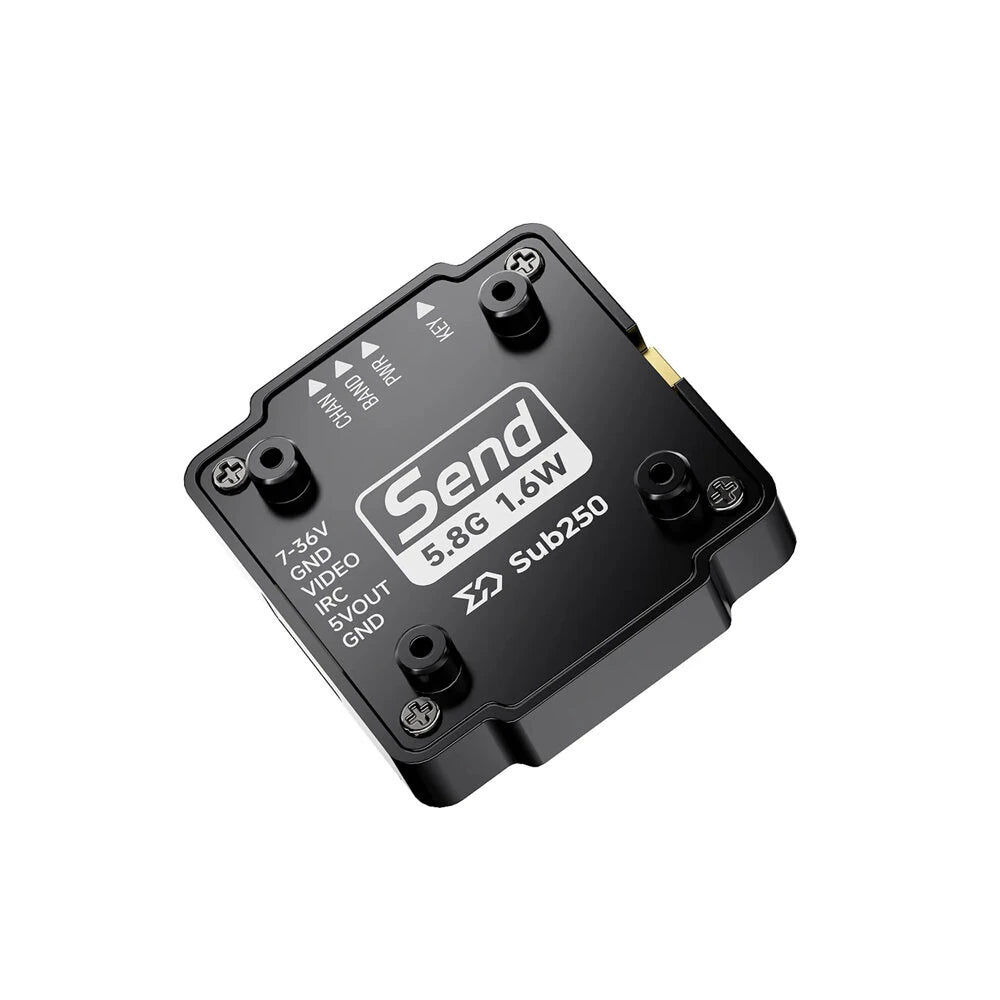

9. One function adjustment button, three indicator lights for easy operation

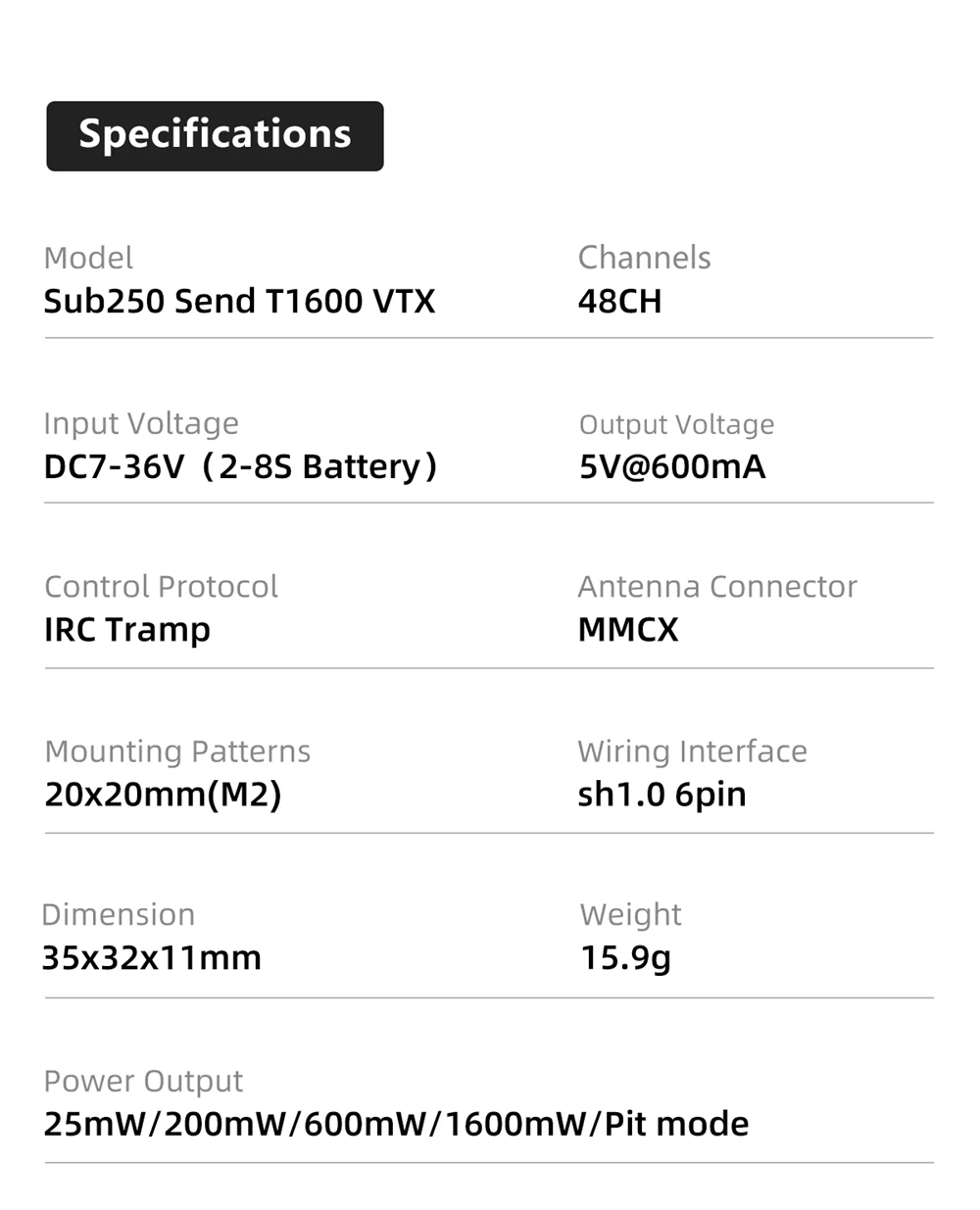

Specification:
Brand: Sub250
Model: |
Send T1600 VTX |
Channels: |
48CH |
Output Power: |
25mW/200mW/600mW/1600mW/Pit Mode |
Input Voltage: |
DC7-36V（2-8S Battery） |
Output Voltage: |
5V@600mA |
Protocol: |
IRC Tramp |
Antenna interface: |
MMCX |
Mounting Hole: |
20x20mm(M2) |

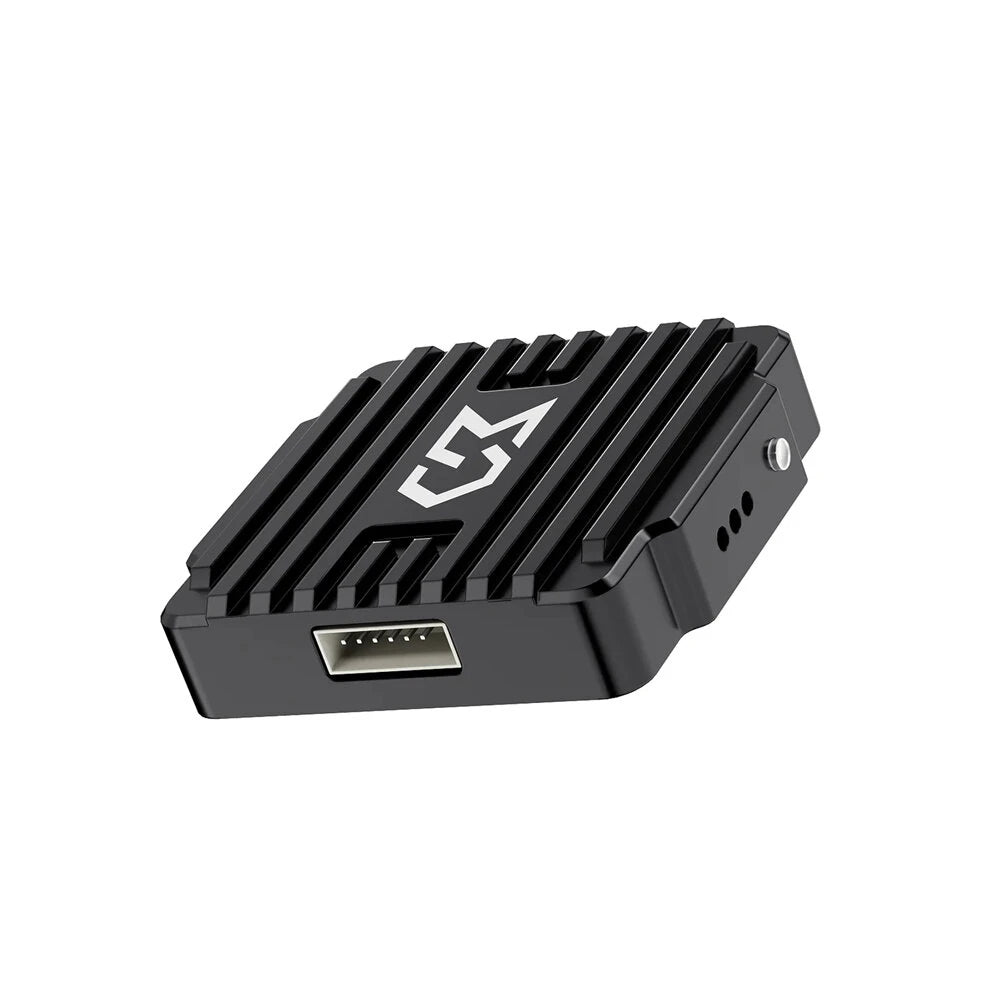

Cable Interface: |
sh1.0 6pin |
Dimension: |
35x32x11mm |
Weight: |
15.9g |

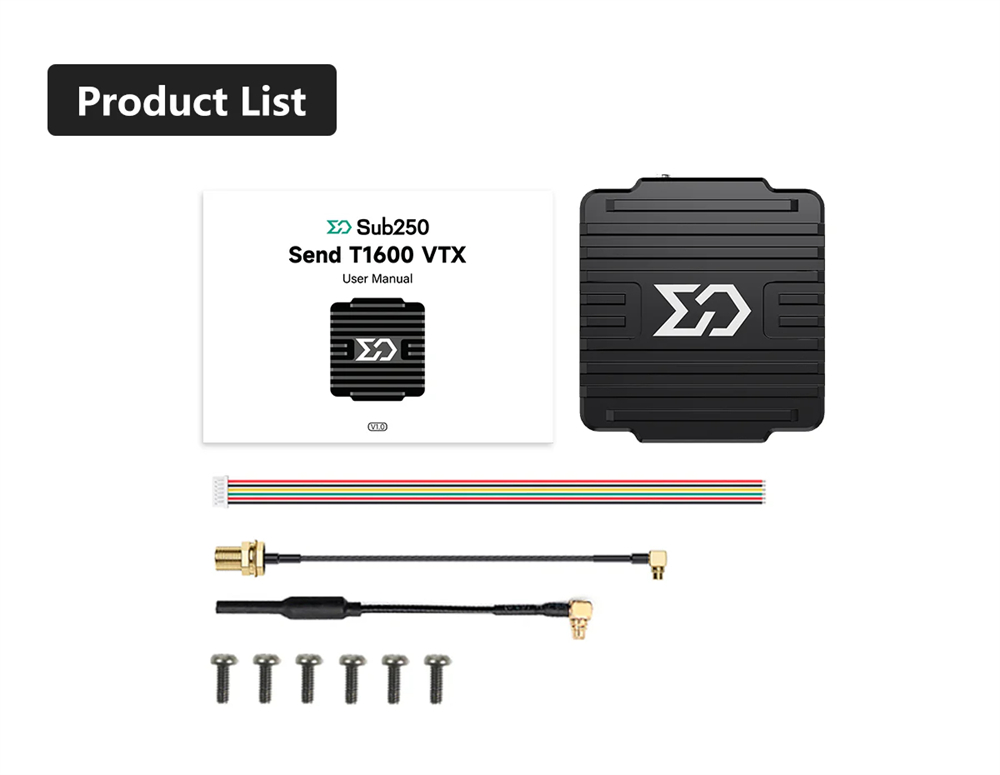

Package Included:
1 x Sub250 Send T1600 VTX
1 x sh1.0 6P Connecting Cable
1 x MMCX Copper Tube Antenna
1 x MMCX to SMA (Center Hole)Connector
6 x M2*5 Screw
Note:
1. Installing antenna before use.
2. Flying with constant airflow and under a well-ventilated environment to prevent overheating. Install a cooling fan if operating in confined conditions.
3. The 5V Output is for a Camera/Cooling Fan use only! Do not connect the battery input to the 5V Output, severe damage will occur to VTX.
