Model: Frame Kit
Price:
R 755.70
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Notice: The Color of 3D Printed parts will send randonly.

March 3rd, 2023.


Specification:

Model: Steele5 Plus

Item Name: 220mm Wheelbase 5 Inch Frame Kit

Wheelbase: 220mm

Structure: X-type split

Material: Carbon Fiber

Arm Plate Thickness: 5mm

Upper Plate Thickness: 2.0mm

Middle Plate Thickness: 2.0mm

Bottom Plate Thickness: 3.0mm

Splint: 3.0mm

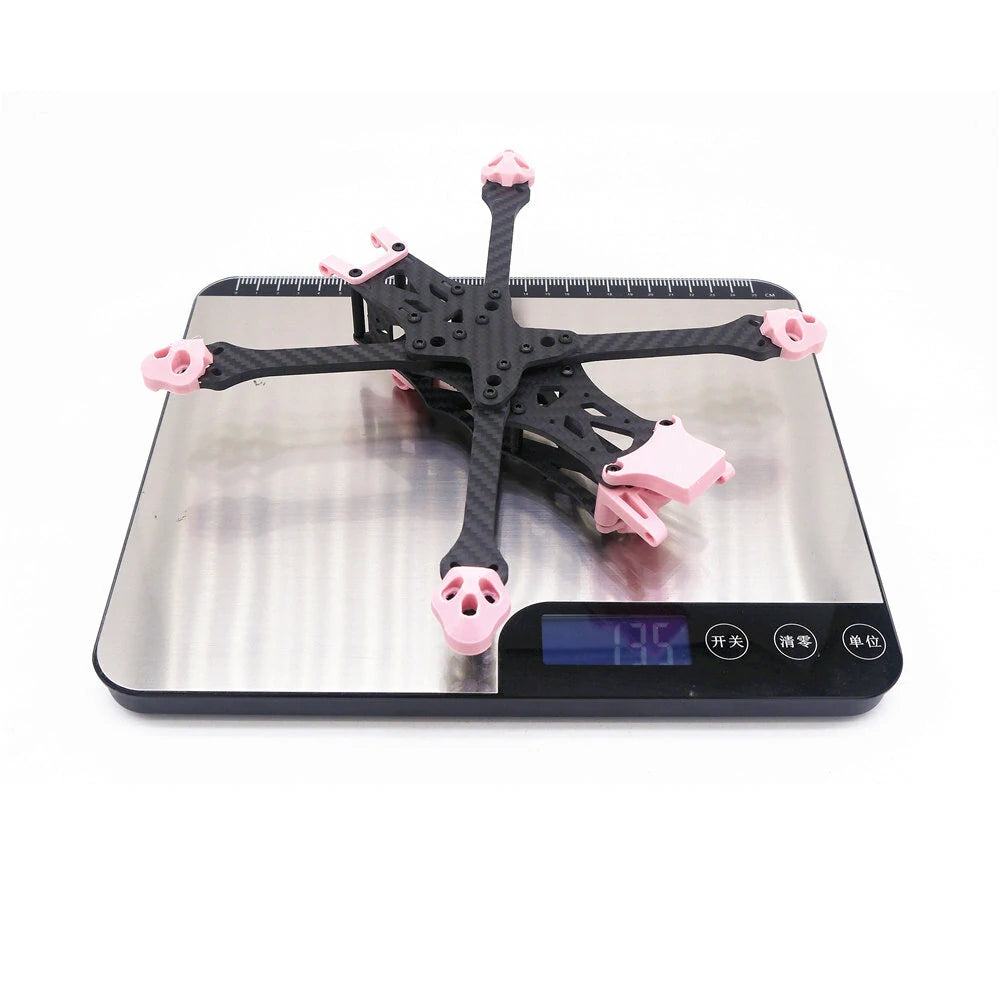

Weight: 141g

The hole position for the tail image transmission: 20x20mm (M2 hole position)

Camera installation width: 22mm

Internal height: about 20mm


Recommend Parts:

Propeller: 50XX 5 Inch Propeller

Flight Controller: 30.5x30.5mm F4 / F7 FC (M3 hole position)

Motor: Support 16mm (m3) and 19mm (m3) pitch motors, support 2204/2205 2207/2306/2405/2307/2308/2506 motors

Support the placement of DJI Air Unit, adapt to VISTA Air Unit

GPS: BN220


The fllowing Parts are Compatible: ( Not Included, need buy together)

FC & ESC: 30.5x30.5mm Flywoo Goku Versatile F745 Pro F7 FC & 50A 2-6S 4In1 ESC Stack

Brushless Motor: iFlight XING-E Pro 2207 2207 1800KV 3-6S Brushless Motor

Propeller: 2 Pairs HQProp DP5X4.5X3V3 Durable 5045 5x4.5 5 Inch 3-Blade Propeller

GPS: BN220 GPS Module

Lipo Battery: CNHL Black Series 1300mah 22.2V 6S 100C Lipo Battery XT60 Plug


Package Included:

1x Steele5 Plus 220mm Wheelbase Frame Kit

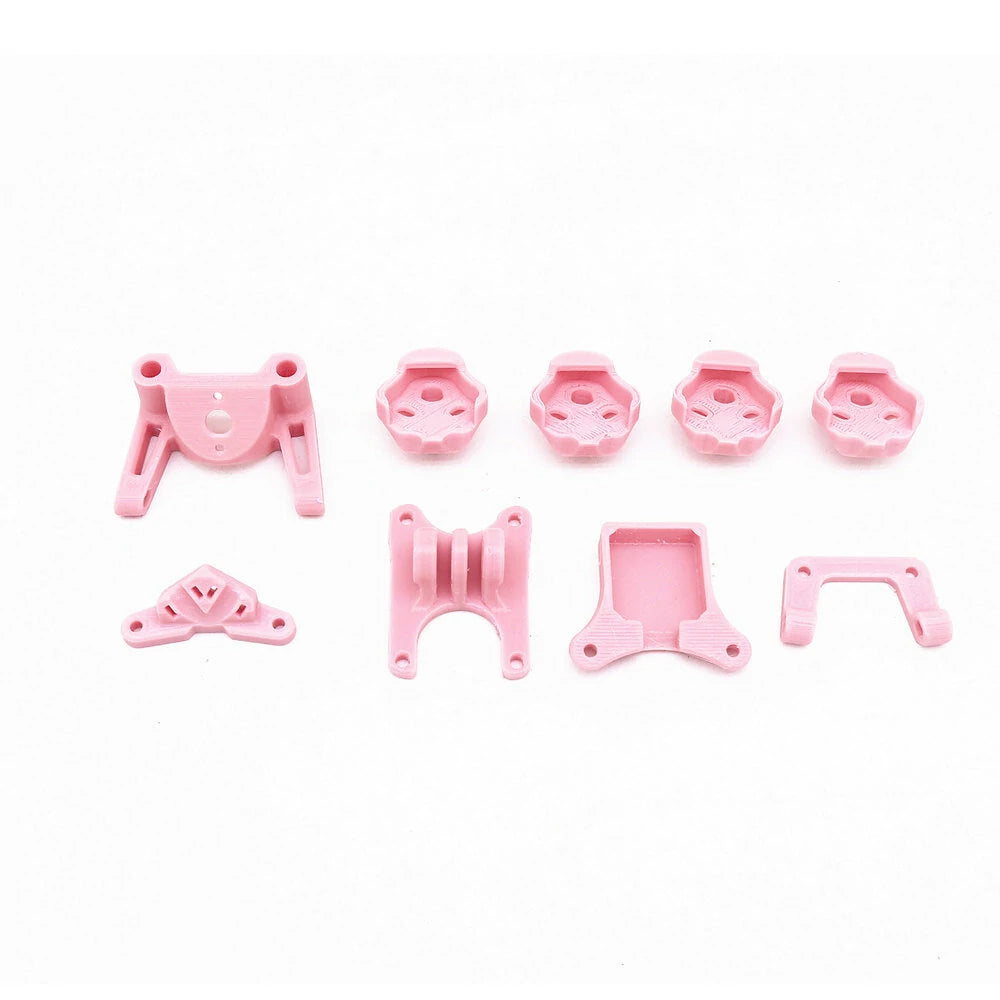

1x 3D Printed Parts
