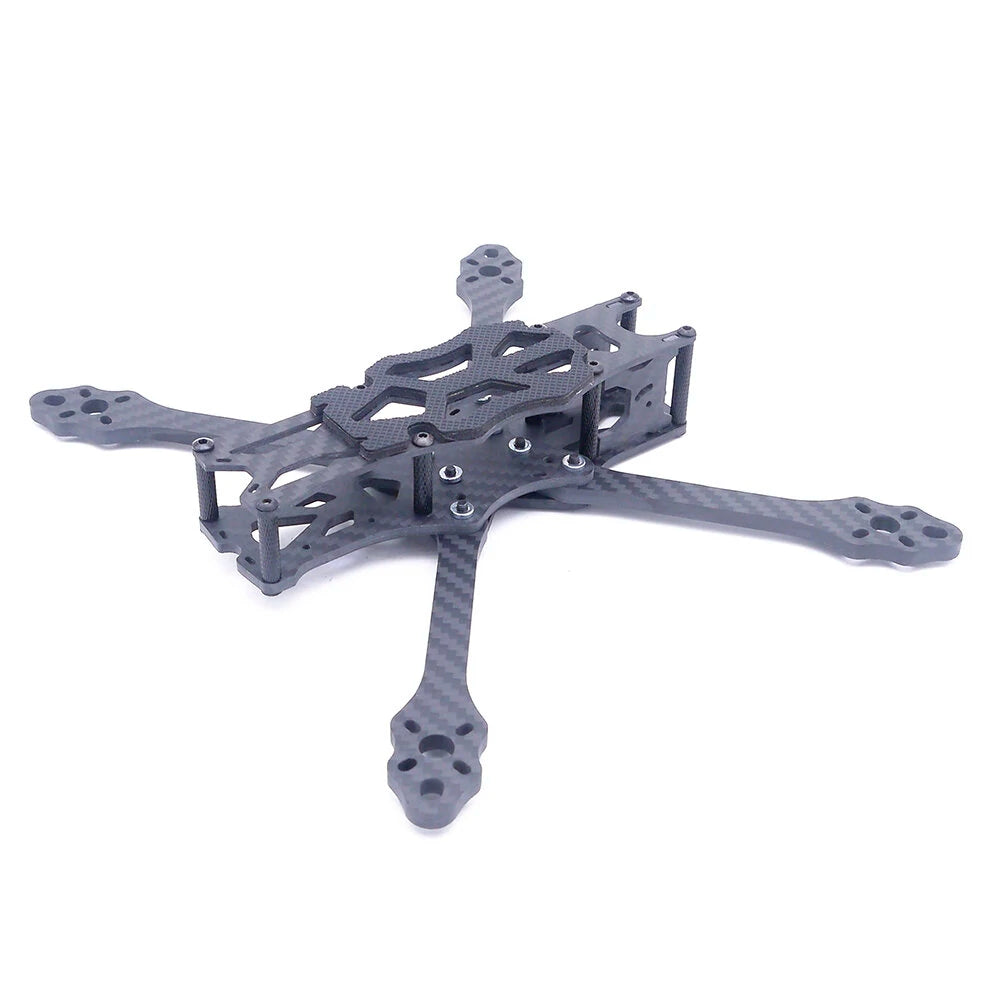

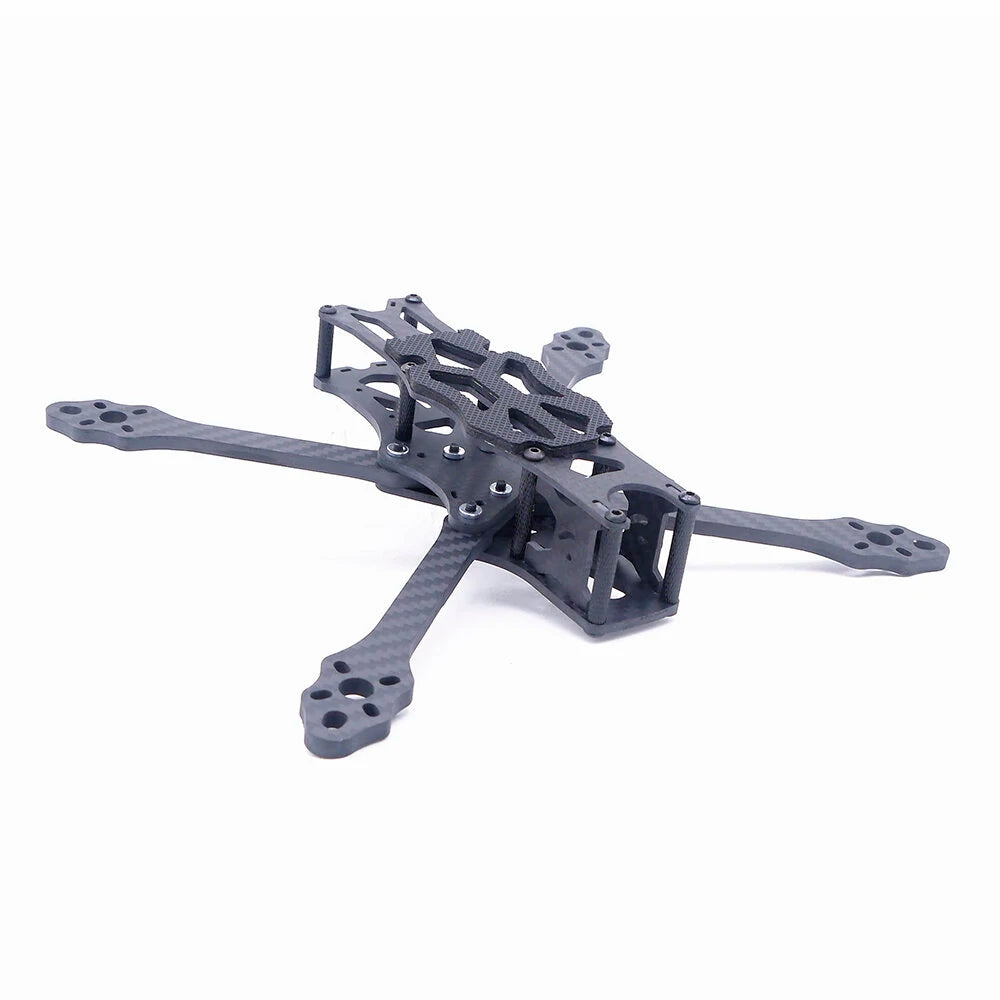

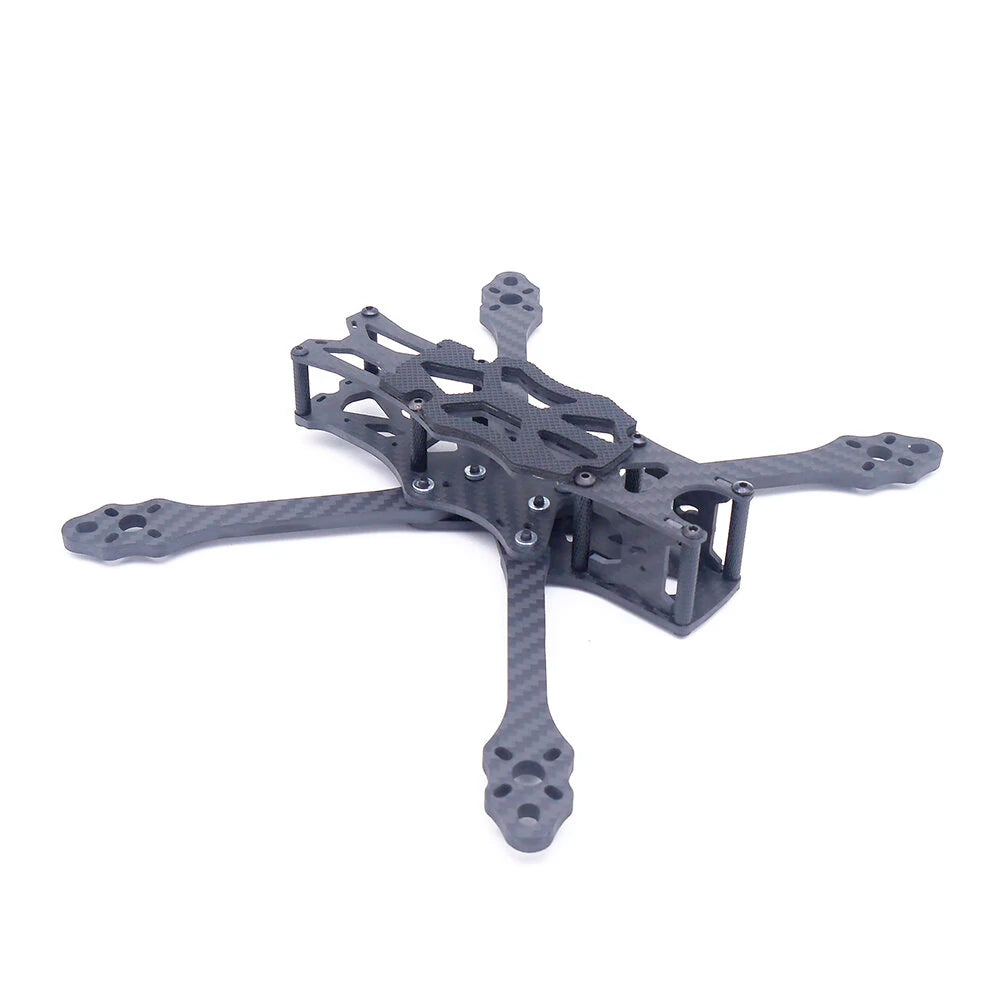

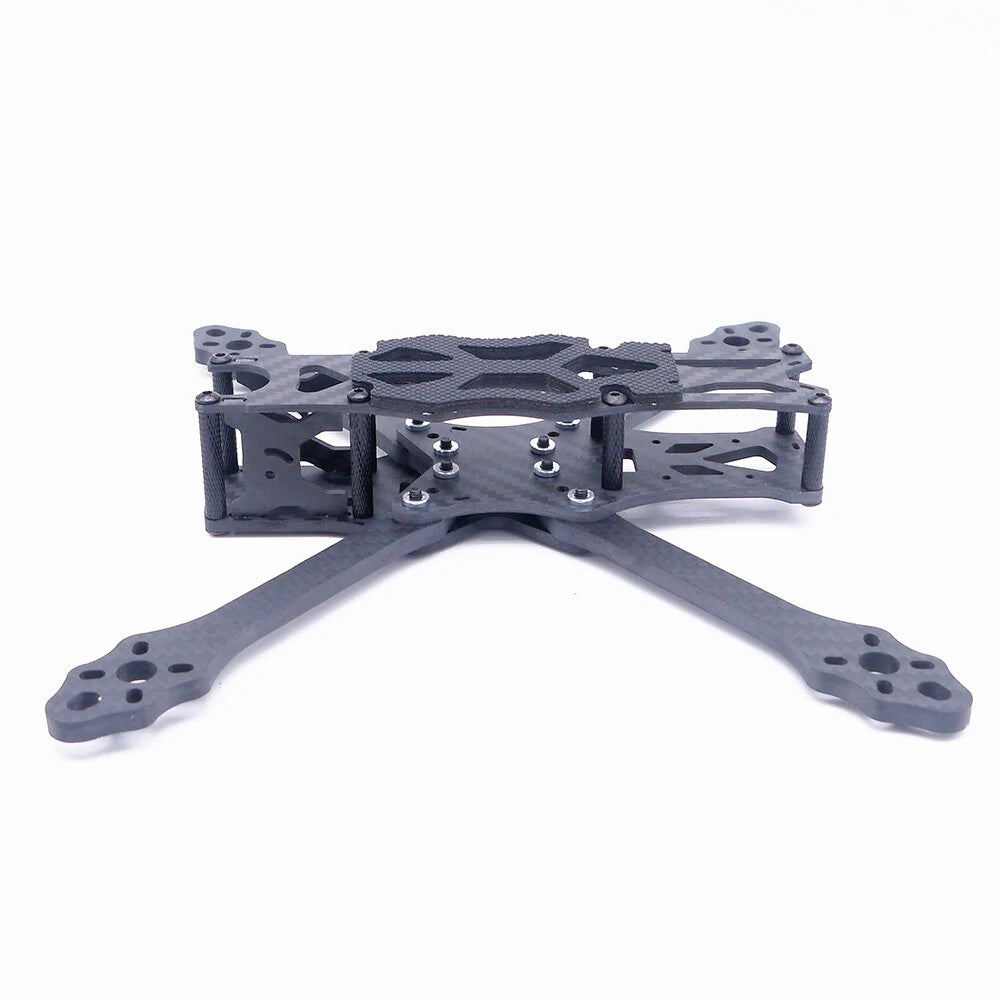

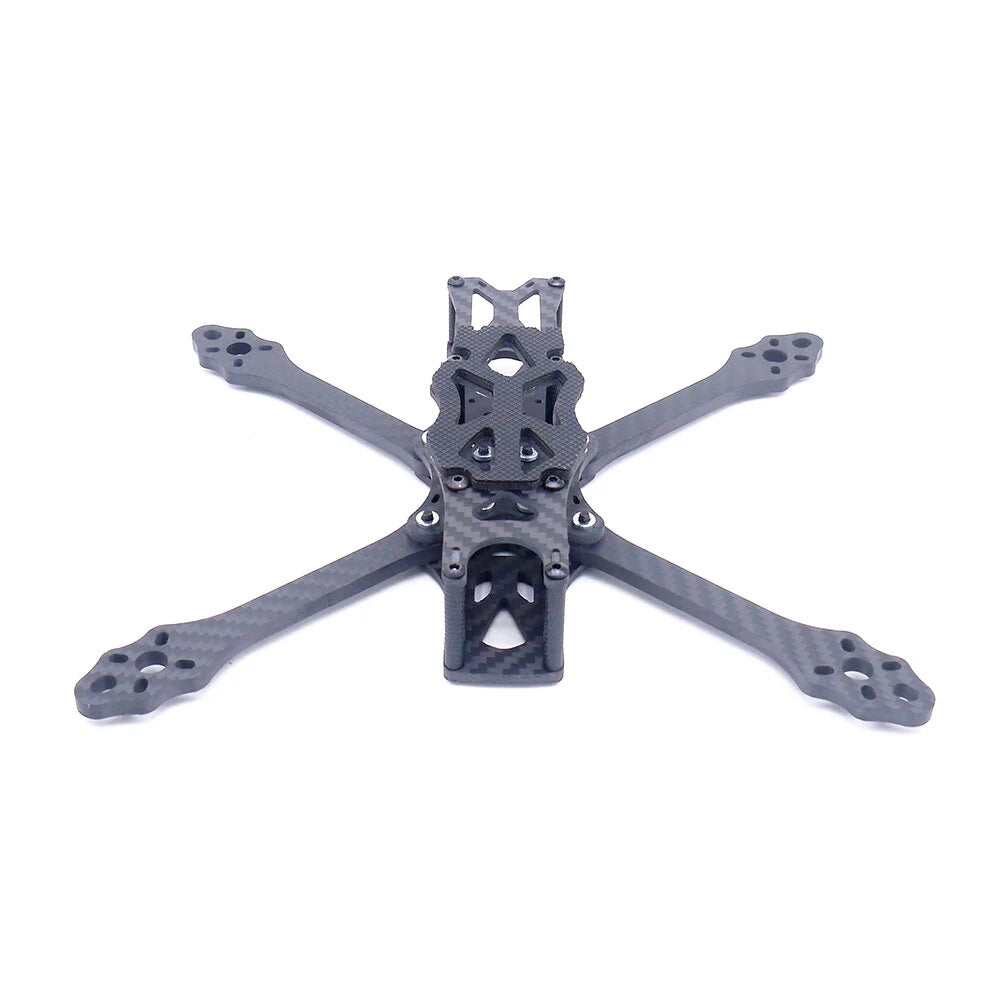

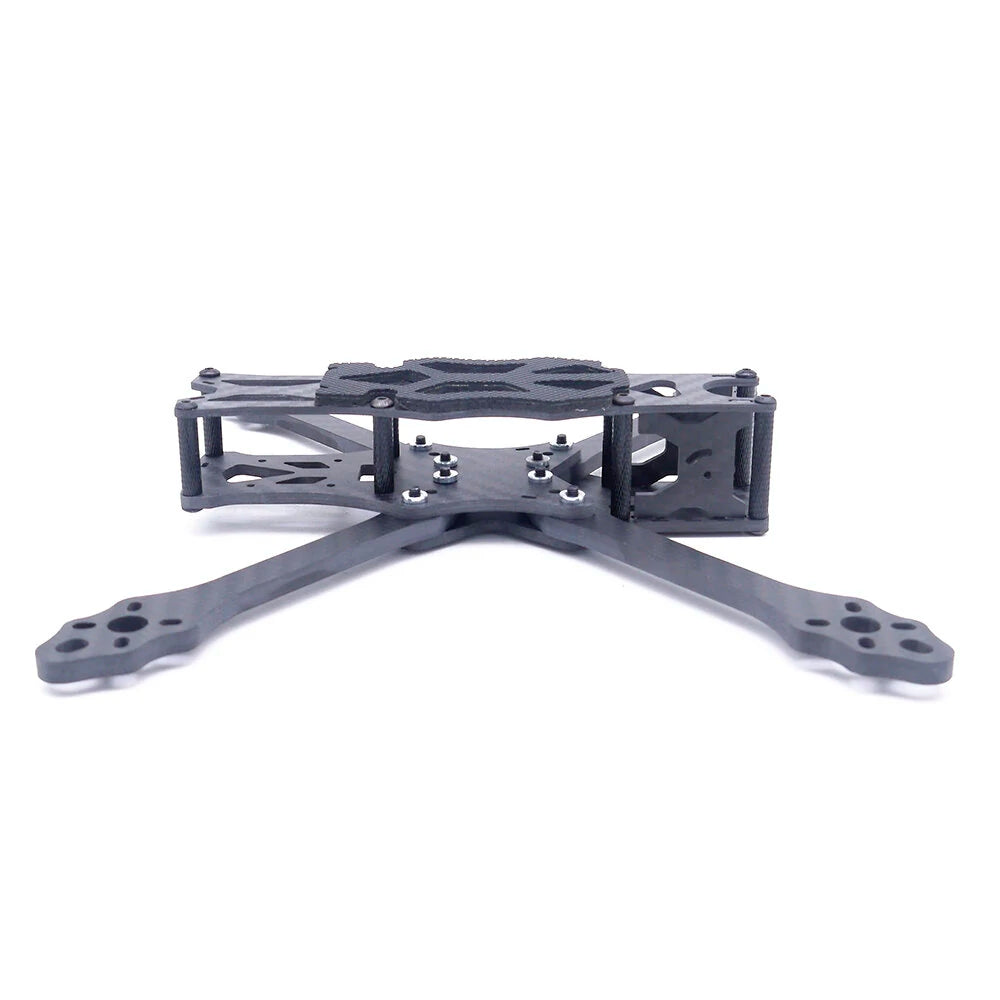

STEELE 5 220mm Wheelbase 5mm Arm Thickness Carbon Fiber X Type 5 Inch Freestyle Frame Kit Support Caddx Vista HD System for RC Drone FPV Racing


Isaiah 55:8-9 John 3:16 Philippians 4:19
Model: Frame Kit
Price:
Sale priceR 886.88
Stock:
Sold out



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description


Click here to buy Replace Arm together.


Specification:

Model: Steele 5

Item Name: 220mm Wheelbase 5 Inch Frame Kit

Wheelbase: 220mm

Structure: X type
Material: Carbon Fiber
Arm Plate Thickness: 5mm
Bottom Plate Thickness: 3mm
Upper Plate Thickness: 2mm
Side Plate Thickness: 2mm
Center Plate Thickness: 3mm
Internal Standoff Height: 20mm
Weight: 110g
Support Max. 5.1 Inch Propeller

Recommend Parts:
Flight Controller: 30.5x30.5mm F4/F7 Flight Controller
Brushless Motor: 2204/2205/2207/2306/2405/2307/2308/2506 etc. Motor ( 16x19mm Mounting Hole)
Brushless ESC: 35-50A ESC
Propeller: Max. 5 Inch Propeller
Camera: 22mm Width
Lipo Battery: 4-6S 1300-1550mAh Lipo

The following Parts are Compatible: ( Not Included)

Package Included:
1x  Steele 5 220mm Frame Kit
