Description

Introduction:
FLYROTOR 280A controller utilizes a high-performance 32-bit RISC-V industrial-grade microprocessor, designed with high integration and performance. It incorporates optimized architecture and high-speed interruption processing, ensuring accurate response under high rotational speeds. With a core frequency of 120MHz, it achieves near-zero latency processing speed. Additionally, it integrates functionalities such as a 12-bit ADC for precise data acquisition, multi-channel amplifier for various comparisons, and multiple communication interfaces, significantly simplifying system design.

For hardware configuration, the FLYROTOR 280A controller adopts an independently developed chip connected to high-precision MOS tube drive circuits. This design provides sufficient and stable drive power, guaranteeing fast MOS transistor switching. It enhances system responsiveness and reliability by drastically reducing switching delay and rotor misalignment under dynamic conditions. For high-speed scenarios, low internal resistance, high-power MOS transistors are employed to ensure effective utilization of the drive capability, significantly improving drive system performance.

Furthermore, the controller is equipped with programmable SBEC systems. It not only supports high-power output but also includes overvoltage and overload protection functions, offering users secure and lightweight 2S battery response options, meeting various application requirements.

Specification:
Brand: Steam
Model: FLYROTOR 280A Controller

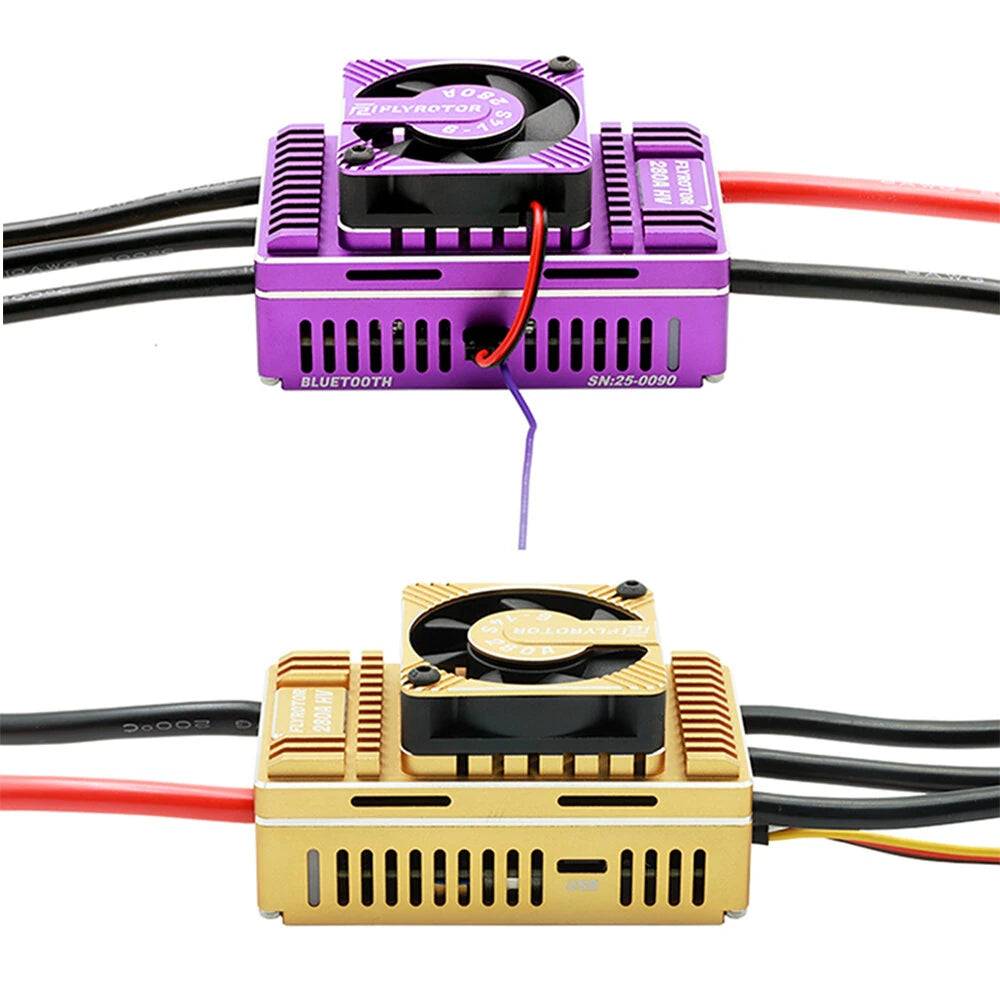

Color: Gold / Purple(Optional)
Drive Type: Brushless Motor
Applicable Motors: 650-800 class brushless motors
Input Voltage: 6-14S Lithium Battery
Operating Current: 280A/350A (constant/peak)
SBEC Output Voltage: 7.5V-8.0V-8.5V-12.0V
SBEC Output Current: 10A/35A (continuous/peak)
External Ignition Support: Supported
Input Wire: 220mm Black, Red 8AWG Silicone Wire
Output Wire: 130mm Black 10AWG Silicone Wire
Oil Tube: 515mm Black Fiber Reinforced 100-core Pipe
Throttle Tube: 515mm Black Fiber Reinforced 100-core Pipe
Connection Method: USB (local), Bluetooth (integrated), Controller (ROTORFLIGHT throttle tester)
LED Indicator: Full-color LED
Cooling System: Alloy shell, 4510 dual-ball bearing cooling fan
Communication Protocol: ROTORFLIGHT FLYROTOR
Control Mode: Native/Optical Coupling Isolation
Protection:Includes protections for undervoltage, MOS overheating, power module overheating, overcurrent, short circuit, ignition circuit failure, oil circuit failure, SBEC: input overvoltage, SBEC: output overvoltage, SBEC: excessive temperature, SBEC: output short circuit.
Mounting Style: External mounting, electrical isolation
Dimensions: 85x50x32mm, 85x50x45.5mm (with cover)
Weight: 290g (with cover)

Package included:
1 x FLYROTOR 280A Controller
