Introduction:
FLYROTOR ESC, an industrial-grade low-power microcontroller with a 32-bit RISC-V core, is designed for high-performance. Its unique hardware architecture, including an optimized stack area and fast interrupt mechanism, significantly improves the interrupt processing speed, ensuring smooth operation with zero waiting at a main frequency of 120MHz. It also integrates a wealth of peripherals, such as high-precision 12-bit ADC, advanced timers, multi-channel operational amplifiers and comparators, and a variety of communication interfaces, which greatly simplifies the design process and system integration. In terms of the driver core, FLYROTOR ESC uses a three-channel integrated chip as an H-bridge pre-driver to ensure the precise control of the PWM signal and further improve the accuracy of motor control. The Infineon low-resistance and high-current MOS tube used as a power component effectively enhances the driving efficiency and performance of the motor.
In addition, the ESC also has a built-in high-performance synchronous rectification BEC system, which not only supports high-power output, but also integrates anti-backflow and overvoltage protection functions, providing users with higher flexibility and safety, and easily adapting to 2S batteries or emergency capacitors to meet the needs of diverse application scenarios.

Specification:
Brand: Steam
Model: FLYROTOR 150A 4-8S ESC

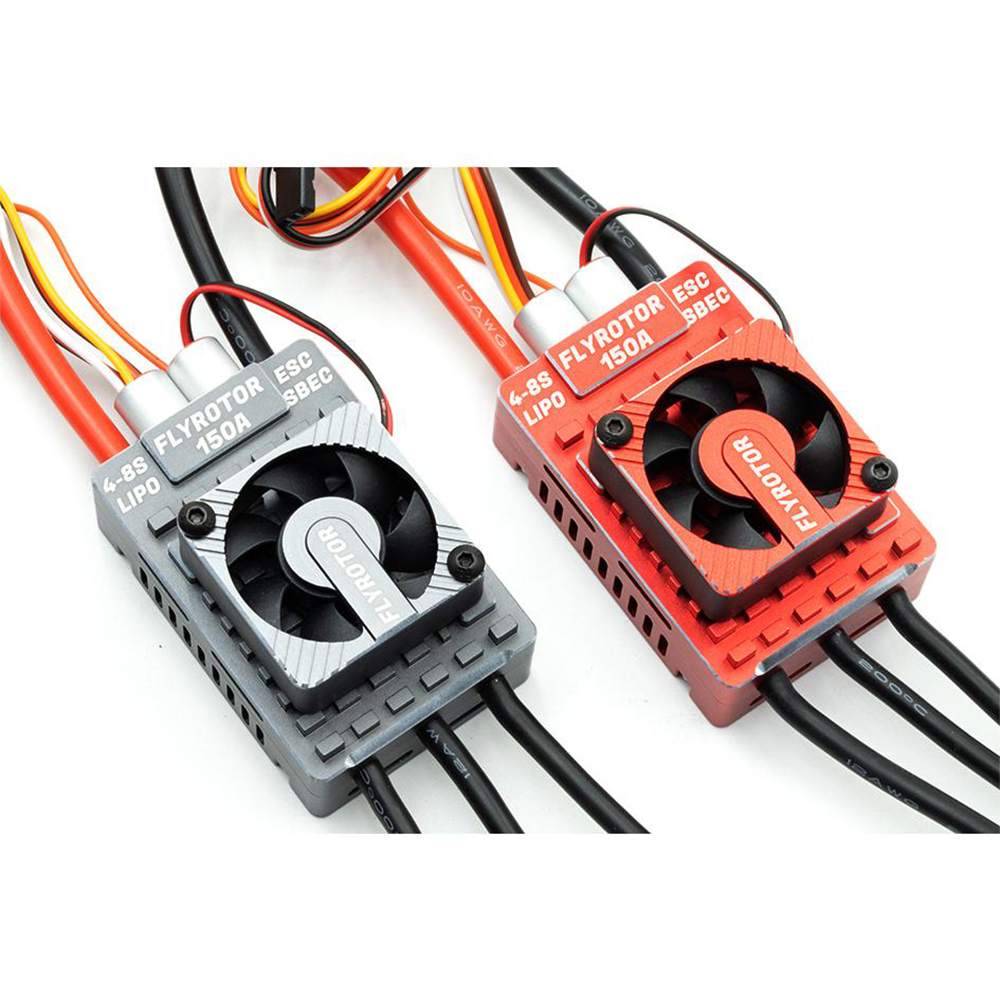

Color: Red/Black
Drive type: Brushless motor
Applicable models: 500-580 electric helicopters
Input voltage: 4-8 lithium batteries
Working current: 150A/200A (continuous/momentary)
BEC voltage: 7.5V-8.0V-8.5V
BEC current: 10A/25A (continuous/momentary)
Input line: 150mm black, red 10AWG silicone line
Output line: 110mm black 12AWG silicone line
Throttle line: 500mm black, red and white 60-core parallel line
Speed ​​line: 500mm brown, red and yellow 60-core parallel line
Adjustment method: PC software, remote control (ROTORFLIGHT gyroscope)
LED indicator: green, red
Cooling method: high-speed silent fan
Telemetry protocol: ROTORFLIGHT2.1 FLYROTOR
Firmware: Local/online upgrade
Protection: Undervoltage protection, high temperature protection, overcurrent protection, short circuit protection, stall protection, throttle loss protection, BEC short circuit protection, BEC backflow protection, BEC overvoltage protection
Speed ​​control: External speed control, ESC speed control
Dimensions: 73mm×42.5mm×21.5mm, 73mm×42.5mm×35.5mm (excluding fan)
Weight: 135g, 150g (including fan)

Package included:
1 x ESC

1 x Configurator
