Description
Introduction:
FLYDRAGONpro gyro uses the open source Rotorflight firmware, which is based on Betaflight 4.5, enjoying all the powerful features of the Betaflight platform, as well as many new features added for helicopters. Rotorflight also borrows ideas and codes from Heliflight3D.

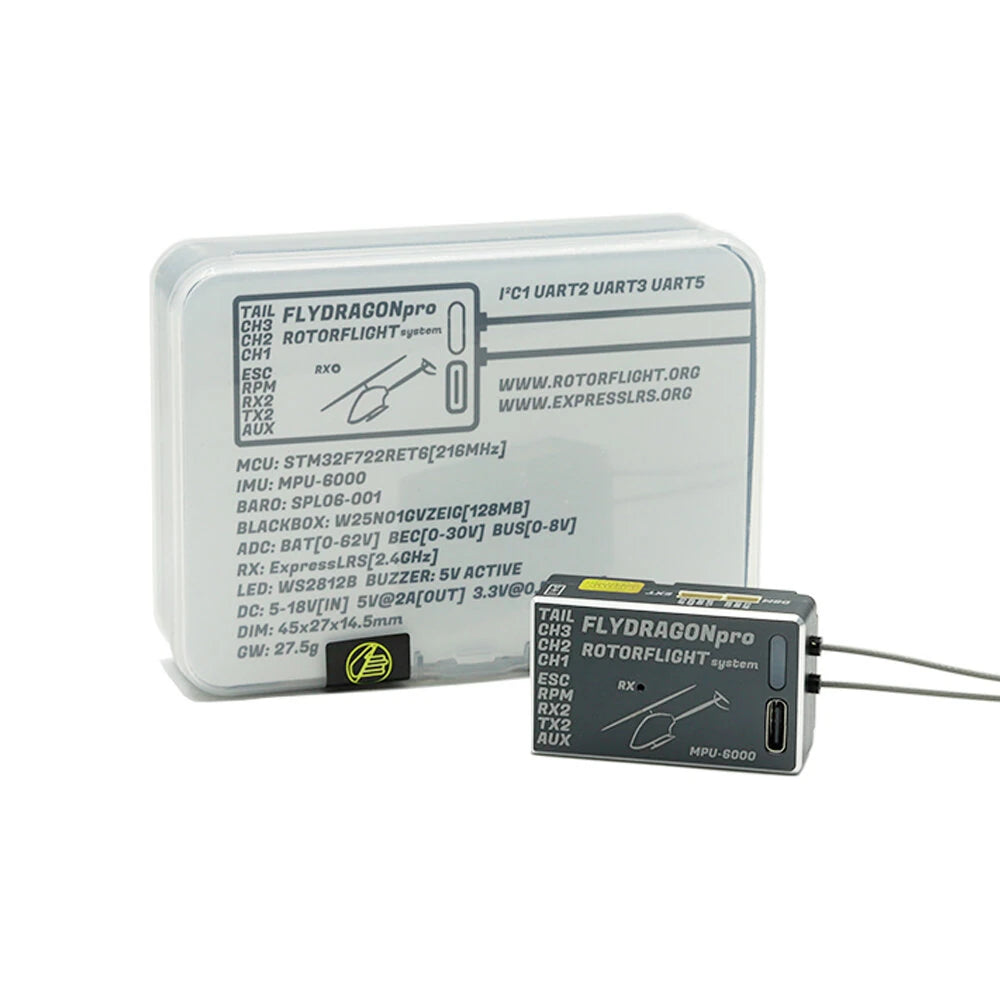

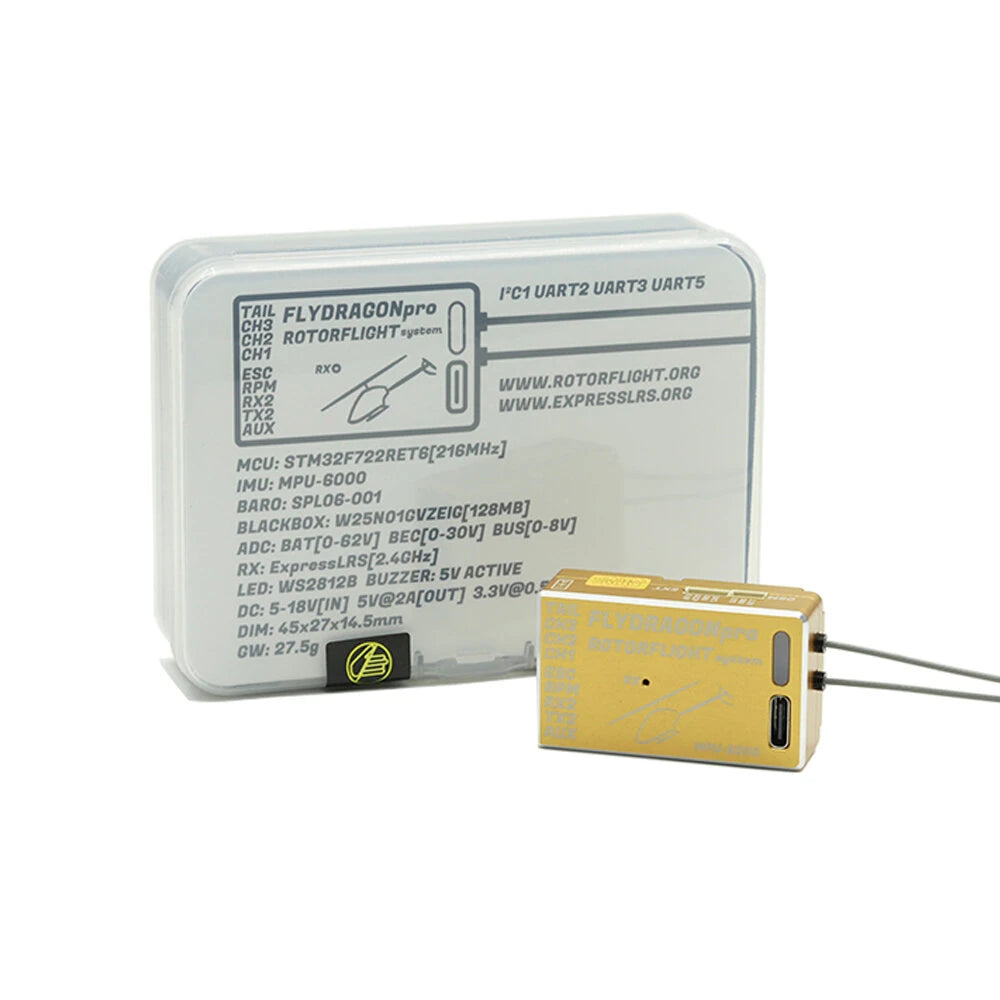

Specification:
Brand: Steam

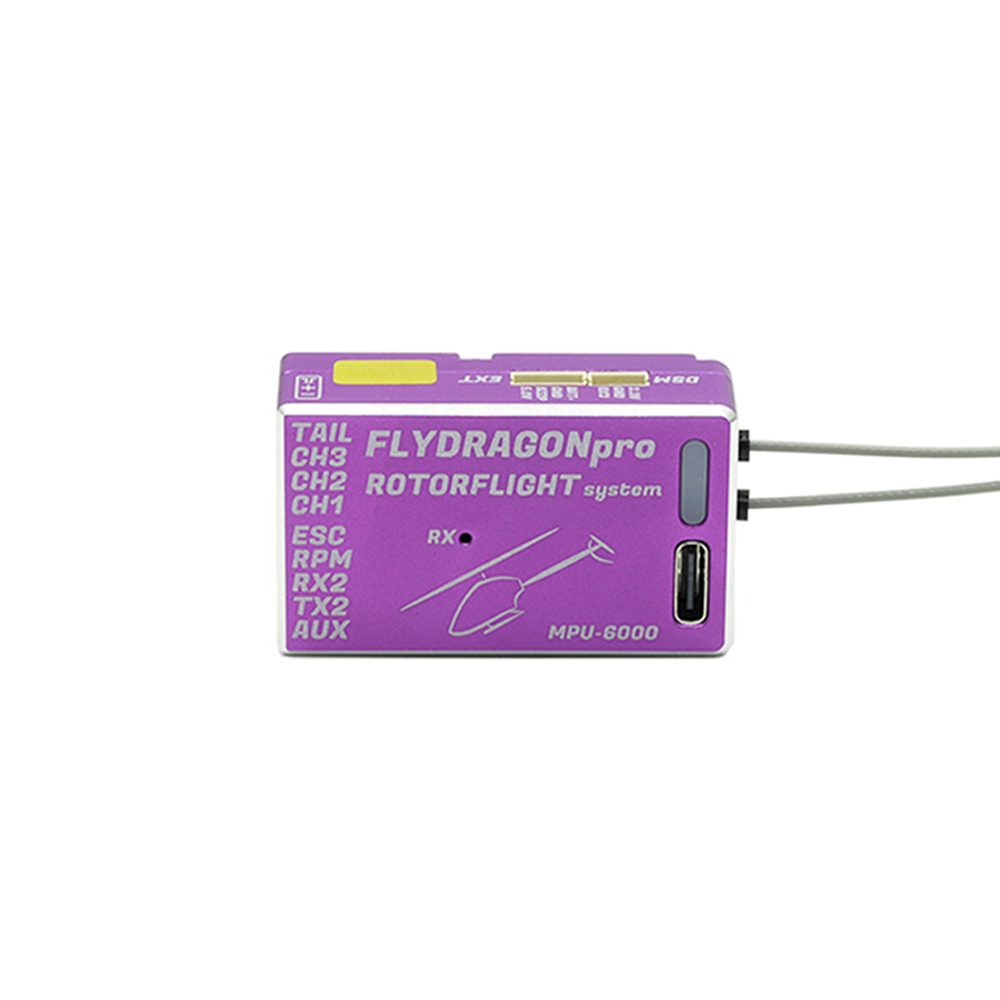

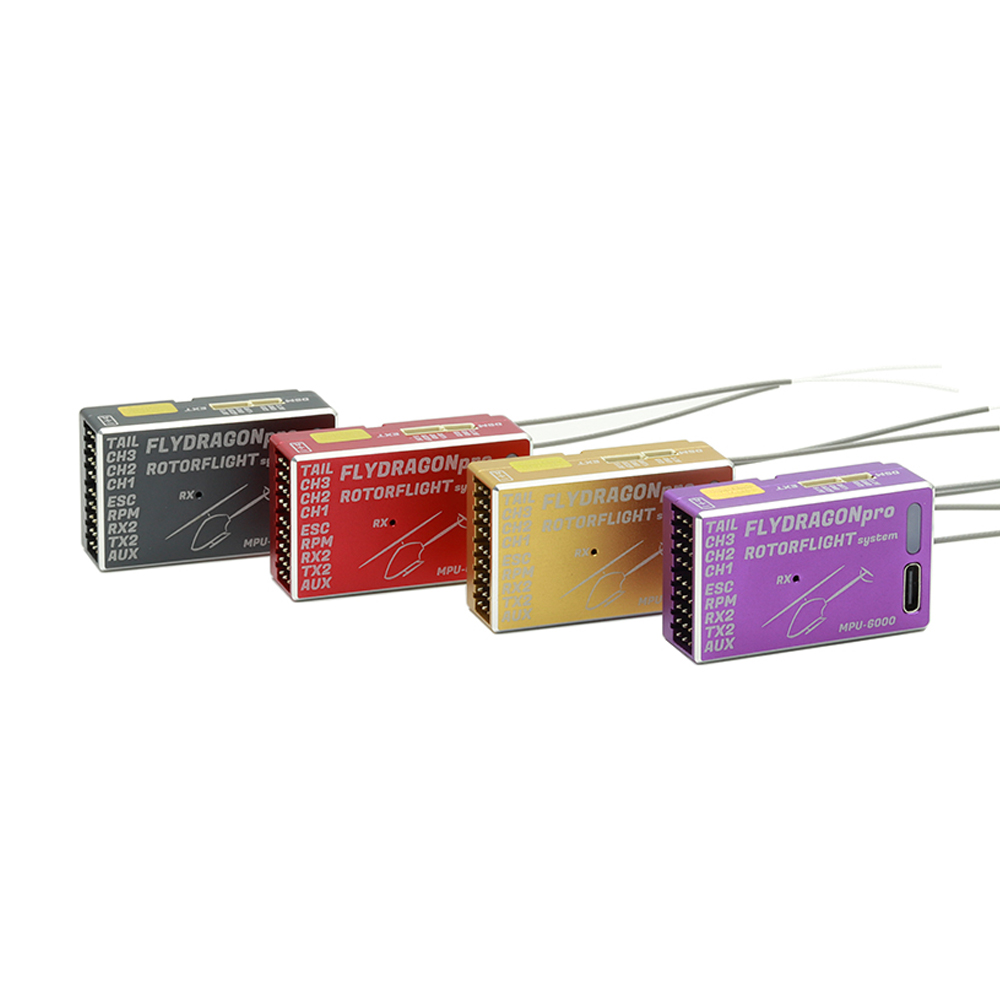

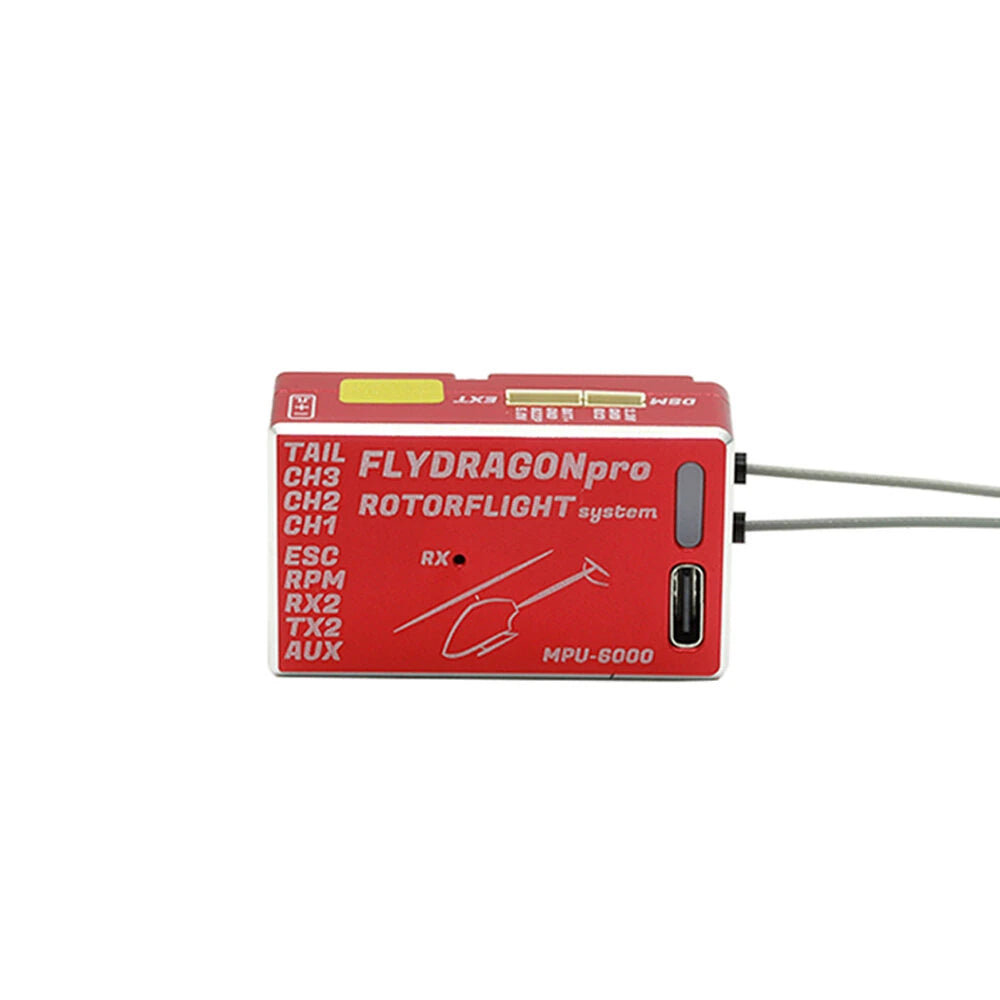

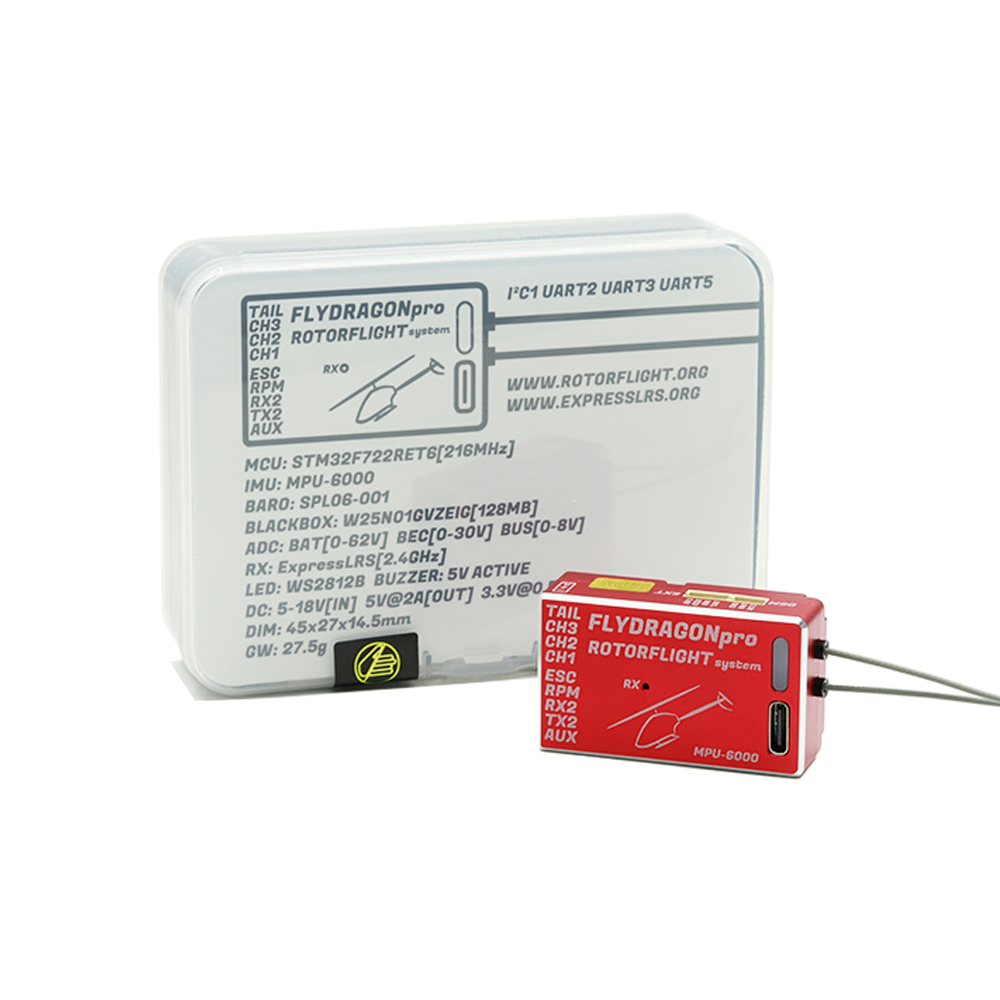

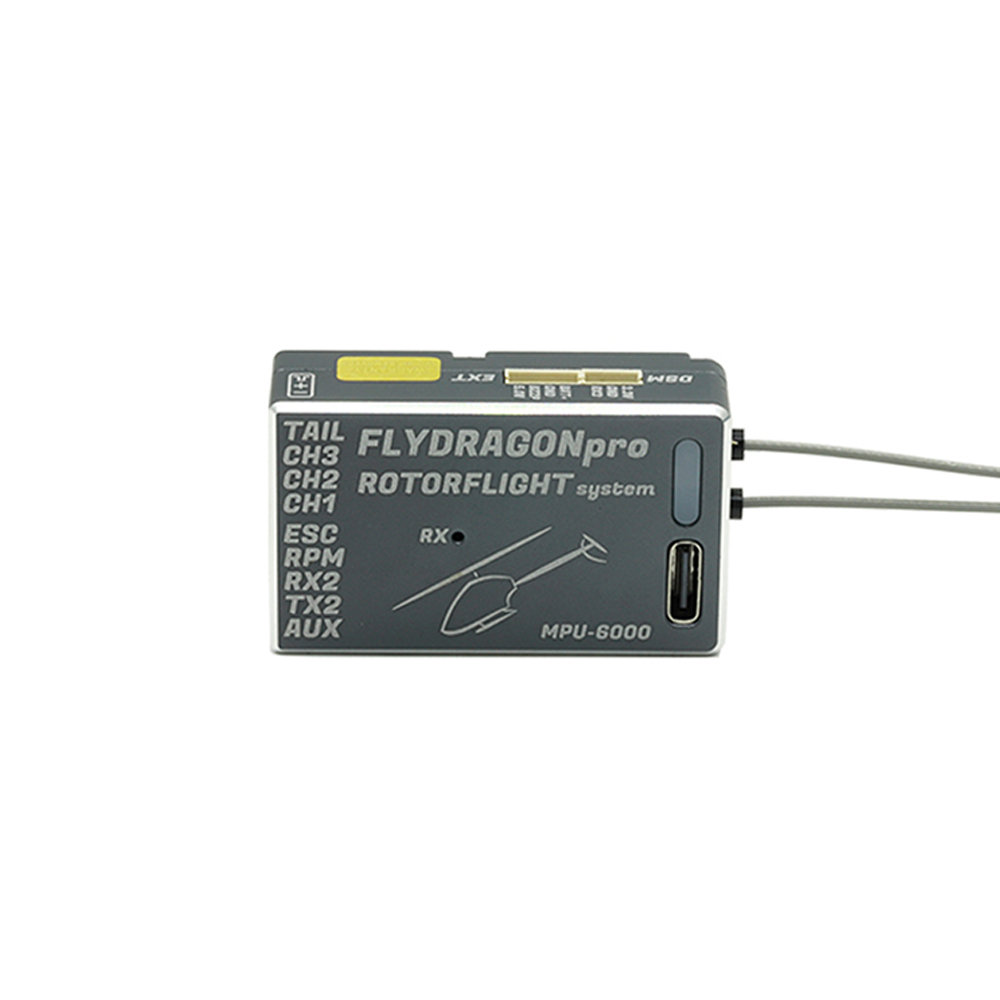

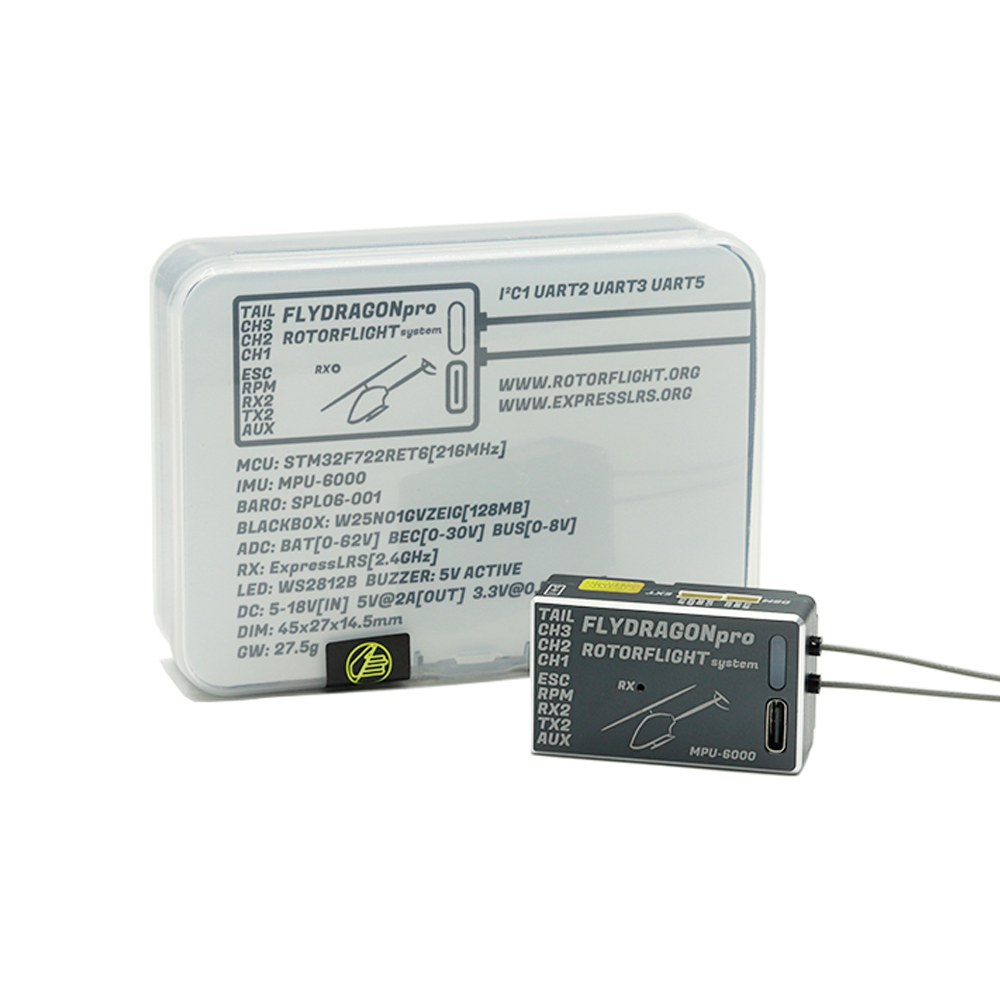

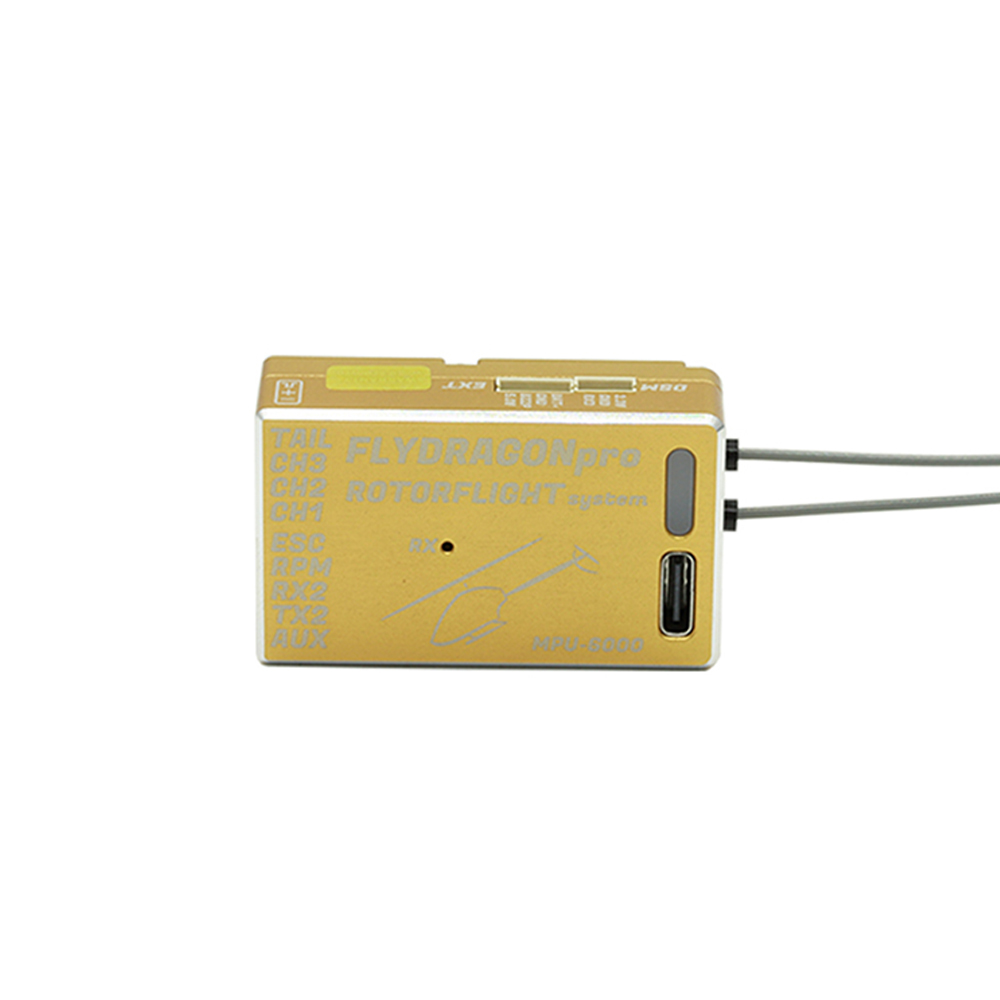

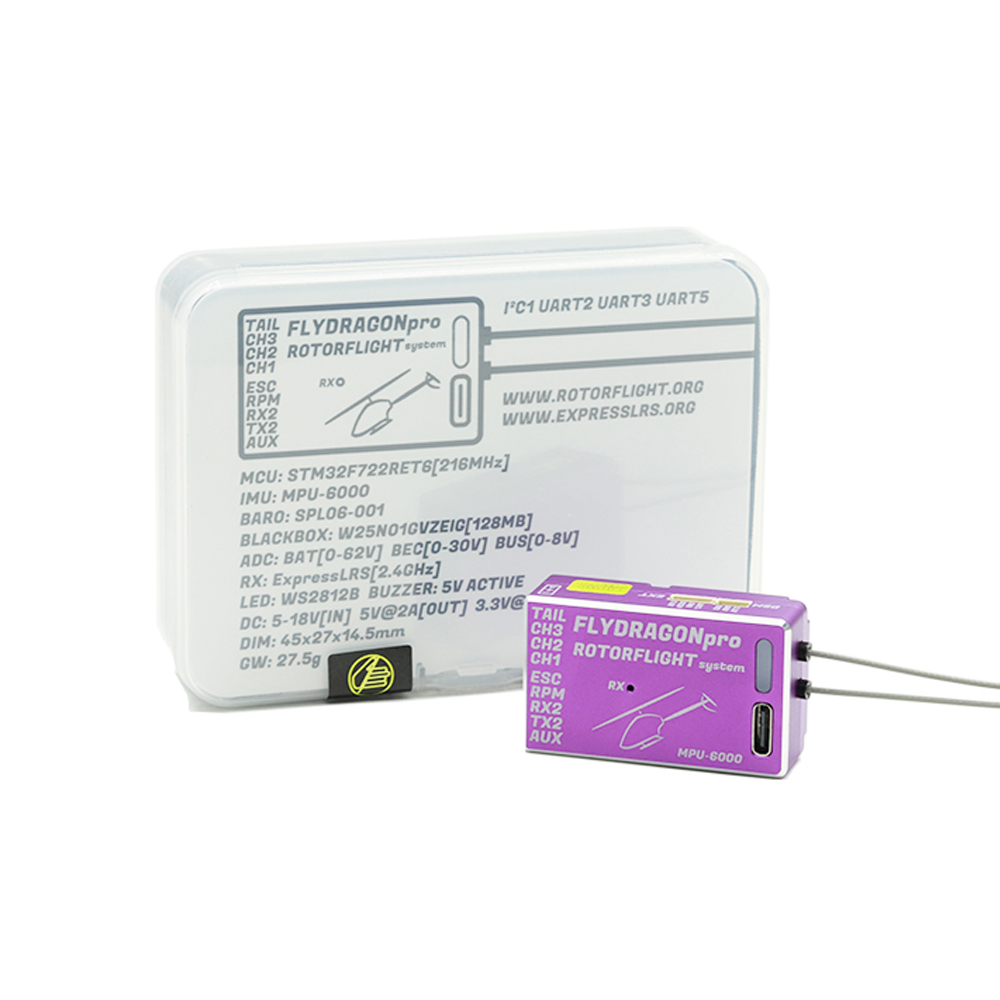

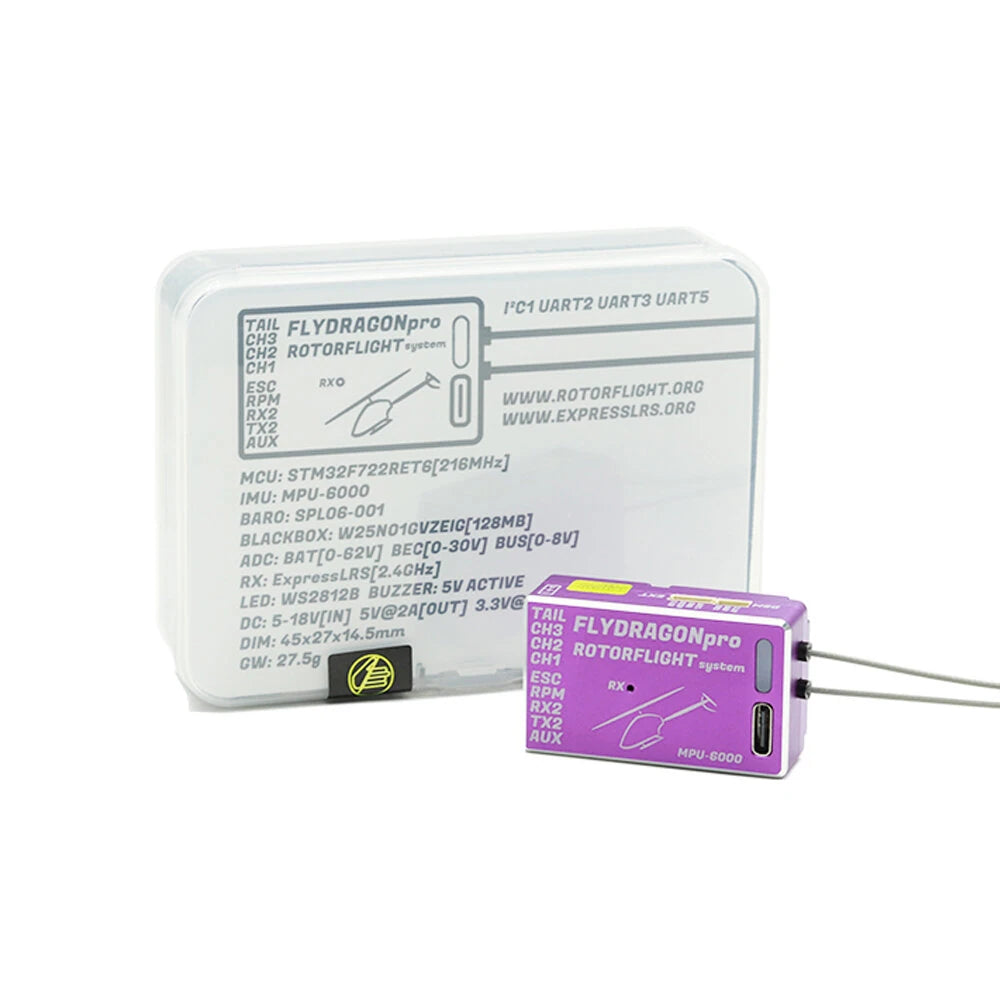

Model: V2.2 Gyroscope RF FLYDRAGONPro Rotorphlight System
Master: STM32F722RET6
Gyroscope: MPU6000
Black box: W25N01G (128MB)
Barometer: SPL06-001 (I2C2)
Colored lights: WS2812B
Buzzer: 5V active buzzer
USB: Type-C
Serial port: UART2, UART3, UART5
I2C: I2C1
ADC: ADC_BATT (0-62V), ADC_BEC (0-30V), ADC_BUS (0-8V)
Servo channel: CH1-CH2-CH3-TAIL
Speed input: RPM
Auxiliary channel: AUX
BEC voltage: 5-18V
5V power output: 5V-2A
Built-in receiver: ELRS dual antenna receiver 2.4G (serial port 1)
External receiver: TBS CRSF, Futabas S.BUS, Futabas S.BUS2, FrSky F.PORT, FrSky F.PORT2, FrSky FBUS, Spektrum DSM/1024, Spektrum DSM/2048, Spektrum DSMSRXL, Spektrum DSMSRXL2, ImmersionRC GHOST, Graupner SUMD, Graupner SUMH, Flysky IBUS, JR XBUS Mode A, JR XBUS Mode B, JR XBUSIRJ01, Jeti EXBUS, CPPM
ESC protocols: PWM, ONESHOT125, ONESHOT42, MULTISHOT, BRUSHED, DSHOT150, DSHOT300, DSHOT600, PROSHOT, CASTLE
ESC feedback support: BLHeli32, Hobbywing Platinum V4 / FlyFun V5, Hobbywing Platinum V5, Scorpion, Kontronik, OMPHobby, ZTW, APD
OpenYGE, FLYROTOR, Graupner, XDFLY
Dimensions: 45x27x14.5mm
Weight: 27g

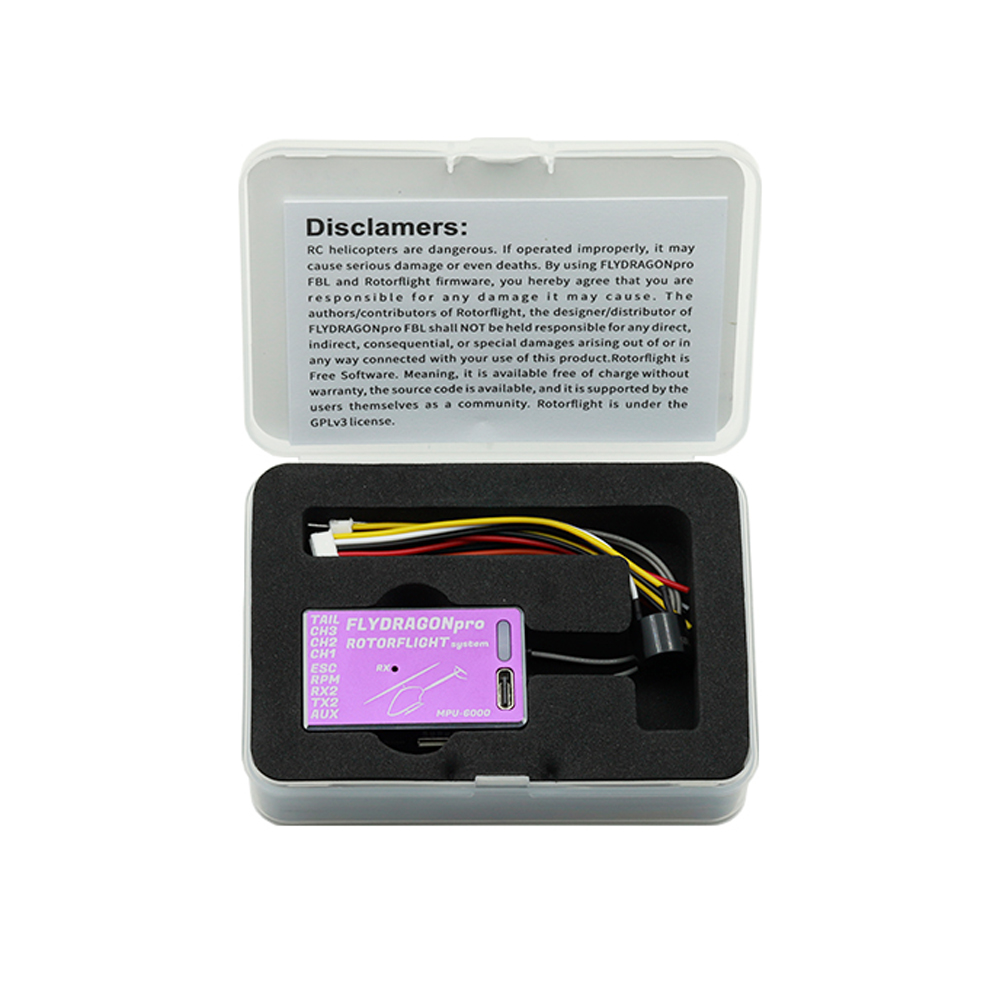

Package included:
1x V2.2 Gyroscope RF FLYDRAGONPro Rotorphlight System
