Features:

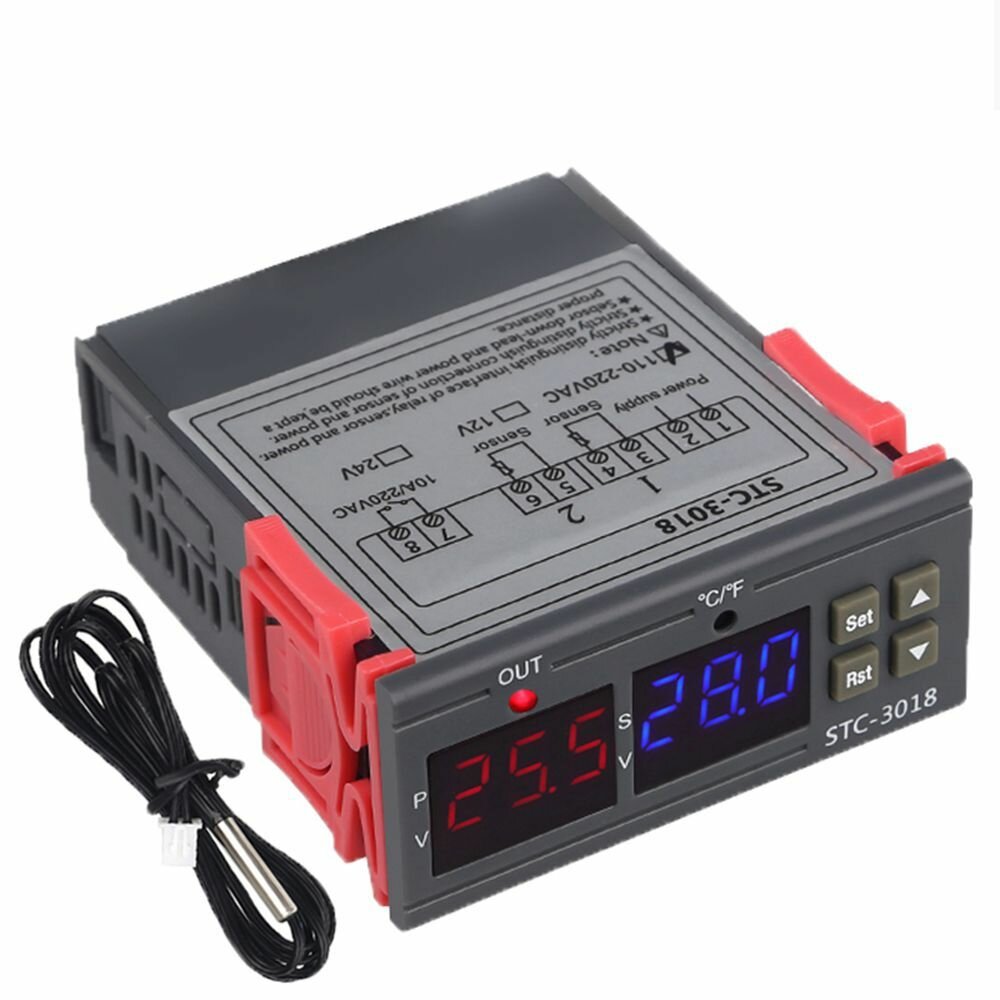

1.Heating or cooling control.Red and blue dual led display
2.Control mode of return difference;Temperature display resolution 0.1
3.Multiple alarm mode selection;Switch between ° C and °F
4.Support temperature correction and support for power loss (the parameters of the sudden power failure are still valid
5.Application range is like home temperature control, farm, various cold storage, greenhouse, aquarium, etc
Specifications:
Display Type:Digital
Temperature sensor: NTC 10K
Senor length:1.0m
Temperature measuring range: -55 ° C ~ 120 ° C / -66°F~248°F
Resolution: 0.1 ° C
Accuracy:±1° C
Power supply: 110-220VAC 50/60Hz, 12V DC , 24V DC(Please choose power supply when ordering)
Power consumption: <3W
Storage temperature: -30 ° C ~ 75 ° C
Relative humidity: 20% ~ 85% (No condensate)
Relay contact capacity: 10A/240VAC; Heat 10A/240VA
Instruction:
Normal mode: The red digital tube on the left shows the real-time temperature, the blue digital tube on the right shows the set temperature.
Setting mode: The red digital tube on the left displays the setting mode, the blue digital tube on the right displays the setting contents.
How to set the start or stop temperature:
Press the "SET"button onace and the screen flashed,Press the "up" and "Down" button to set the temperature.
Long press "SET"button for 5 seconds to enter set Mode:
Code |
Function |
Set Range |
Default |
|
Start or Stop Temperature |
-55~120°C/-67~248°F |
0°C/68°F |
P0 |
Working mode |
H |
H/C |
P1 |
Return Difference set value |
0.2-30°C |
2°C |
P2 |
High temperature alarm value |
-55~120°C/-67~248°F |
120°C/248°F |
P3 |
Low temperature alarm value |
-55~120°C/-67~248°F |
-55°C/-67°F |
P4 |
Temperature calibration value |
-10.0°C~10.0°C |
0 |
P5 |
Compressor delay time |
|
