Description
Specifications:
Brand: STARPOWER
Model: QX-SL-01 / QX-SL-01-M

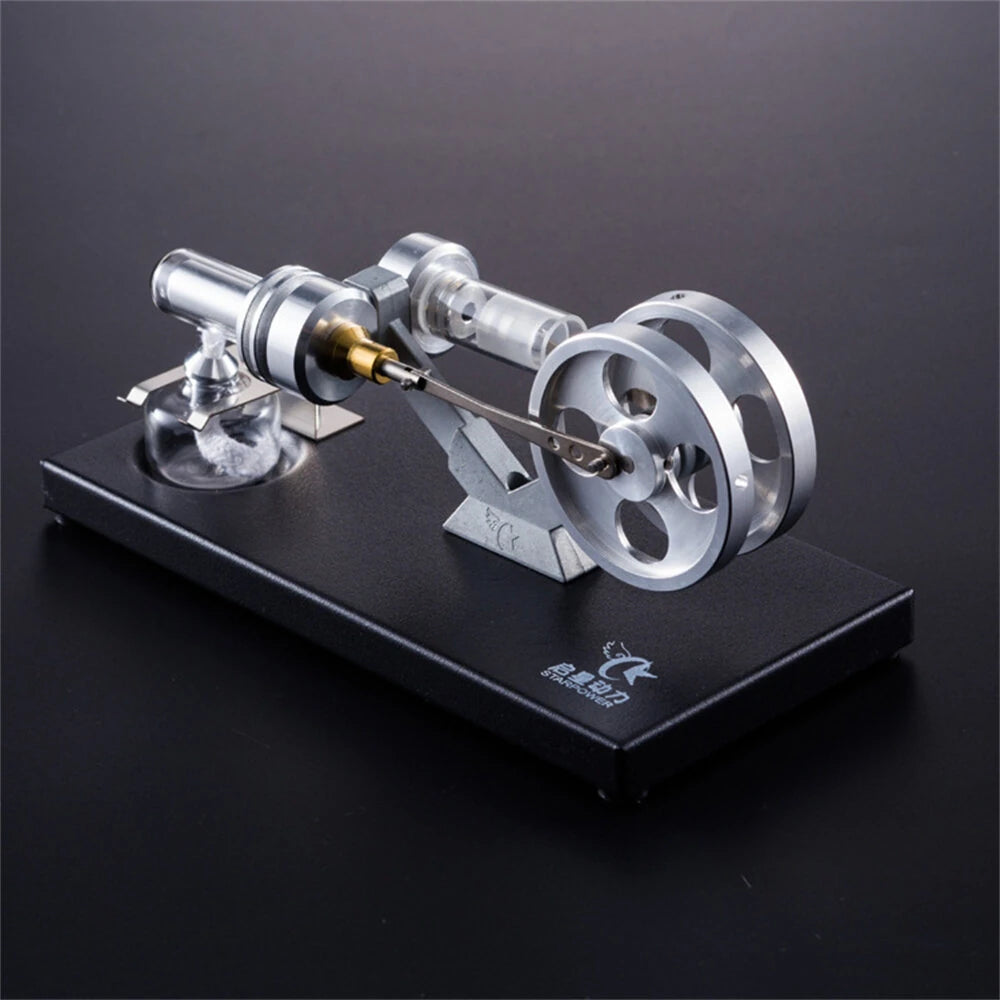

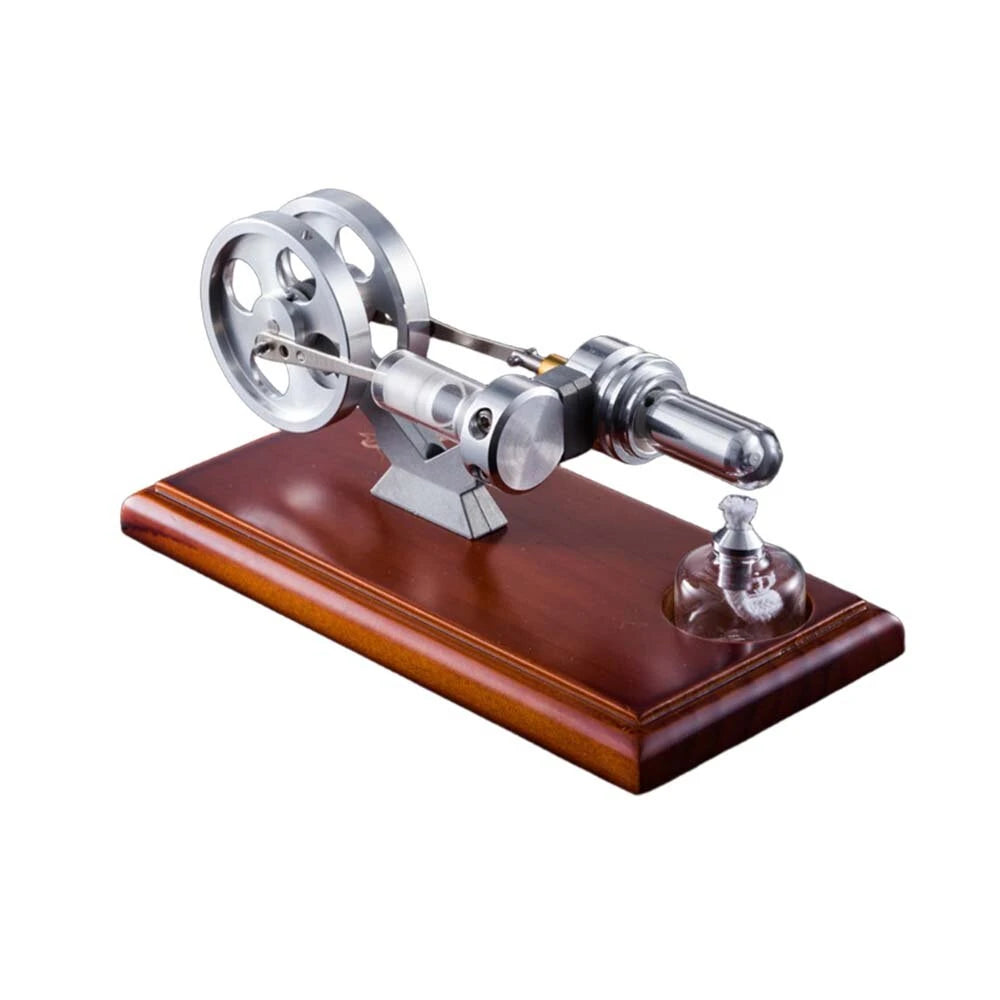

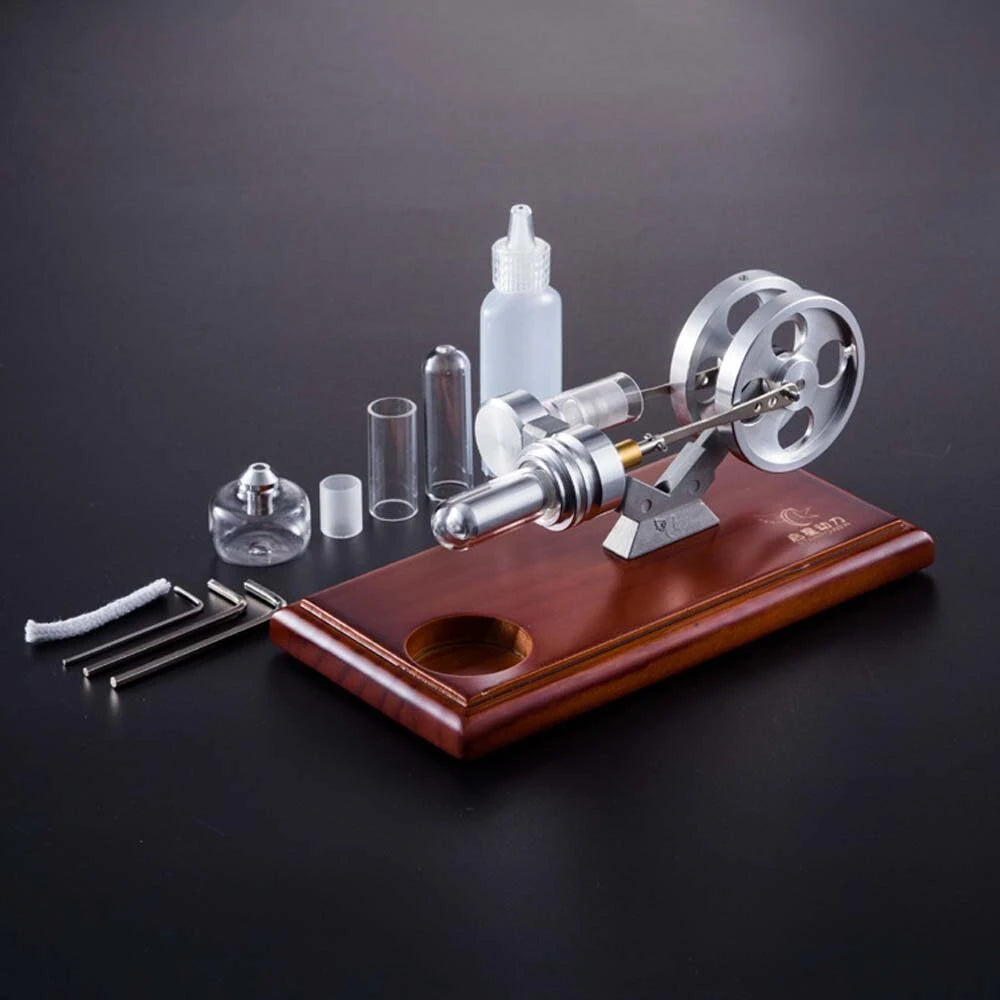

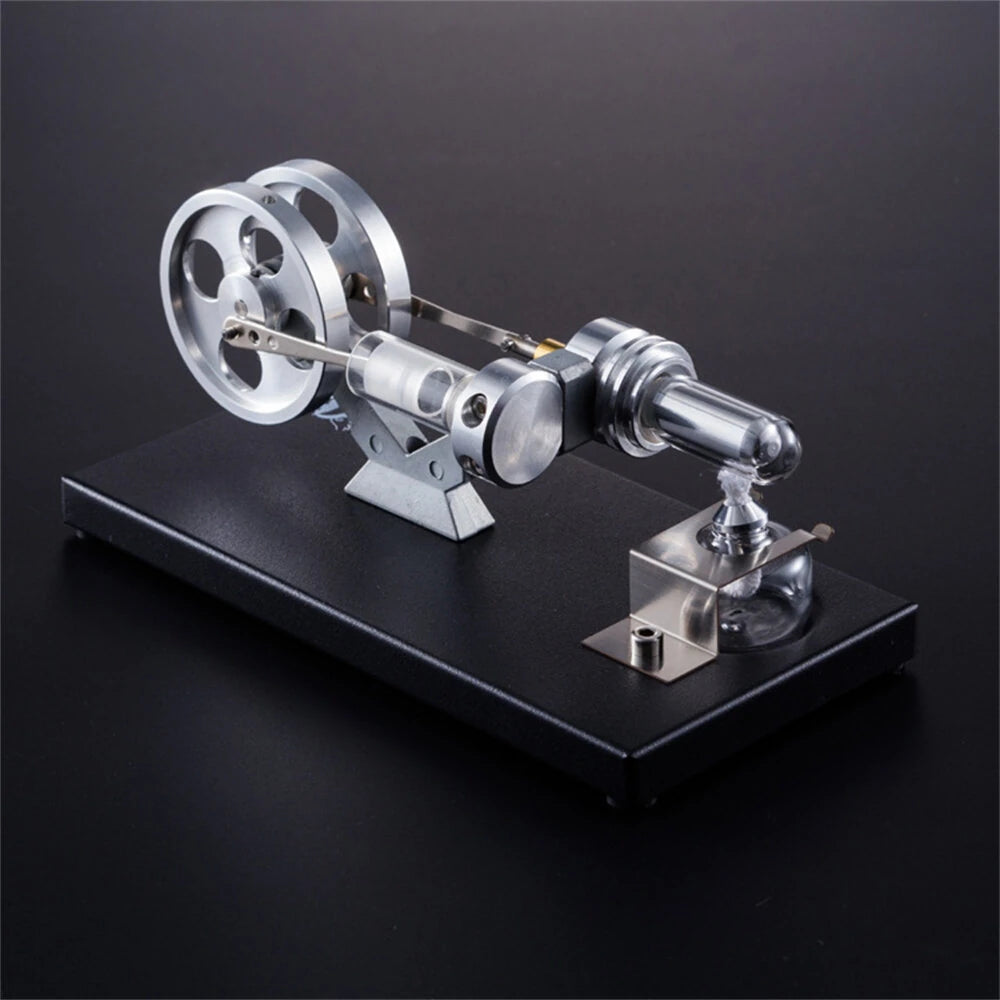

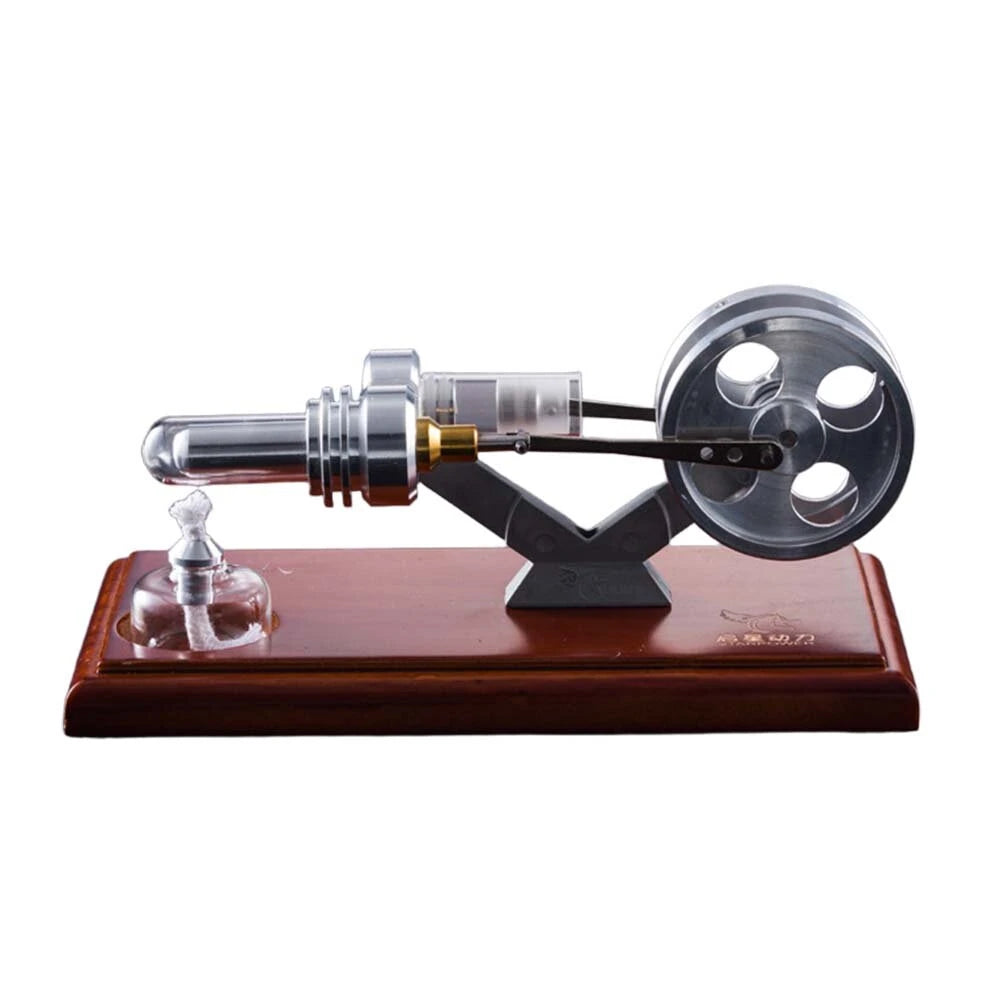

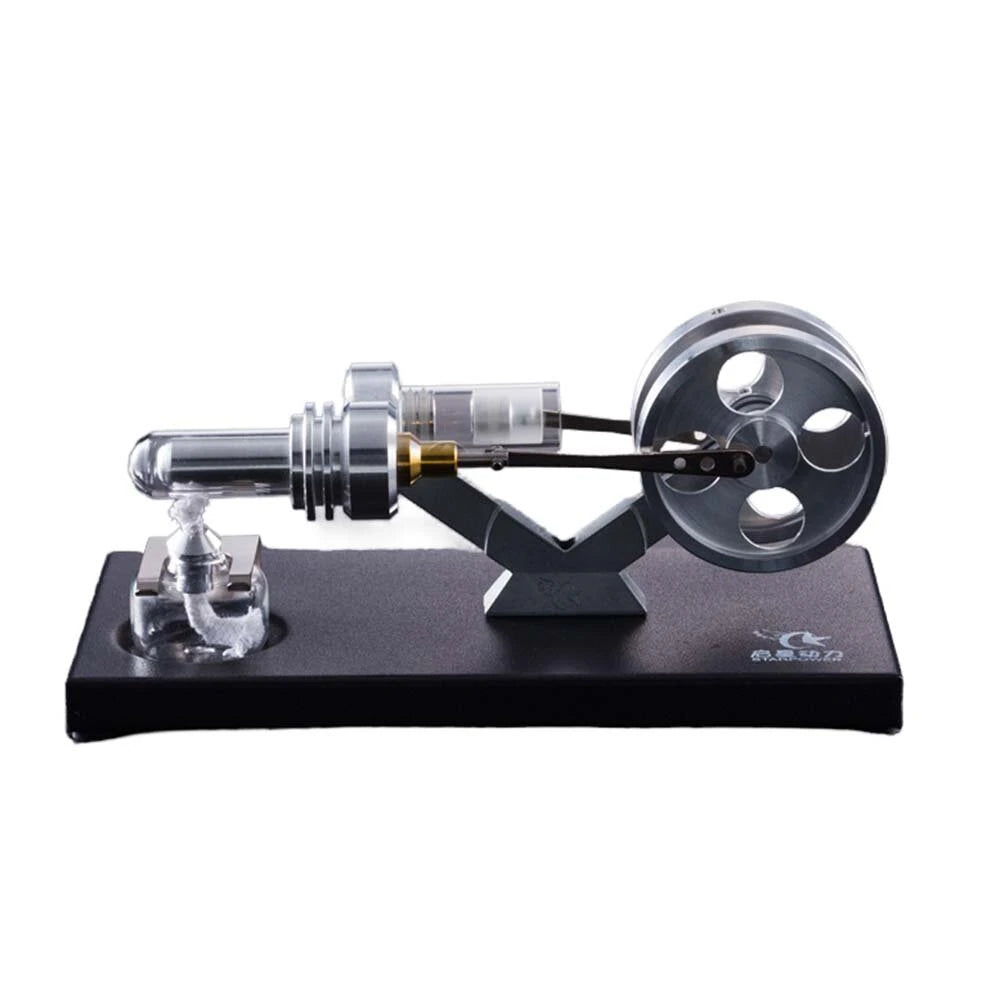

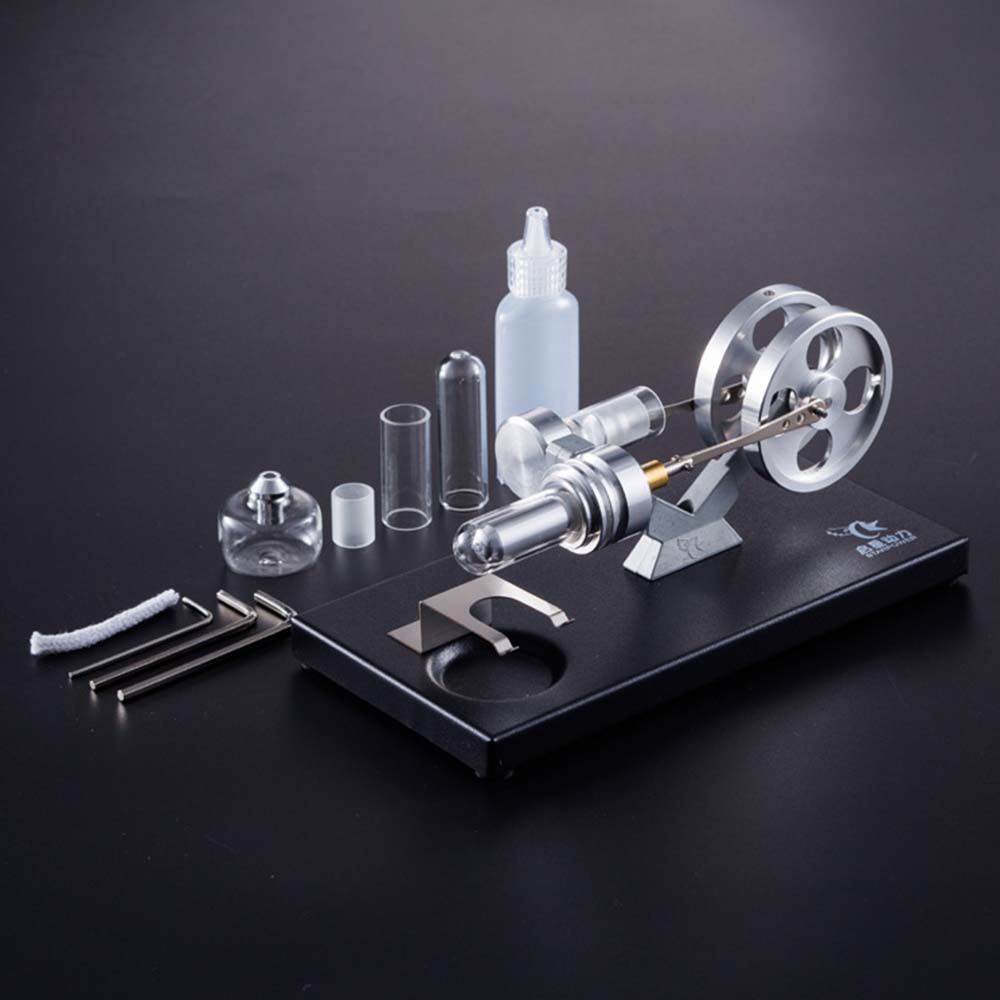

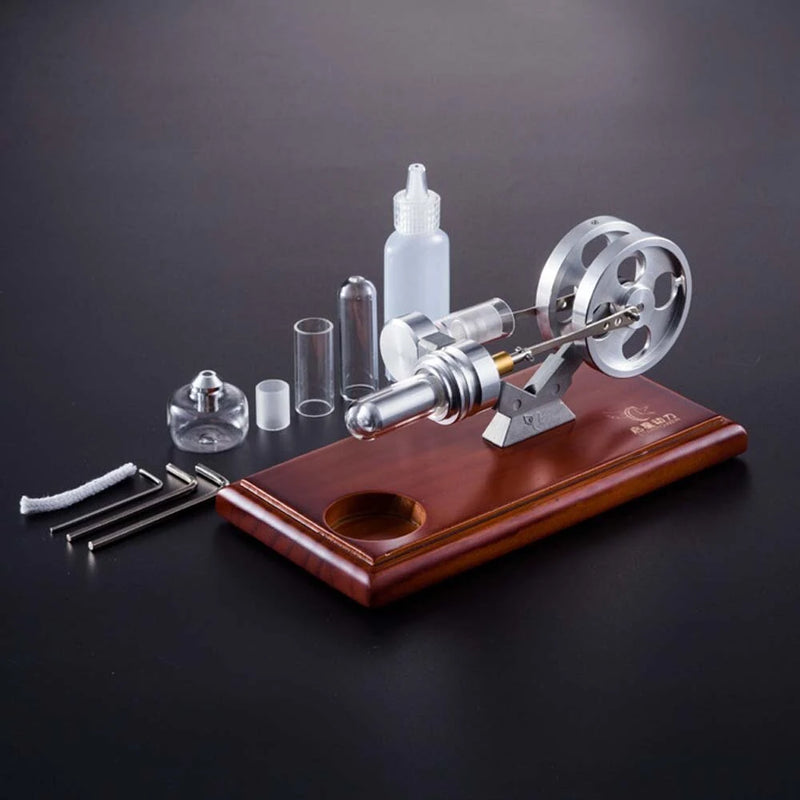

Product Name: Hot Air Stirling Engine Model

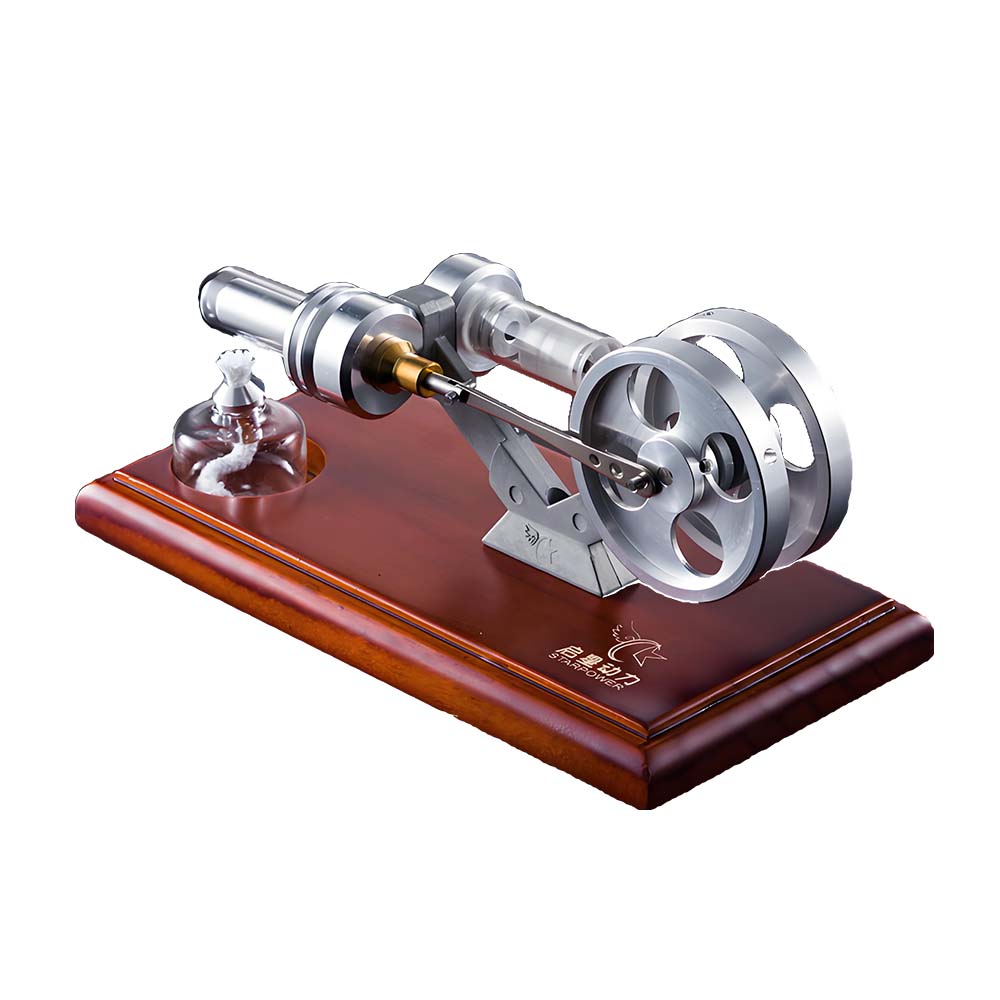

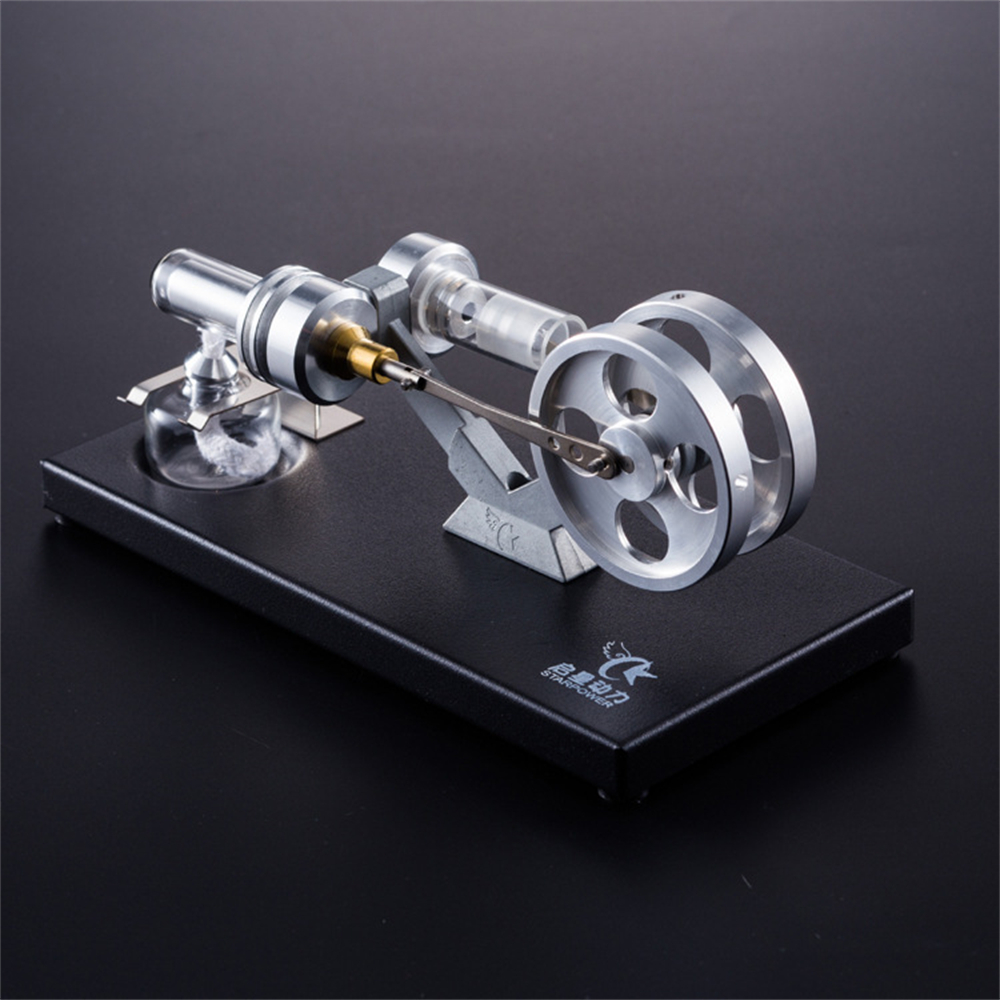

Version: Wooden Base / Metal Base (Optional)
Color:As Shown
Product Size:180*90*90mm
Product Weight:Wooden Base: 310g;Metal Base:380g
Package Size:200*110*115mm
Package Weight:0.35kg
Start-up steps:
1. Put the model on the horizontal surface; add some alcohol into the alcohol lamp2. Light the alcohol lamp; turn the flywheel by hand until the flywheel can automatically rotate3. In the process of start, move the alcohol lamp to let the model run to the best4. The height of the alcohol lamp wick should be no less than 15 mm, and you can adjust the wick height to achieve the best operation.Matters needing attention:
1. When heating, do not touch with your hands cylinder and heating portion.2. Avoid other liquid substances come into contact with cylinders in case of cylinder rustiness; extinguish alcohol lamp after finishing the demonstration.Maintenance plans (if the model is not running very well)1. Check if there is enough alcohol in the alcohol lamp.2. Check if the small and big wheel jackscrews loose or not.3. Too high temperature in the air cylinder because of the continuous heating for a period of time will affect the performance of the product.4. Check the valve position: the highest position of the flapper valve (2) is to cover one fourth of the valve port. 5. Check if the angle is correct or not: when the piston (7) lies in the innermost of the air cylinder, the small jackscrew (3) hole should be just facing the positioning port (6). If the position is wrong, please loosen the jackscrew; then tightly fix the jackscrew in the correct position.
Package included:
1 x Stirling Engine Model
