Description

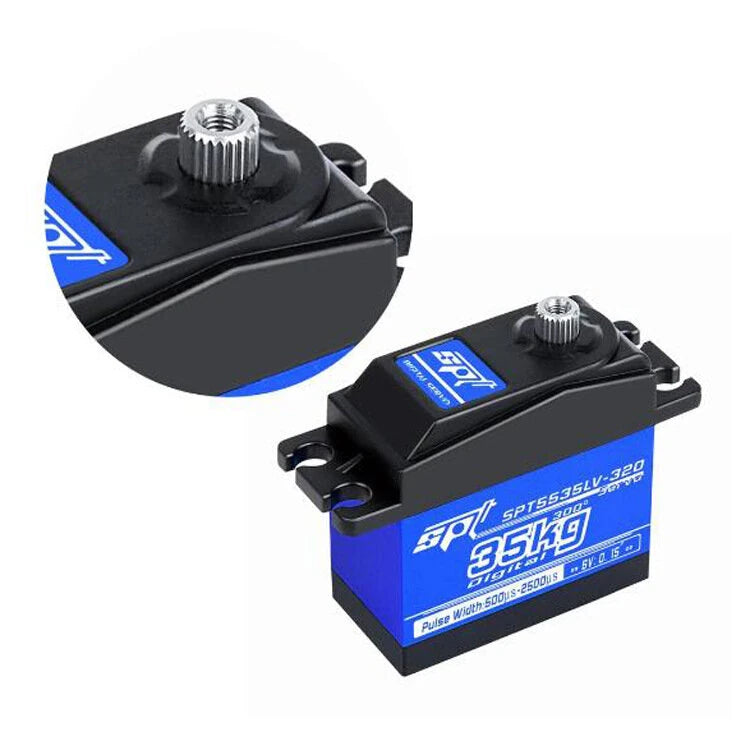

Specification:
Brand: SPT Servo
Potentiometer: Mechanics
Motor: Core
Voltage Range: 4.8V/6.0V
Neutral Point: 1500μs
Signal Frequency: 330Hz
PWM Voltage: 3.3V-5.0V
PWM Voltage: 3.3V-5.0V
Feedback Angle: Yes
Operating Temperature: -10℃-50℃
Cycle: 20ms
Dead band: 4μs
Default Direction: CW
Yes / no Lock: Lock
Remote control Angle: 150°
500-2500μs Angle: 300° / PWM
Quiescent Current: 100mAh
Rated Current: 1.4A
Blocking Current: 3.5A
Weight / Dimensions: 70g / 40.5*20*40.5mm
Output Gear: Futabas 25T
Gear Material: All Metal Gear
Shell Material: Half Aluminum Shell
Bearing: 2BB
Connector Wire Length: 260MM
line Definition: Brown-/Red+/Oranges
Operating Speed:
4.8V/0.16 ''/60° 6.0V/0.14 ''/60° /
Stall Torque:
4.8V/29 kg.cm 6.0V/35 kg.cm /
Features:
1. Powerful Torque: With a torque of 35KG, this servo motor provides strong and reliable performance for your remote control cars and robots.
2. High-Speed Performance: This servo motor is designed for high-speed applications, allowing for quick and precise movements.
3. Waterproof: The waterproof feature protects the servo motor from water damage, making it suitable for outdoor use.
4. Digital Control: The digital servo provides more accurate and responsive control, enhancing the overall performance of your vehicles.
Package Included:
1x Servo

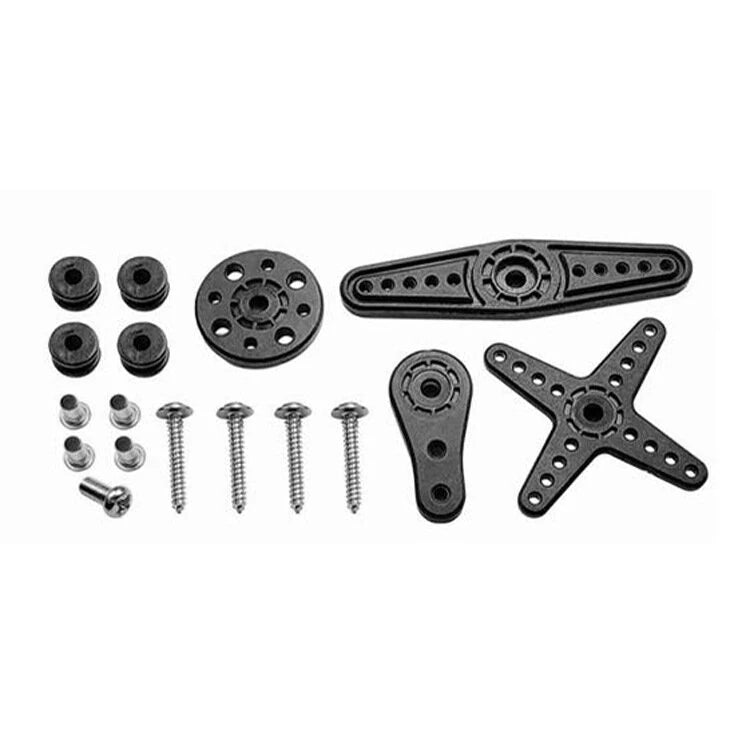

1 set x Accessories
