Description
Specifications:
Brand: SpeedyBee
Model: Master 5 V2

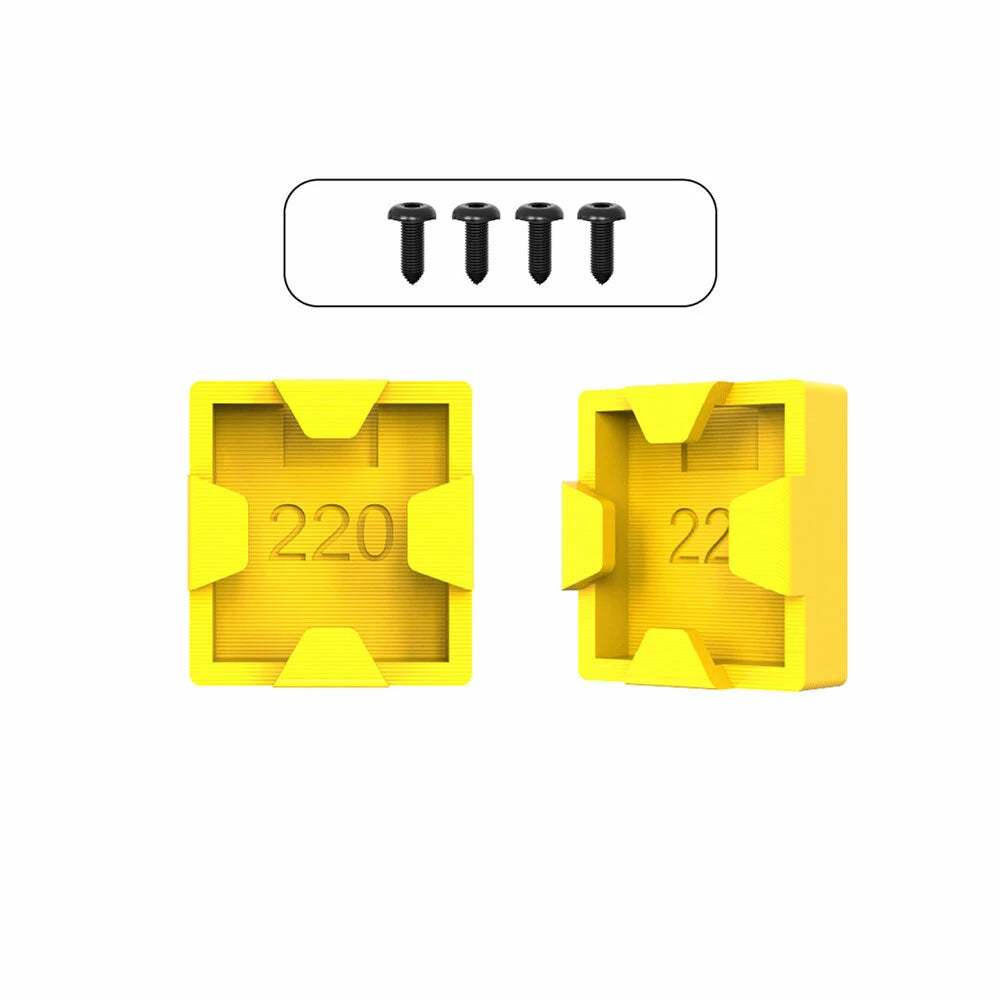

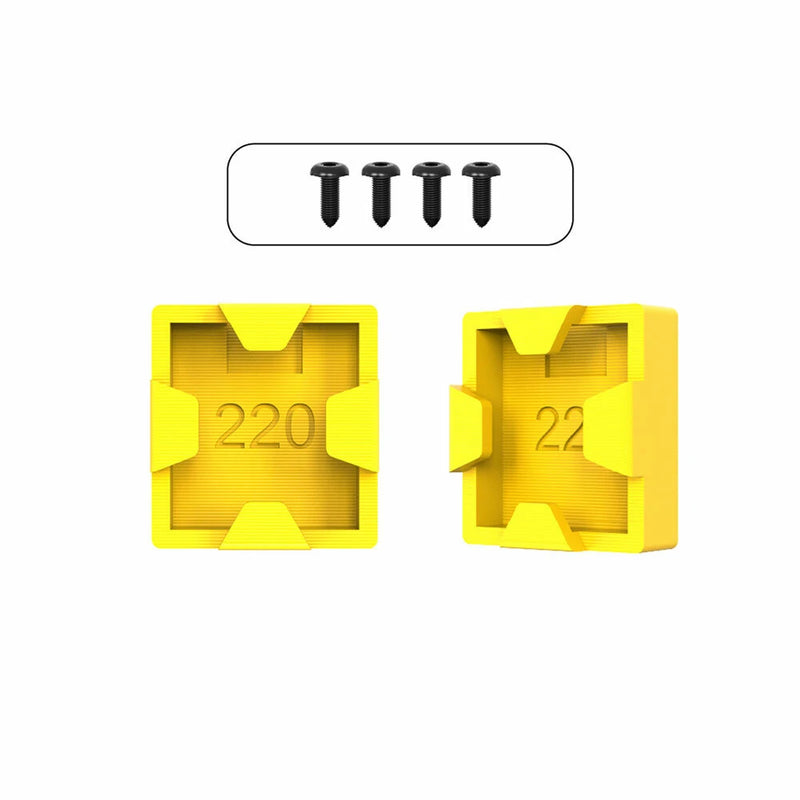

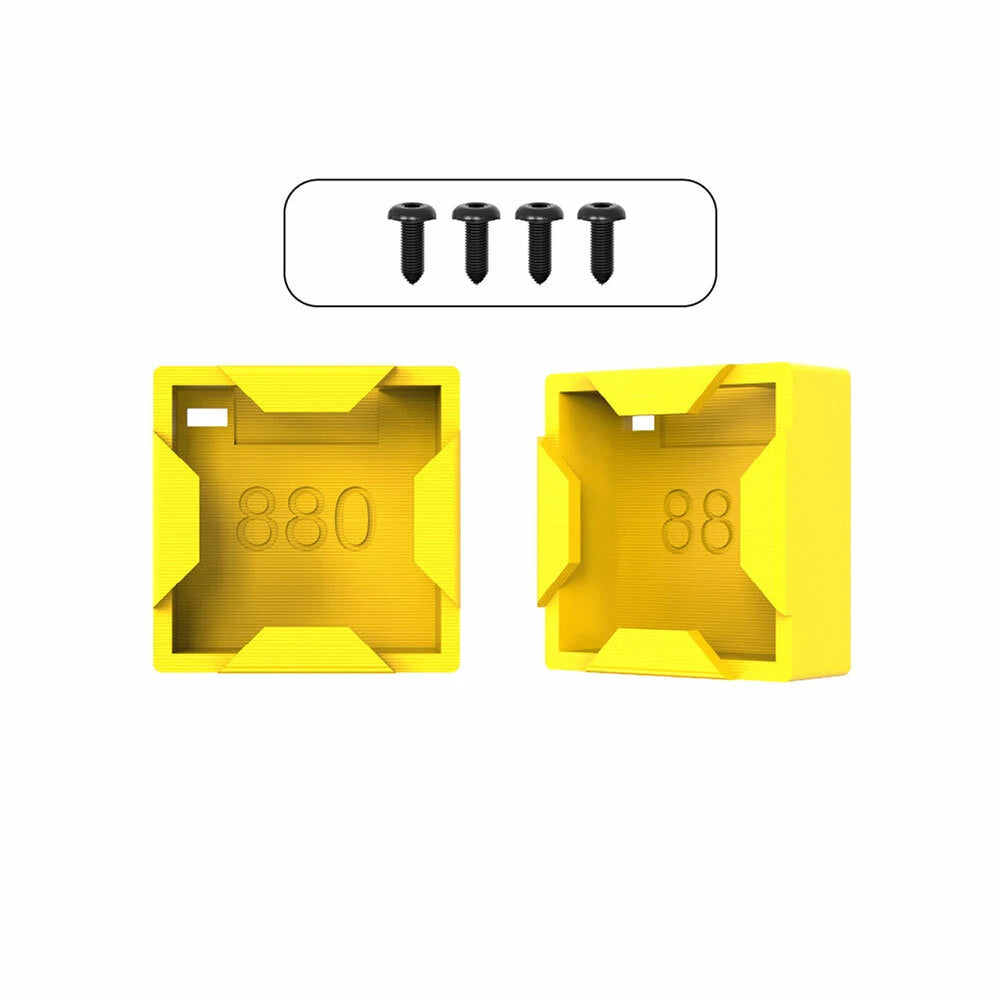

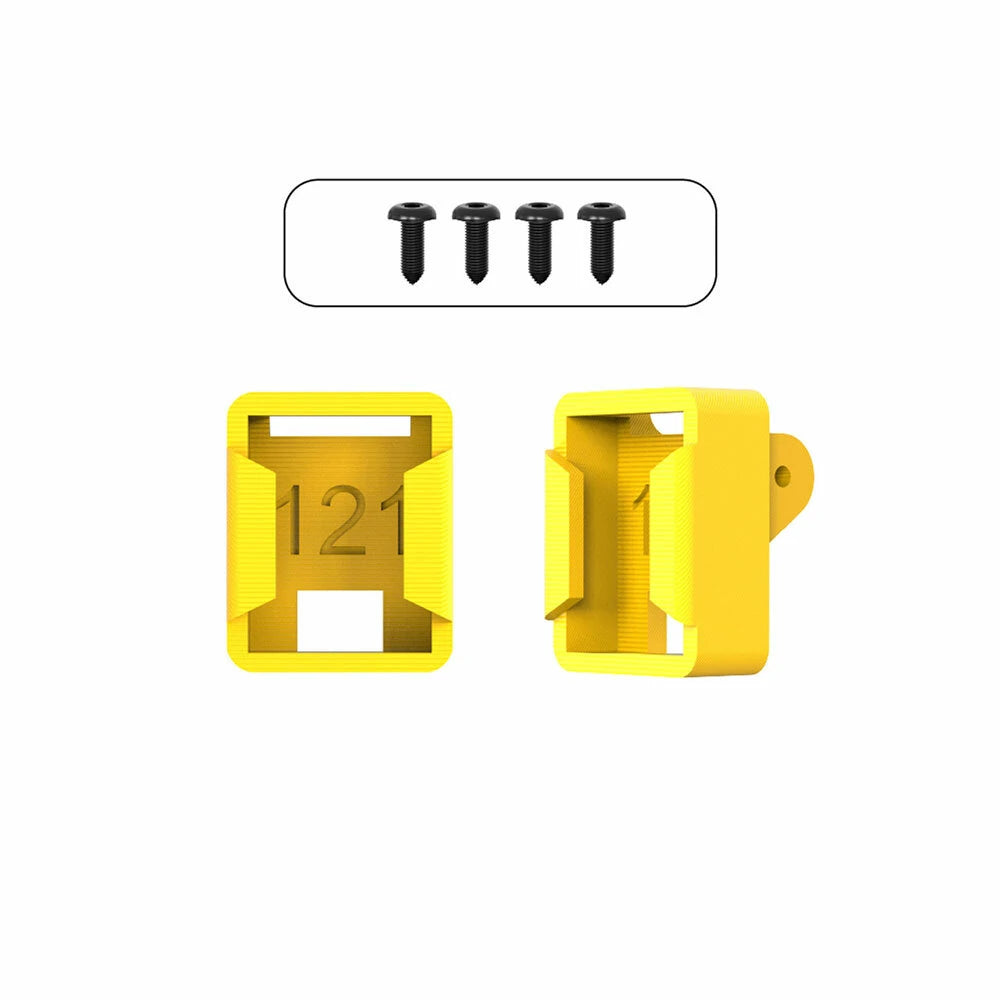

Optiona Version: Empty Frame Kit/Receiver Base/Capacitor & Beeper Base/ 121/181/220/151/880GPS Mount/

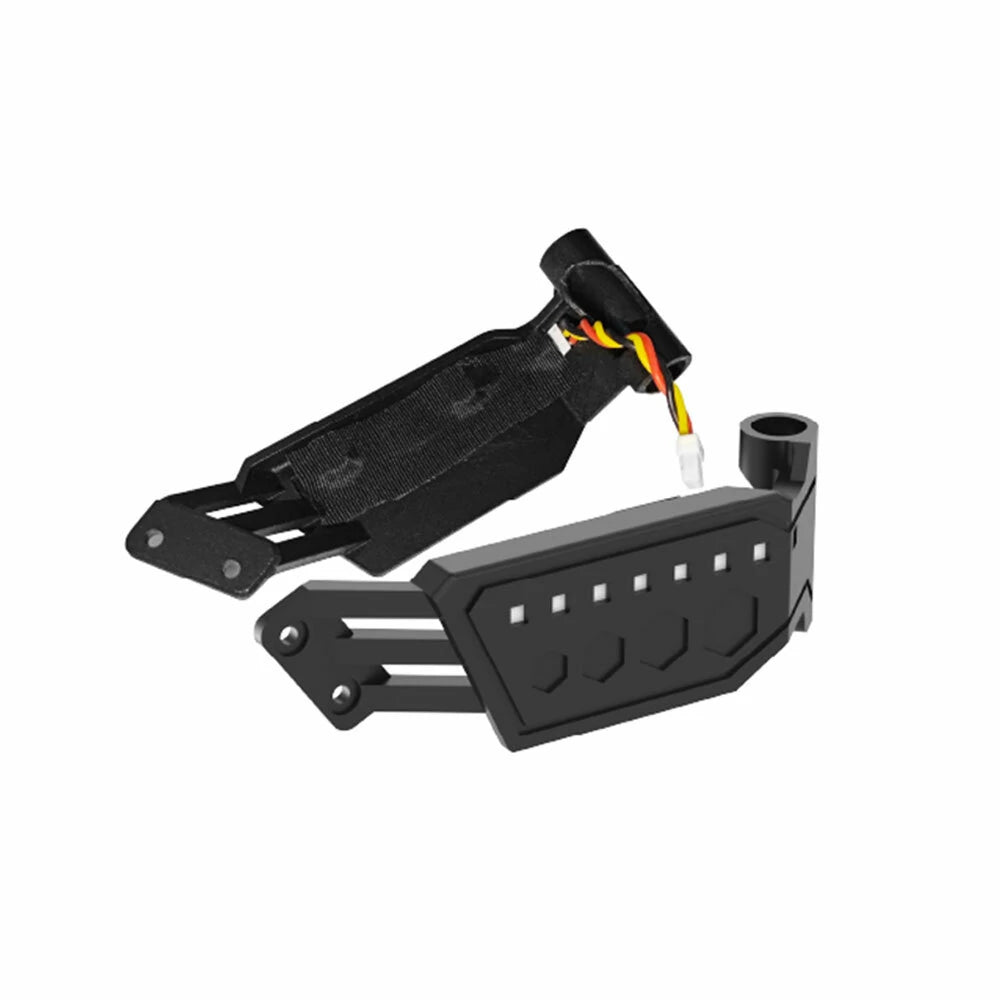

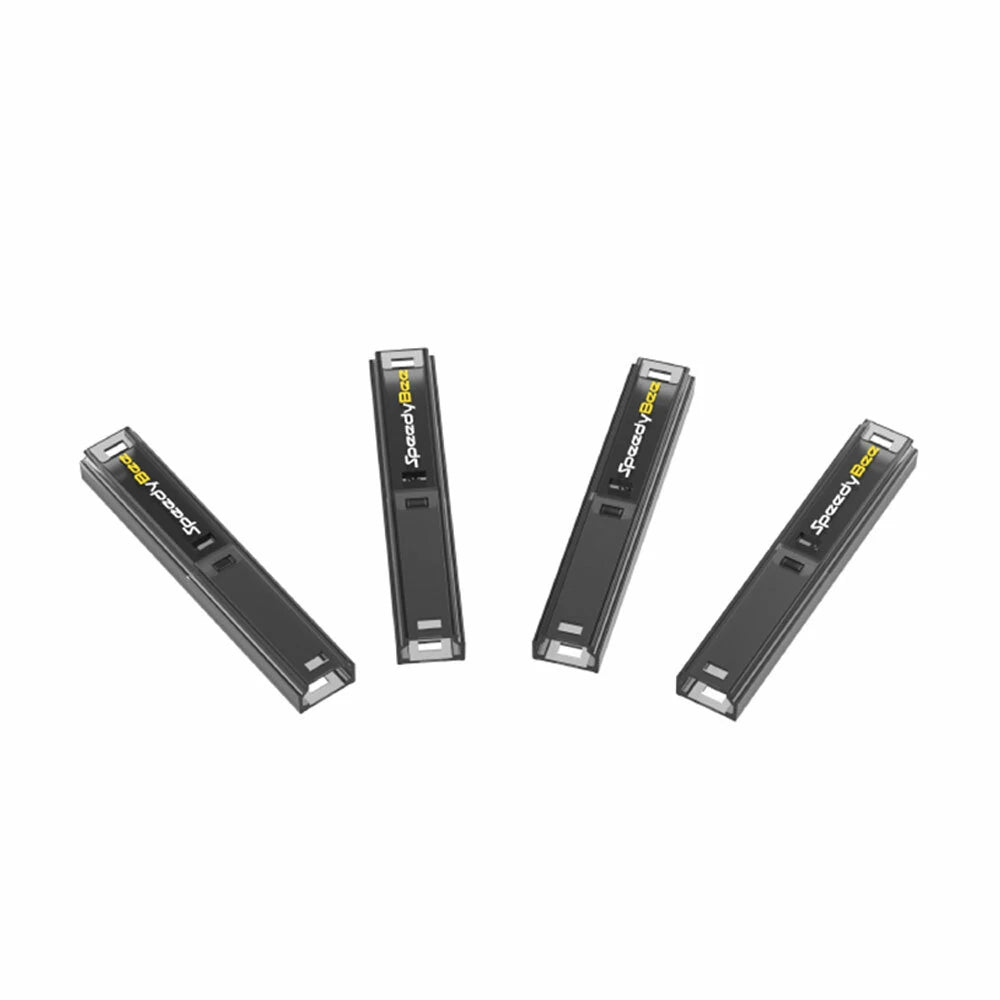

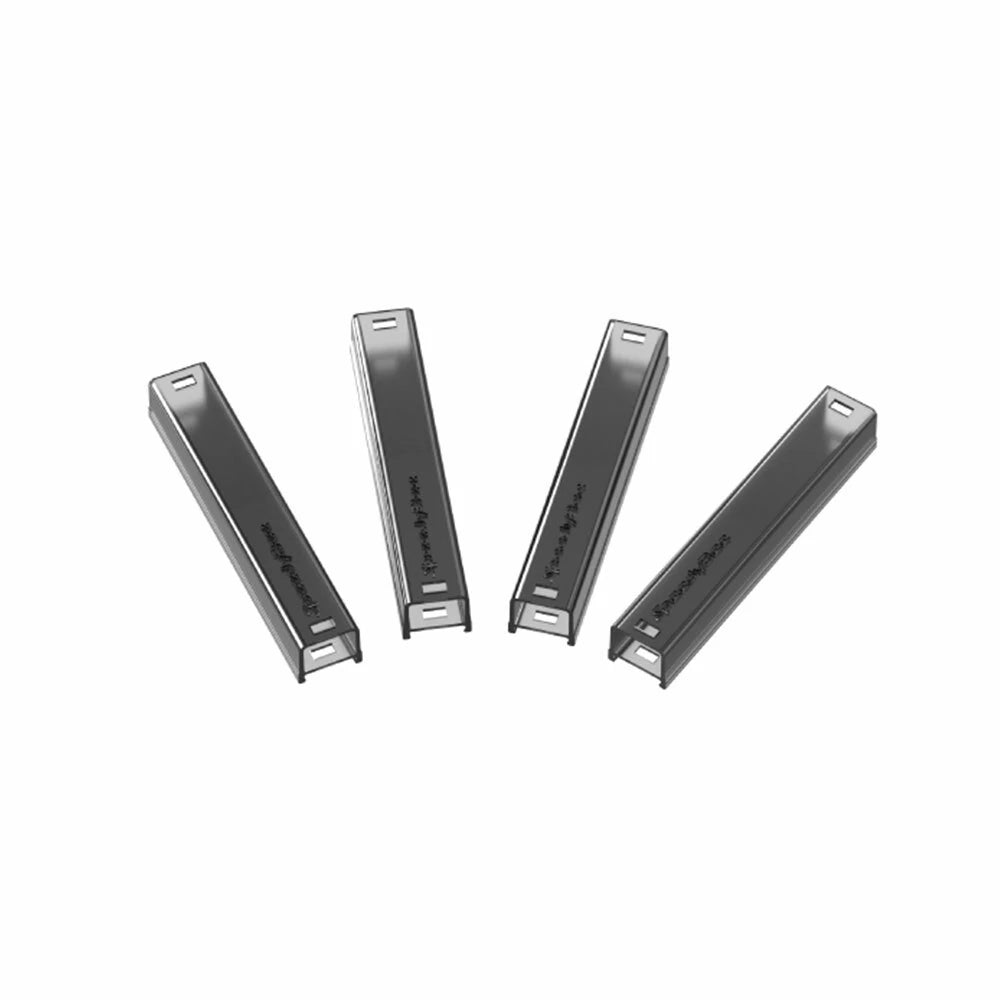

Antenna Base for DJI O3 /LED Protective Tube/Motor Wire Protective Sleeve/Stack Side Plate
Frame Kit Specification
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Frame |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Master 5 V2 |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Wheelbase |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>226mm |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Weight |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>About 140g (non-3D printed parts included) |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Top plate thickness |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>2.5mm(T300 3K) |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Middle plate thickness |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>2mm(T300 3K) |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Bottom plate thickness |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>2.5mm(T300 3K) |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Arm thickness |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>5mm(T300 3K) |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Camera side plate thickness |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>2mm TUPC |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Anti-vibration stack structure hardness |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Yellow HB80、Translucent HB50 |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>3D printed part |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Yellow TPU |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Motor circlip spacing |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Φ8mm |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Compatible propellers |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>5-5.1 inch |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Mounting holes for motors |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>16*16mm |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>FC mounting hole |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>30.5×30.5(M3) & 20×20mm (M3) |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Drone head |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>7075 CNC aluminum alloy |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Aluminum standoff |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>7075 M3*23mm*(6mm/4.7mm)、M3*23mm*(4.6mm) |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Internal installation height |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>23-30mm |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Standard antenna installation supporT |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>SMA (single), 4mm for DJI O3, RunCam Link |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Standard GPS base size |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>18*18*8mm (other size requiresan additional purchase) |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Rear Support Mounting Holes |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>20*20mm - 25.5*25.5mm - 30.5*30.5mm |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Detachable stack protective plate RGB LED |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'> included |
