Description
Product Introduction Clink Here.
Note: The Master 3X Power Version without Camera and VTX.
Description:

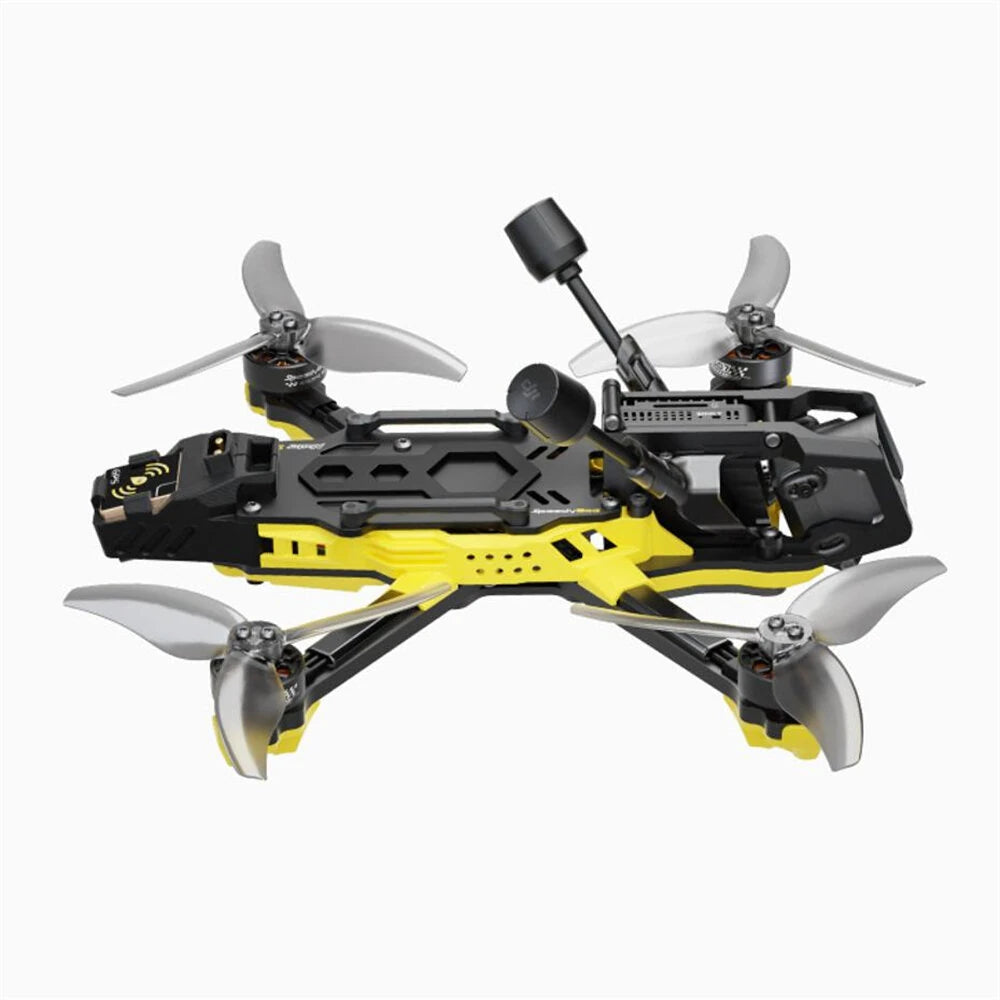

Born from SpeedyBee's modular DNA. Compatible with Bee25 head modules - upgrade endlessly,not replace endlessly. With a innovative balanced head mount, X-frame low-CG aggression, and seamless freestyle-to-cine fluidity, the Master 3X redefines FPVfreedom for rule-breaking pilots.
Specification:
Brand: SpeedyBee
Model: Master 3X
Item Name: 4S Power / O4 Pro Version FPV Drone (Optional)
Model |

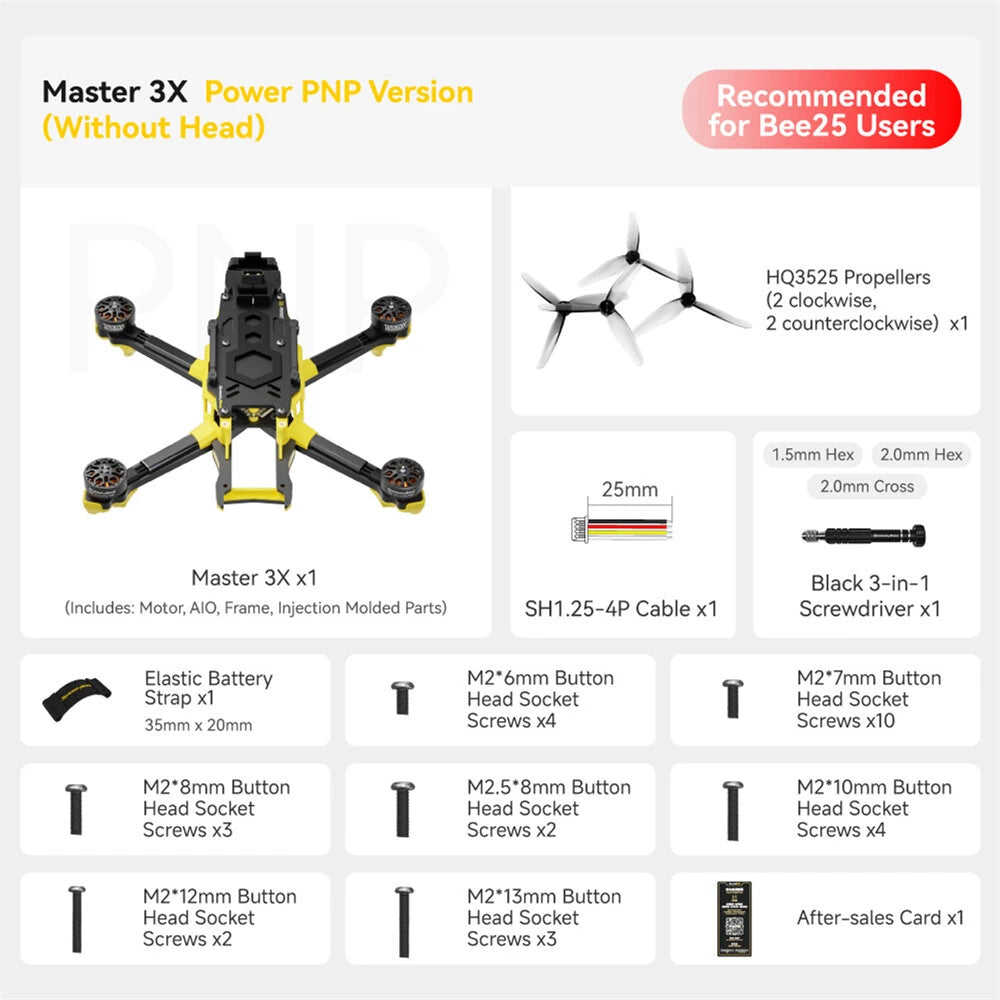

Power PNP Version (Without Head) |

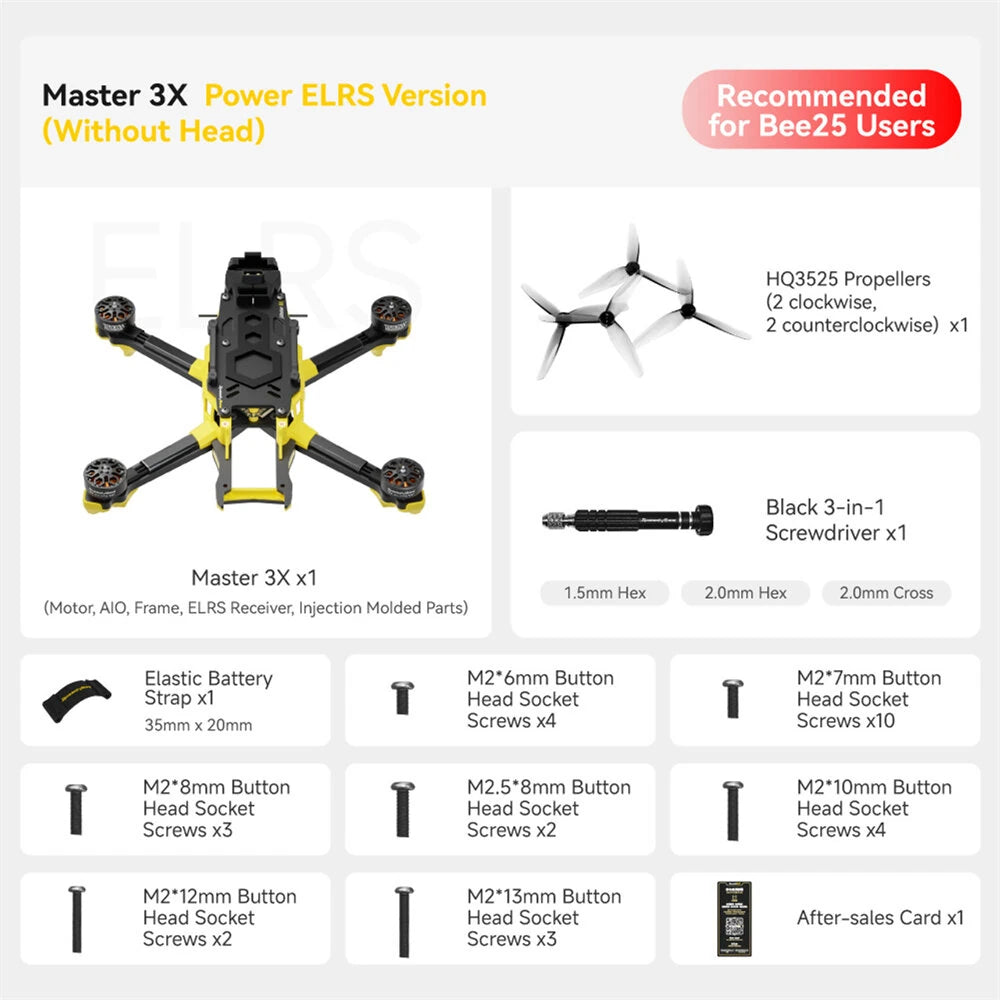

Power ELRS Version (Without Head) |

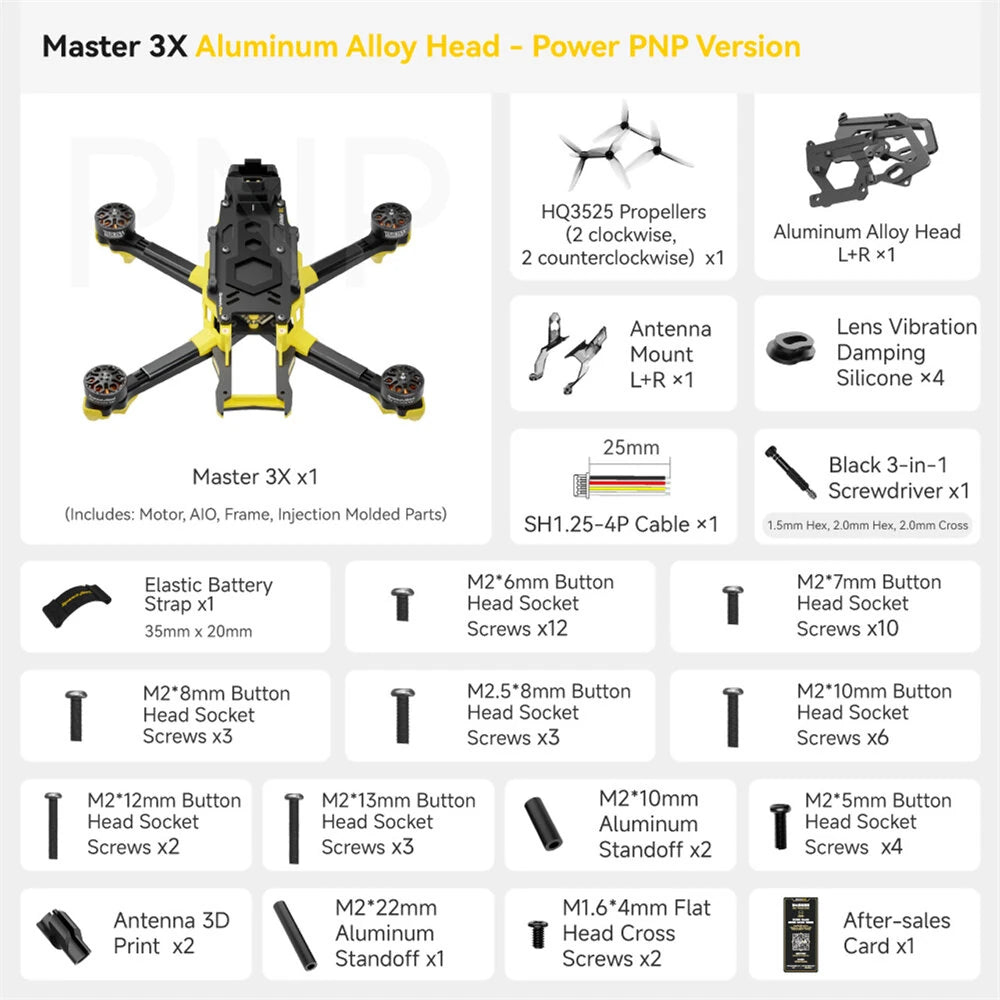

Power PNP Version (Aluminum Head) |

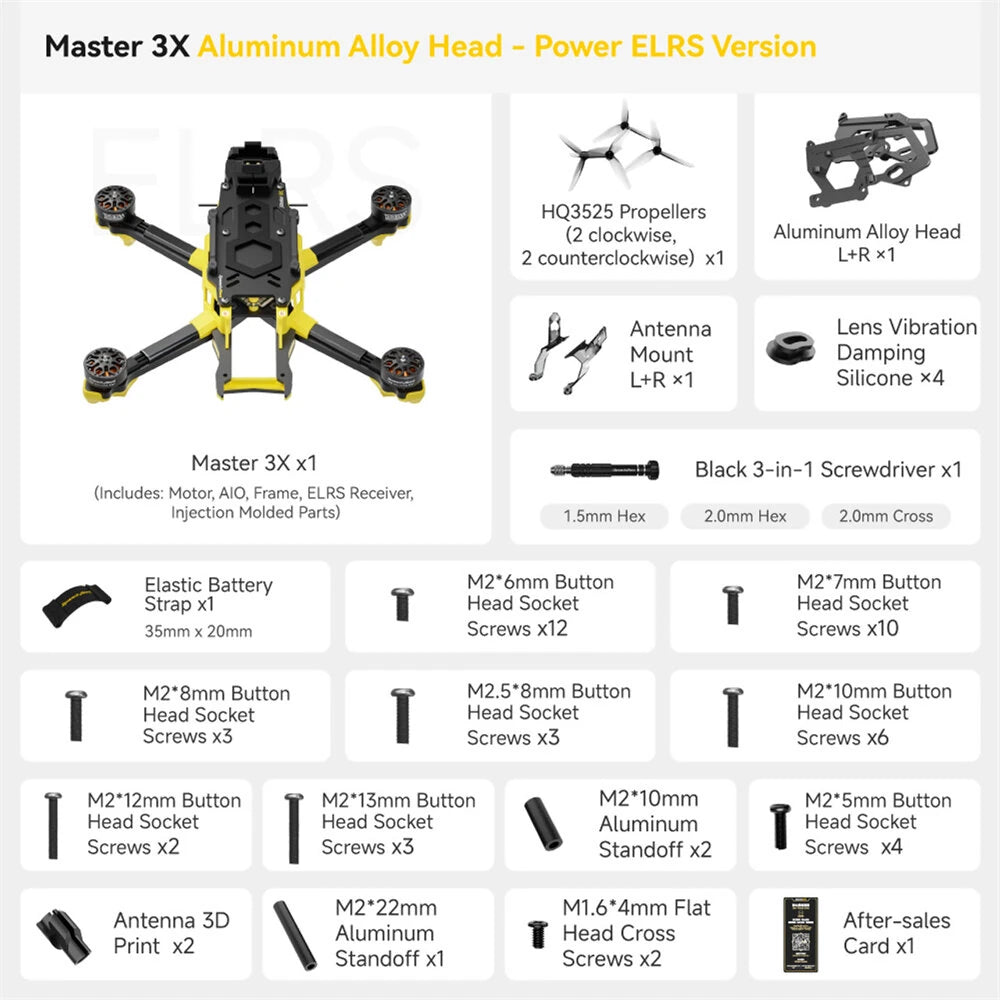

Power ELRS Version (AluminumHead) |

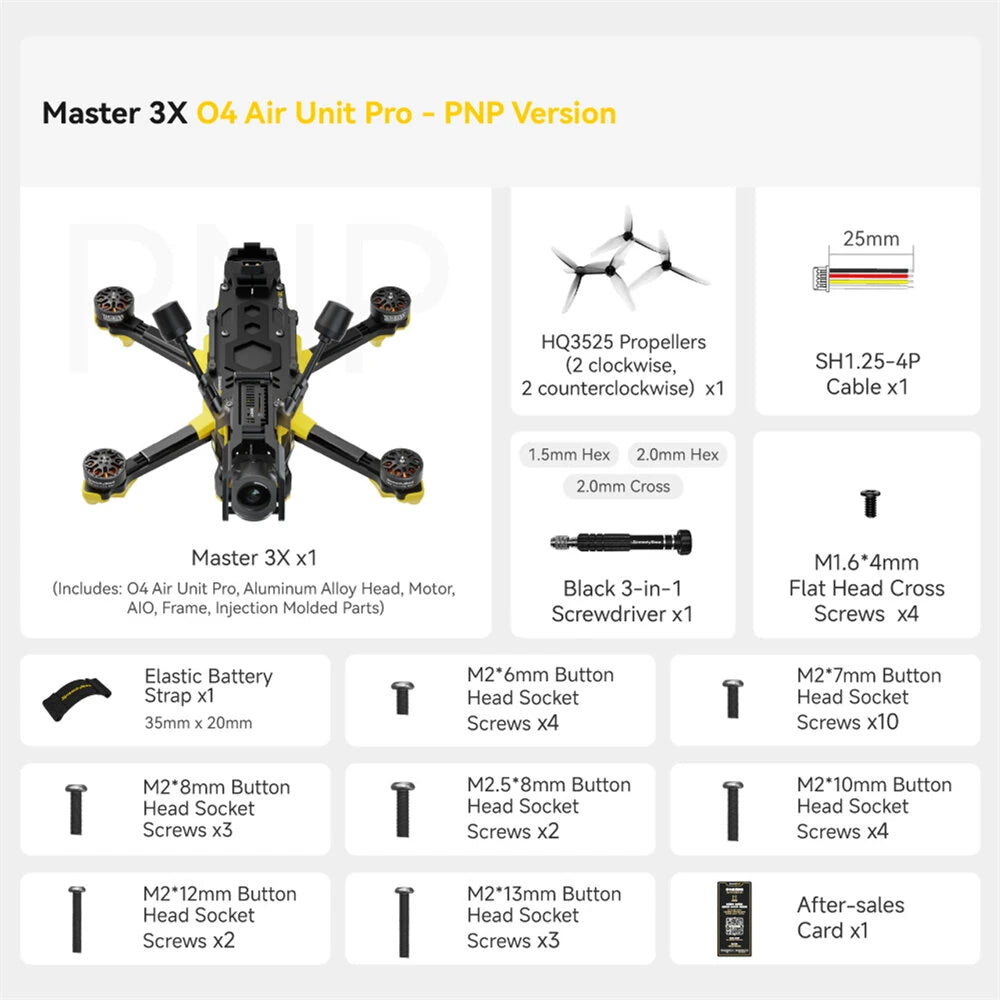

O4 Pro PNP Version |

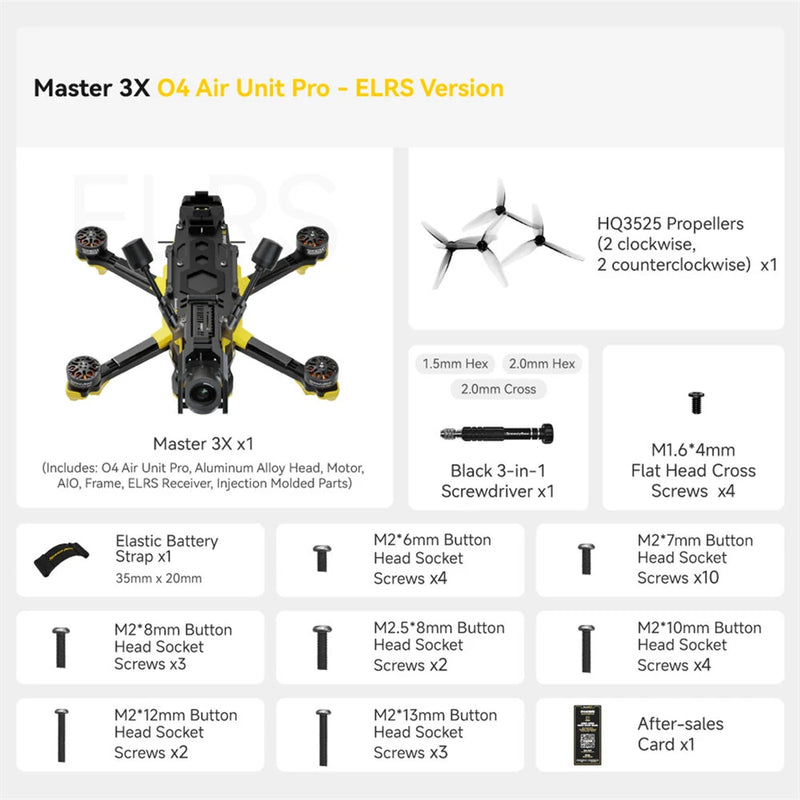

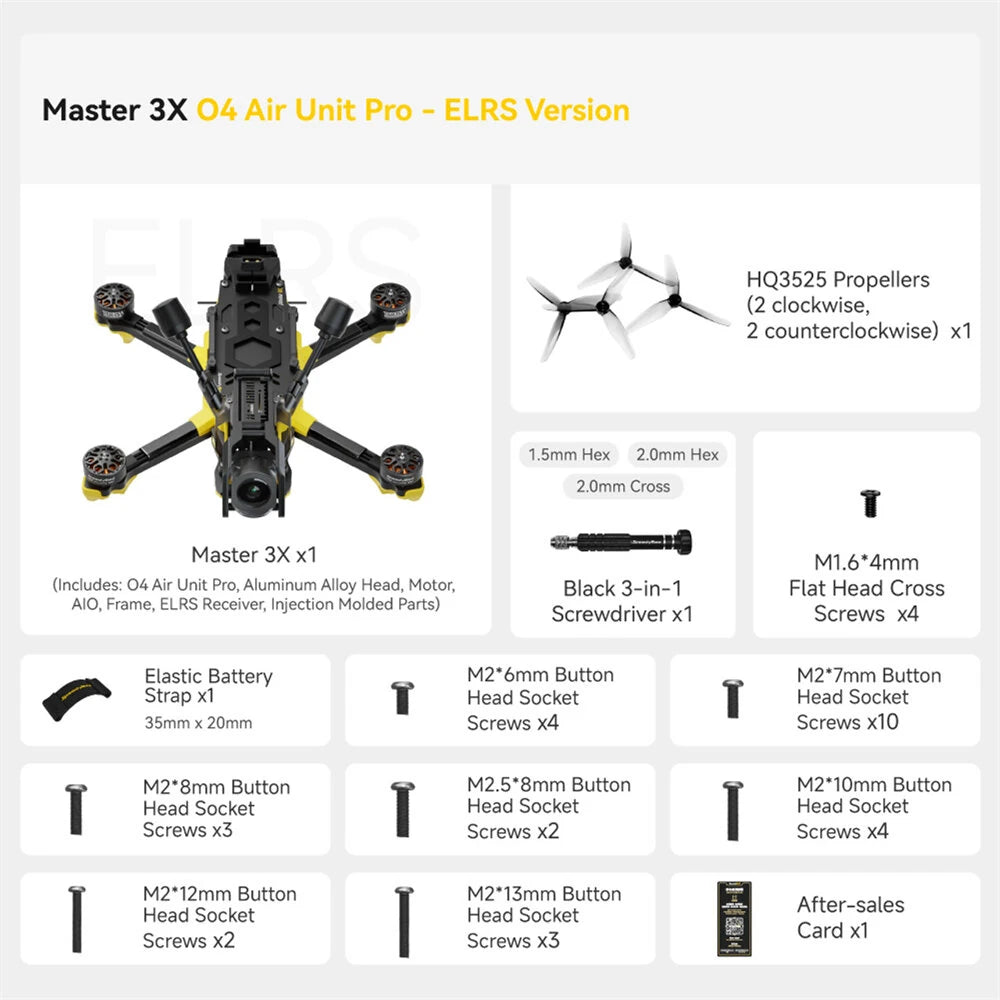

O4 Pro ELRS Version
|
Frame |
SpeedyBee Master 3X Frame |
|||||
Wheelbase |
171mm |
|||||
Top Plate Thickness |
2.0mm |
|||||
Middle Plate Thickness: |
2.0mm |
|||||
Bottom Plate Thickness |
2.0mm |
|||||
Arm Thickness |
4.0mm |
|||||
Flight Controller |
STM32F405 |
|||||
ESC |
40A 8-bit ESC (with Bluejay firmware) |
|||||
Motors |
SpeedyBee 1507 3600KV |
|||||
Gyroscope |
ICM 42688-P |
|||||
Bluetooth |
Supported for flight controller tuning |
|||||
OSD Chip |
AT7456E |
|||||
Black Box |
8MB |
|||||
Propellers |
HQprop 3525 |
|||||
Battery Connector |
XT30 |
|||||
Max Supported Battery Size |
64mm (L) × 31mm (W) × 40mm (H) |
|||||
Voltage Input |
4S Lipo/LiHv(Recommended: 750mAh-1100mAh) |
|||||
GPS Supported Dimensions |
18.1*18.1mm (Other sizes require replacement of printed parts) |
|||||
Receiver |
None |
SpeedyBee ELRS 2.4G |
None |
SpeedyBee ELRS 2.4G |
None |
SpeedyBee ELRS 2.4G |
VTX |
None |
None |
None (Compatible with O4 Pro Air Unit ) |
None (Compatible with O4 Pro Air Unit ) |
||
