Description
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>
Specifications:
|
Product Name |

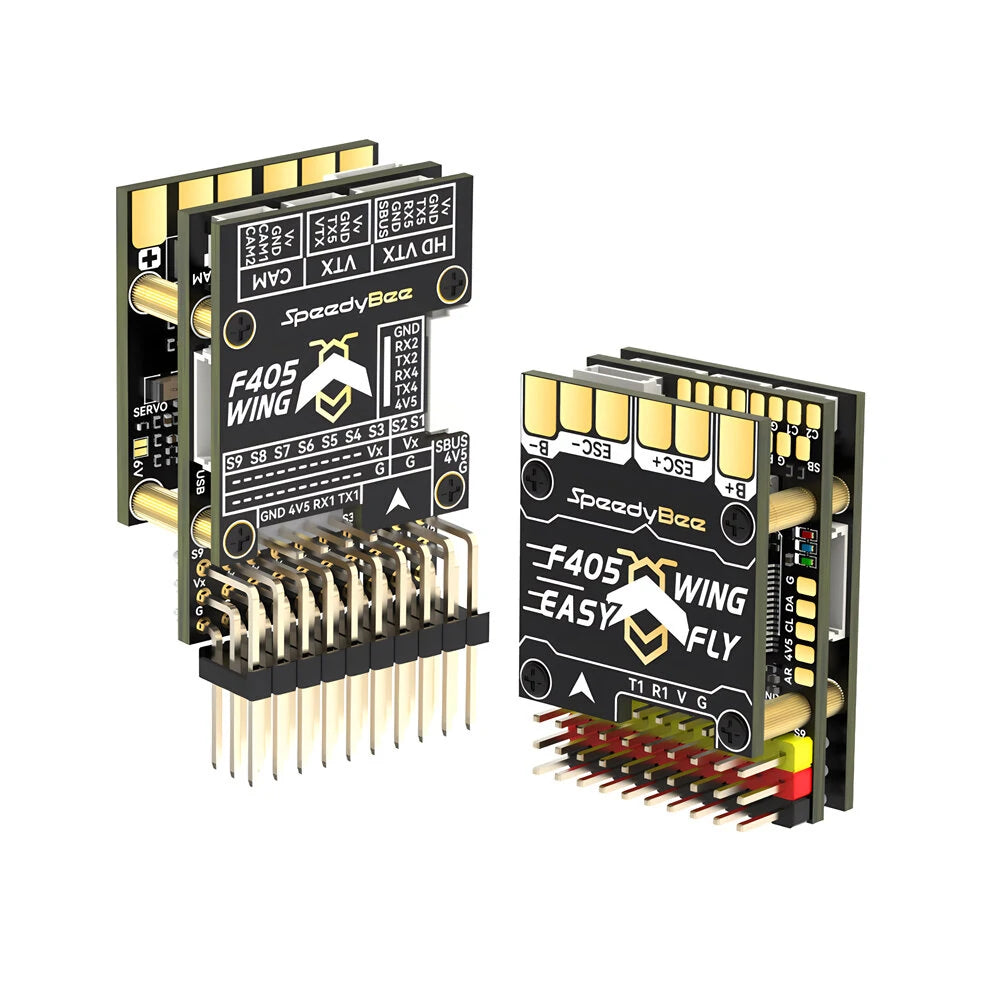

SpeedyBee F405 WING MINI FC board |
| MCU |
STM32F405, 168MHz, 1MB Flash |
| IMU(Gyro&Accelerometer) |
ICM-42688-P |
| Barometer |
SPL006-001 |
| OSD Chip |
AT7456E |
| Blackbox |
MicroSD Card Slot |
| UART |
6 sets (USART1, USART2, USART3, UART4, UART5, UART6 - Dedicated for Wireless board Telemetry connection) |
| I2C |
1x Used for magnetometer, digital airspeed sensor |
| ADC |
4x (VBAT, Current, Analog RSSI, Analog AirSpeed) |
| PWM |
12x (9x pin headers + 2x solder pads + 1x 'LED' pad) |
| ELRS/CRSF Receiver |
Supported, connected to UART1 |
| SBUS |
Built-in inverter for SBUS input (UART2-RX) |
| LED |
3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator (Red) |
| Analog RSSI |
Supported, Named as 'RS' |
| Dual Analog Camera Switching |
Default to Camera1 Video Input (C1). Switch between C1 and C2 using ArduPilot Relay or INAV Modes/USER. |
| Supported FC Firmware |
INAV: SpeedyBeeF405WING (default) ArduPilot: SpeedyBeeF405WING |
| Weight |
5.6g |
|
Product Name |
SpeedyBee F405 WING MINI PDB board |
| Input voltage range |
7~26V (2~6S LiPo) |
| Battery Voltage Sensor |
Connect to FC board VBAT, 1K:10K (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot) |
| Battery Current Sensor |
80A continuous, 150A peak Connect to FC board Current (Scale 195 in INAV, 50 A/V in ArduPilot) |
| TVS Protective diode |
Yes |
| FC BEC output |
Output 5.2V +/- 0.1V DC Continuous current 2 Amps, 3A Peak Designed for FC, Receiver, GPS module, AirSpeed Sensor, Telemetry module |
| VTX & Camera power supply |
The VTX power interface Vv offers two power supply options: direct battery voltage or integrated BEC 5V (sharing the 5V4A Servo BEC voltage) |
| Servo BEC output |
Output 5V +/- 0.1V DC Continuous current 4 Amps, 5A Peak Voltage adjustable, 5V Default, 6V via jumper Designed for Servos. |
| Weight |
5.5g |
|
Product Name |
SpeedyBee F405 WING MINI Wireless USB Extender |
|
Wireless Configuration (long press BOOT button for 6 seconds to switch modes) set to a baud rate of 115200 ArduPilot:Please make sure the Serial 6 is set to baud rate 115200 and protocol Mavlink2 |
BLE mode, connect to Speedybee APP |
|
Wi-Fi (AP)mode, able to connect to Speedybee APP, QGroundControl APP, MissionPlanner, etc. WiFi: Speedybee eFLY-WIFI Password: 88888888 |
|
|
Wi-Fi (STA)mode, able to connect to QGroundControl APP, MissionPlanner, etc. |
|
| Wireless off mode |
|
| USB Port Type |
Type-C |
| Buzzer |
5V Active Buzzer |
| Weight |
3.2g |
English Manual, Click Here
AP4.3.7 Firmware WithPinio, Click Here
INAV7.0.0 Firmware WithPinio, Click Here
Package Included:
1x F405 WING MINI PDB board
1x F405 WING MINI FC board
1x F405 WING MINI Wireless USB Extender
1x F405 WING MINI Custom-Install Shield Board
1x F405 WING MINI Standard-Install Shield Board
1x 90 Degree pin Header(3×10)
3x Straight pin Header(1×10)
5x M2 × 6.5 copper Standoff Spacer
10x M2×3.5 small head cross screw
1x White straight pin header(1×4)
5x M2x3+3copper Standoff Spacer
1x 35V 470uF Low ESR Capacitor
1x 8pin-SH1.0mm Wireless USB Extender Cable (150mm)
1x 4pin-SH1.0mm Analog VTX Cable (300mm)
1x 6pin-SH1.0mm GPS Module Cable without Connector on another end (250mm)

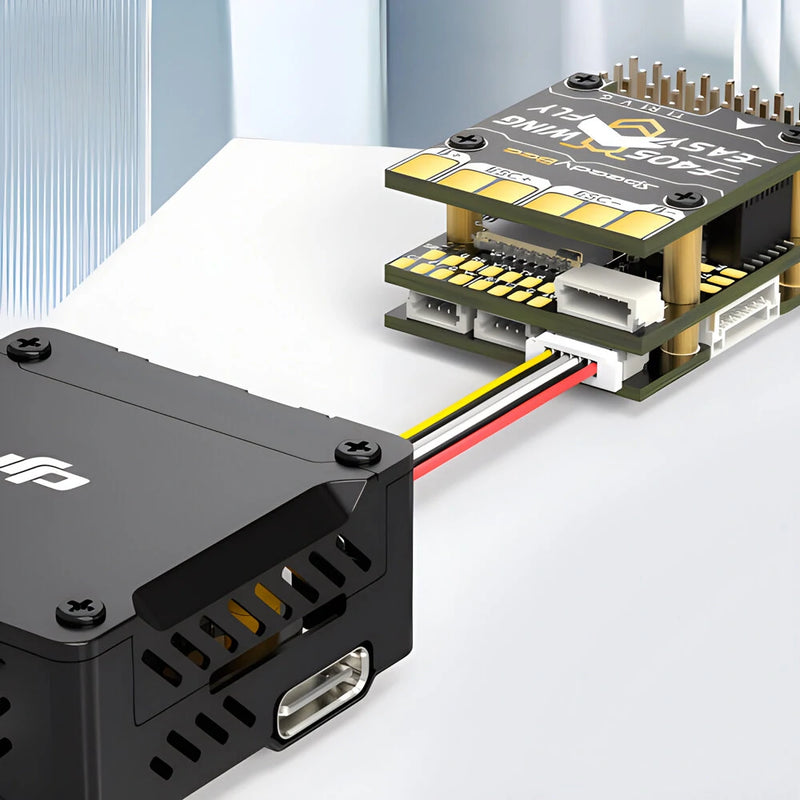

1x 6pin-SH1.0mm Digital VTX Cable (300mm)
1x 4pin-SH1.0mm to 3pin-JST1.25mm FPV Cam Cable (300mm)
1x 4pin Dupont single-head Cable (150mm)
