Description

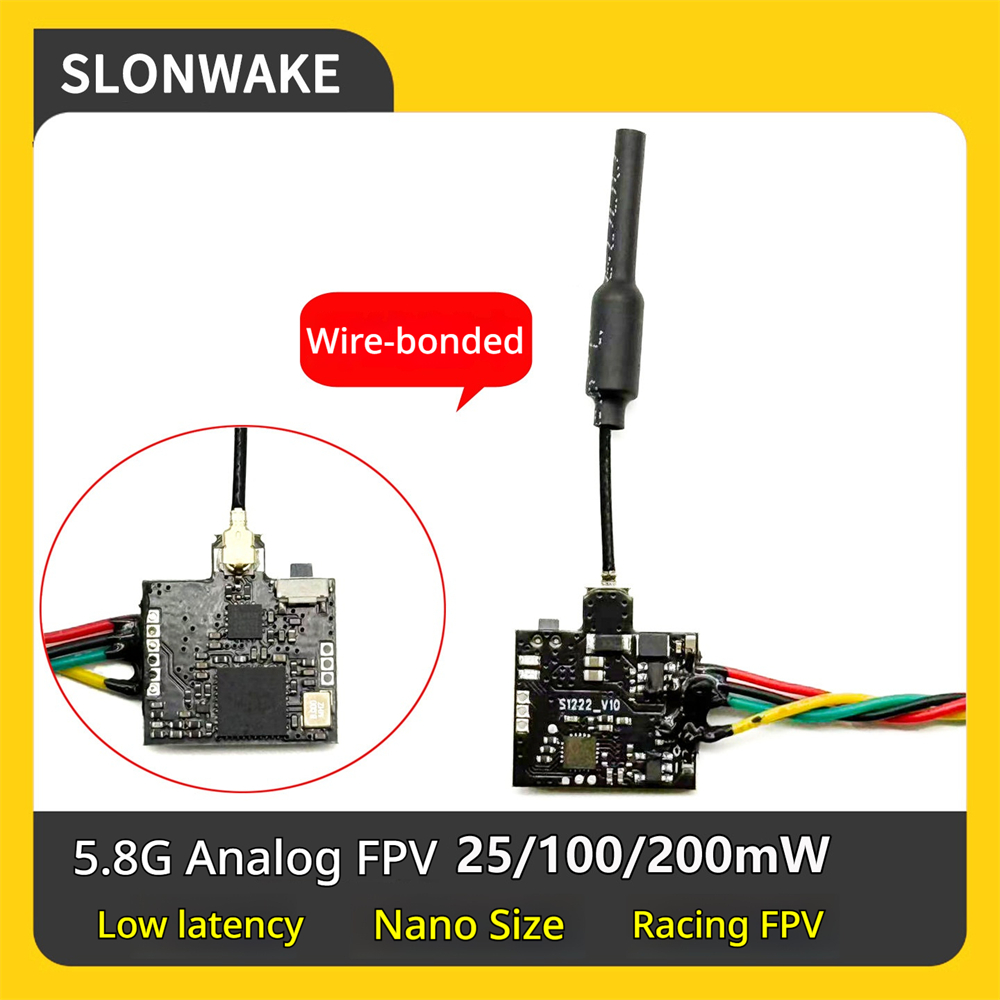

SLONWAKE 5.8GHz 48CH FPV Video Transmitter | Pit/25/100/200mW Adjustable Power, Ultra-Slim Compact Design, IPEX Interface, Wide Voltage 3.7–5.2V Mini VTX for FPV RC Drone Quadcopter
Features
* 48 Full Channels Anti-Interference Transmission
Comes with 48 standard 5.8GHz frequency channels, fully covering mainstream FPV frequency bands. It effectively avoids frequency conflicts and signal interferencee in multi-drone flight scenarios or complex outdoor environments, ensuring ultra-stable and flicker-free analog video transmission for daily flying and racing training.
* 4-Level Adjustable Power + Pit Mode
Features Pit 25mW / 100mW / 200mW four-speed adjustable power output. Low-power modes support indoor practice and frequency testing to meet competition power limit rules, while the 200mW high-power mode boosts signal penetration and extends flight range, perfectly adapting to indoor, outdoor and long-distance flight scenarios.

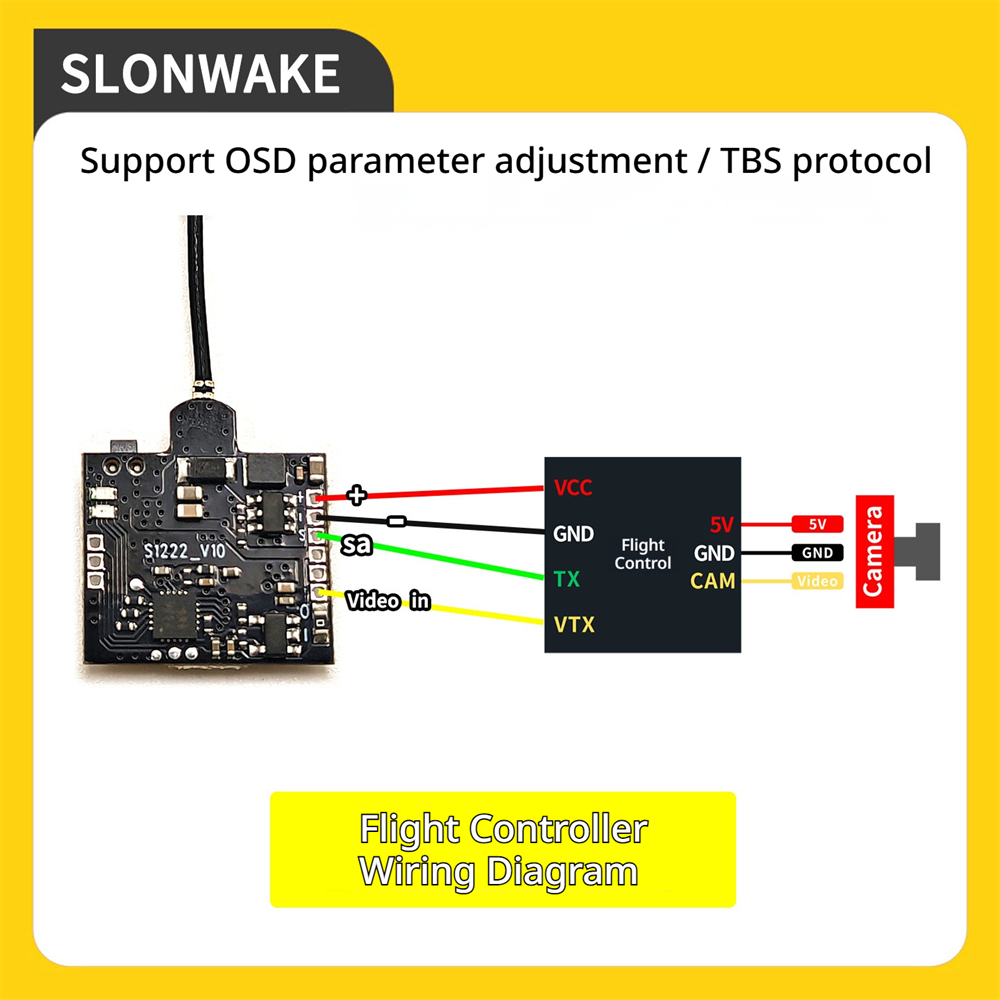

* Dual Easy Frequency & Power Switching Methods
Supports physical button adjustment and SA remote control setting. Pilots can freely switch channels and power levels without disassembling the drone, realizing fast parameter adjustment during flight or preparation, greatly improving operation efficiency.
* Ultra-Low Power Consumption & Stable Operation
Optimized circuit design with graded current output: 200mA@25mW, 330mA@100mW, 460mA@200mW. Low power loss saves drone battery power, avoids overheating and power jitter during long-time operation, and maintains continuous stable signal output.

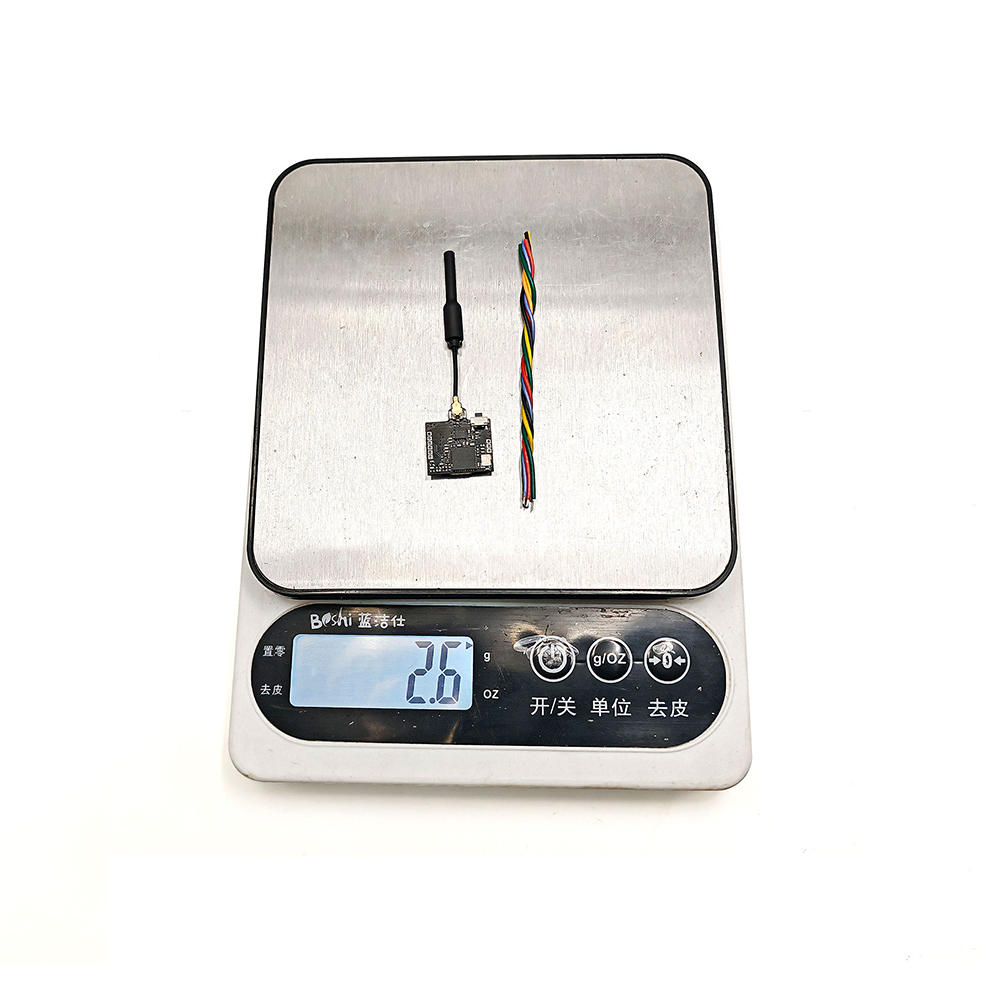

* Ultra-Slim Mini Compact Body
Super tiny size of 60 x 17 x 5mm, ultra-thin and lightweight design. It takes up almost no frame space, does not increase drone load or affect flight agilityy, perfectly fits mini quads, toothpick drones and compact FPV builds.

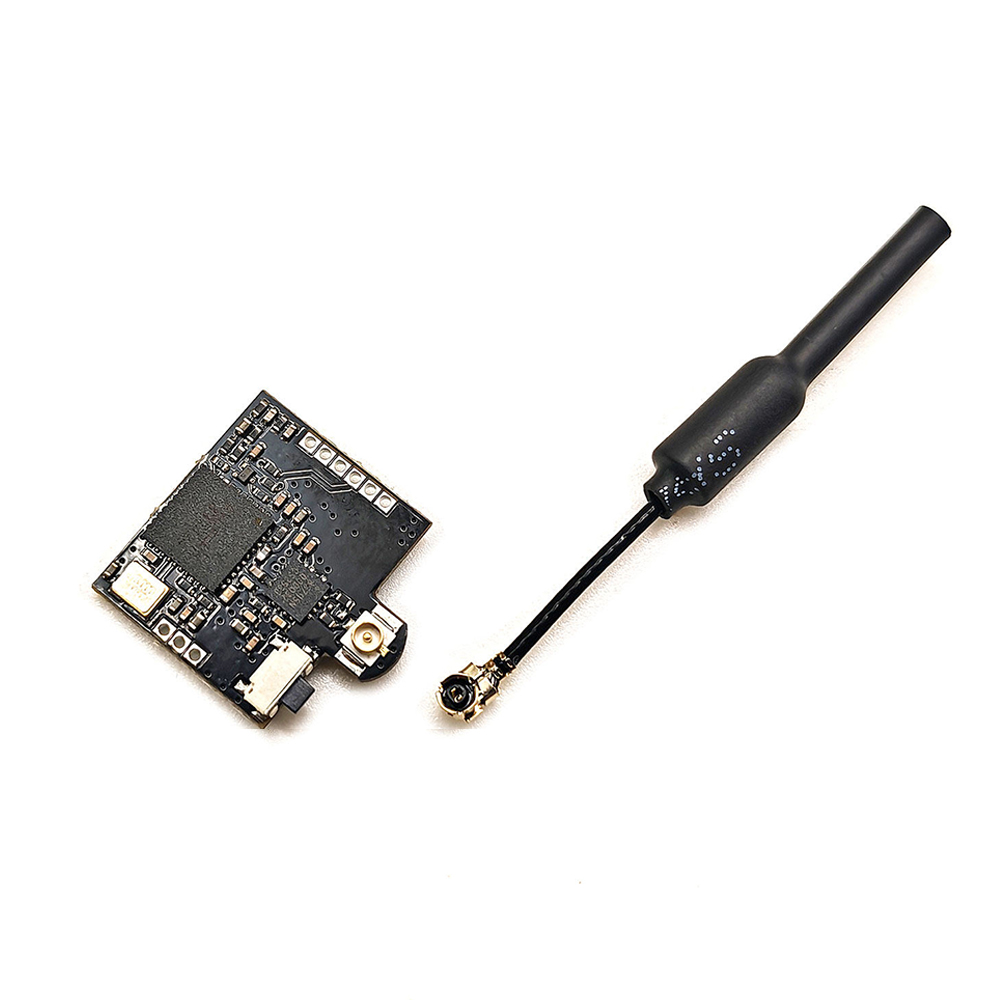

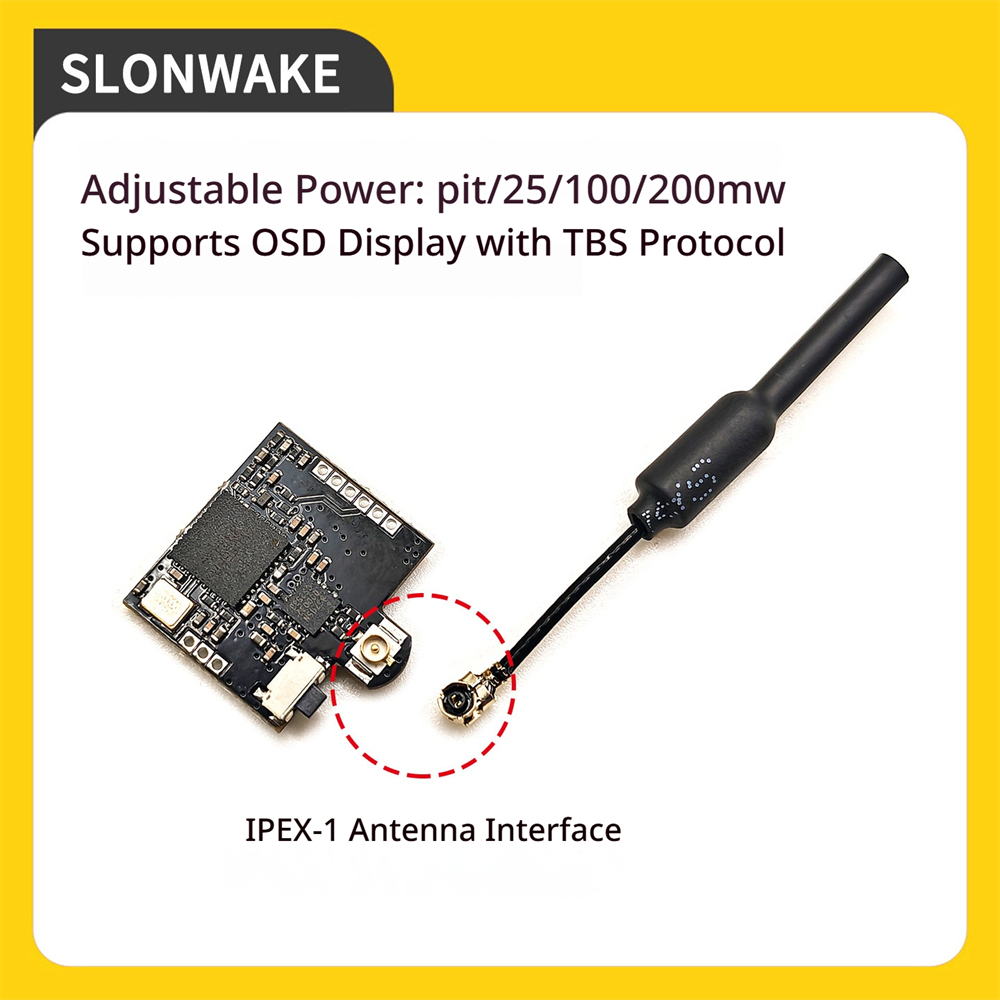

* Standard IPEX-1 Antenna Interface
Adopts universal IPEX-1 connector with pancake antenna design for secure and stable connection. Effectively prevents antenna looseness and signal dropout caused by vibration or slight crashes, solving the loose interface pain point of ordinary mini VTX.

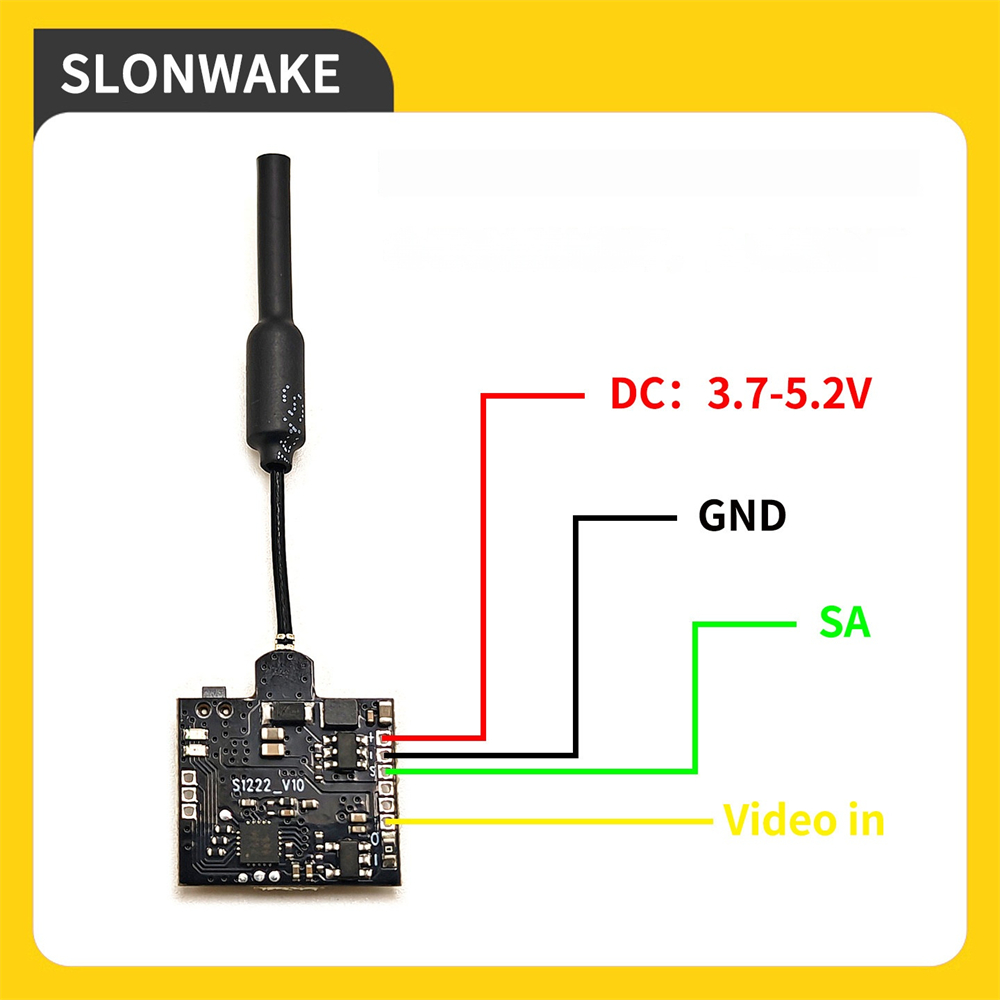

* 3.7–5.2V Wide Voltage Compatibility
Supports 1S lithium battery voltage input, compatible with most mini FPV drone power supply systems. No need for extra voltage conversion modules, plug and play with strong universality for various RC drone and aircraft builds.
Specification:
| Brand: | SLONWAKE |
| Model: | 5.8G 48CH 200mW Video Transmitter |
| Antenna: | IPEX-1 connector (pancake style) |
| Dimensions: | 60 x 17 x 5 mm |
| Voltage: | 3.7–5.2V |
| Frequency Tuning: | Button / SA remote control |
| Power Output: | Pit / 25mW / 100mW / 200mW |
| 5V Current: | 200mA (25mW) / 330mA (100mW) / 460mA (200mW) |

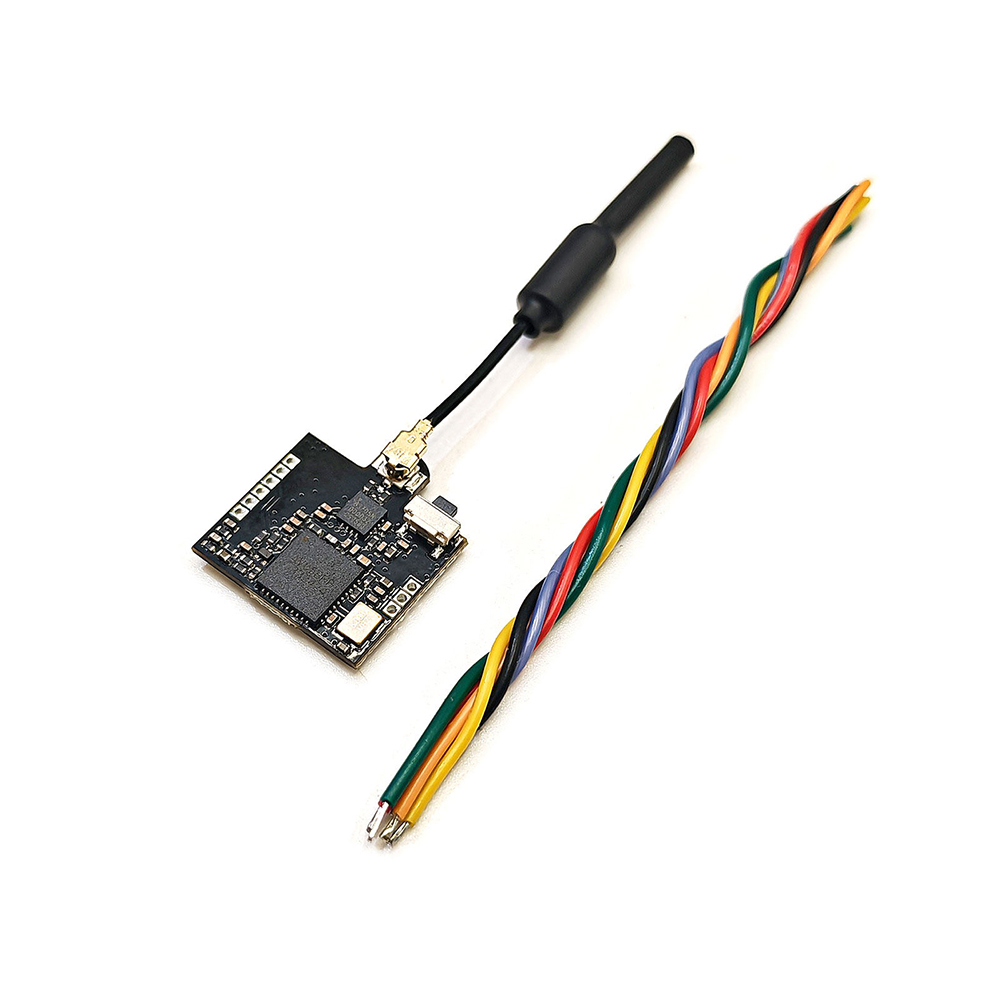

Package Included:
1 x 5.8G 48CH 200mW Video Transmitter
