Description
Note: The reverse connection of input and output will directly cause the transmission to burn out. Please check it before wiring.
Specifications：
| Model: | 500mW VTX |
| Frequency: | 5.8G |
| Channel: | 48CH |
| Power: | 25mW/100mW/200mW/500mW/Pit |
| Power Supply: | 7-24V |
| Installation Holes Dimension: | 16*16/20*20/25 *25/30*30mm |

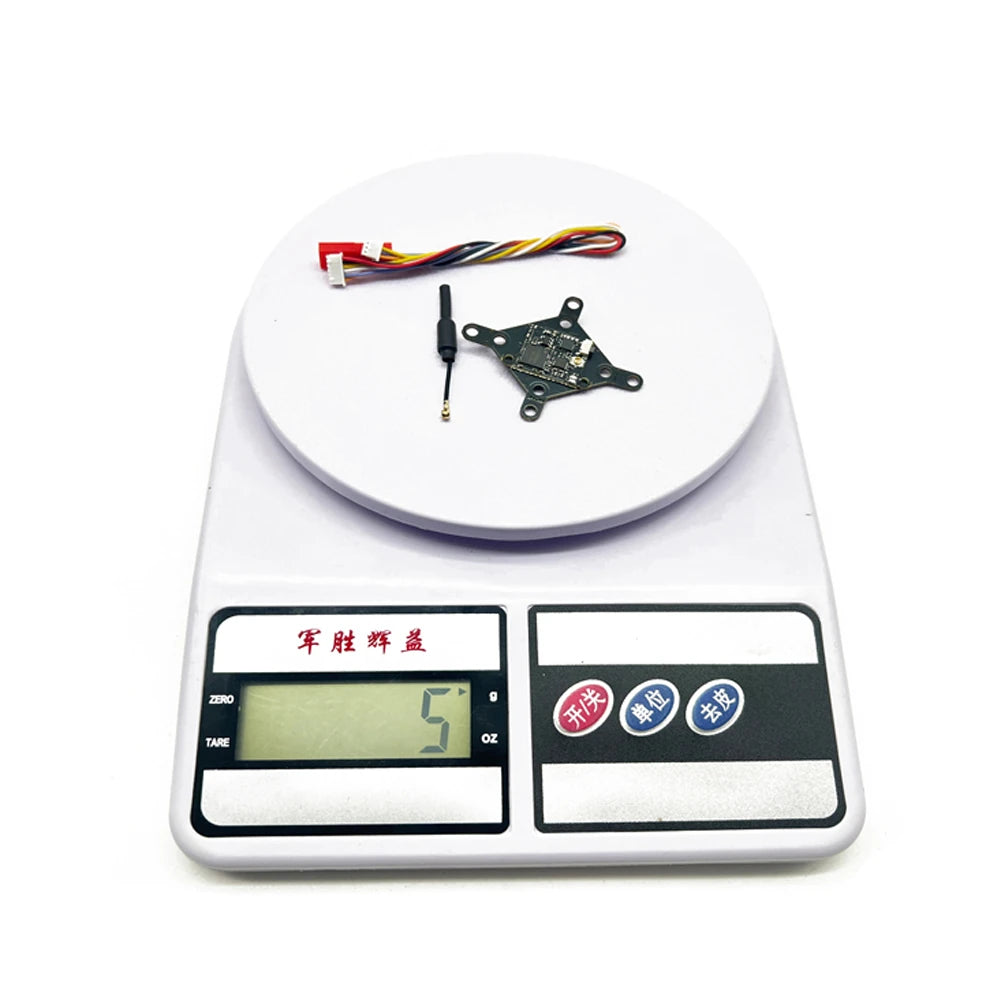

| Weight: | 5g |
Feature:
- 5.8G 48CH
- Support 7-24V power supply.
- With overheat protection, The blue light goes out when it is too hot.
- Support SmartAudio and key to adjust parameter
- With five-gear power ( Pit/ 25/ 100/ 200/ 500mW)
- Four types of installation holes:16*16/20*20/25 *25/30*30mm
- 12V: 25mW(170mA)/100mW( 230mA)/200mW(270mA)500mW (400mA)

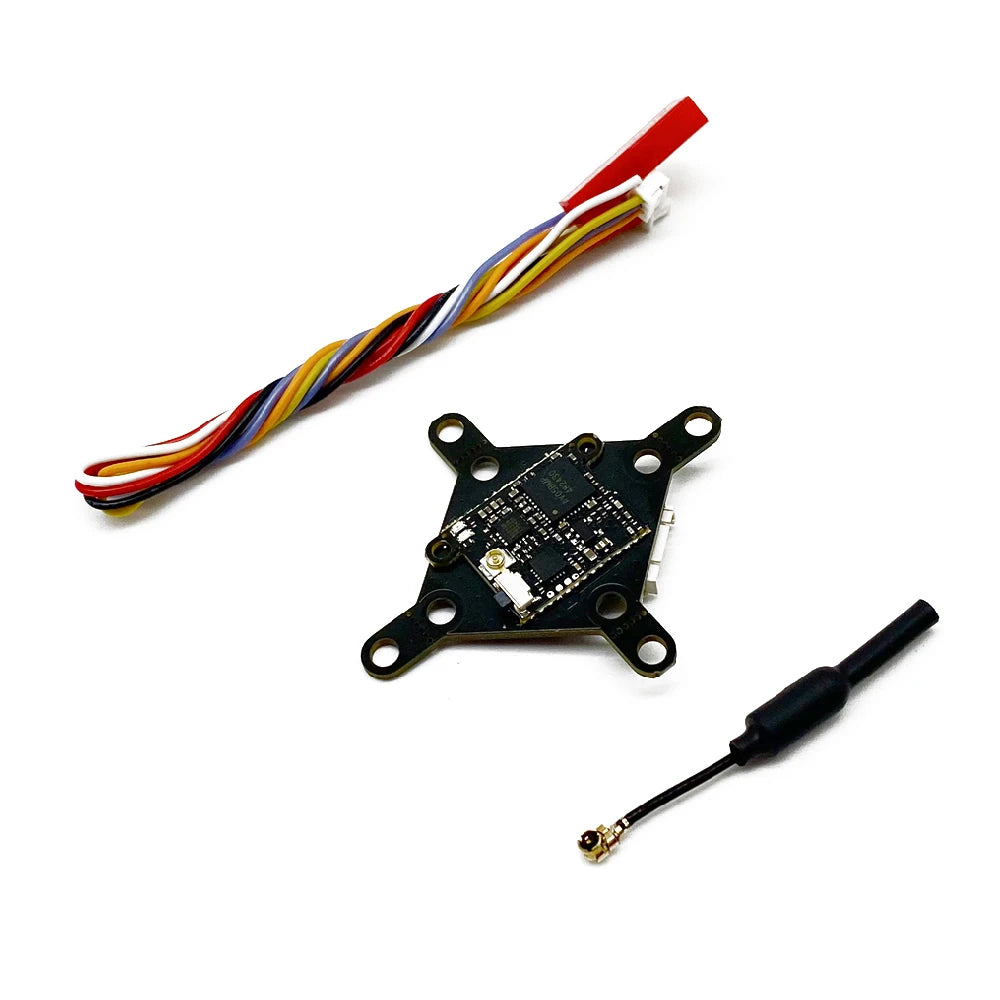

Package included:
1x AV Cable
1x 500mW VTX Transmitter
1x IPEX1 Antenna
