Specification:

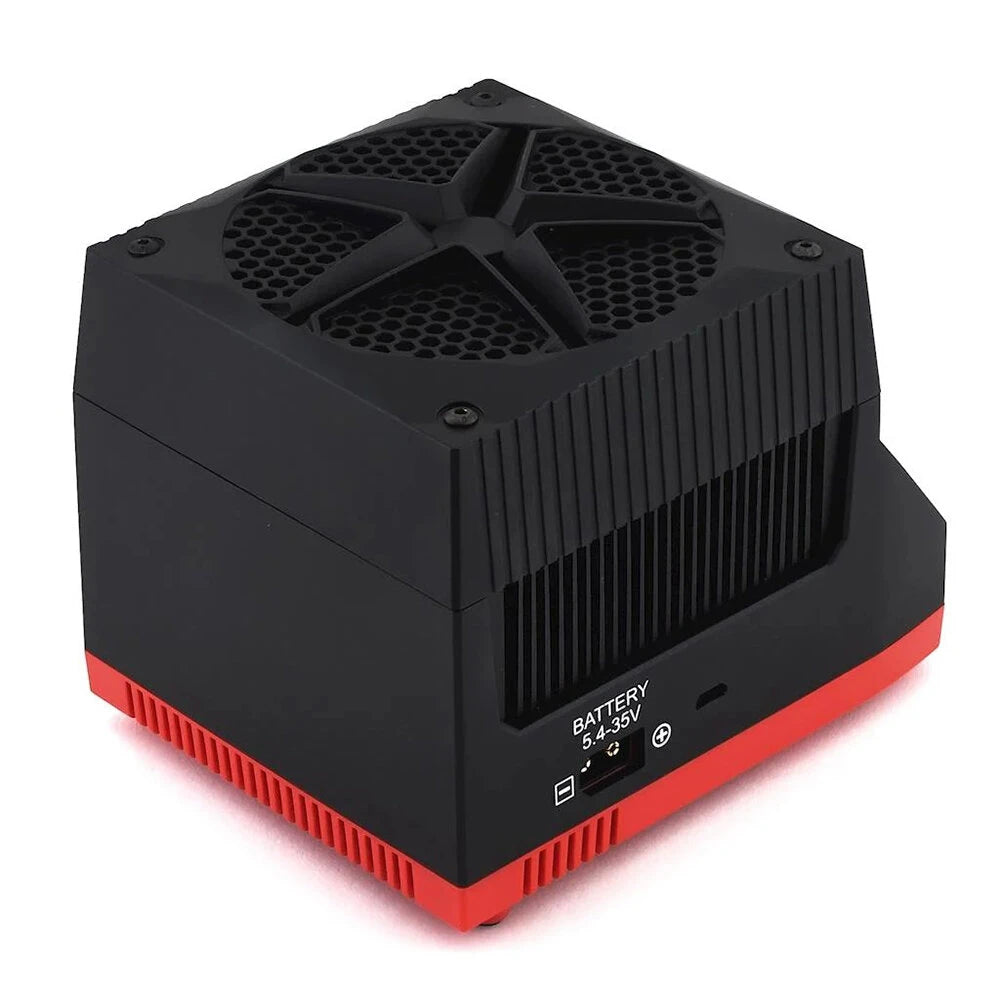

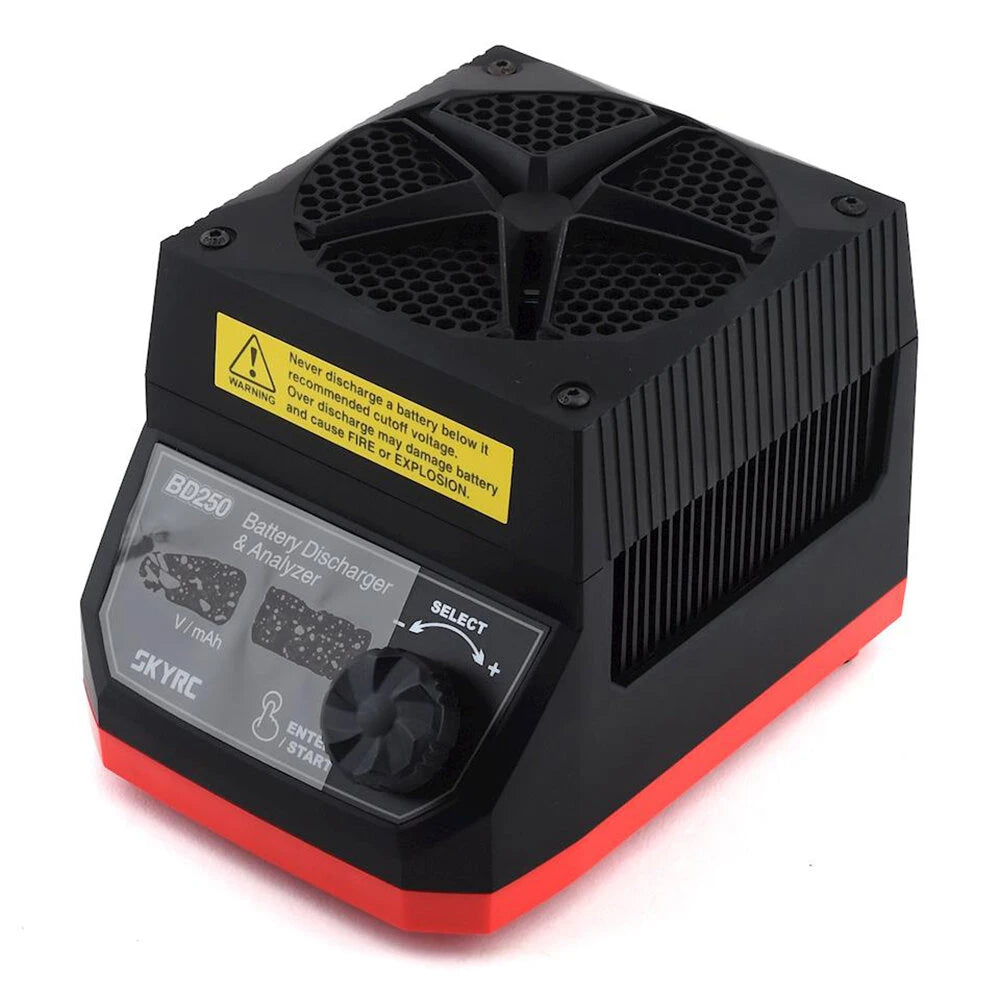

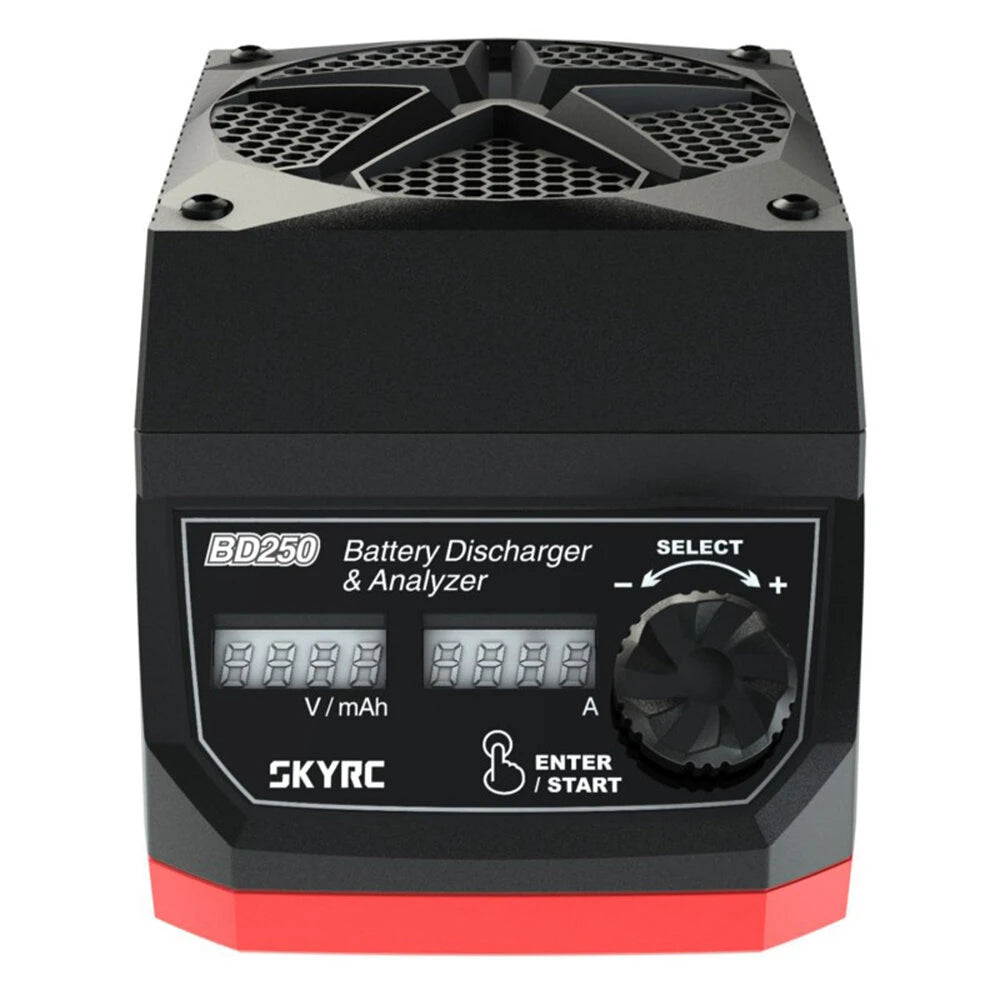

The BD250 is a powerful discharging device that allows the user to discharge a battery at up to 35 amps or 250 watts and also measures and compares the performance of batteries. BD250 allows for the precise measurement of battery capacity and takes the guesswork out of choosing the best battery for your application.
Size and Weight:
Dimension: 136.6x104.8x107mm
Weight: 879g
Accepted Voltage Range: 5.40-35.00V
Low Voltage Alert: <5.2V
High Voltage Alert: >35V Max.
Discharge Power: 250W
Discharge Current Range: 0.01A-35.00A
Discharge Power: 250W
Current Consumption in Sleep Mode: <100uA
Capacity Display Accuracy: ±3%
Current Display Accuracy: 0.01-10.00A ±60mA
10.00-35.00A ±3%
Voltage Display Accuracy:
5.4-10V <80mV
10-20V <120mV
20-35V <160mV
Packaging included:
1X BD250 Charger
1X Discharging cable with XT60 connector
1X Fuse
1X Manual
