Description
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Product Description:font-size:10.5000pt;mso-font-kerning:1.0000pt;'>
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>(1) Adopting 32-bit high-performance processor STM32G071, with a working frequency of up to 64MHz and maximum support 128KHz motor PWM frequency.font-size:10.5000pt;mso-font-kerning:1.0000pt;'>
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>(2) Adopts high-power MOSFET, and combines with CNC metal radiator, this esc dissipates heat effectively under high current load and works stably & continuously.font-size:10.5000pt;mso-font-kerning:1.0000pt;'>
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>(3) Supports multiple motion modes such as unidirectional, bidirectional, and braked motors.font-size:10.5000pt;mso-font-kerning:1.0000pt;'>
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>(4) Supports multiple protections such as low voltage protection, temperature protection, locked rotor protection, and current protection.font-size:10.5000pt;mso-font-kerning:1.0000pt;'>
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>(5) The ESC automatically detects the throttle signal when it is powered on, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot and Multishot.font-size:10.5000pt;mso-font-kerning:1.0000pt;'>
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>(6) Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.font-size:10.5000pt;mso-font-kerning:1.0000pt;'>
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>(7) Onboard RGB LED color light settings, multiple LED colors can be customized.font-size:10.5000pt;mso-font-kerning:1.0000pt;'>
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>(8) Widely used in model airplane plant protection machines, multi-rotor drones, RC model ships and cars.
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>
font-size:10.5000pt;mso-font-kerning:1.0000pt;'> SQESC 12200 Parameters:
Model |
SQESC 12200 |
Processor |
STM32G071 |
Input voltage |
DC 18V-50.4V（5-12S Lipo） |
Continuous current (good heat dissipation) |
200A |
Maximum current (good heat dissipation) |
250A |
Support firmware |
BLHeli_32，AM32 |
BEC |
NO |
Signal protocol |
Dshot (All),PWM,Oneshot,Multishot,etc. |
Programming parameter adjustment |
Support |
Throttle calibration |
Support |
Timing angle setting |
Support |
Current detection |
Support |
Telemetry signal |
Support |
Motor steering settings |
Support |
RGB LED color lights |
Support |
Power cable(if any) |
8AWG |
Application scenarios |
Suitable for multi-axis drones, fixed-wing aircraft models, multi-rotor drones, plant protection machines, model ships, RC model cars, and rock crawlers. |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>12200（BLHeli_32）/12200（AM32）Package included:

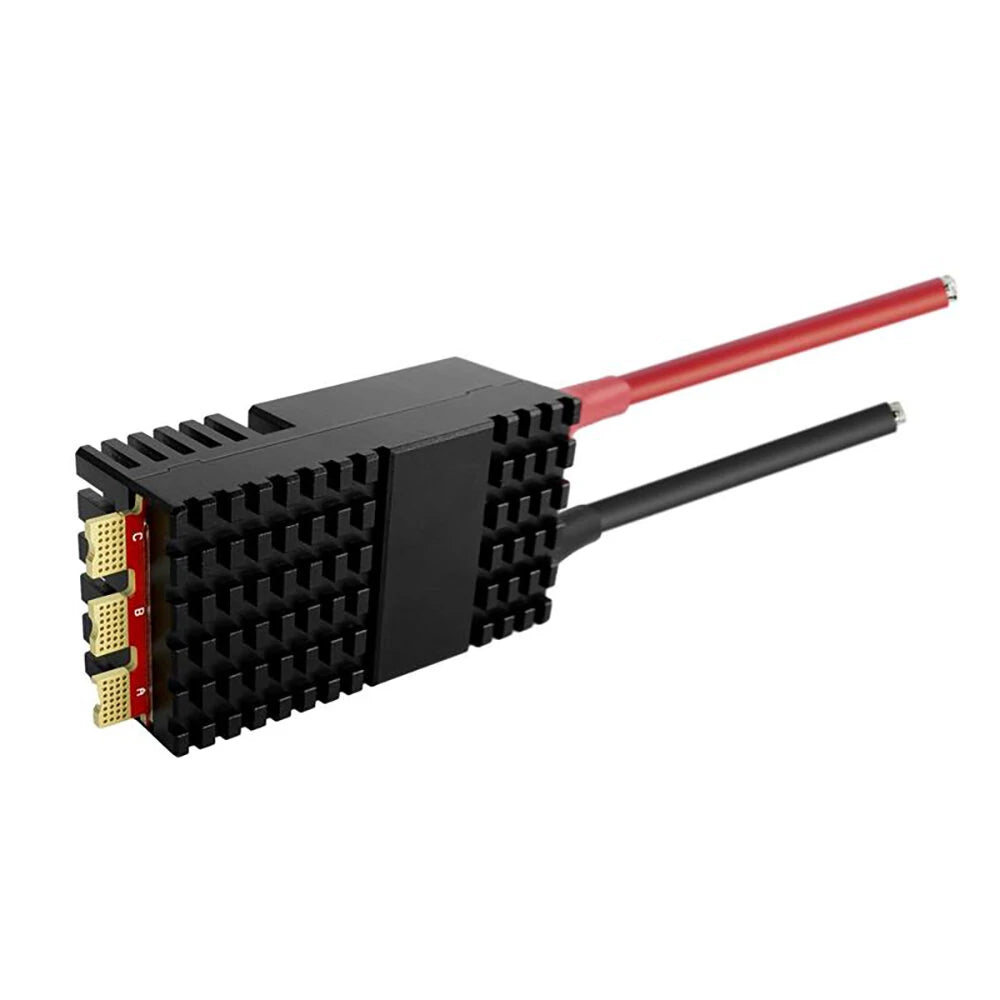

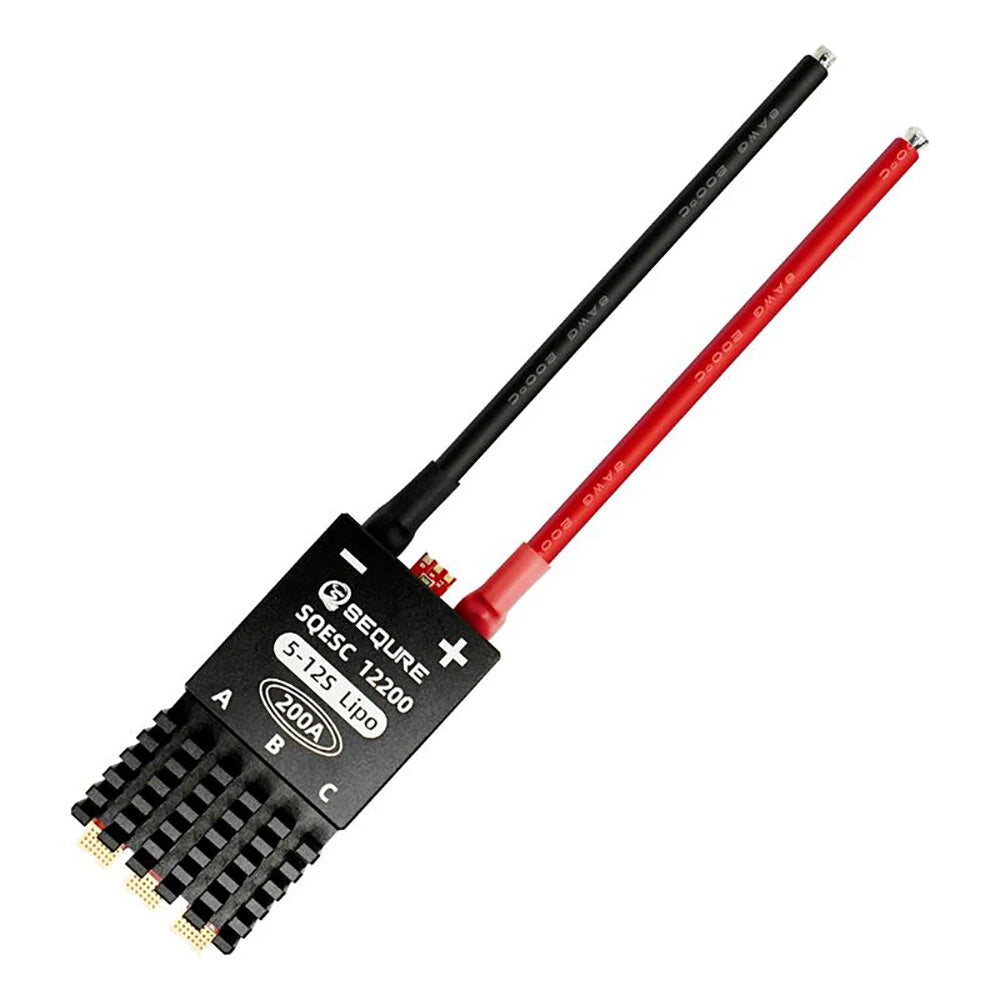

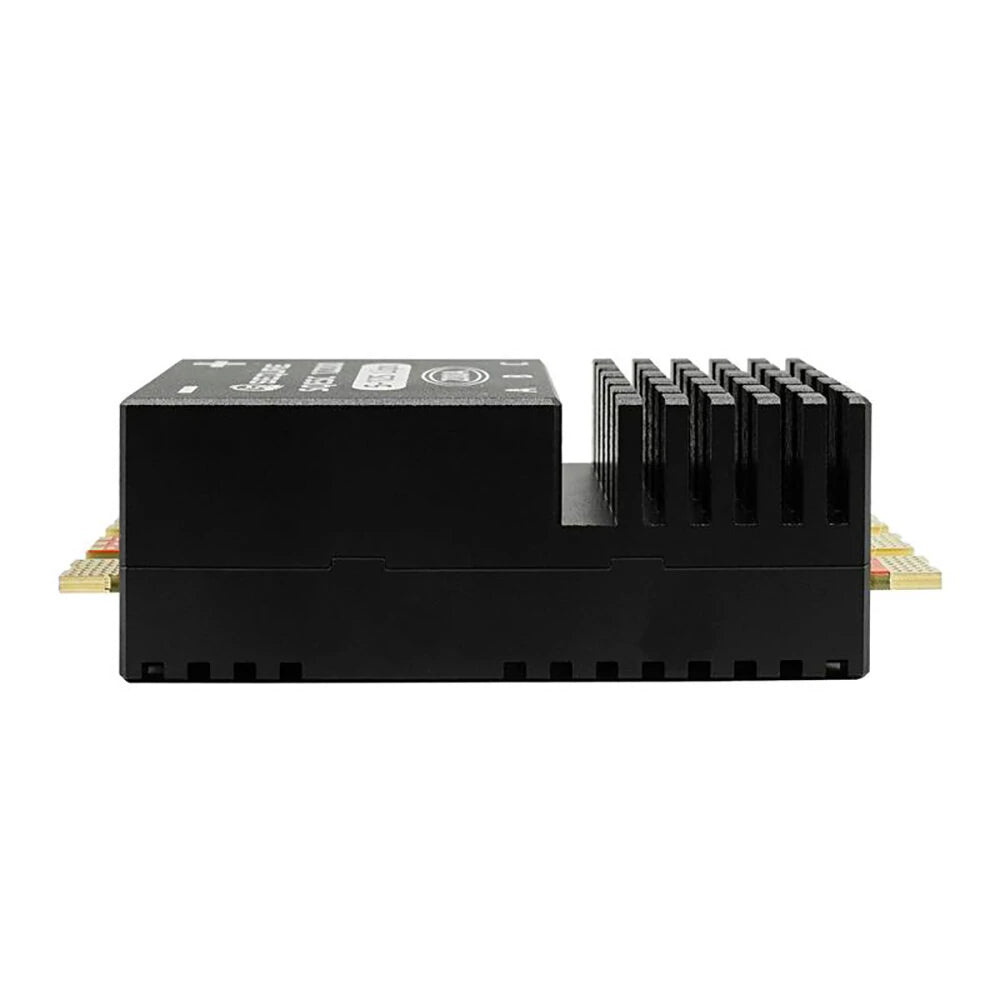

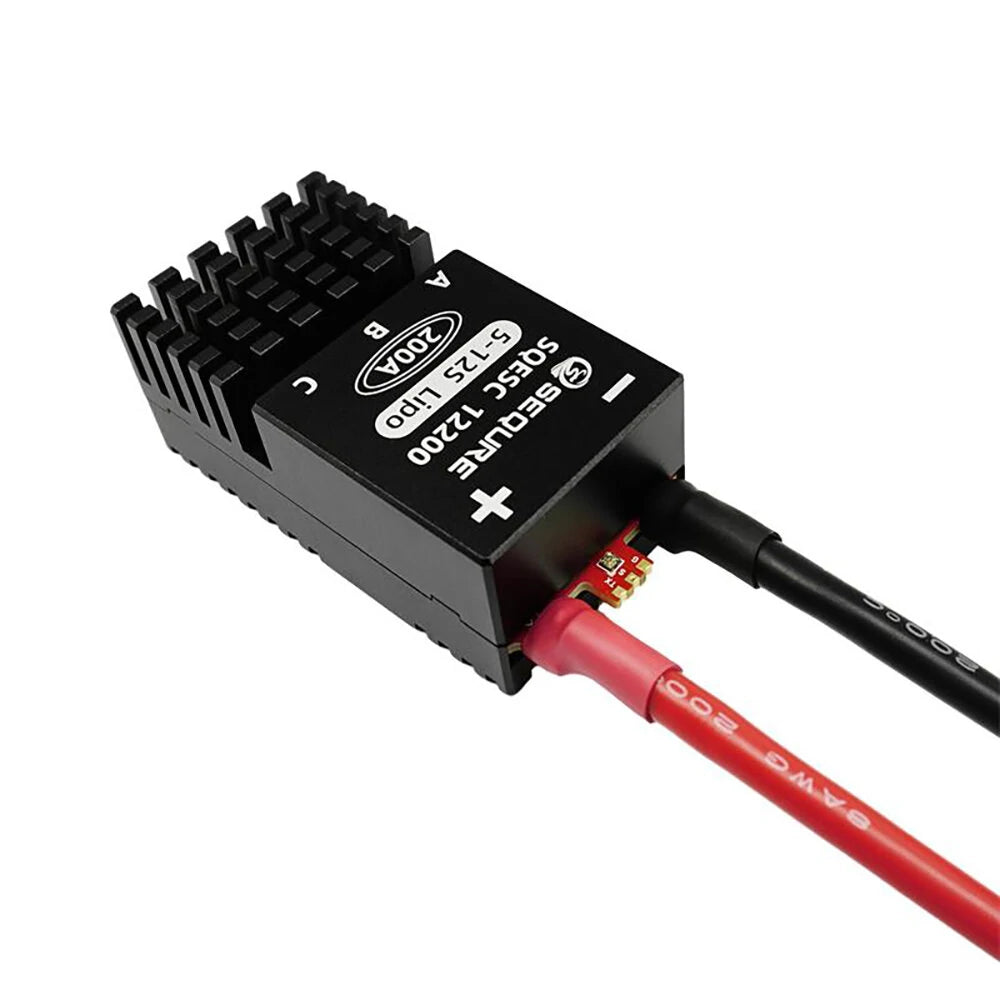

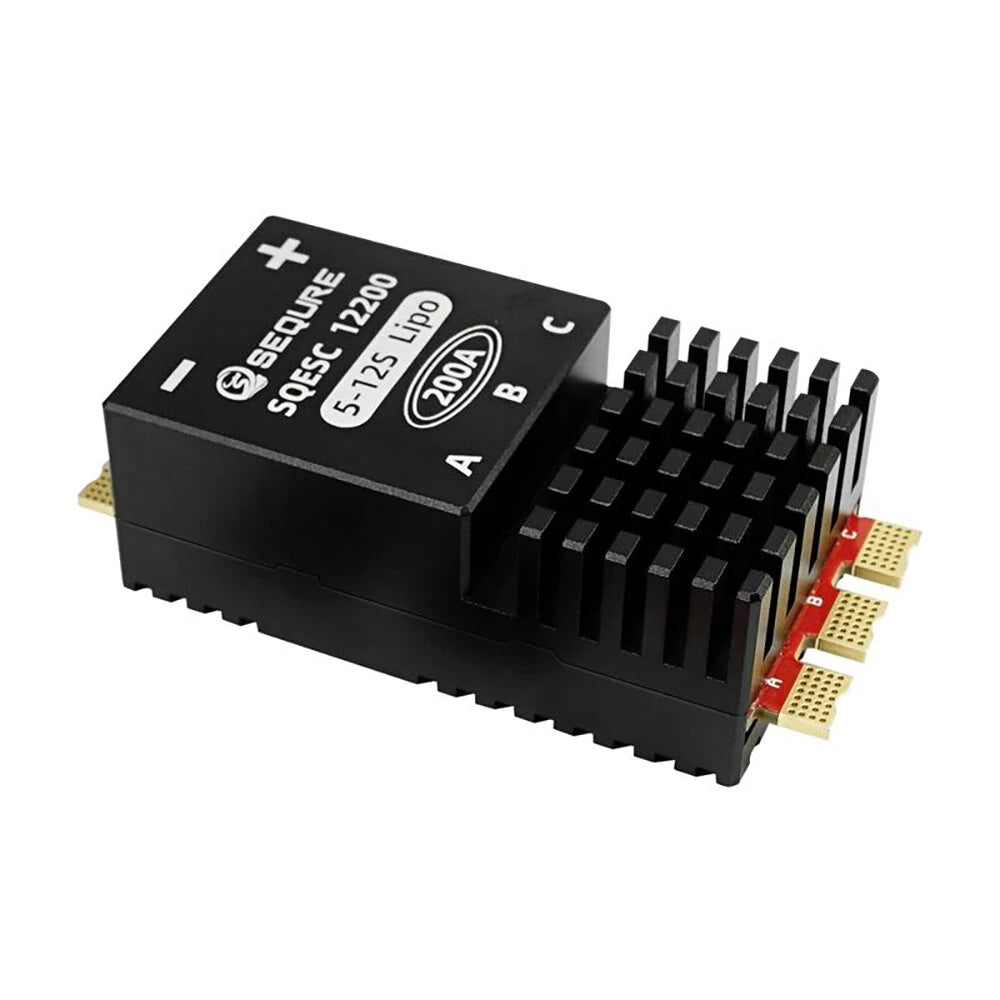

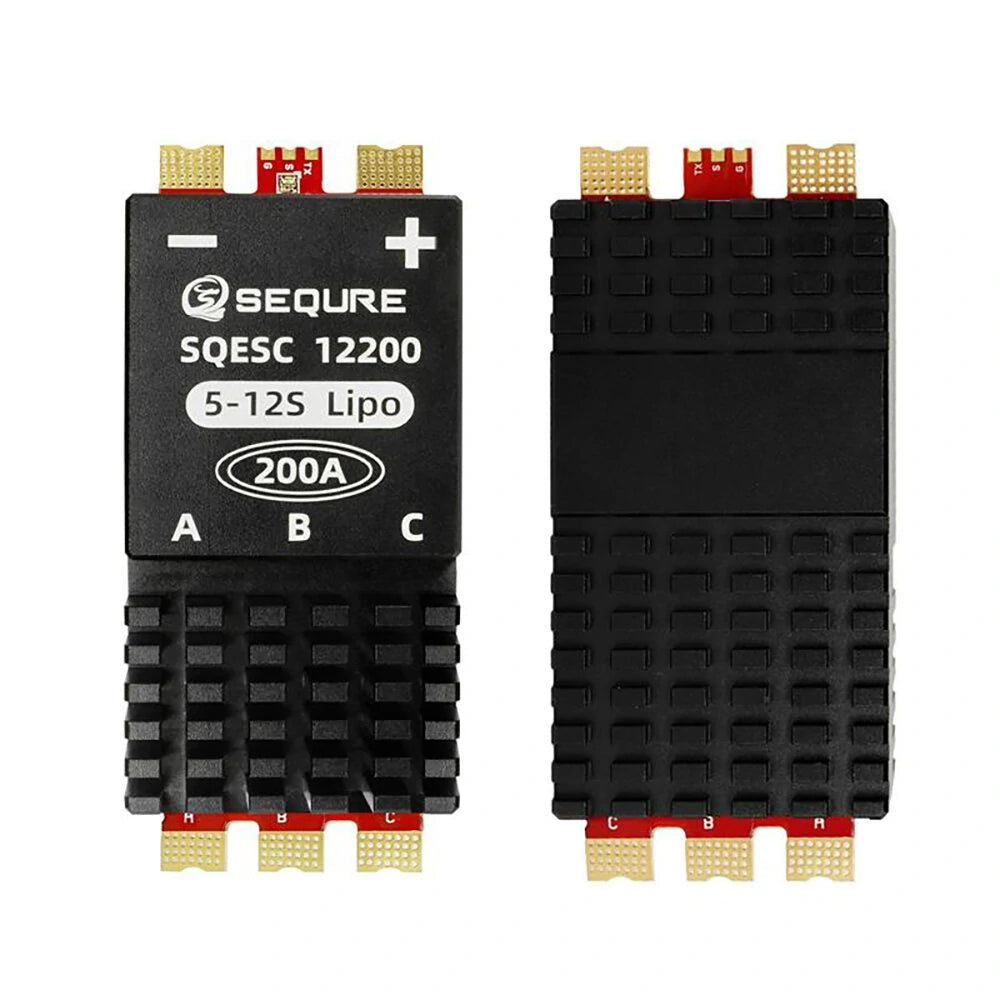

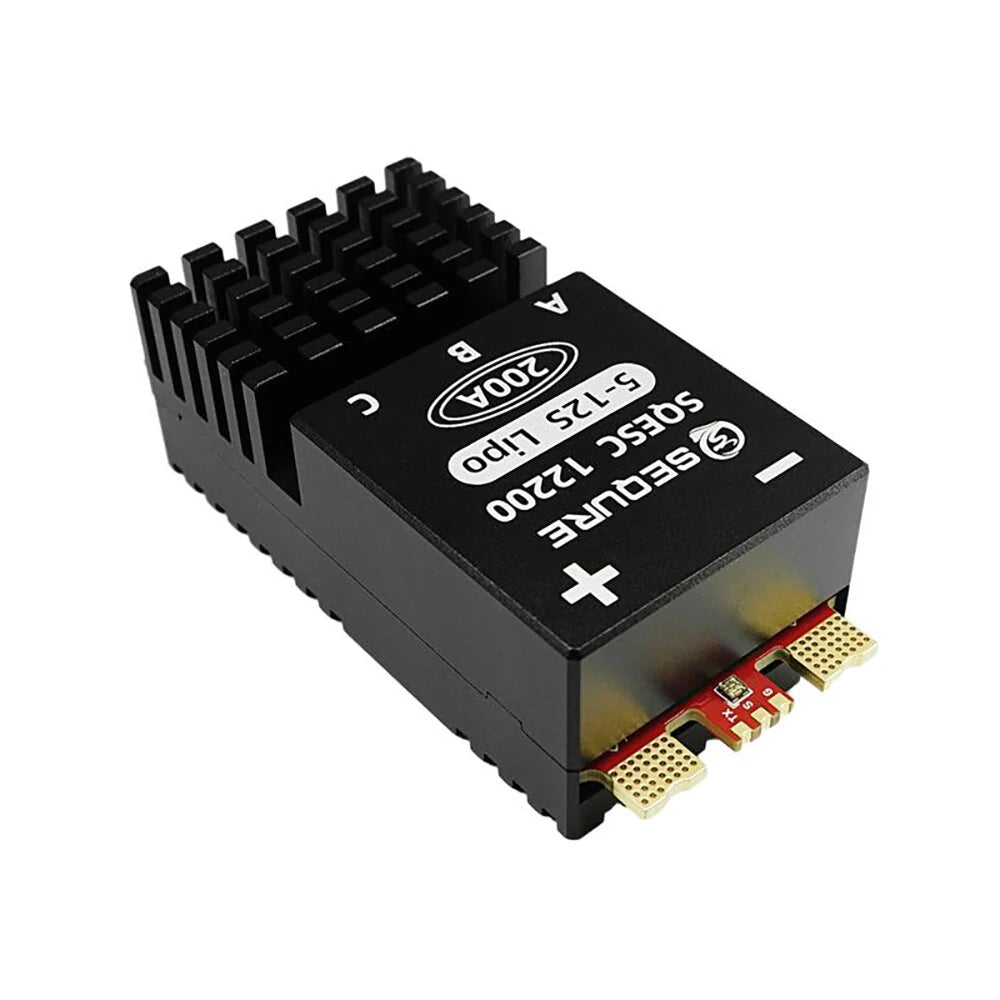

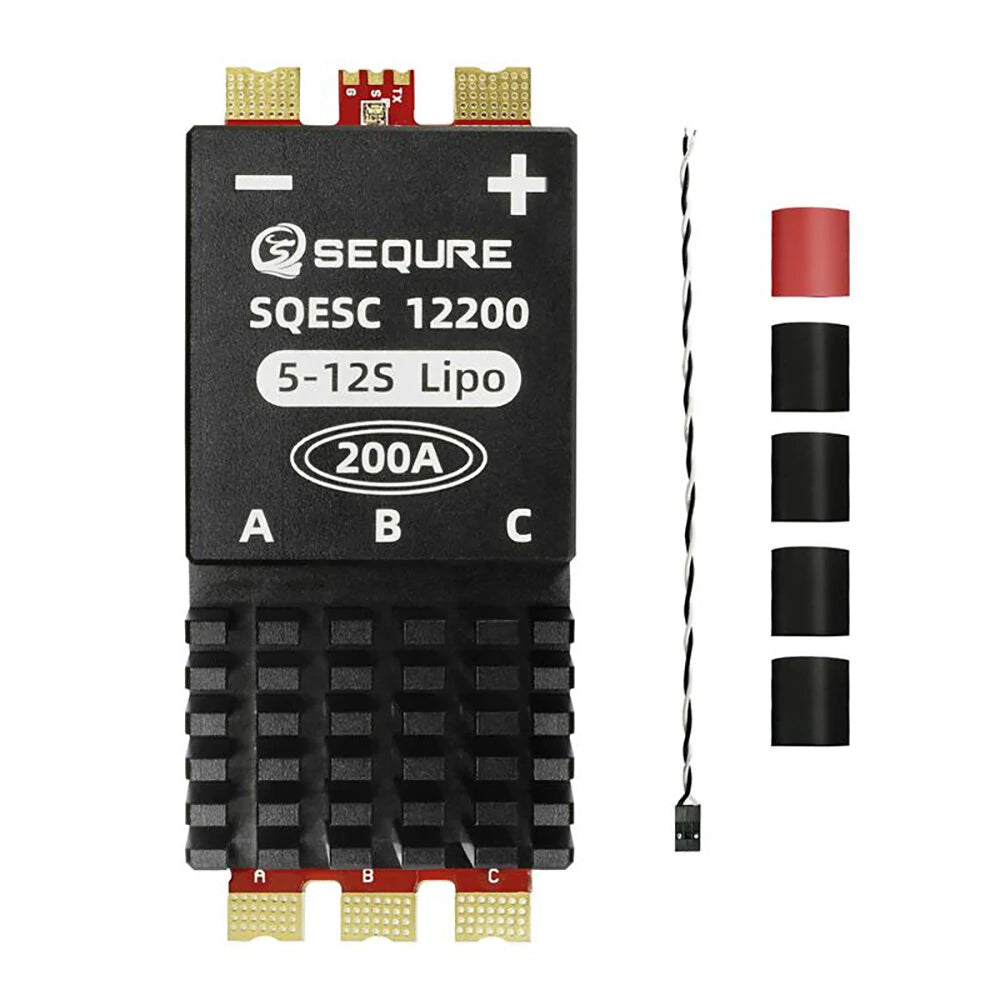

font-size:10.5000pt;mso-font-kerning:1.0000pt;'>12200 Set × 1 (show as the image)
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>
