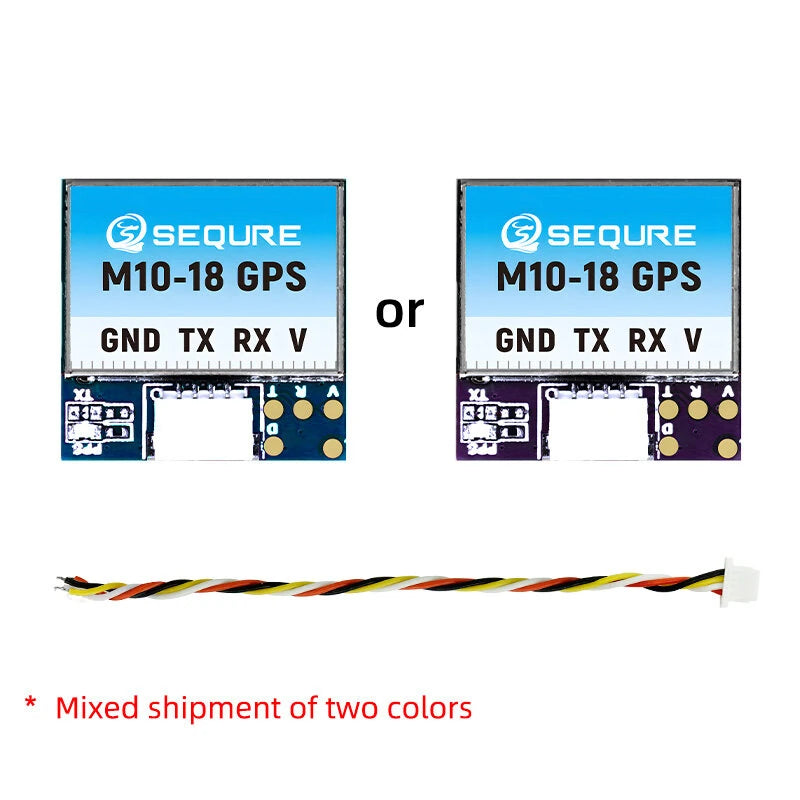

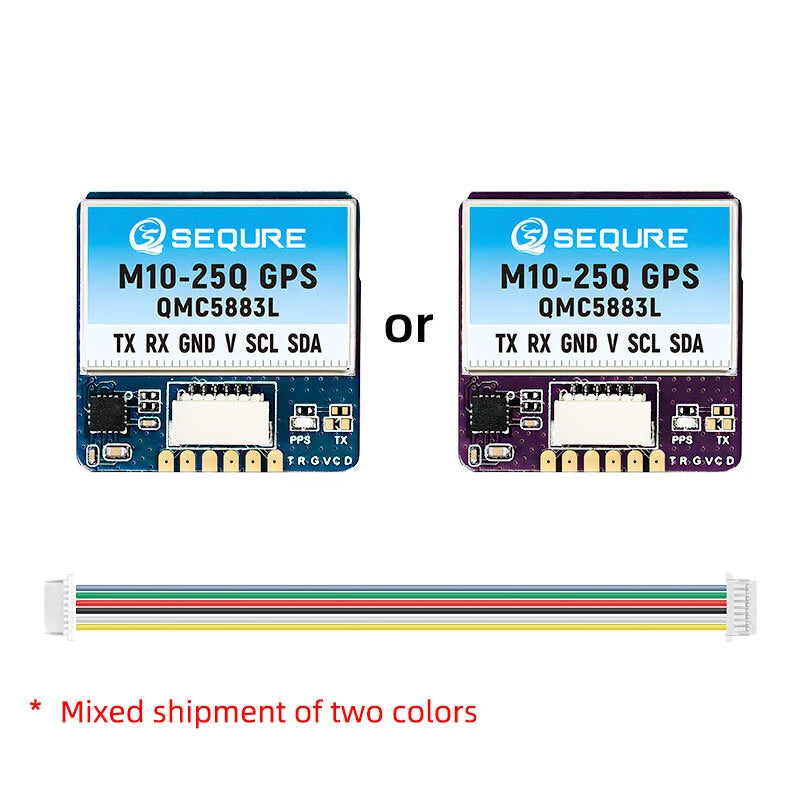

Note：GPS blue and purple PCBs for M10-18 and M10-25Q will be shipped randomly, with the same functions but different colors. M10-12 remains unchanged. - March 10, 2025.
Parameters of Product:
Optional Version |

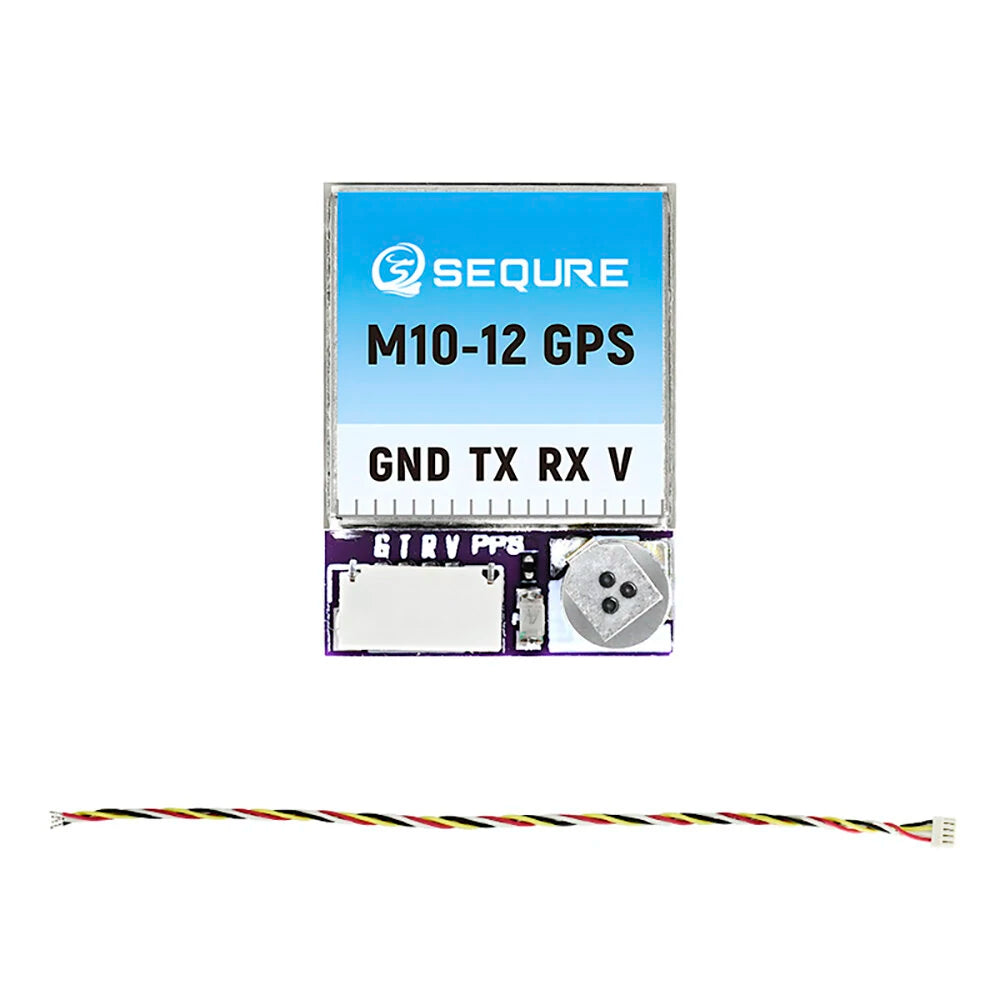

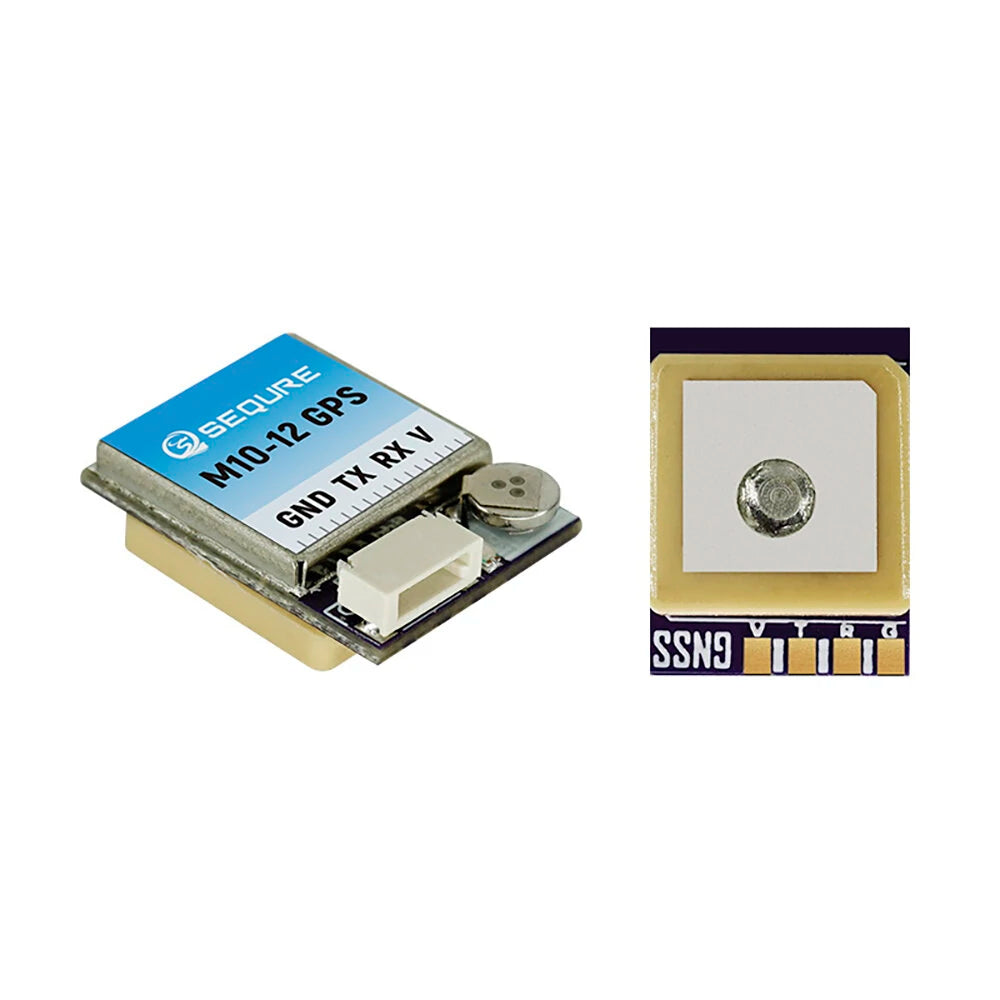

M10-12 GPS |

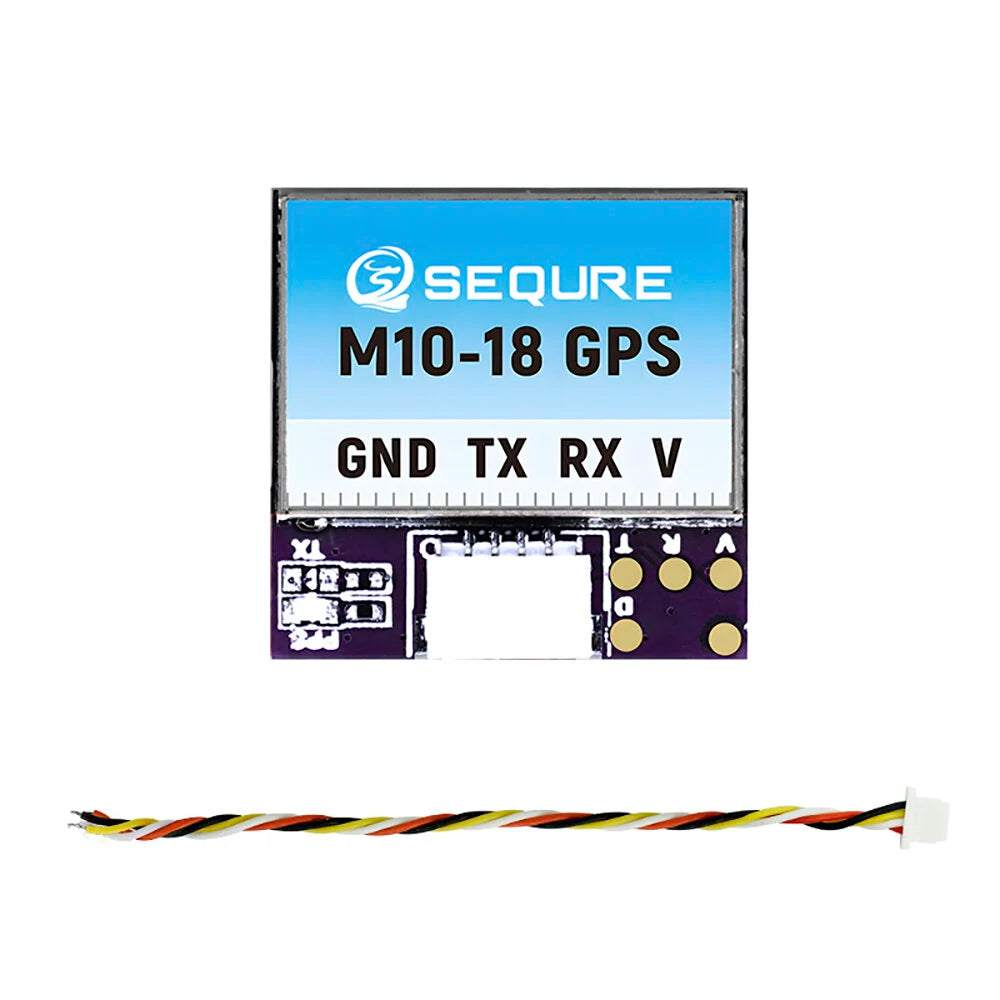

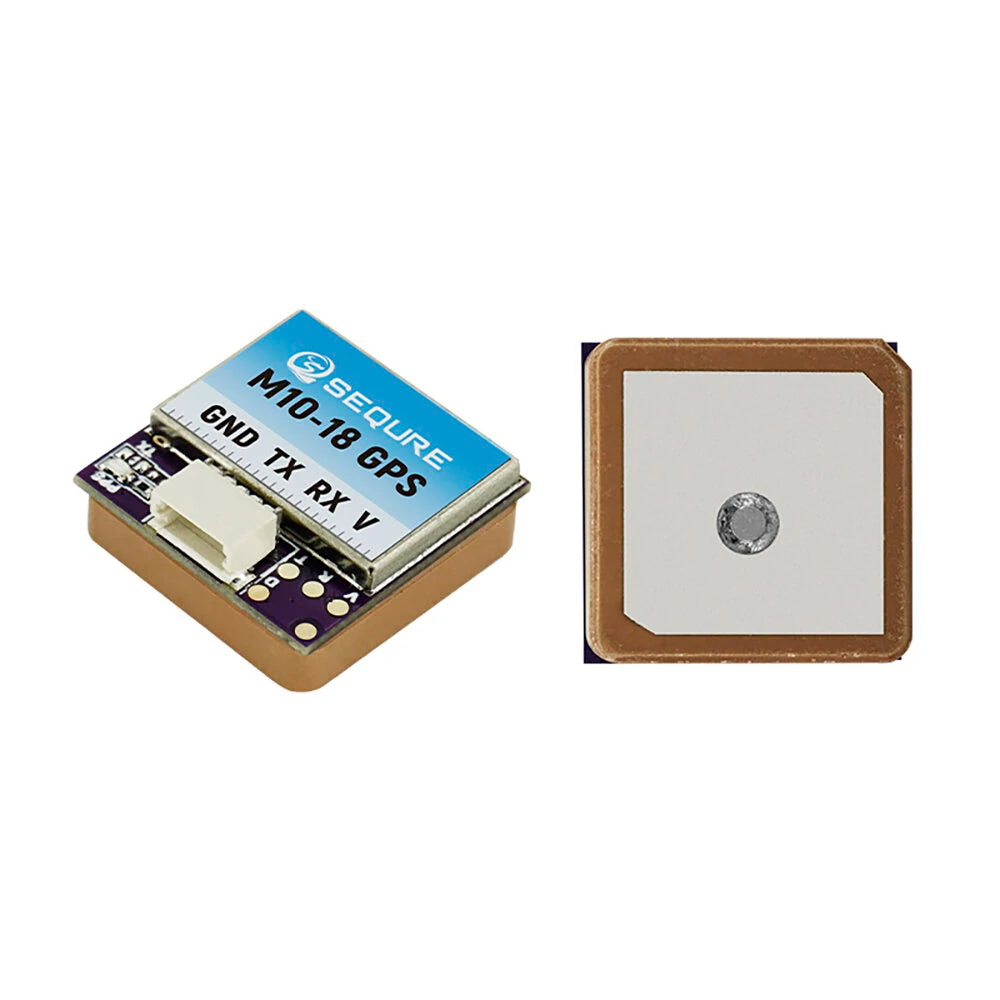

M10-18 GPS |

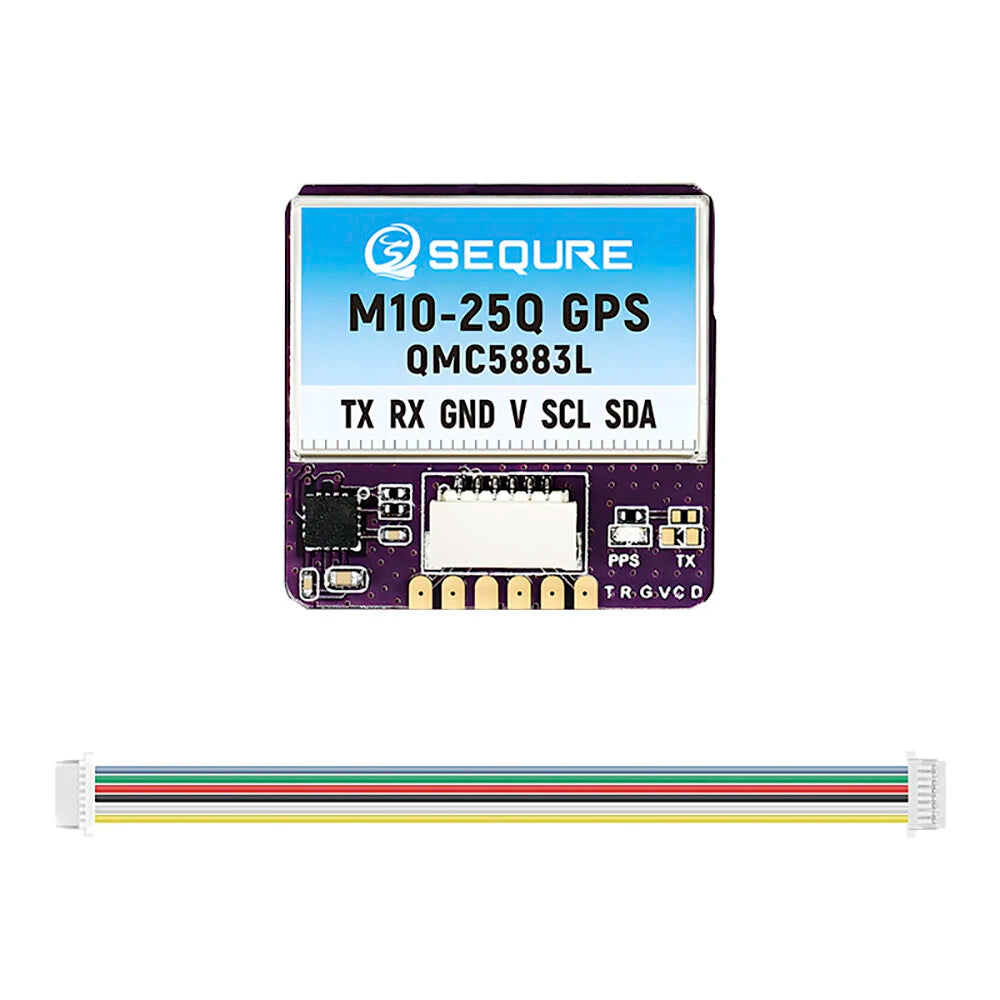

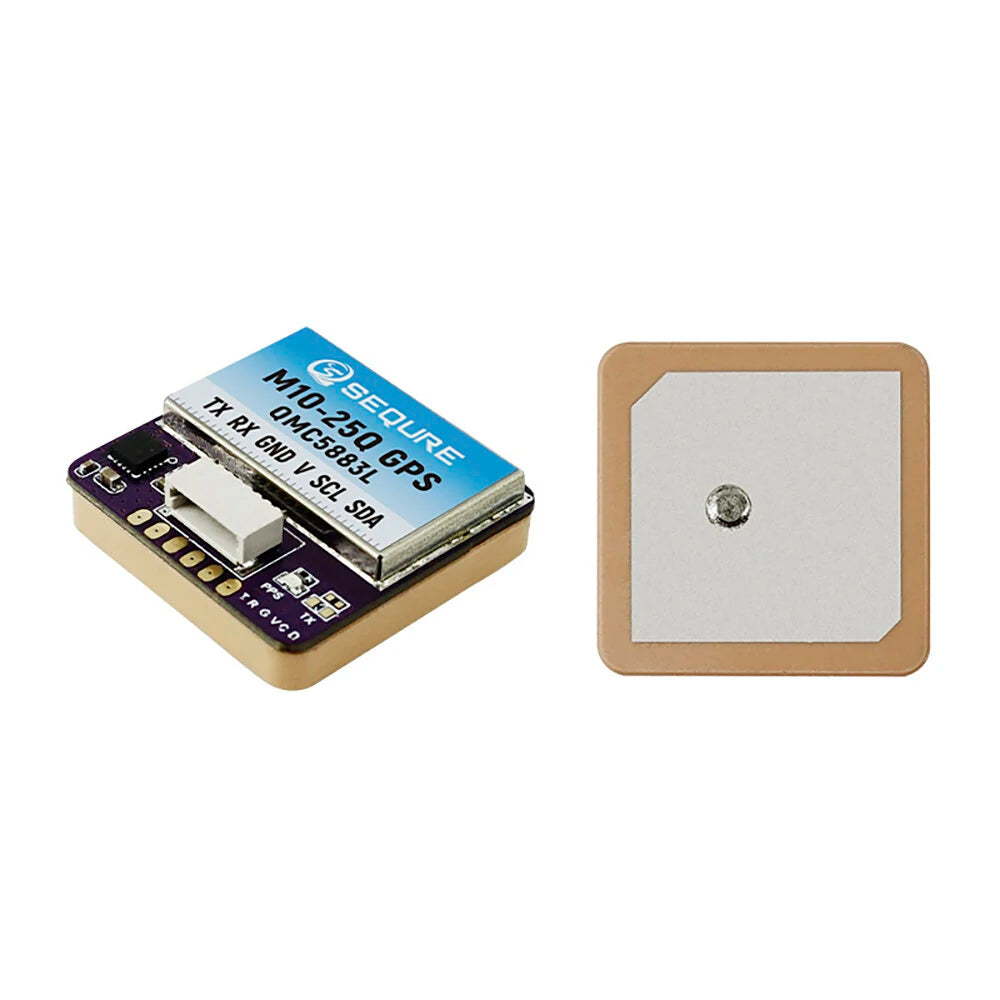

M10-25Q GPS |
Chip |
M10 |
M10 |
M10 |
Frequency |
GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1 |
GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1 |
GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1 |
Power supply |
5V |
5V |
5V |
Size |
12*16*4.5mm |
18*18*8mm |
25*25*8mm |
Weight |
2.3g |
7.2g |
12.2g |
Interface |
SH0.8-4P connector,PCB pad |
SH1.0-4P connector,PCB pad |
SH1.0-6P connector, PCB pad |
Antenna |
Ceramic Antenna |
Ceramic Antenna |
Ceramic Antenna |
Receiving channels |
72 search channels |
72 search channels |
72 search channels |
Baud rate |
115200 |
115200 |
115200 |
Output protocol |
UBLOX |
UBLOX |
NMEA、UBLOX dual protocol, |
Compass |
NO |
NO |
QMC5883L |
Output frequency |
1Hz-10Hz，default 10Hz |
1Hz-10Hz，default 10Hz |
1Hz-10Hz，default 10Hz |
