Description
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Product Description:font-size:10.5000pt;mso-font-kerning:1.0000pt;'>

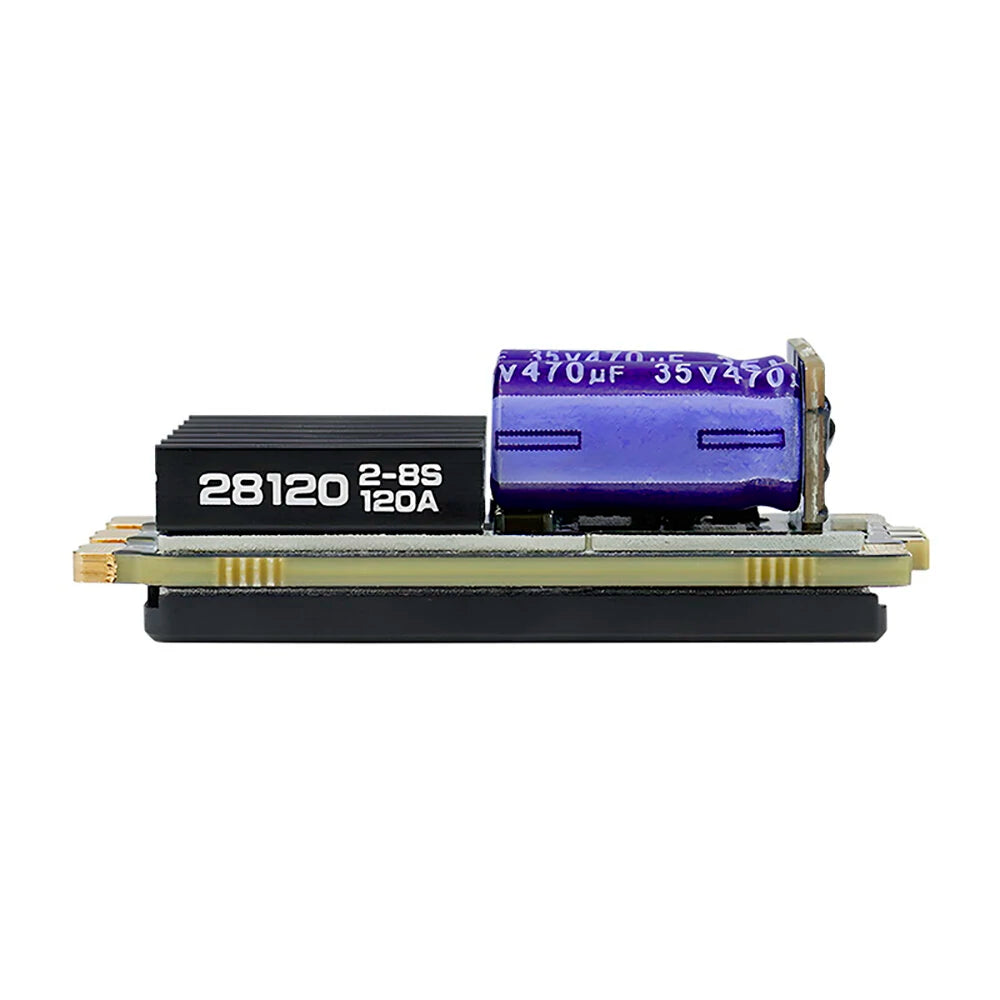

font-size:10.5000pt;mso-font-kerning:1.0000pt;'>(1) Adopting 32-bit high-performance processor STM32G071, with a working frequency of up to 64MHz and maximum support 128KHz motor PWM frequency.font-size:10.5000pt;mso-font-kerning:1.0000pt;'>
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>(2) Adopts high-power MOSFET, and combines with CNC metal radiator, this esc dissipates heat effectively under high current load and works stably & continuously.font-size:10.5000pt;mso-font-kerning:1.0000pt;'>
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>(3) Supports multiple motion modes such as unidirectional, bidirectional, and braked motors.font-size:10.5000pt;mso-font-kerning:1.0000pt;'>
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>(4) Supports multiple protections such as low voltage protection, temperature protection, locked rotor protection, and current protection.font-size:10.5000pt;mso-font-kerning:1.0000pt;'>
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>(5) The ESC automatically detects the throttle signal when it is powered on, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot and Multishot.font-size:10.5000pt;mso-font-kerning:1.0000pt;'>
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>(6) Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.font-size:10.5000pt;mso-font-kerning:1.0000pt;'>
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>(7) Onboard RGB LED color light settings, multiple LED colors can be customized.font-size:10.5000pt;mso-font-kerning:1.0000pt;'>
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>(8)BEC supports adjustable outputs of 5V/4A, 6V/4A, 7.2V/4A, 8.2V/4A, and 12V/3A, which can directly supply power to external devices such as receivers and servos, making the application of ESC more extensive and flexible .font-size:10.5000pt;mso-font-kerning:1.0000pt;'>
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>(9) Widely used in model airplane plant protection machines, multi-rotor drones, RC model ships and cars.font-size:10.5000pt;mso-font-kerning:1.0000pt;'>
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Parameters of Product:font-size:10.5000pt;mso-font-kerning:1.0000pt;'>
Model |
SQESC 28120 |
Processor |
STM32G071 |
Input voltage |
DC 7V-33.6V（2-8S Lipo） |
Continuous current (good heat dissipation) |
120A |
Maximum current (good heat dissipation) |
150A |
Support firmware |
BLHeli_32，AM32 |
BEC(if any) |
5V/4A, 6V/4A, 7.2V/4A, 8.2V/4A, 12V/3A adjustable |
Signal protocol |
Dshot (All),PWM,Oneshot,Multishot,etc. |
Programming parameter adjustment |
Support |
Throttle calibration |
Support |
Timing angle setting |
Support |
Current detection |
Support |
Telemetry signal |
Support |
Motor steering settings |
Support |
RGB LED color lights |
Support |
Power cable(if any) |
14AWG |
Application scenarios |
Suitable for multi-axis drones, fixed-wing aircraft models, multi-rotor drones, plant protecti |
