Description

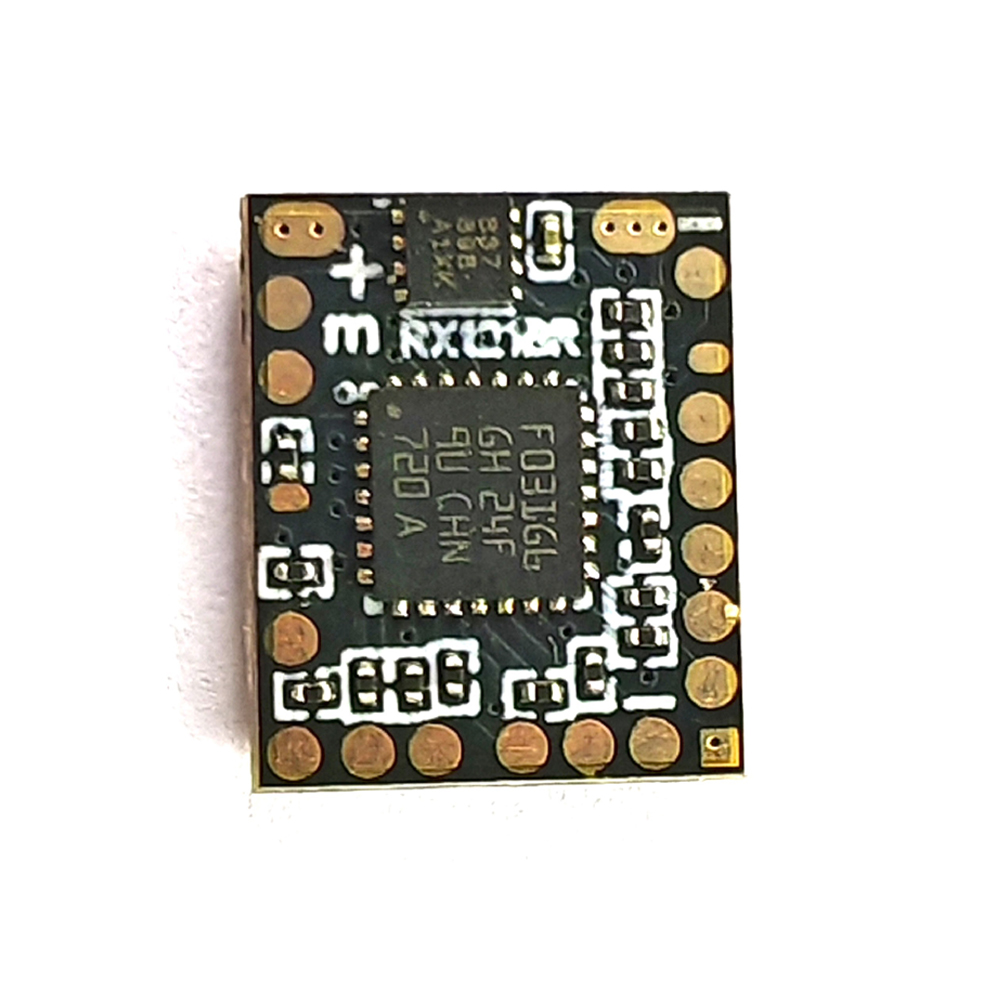

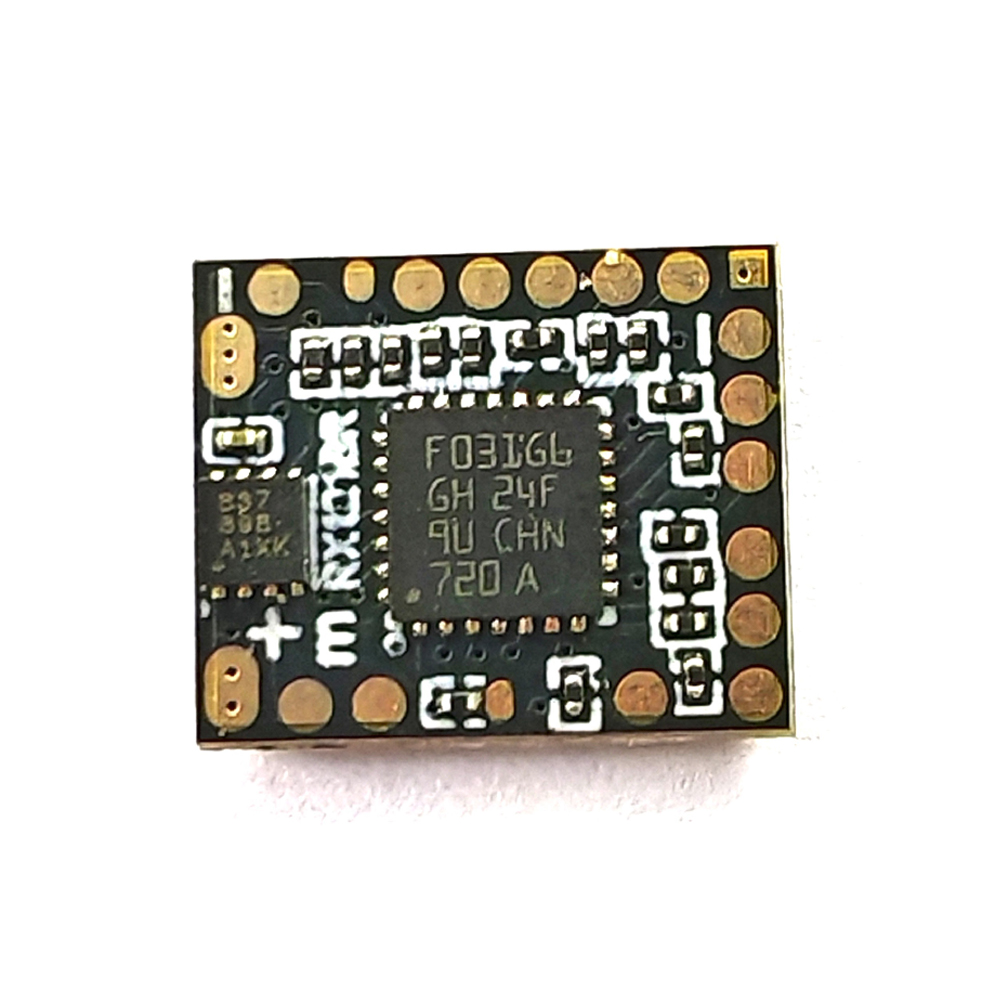

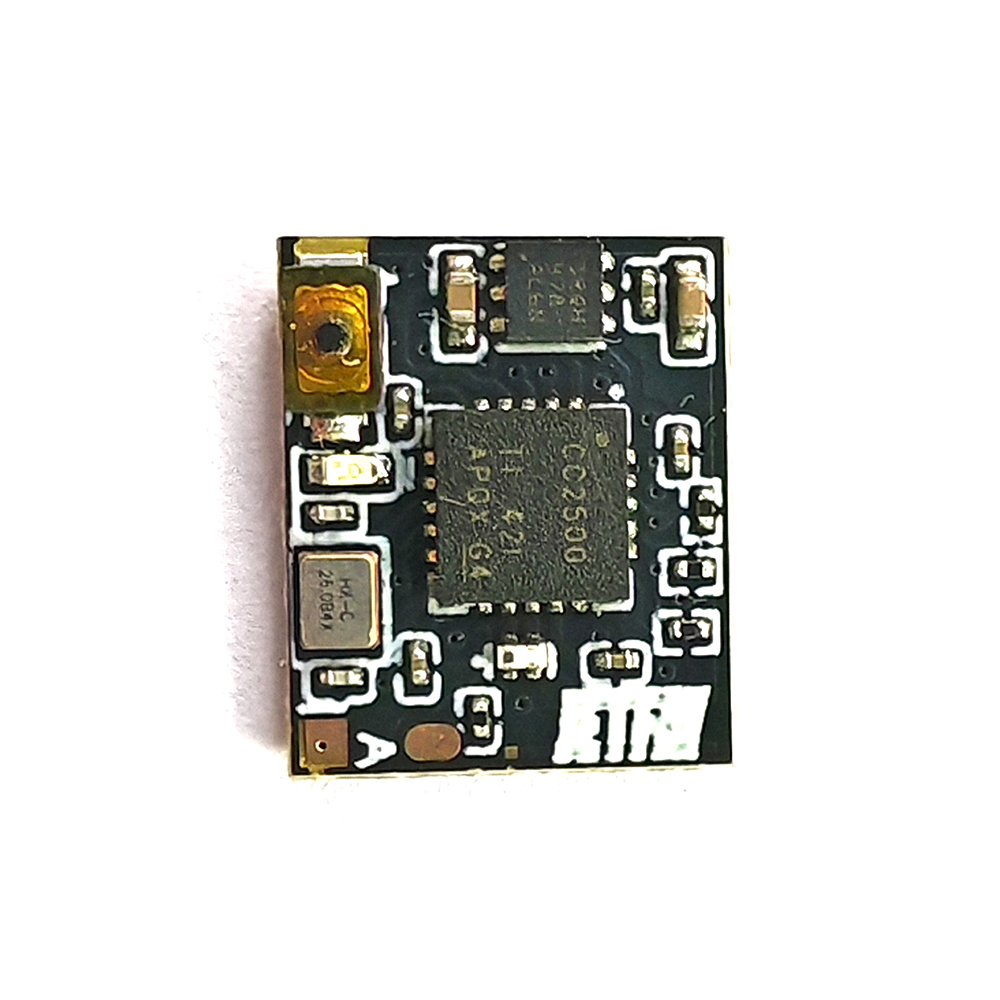

RX121BR 12-in-1 Multi-protocol 0.3g Ultra Small Static Modified Receiver for 1/64 1/87 RC Model Futaba Radiomaster Jumper Radiolink DUMBOR FRSKY FLYSKY Radio Transmitter
Specification:

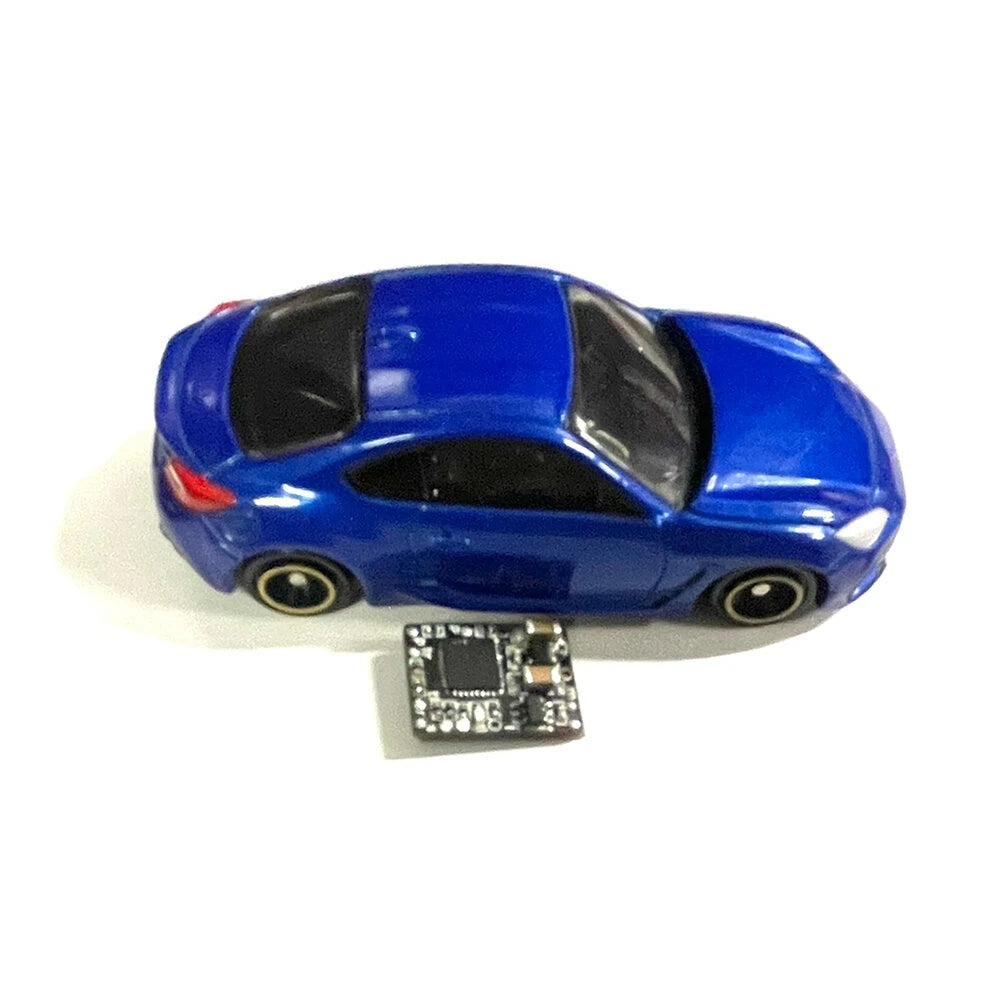

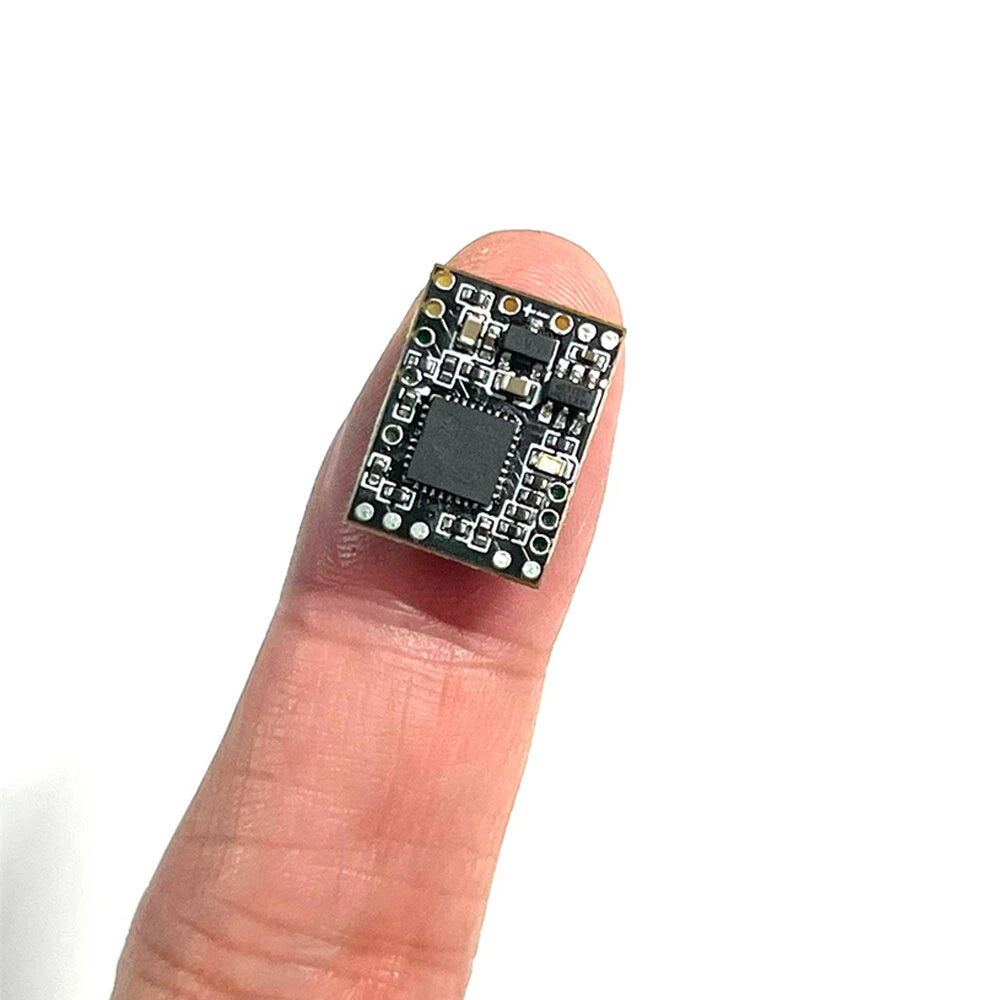

Size: 9.5x11.4x2.0mm, suitable for 1:64/1:87 models
Weight: 0.3g
Supply voltage: 3.3-6V
Wireless protocol: built-in 12 wireless protocols, for FUTABA, RADIOLINK, DUMBORC, FRSKY, FLYSKY, MC6C, WFLY2, etc., click me to see the specific model (except ELRS)

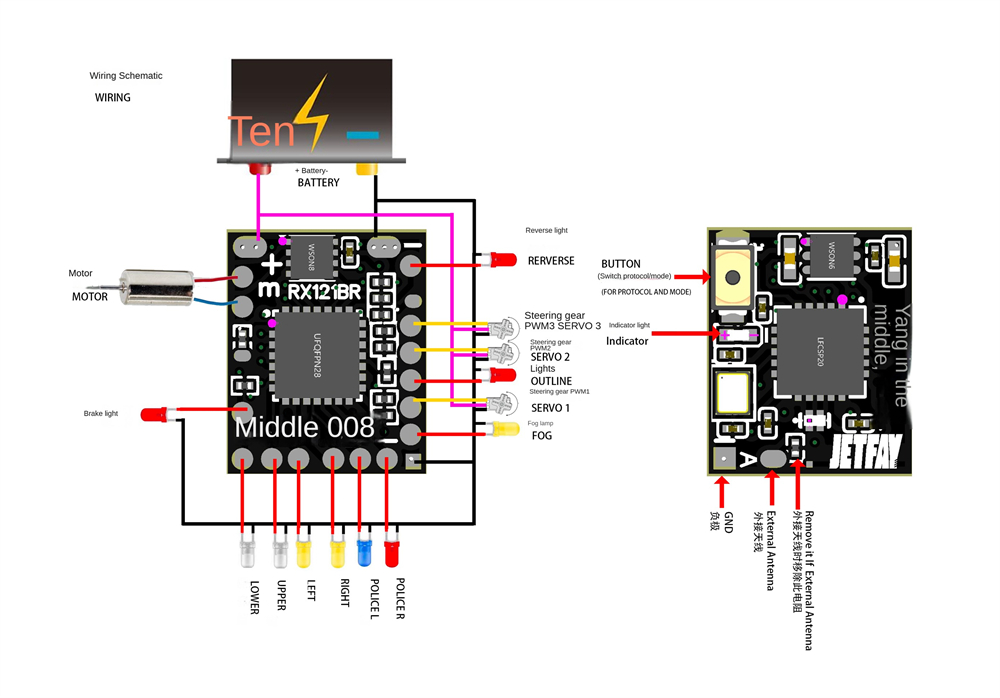

Lighting control: built-in linkage, multiple control methods, 3 channels and above can all be controlled.
Bidirectional brushed ESC: maximum current 1.8A, one channel

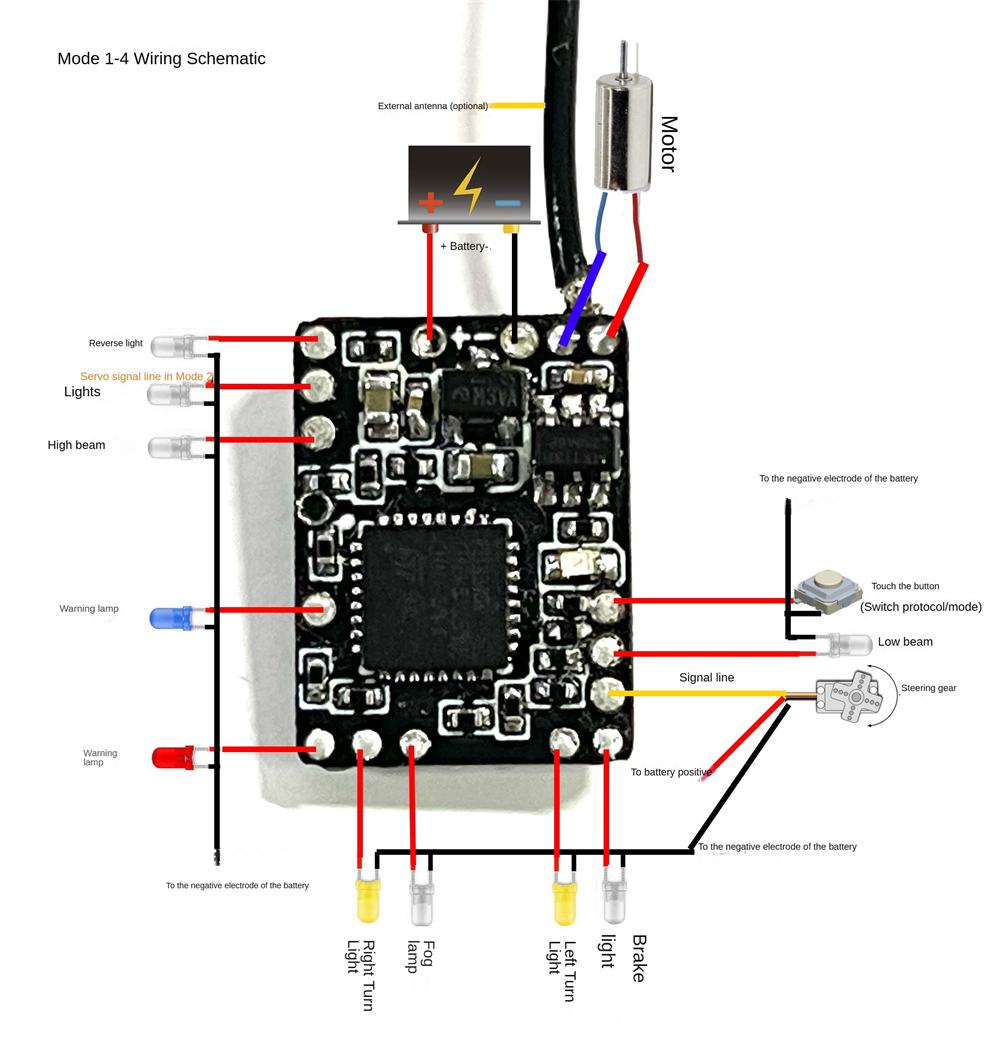

Output signal: there are 6 output modes to choose from, which can output multiple standard PWM, ESC PWM, SBUS and PPM.
External lighting specifications: 0402/0603LED, total current cannot exceed 600 mA, 2-3 LEDs can be connected per channel.
Telemetry feedback: voltage, signal strength, packet loss rate, only some protocols are supported, such as RADIOLINK, DUMBORC, FLYSKY, WLFY2, etc.
Note:
1. Do not connect the positive and negative output of the power cord in reverse!
2. Recommended voltage 3.3-6V
3. Do not overload the output current of each light, about 3 per channel.
4. Remote control calibration: ensure that the beautiful median value is correct.
5. Fail-safe protection: It is recommended to configure to avoid accidents.
Package included:
1x RX121BR 12-in-1 Multi-protocol Receiver
