Description
Description:
Item Brand:ROCKET
Item Number:540

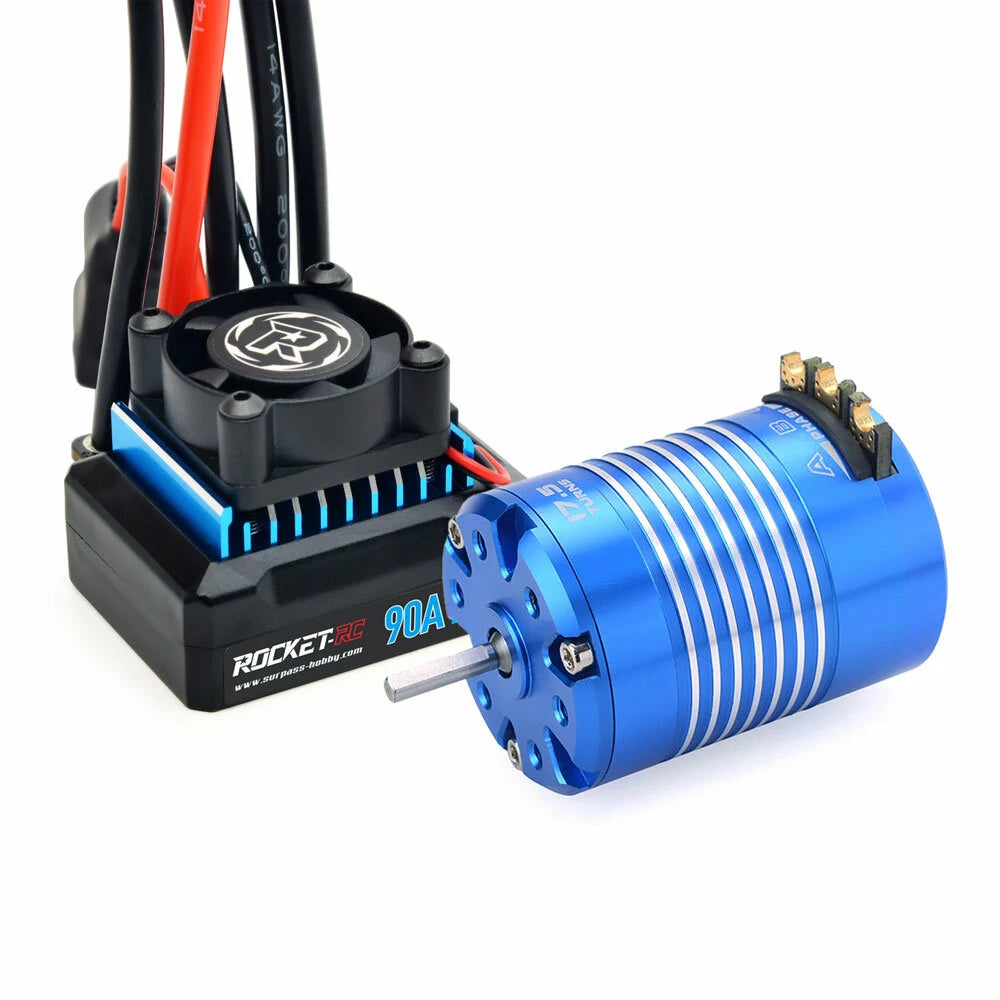

Item Name:Motor/esc
Material:Metal
Color:Black
Product Size:Motor size is about 36*50mm(diameter*length),esc size is about 44.5*39.5*31mm(including fan)
Product Weight:Motor Weight is about 170g,esc weight is about 69g(including wires)
Compatible Models:1/10 drift speed racing rc cars vehicles models

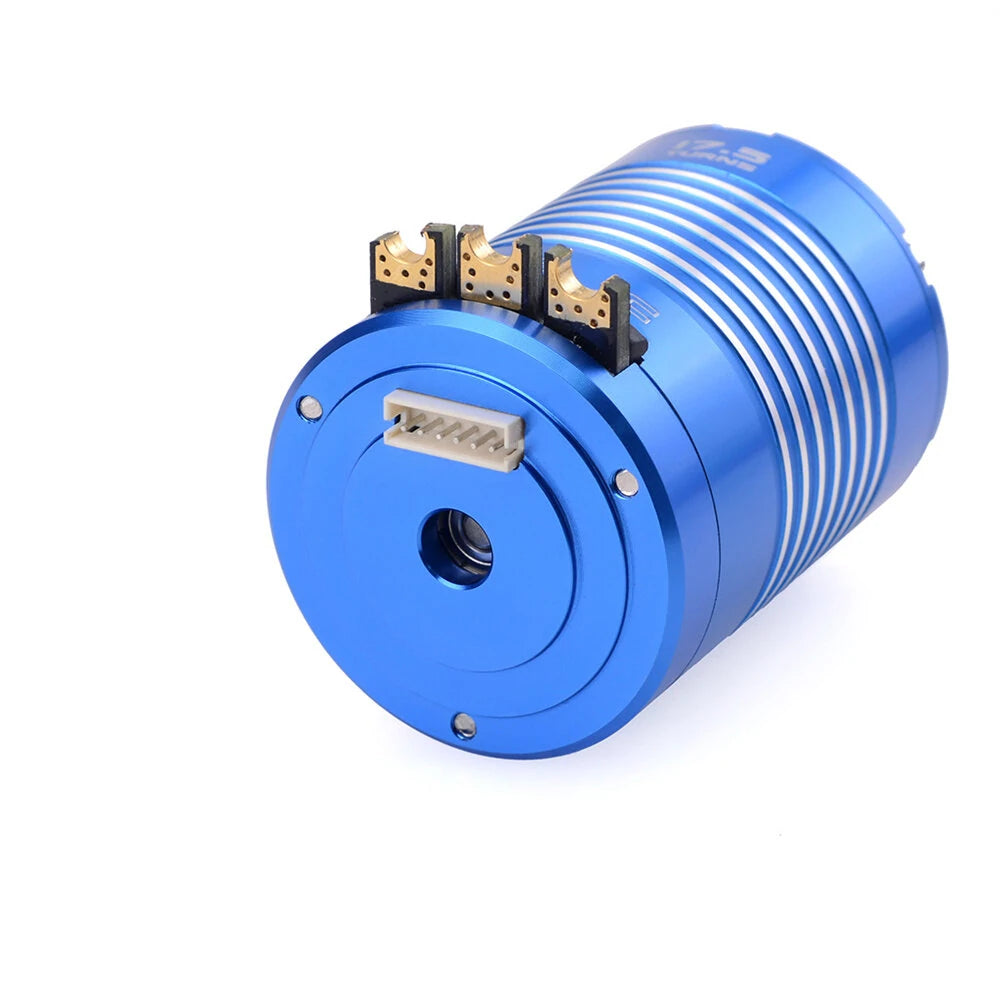

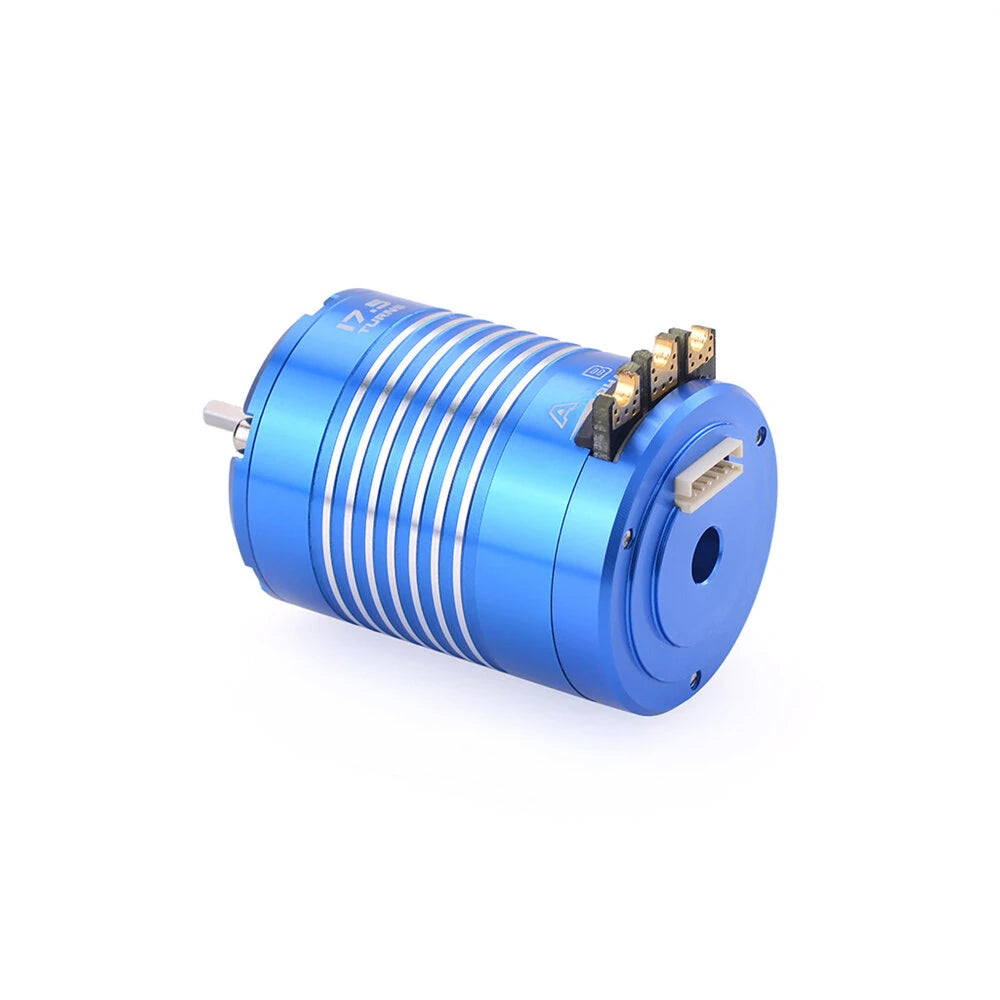

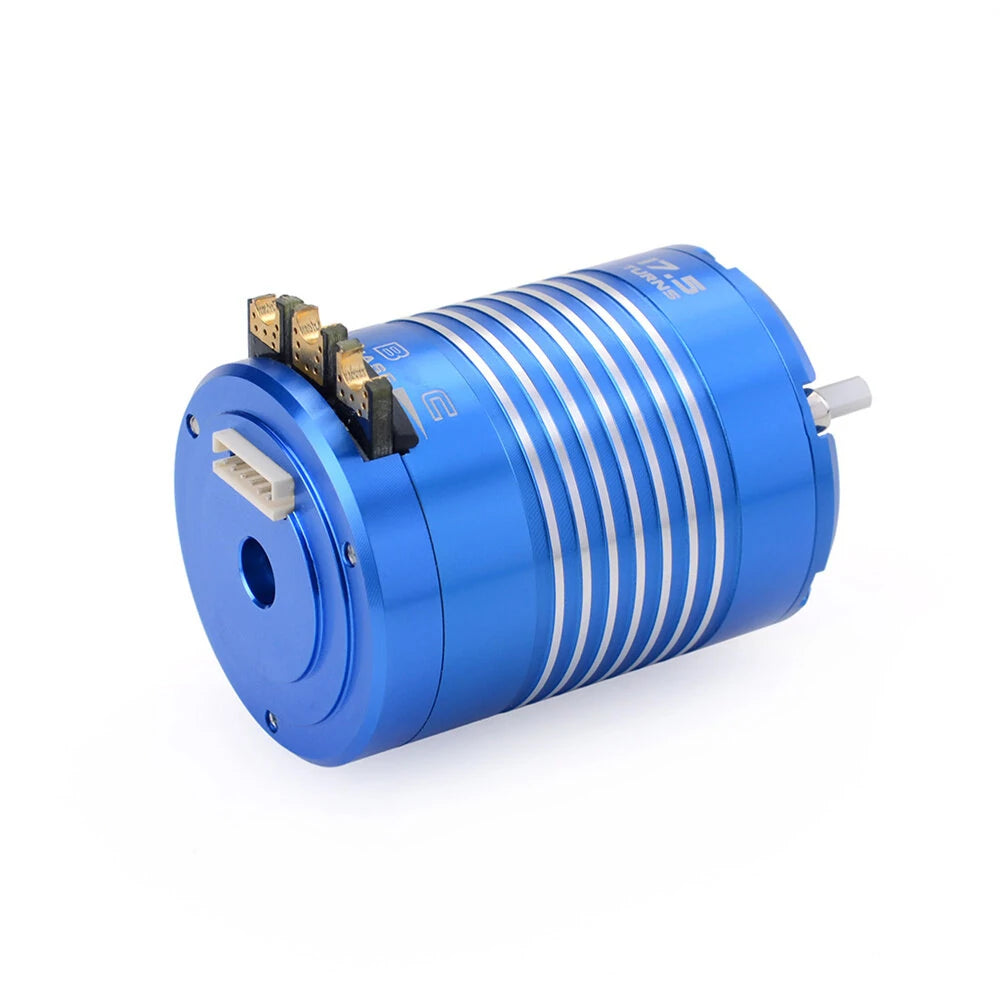

Specification of Motor:
Turns:8.5/10.5/13.5
KV(RPM/Volt):4200/3950/3500
Watts:335W/265W/205W
Lipo(S):1-3S
Max Amps:80A/63A/49A
Rotor Poles:2
IO(7.4V):2.8/4.0/2.7
Resistance(mQ):9.2/15.84/24.4
Rotor:Diameter12.5X Diameter 7.2X 24.5
Weight:170g
Shaft(mm):Diameter:3.175
Type:MODIFIED/SPEC
Online Manual Download Please Click Here

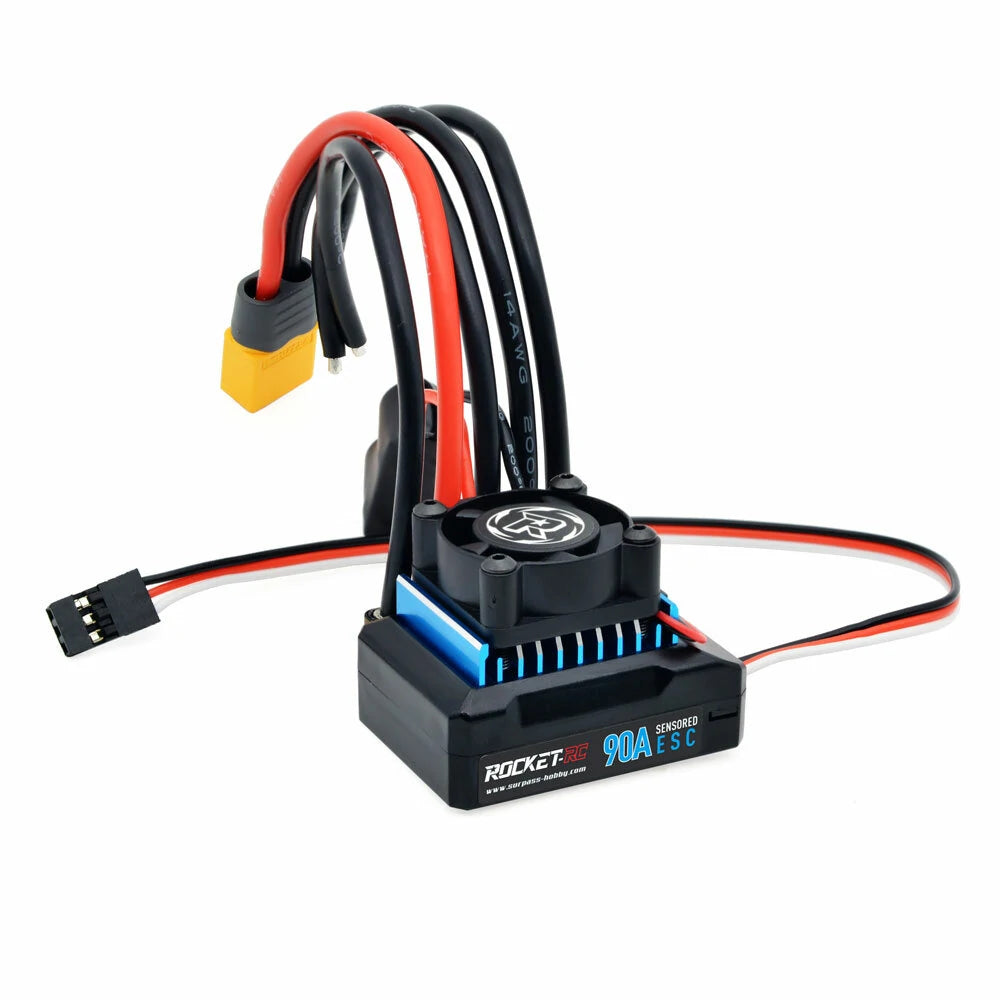

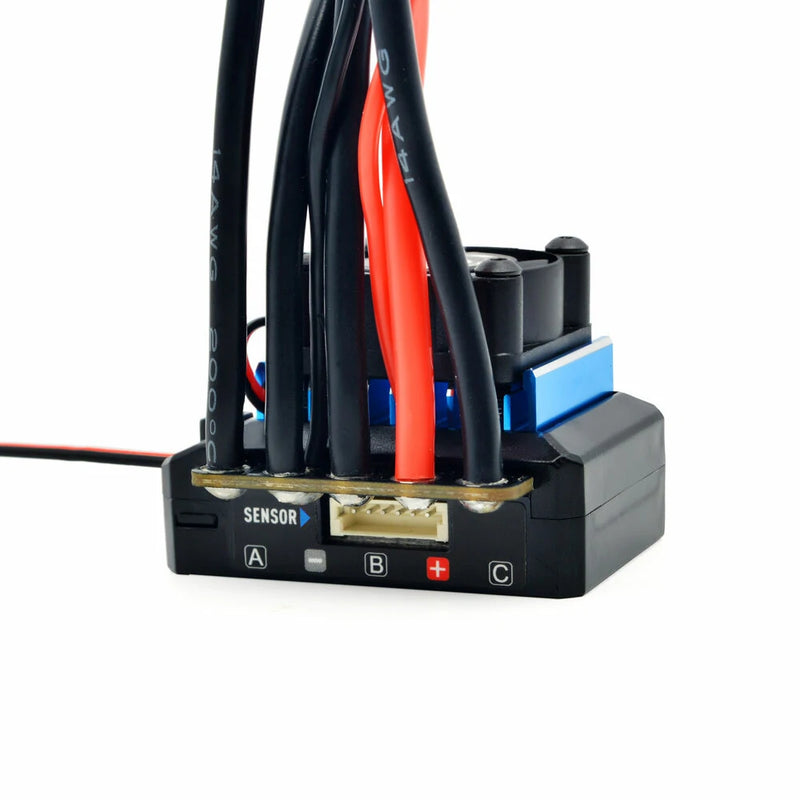

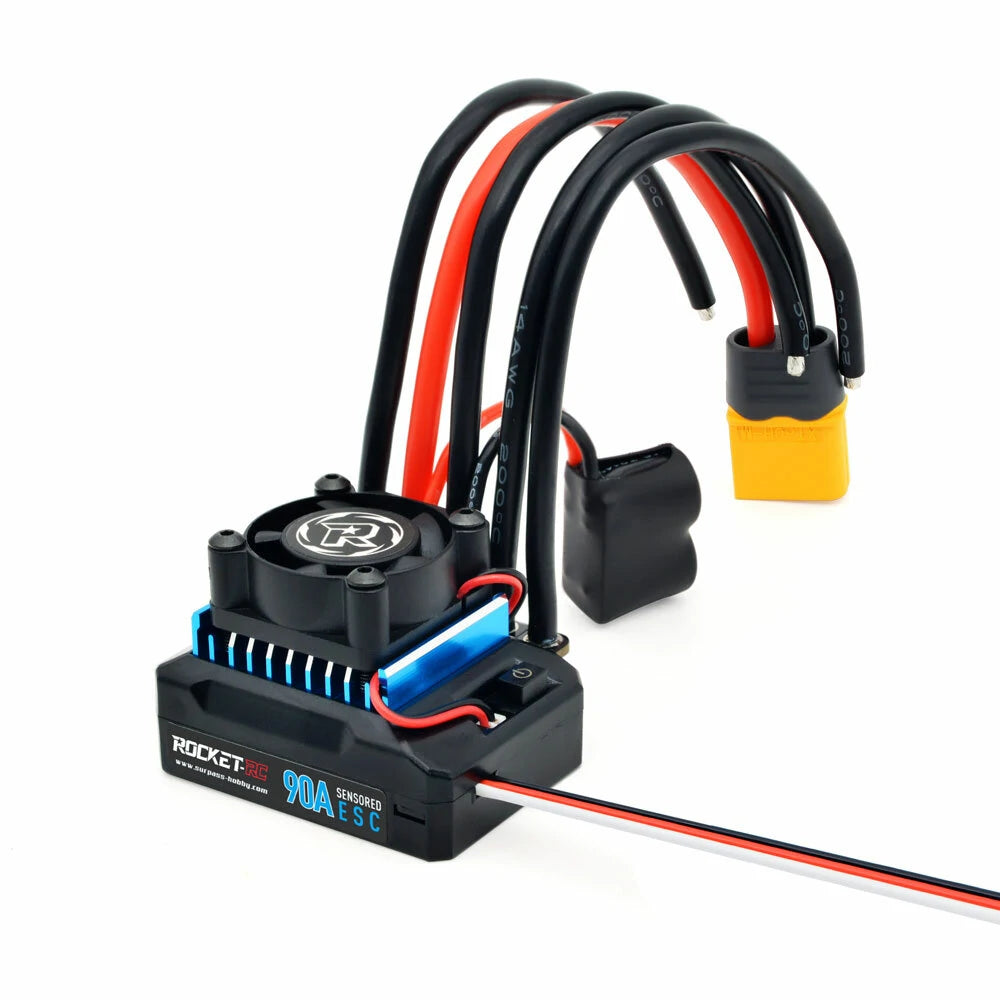

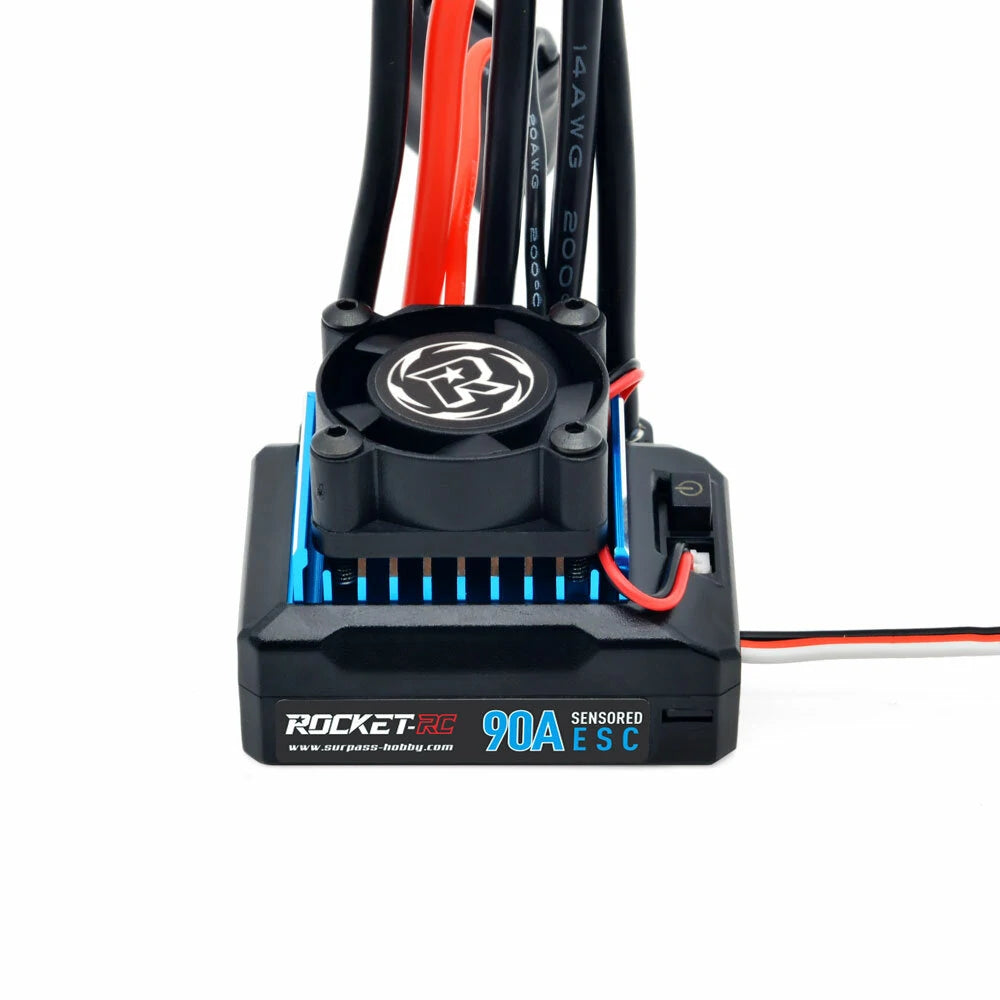

Specification of ESC:
Voltage Input:6V-11V
Continuous Current:90A
Peak Current:180A
Motor Limit:≥8.5T
Motor Type:Sensored 380/390/540 brushless motors
B.E.C:6V/4A
Forward/brake/reverse:Yes(factory preset at forward/brake)
Online Manual Download Please Click Here
Only Motor Package Included:(optional chosen by yourself)
1X Brushless Motor 540
Only ESC Package Included:optional chosen by yourself)
1X Brushless ESC 90A
