Description
Specification:
Model: Rex210

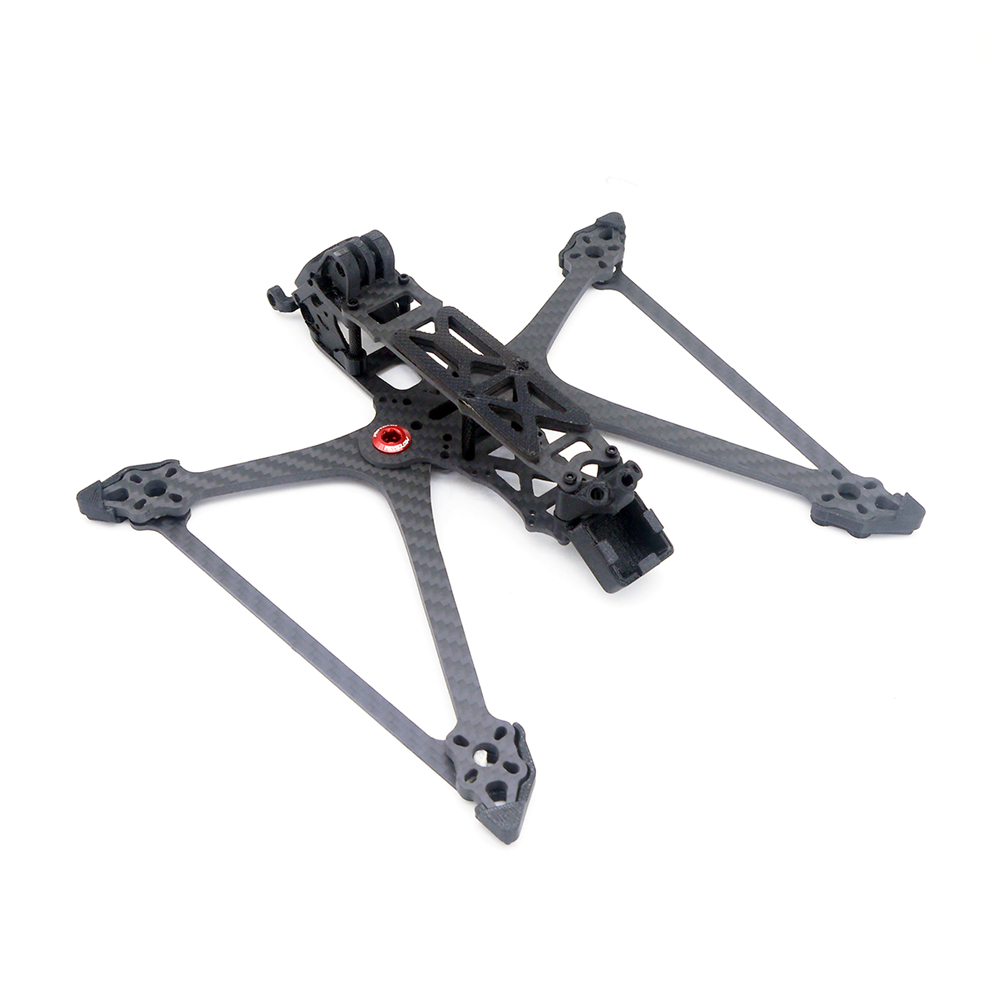

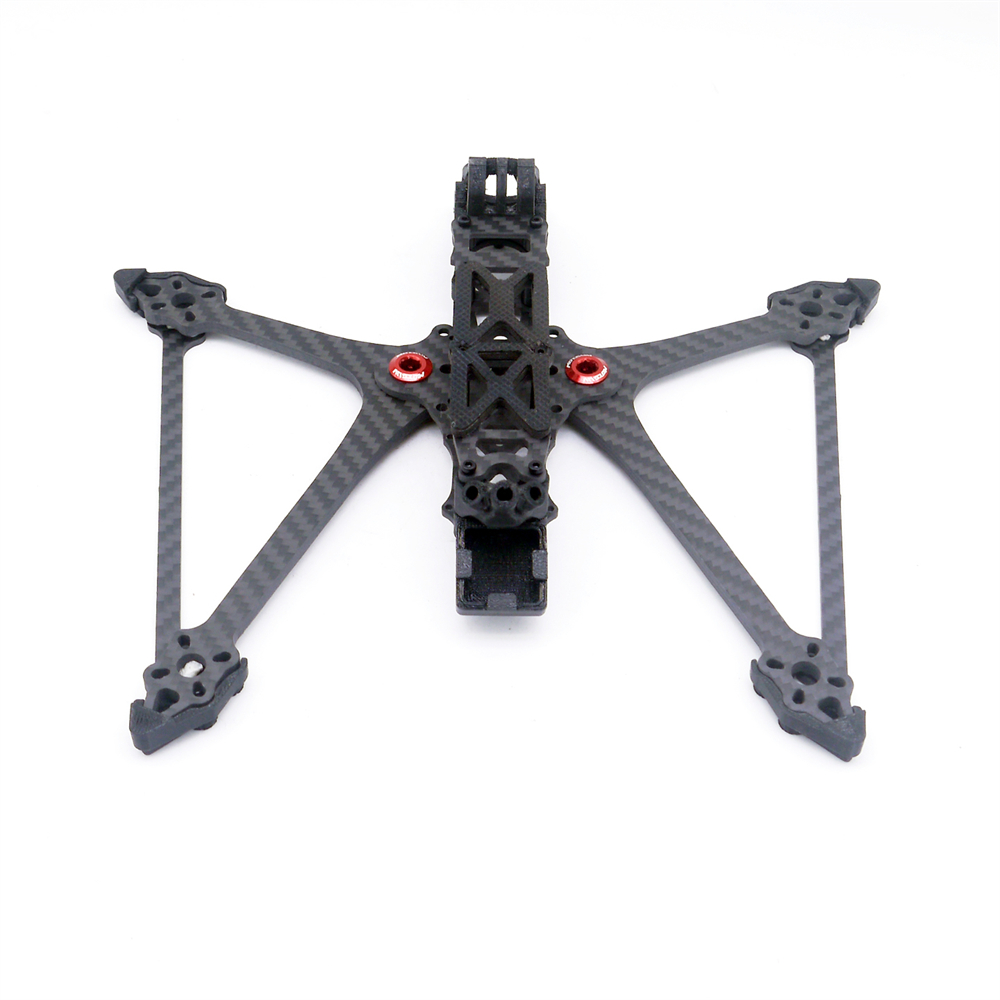

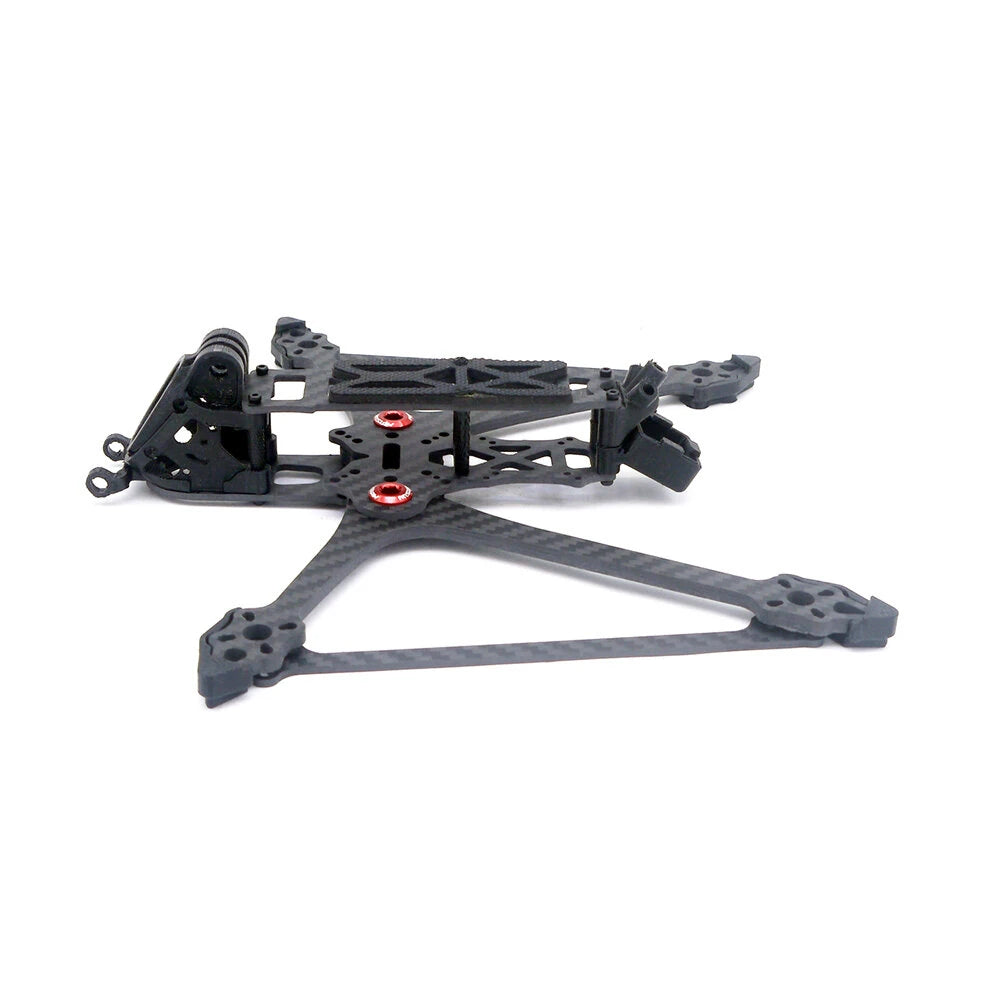

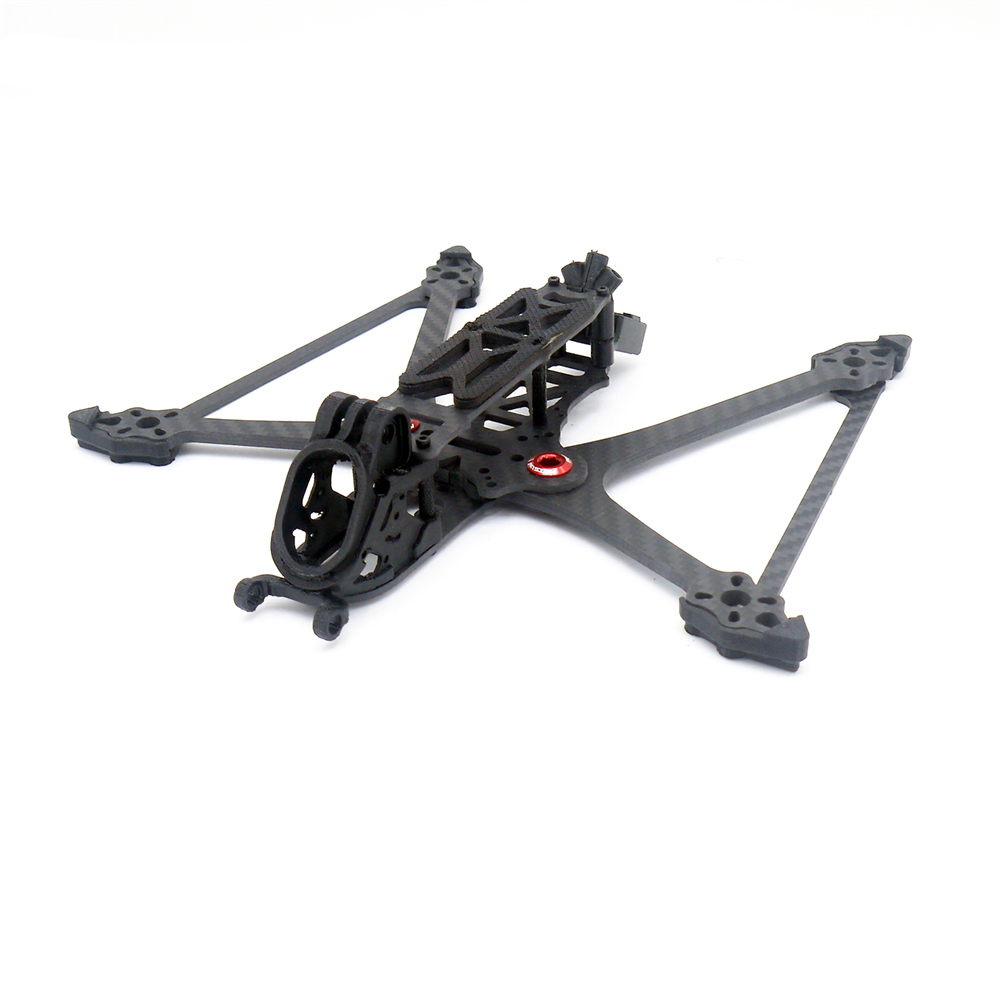

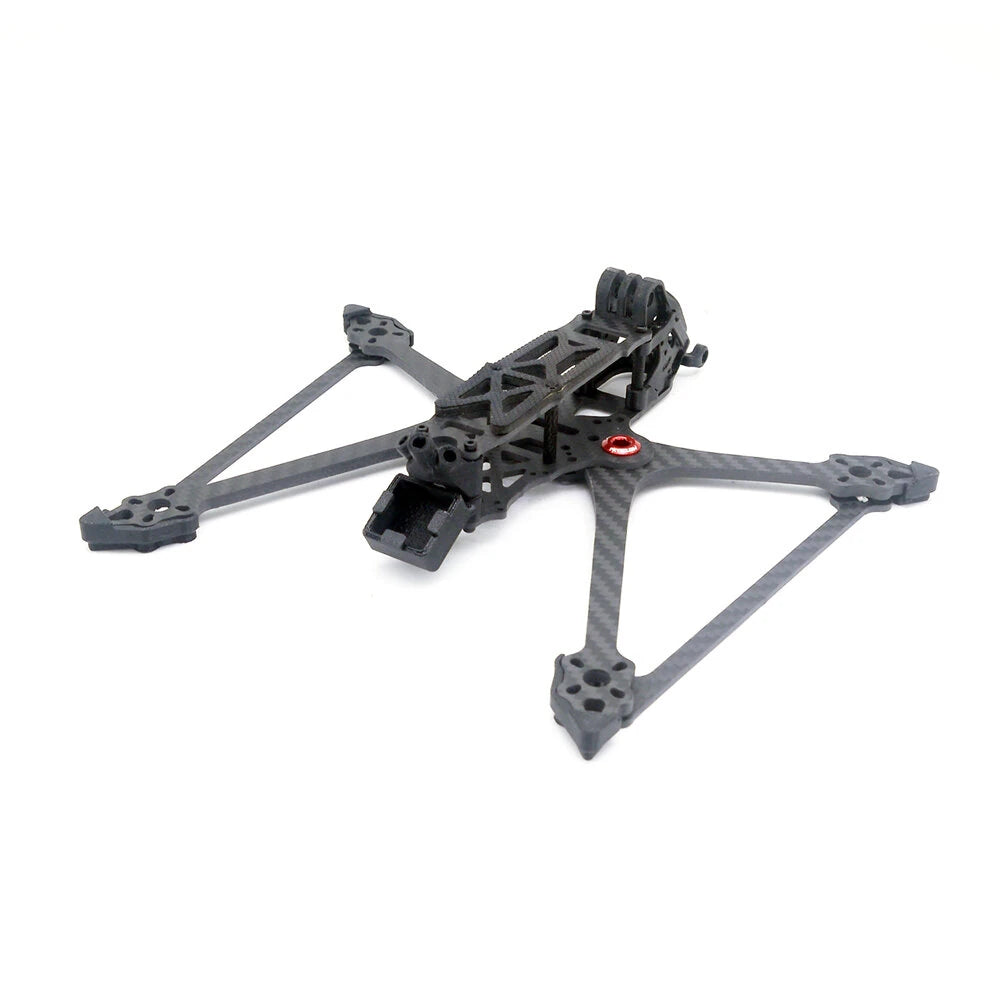

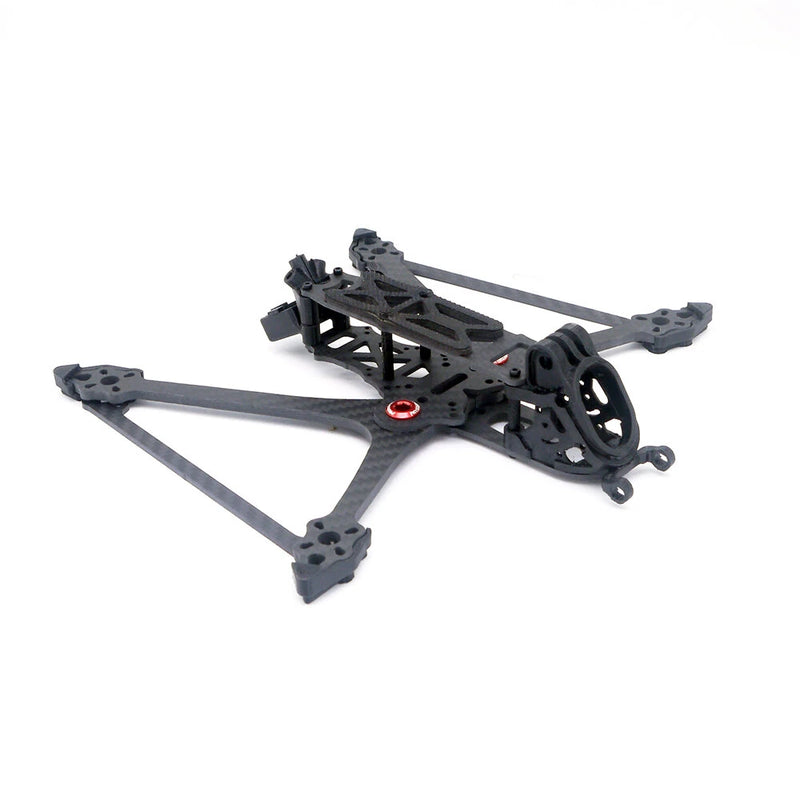

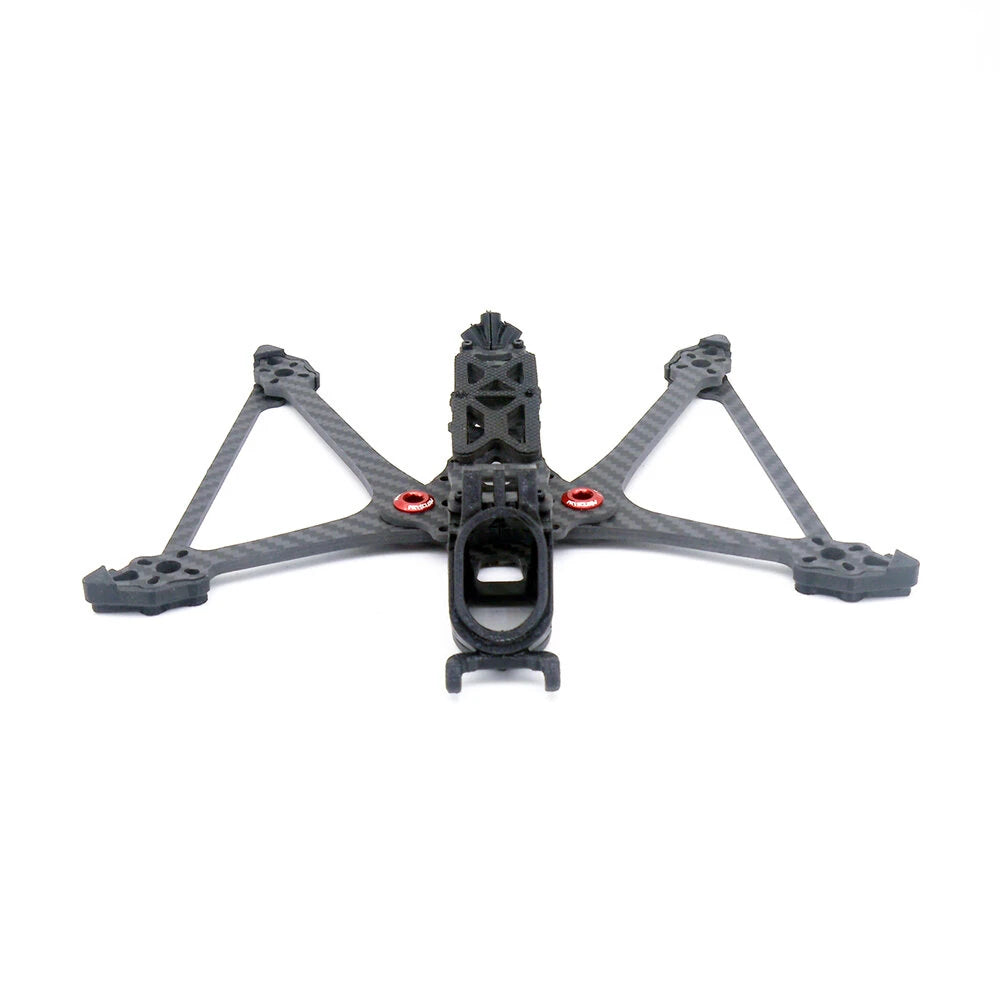

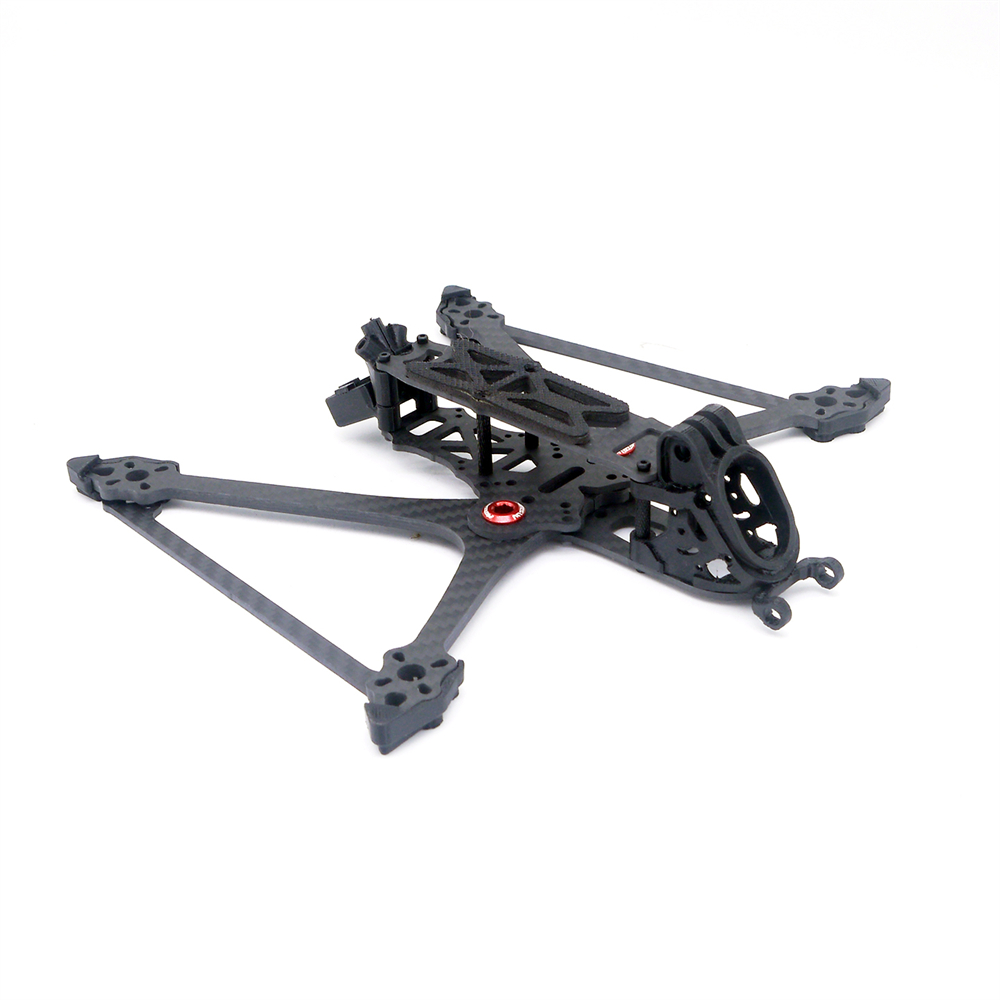

Item Name: Frame Kit
Wheelbase: 210mm

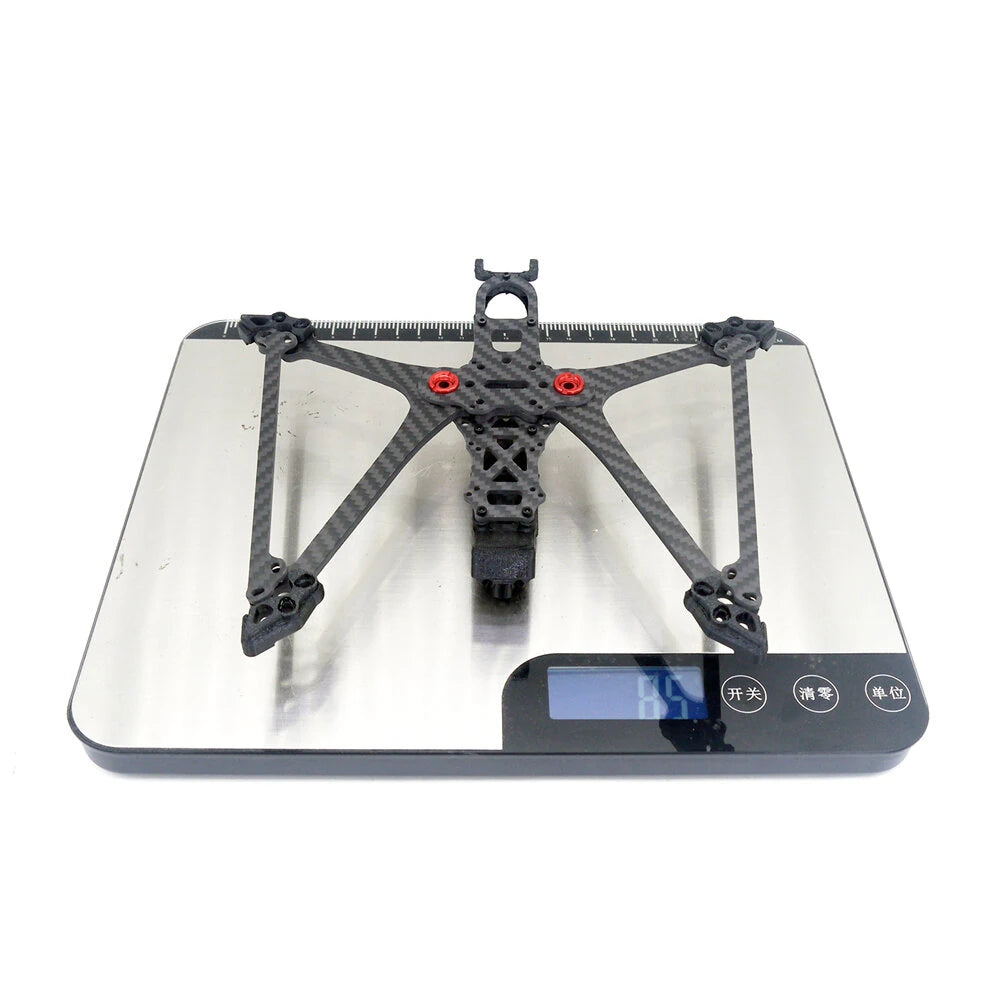

Weight: Approx. 85G (including printed parts)
Thickness: Bottom Plate 2.0mm, Upper Plate 2.0mm, Middle Plate 2.0mm, Reinforcing Rod 2.0mm, Machine Arm 4.0mm
Propeller: 5.0-inch propeller
Flight Controller Hole Spacing: 20*20mm (M3), 25.5*25.5mm (M2) (upright, not diamond-shaped), 30.5*30.5mm (M3) (need to remove the two middle aluminum columns)
Tail Image Transmission Hole Spacing: 20*20mm (M2), 25.5*25.5mm (M2)
Camera Installation Width: 20mm/19mm
Motor Installation Hole: 12*12mm (M2), 16*16mm (M3)
Printed Material: 3D printed tpu material
Printed Color: Black TPU
Internal Height: Approx.19mm
Printed Parts List: 4 motor protection seats, 1 head cover, 1 antenna seat (supports single antenna/dual antenna), 1 GPS seat
Recommend Parts: ( NOT Included)FC & ESC: 20x20mm SpeedyBee F405 Mini StackBrushless Motor: iFlight XING2 2306 1755KV 6S Brushless MotorPropeller: Gemfan 51366 MCK V3 5 Inch Tri-blade PC Props PropellerVTX & Camera: DJI O4 Pro / DJI O3 / VISTA/ 19mm & 20mm
GPS: BZ181 GPS
Package Included:
1 x Rex210 Frame Kit
