Description
Specifications:
|
General Specifications |
Frequency range * |
TX: TX: VHF 144-146MHz & UHF 430-440MHz; RX： VHF 136-174 MHz & UHF 400-520 MHz; GPS ：GPS L1C/A，SBAS L1C/A ，QZSS L1C/A，BDS B1I |
Channel Capacity |
4000 Channels |
|
Channel Spacing |
12.5KHz/25Khz |
|
Operating Voltage |
7.4V |
|
Battery Type |
Li-ion battery |
|
Operating Temperature |
-20°C ~ +50°C |
|
Audio Power Output |
16Ω 1W |
|
Antenna Impedance |
50Ω |
|
|
Receiver |
Sensitivity |
（12dB SINAD）≤-121dBm |
Adjacent Channel |
≥70dB（25Khz） |
|
Selectivity |
≥60dB（12.5Khz） |
|
Spurious Emissions |
≤-57dB（25Khz） ≤-57dB（12.5Khz） |
|
Spurious Suppression |
≥70dB（25Khz） ≥70dB（12.5Khz） |
|
Signal-to-Noise Ratio |
≥45dB（25Khz） ≥40dB（12.5Khz） |
|
Audio Distortion |
≤5% |
|
|
Transmitter |
TX power |
High: ≤6W Middle : 3W Low: 0.5W |
Frequency Stability |
±2.5ppm |
|
Modulation Limits |
±5.0KHz@25KHz（25Khz） ±2.5KHz@12.5KHz（12.5Khz） |
|
Adjacent Channel Power |
≤70dB（25Khz）≤60dB（12.5Khz） |
|
Signal-to-Noise Ratio |
25Khz: 45dBm；12.5Khz: 40dBm |
|
4FSK digital modulation |
12.5KHz（Data）7K60FXD 12.5KHz（Data+Voice）7K60FXE |
|
Audio Distortion |
≤5% |
|
Bit Error Rate |
≤3% |
Features:

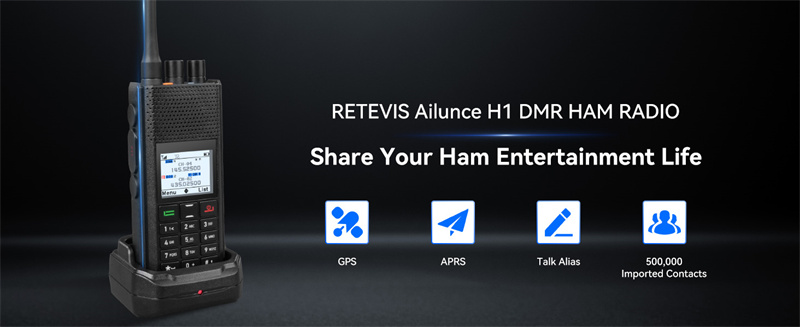

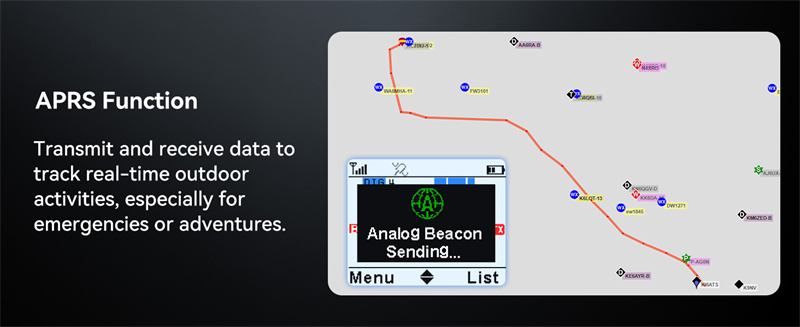

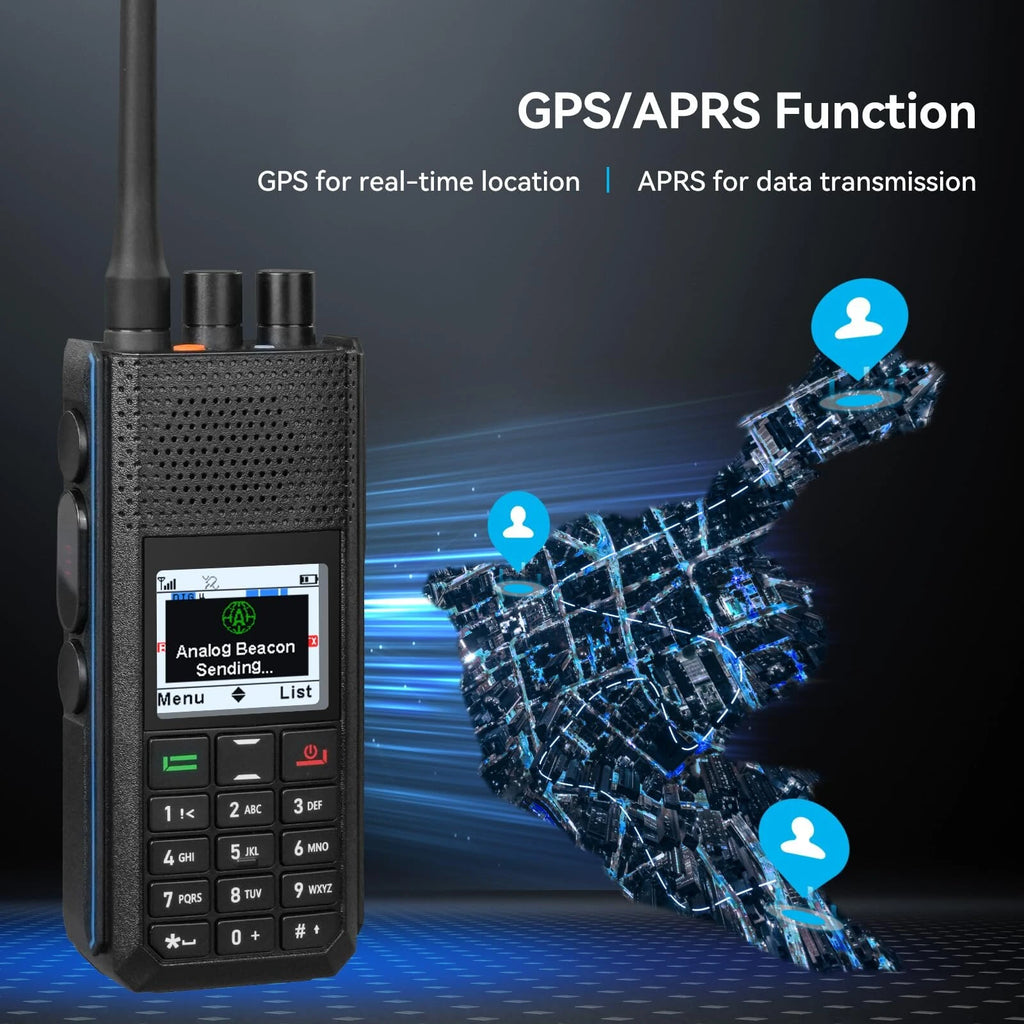

1. GPS/APRS function: locates the real-time location of your ham radio and measures the distance between teammates; the APRS function is also supported, enabling you to track your location on a website.

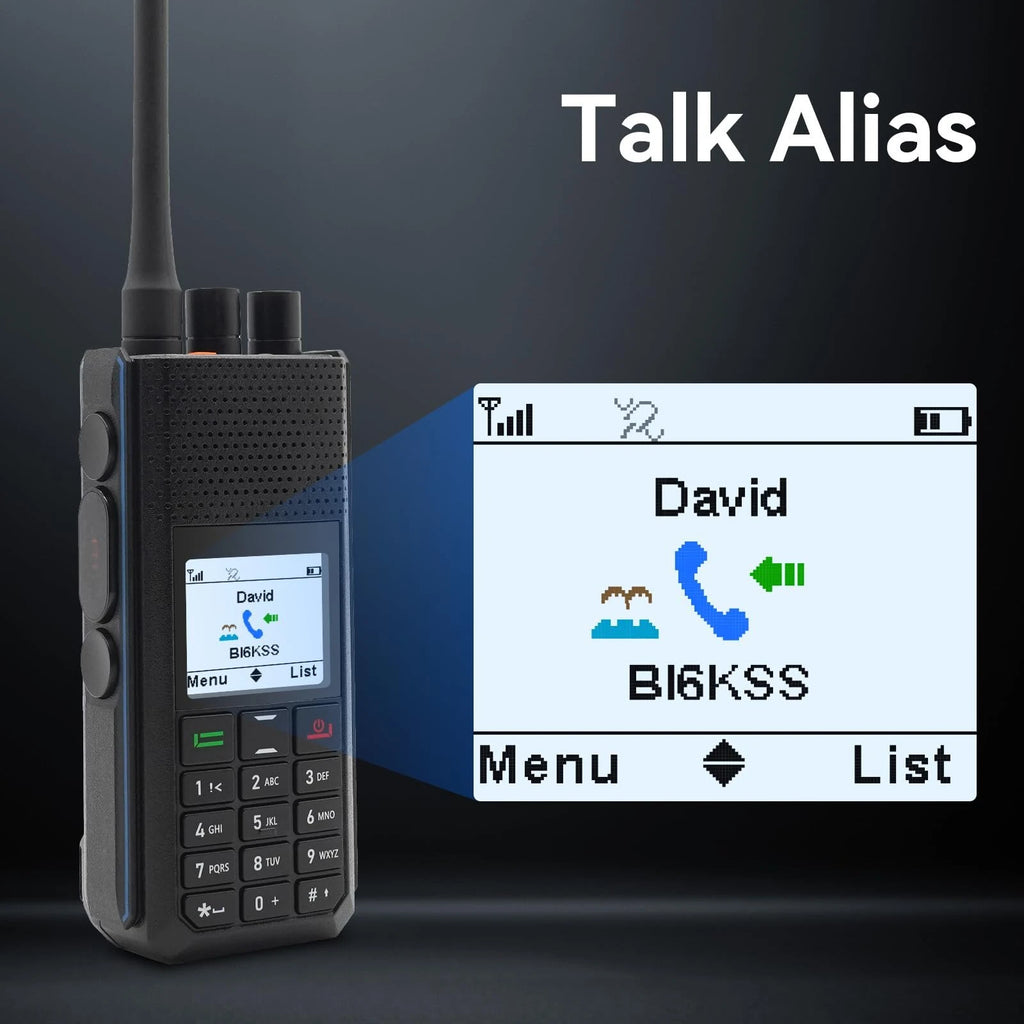

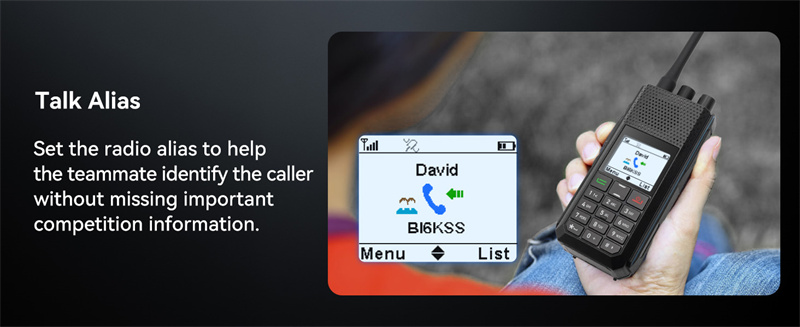

2. Talk alias: enables ham enthusiasts to set the display name, making it convenient and quick to be identified and remembered by mates.

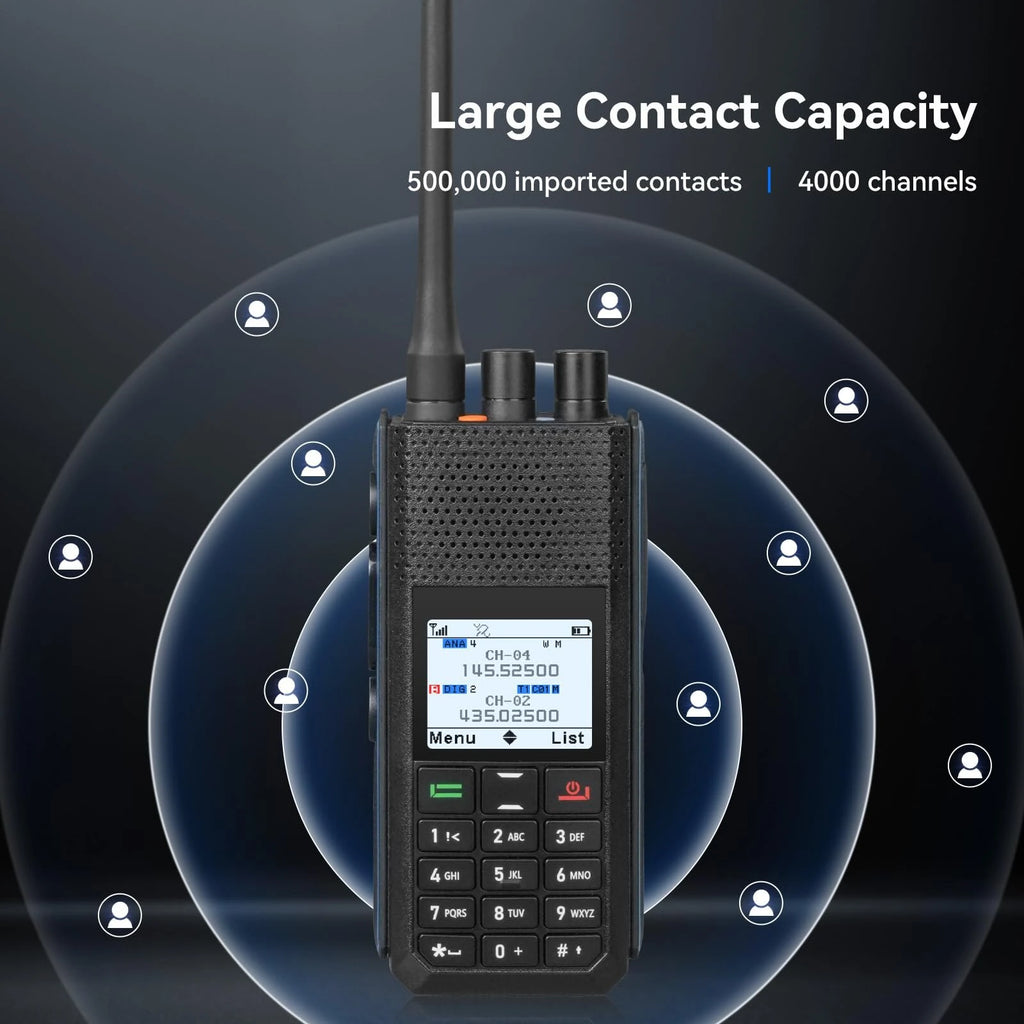

3. Support importing 500,000 contacts: DMR radio features 4000 channels; convenient for naming and managing the contacts.

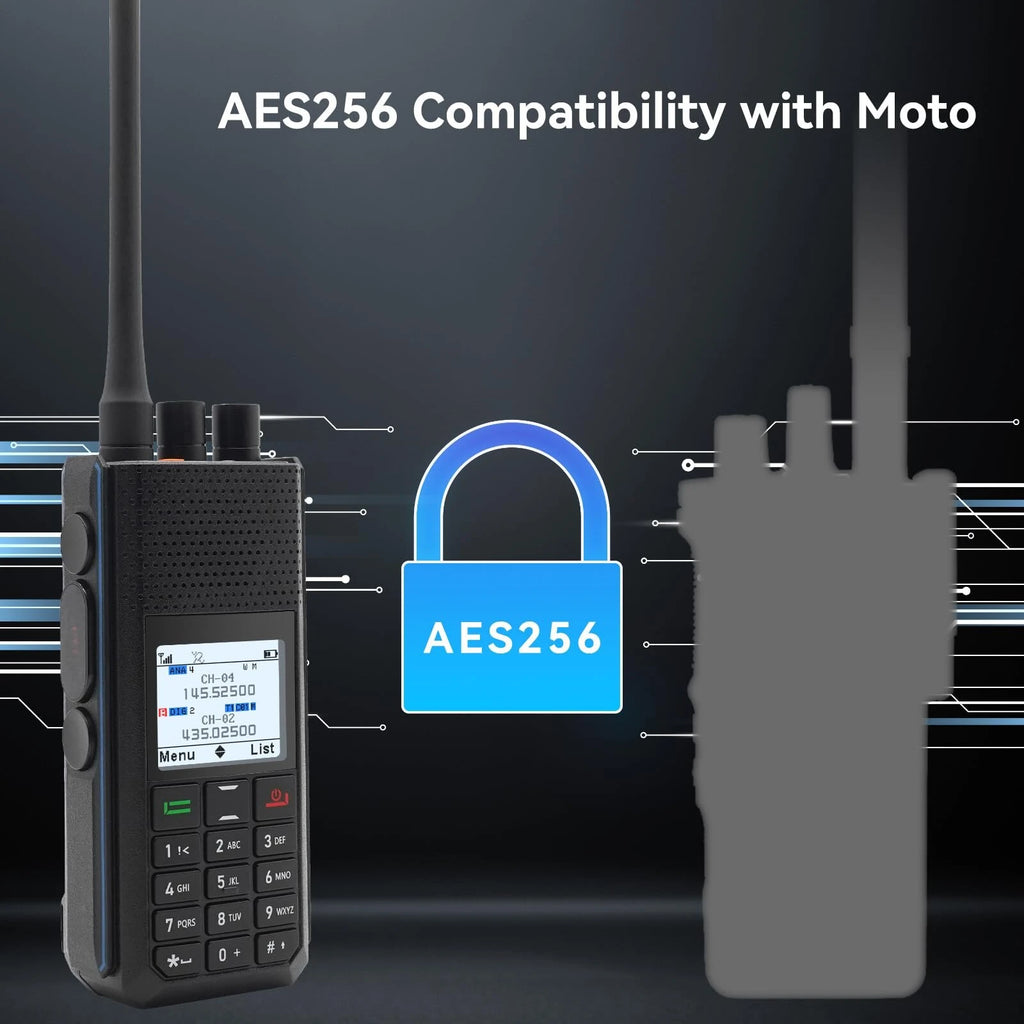

4. AES256: 256-bit keys ensure compatibility with Moto; provide robust communication protection; available for ham competition use.

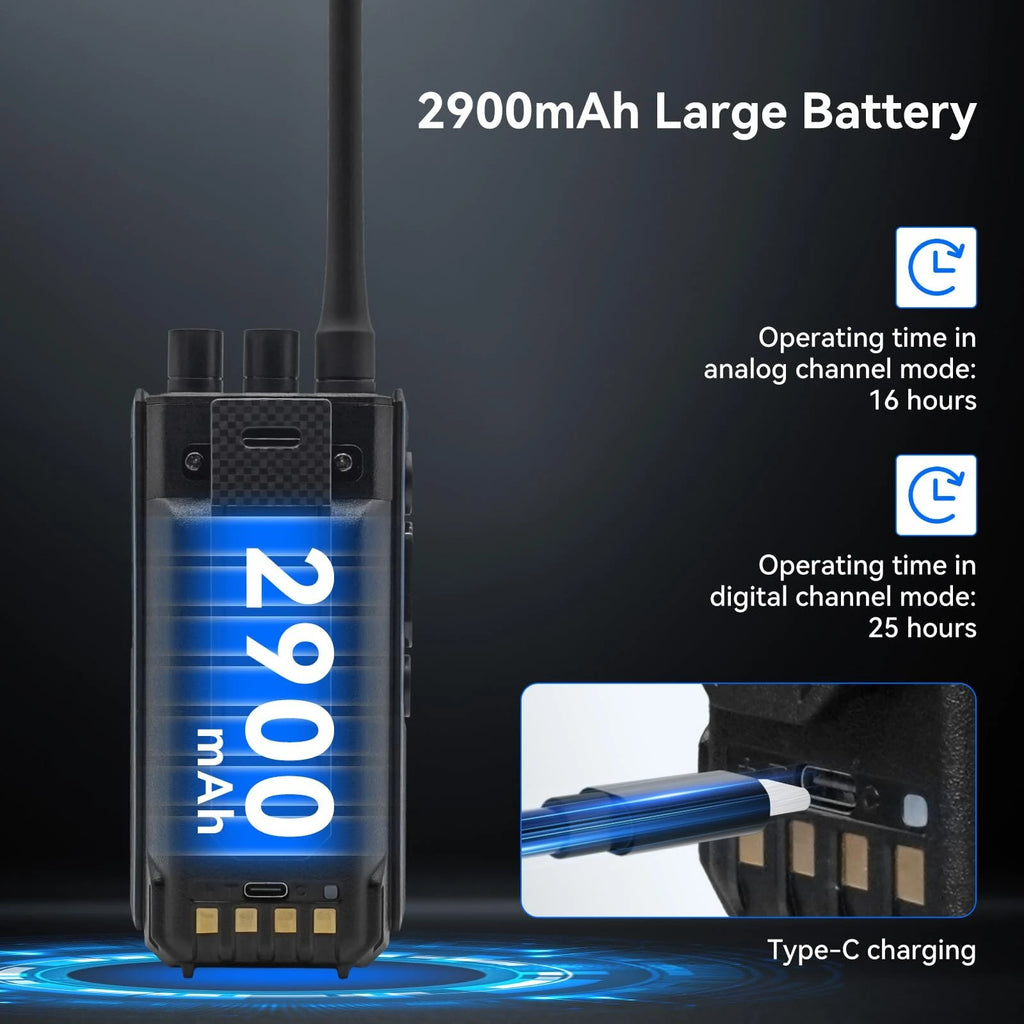

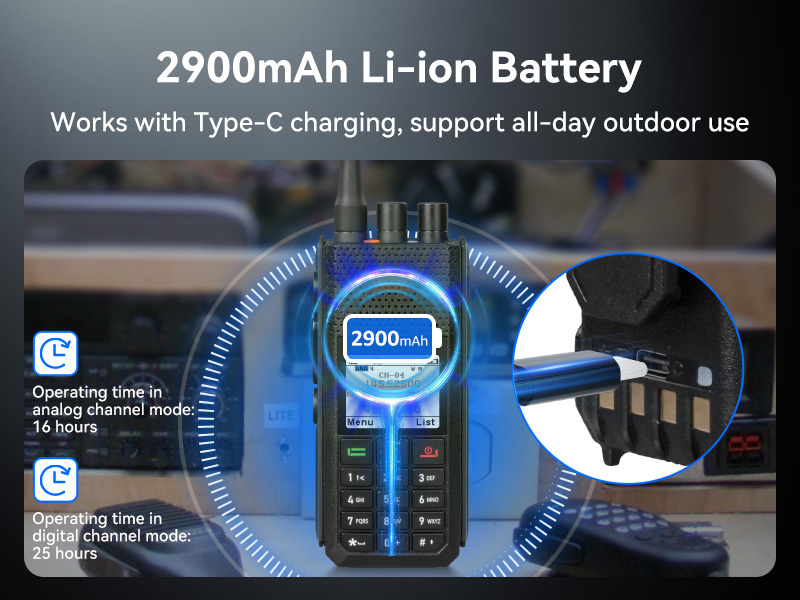

5. 2900mAh rechargeable battery: makes walkie talkies effective to use the whole day outdoors; Type-C charging; desktop charger; offers flexible charging options.
6. PC and ABS ham radio: anti-fall and shock-resistant; strongly resist falling or shock during hiking or adventures.

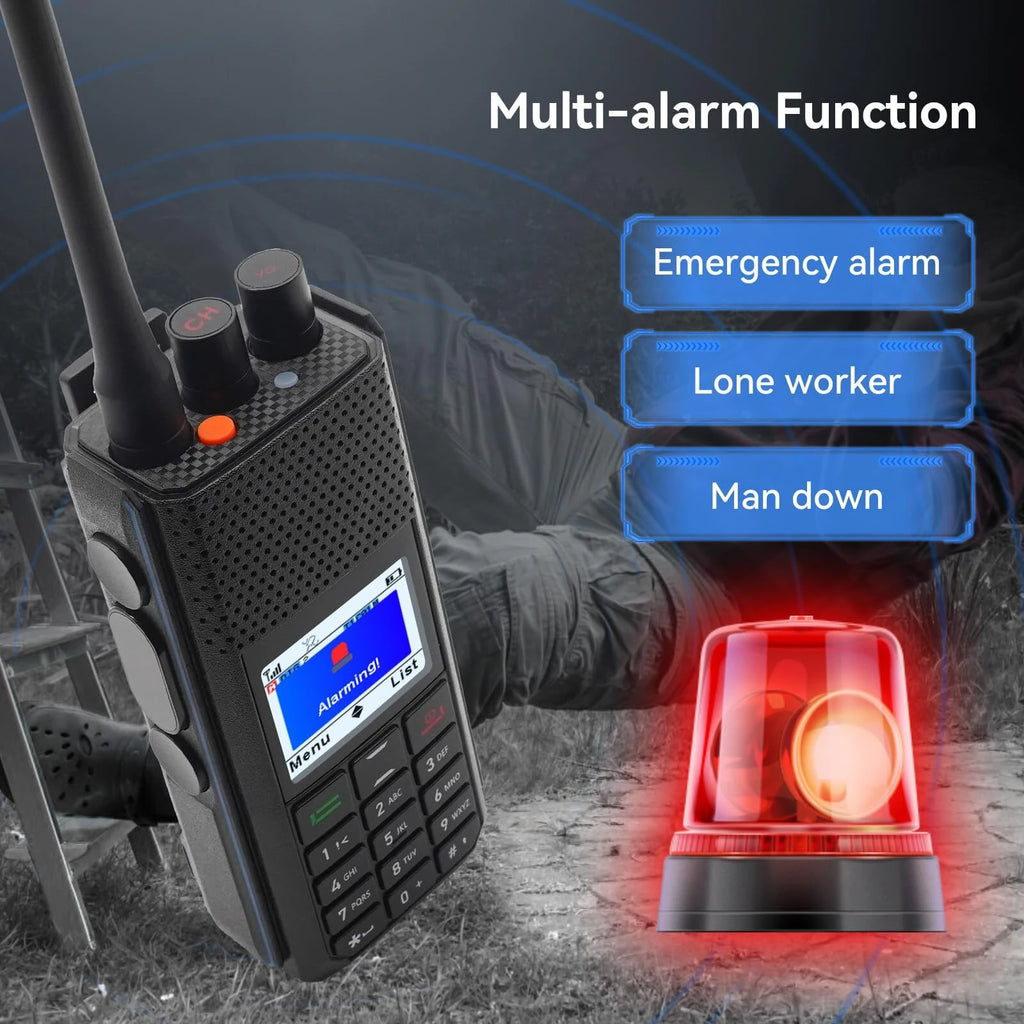

7. 3 alarm modes: emergency alarm for emergency safety; lone worker and man down for safety when alone; amateur radio ensures your safety anywhere.
Package Includes:
1x H1 Ham Radio
1x Type-C Charging Cable
1x Desktop Charging Base
1x Battery
1x Belt Clip
1x Hand Strap
1x Manual
