Description

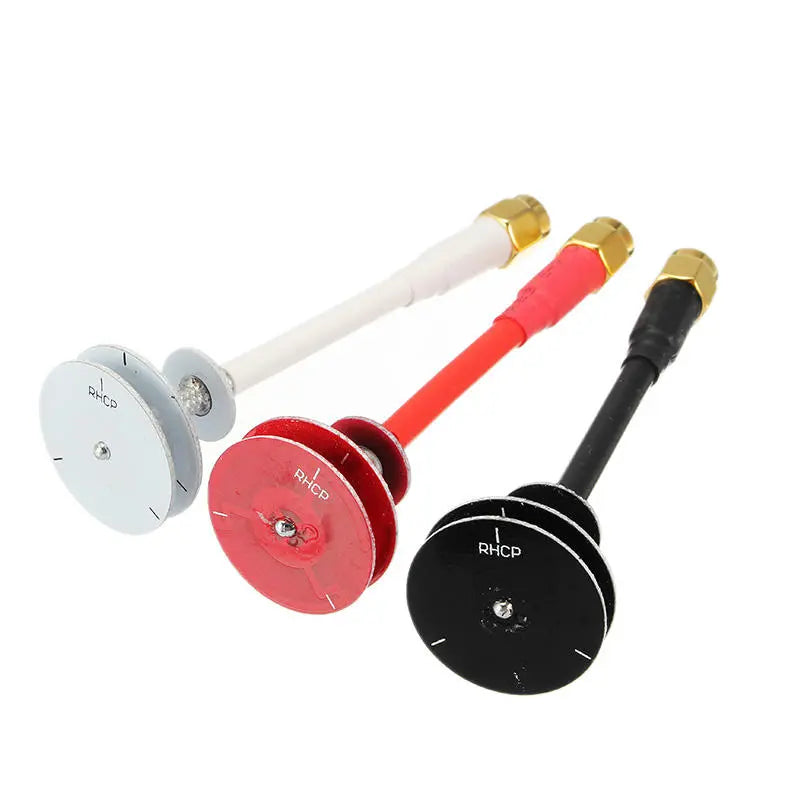

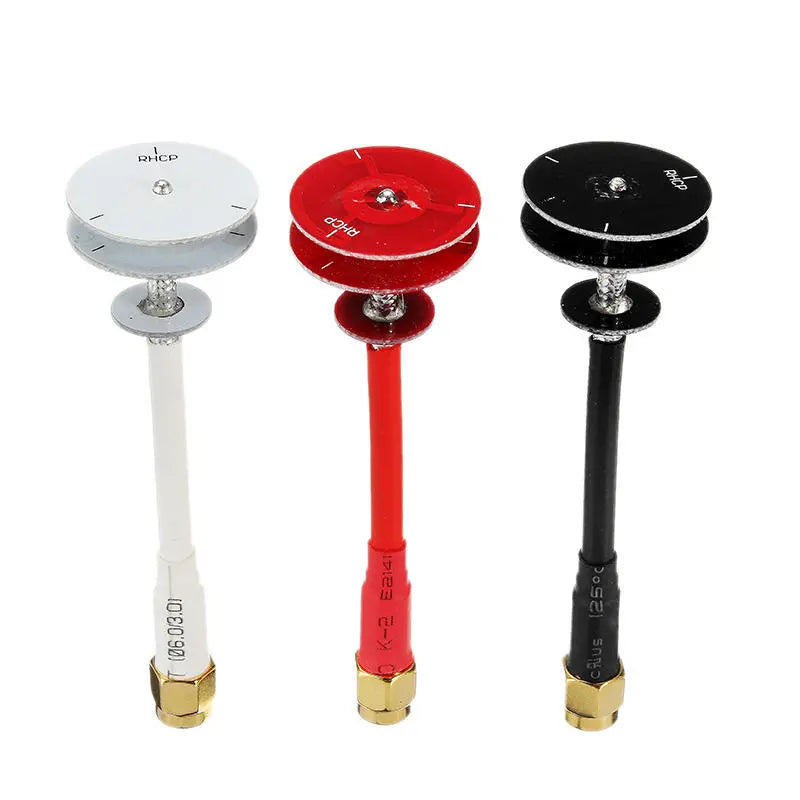

Pagoda Antenna
Description :
Brand Name : Realacc
Item Name : Omnidirectional Antenna
Gain : 5dBi
Max. Power : 50w
Connector : RP-SMA,SMA
Color : Black, Red, White
Weight : 8.6g
Length : 78±3mm
Max. Dia. : 22.4±1mm
Min. Dia. : 11.8±1mm
Specification :
Frequency : 5.8G
Impedance : 50Ω
VSWR : <1.5:1

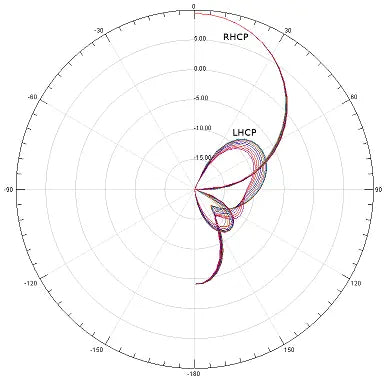

Polarization : Circular Polarized

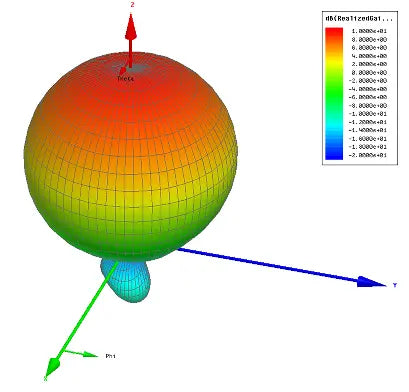

Radiation : Omni

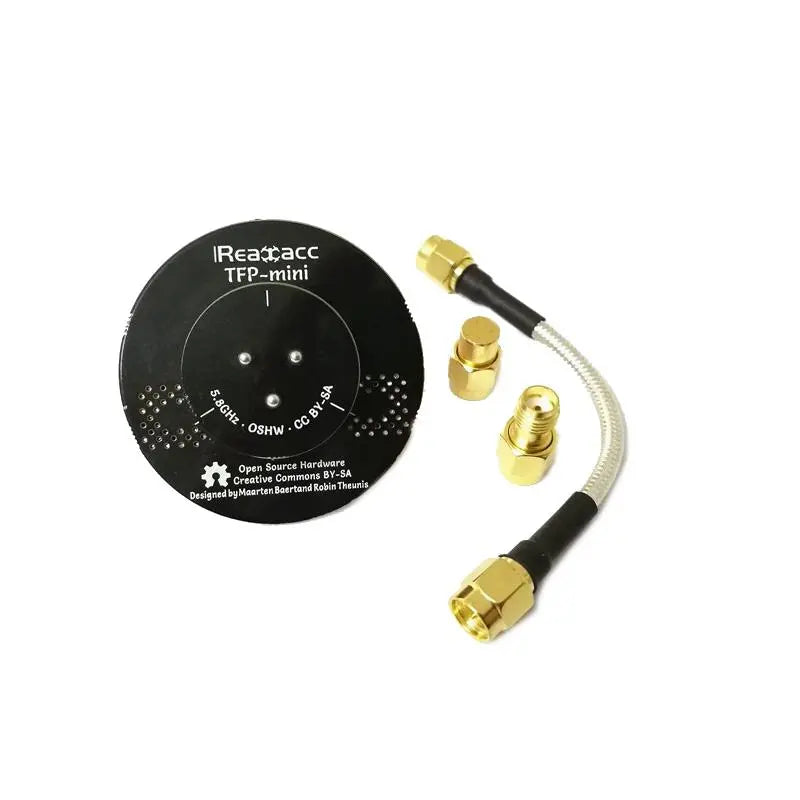

TFP-Mini Triple Feed Patch
Description
Brand Name : RealaccColor : Black
Center frequency: 5.8 GHz
Bandwidth: 660 MHz (5.47 – 6.13 GHz)
Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)
Axial ratio: < 1.3
Antenna gain: 8 dBi
Half power beam width: 65° (horizontal and vertical)
Radiation efficiency: 90%

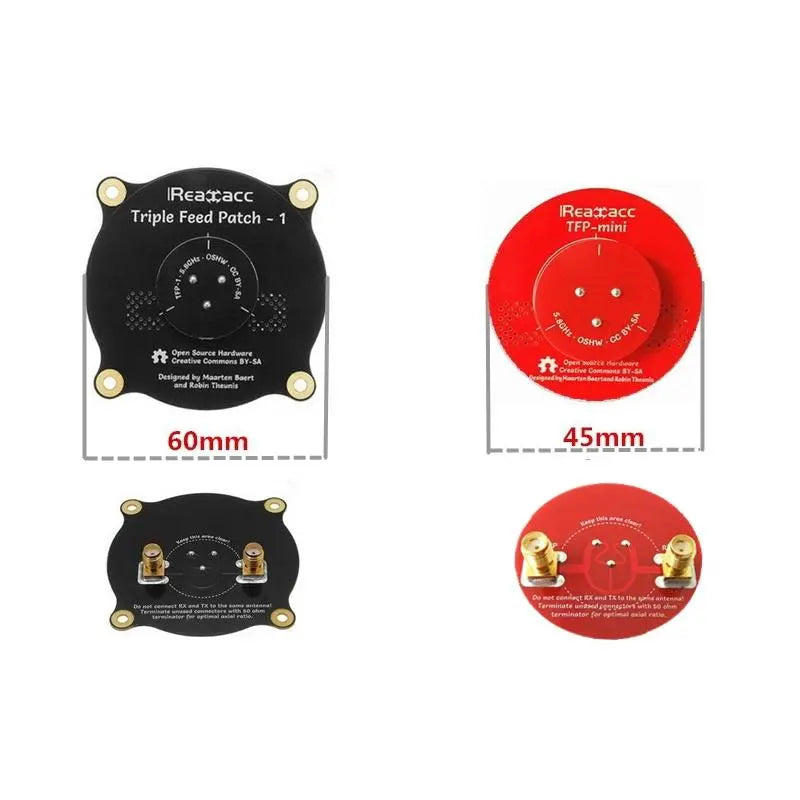

Dia.: 45mm
Package Included
1 x TFP-Mini Triple Feed Patch Antenna
1 x SMA Antenna Extension Cable
1 x SMA Female to RP-SMA Male Adpater
1 x SMA Male Terminal Connector
1 x RHCP Pogoda Antenna
